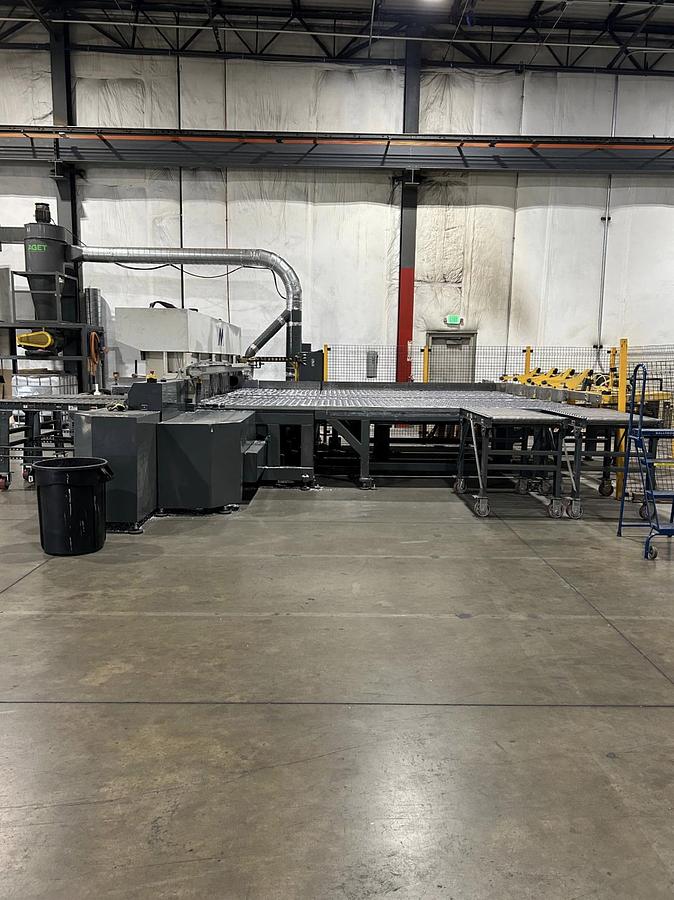

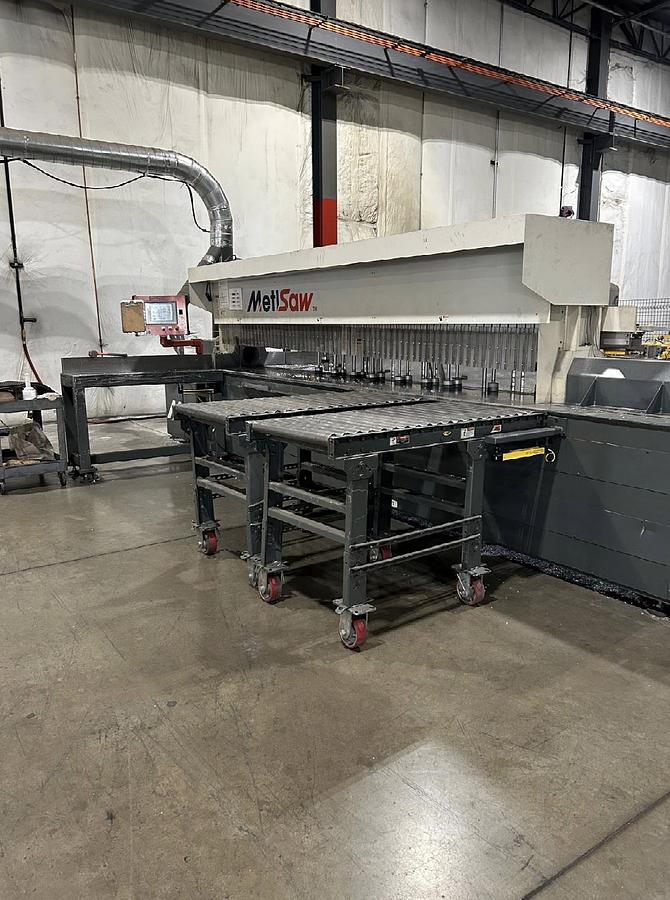

Metlsaw High Production Precision Plate Saw

Specifications:

Manufacturer: Metlsaw

Year: 2015

Nominal Cut Length: 168” (14 ft)

Stock Length Capacity: 168” (14 ft)

Maximum Material Thickness: 8”

Speeds (Inches Per Minute):

Saw Carriage Travel Forward: 450

Saw Carriage Travel Reverse: 800

Feeder Backgauge Travel Forward: 250

Feeder Backgauge Travel Reverse: 250

Capabilities:

Straightness of Cut: ±0.003” per foot

Horizontal Squareness: ±0.002” per foot from corner

Vertical Squareness: ±0.0005” per inch of thickness

Position Tolerance: ±0.003”

Parallelism Over Whole Length: ±0.003”

Features:

Arbor Motor Size: 50 HP

Main Frame Table: Equipped with air flotation system

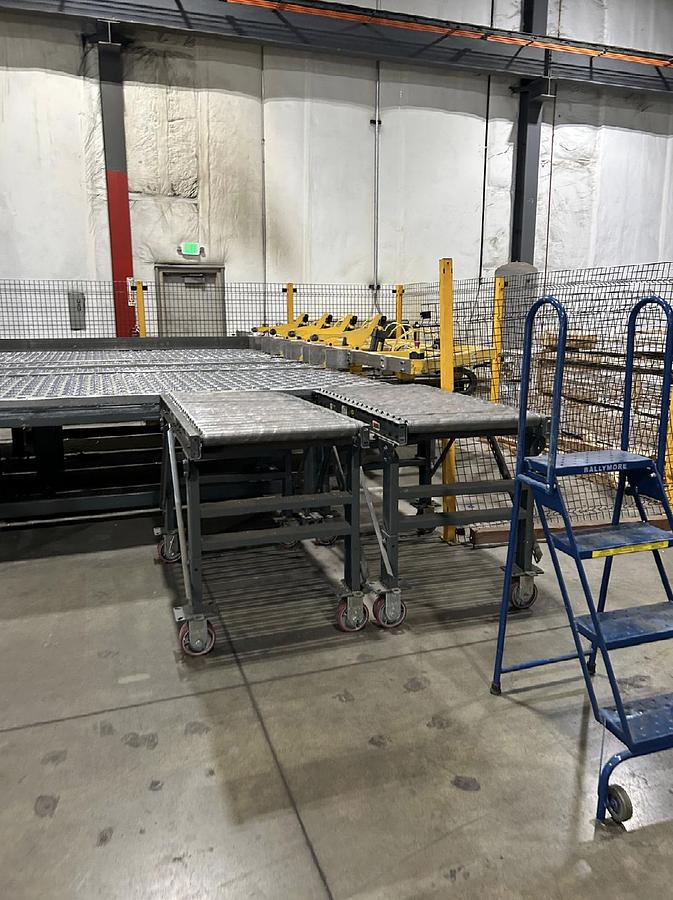

Movable Roller Tables: 4 included, 18” wide x 60” long each with brakes

Machined Air Float Table: 18” wide x 60” long

Backgauge: Precision ball screw positioning with clamps

Backgauge Table: Equipped with ball transfers

Auxiliary Bar Clamps: Included

Side Guiding Alignment: Automatic

Blade Lubrication: Misting system

Safety Equipment:

Operator shielding

Front light curtain

Backgauge safety fencing

Controls:

Rockwell PLC

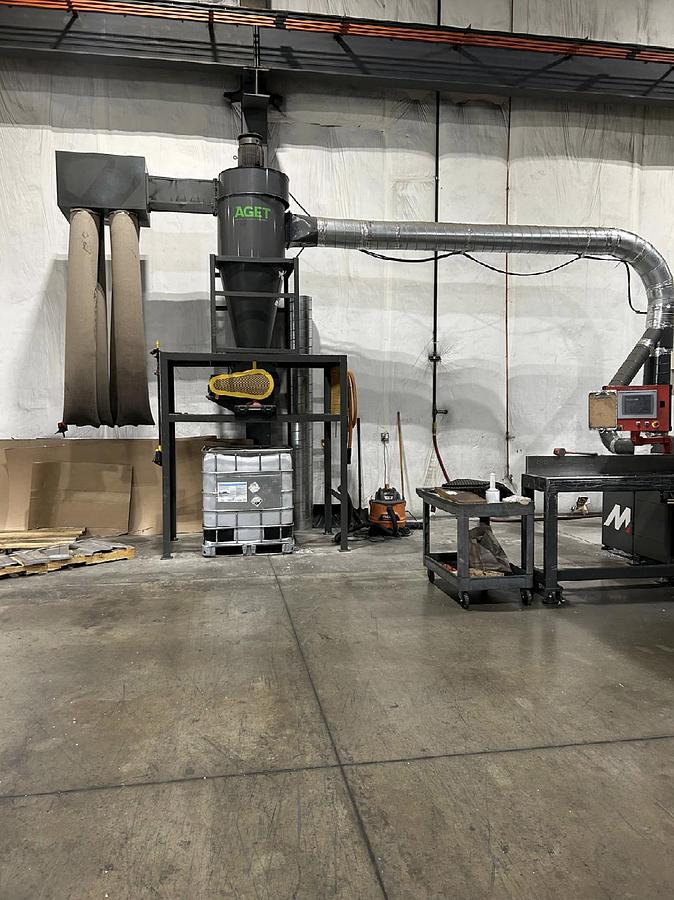

Chip Collection System:

AGET 15 HP vacuum system with rotary valve
