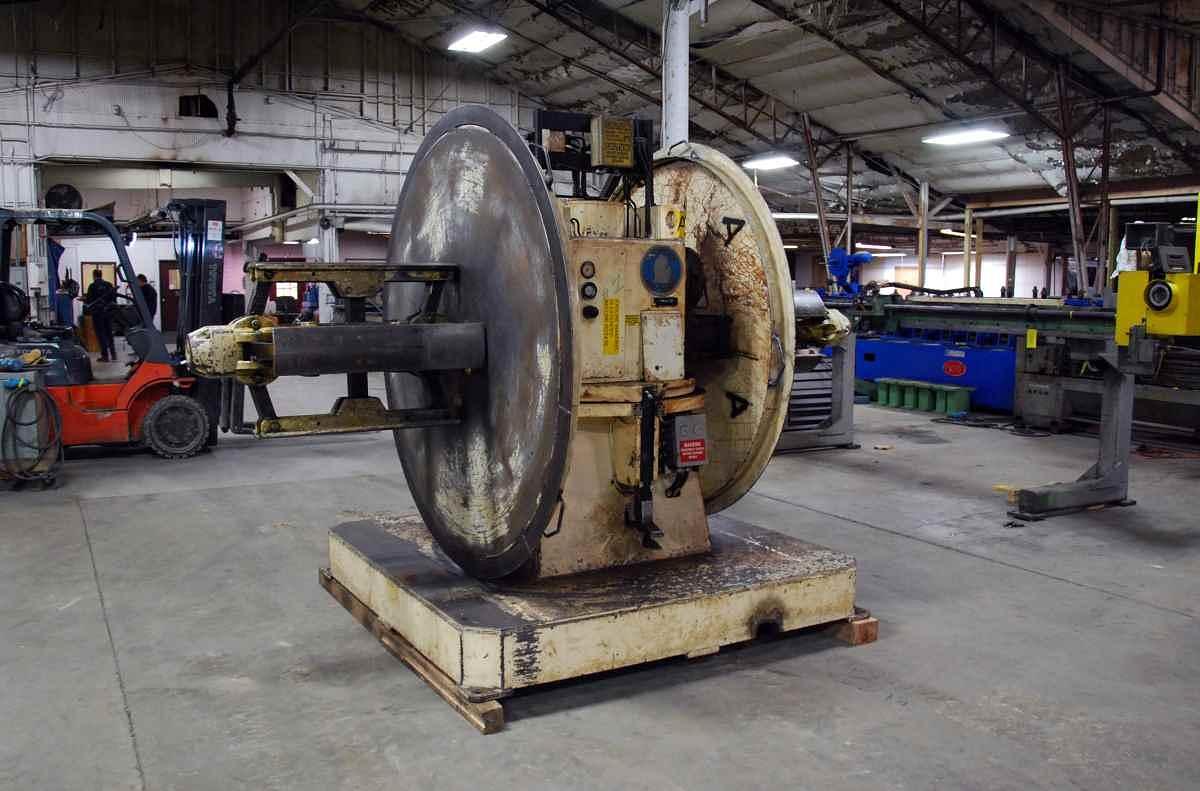

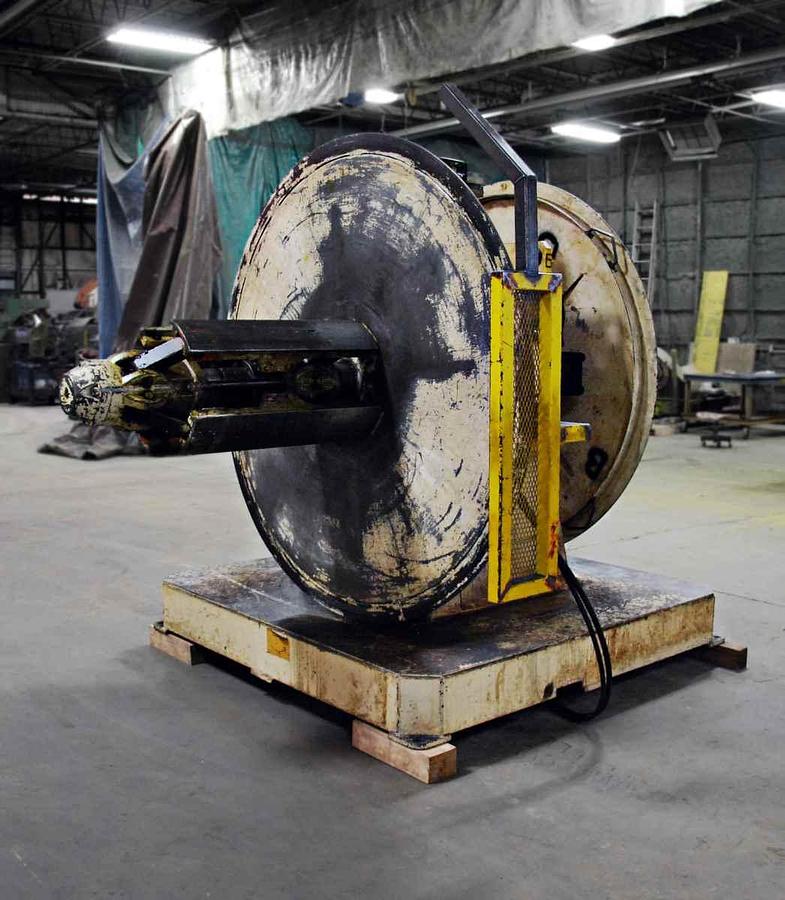

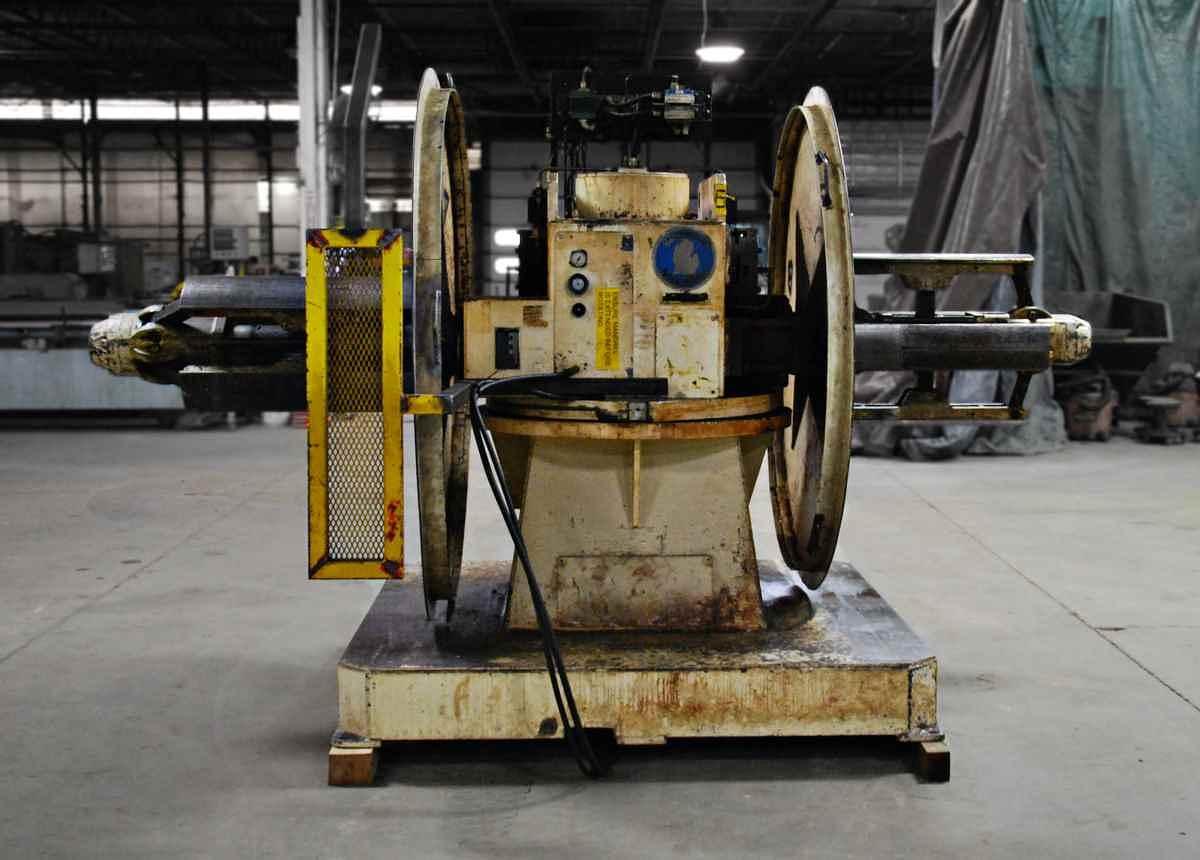

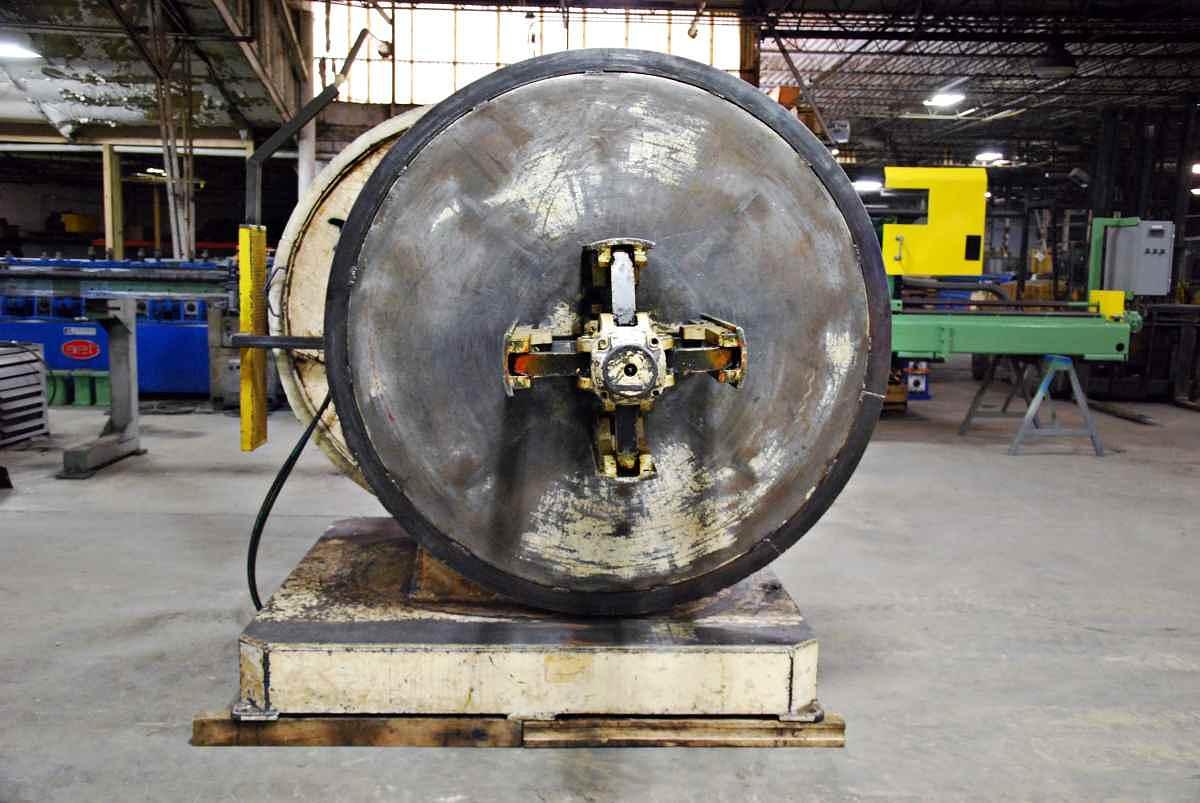

24” x 10,000 Lb. Michigan Roll Form Double Uncoiler

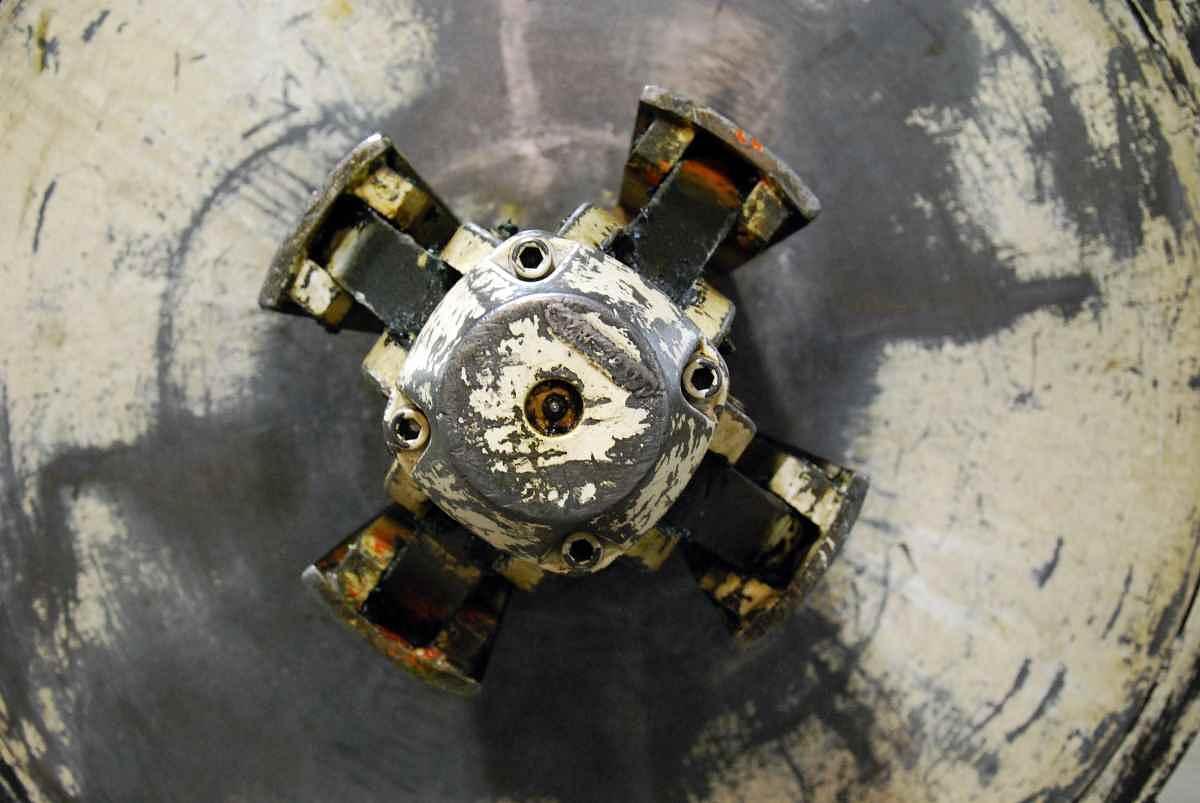

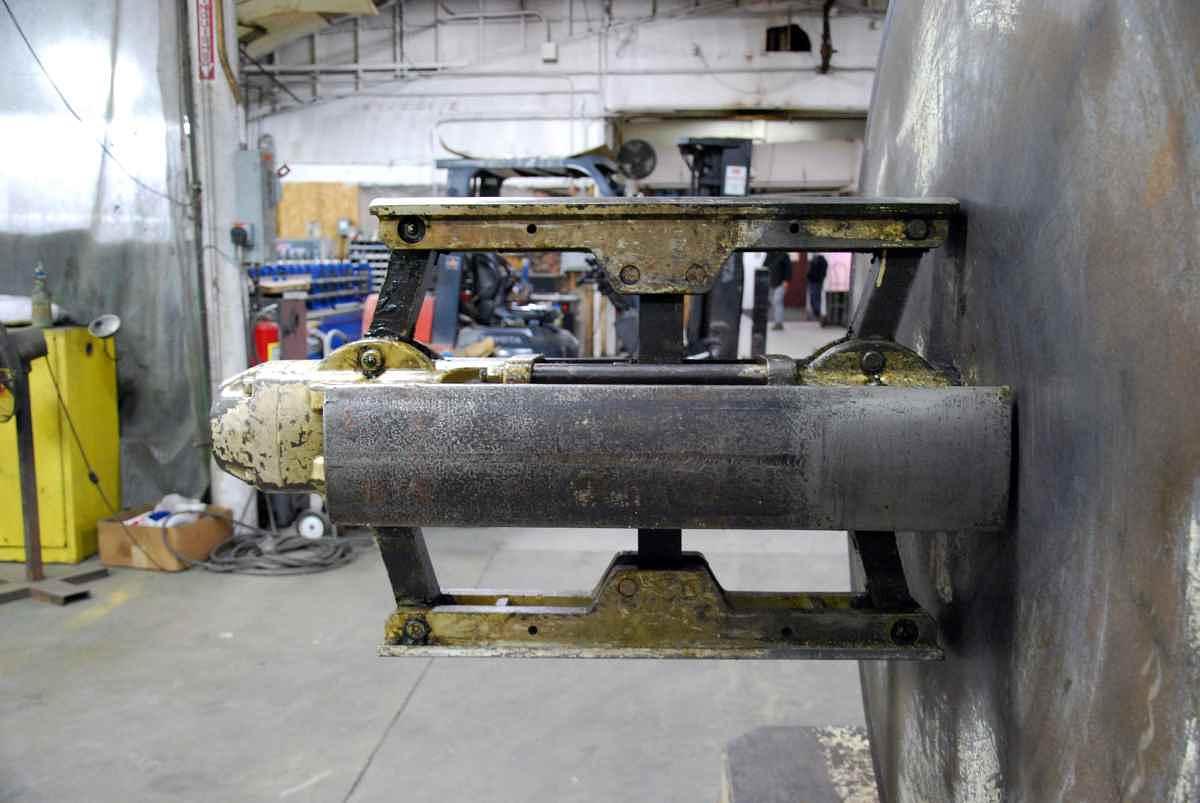

This used 24” x 10,000 lb. Michigan Roll Form Double Uncoiler offers robust coil handling capabilities, catering to heavy-duty industrial needs. It can support a weight capacity of 10,000 lbs. per side and accommodates coils with a maximum outer diameter of 72 inches and a width of up to 24 inches. The coil inner diameter range spans from 16 to 20 inches, providing versatility for different applications. The uncoiler is designed with a non-motorized drive and features dimensions of 11 feet in length, 8 feet in width, and 7 feet in height, with an approximate weight of 11,500 lbs. It includes beneficial features such as 4-arm hydraulic expansion for secure coil handling, air brakes for precise control, and manual rotation with a pin lock system. Back plates are also part of its equipment, contributing to its operational efficiency. Built by the reputable Michigan Roll Form, this equipment combines practicality with durability, making it a reliable choice for those in the metal forming and processing industry. It is ideal for facilities that require a sturdy and capable uncoiling solution for high-capacity tasks.
