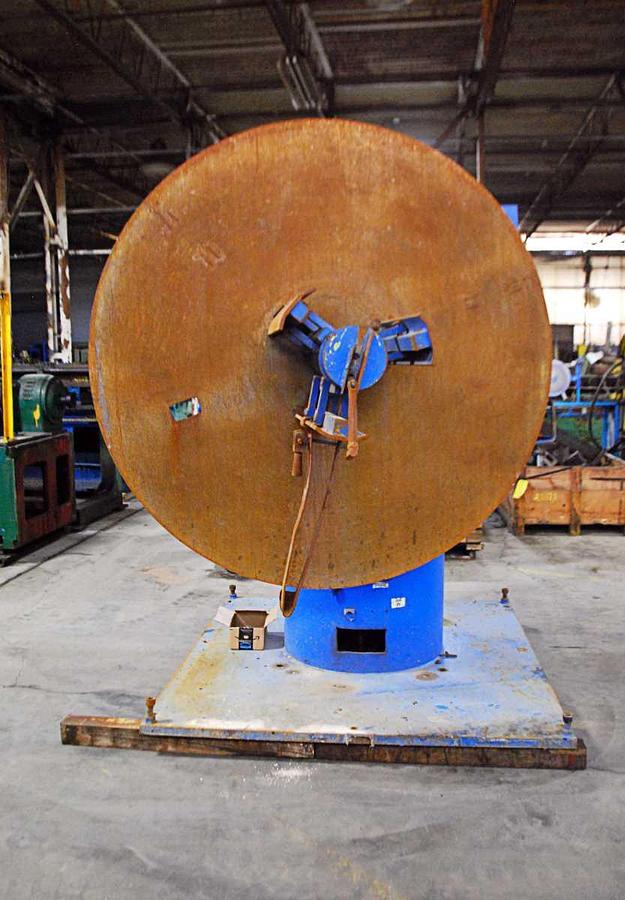

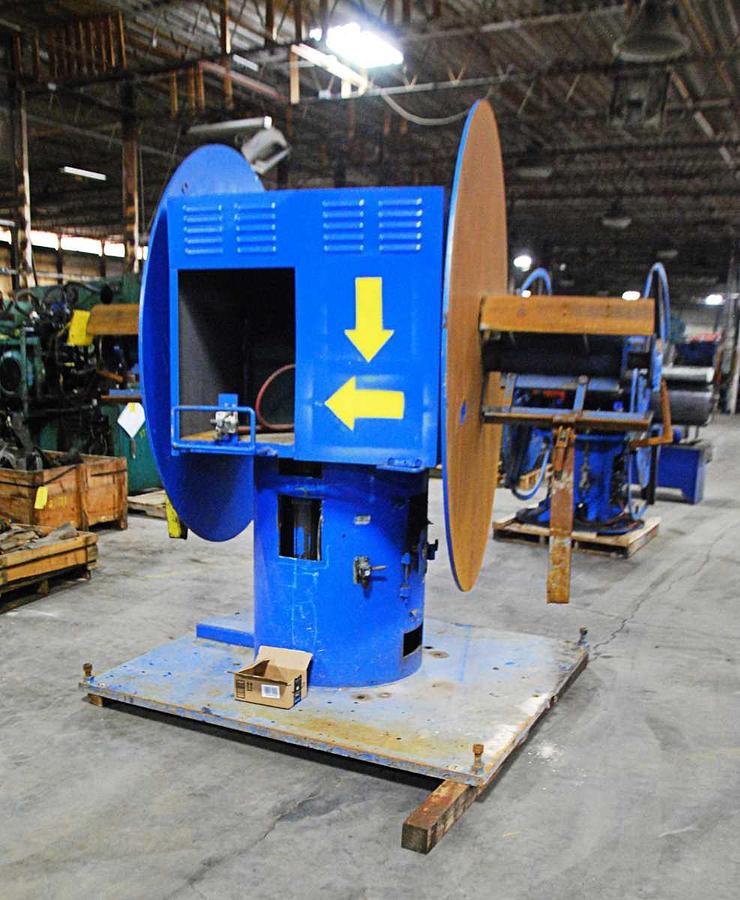

18” x 10,000 Lb. COE Double Uncoiler

The used COE Double Uncoiler is designed to handle heavy-duty applications with a coil weight capacity of up to 10,000 lbs per side. It accommodates a maximum coil width of 18 inches, and the coil inner diameter range is between 15 and 20 inches, supporting a maximum outer diameter of 72 inches. Its braking system employs air brakes, while the unit operates without a drive and features manual rotation. The uncoiler is robustly constructed with overall dimensions of 8 feet in length, 8 feet in width, and 7 feet in height, weighing approximately 6,500 lbs. This equipment is outfitted with manual expansion capabilities, two coil keepers, and additional backing plates for secure coil handling. The design allows for flexibility and efficiency in loading and unloading operations typical to industrial settings.
