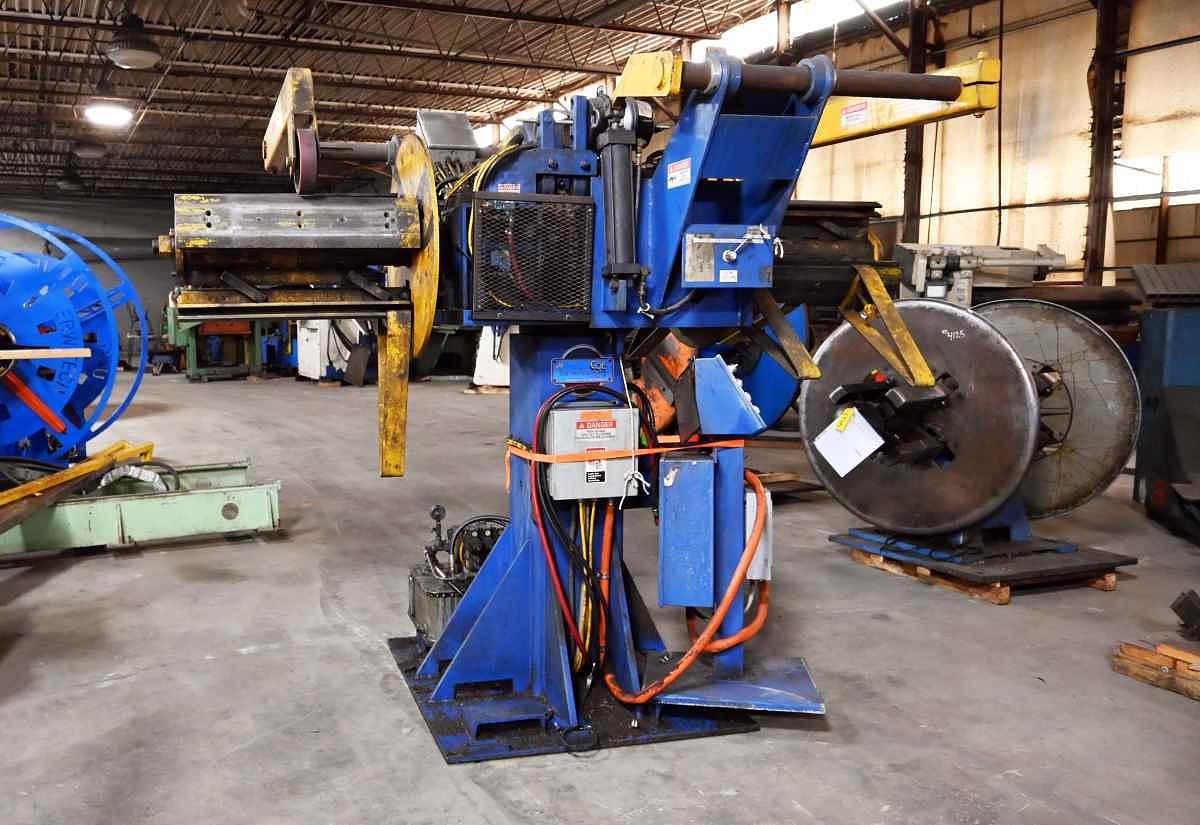

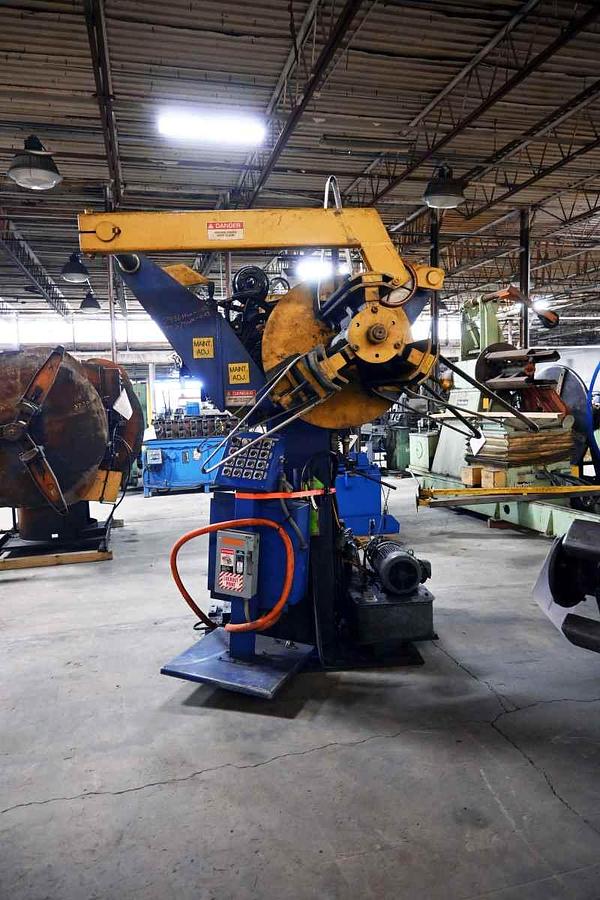

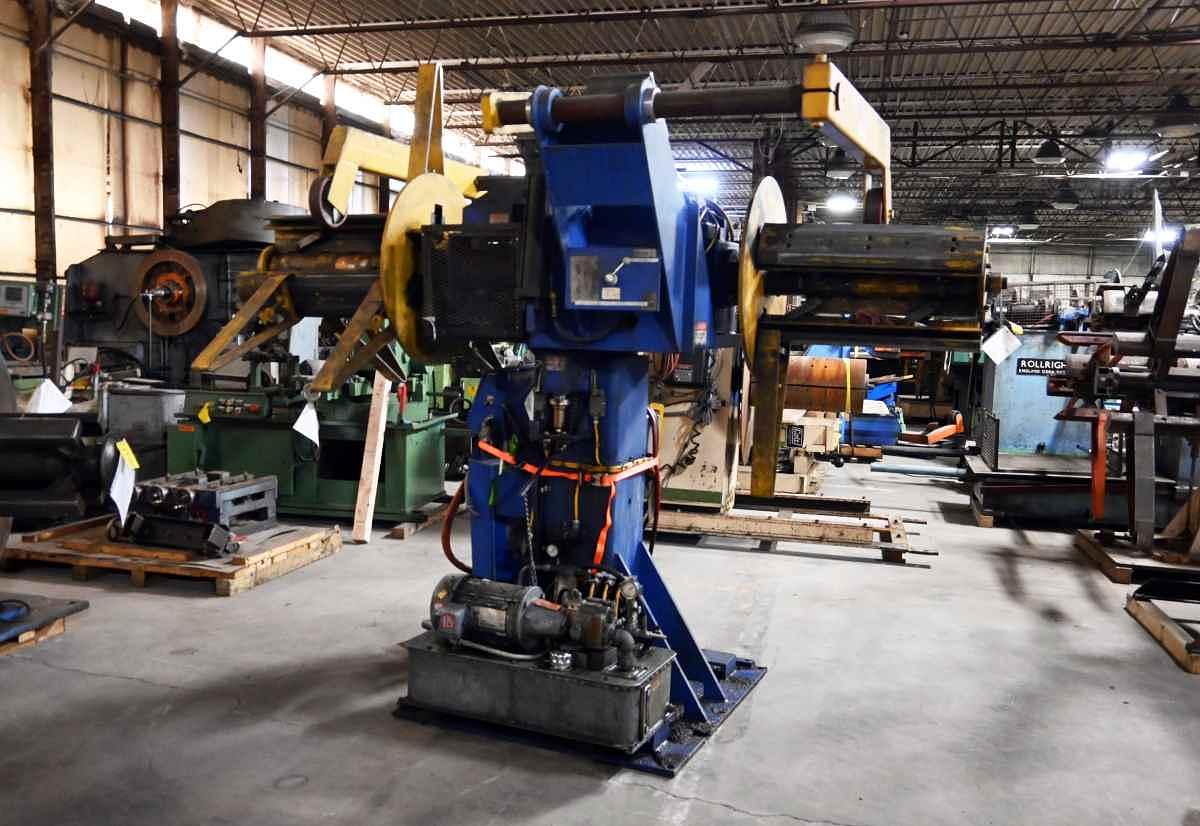

24” x 8,000 Lb COE Double Uncoiler

Specifications:

Manufacturer: COE

Capacity: 8,000 Lb Per Side

Maximum Coil Width: 24”

Coil I.D. Range: 20” - 24”

Maximum Coil O.D.: 72”

Overall Dimensions: 8’ x 9’ x 8’

Approximate Weight: 6,000 Lb

Equipped With:

Hydraulic Hold Down Arms

Hydraulic Unit

3-Arm Hydraulic Expansion/Contraction

(6) Coil Keepers

Control Console

Electrical Cabinet

Hydraulic Driven

Air Disc Brakes
