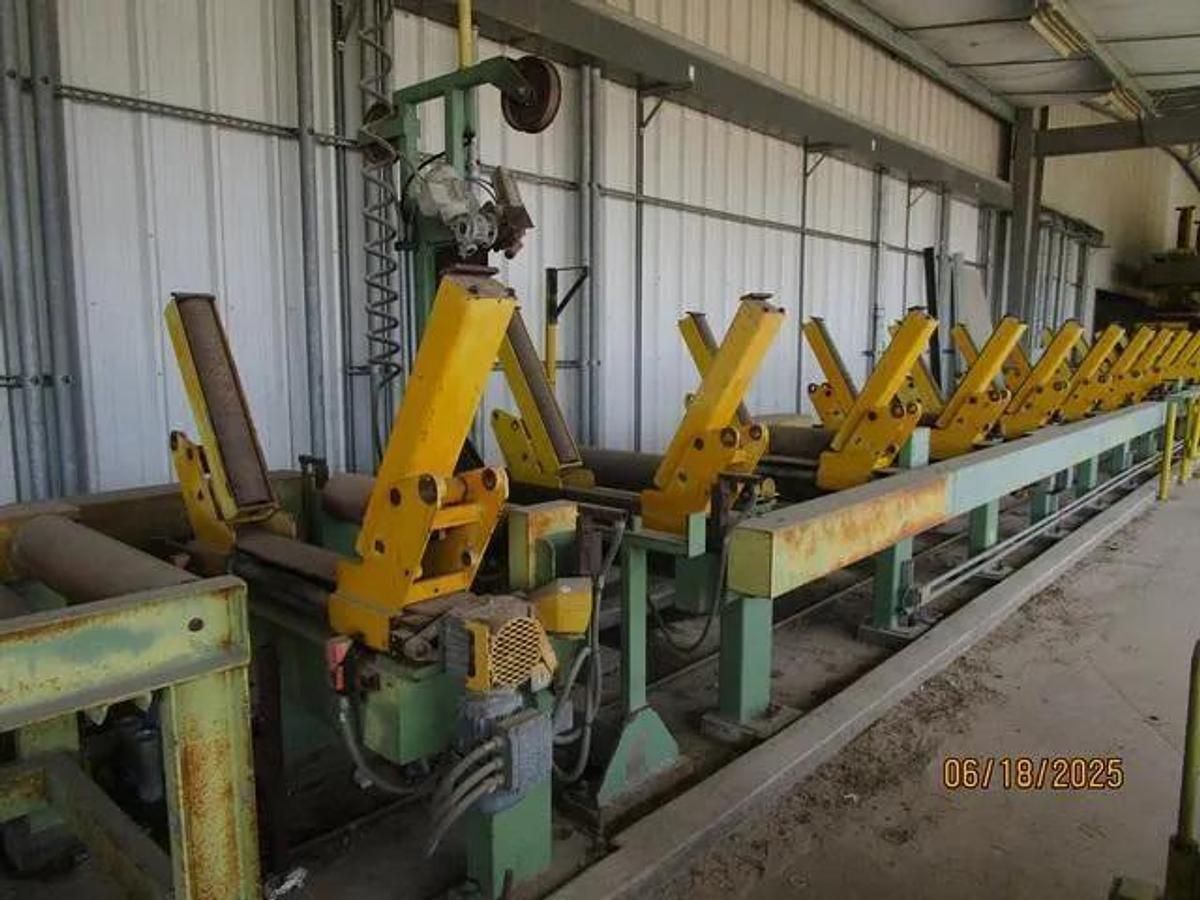

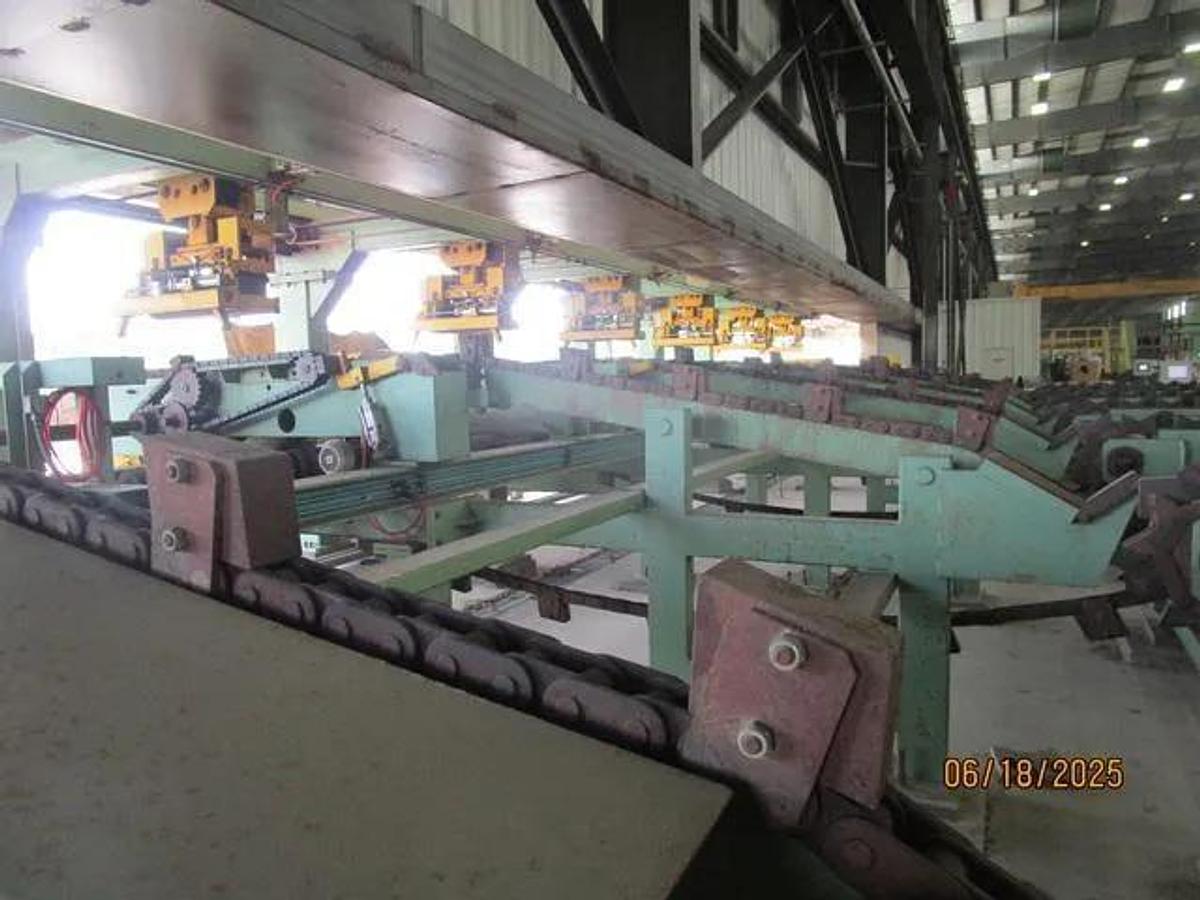

7” Diameter x 60’ Mair Stacker and Exit Conveyor

Specifications:

Manufacturer: Mair

Pipe Diameter: 2-3/8” – 7” (60mm – 177mm)

Pipe Length: 21’ – 60’ (6.4m – 18.3m)

Wall Thickness: .120” – .500” (3mm – 12.7mm)

Bundle Dimensions: Hexagonal, 300mm x 260mm to 700mm x 610mm

Bundle Weight: 4 Tons

Equipped With:

Inclined Entry Tube Sortation Conveyor

Tube Orientation Table

Magnetic Bundle Lifting (7 Magnetic Lifts)

Bundle Station

Exit Bundle Conveyor

Bundle Chain Transfer Conveyor

Lifting Stations / Tiling Lifts

Elevation Table

Operator Push Button Station

Controls:

Allen-Bradley Touch Screen

Allen-Bradley HMI

Allen-Bradley PowerFlex Digital Drives

Allen-Bradley Kinetix 6500

Allen-Bradley Remote I/O
