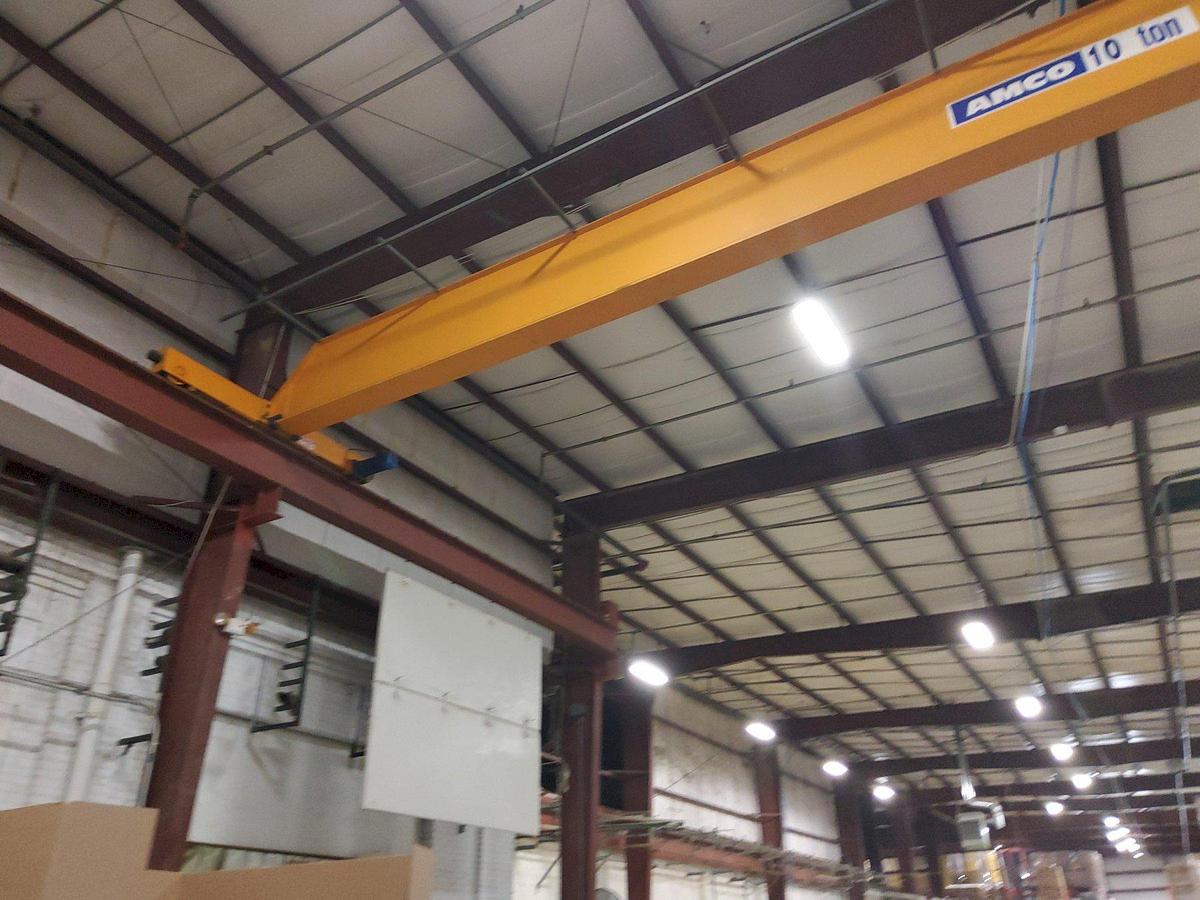

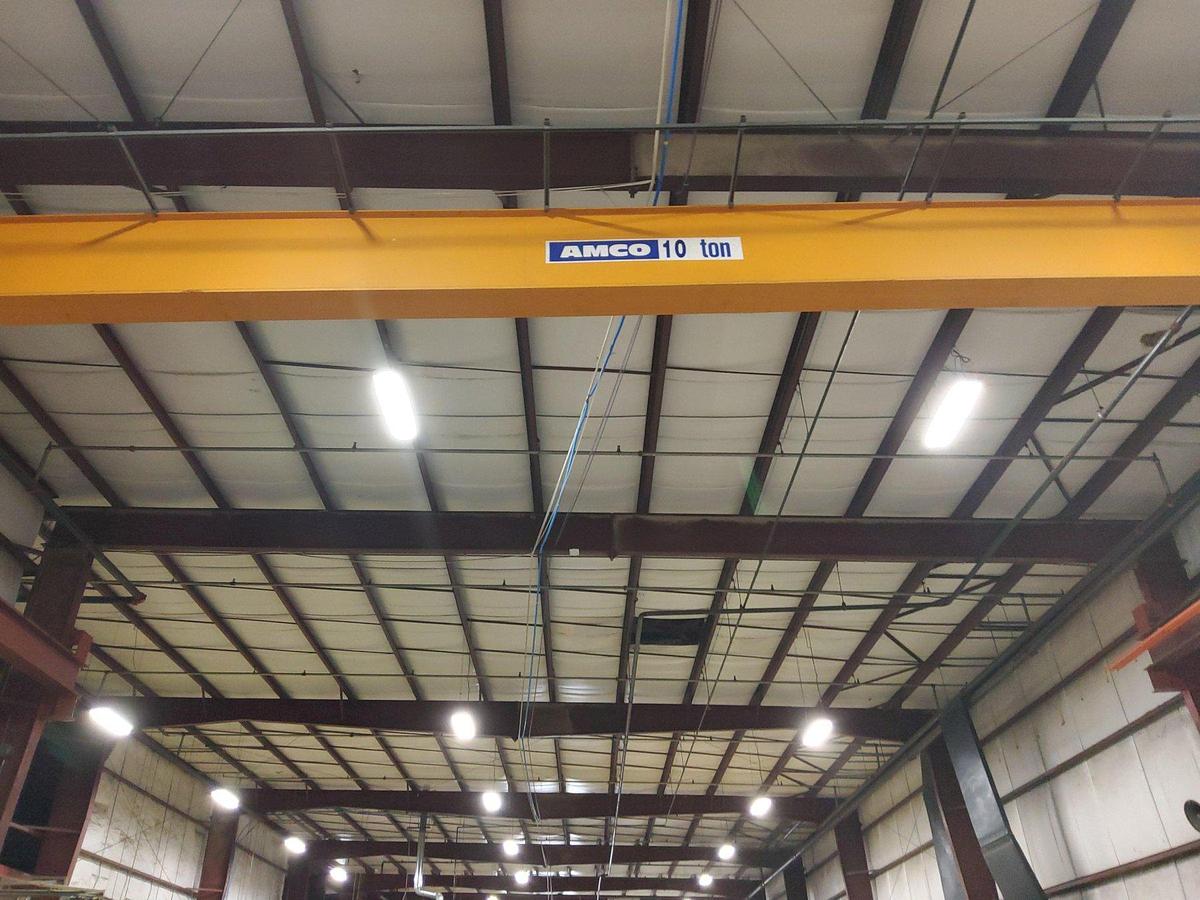

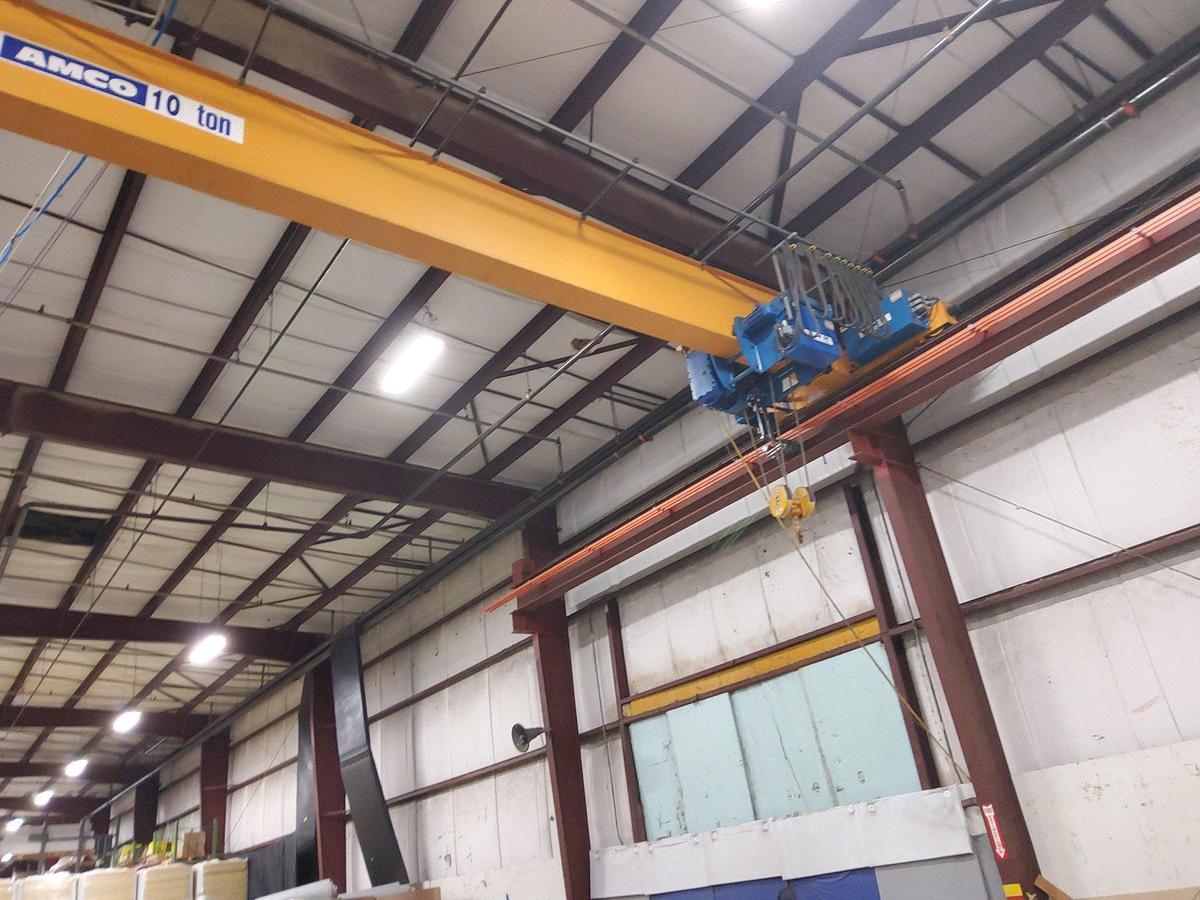

10 Ton x 47’ ABBUS Bridge Crane with EMH Hoist

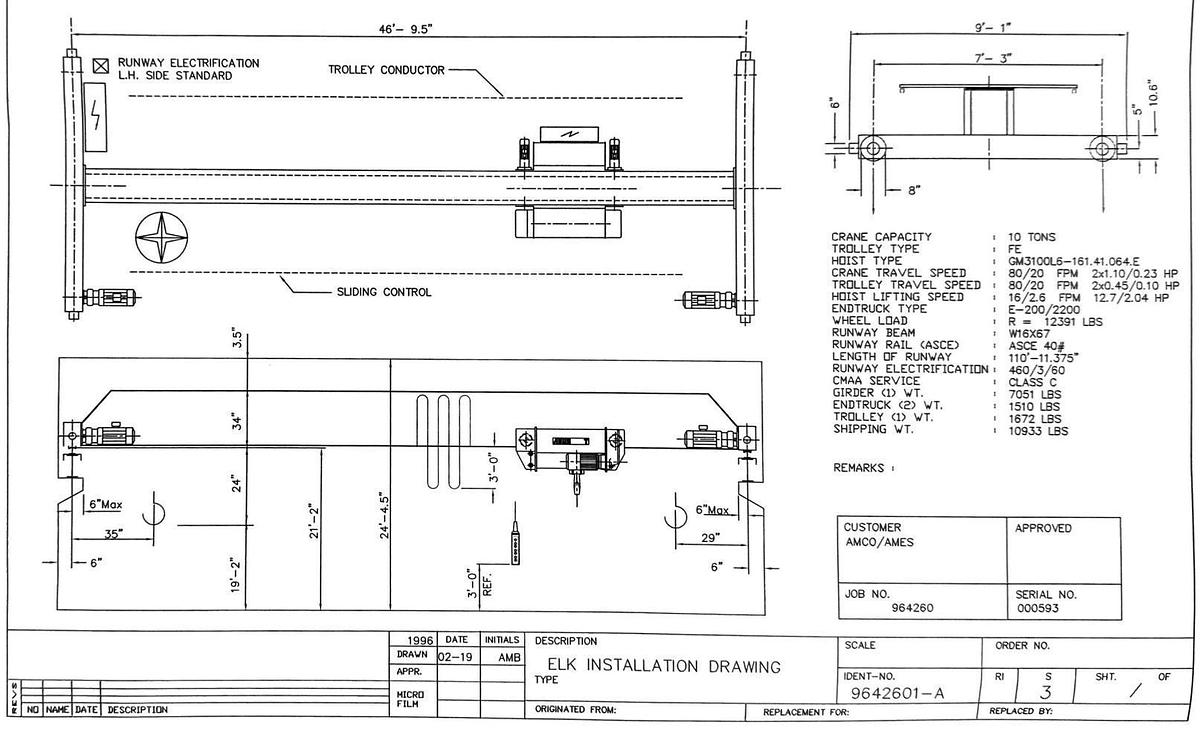

Specifications:

Manufacturer: Abbus

Capacity: 10 Ton

Class: C

Span: 46’ 9.5”

Type: Single Girder, Top Running Bridge

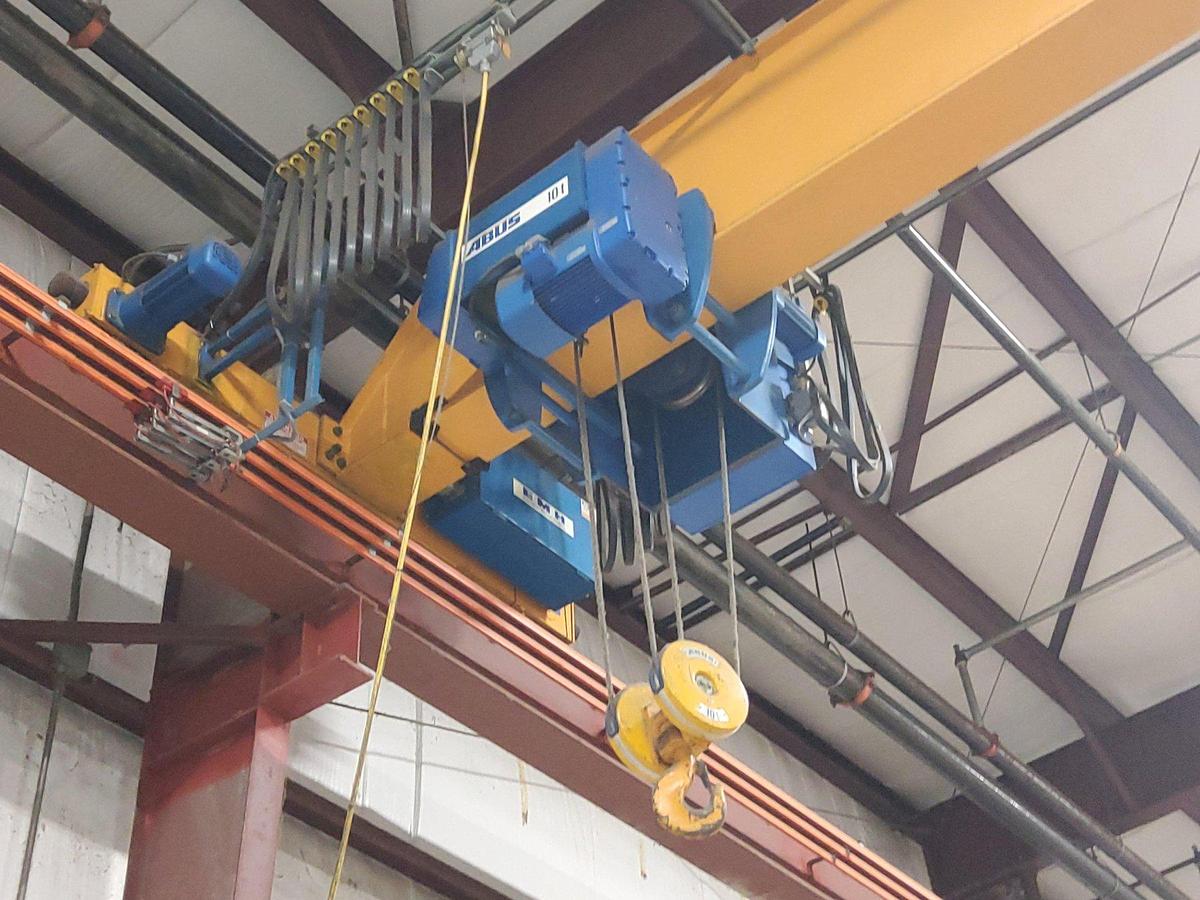

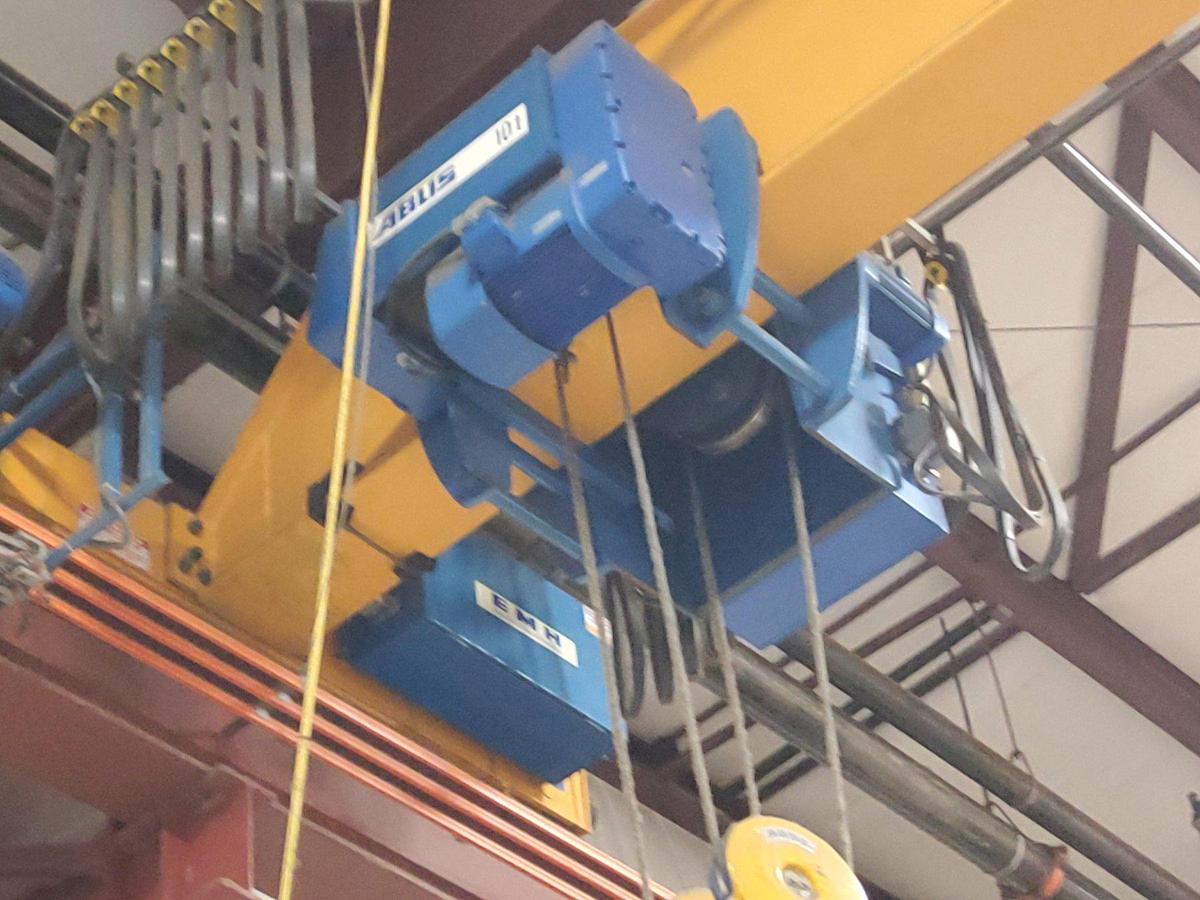

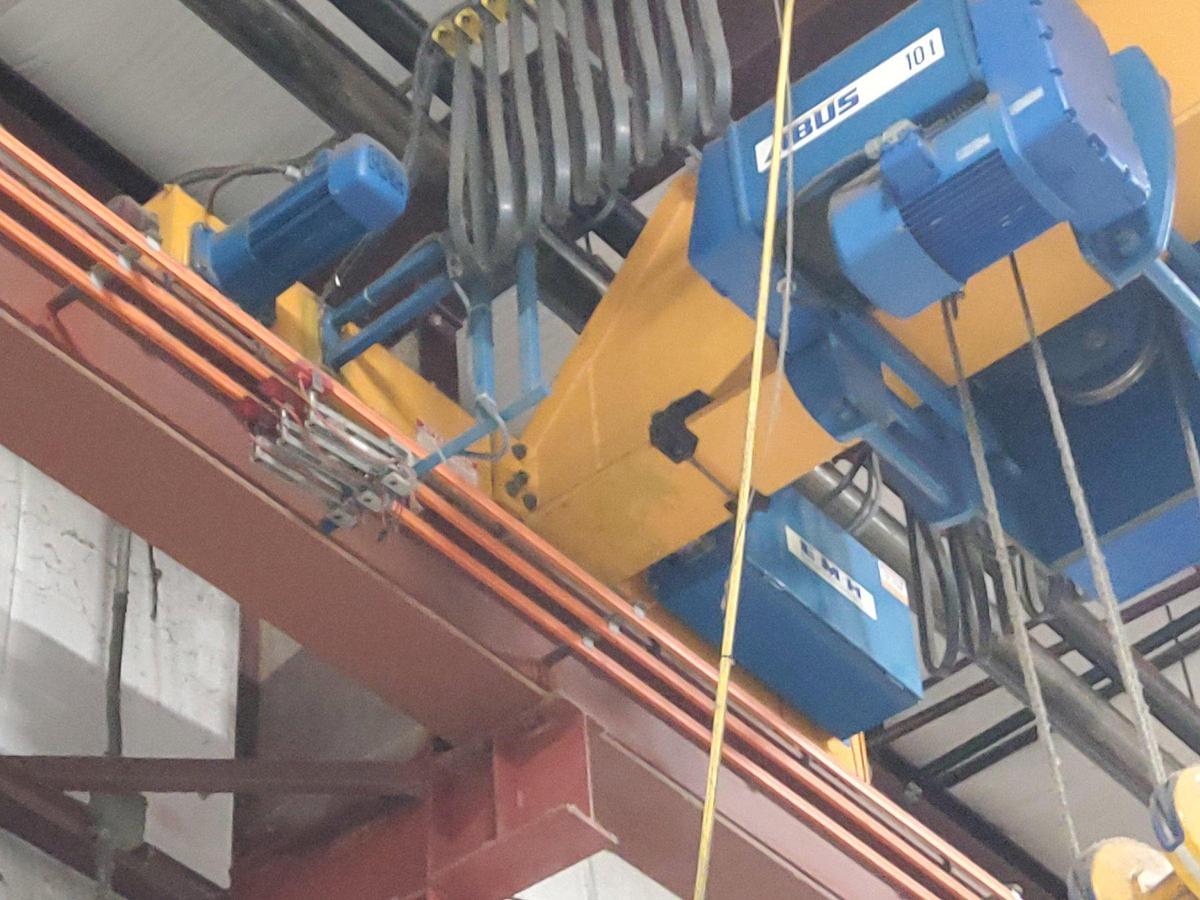

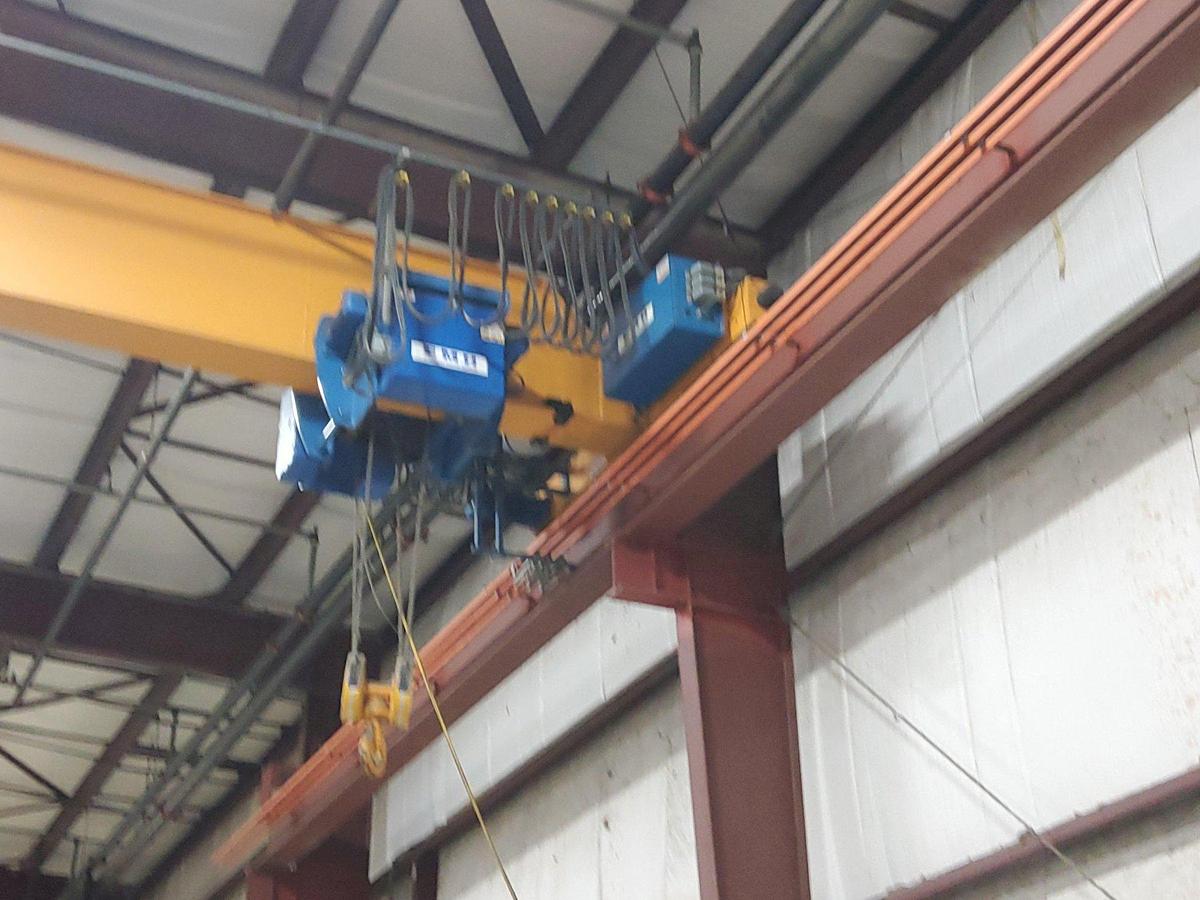

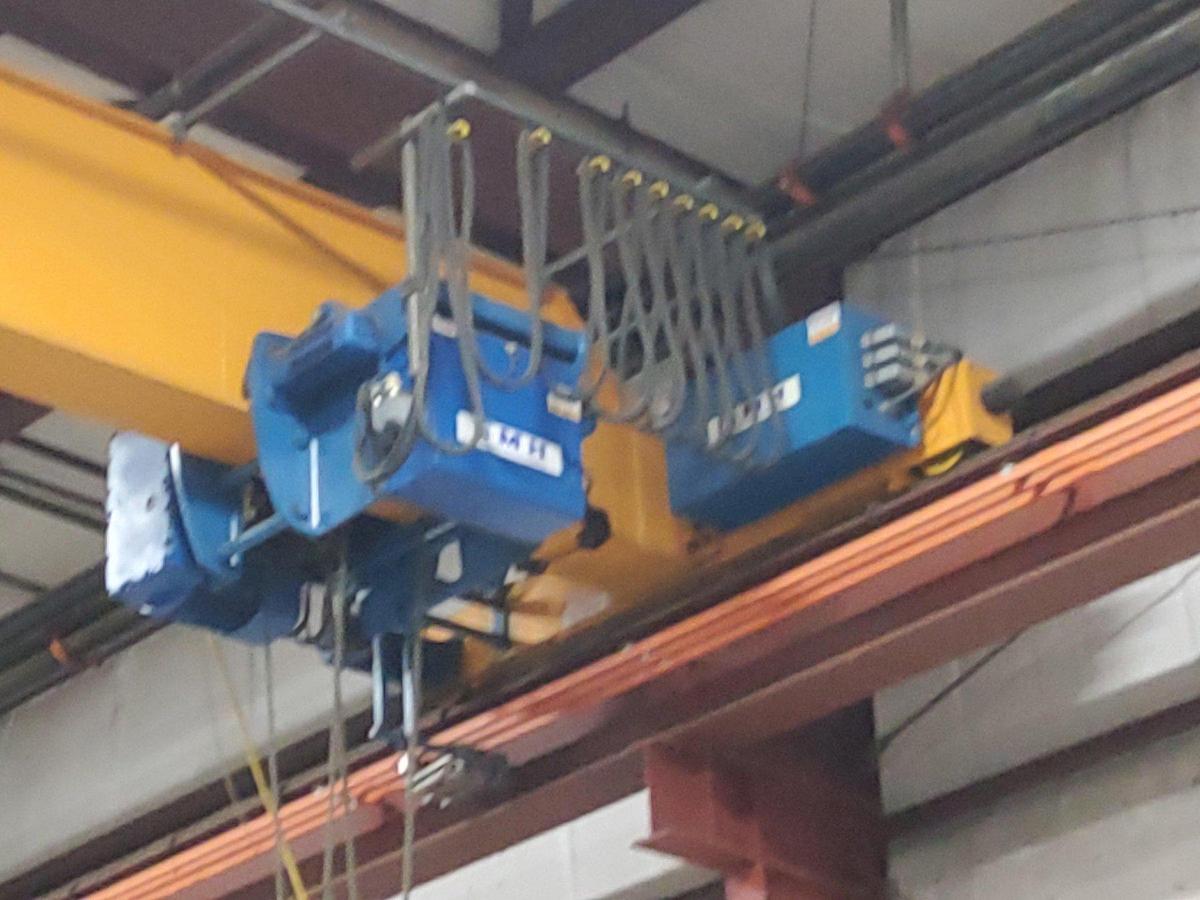

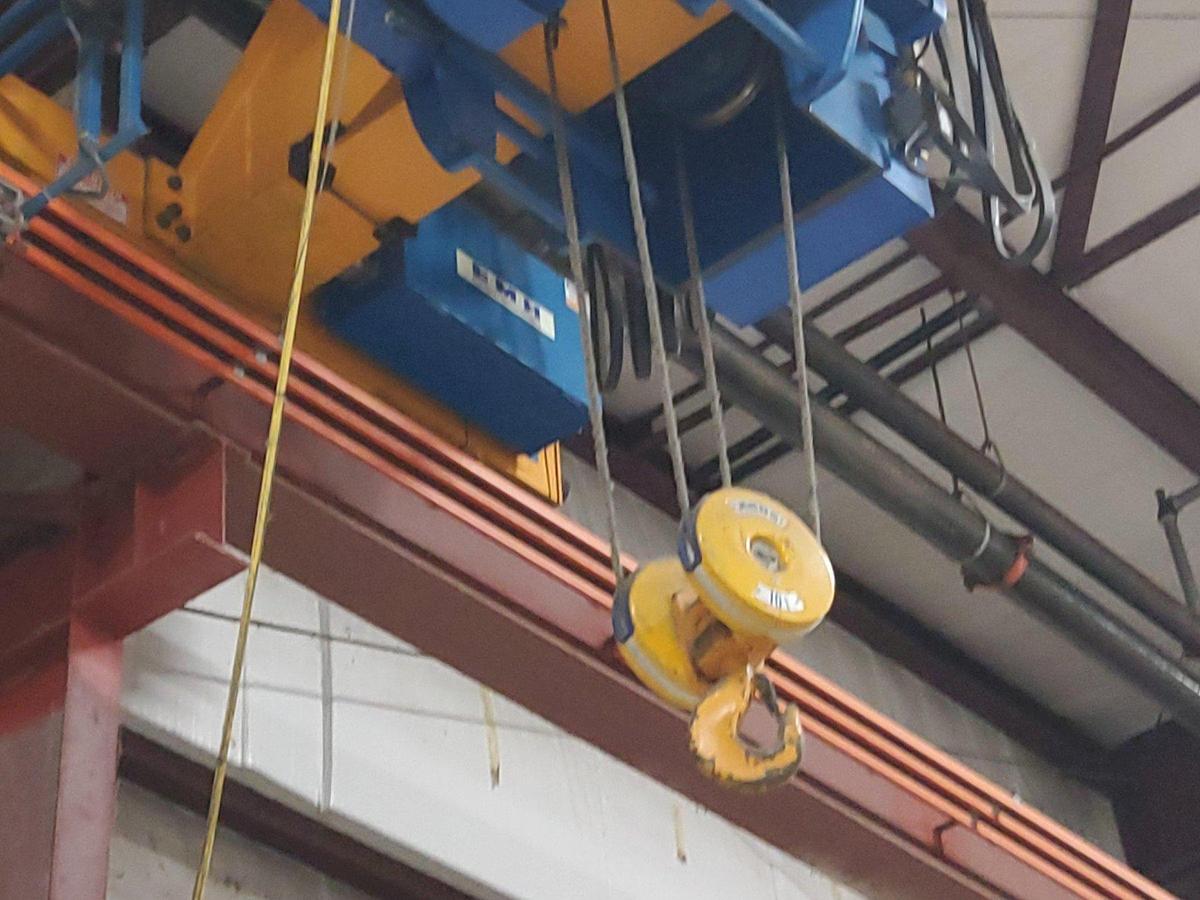

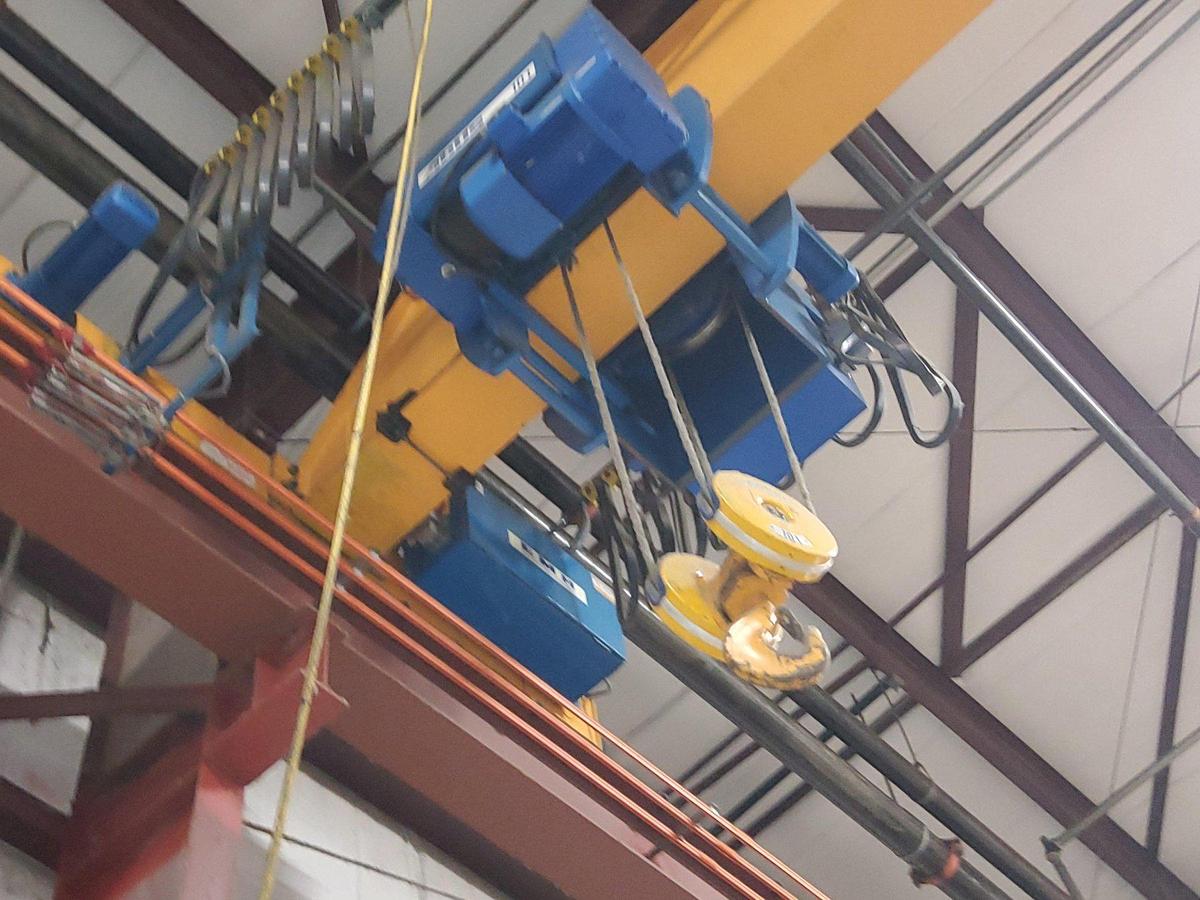

Hoist Type: Underslung

Hoist Model: GM3100L6-161.41.064.E

Lift: 21’ 2”

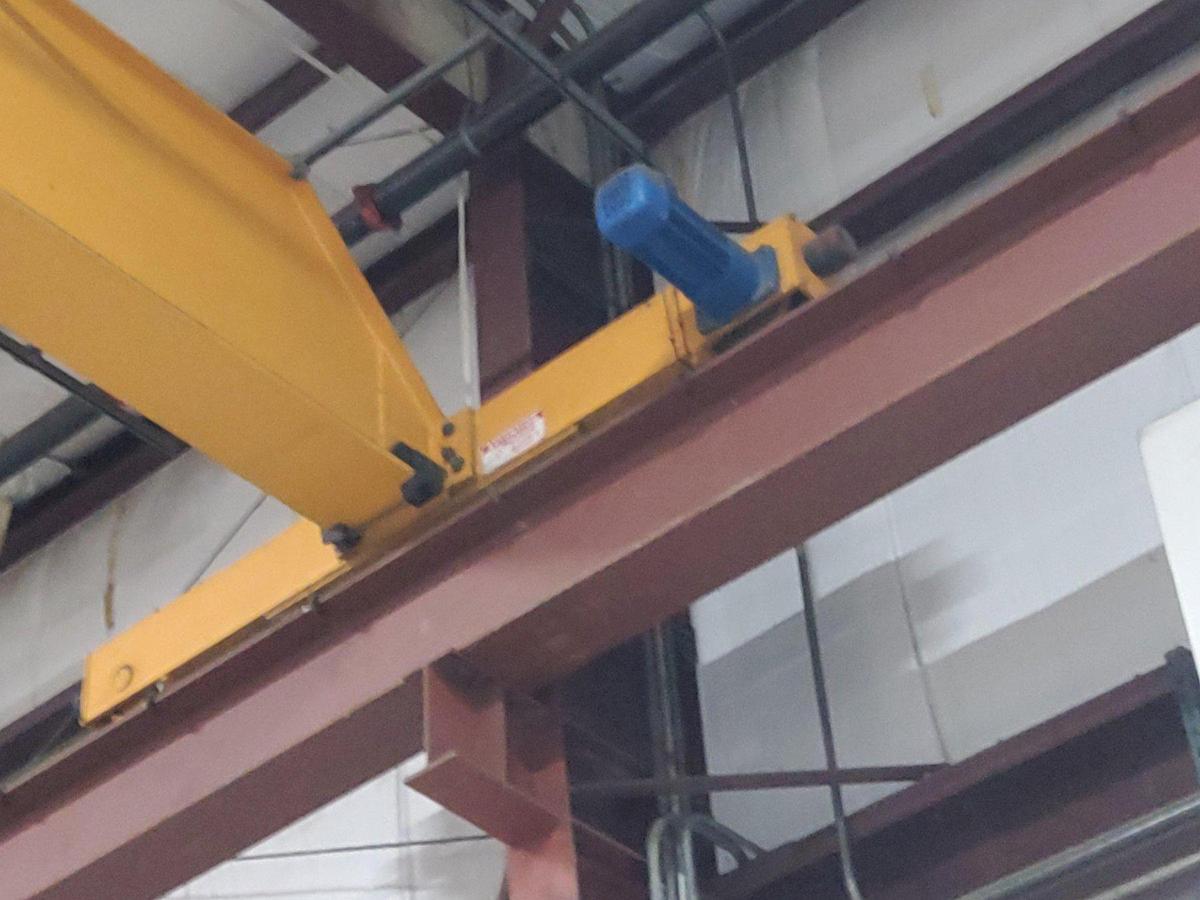

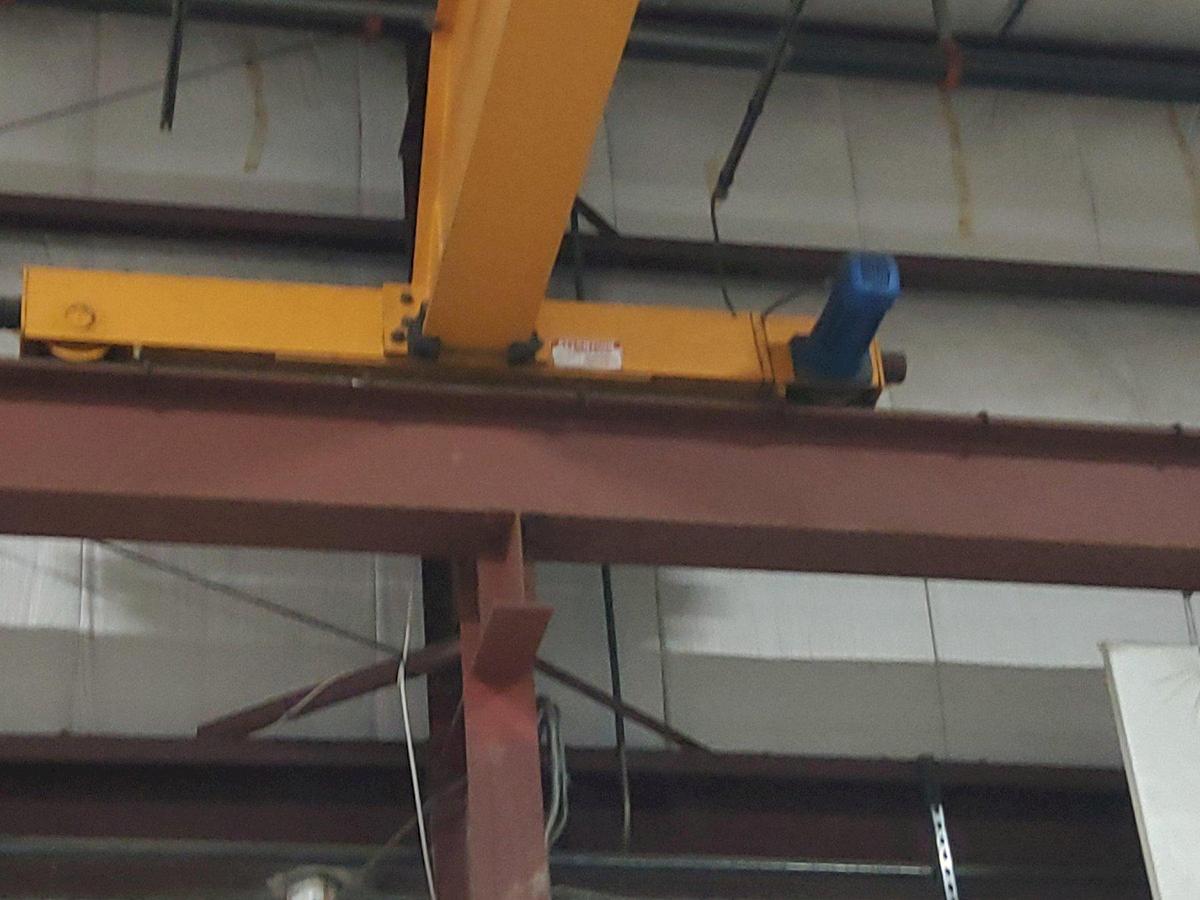

End Truck Length: 9’ 1”

Main Beam Height: 34”

Headroom Above Rail: 34”

Speeds and Motors:

Bridge Speed: 80/20 FPM

Bridge Motors: (2) @ 1.1 / 0.23 HP

Trolley Speed: 80/20 FPM

Trolley Motors: (2) @ 0.45 / 0.10 HP

Hoist Speed: 16 / 2.6 FPM

Hoist Motors: (2) @ 12.7 / 2.04 HP
