12" x 4,000 Lb. Littell Motorized Single Uncoiler
Specifications
| Manufacturer | Littell |
| Condition | Used |
| Stock Number | VX-35801 |
| Maximum Coil Weight | 4,000 Lbs. |
| Maximum Coil O.D. | 48" |
| Maximum Coil Width | 12" |
| Coil I.D. Range | 15" - 20" |
| Drive | Motorized |
| Number of Arms | (4) |
| Mandrel Expansion | Manual |
| Back Plate | Included |
| Overall Dimensions | 6' L x 7' W x 8' H |
| Approximate Weight | 2,500 Lbs. |
Description

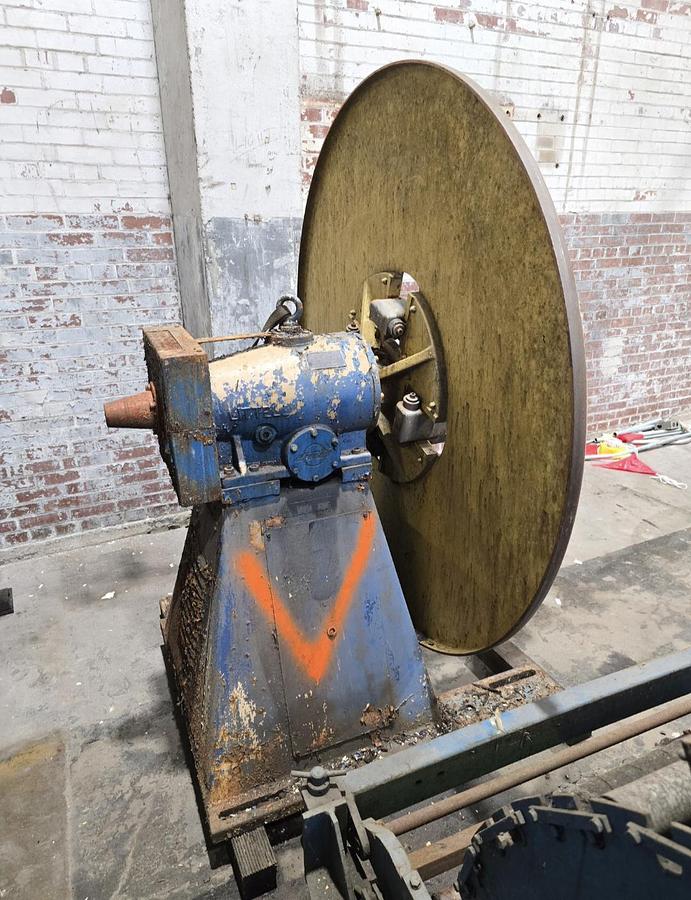

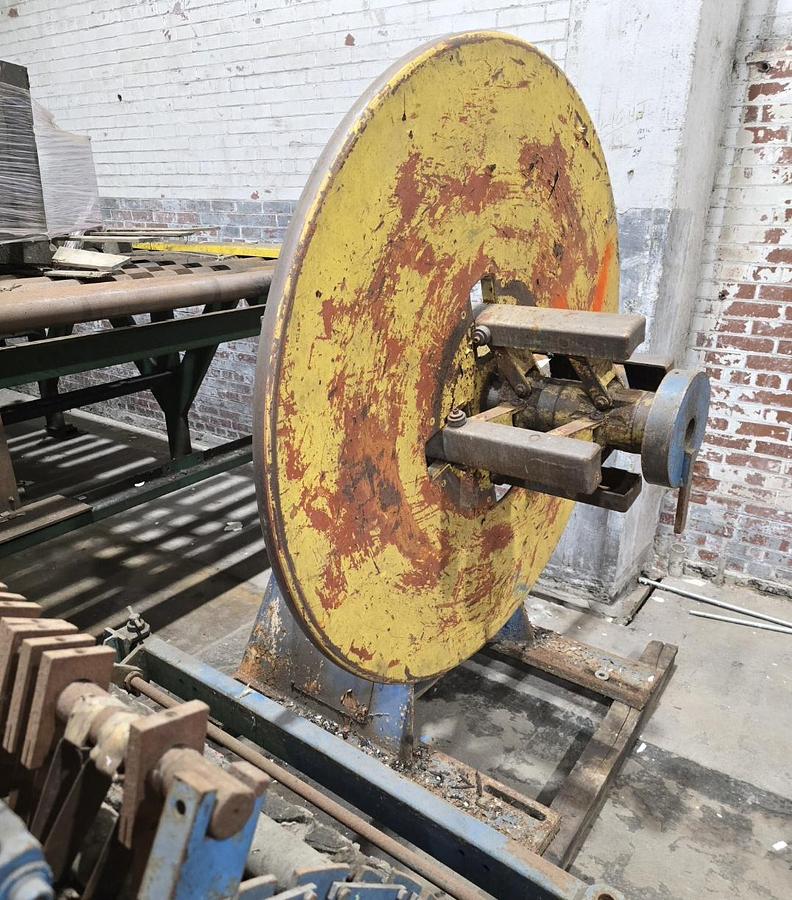

The 12" x 4,000 Lb. Littell Motorized Single Uncoiler is designed to efficiently handle coils with a maximum weight of 4,000 lbs. and an outer diameter of up to 48 inches. It accommodates coil widths of up to 12 inches, with an inner diameter range from 15 to 20 inches. Powered by a motorized drive, this uncoiler features four arms for secure handling. Manual mandrel expansion allows for straightforward adjustments, and the inclusion of a back plate provides additional stability during operation. The overall dimensions of the machine are 6 feet in length, 7 feet in width, and 8 feet in height, with an approximate weight of 2,500 lbs., making it a substantial but manageable piece of equipment for various industrial needs. This used Littell uncoiler offers reliable performance, making it suitable for operations requiring consistent and safe material handling. Its robust construction supports a range of applications, providing practicality and efficiency in industrial settings.
