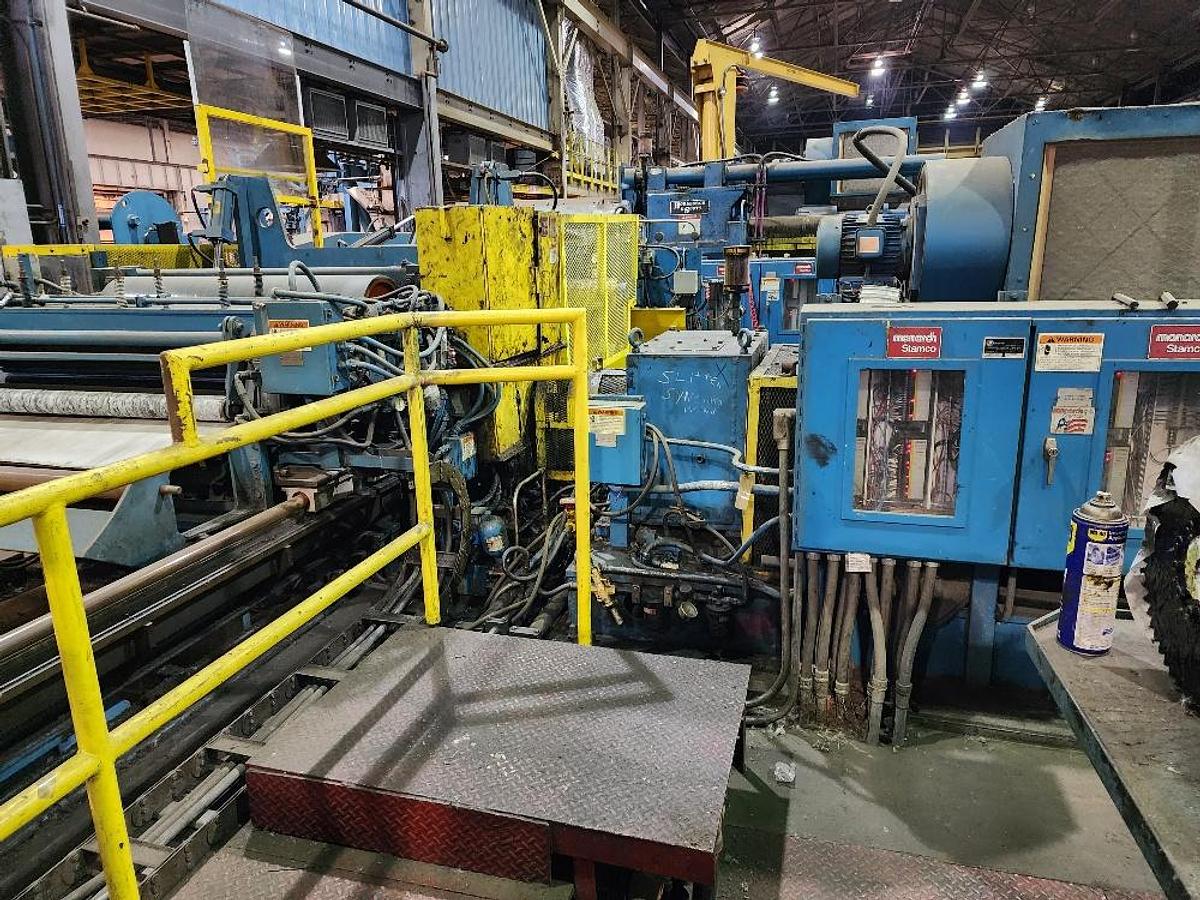

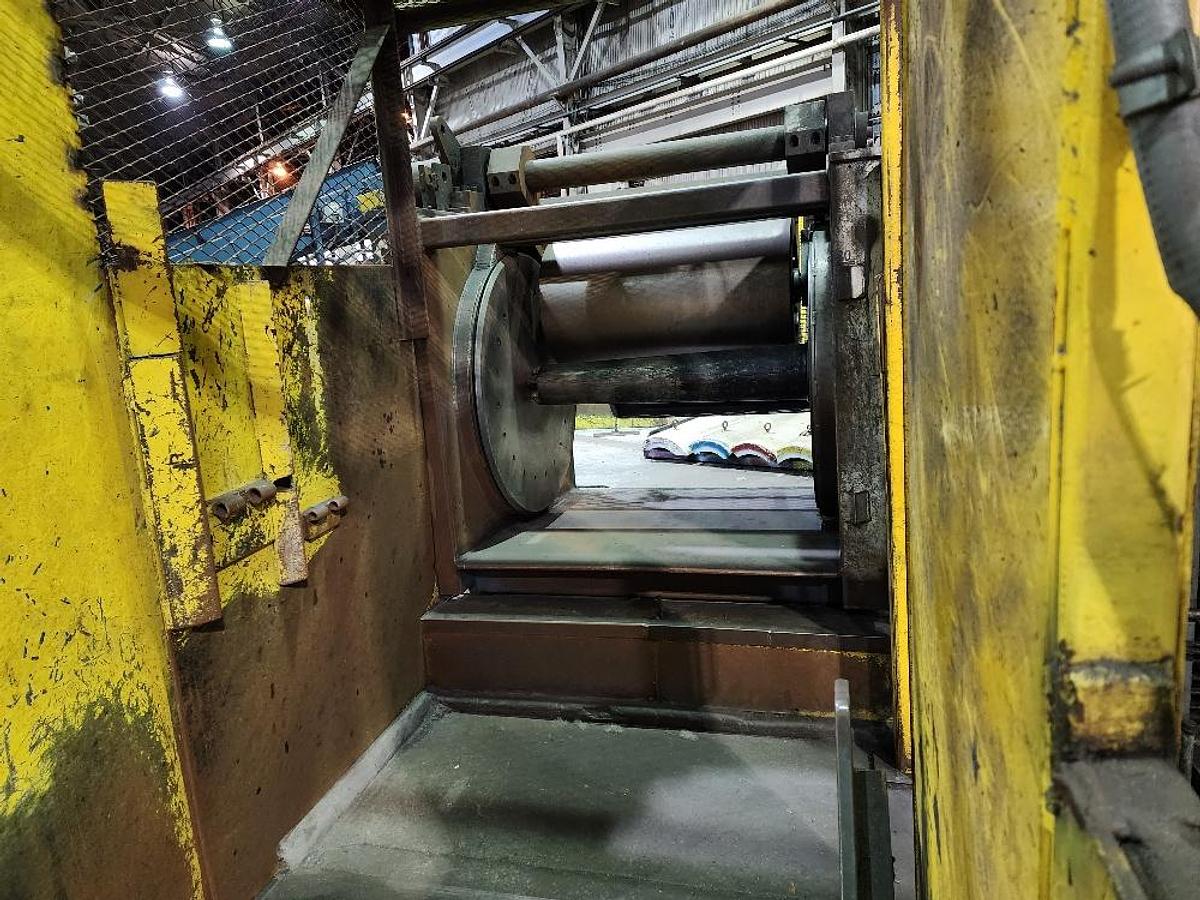

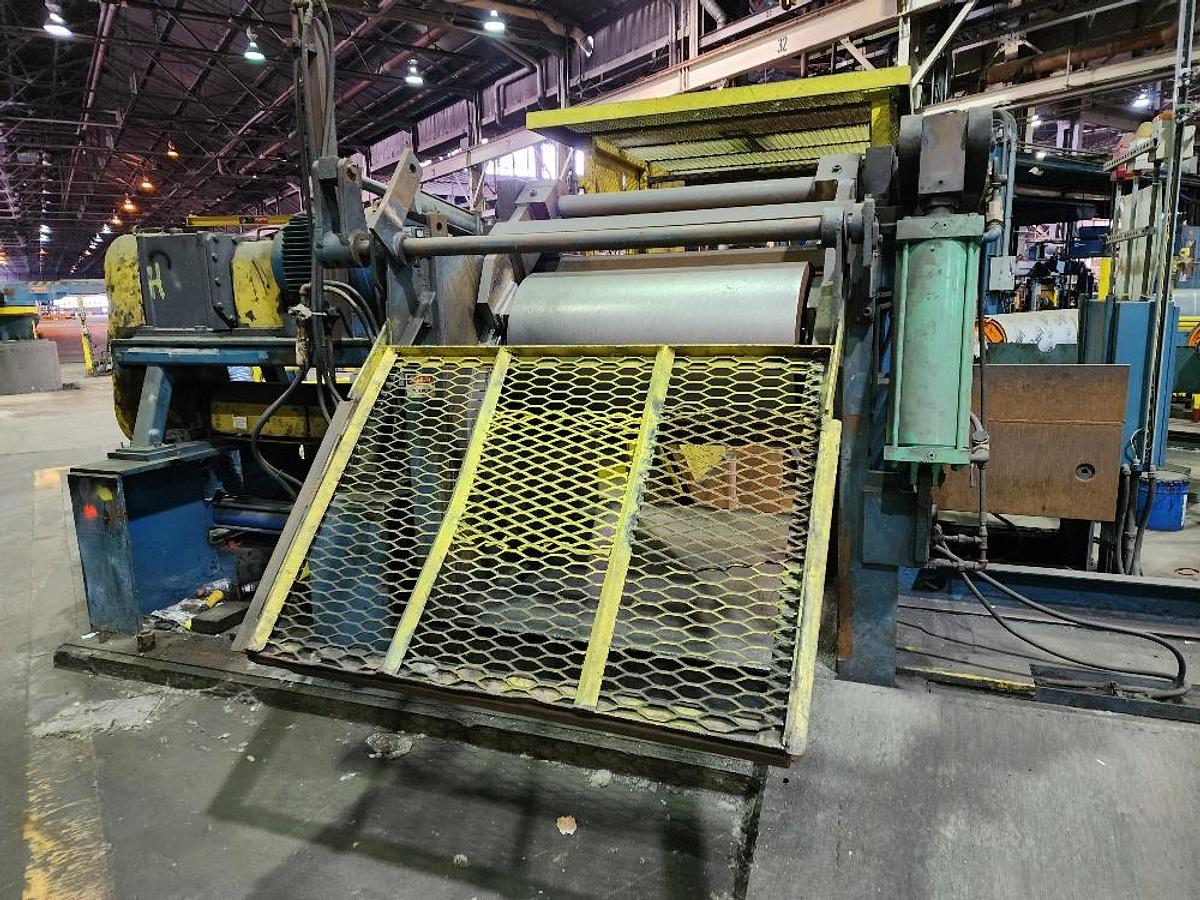

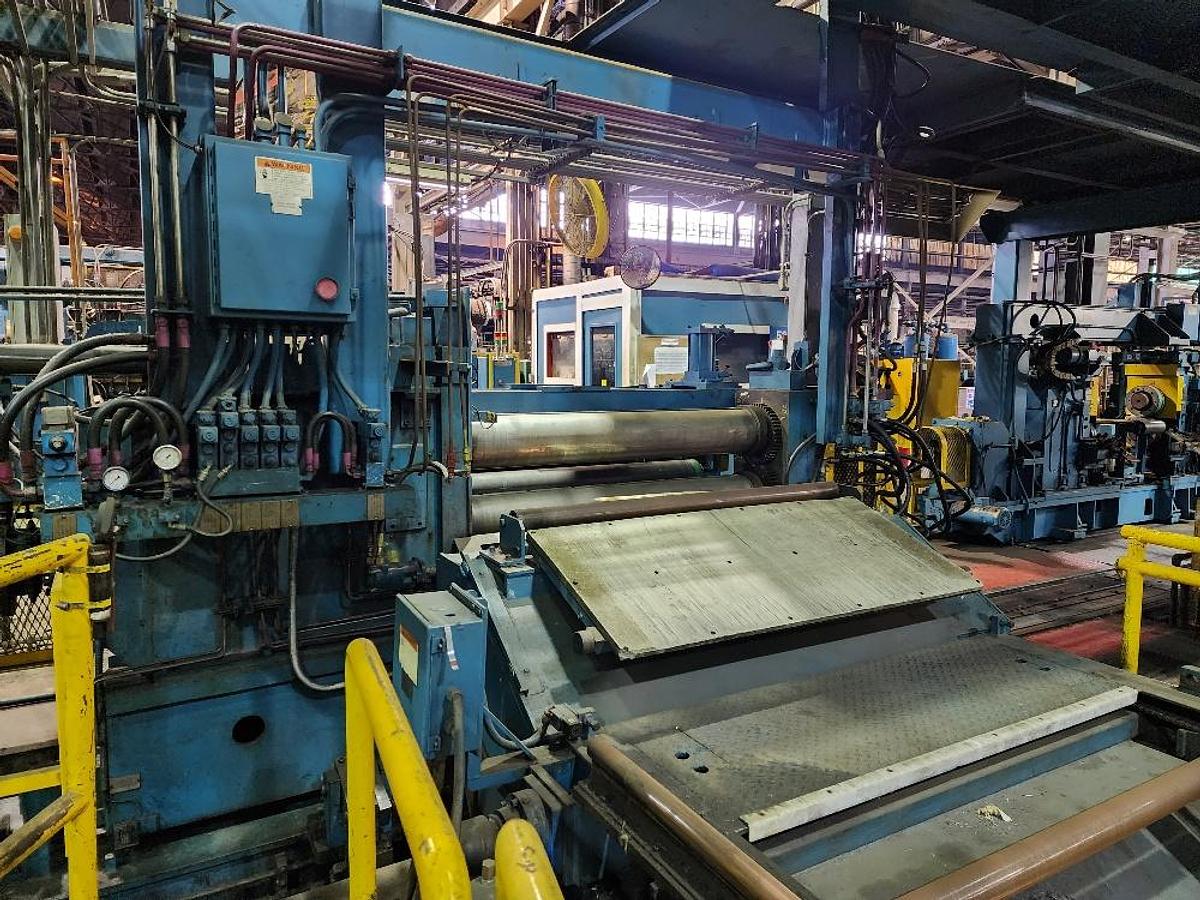

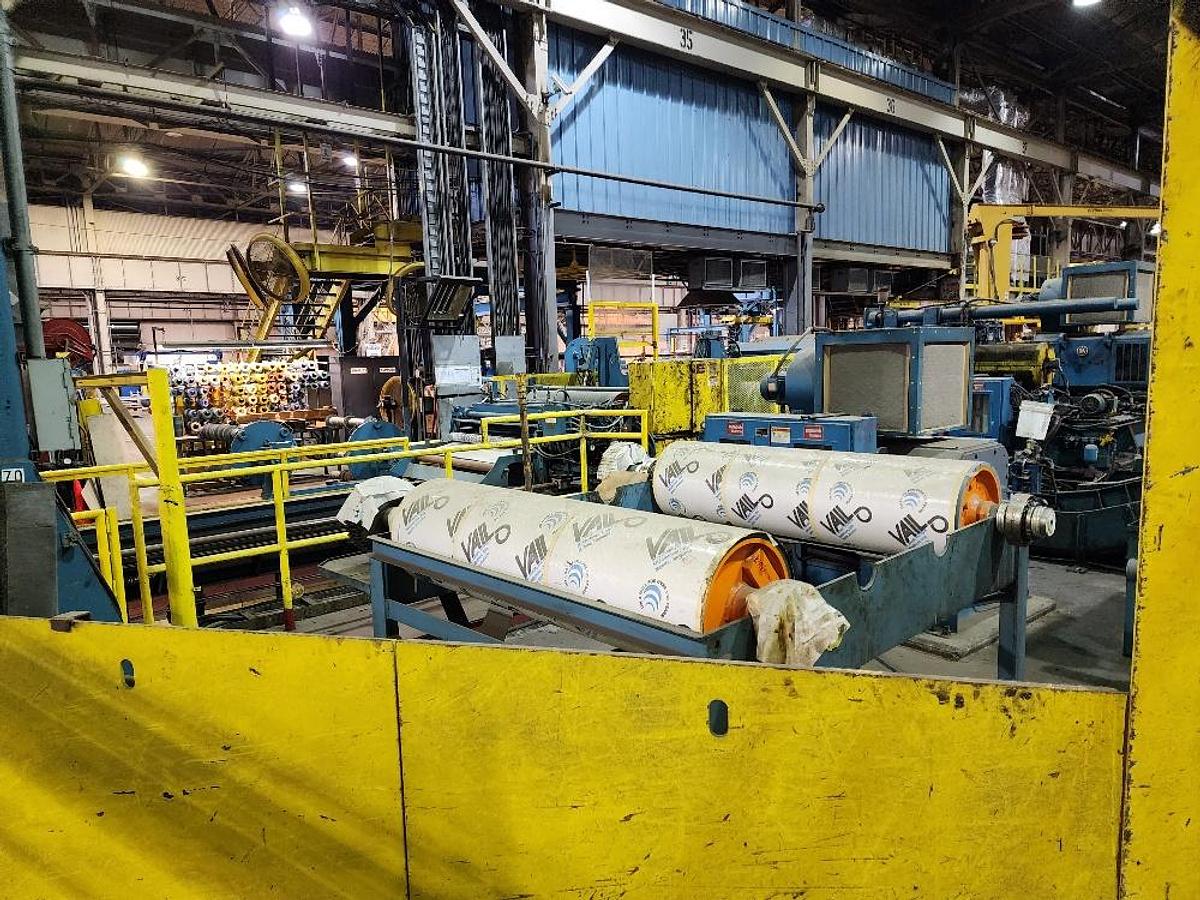

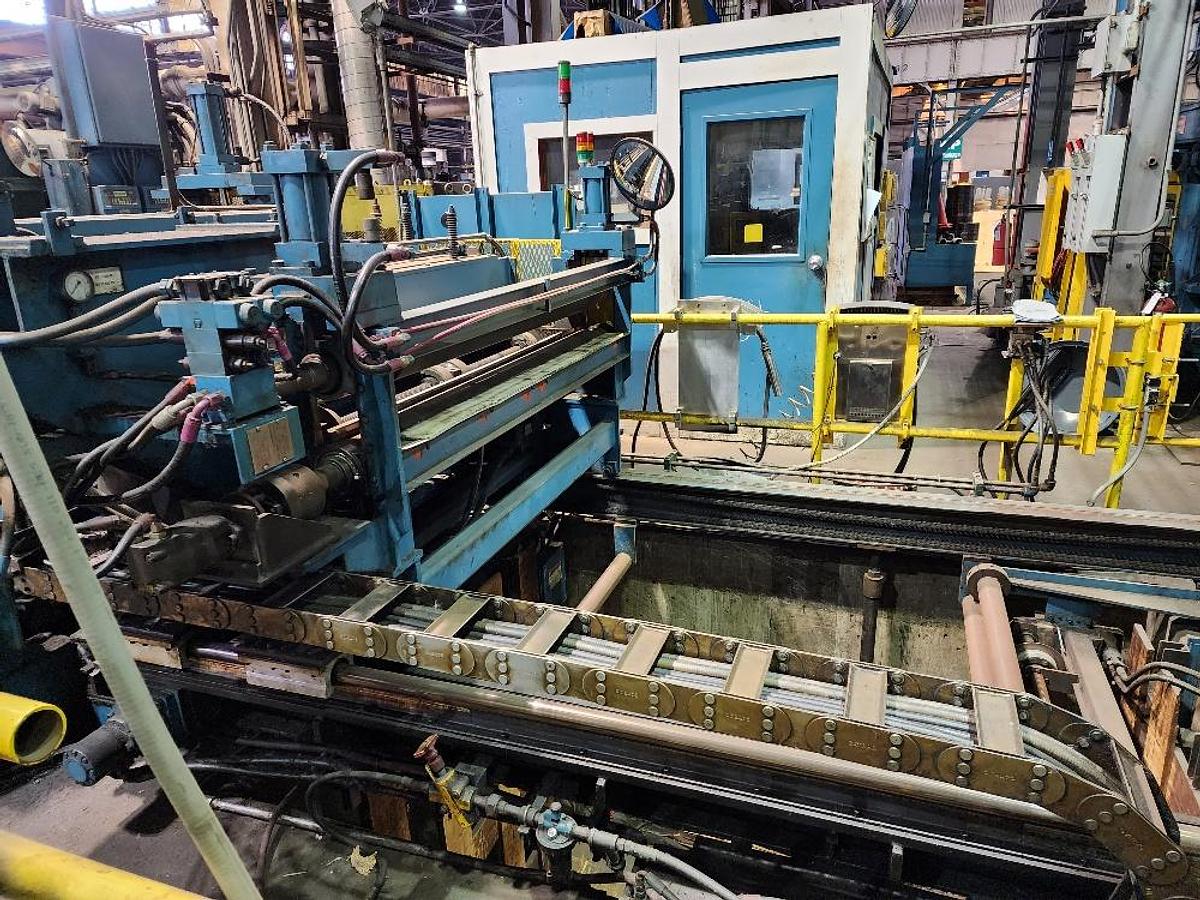

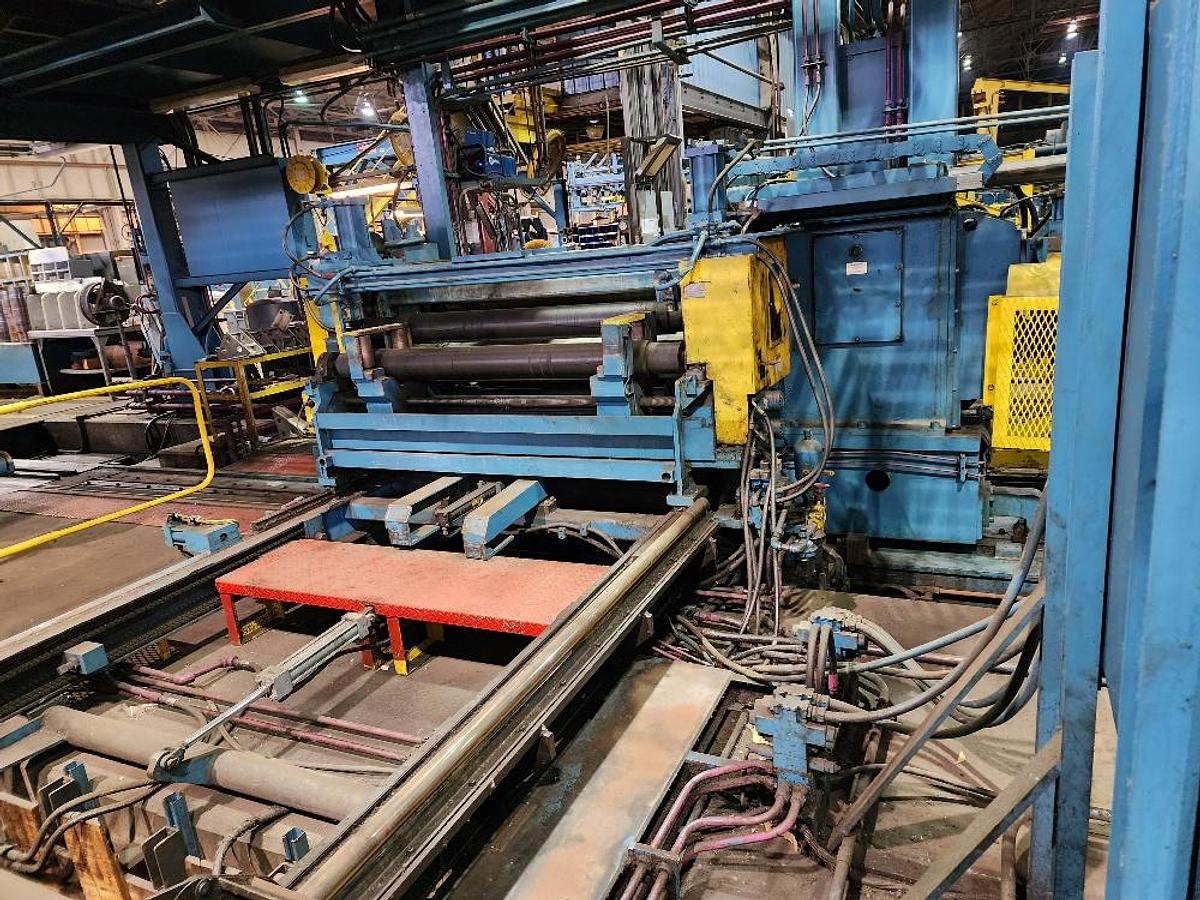

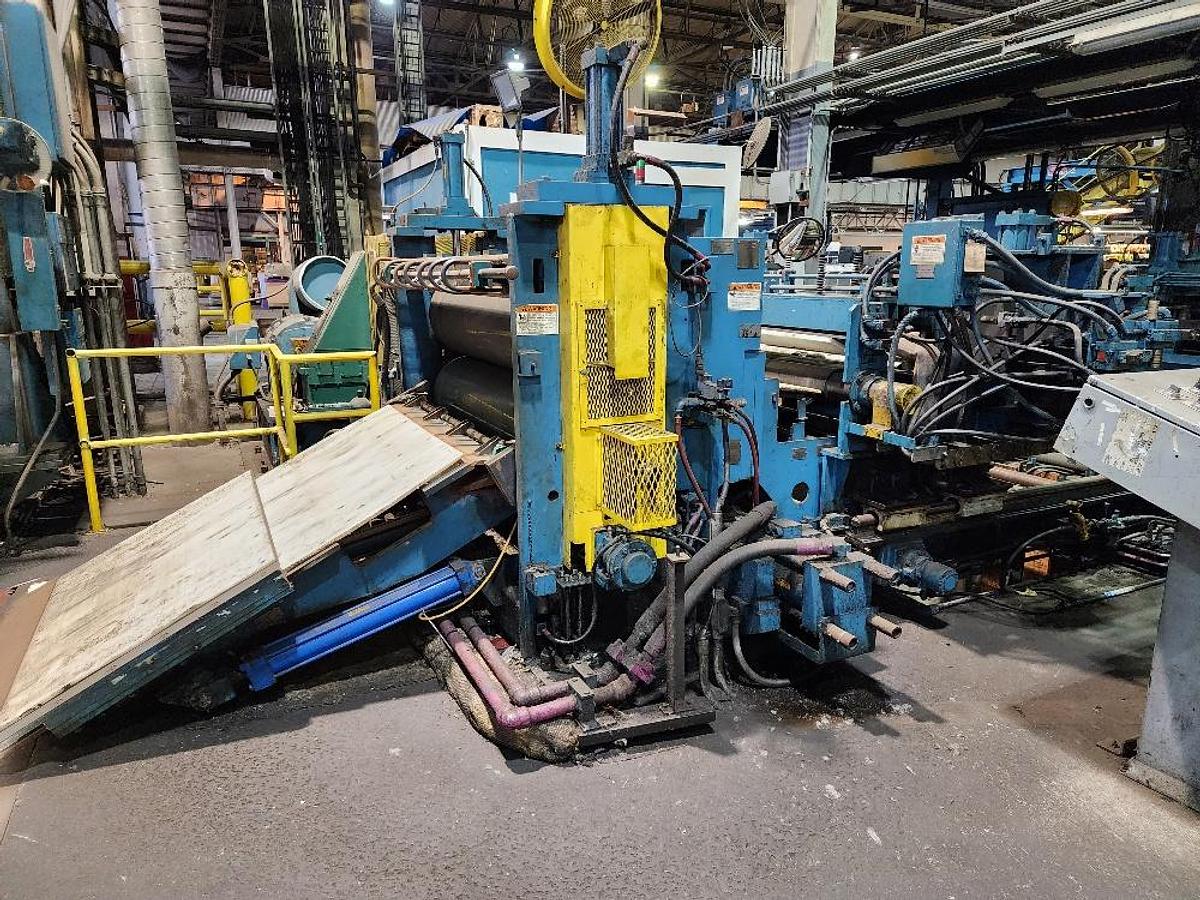

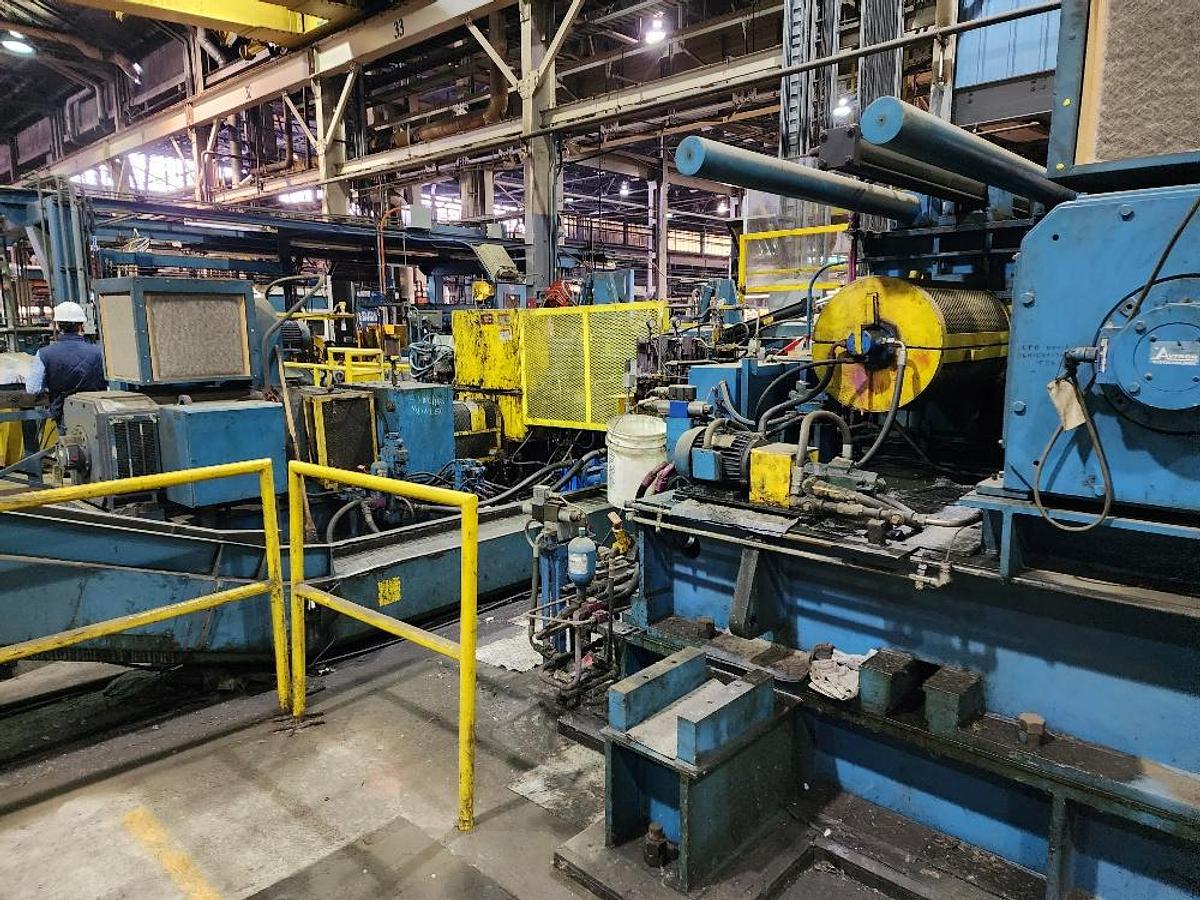

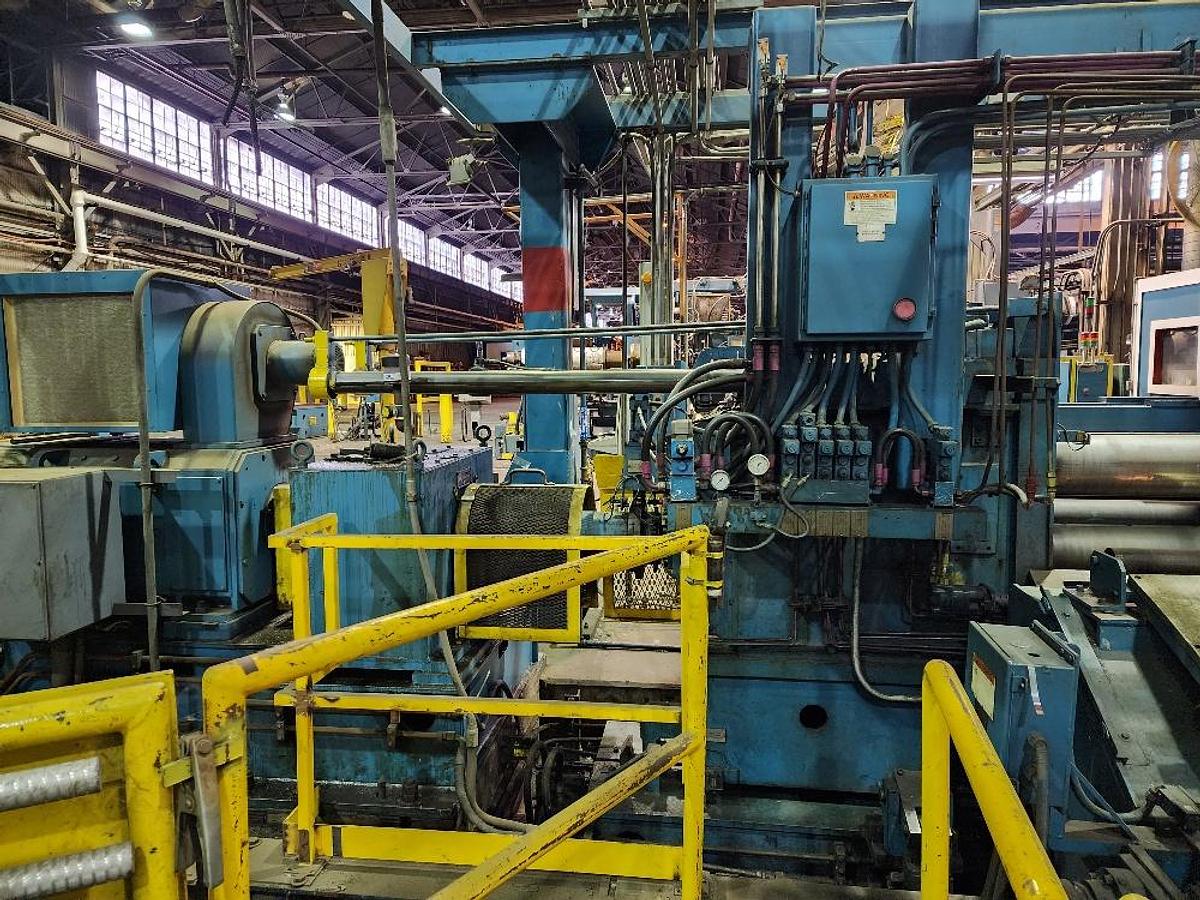

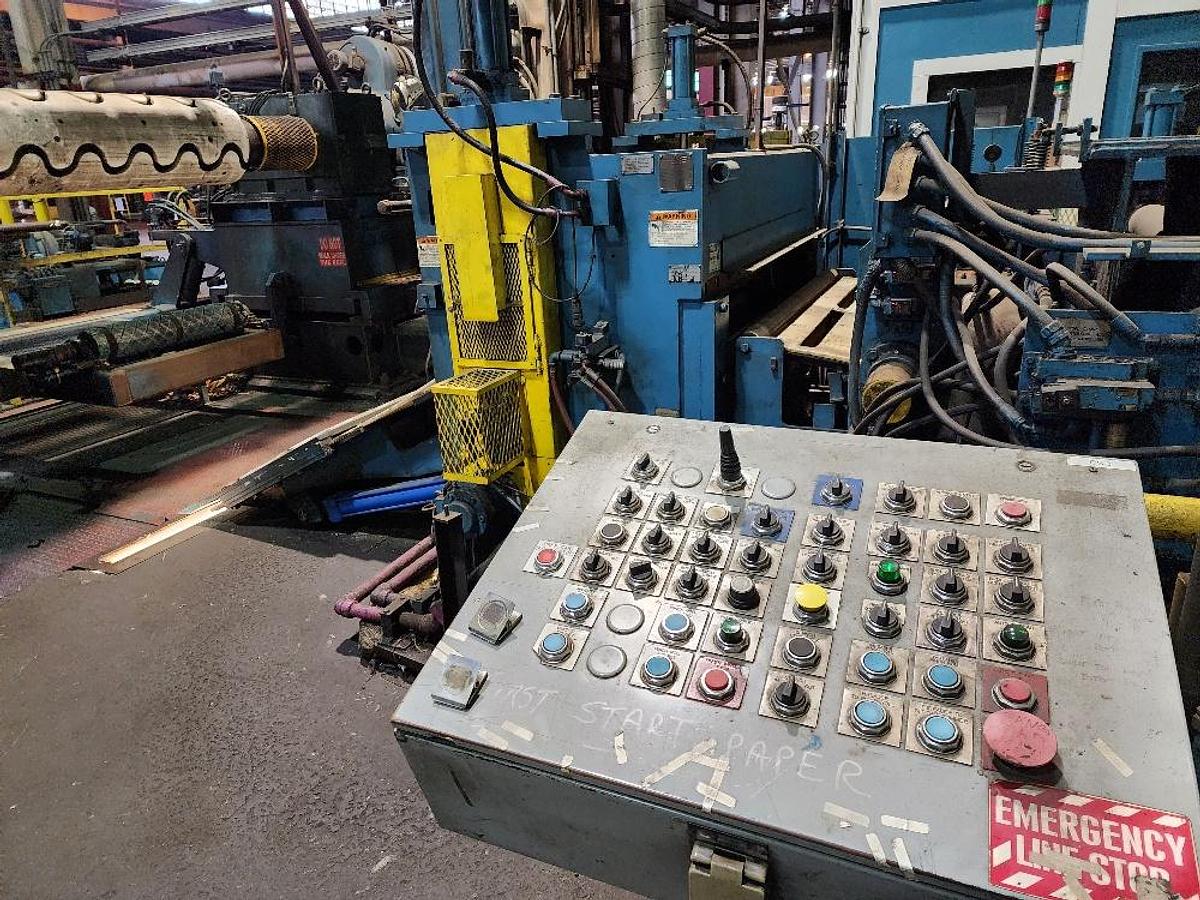

52” x .100” x 35,000 Lb. Stamco Double-Loop Slitting Line

Specifications:

Manufacturer: Stamco

Width: 52” (1320 mm)

Coil Weight Capacity: 35,000 Lb. (15,875 kg)

Coil ID Range: 16”–24” (406–610 mm)

Gauge Range: .010”–.100” (0.25–2.54 mm)

Line Direction: Right to Left

Line Speed: 500–1200 FPM (152–366 MPM)

Type: Double-Loop

Line is Installed

Line Components:

Entry Coil Car:

-L-Type design

-Powered rollers on bed

-Hydraulic lift and travel

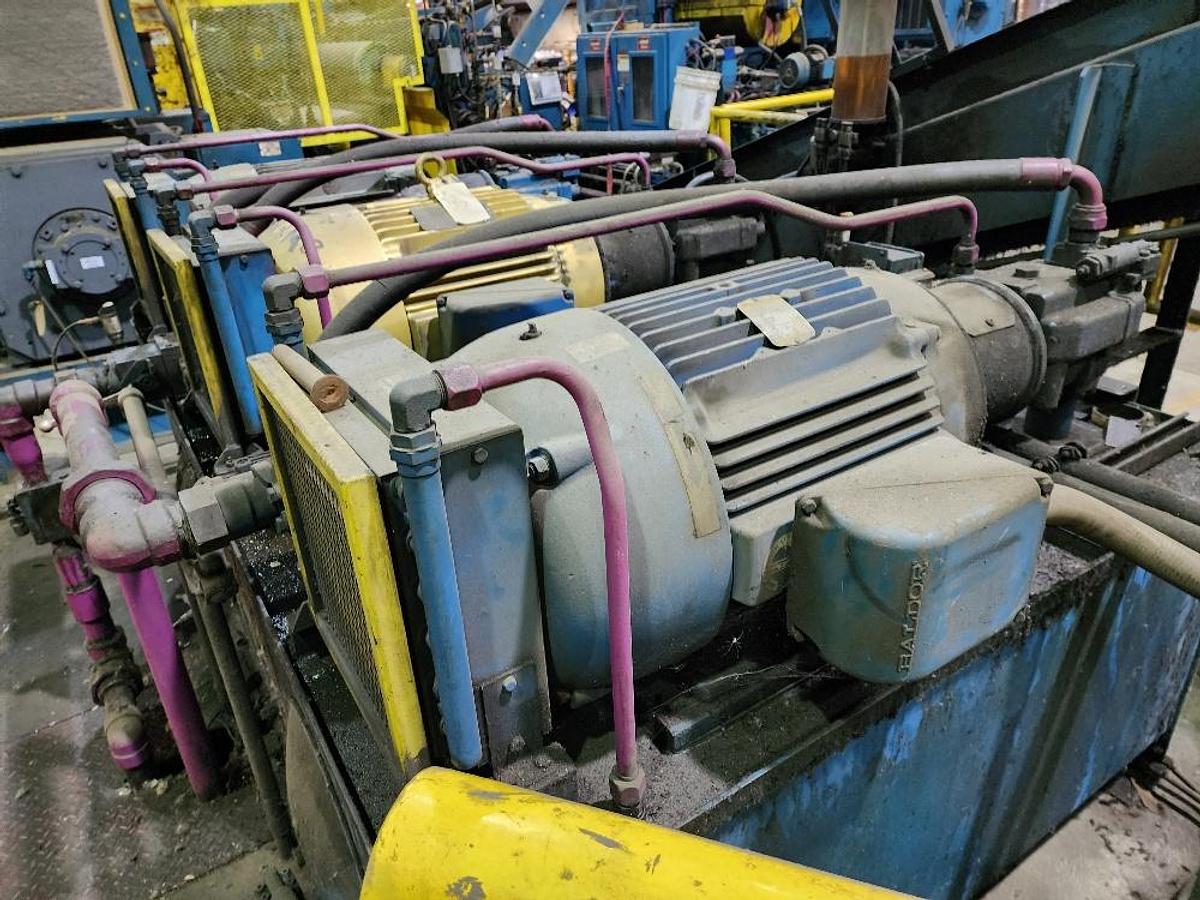

-Self-contained hydraulic power unit

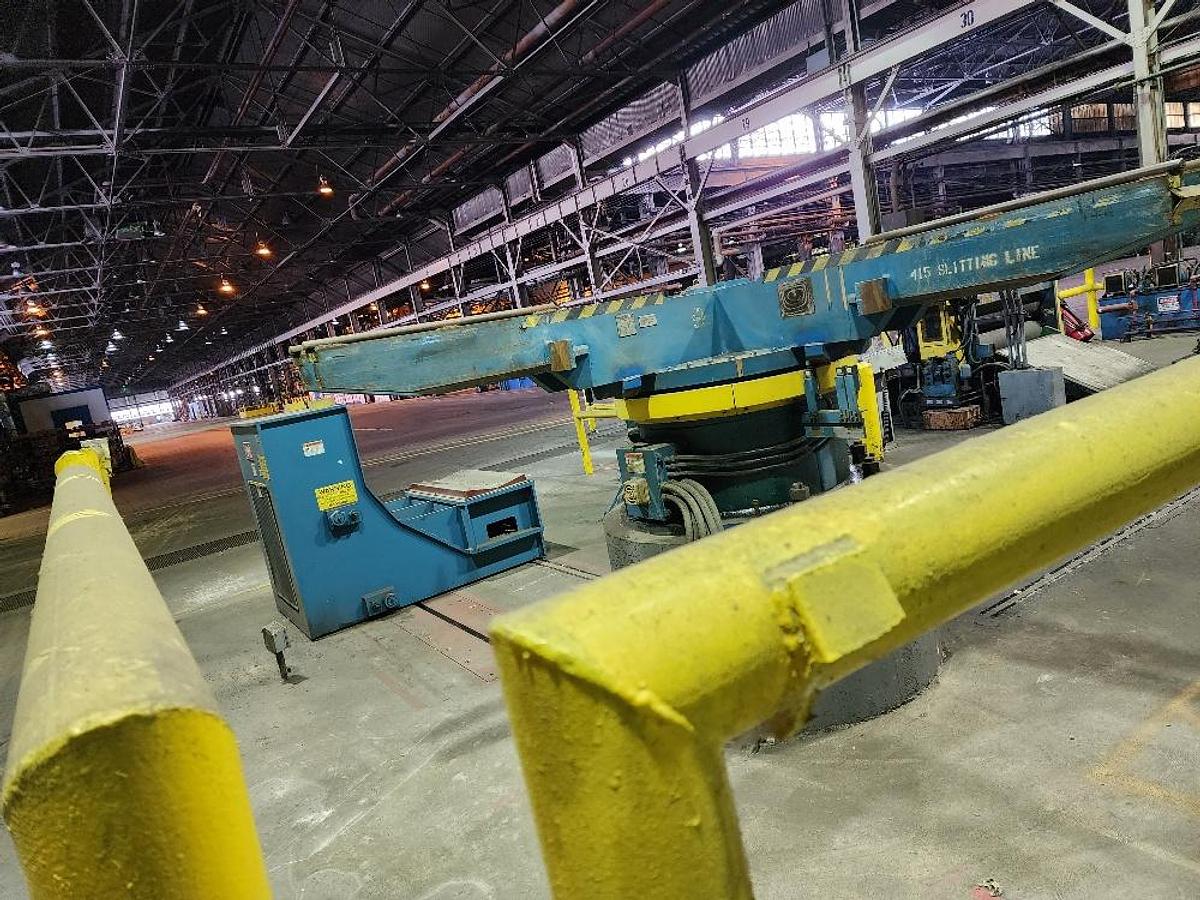

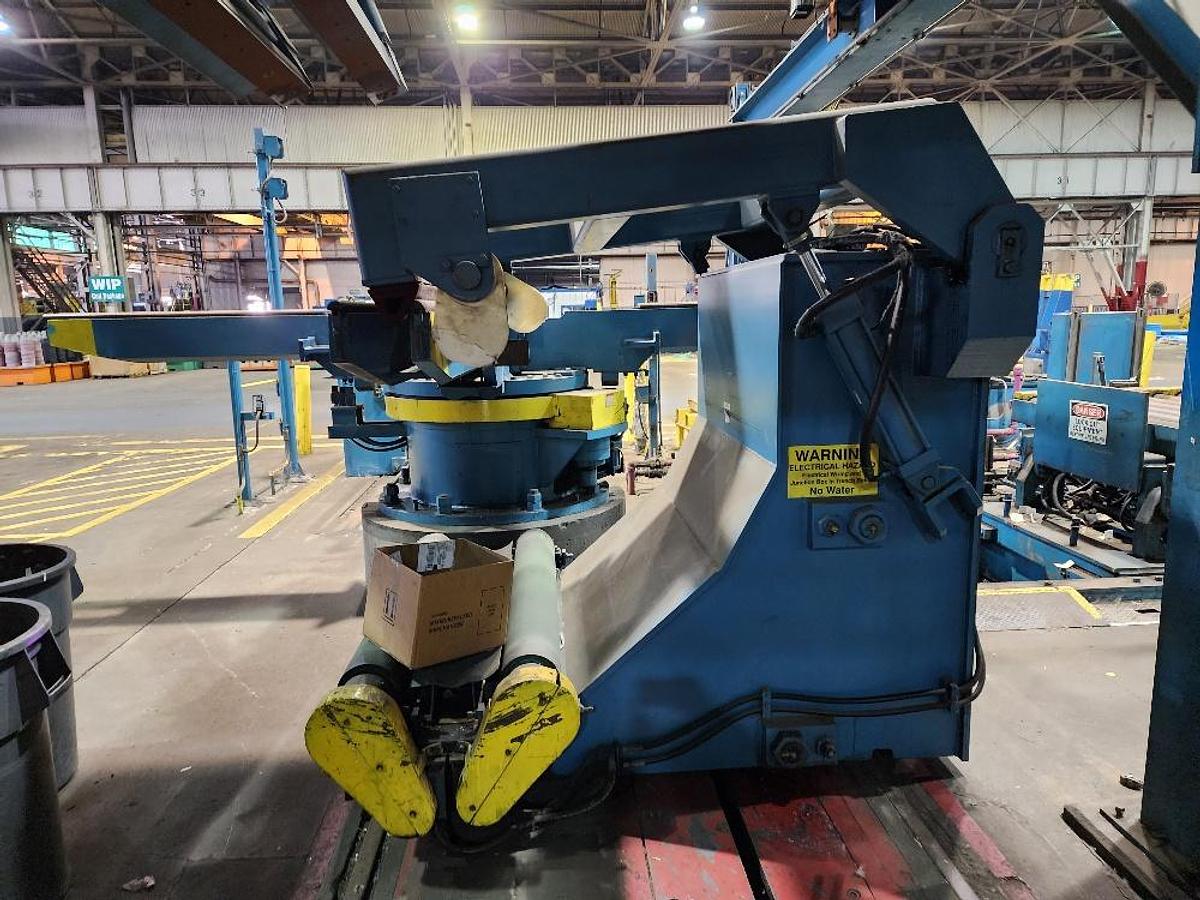

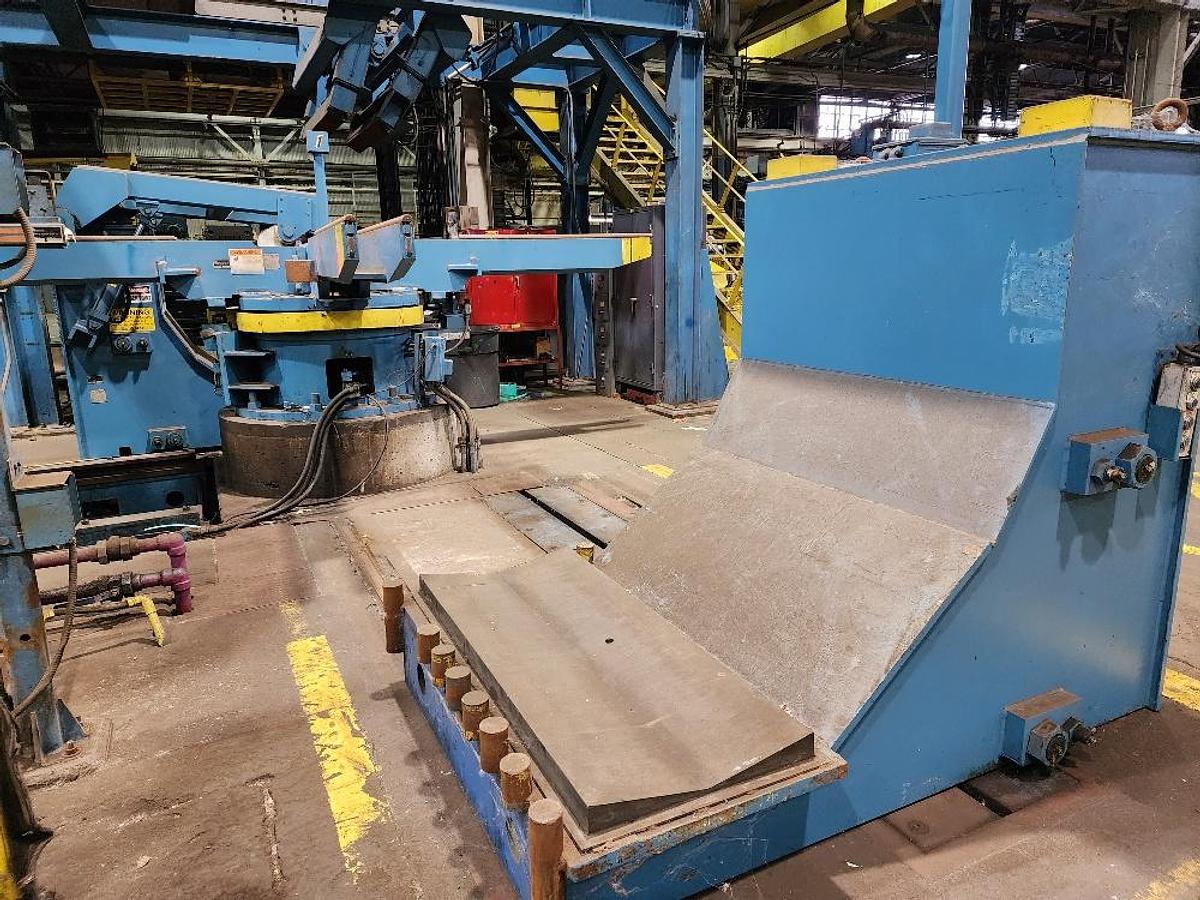

Entry Turnstile:

-4-arm, C-hook type arms

-Power rotation

Coil Preparation Station:

-Powered pull rolls

-Mechanical crop shear

-Scrap conveyor

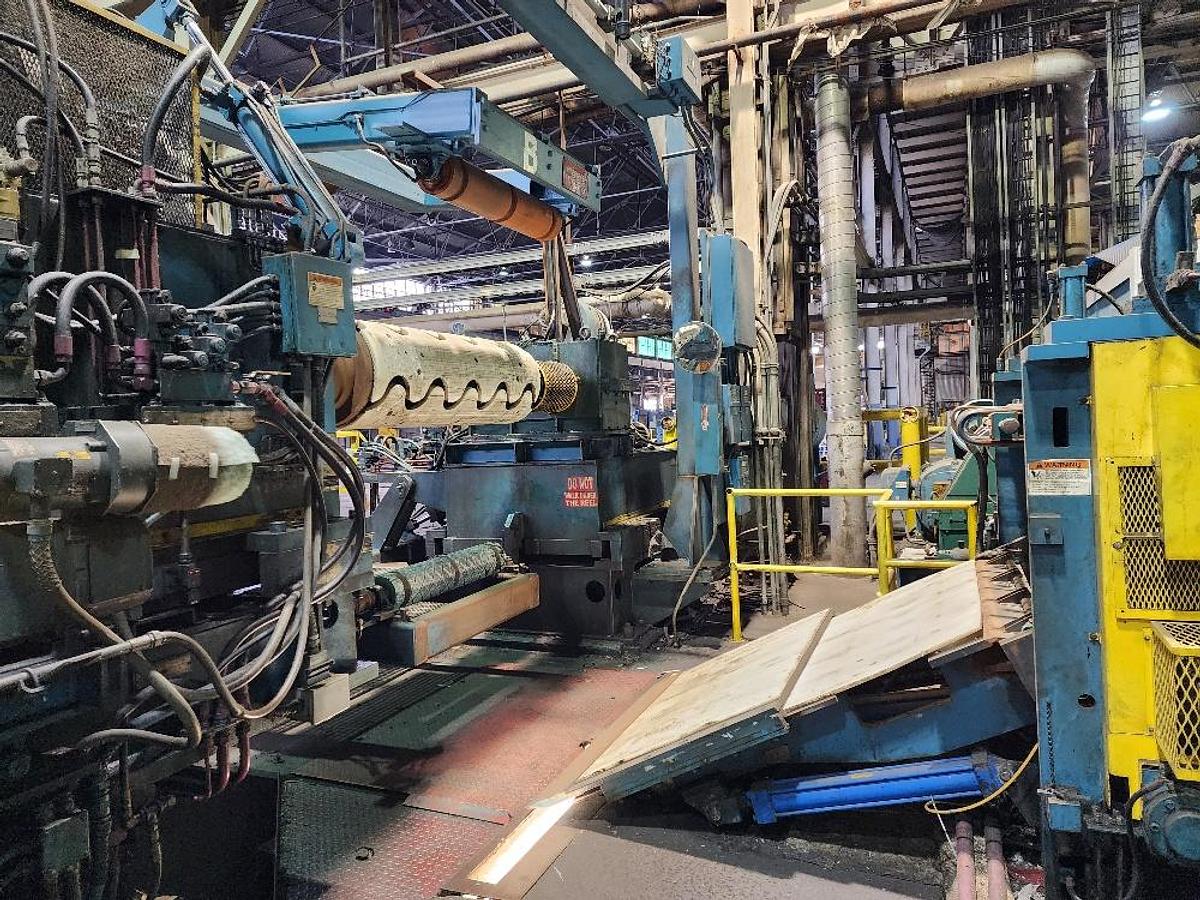

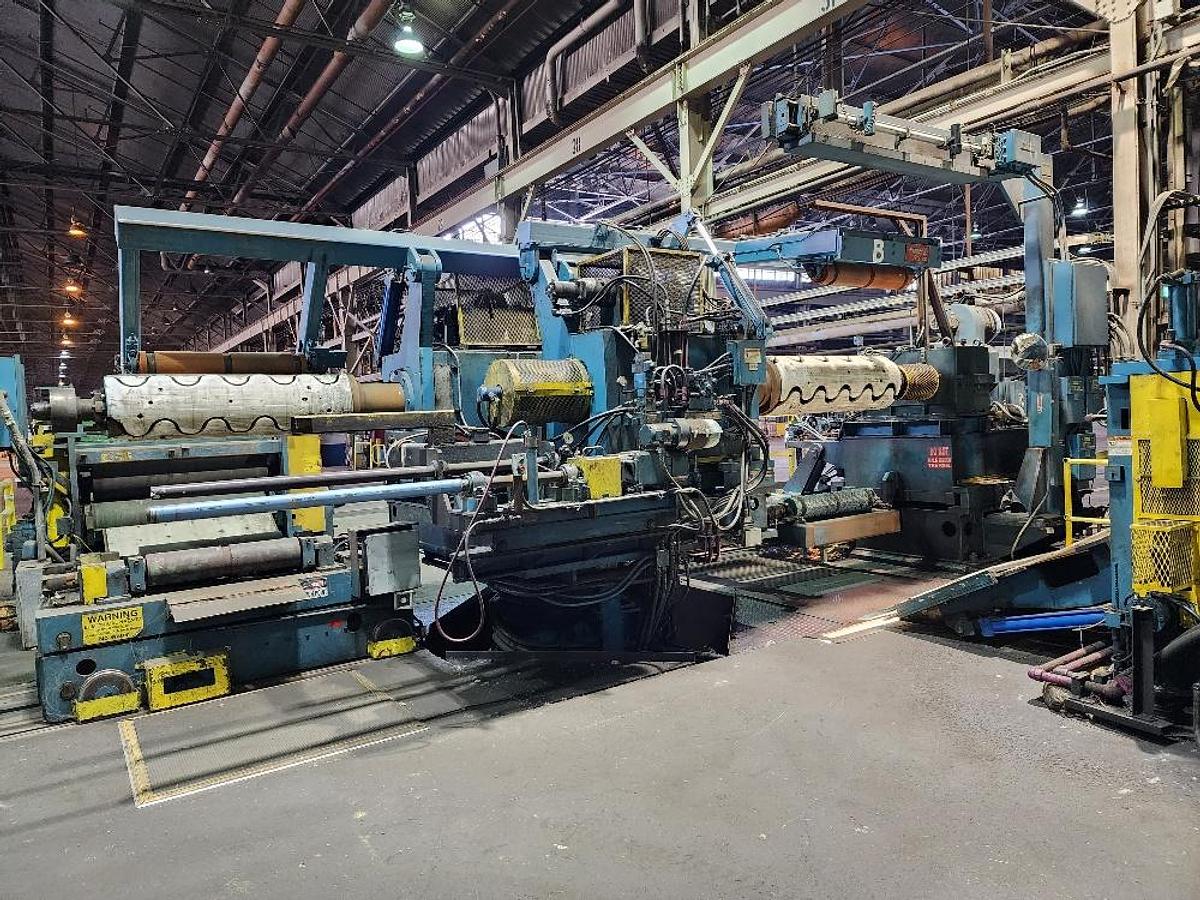

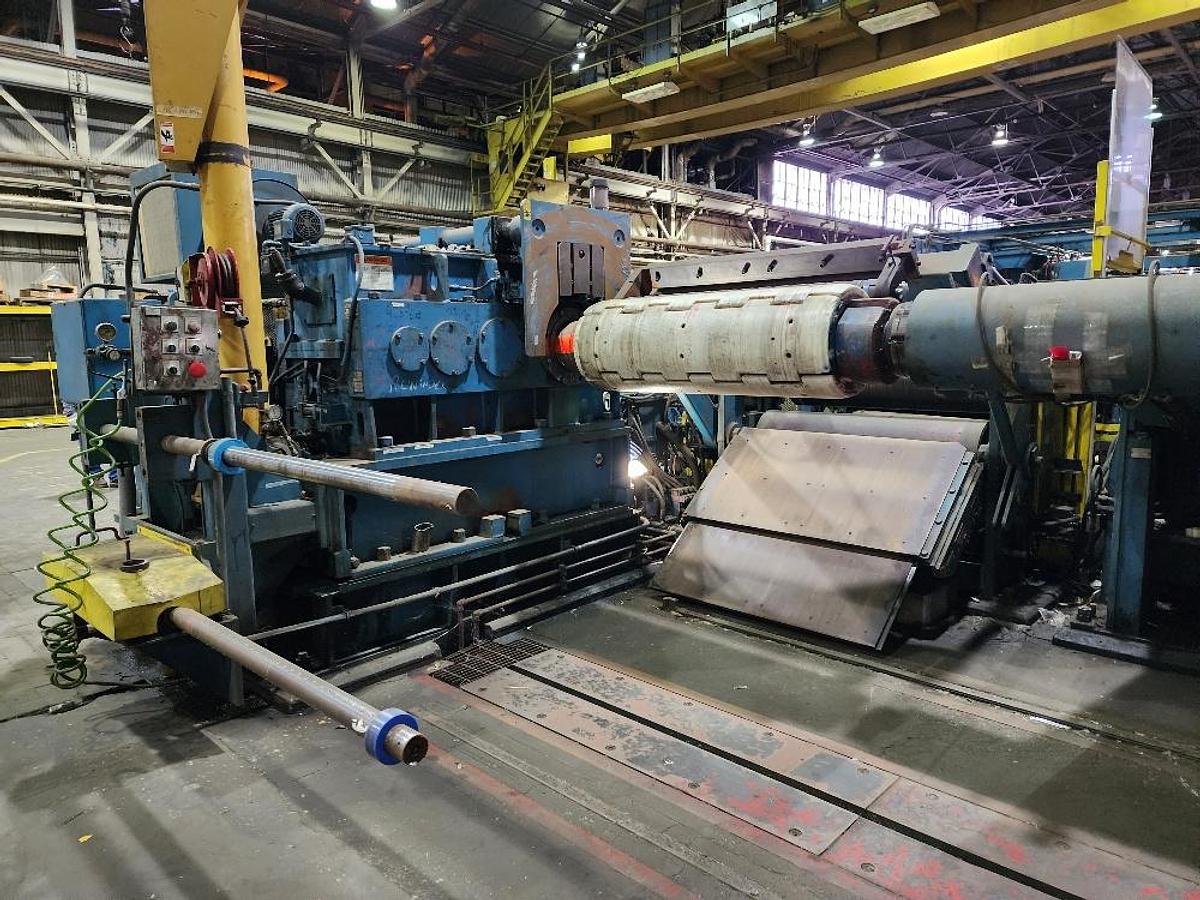

Turret Uncoiler:

-Hydraulic expansion with pumpkin-tooth mandrels

-Overarm hold-down roll

-DC motor drive and brake

-Slide base

Entry Unit:

-Entry pinch roll

-Traveling design delivers metal over pit to slitter head

-Crop shear

Slitter Head, Injector-design

-Driven entry pinch roll stand

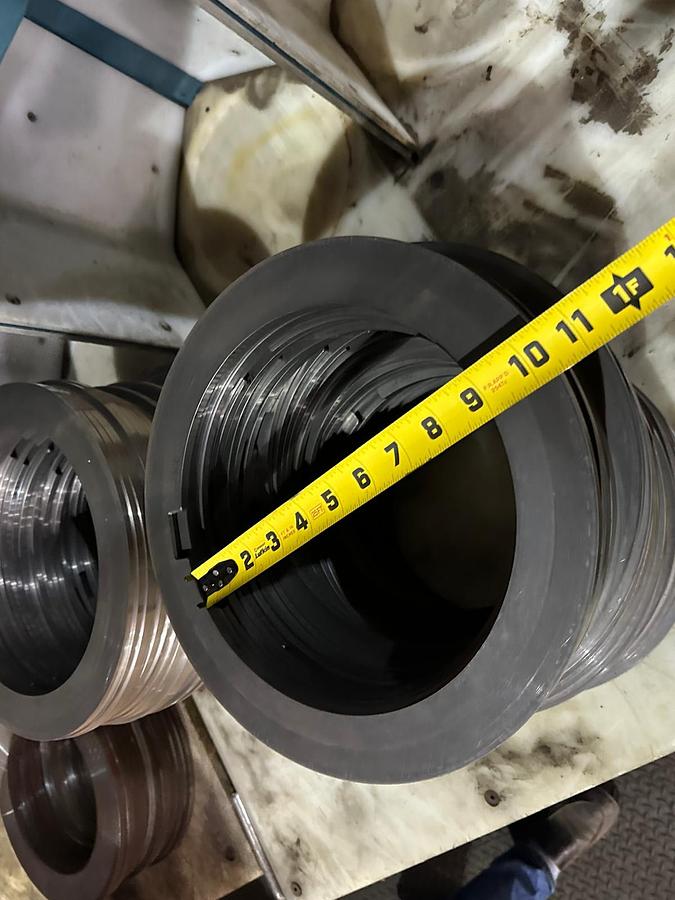

-Capstan Tooling exchange by 4-arm turret

-(1) Slitter head

-(1) Double-stub edge trimmer

-Hydraulic tooling lock-up

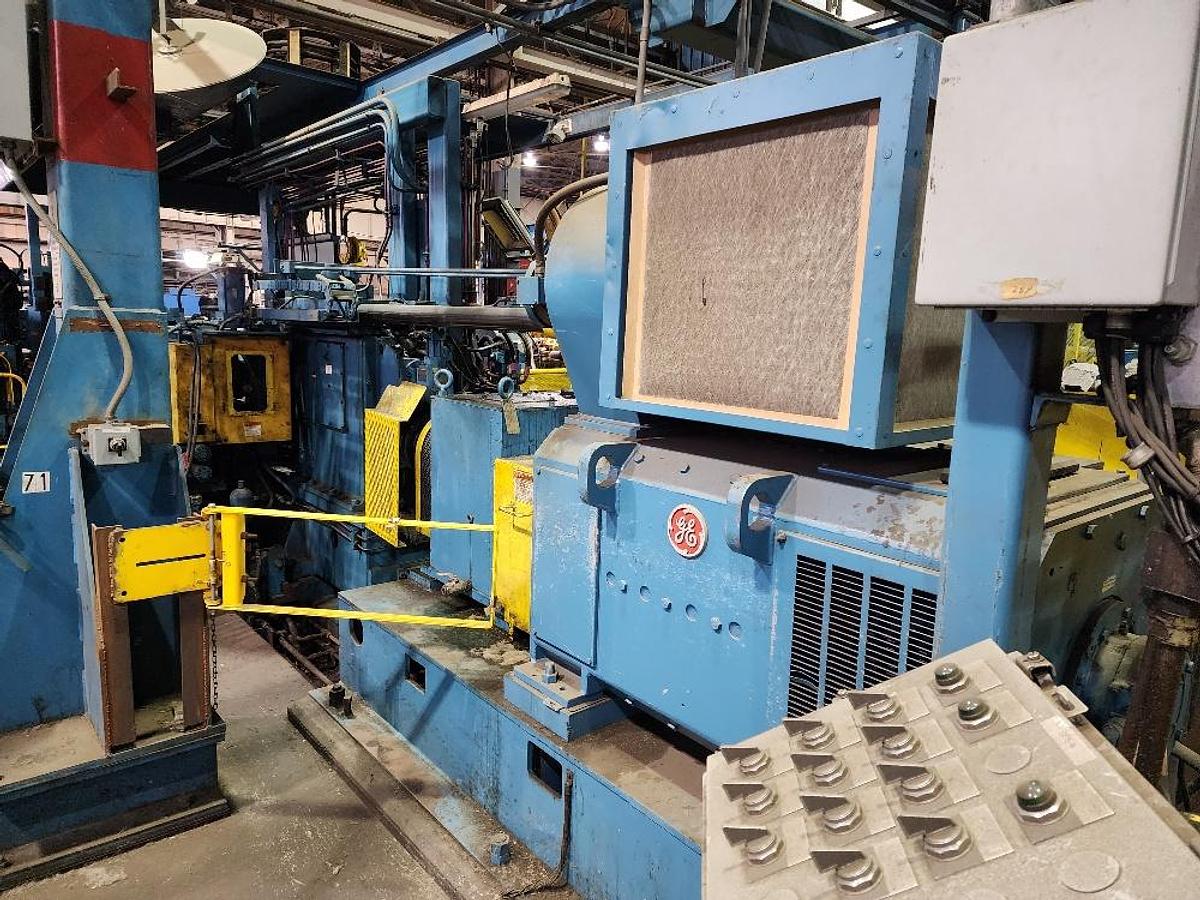

-200 HP DC motor drive

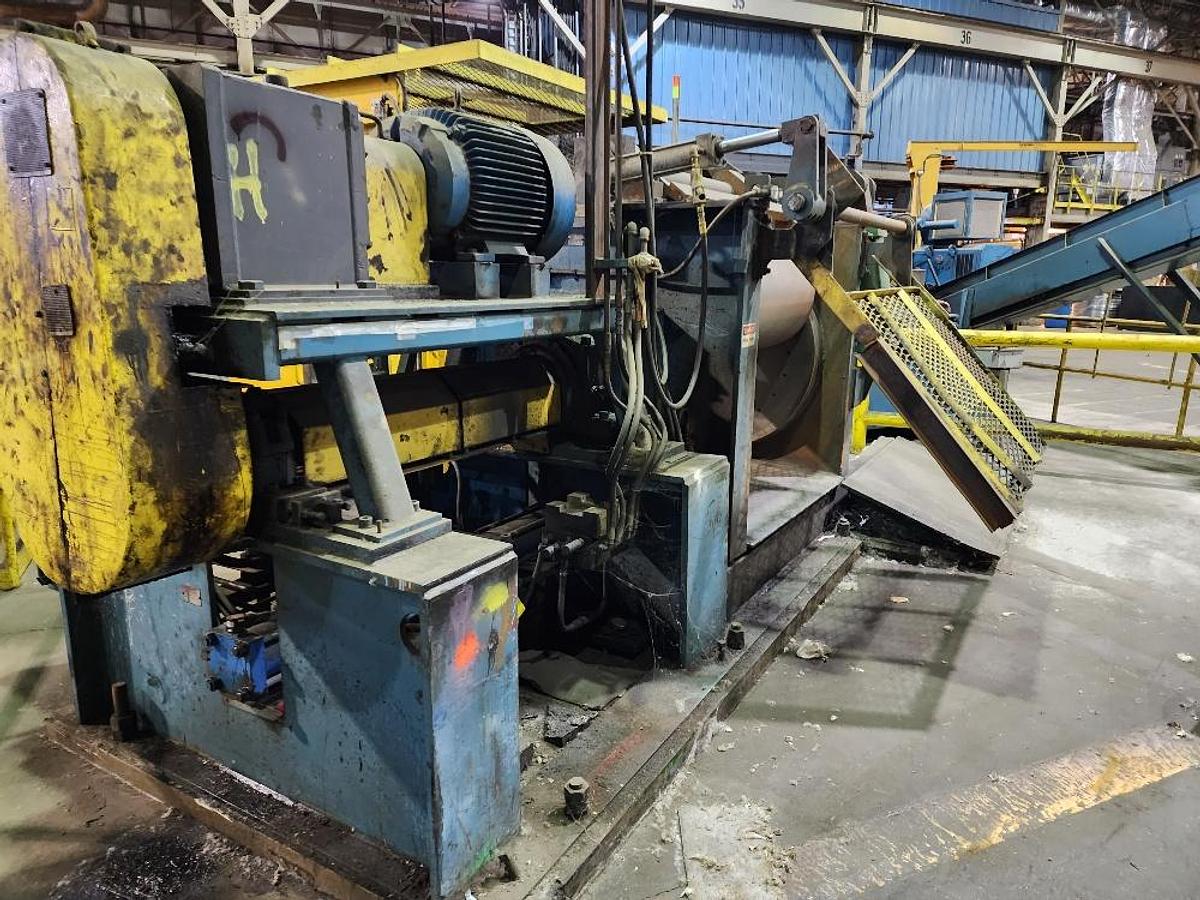

Scrap Baller

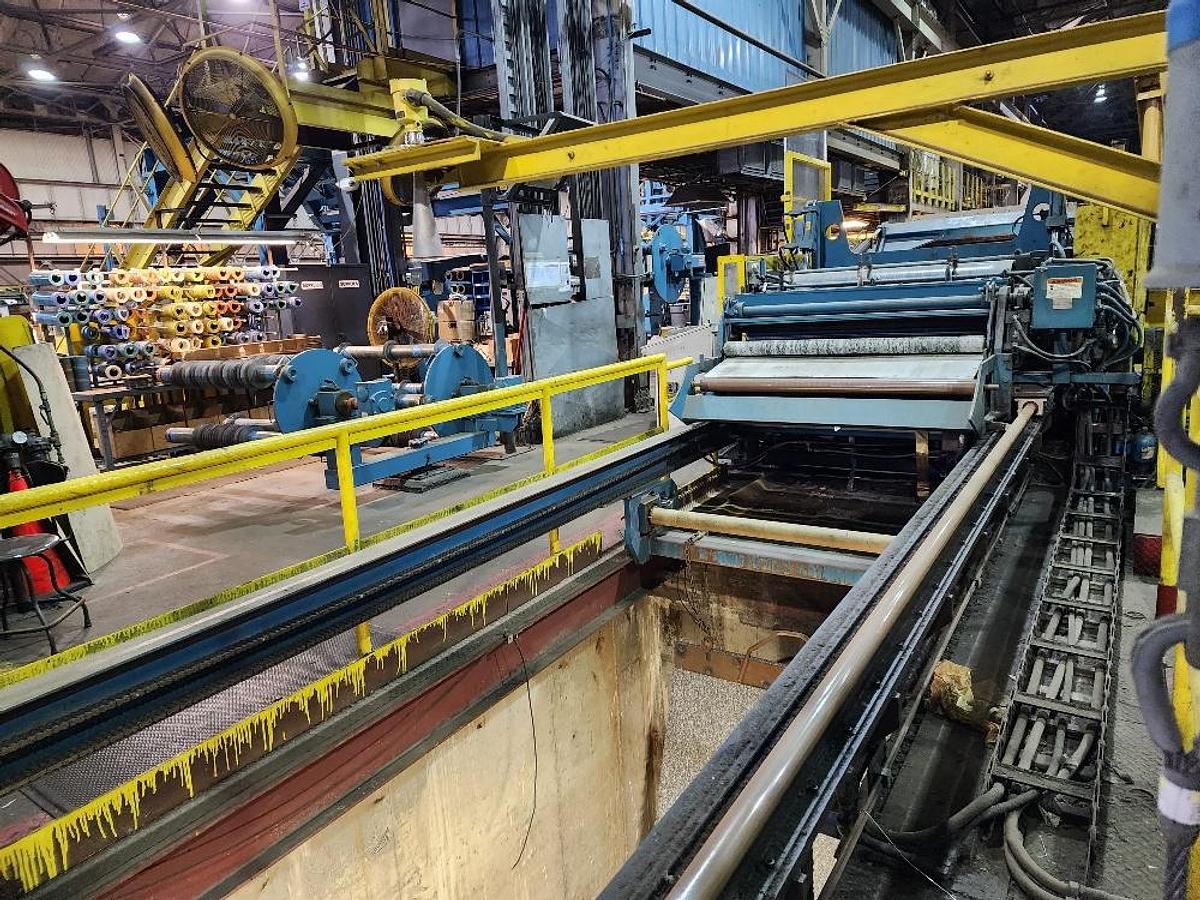

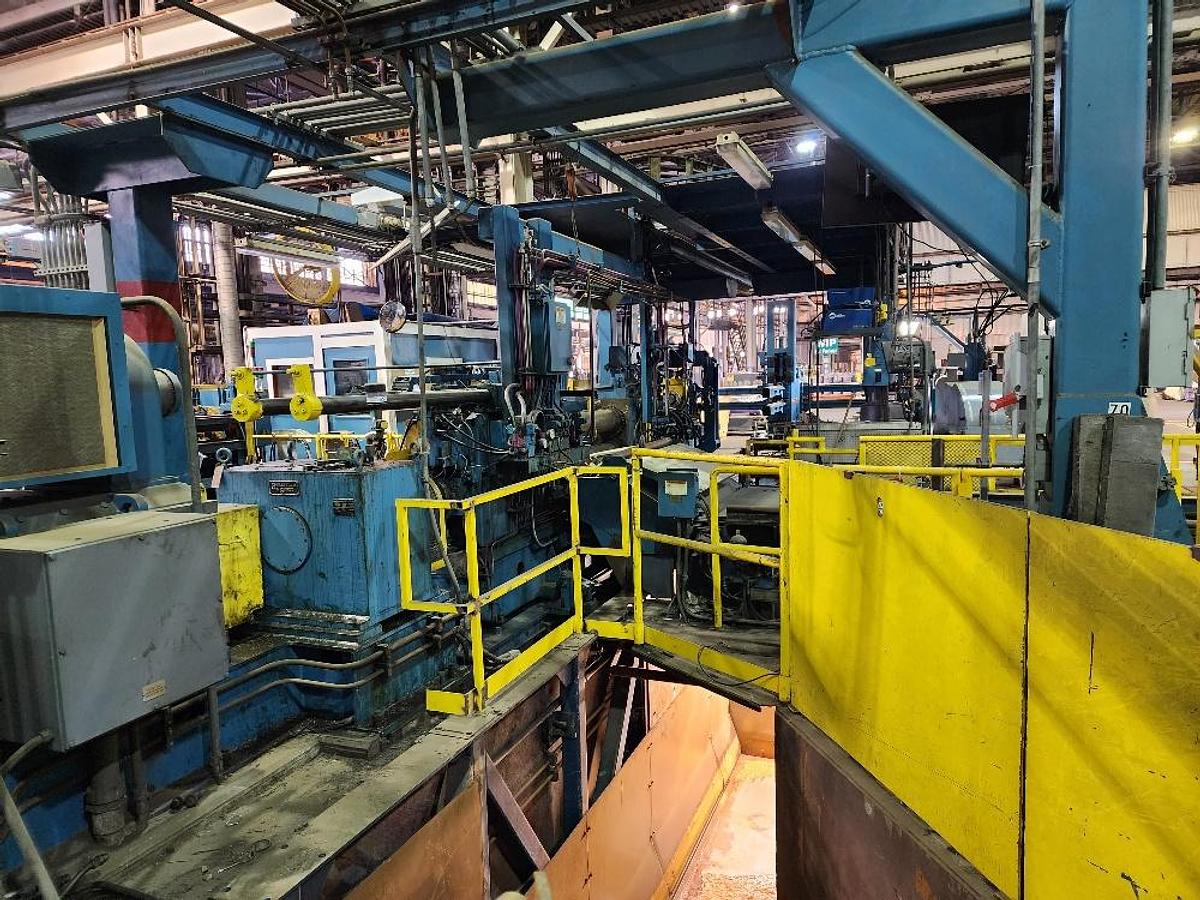

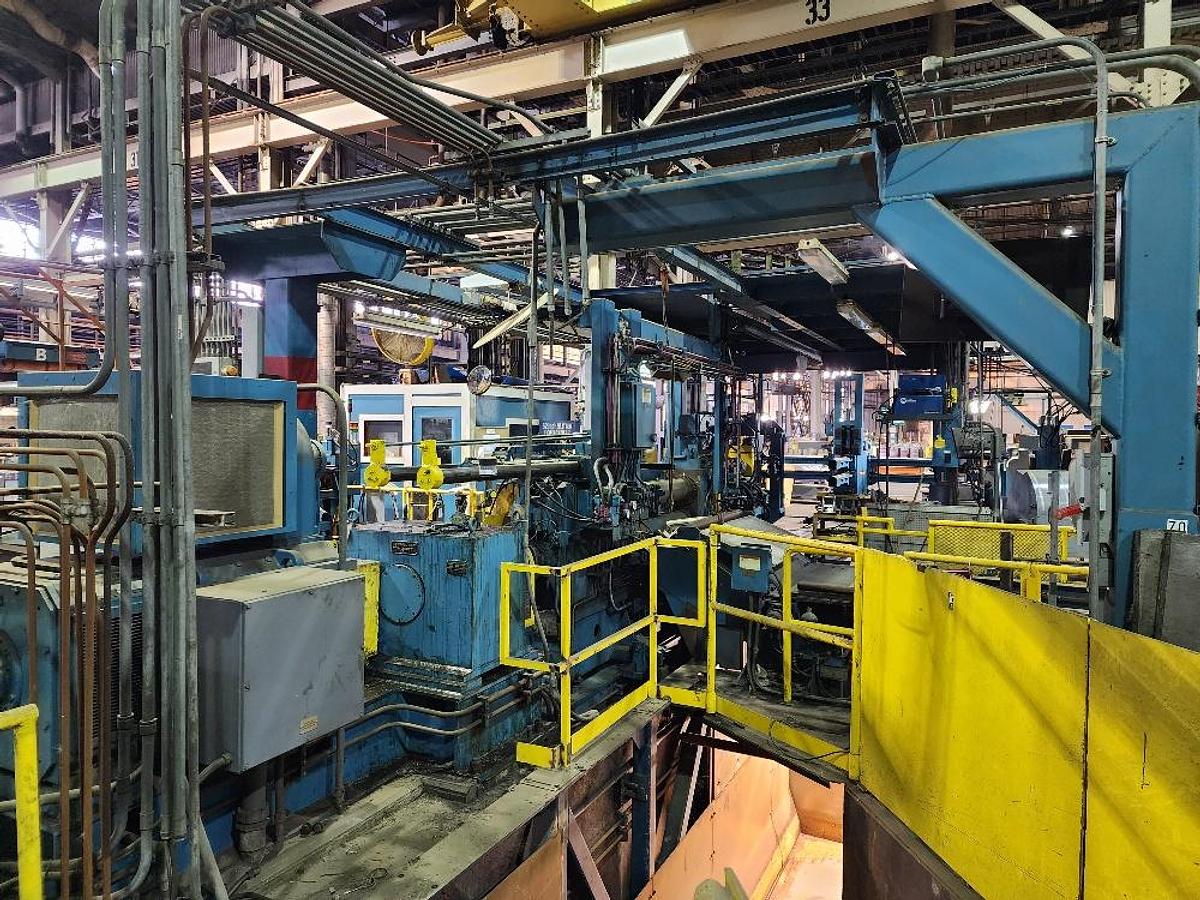

Pit Carry-Over Unit:

-Cascade rolls entry & exit

-Pad tension unit travels

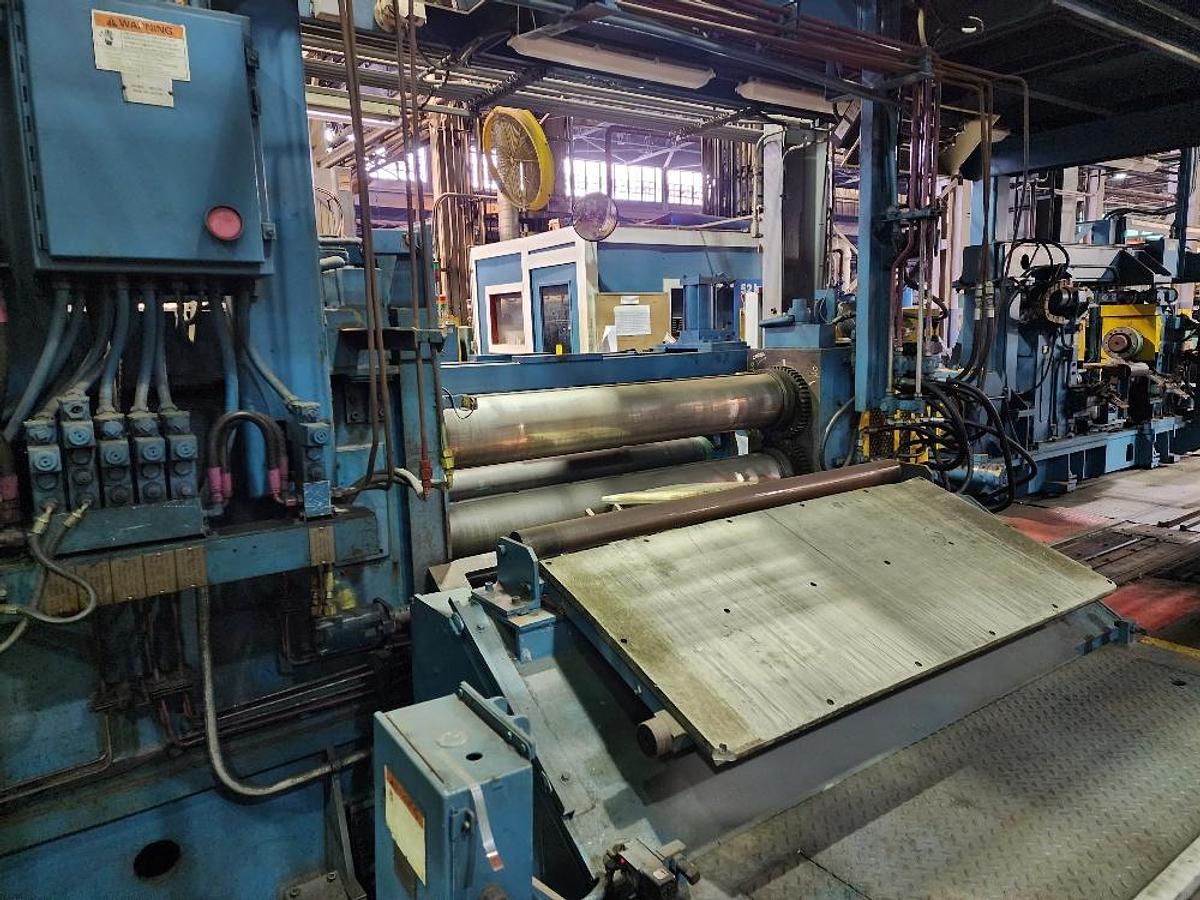

Combination Pad & Roll Type Tension Stand:

-Pneumatic air bag type pad tension

-DC motor drive / brake for rolls

-16” diameter urethane-covered rolls

-Hydraulic crop shear

Free-Standing Overarm Separator:

-Entry deflector roll

-Threading table

Recoiler:

-16” diameter drum

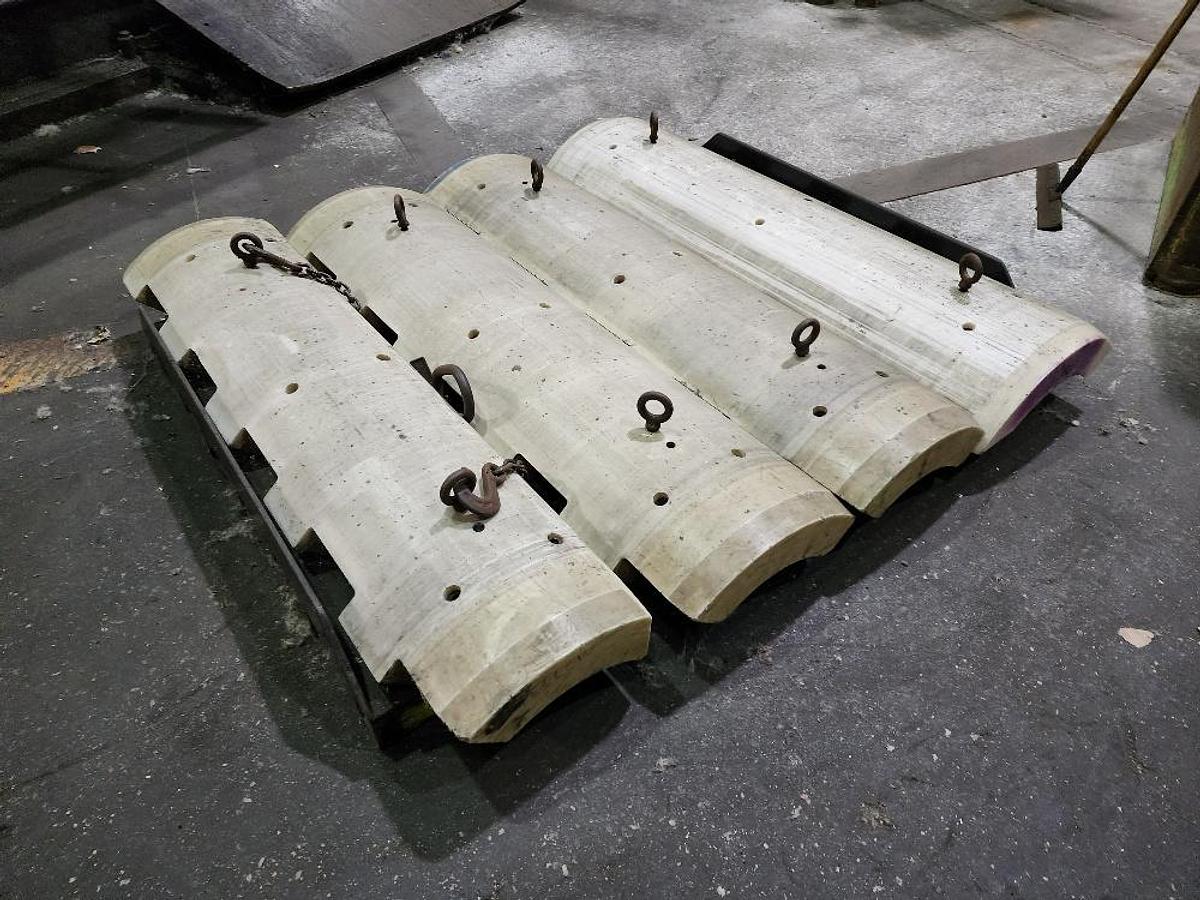

-20” & 24” bolt-on pads

-Hydraulic gripper and expansion

-Hydraulic pushoff

-200 HP DC motor drive, 500 V

-Two-speed reducer

-Outboard bearing support

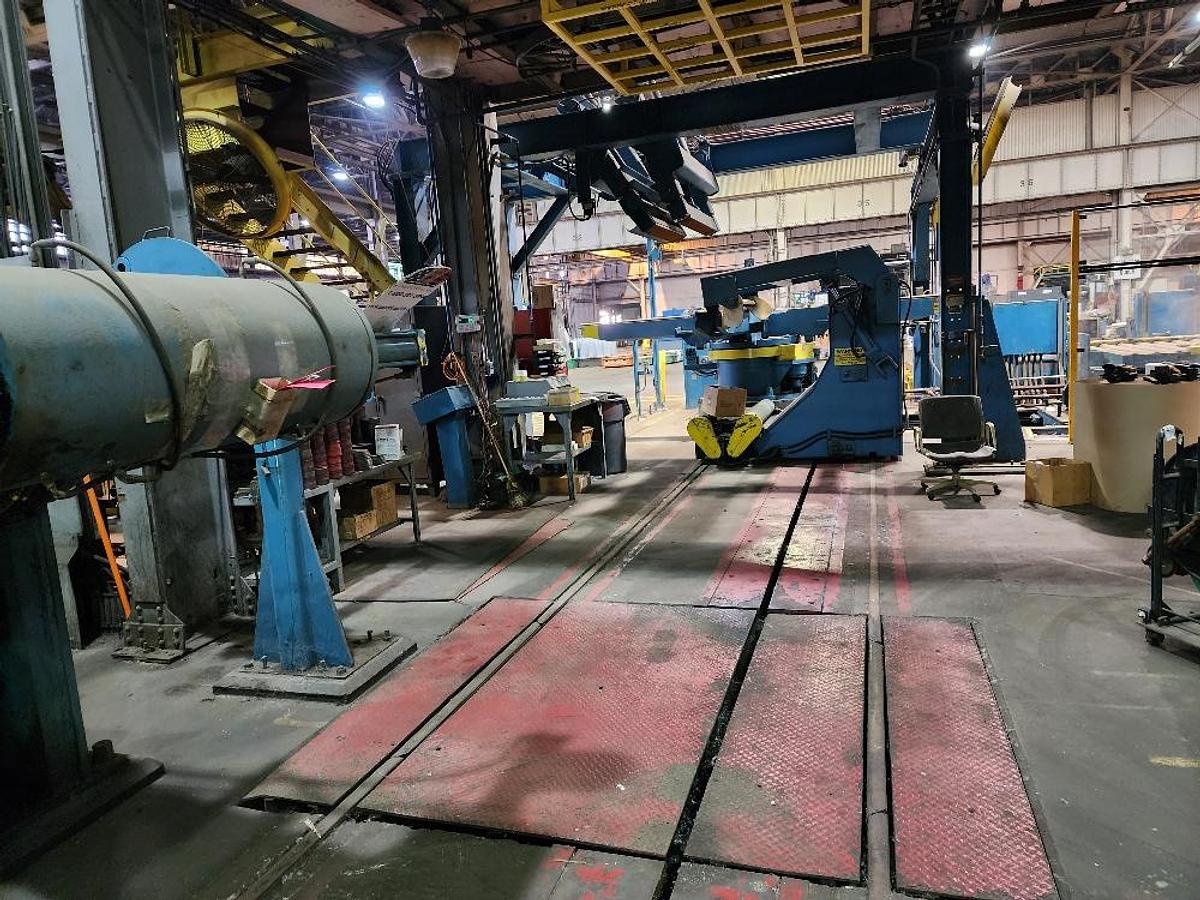

Exit Coil Car:

-L-Type

-Powered rollers on bed

-Hydraulic lift and travel

-Self-contained hydraulic power unit

-Overarm hold-down arm

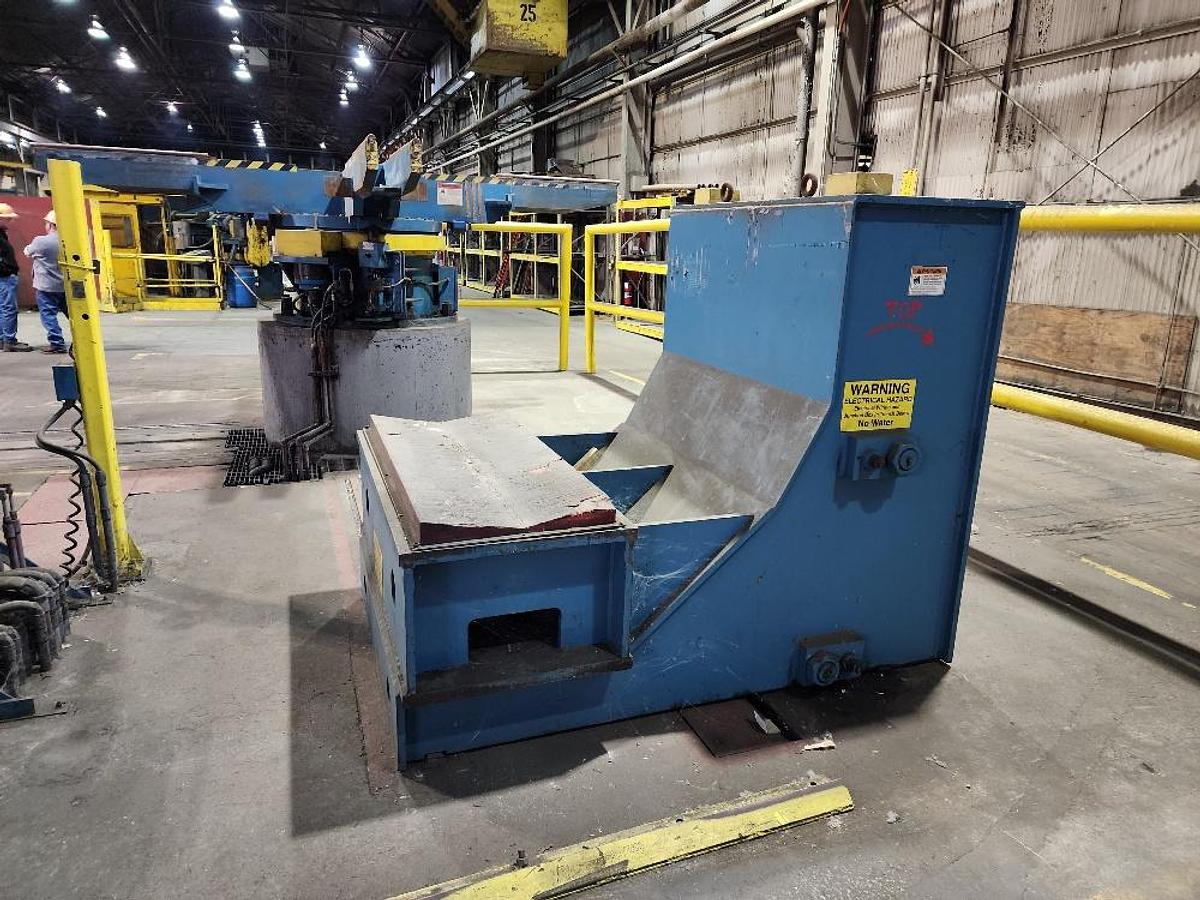

Exit Turnstile:

-4-arm, C-hook type arms

-Power rotation

Delivery Coil Car:

-L-Type

-Self-contained hydraulic power unit

-Hydraulic lift and travel
