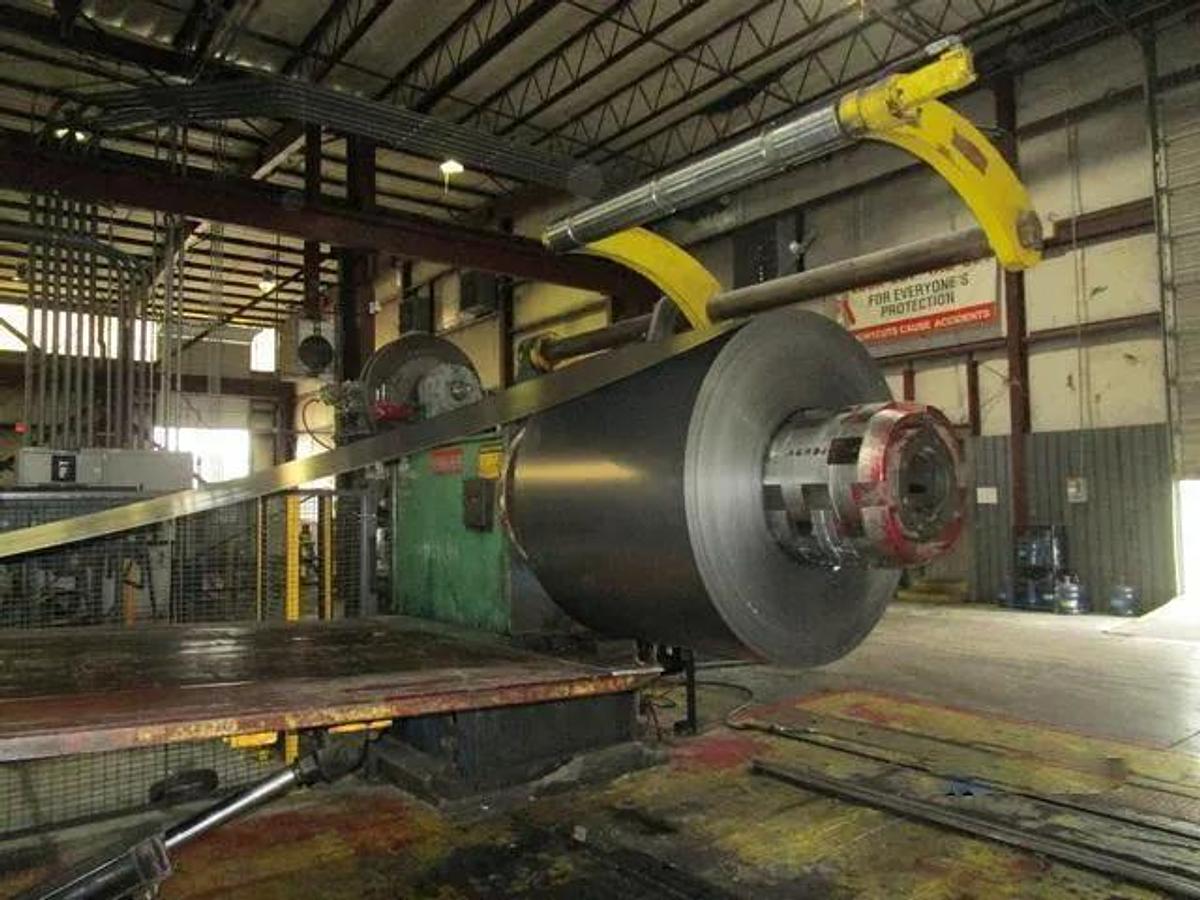

72" x .187" x 60,000# Chicago Slitting Line with Two Injector Heads and Banding Line
Specifications
| Manufacturer | Chicago |
| Condition | Used |
| Stock Number | VX-35831 |
| Minimum Material Thickness | 0.016" |
| Maximum Material Thickness | 0.187" |
| Cutting Capacity | 8 Cuts @ 0.187" |
| Line Speed | 0-1,000 FPM |
| Minimum Entry Coil ID | 20" |
| Maximum Entry Coil ID | 24" |
Description
This used 72" x .187" x 60,000# Chicago slitting line is a comprehensive solution for slitting operations, featuring significant capabilities and modern upgrades. It handles material thickness ranging from 0.016" to 0.187" and offers a cutting capacity of 8 cuts at maximum thickness. The line operates at variable speeds up to 1,000 FPM, accommodating entry coil inner diameters between 20" and 24". Equipped with dual injector slitter heads and hydraulic features, the line ensures precision and flexibility. Key elements include a four-arm entry turnstile with power rotation, an L-type entry coil car, and a mandrel uncoiler with hydraulic expansion. Advanced scrap and tension management systems enhance operational efficiency, while an exit section with hydraulic recoiler and powerful DC drive motors ensure reliable performance. Completing the setup is a Chicago banding line with features like photoelectric coil positioning, a Coiltech banding table, and a turret coil stacker for efficient handling. Recent updates include a new safety system, Parker digital DC drives, and an Allen Bradley PLC, ensuring both safety and precision. The line is available for observation under power, offering buyers a chance to see its capabilities in action.
Includes
Entry Turnstile
Four Arm
Power Rotation

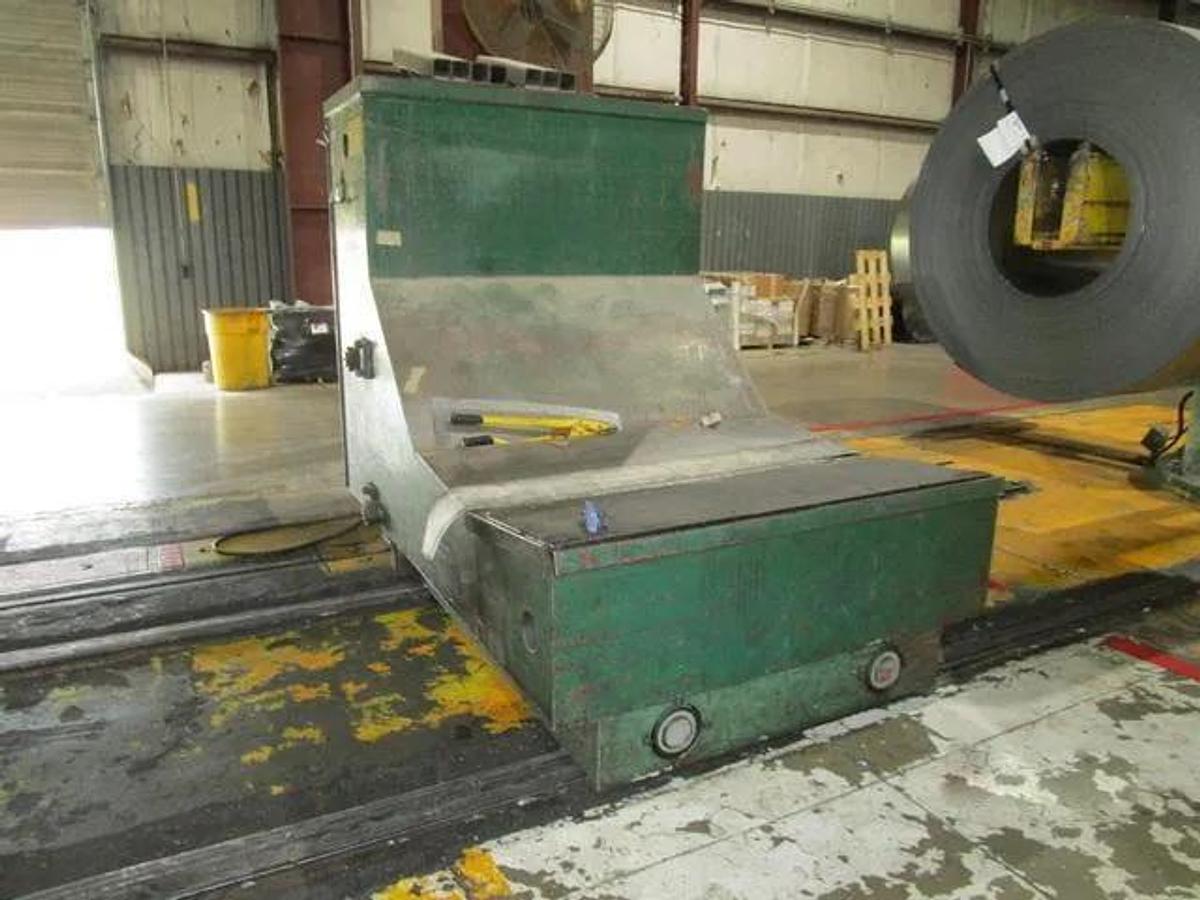

Entry Coil Car
L Type
Floor Standing
Self-Contained Hydraulics
Mandrel Uncoiler
Four Leaf Hydraulic Expansion
Pumpkin Tooth Mandrels
Sliding Base
New Wichita Dual Disc Brakes (2023)
Powered Hold Down Roll
Feed Up Drive
Peeler Table / Threading
Peeler Table
Pinch Rolls
Hydraulic Crop Shear
Two Sets Hydraulic Edge Guides
Slitter Section
Dual Injector Slitter Heads (2 Heads)
9" Arbors
150 HP DC Drive
Hydraulic Arbor Adjustment
Hydraulic Tooling Locking Arbors
Feed Up Table
Shimless Tooling
Scrap Handling
Two Scrap Winders
Variable Speed Control
Looping Pit
Cascade Rolls
Looping Pit Cross Over Table
Tension Stand
Rotary Drag Board
Drag Pad with Air Bladder Pressure
Three Air Cylinders Top Pressure
Rotary Drag Roll
Dual Hydraulic Drag Brakes
Exit Section
Exit Crop Shear
Exit Pass Line Roll
Recoiler
Hydraulic Drum
20" and 24" Dual Sleeve Drums
Overarm Separator
Hydraulic Push Off
200 HP DC Drive
300/1800 RPM
500 Volt
Exit Coil Car
L Type
Floor Standing
Self-Contained Hydraulics
Coil Hold Down Roll
Coil Holders
Exit Turnstile
Four Arm
Power Rotation
Power Push Off
Chicago Banding Line
Downlayer
15,000 Lbs. Horn Type Coil Downlayer
84" Maximum Coil OD
Powered Rolls
Conveyors
45 Degree Conveyor
15' Powered Conveyor
60' Powered Conveyor
Photo Electric Coil Positioning Eyes
Banding Table
Coiltech Banding Table
Signode Banding Head
Three Conical Rolls
Turret Coil Stacker
10,000 Lbs. Braner Turret Stacker
ID / OD Coil Grabs
Coil Positioning Table
12 Position Coil Turntable
Controls / Hydraulics / Upgrades
Safety System
New in 2017
Upgraded in 2025
Drives
Parker Digital DC Drives
New 2016
PLC
Allen-Bradley
Tooling
Shimless Tooling
Spare Tooling Shafts
Hydraulics
Central Hydraulic Unit
New Pump
New Motor
Additional Information:
Line Can Be Seen Under Power and Operating
