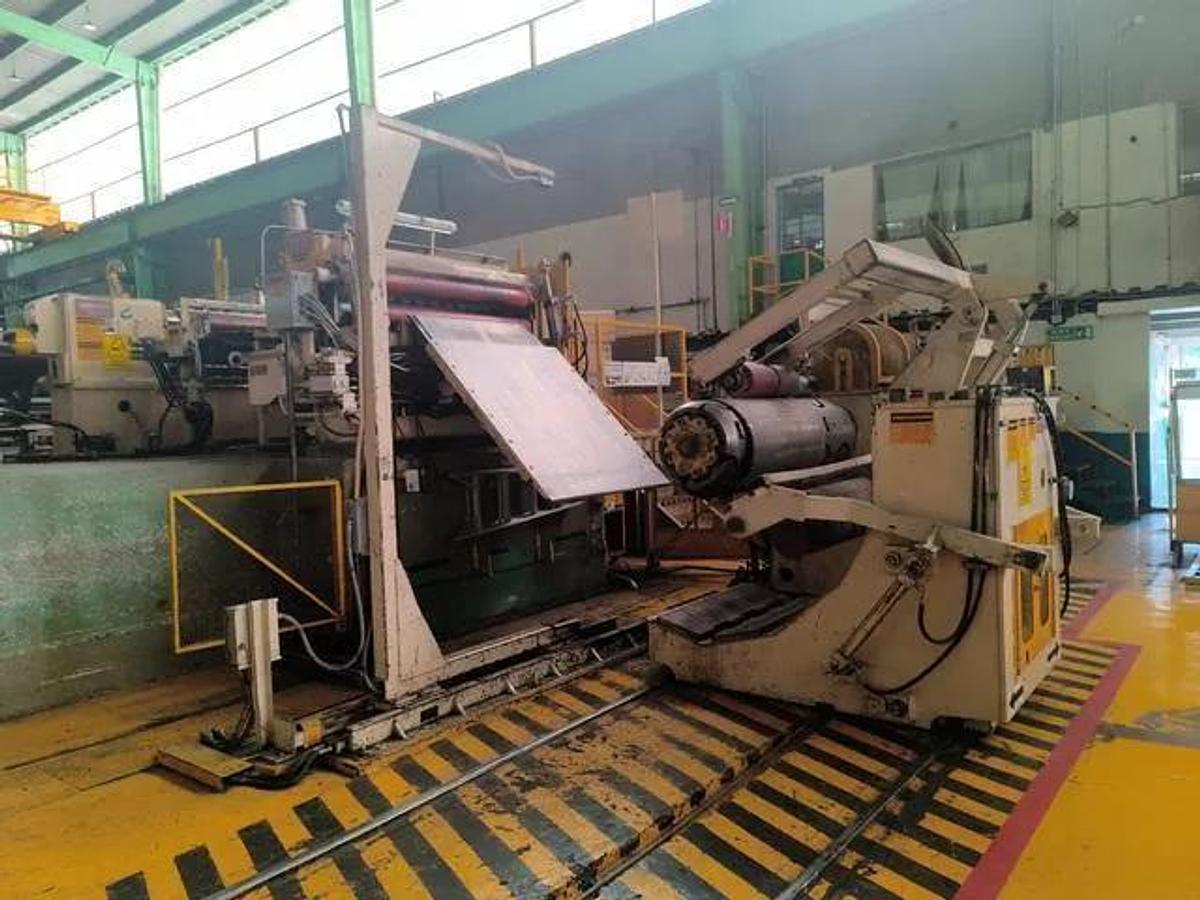

60” X .125” X 44,000 Lbs Stamco Loop Dual Head Slitter With Banding Line
Specifications
| Manufacturer | Stamco |
| Condition | Used |
| Stock Number | VX-35832 |
| Minimum Width | 12" |
| Maximum Width | 60" |
| Minimum Thickness | 0.023" |
| Maximum Thickness | 0.125" |
| Maximum Coil Weight | 44,000 Lbs. |
| Minimum Entry Coil OD | 30" |
| Maximum Entry Coil OD | 72" |
| Minimum Exit Coil OD | 30" |
| Maximum Exit Coil OD | 72" |
| Minimum Entry Coil ID | 20" |
| Maximum Entry Coil ID | 24" |
| Minimum Exit Coil ID | 20" |
| Maximum Exit Coil ID | 24" |
| Line Speed | 400 / 800 FPM |
| Line Direction | Right to Left |
Description
The Stamco Loop Dual Head Slitter with Banding Line is a reliable solution for processing steel coils with precision and efficiency. It handles materials with a maximum width of 60 inches and thickness ranging from 0.023 to 0.125 inches. The system is capable of processing coils up to 44,000 lbs, accommodating entry and exit coil diameters between 30 and 72 inches and IDs of 20 to 24 inches. Equipped with two slitting heads, the slitter ensures effective material handling, with support for both cold-rolled and galvanized steel. The slitting line operates at speeds between 400 to 800 feet per minute, maintaining a smooth right-to-left line direction. This unit includes an entry turnstile, coil car, uncoiler with hydraulic expansion, and a North American Edge Control System for precise operations. The line integrates advanced features such as a combination tension stand, hydraulic recoiler, and a banding section with powered conveyors, making it a comprehensive setup for efficient coil processing. Updated controls with a modern Allen-Bradley PLC and drives ensure reliable performance. This used unit remains fully installed and operational.
Includes
Entry Turnstile
- 4-Arm Design
- Hydraulic Rotation
Entry Coil Car
- L-Type Design
- 44,000 Lb. Capacity
Uncoiler
- 44,000 Lb. Capacity
- 30" - 72" Coil OD
- 20" - 24" Coil ID
- Hydraulic Expansion
- Sliding Base
- Powered Hold-Down Roll
- Wichita Water-Cooled Brake
North American Edge Control System
Entry Section
- Peeler Table
- Pinch Rolls
- Crop Shear
Slitting Section
- Two (2) Slitting Heads
- 7" Diameter Arbors
- Crane Removal Design
- Double Eccentric Bearings
- 75 HP DC Drive
- Two (2) Scrap Winders
- Cutting Chart Available Upon Request
Transition Section
- Entry & Exit Cascade Rolls
- Pit Crossover Table
Tension Stand
- Combination Rotary & Pad-Type Design

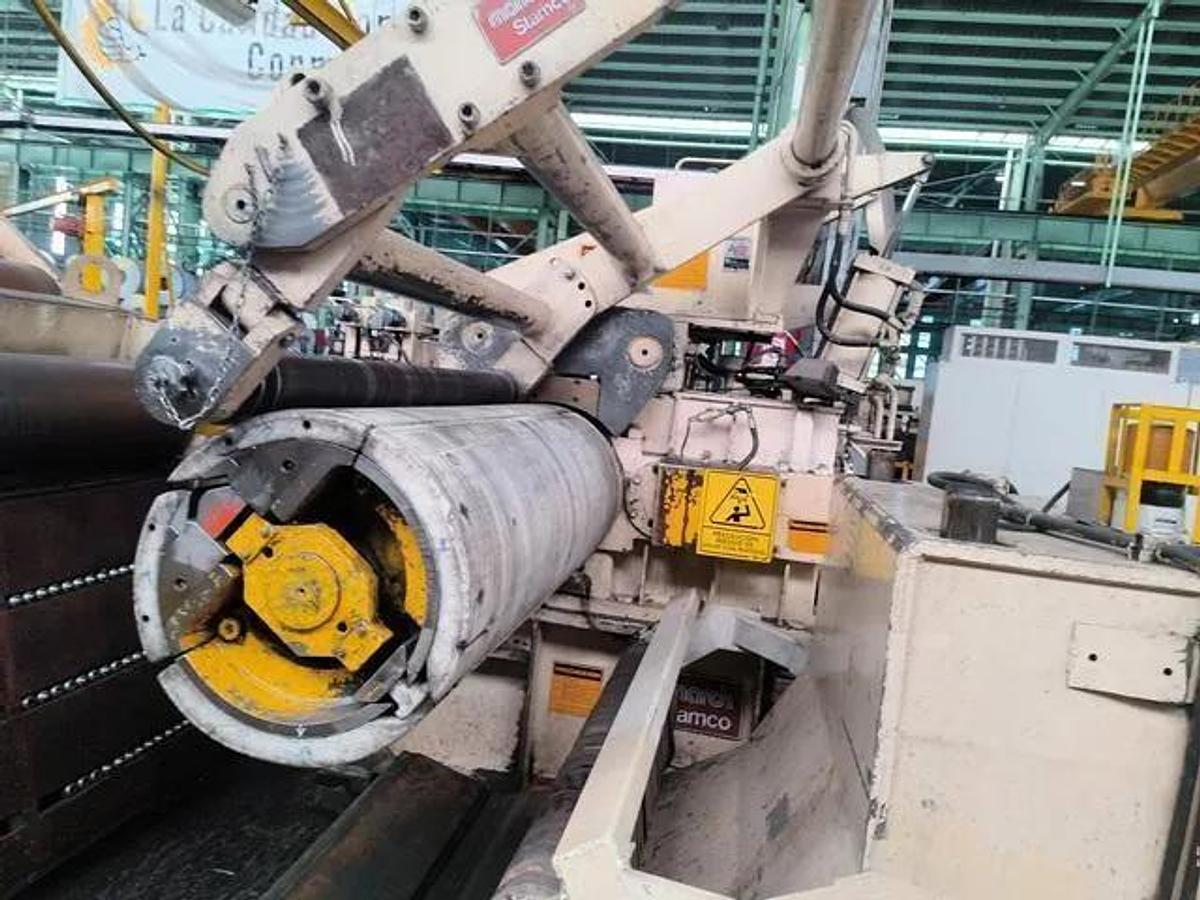

Recoiler
- Hydraulic Drum
- 30" - 72" Coil OD
- 20" - 24" Coil ID
- Overarm Separator
- 100 HP DC Drive
Exit Coil Car
- L-Type Design
- Coil Keepers
Exit Turnstile
- 4-Arm Design
- Push-Off Plate
Downlayer
- Hydraulic Horn-Type Design
Conveyors
- Powered Roller Conveyor
- Powered Conveyor Section
Banding Line
- Banding Table with Conical Rolls
- Powered Conveyor Section
- Stacker Table
Controls & Hydraulics
- Complete Controls
- Hydraulics
- Electrics
- Newer Allen-Bradley PLC & Drives
- Updated 2017 / 2018
