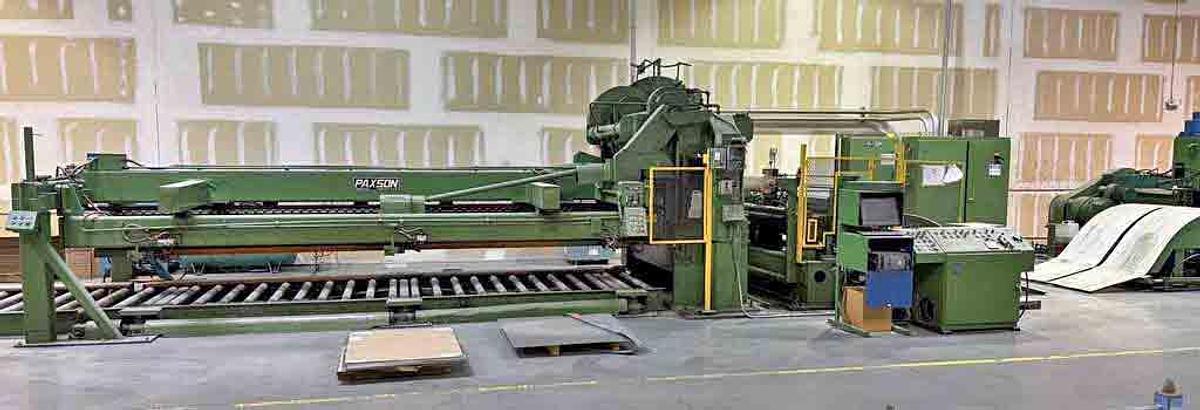

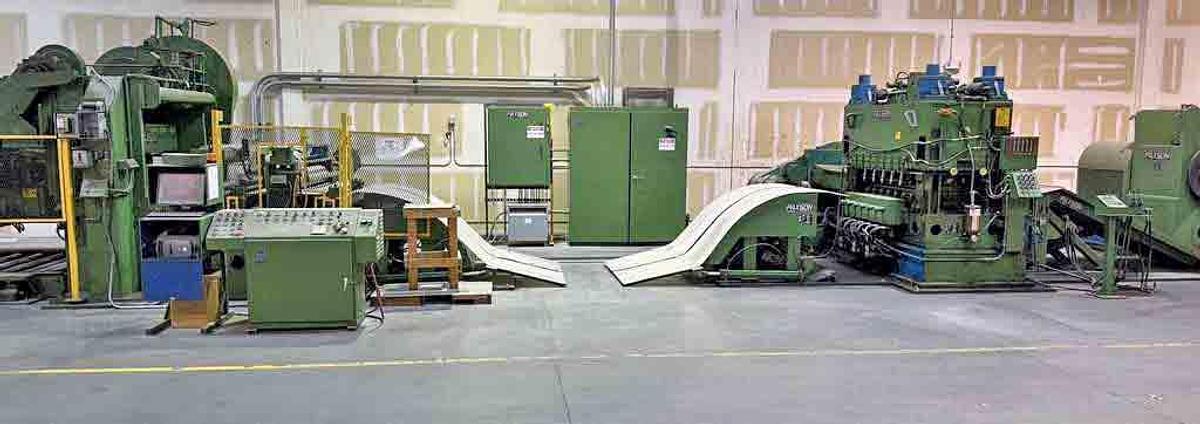

60” x 0.135” x 40,000 Lbs Paxson Cut To Length Line

Specifications:

Manufacturer: Paxson

Width: 60”

Thickness Range: 0.020” to 0.135”

Coil ID: 20” to 24”

Coil Weight: 40,000 Lbs

Line Direction: Right To Left

Line Includes:

Entry Coil Car:

Floor Type

Hand Pendant Control

Self Contained Hydraulic Power Unit

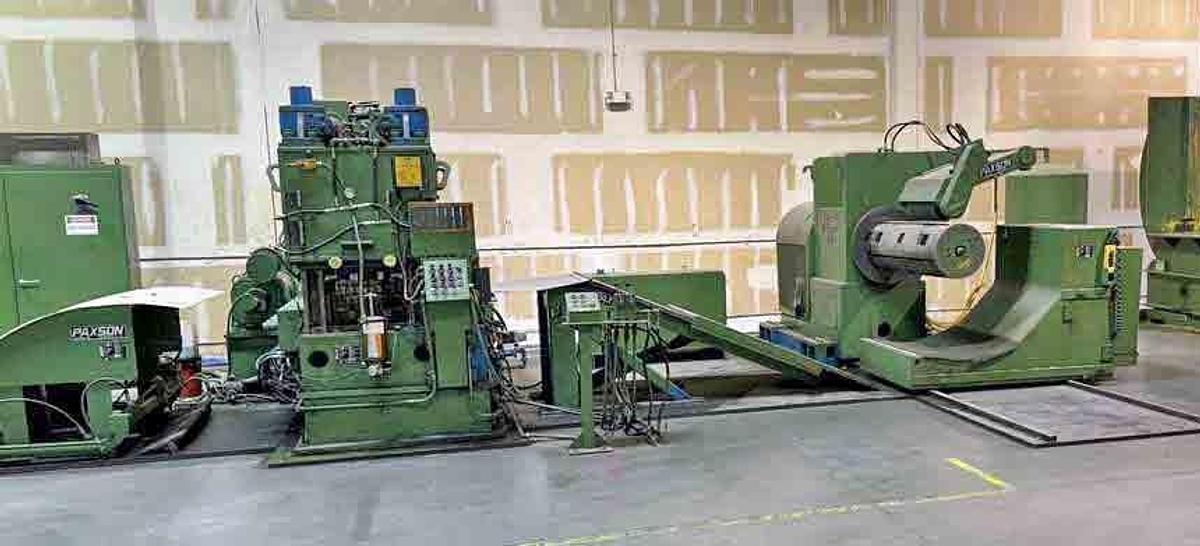

Uncoiler:

Mandrel Type

Overarm Holddown

Slide Base

Water Cooled Brake

Hydraulic Motor Feedup

Peeler Table:

Hydraulic Lift And Extend

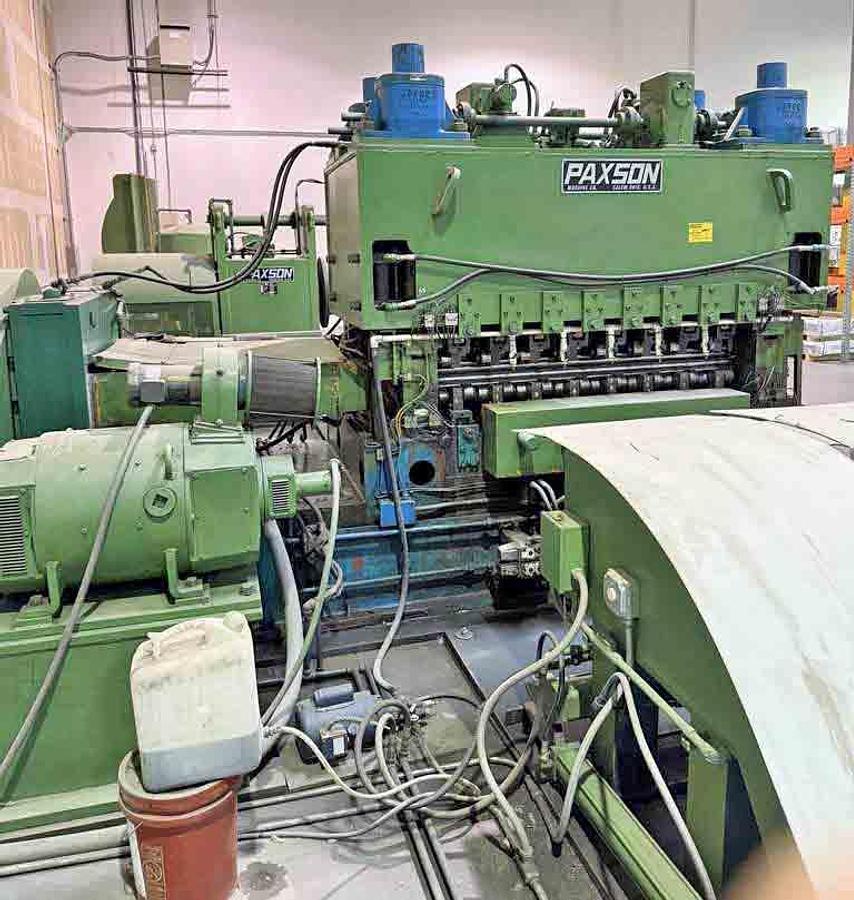

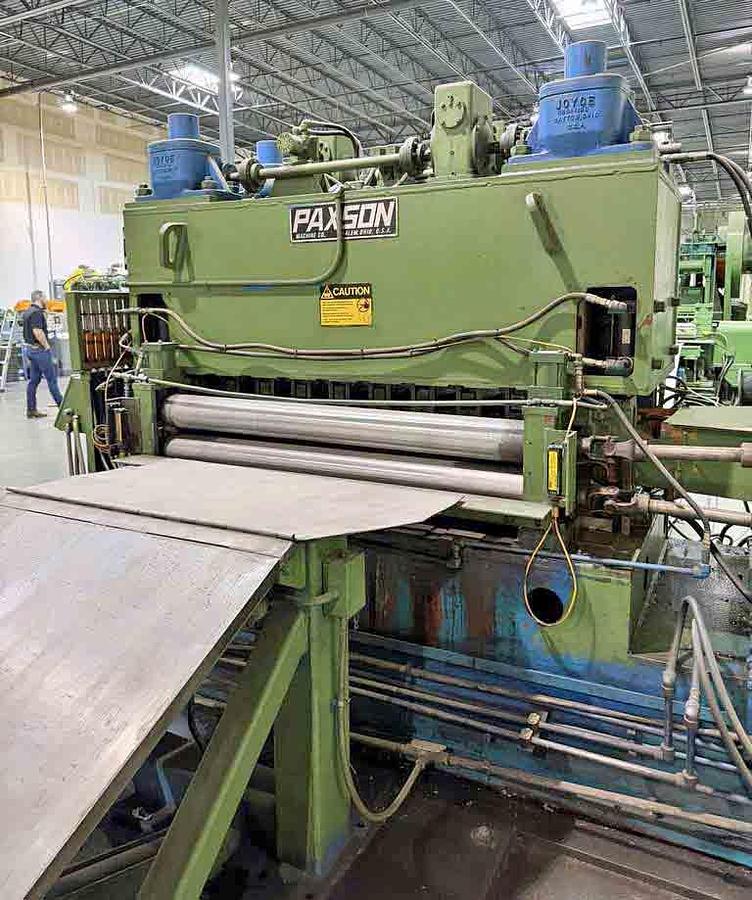

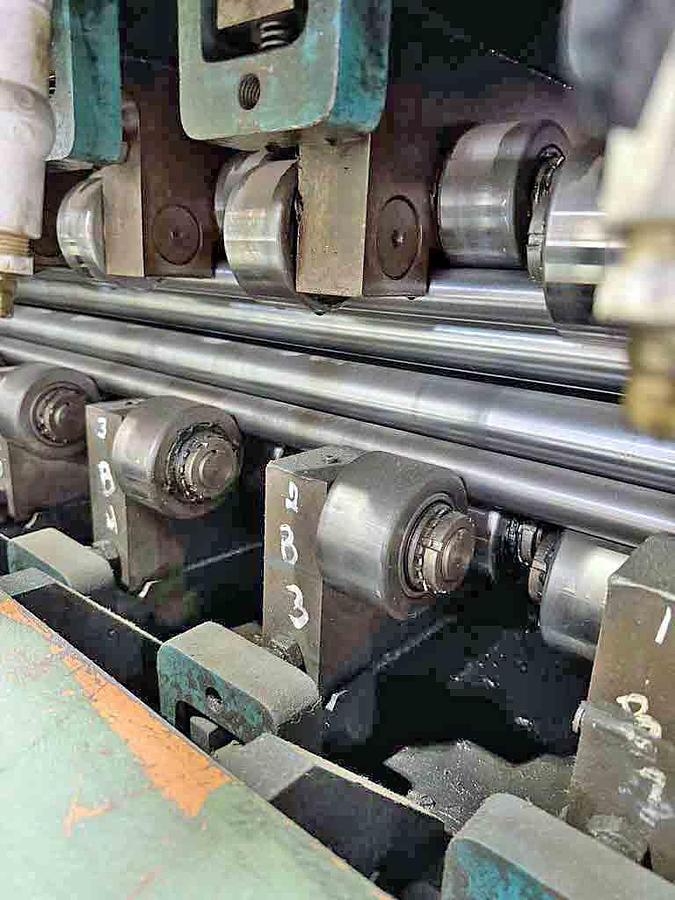

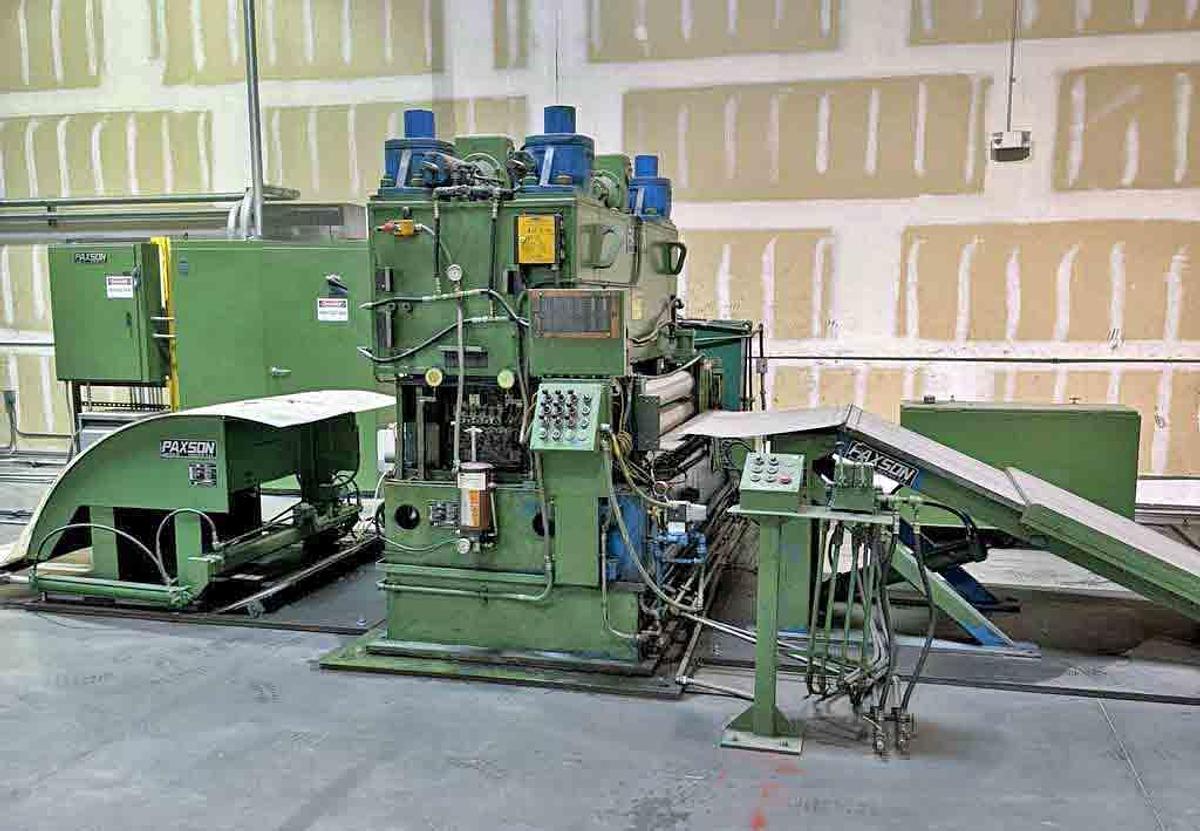

Paxson Precision Leveler:

6 Hi

1.750” Roll Diameter

74” Roll Face

Entry Pinch Rolls Powered

8 Flights Of Backups (6 Flights Motorized)

125 HP WER DC Motor, 1750 and 2000 RPM, 500 V

Cascade Loop Table

Roll Feed:

Entry Side Guides

Full Width Rolls

Exit Paper Applicator

30 HP Emerson DC Motor

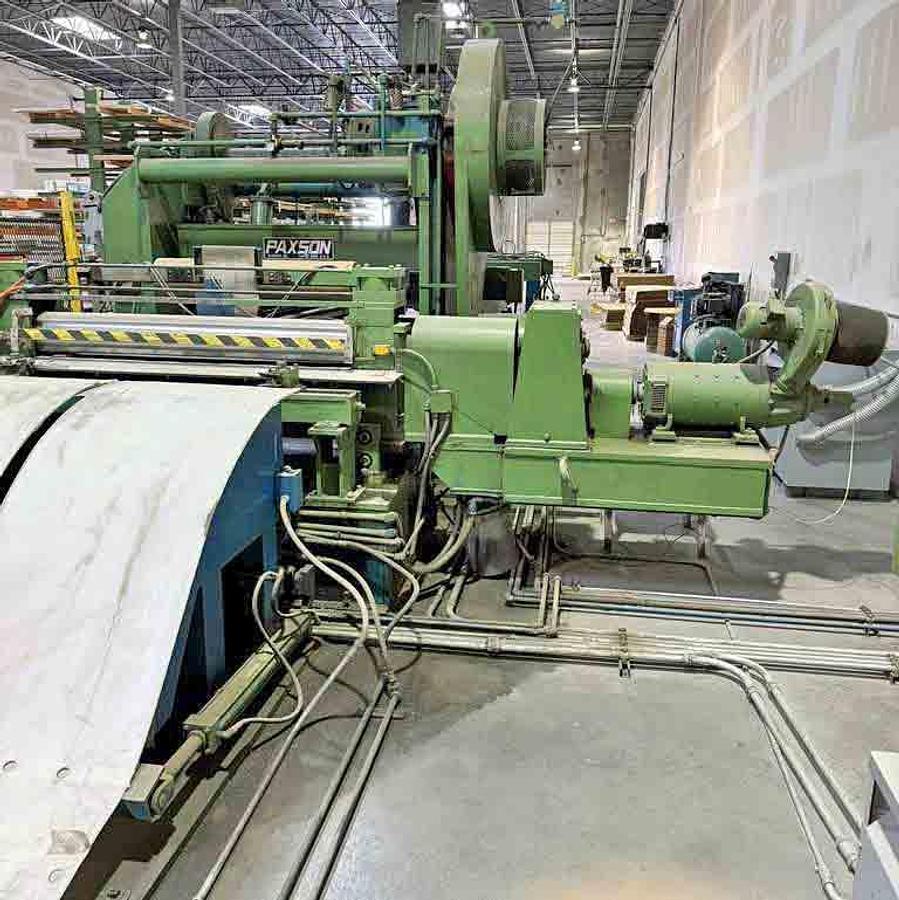

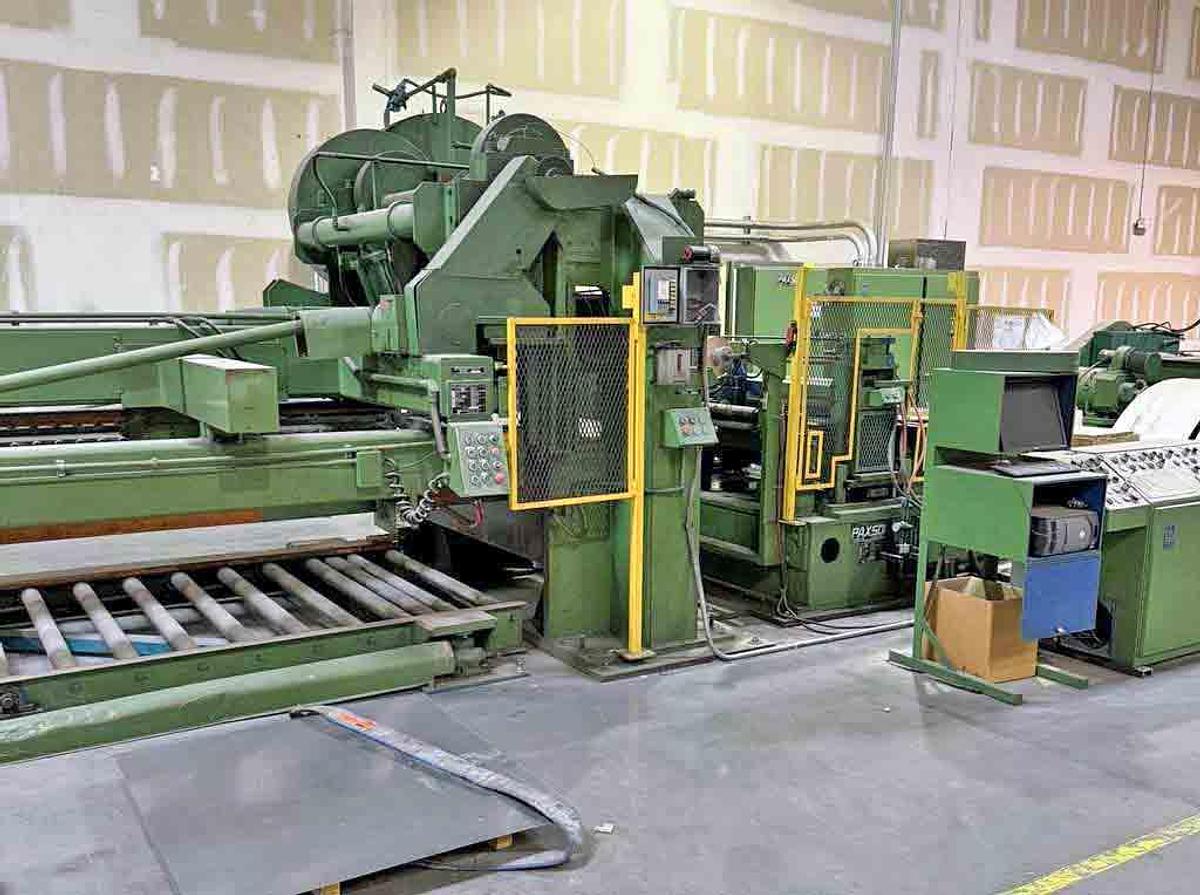

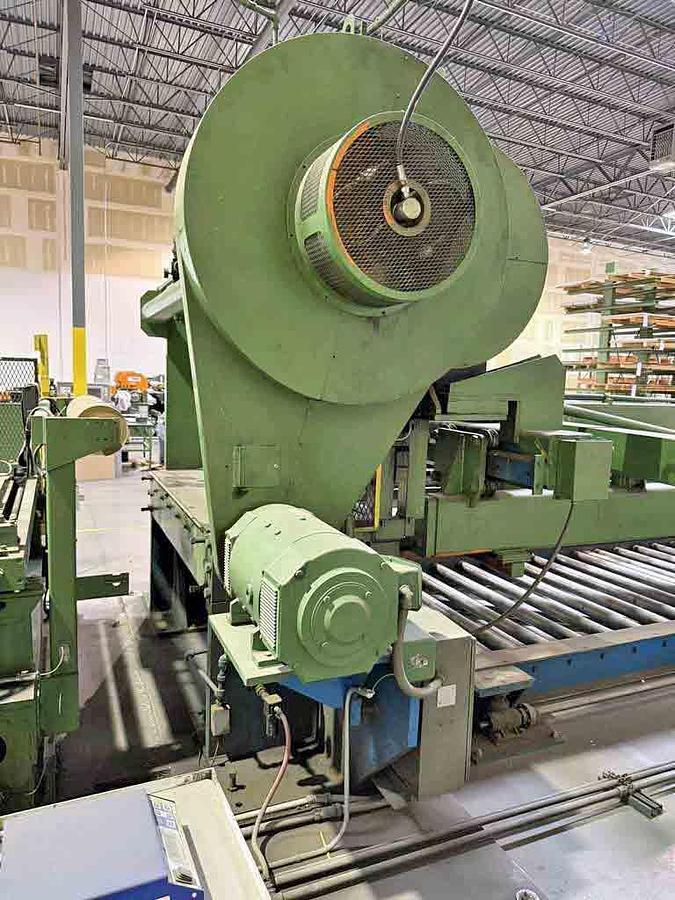

High Speed Shear:

Over Driven Mechanical

Manual Blade Gap Adjustment

30 HP WER DC Drive Motor, 1750 RPM, 500 V

Air Clutch And Brake

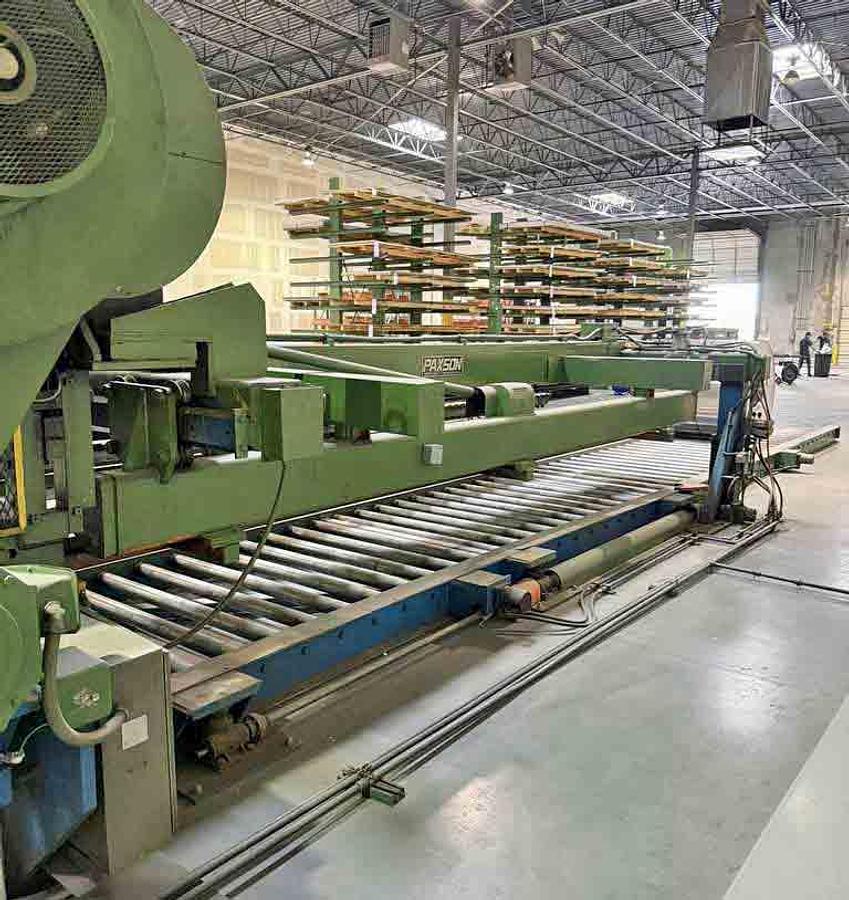

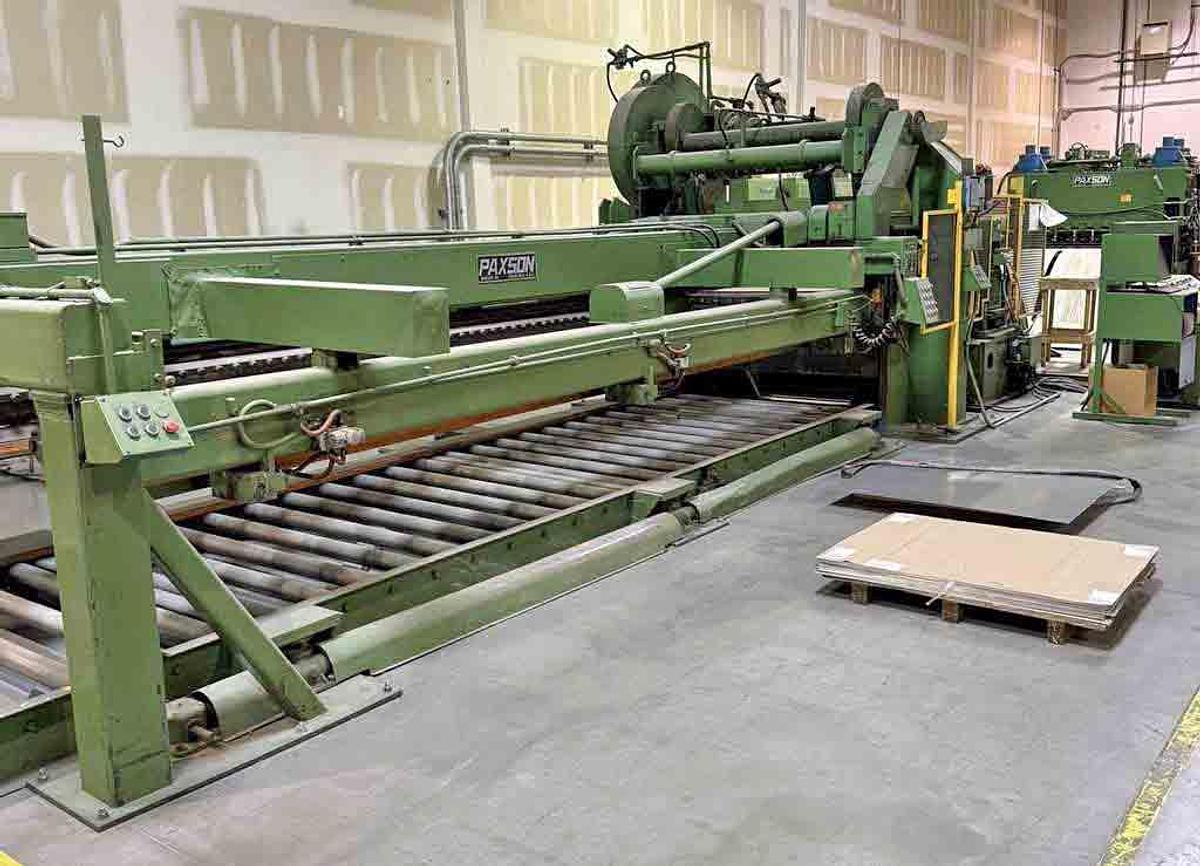

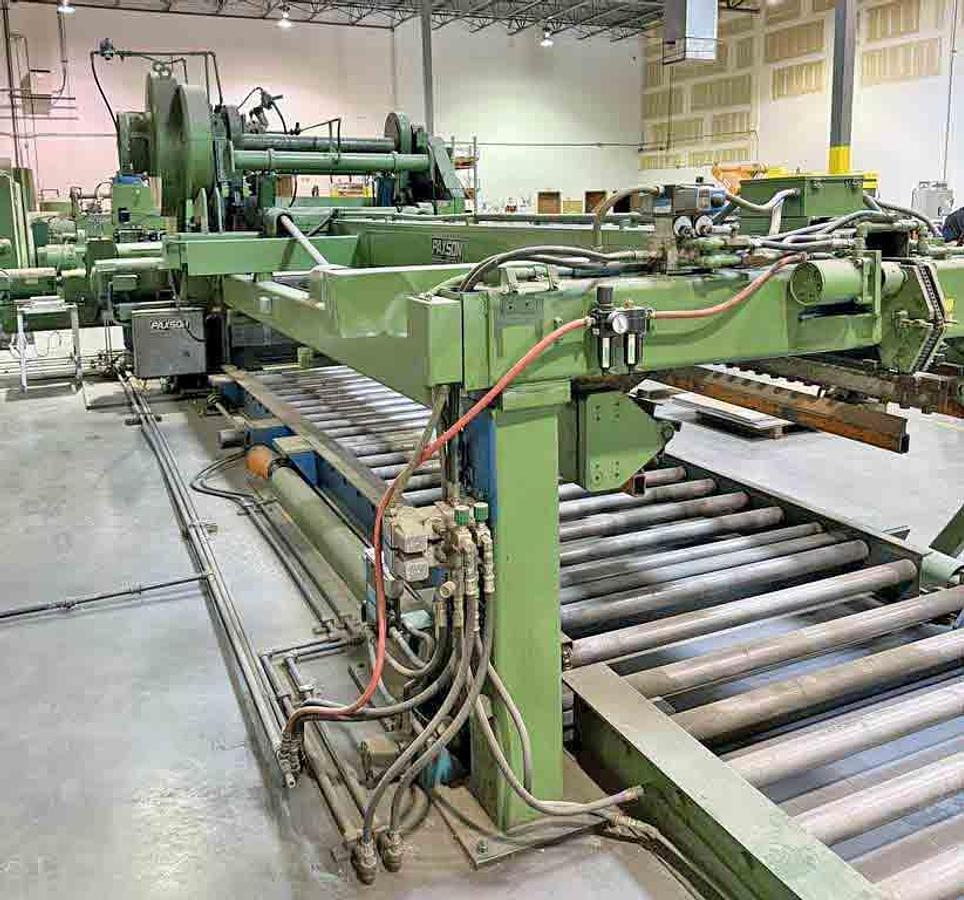

Automatic Stacker:

Flipper Arm Type

Powered Width Adjustment

Powered Length Adjustment

Non Scratching Roller Supports

20’ Maximum Length

Mechanical Screw Jack Lift Table

Powered In Line Eject Conveyor

Exit Runout Conveyor:

Powered Rolls

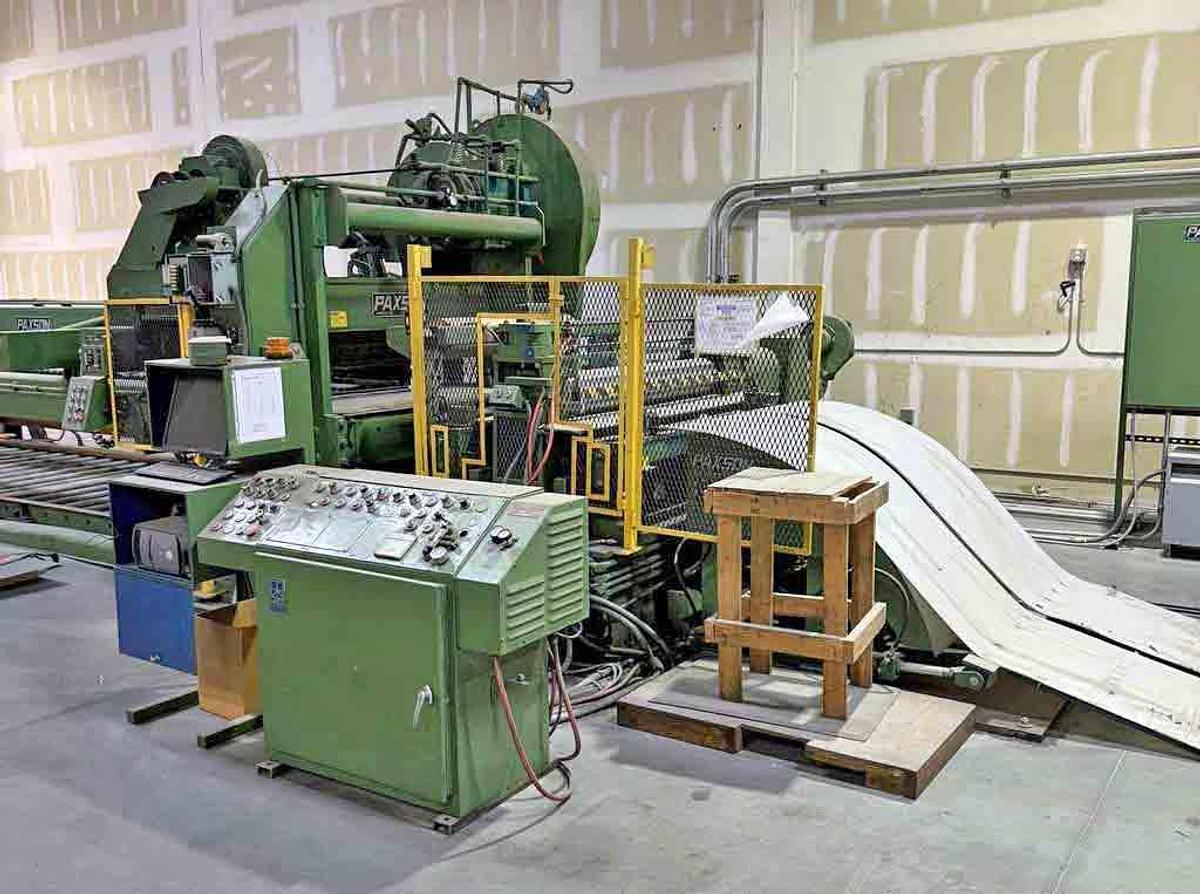

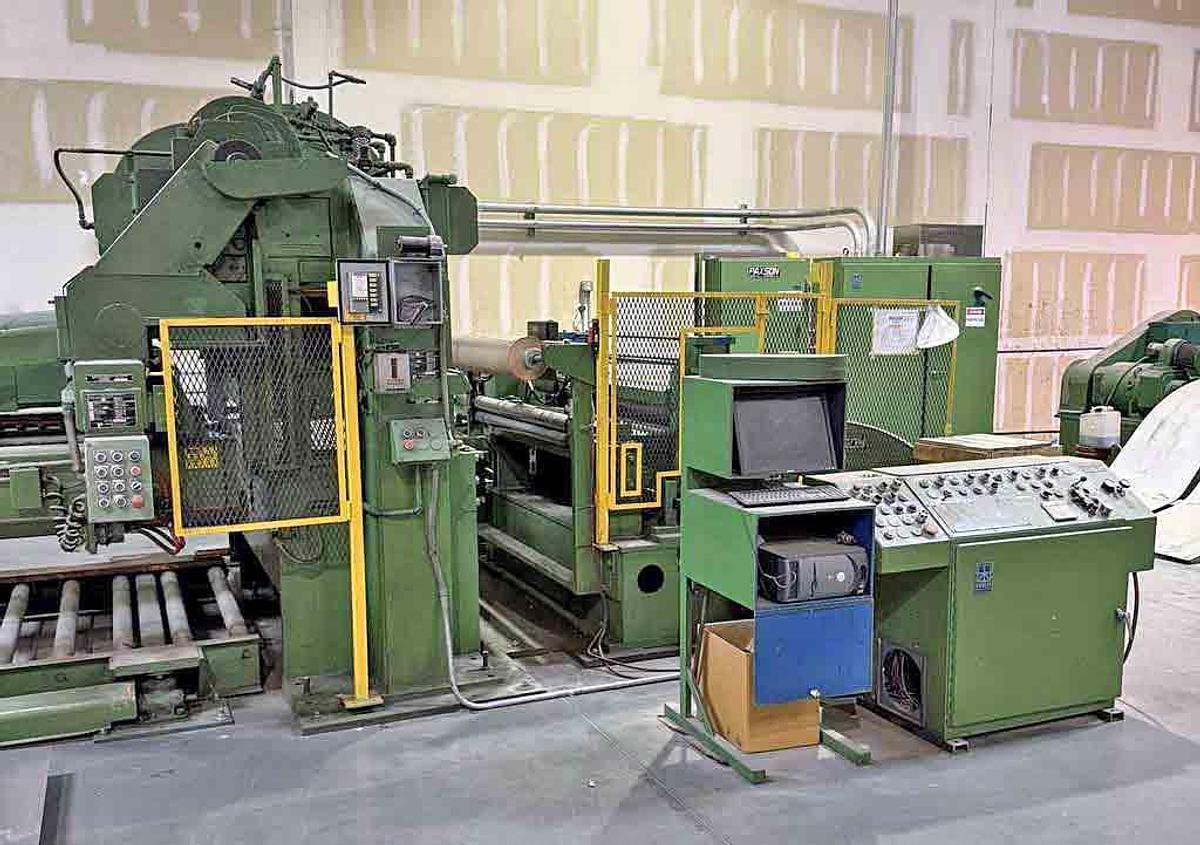

Main Operators Control Panel

Water Cooler

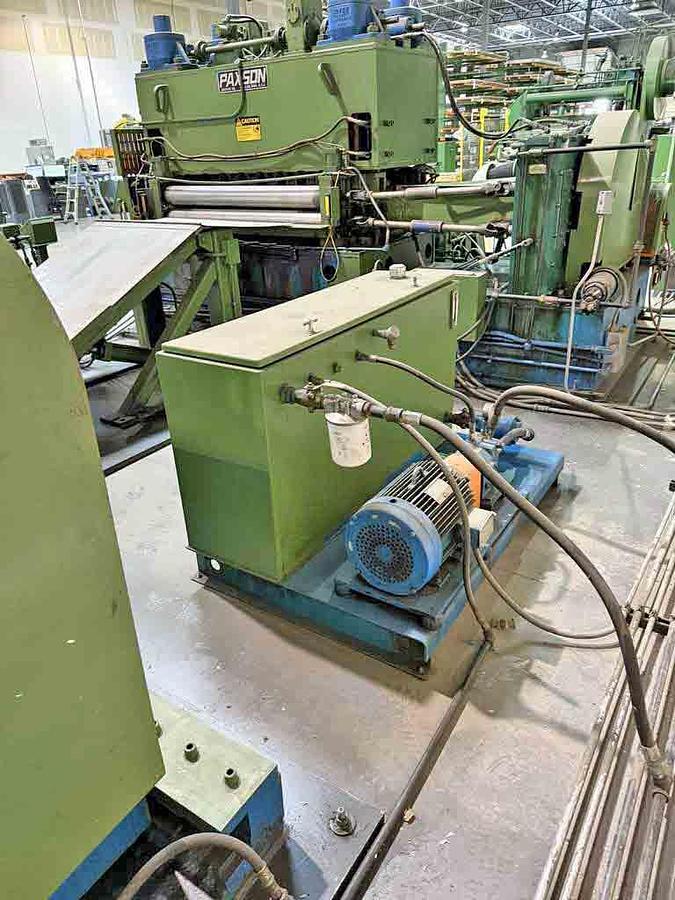

Hydraulic Power Unit

Electrical Controls And Drives

Air Compressor:

220 KVA, 480 V

*Line Is Installed
