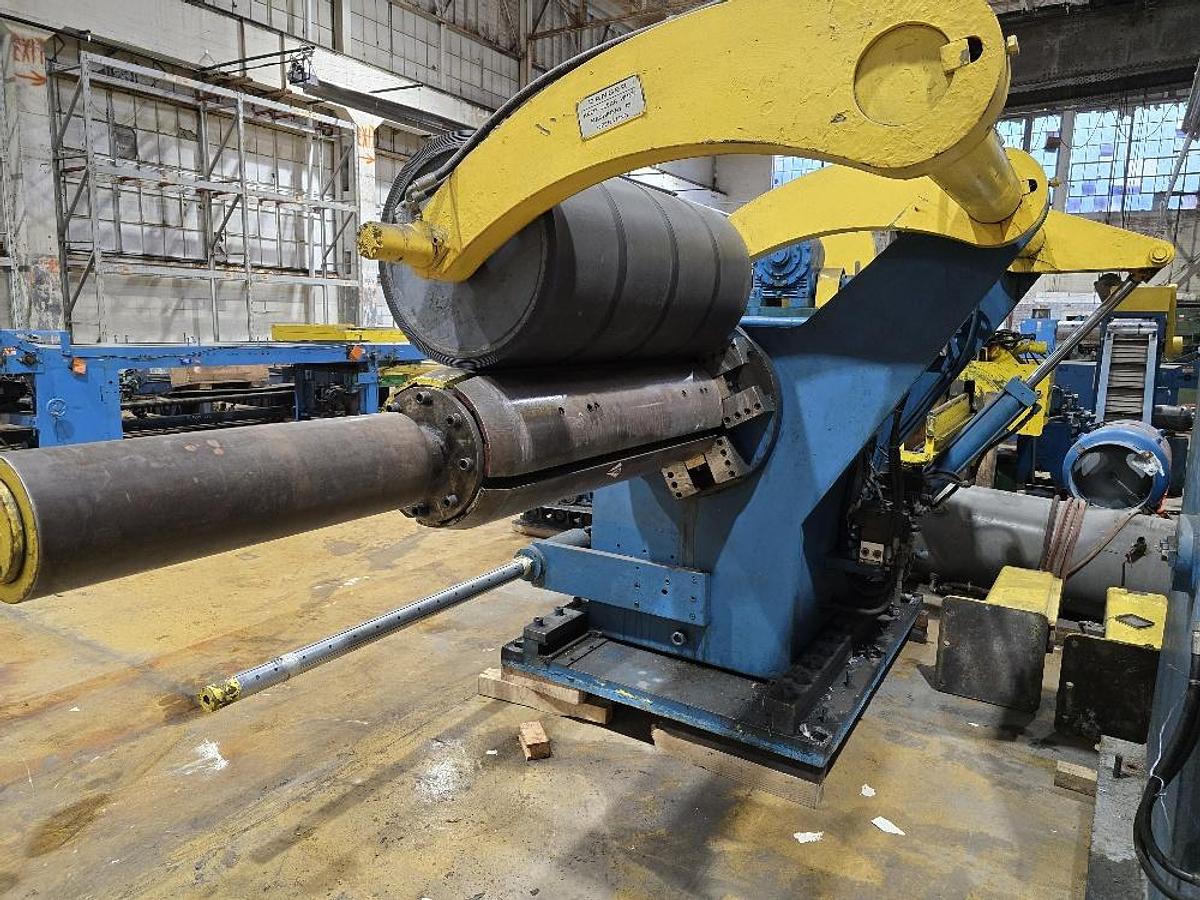

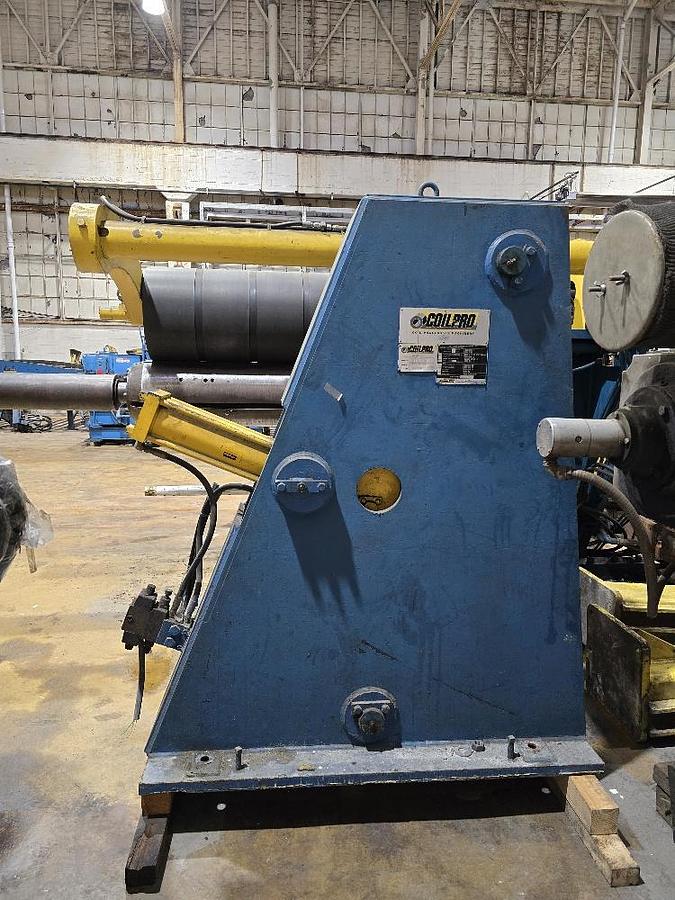

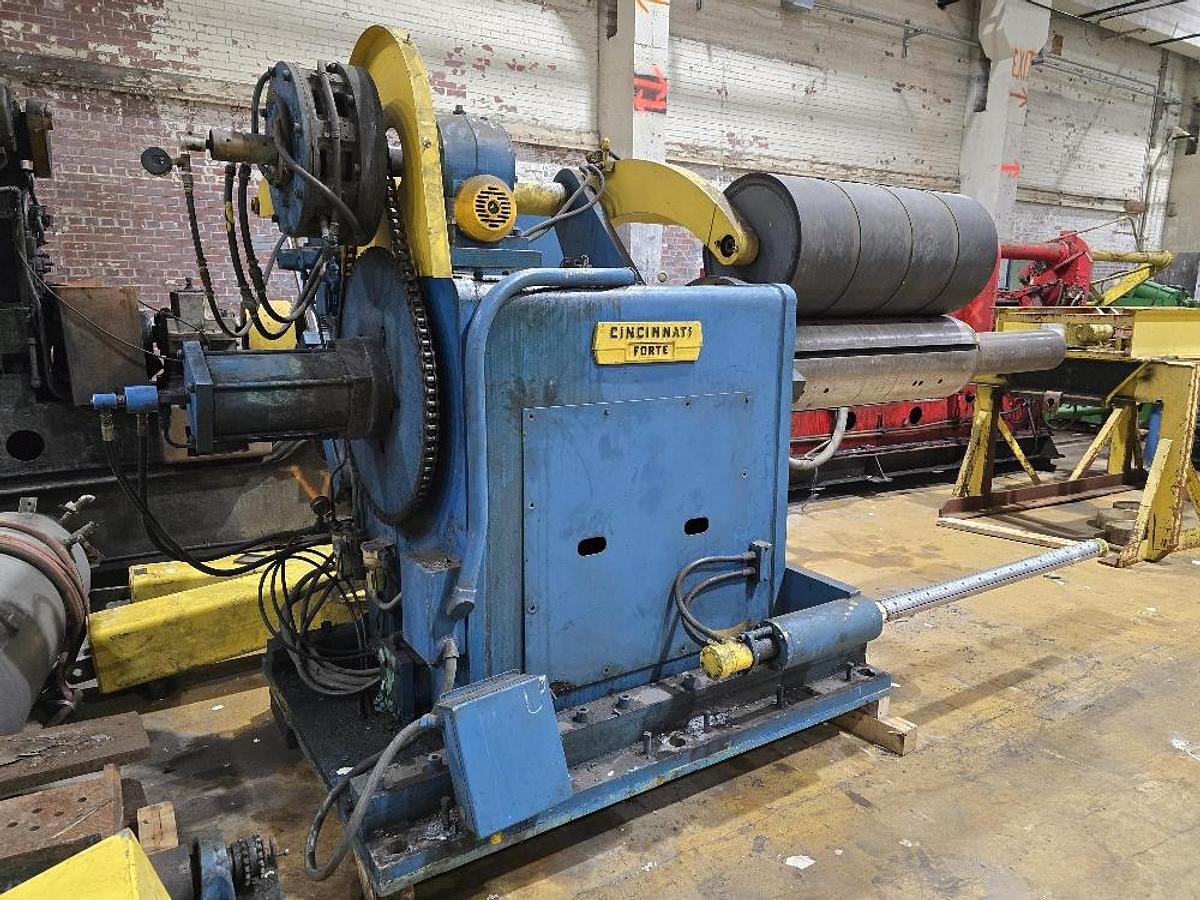

49” x 40,000 Lbs. Cincinnati Uncoiler

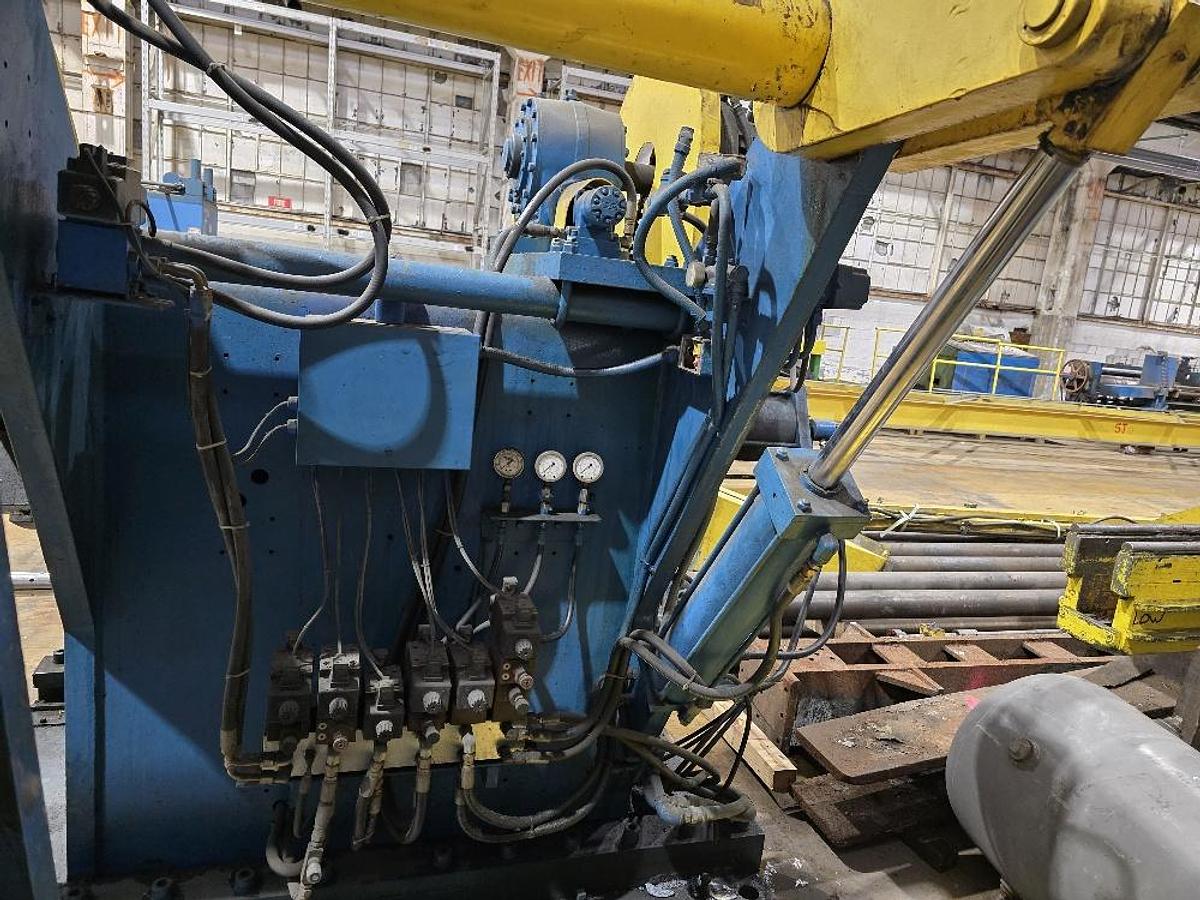

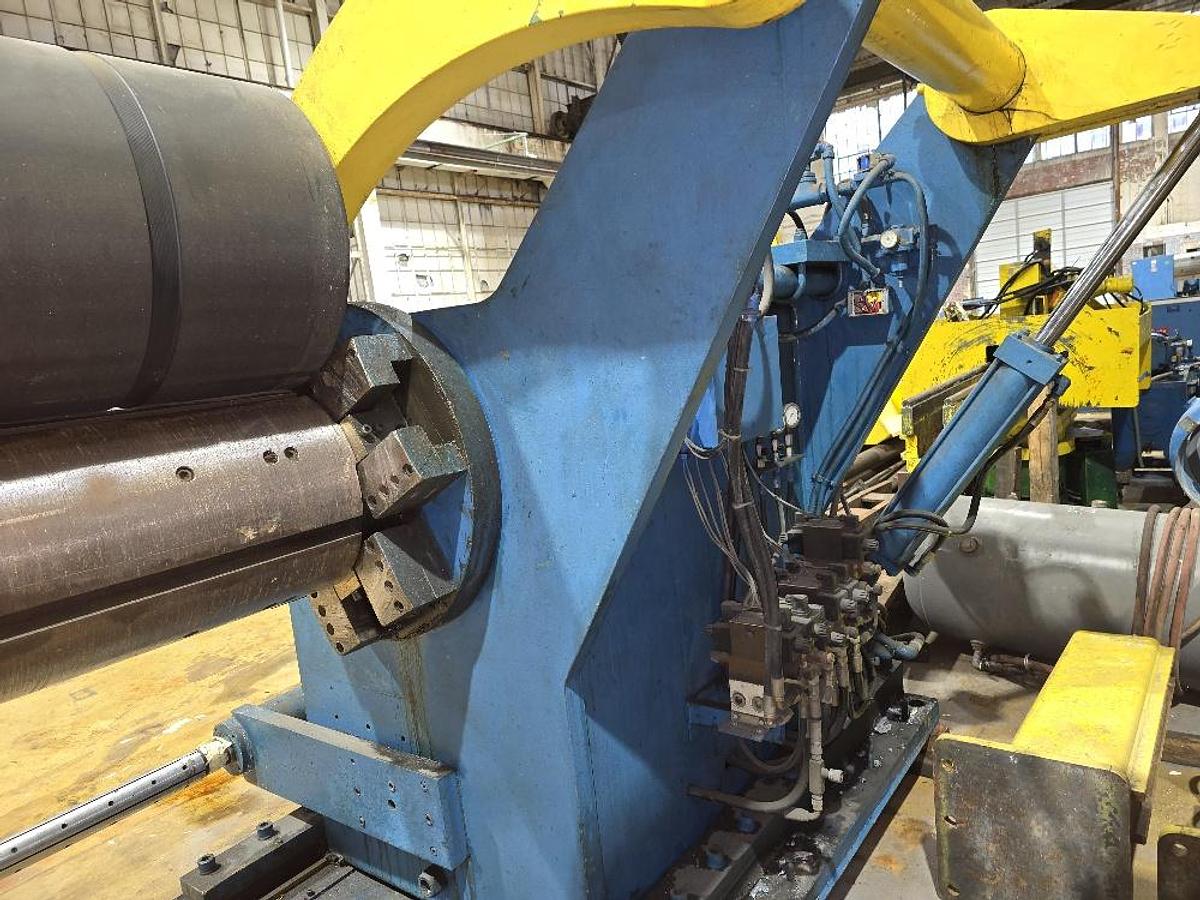

This used Cincinnati uncoiler is designed to handle heavy-duty coil processing with a coil width capacity of 49 inches. The machine offers a robust mandrel expansion range of 15.5 inches to 24.5 inches, operated hydraulically for precision and ease. It supports a maximum coil weight of 25,000 lbs without outboard support, which increases significantly to 40,000 lbs with outboard support in place. The uncoiler features a reliable hydraulic motor driving a right-angle gearbox, complemented by a chain and sprocket system for efficient feeding operations. It is equipped with a Wichita air brake to ensure smooth and controlled processing, while a sliding base and an attached hold-down roll add to its stability and adaptability. The line direction of the machine is configured from right to left, making it versatile for various manufacturing setups. This model is well-suited for heavy industrial environments where consistency and durability are paramount. Its comprehensive design allows for seamless integration into existing production lines, optimizing workflow and enhancing productivity with minimal downtime.
