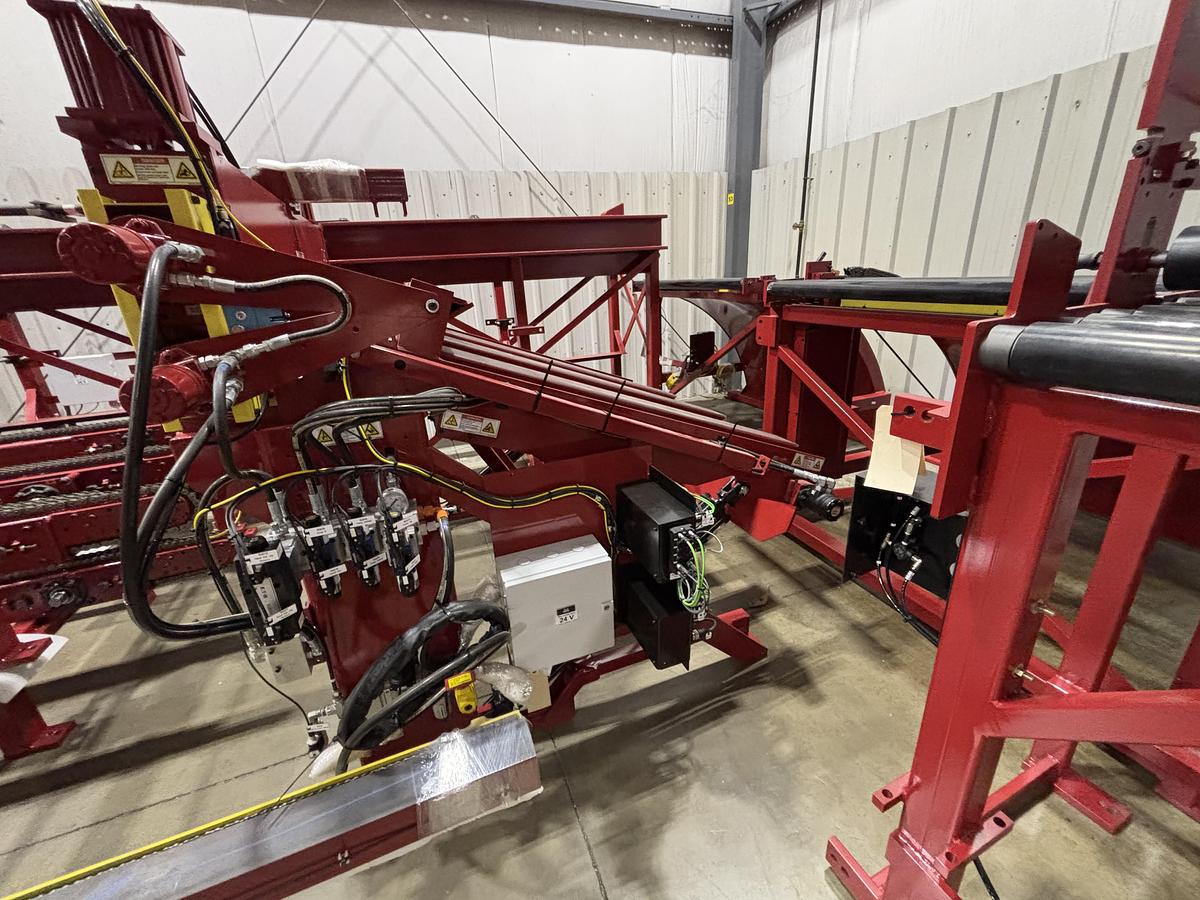

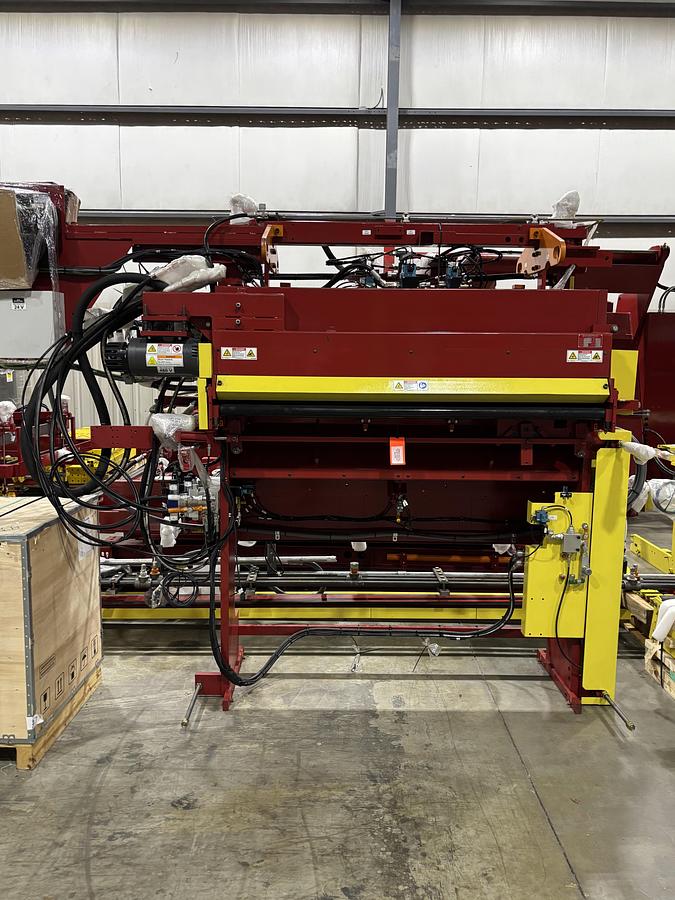

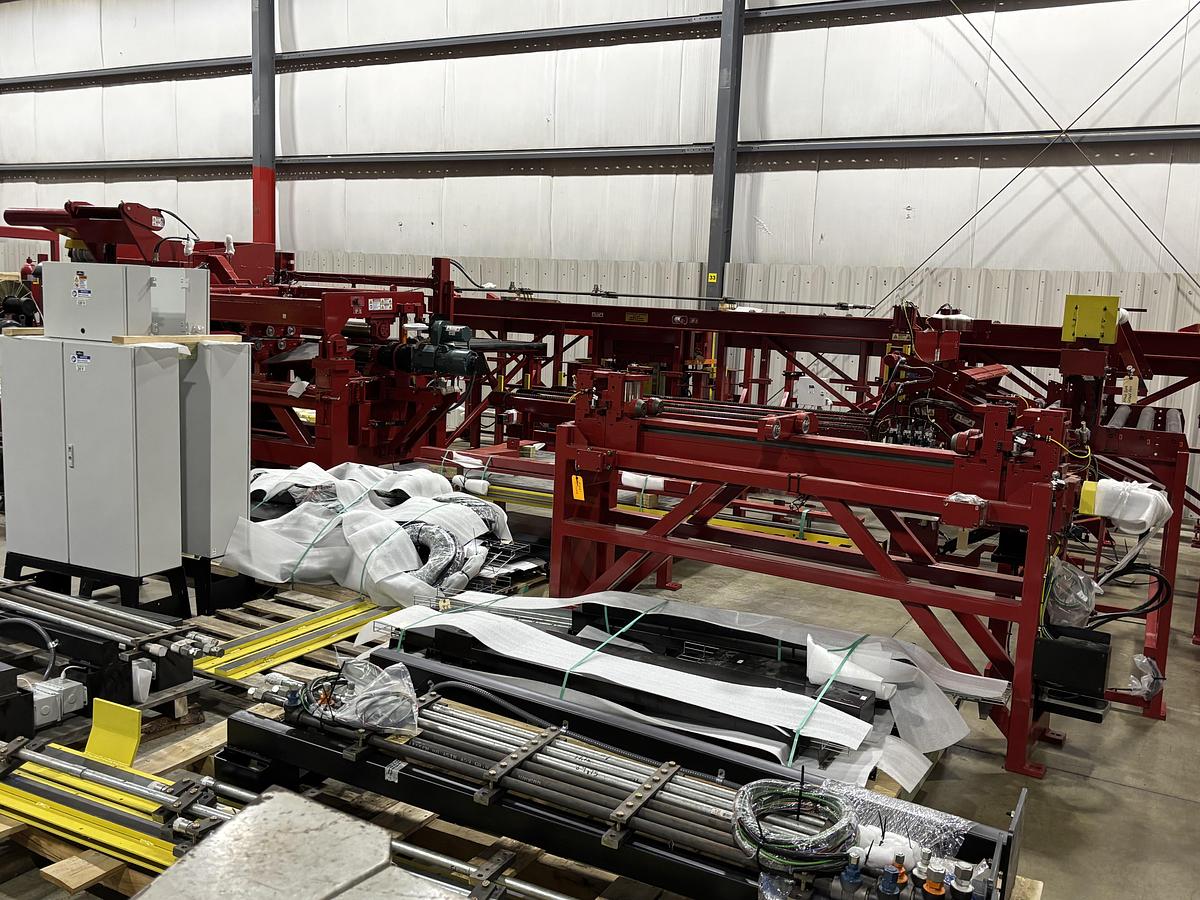

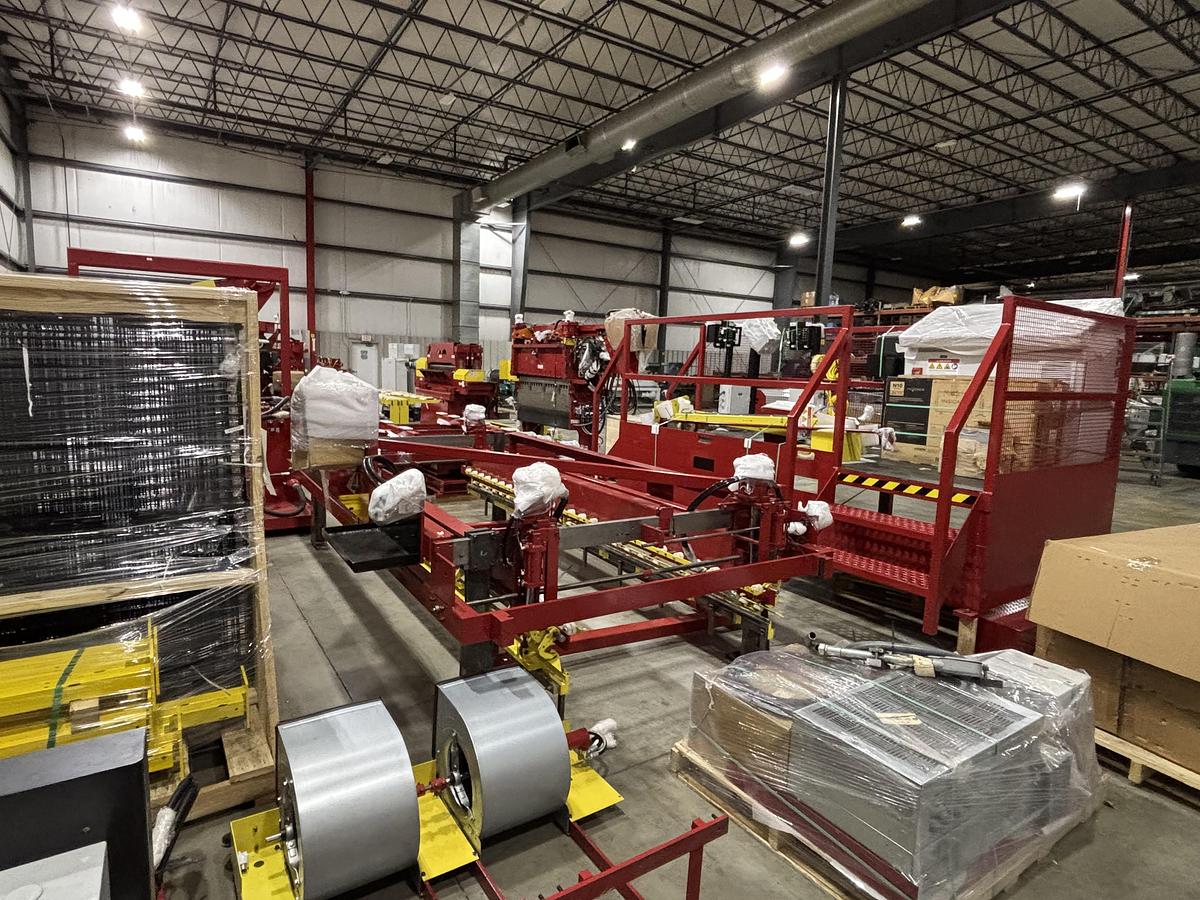

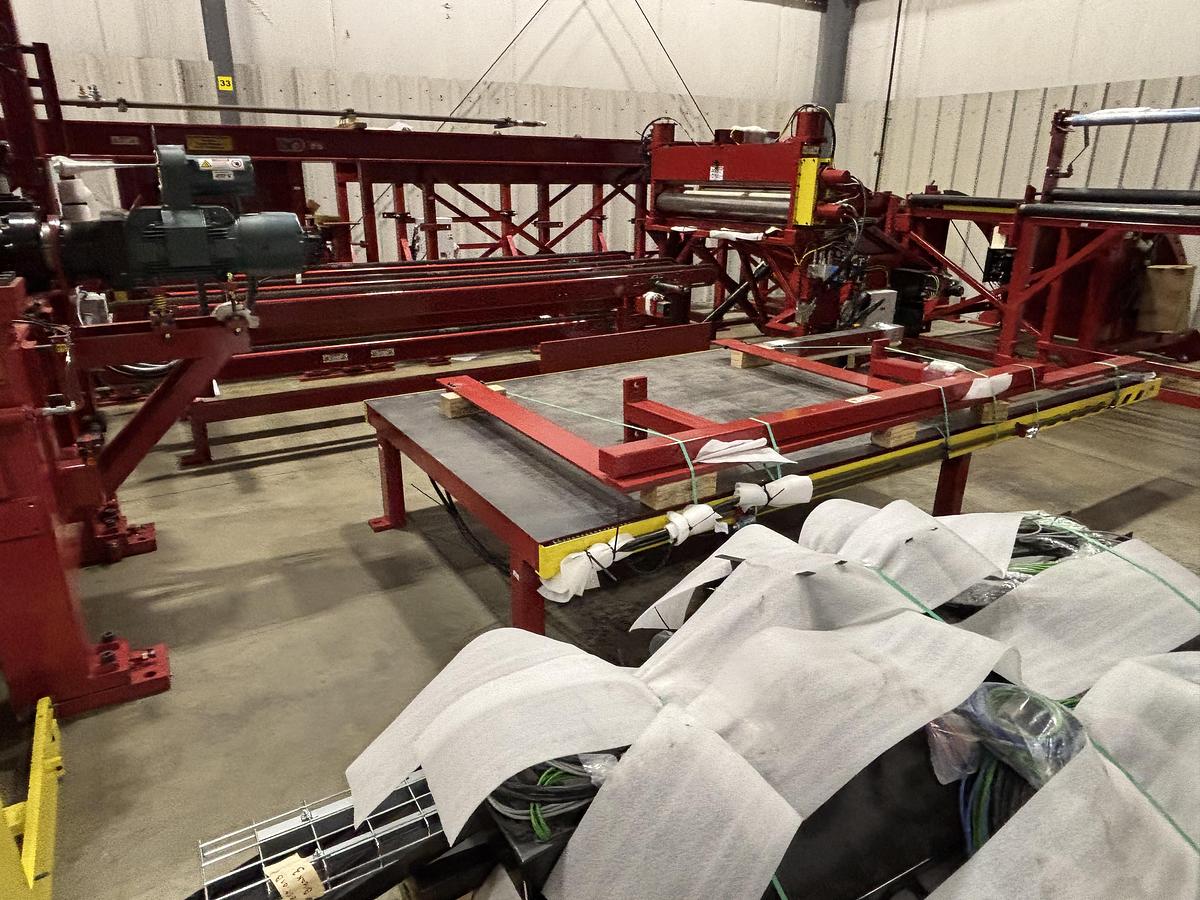

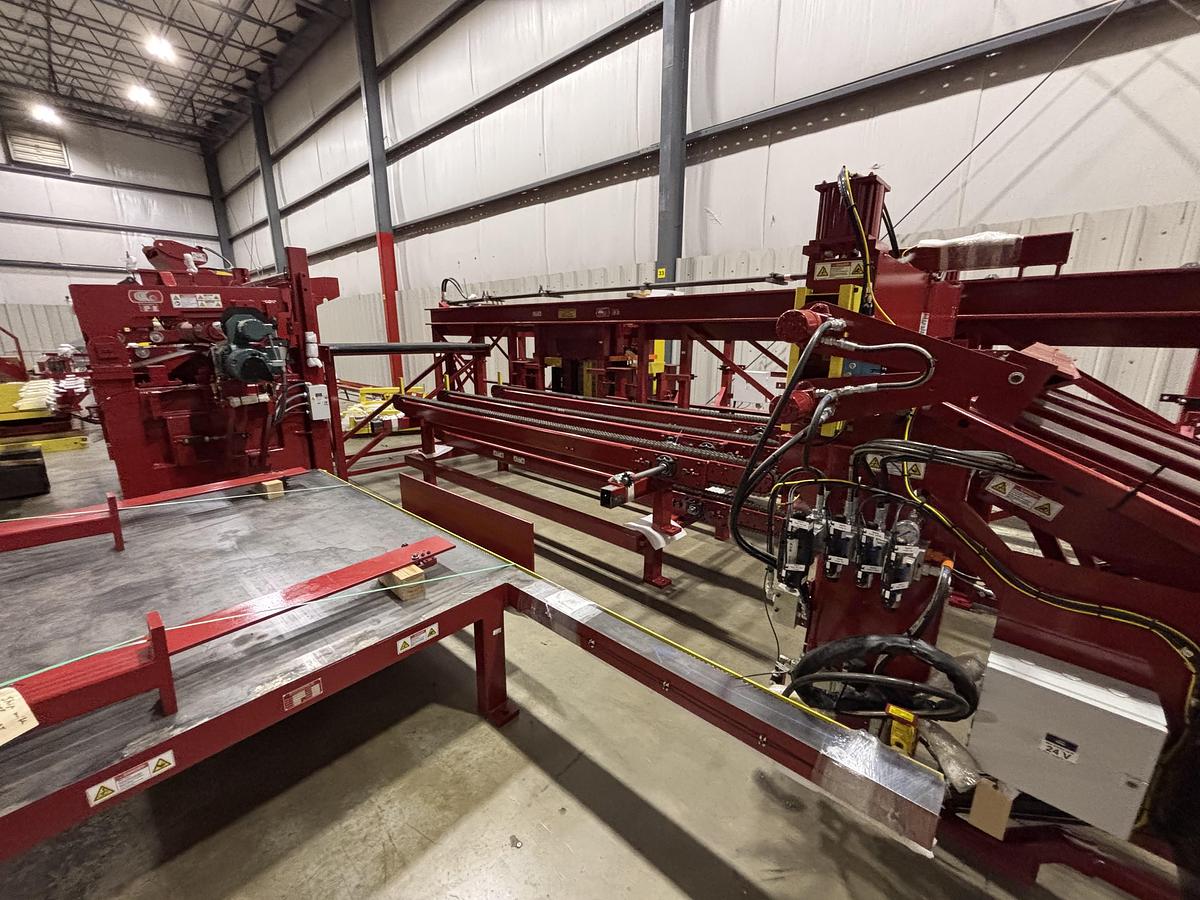

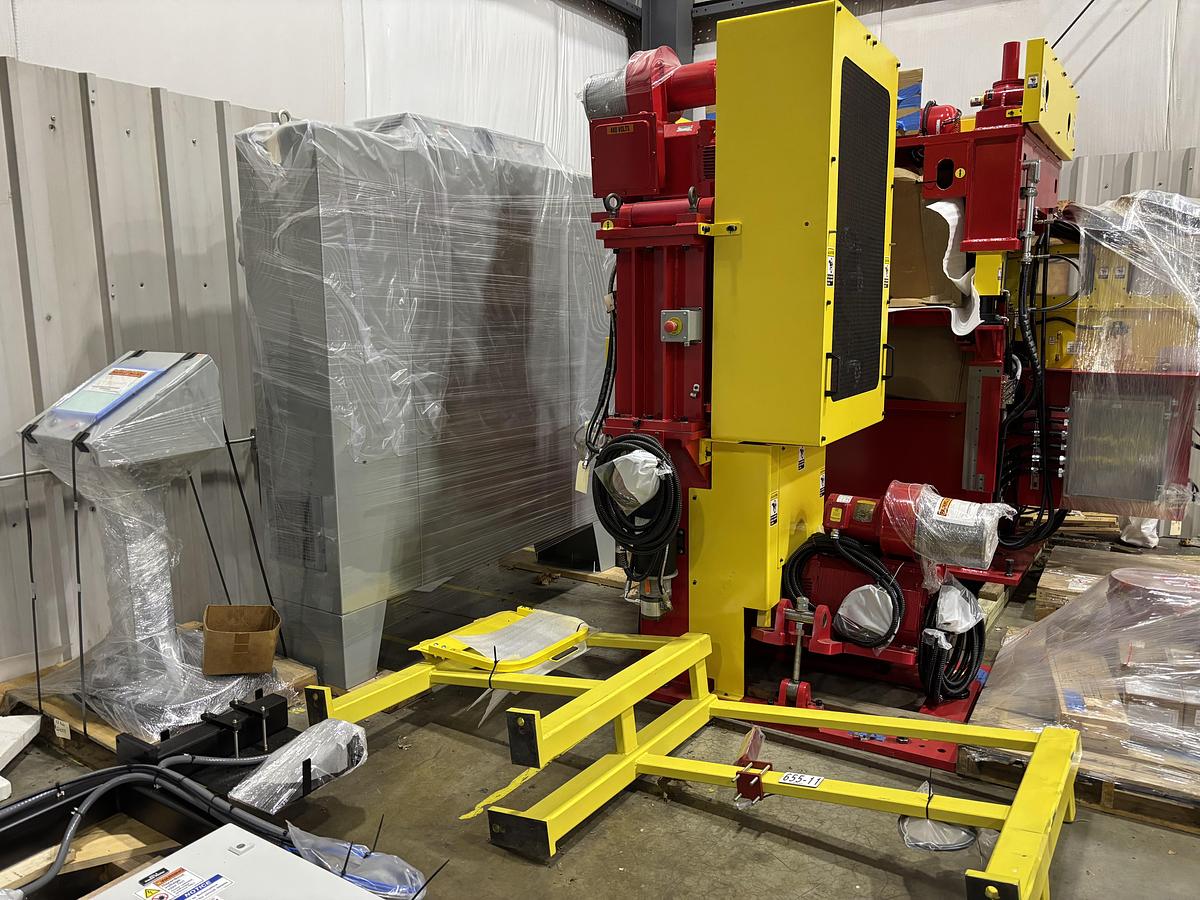

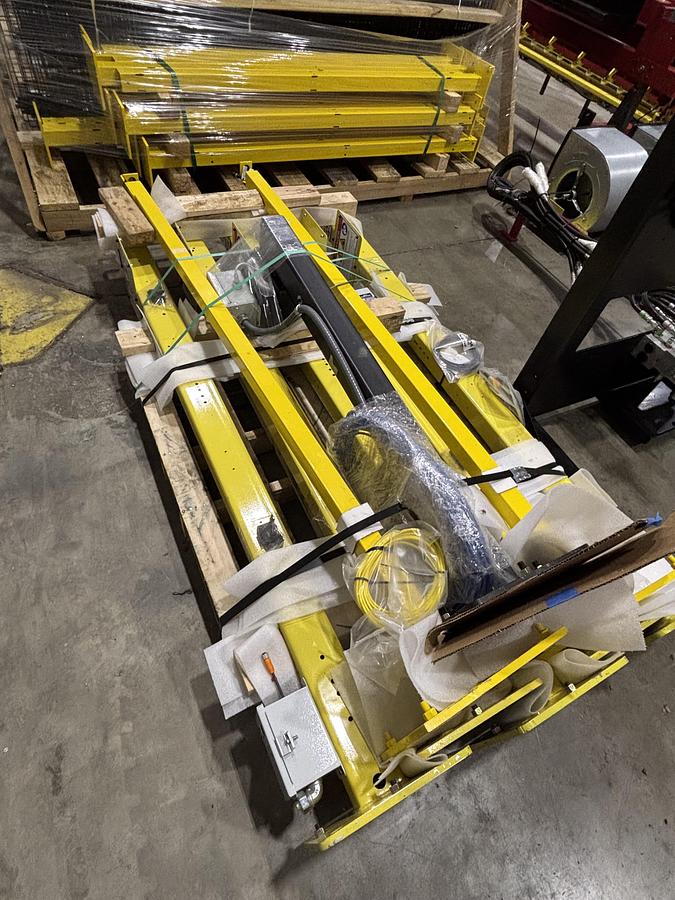

60” X 0.079” x 30,000 Lbs. Red Bud Cut-to-Length Line (NEW 2025, NEVER USED)

Specifications:

Manufacturer: Red Bud Industries

Line Direction: Left To Right

Maximum Tensile Strength @ Maximum Thickness: 50,000 PSI

Thickness (Max.): 0.079”

Thickness (Min.): 0.019”

Entry Weight (Max.): 30,000 Lbs

Entry Width (Max.): 63”

Entry OD (Max.): 84”

Uncoiler Mandrel Diameter (Max.): 25”

Uncoiler Mandrel Diameter (Min.): 19”

Stack Length (Max.): 144”

Primary Stack Weight (Max.): 10,000 Lbs

Stack Height Including Skid (Max.): 24”

Roller Leveler Drive: 100 HP AC

Primary Hydraulic Power: 60 HP AC / 66 GPM

Roll Feed: 2–20 HP AC

Electrical: 460V 3-Phase

Air: 80 PSI

Ambient Temperature (Max.): 100°F

Ambient Temperature (Min.): 35°F

Line Includes:

Coil Stage And Load System

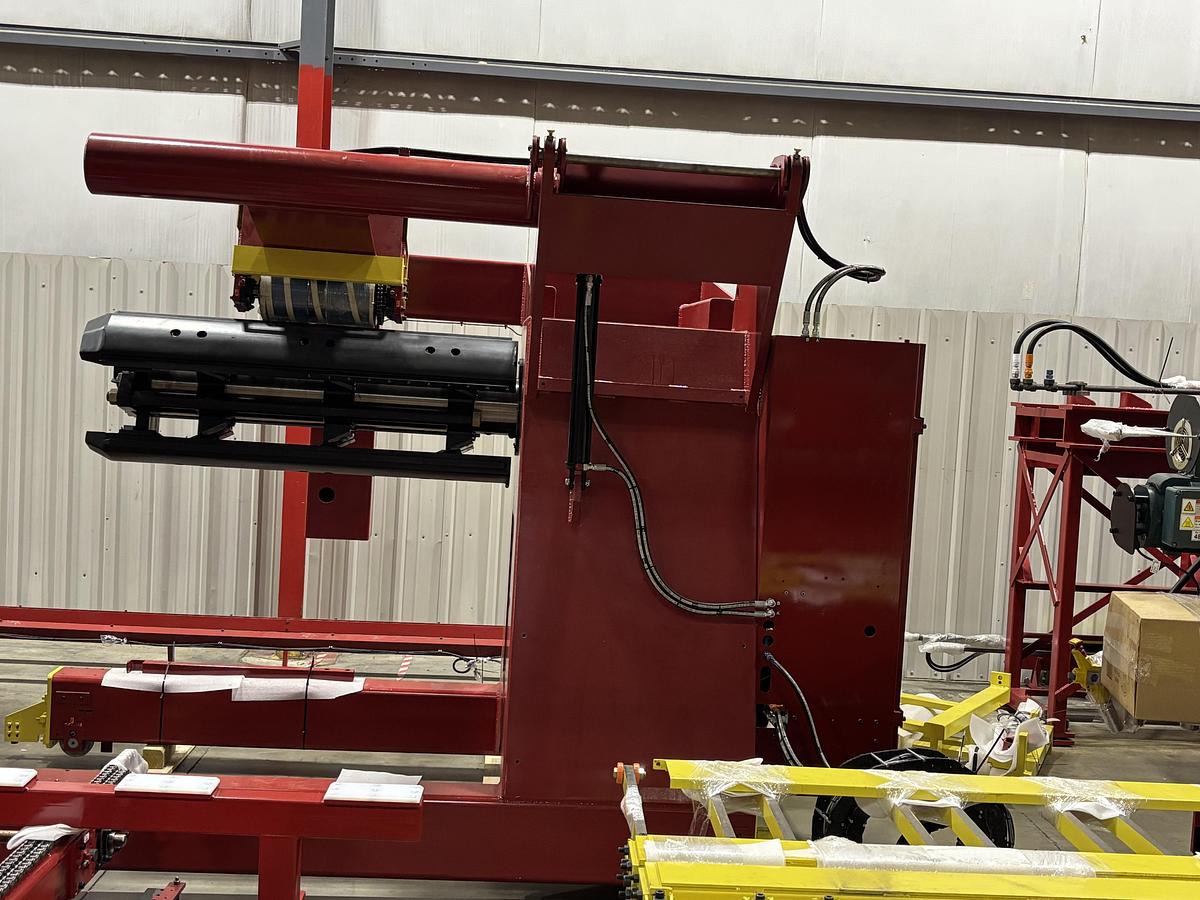

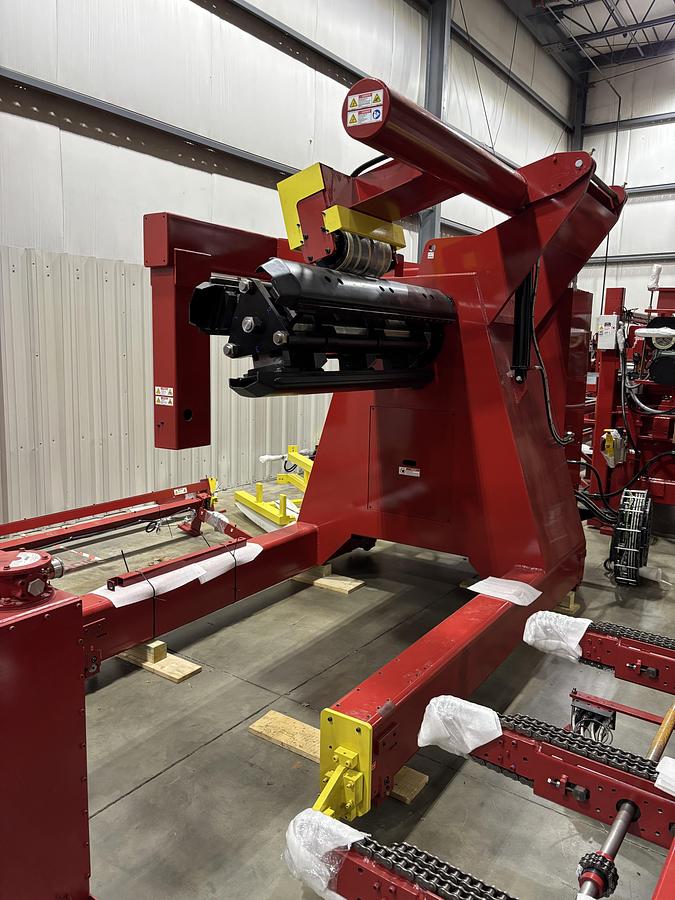

Uncoiler (Off-Line)

Uncoiler Hold Down

Distribution Hub

Feller Breaker / Free-Standing Support

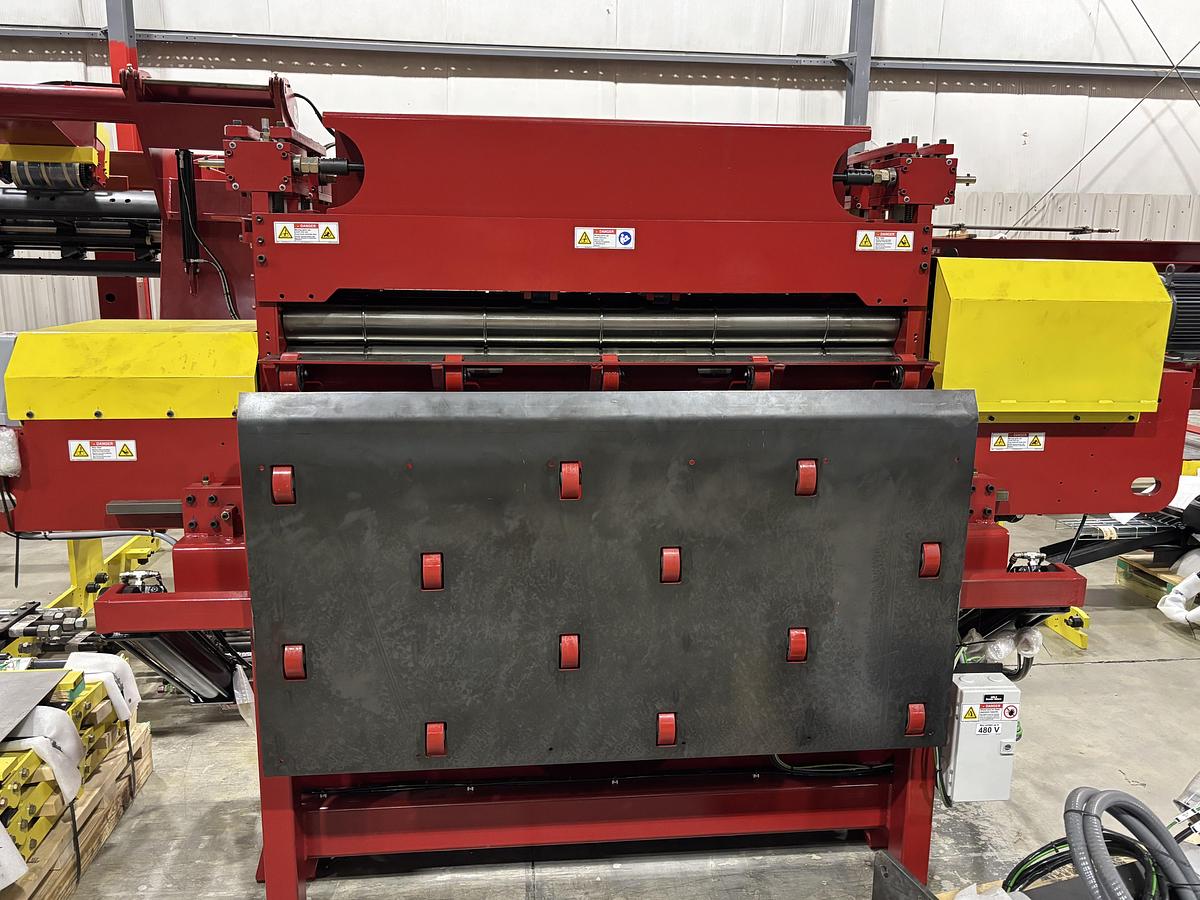

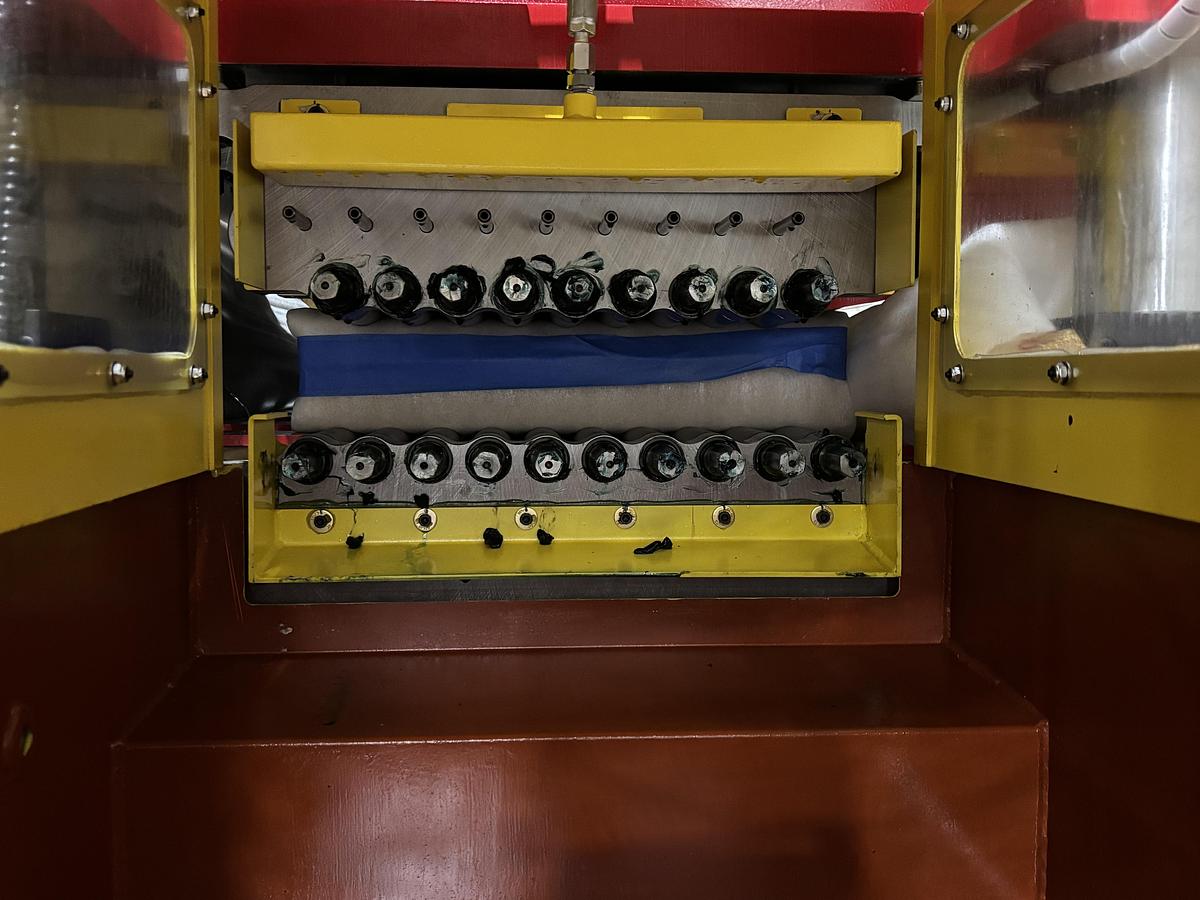

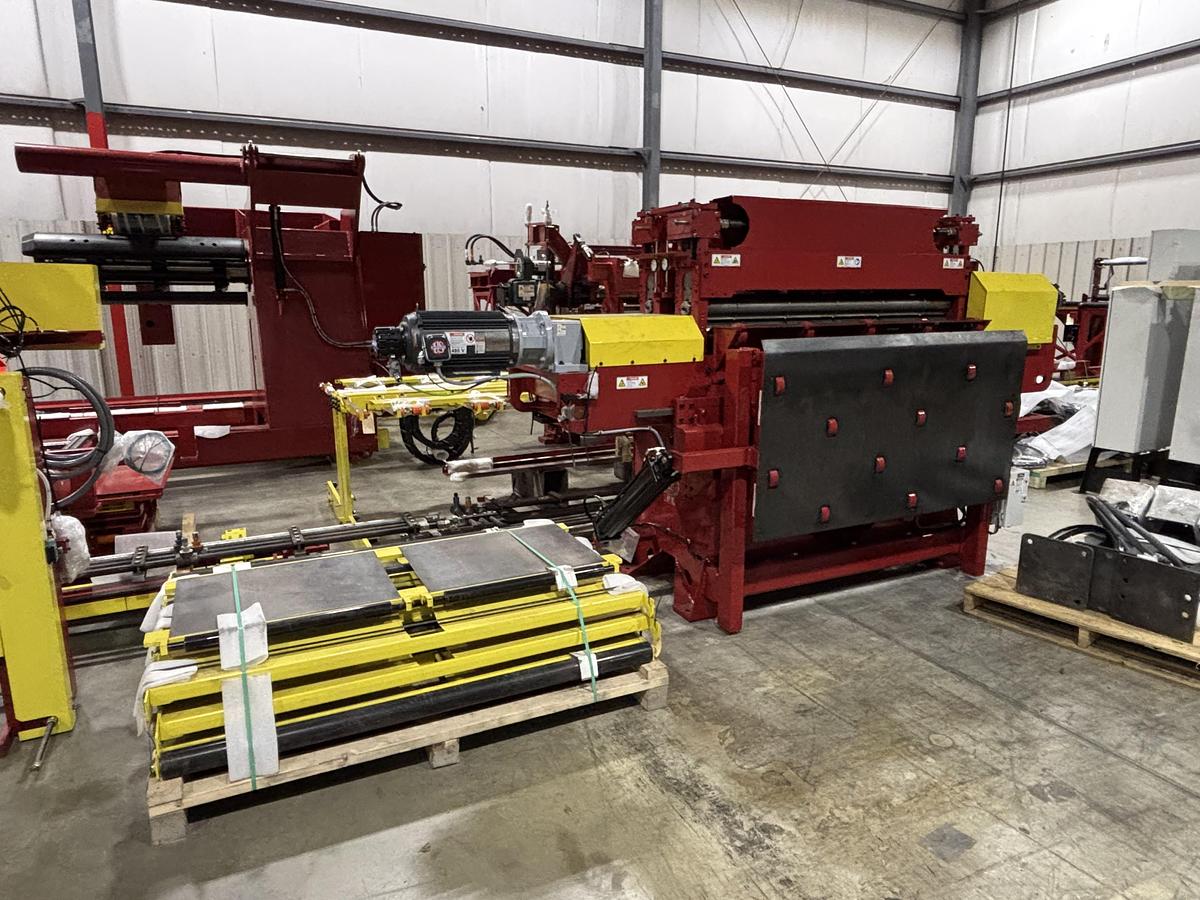

Leveler (100 HP)

Crossover Table

Entry Thread System Ramp

Pit Rail Guy-String

Exit Thread System Ramp

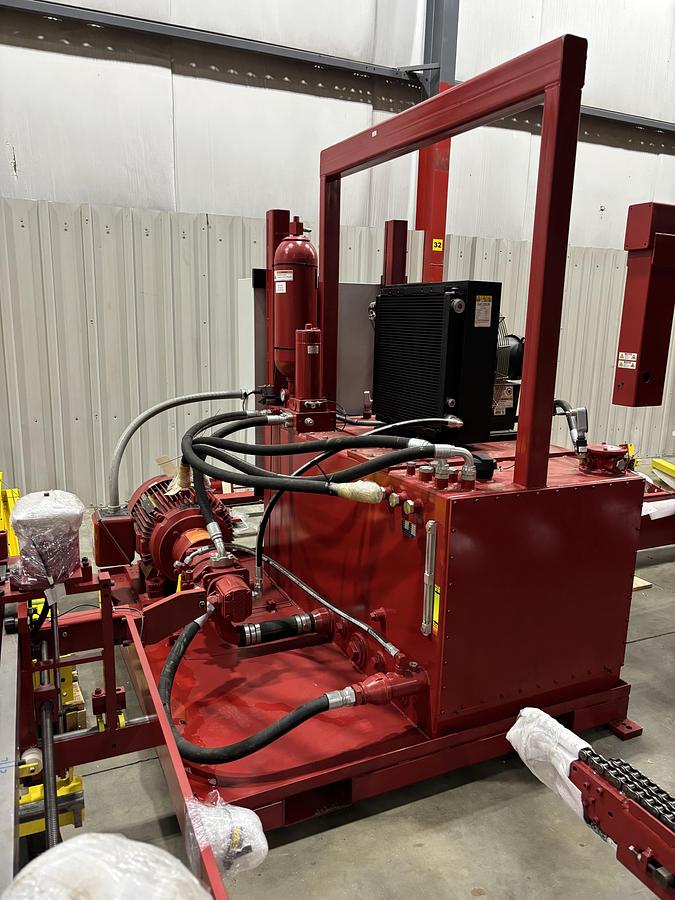

Power Unit

Side Gauging

Roll Feed

Beading Rolls

Applicator

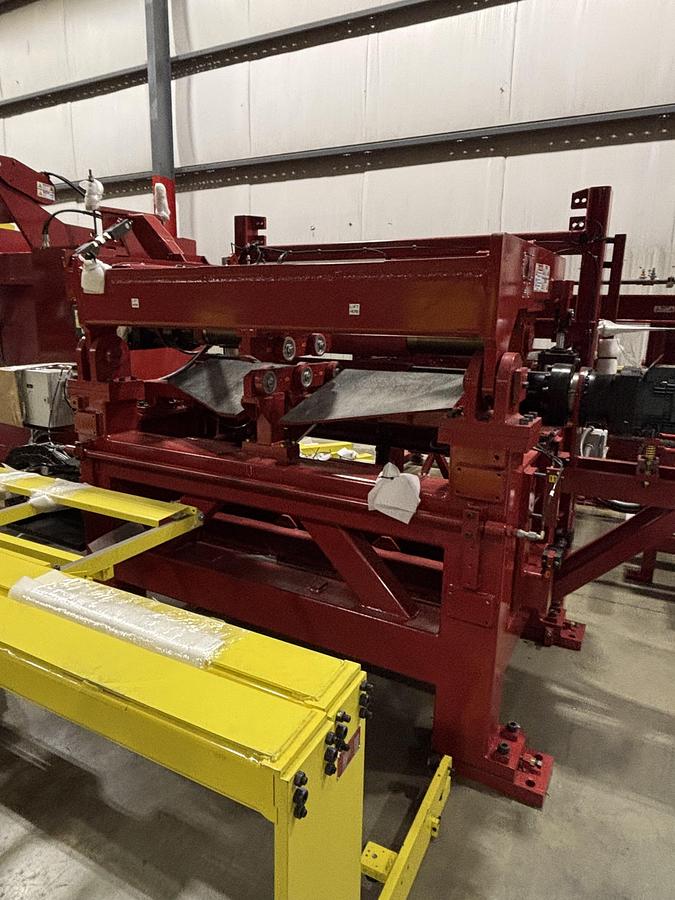

Shear

Air Flotation

Pallet Loader

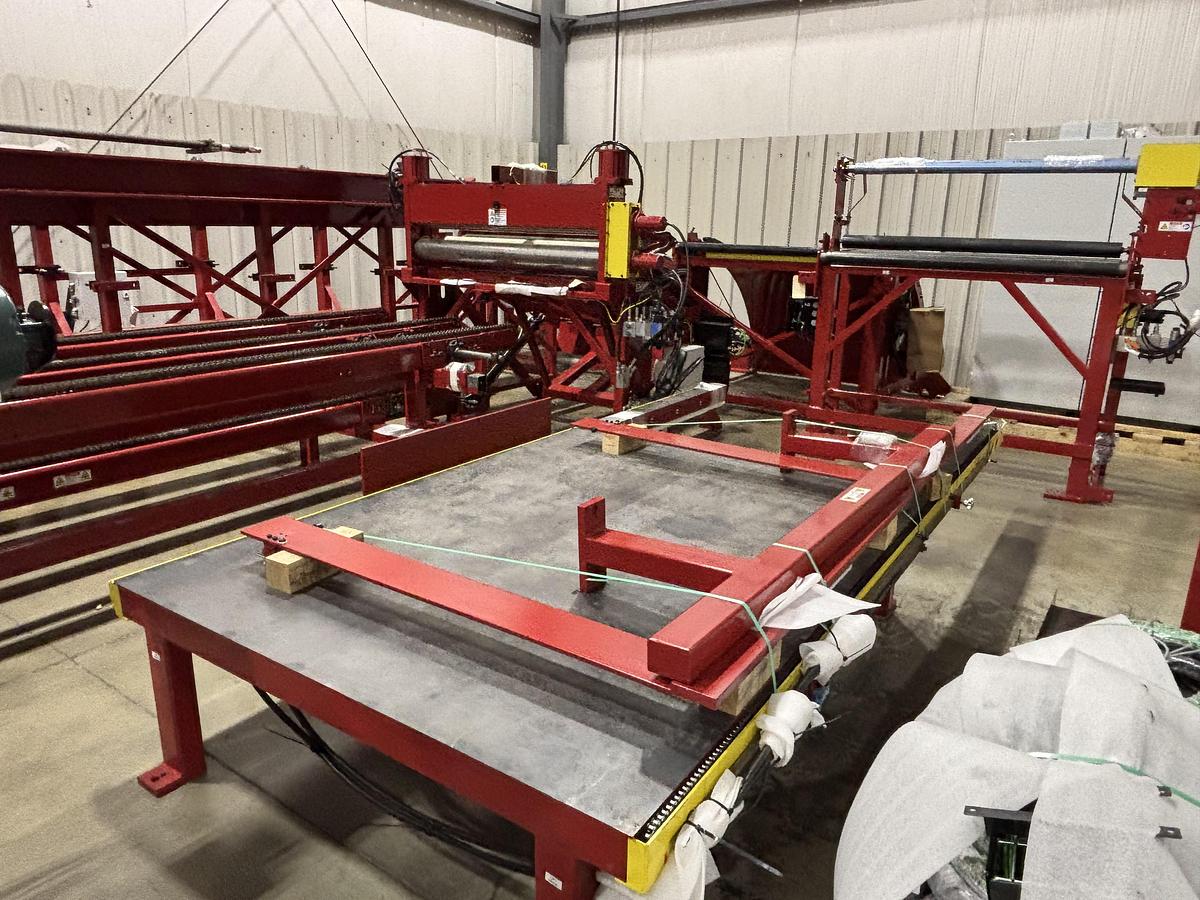

Sheet Holder / Stack Table
