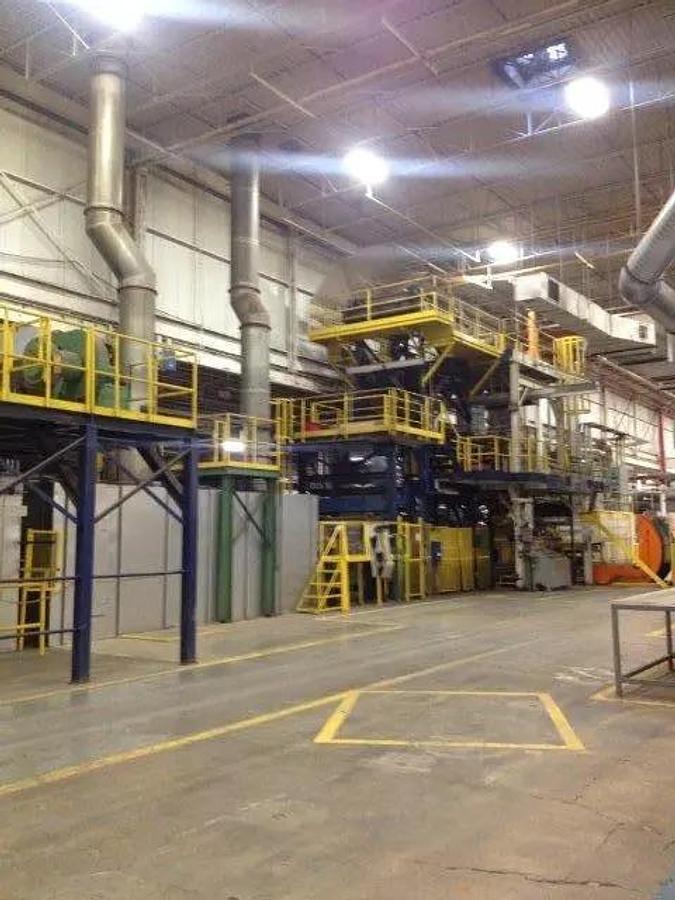

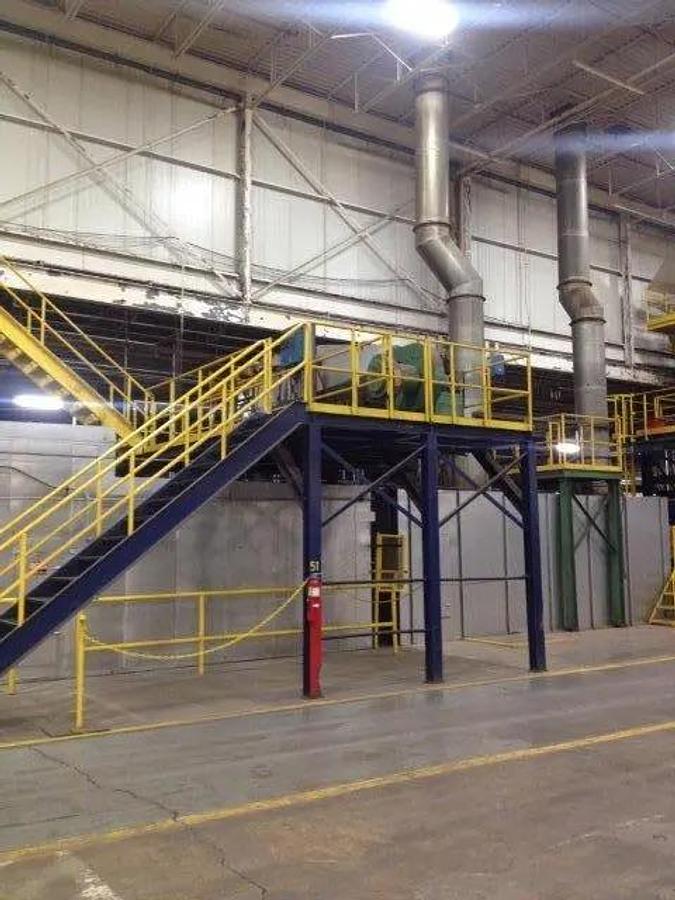

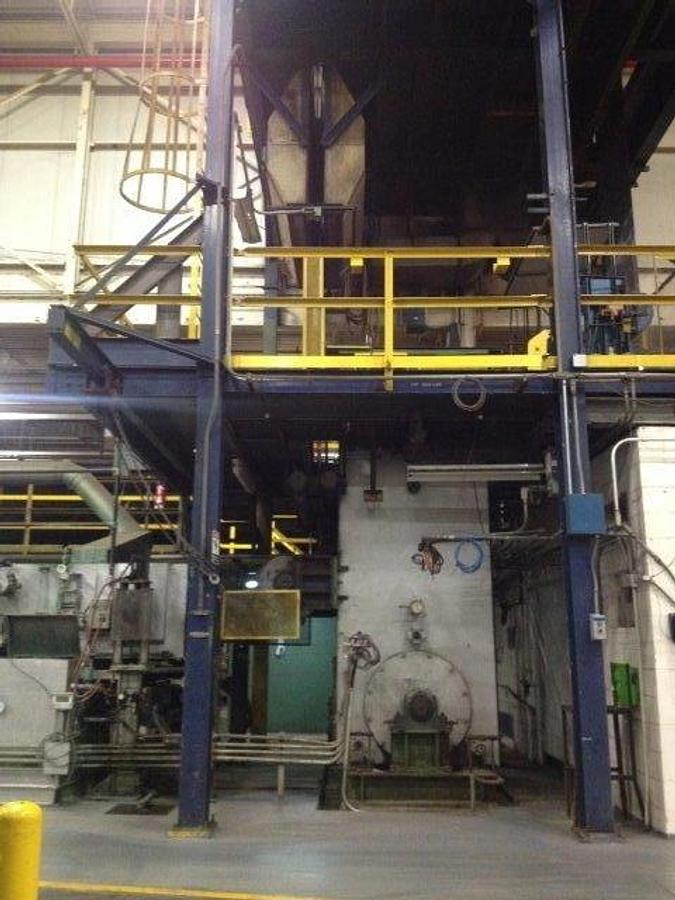

60" Aluminum Can-End Coating Line

Specifications:

Manufacturer: Hunter / GFG

Strip Width: 60” Max

Strip Thickness: .008–.020”

Design: Single Coat Line

Line Speed: Rated 275 FPM • Actual 300 FPM

Entry Coil Size:

ID 20”

OD Unknown

Weight 50,000 Lbs

Exit Coil Size:

ID 16”

OD 70” Max

Weight 48,000 Lbs

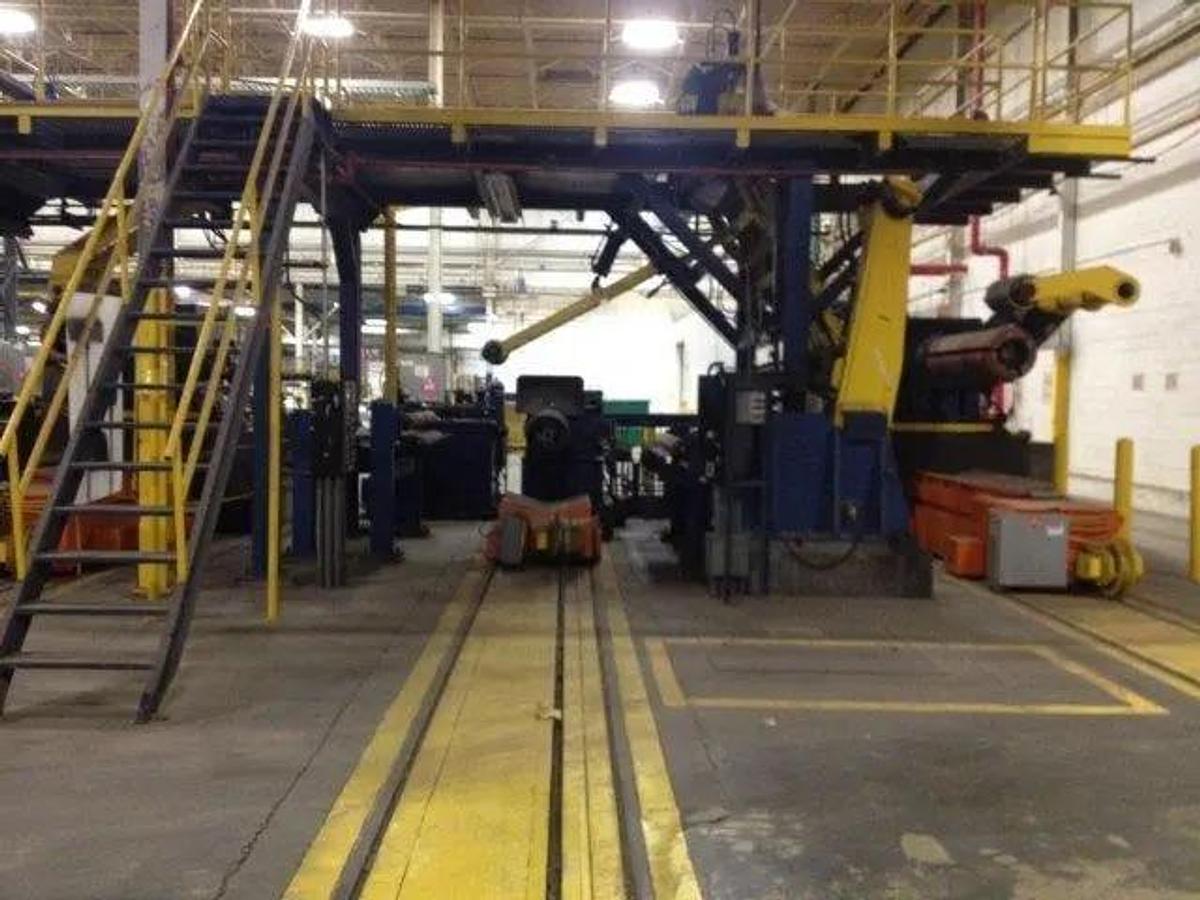

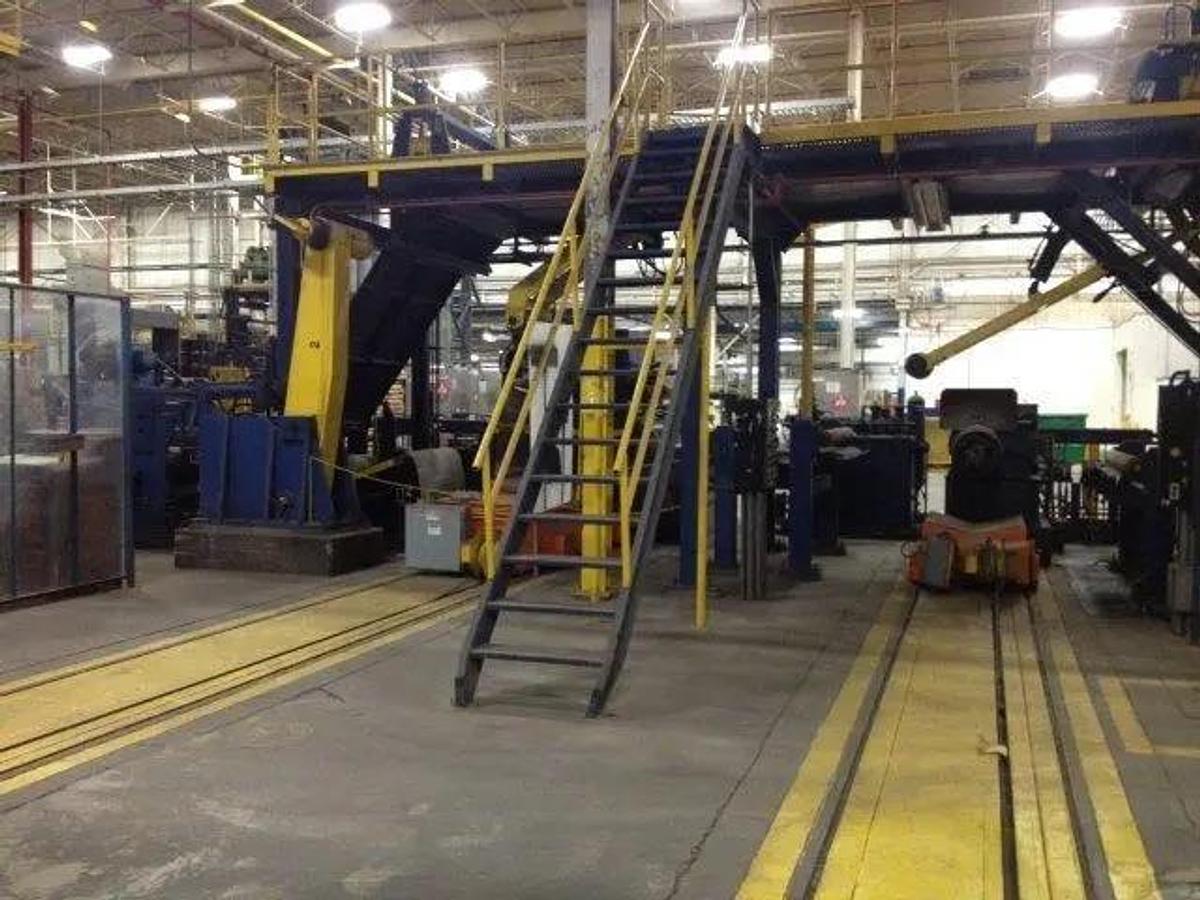

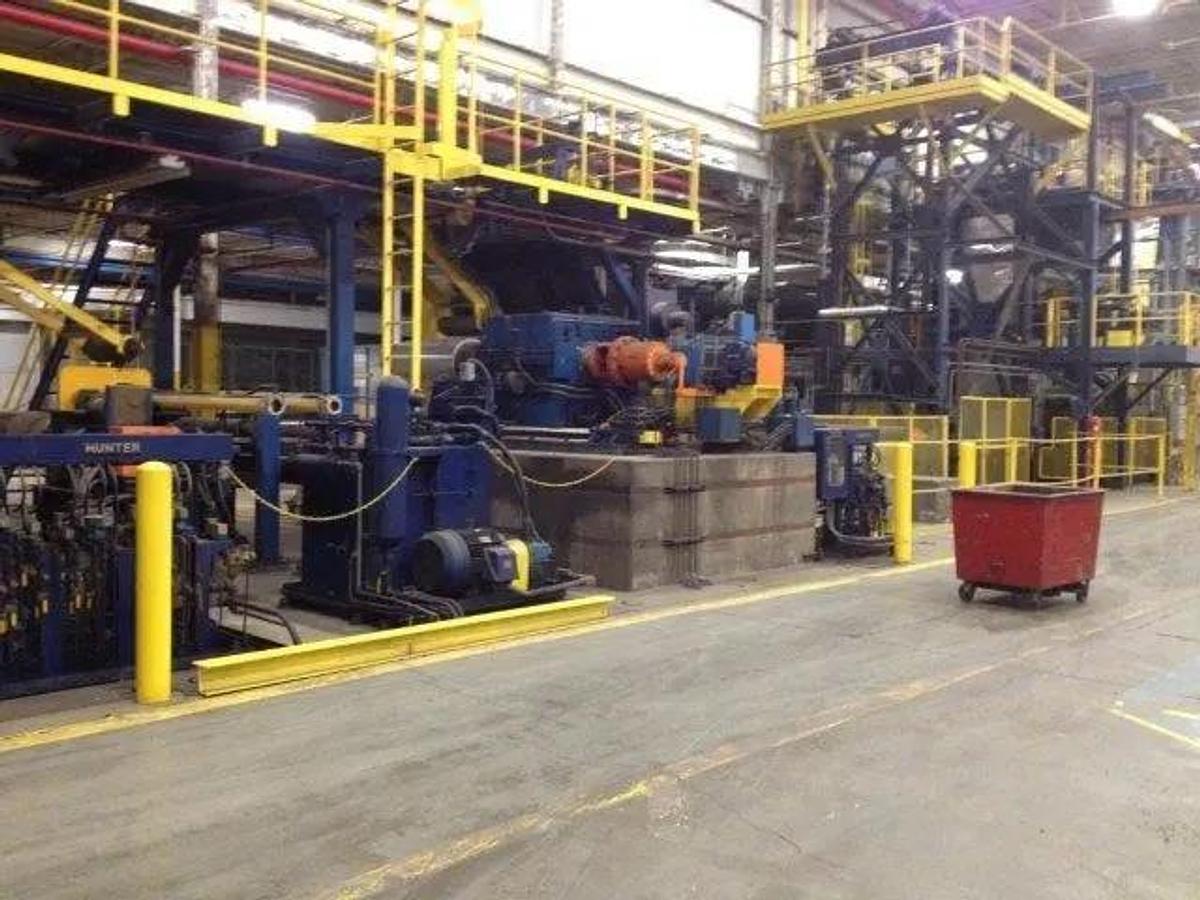

Uncoiler #1: 80 HP • 800/1500 RPM • 15.983:1 Ratio

Coil Car #1: Above Ground • 50,000 Lbs

Scrap Winder: Mandrel Type With Scrap Car

Uncoiler #2: 80 HP • 800/1500 RPM • 15.983:1 Ratio

Coil Car #2: Above Ground • 50,000 Lbs

Pinch Roll

Crop Shear

Strip Joiner: Behlen • Single Die

Bridle 1 of 7

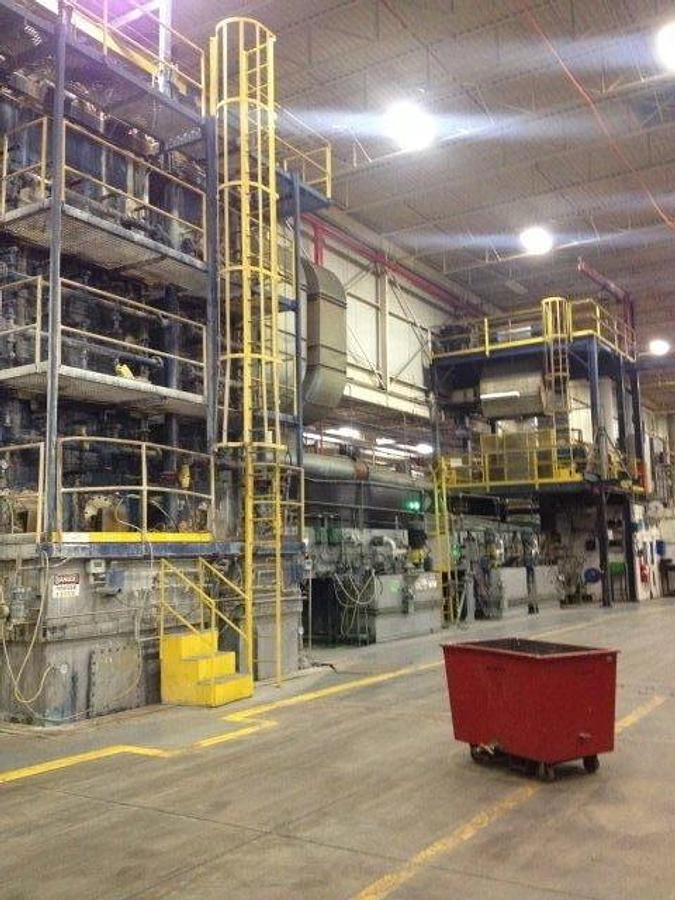

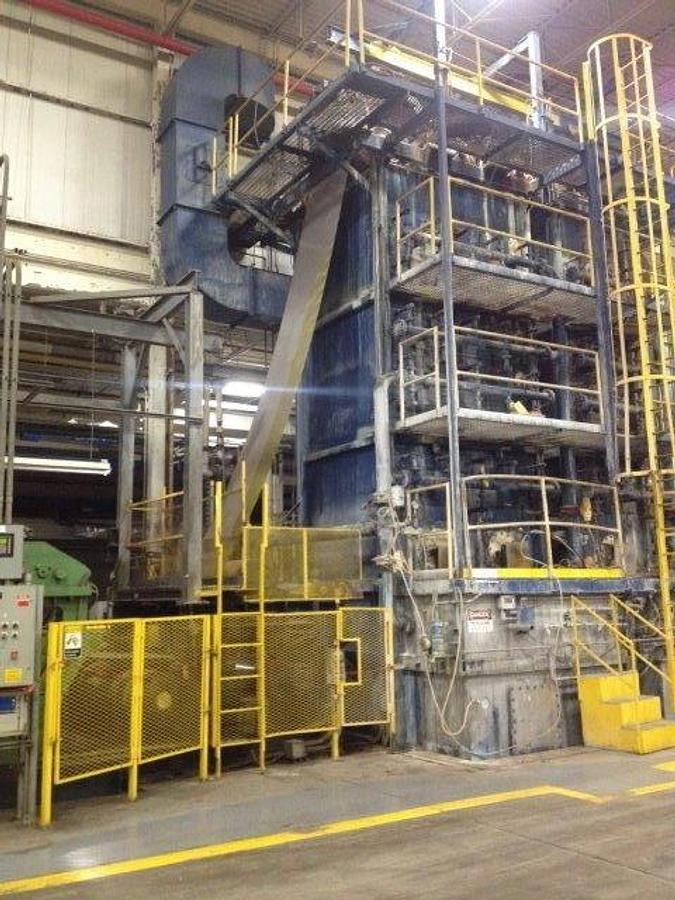

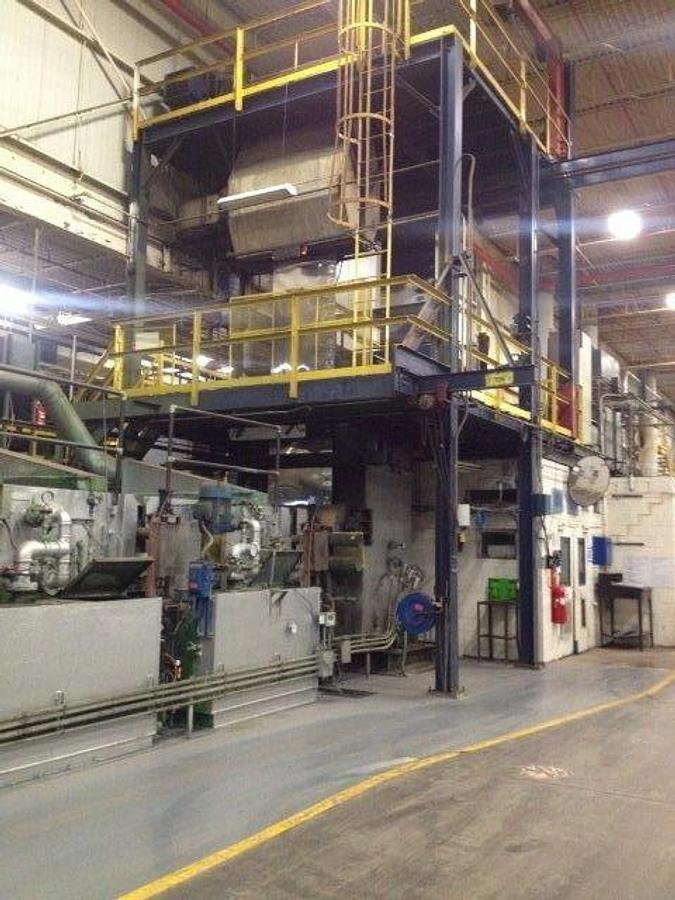

Entry Accumulator:

9 Rolls Over 8

12.8” Roll Diameter

60 Seconds Storage At 300 FPM

Bridle 2 of 7

Tension Leveler:

60” Max Strip Width

Entry Bridle (Line Bridle #3) • 2 Roll

Roll 1: 25 HP • 1750/2500 RPM • 34.13:1 Ratio

Roll 2: 50 HP • 1750/2500 RPM • 33.23:1 Ratio

Flex-Roll Section:

5 Roll Cassettes

Work Rolls: 1.125” & 1.75” Diameter

Backup Rolls: 2.25” Diameter

Exit Bridle (Line Bridle #4):

Roll 3: 150 HP • 1750/2500 RPM • 34.5:1 Ratio

Roll 4: 75 HP • 1750/2500 RPM • 33.02:1 Ratio

Bridle 5 of 7

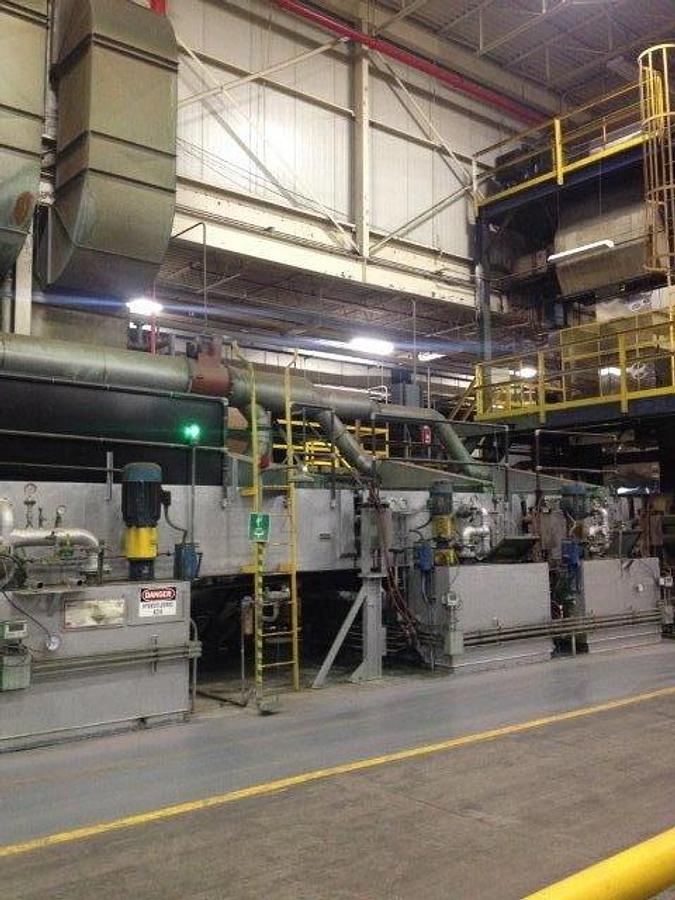

Cleaning Section:

Stages 1–2 Vertical

Stages 3–4–5 Horizontal

Vertical Air Blow-Off

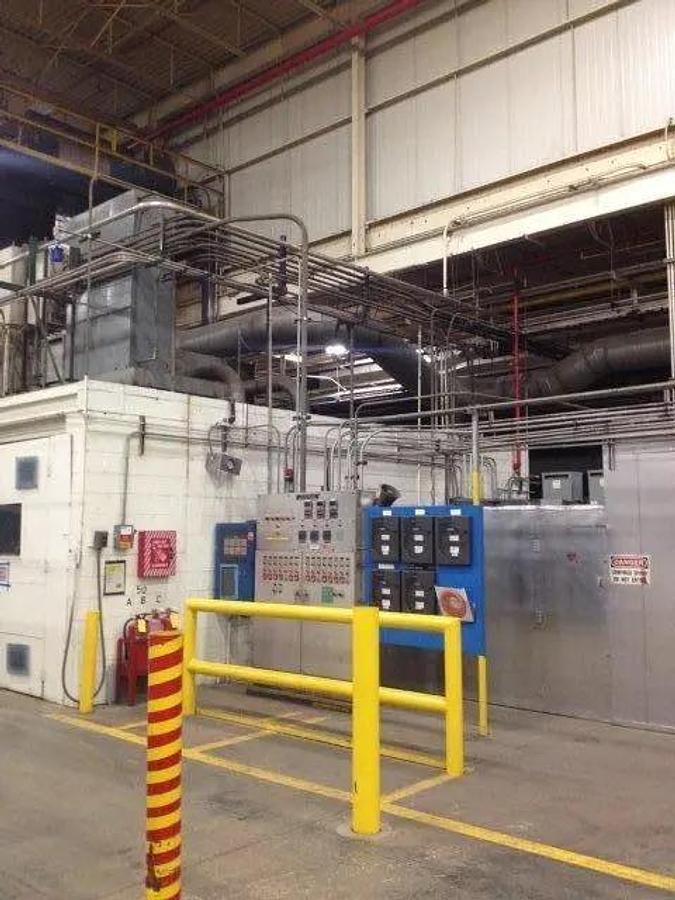

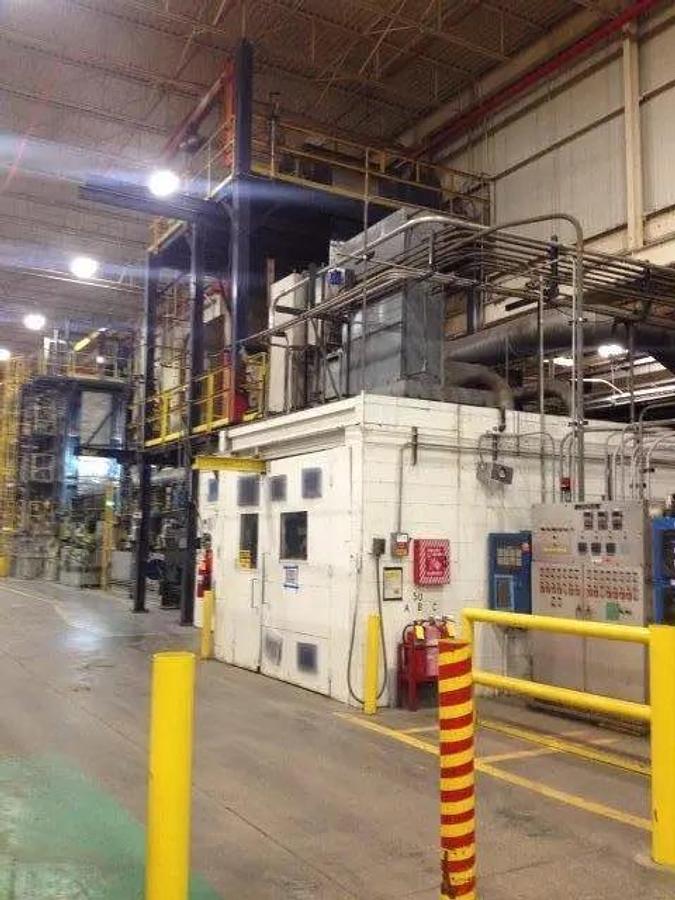

Coater:

GFG • Two-Side Coat

Rolls 10” Diameter x 72” Face

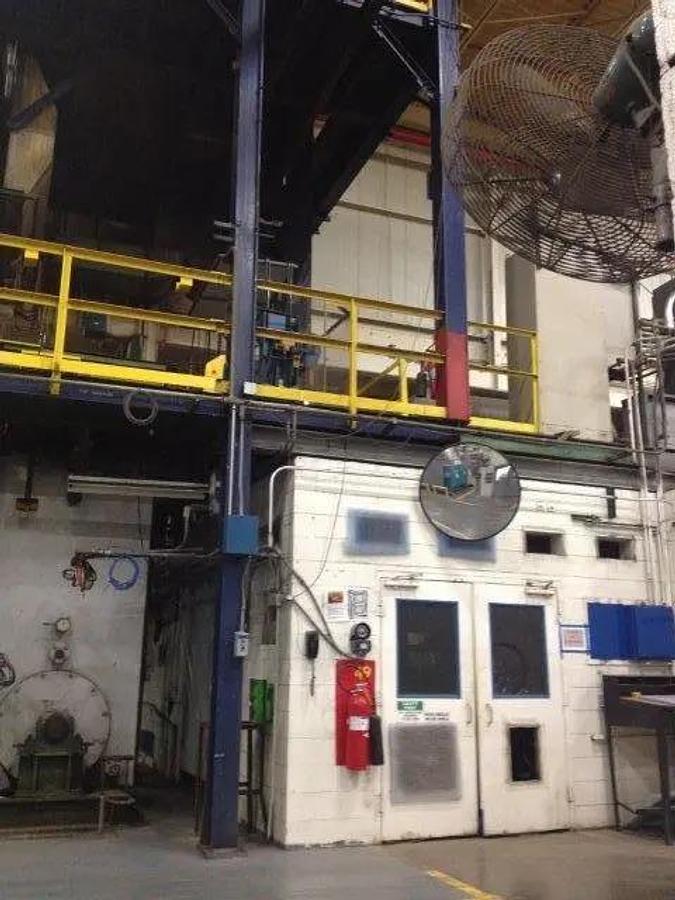

Paint Flow-Out Booth: 15 Ft

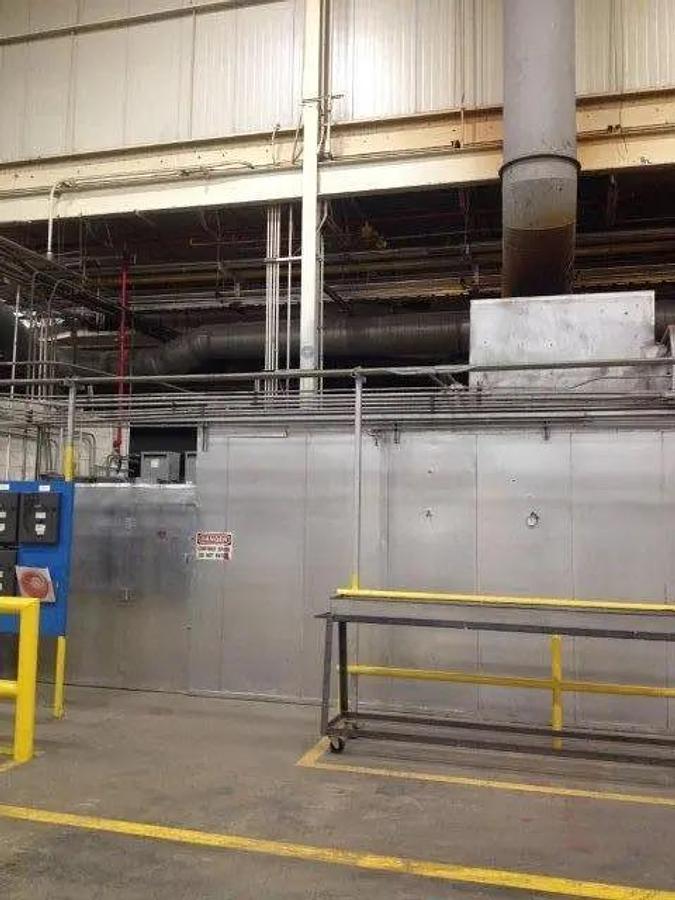

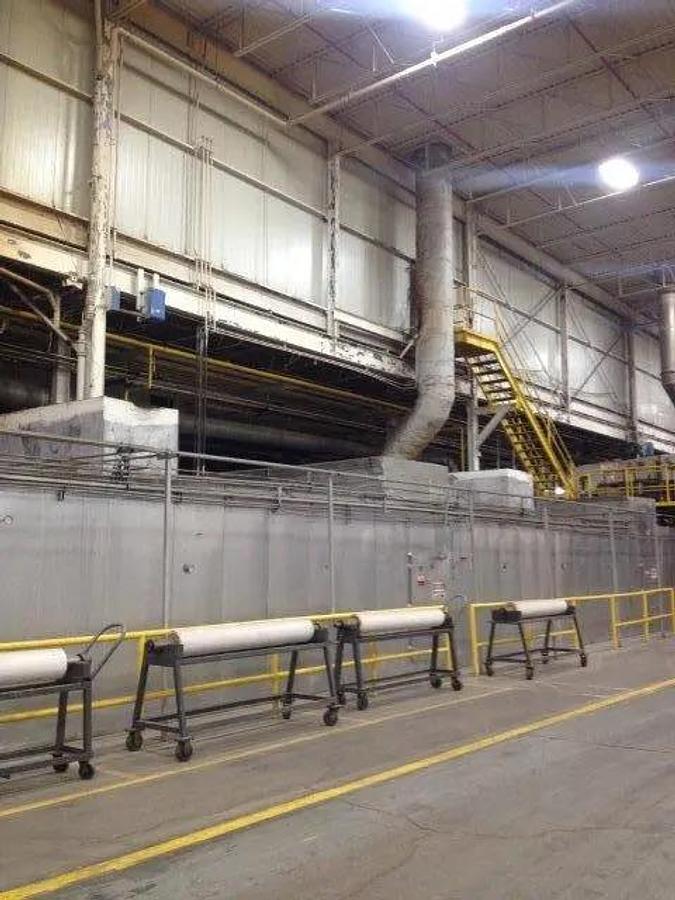

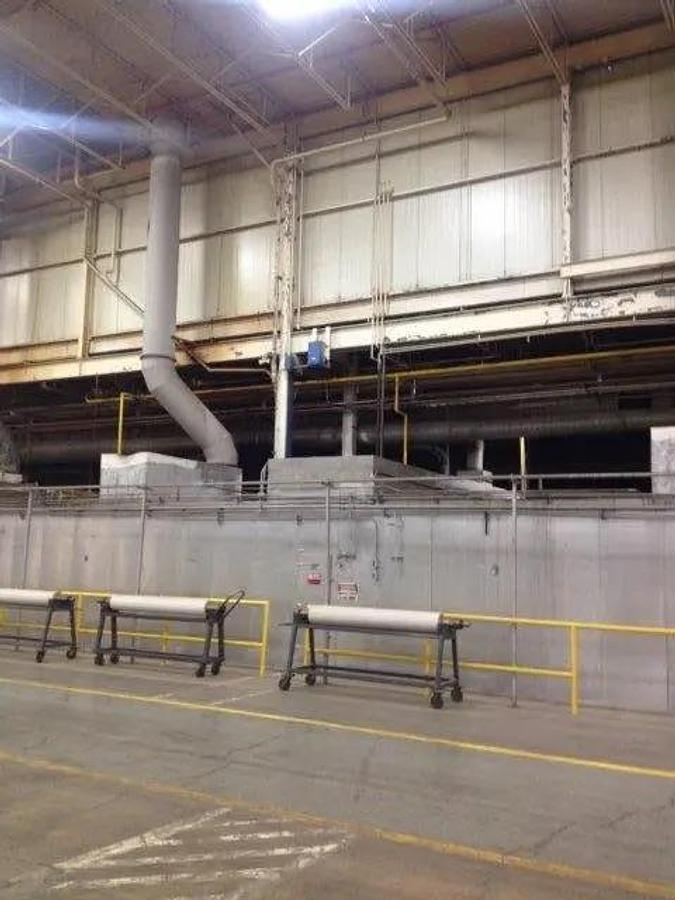

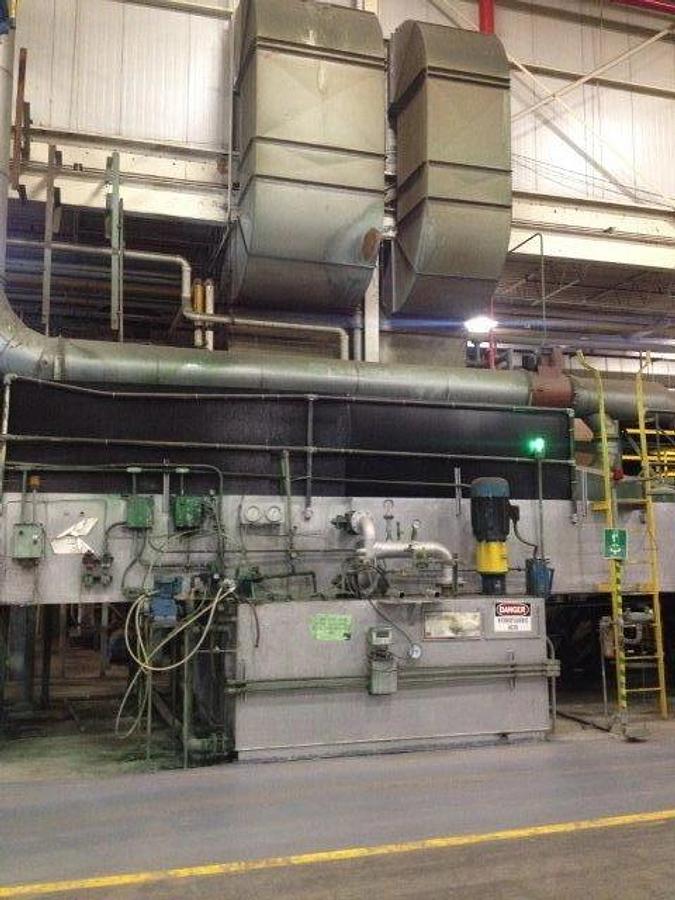

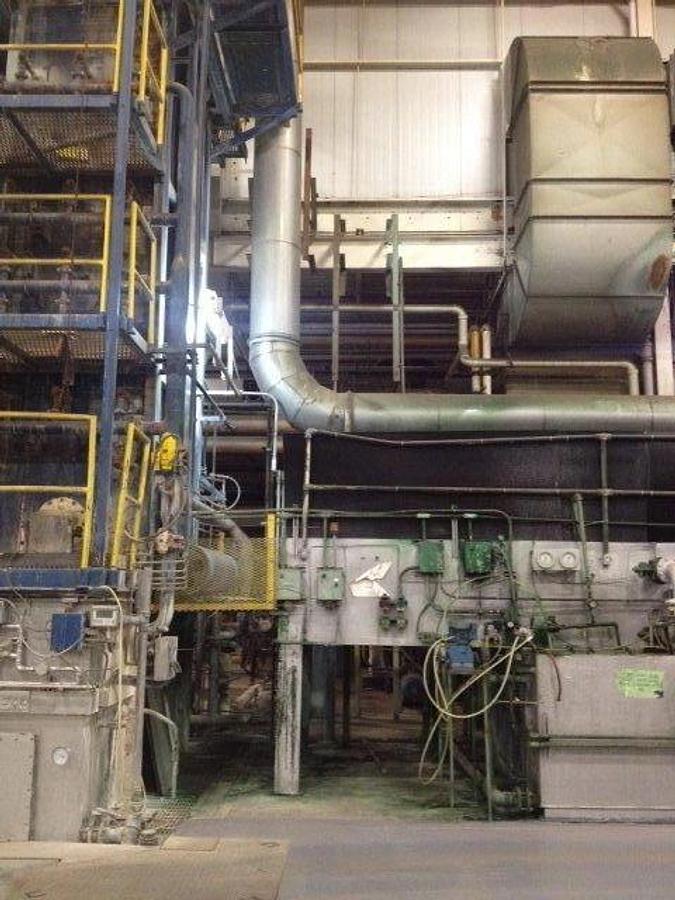

Oven:

90 Ft Long

3-Zone Gas-Fired Catenary

Exit Water Quench

Exit Air Quench

Bridle 6 of 7

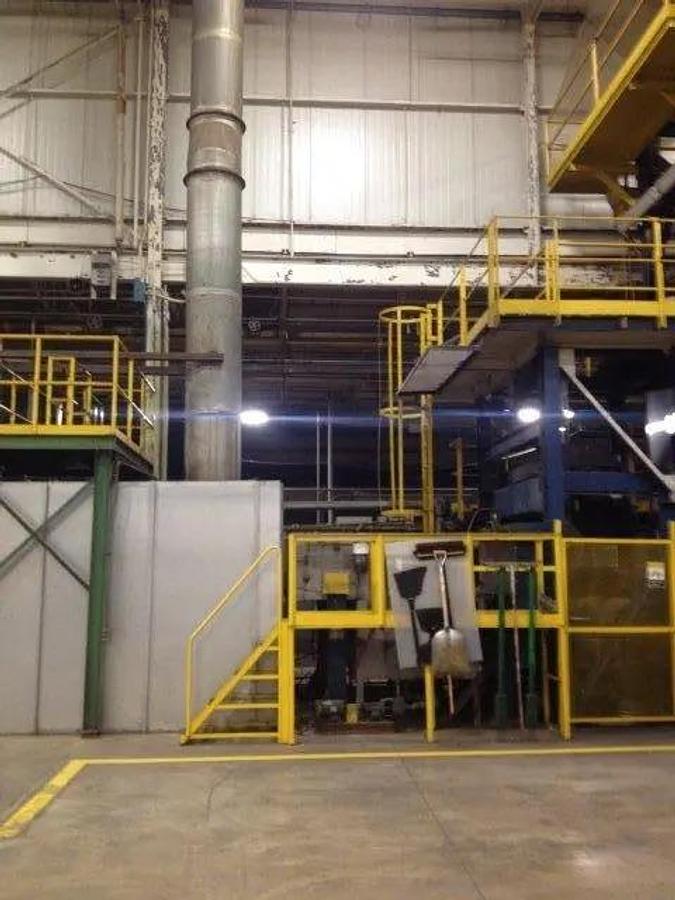

Exit Accumulator:

9 Rolls Over 8

12.8” Roll Diameter

60 Seconds Storage At 300 FPM

Bridle 7 of 7

Waxer:

GFG • 2–12 MG Per Sq Ft Laydown

Exit Shear

Exit Pinch Roll

Recoiler:

60 HP • 500/2000 RPM • 18.611:1 Ratio

Mandrel Type

With Belt Wrapper, Coil Car, Downender
