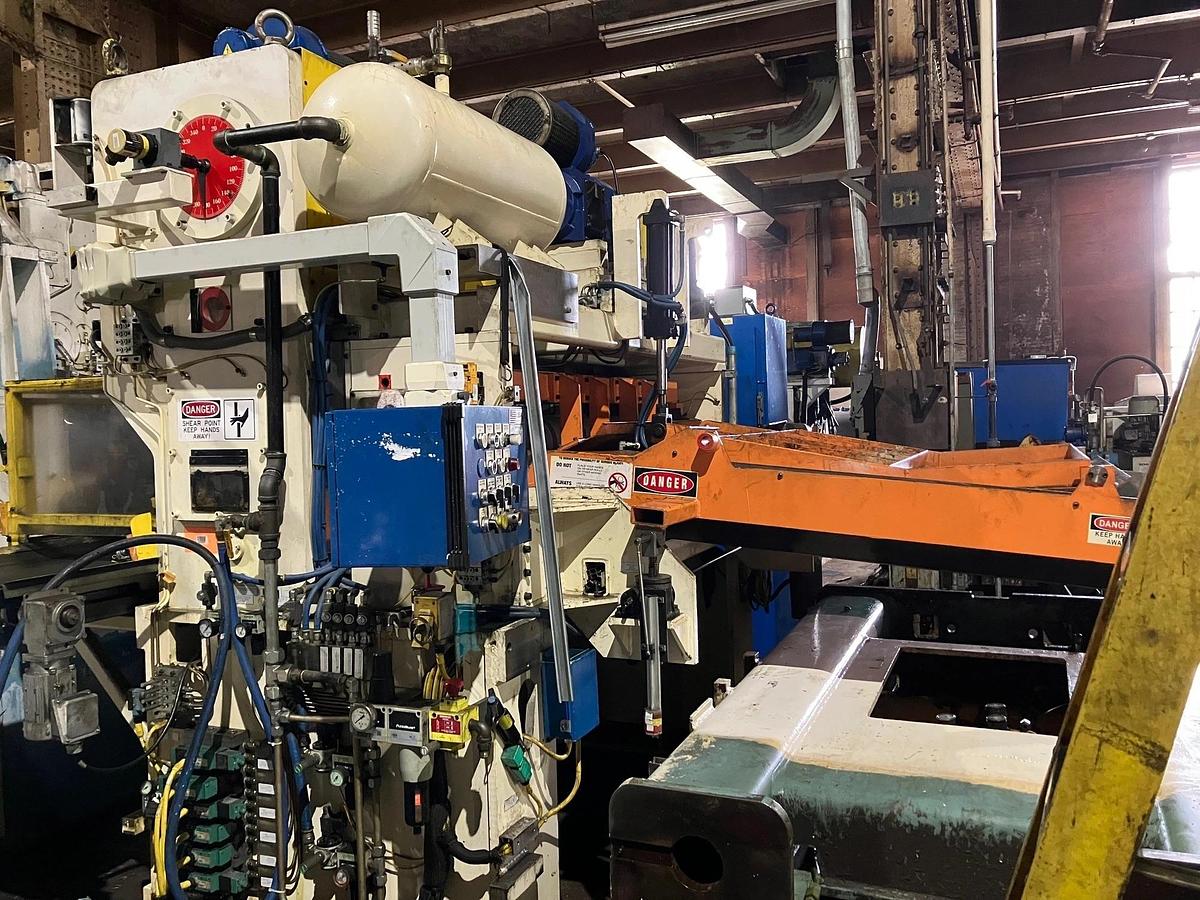

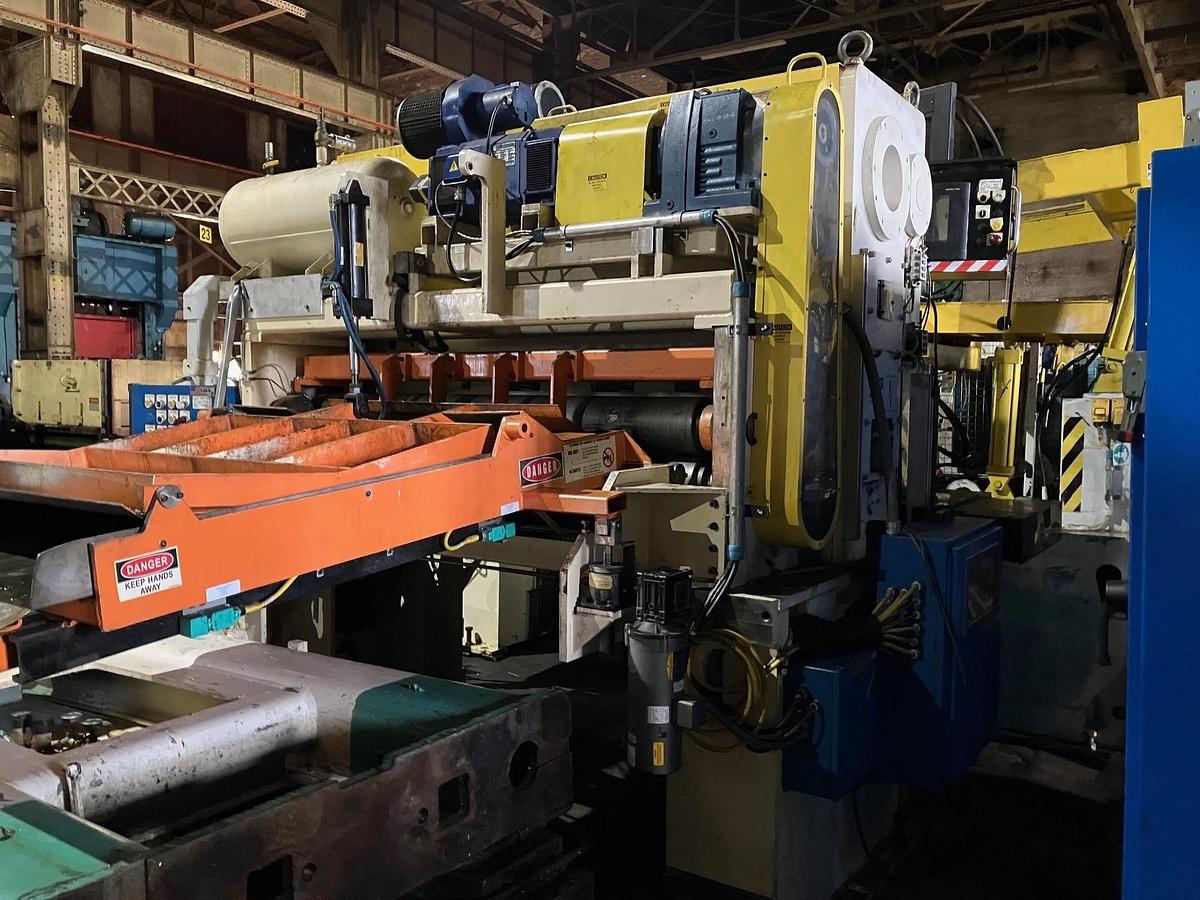

48” x 0.125” x 50,000 Lbs Automatic Feed Company Feed Line

Specifications:

Manufacturer: Automatic Feed

Coil Weight Capacity: 50,000 Lbs

Max Width Capacity: 48”

Coil OD: 72”

Min Width Capacity: 10”

Max Thickness at 48”: 0.125”

Thickness at 24”: 0.177”

Min Thickness at 48”: 0.020”

Feeding Length: 2”–36”

Press Speed: 60 SPM

Feed Rate: 100 FPM

Feeding Angle: Adjustable

Line Direction: Right to Left

Controls: Unico Drive System, A/B PLC, IBM, Wonderware Operator I/F

Material: CRS, HD Galvanized, Electro Galvanized

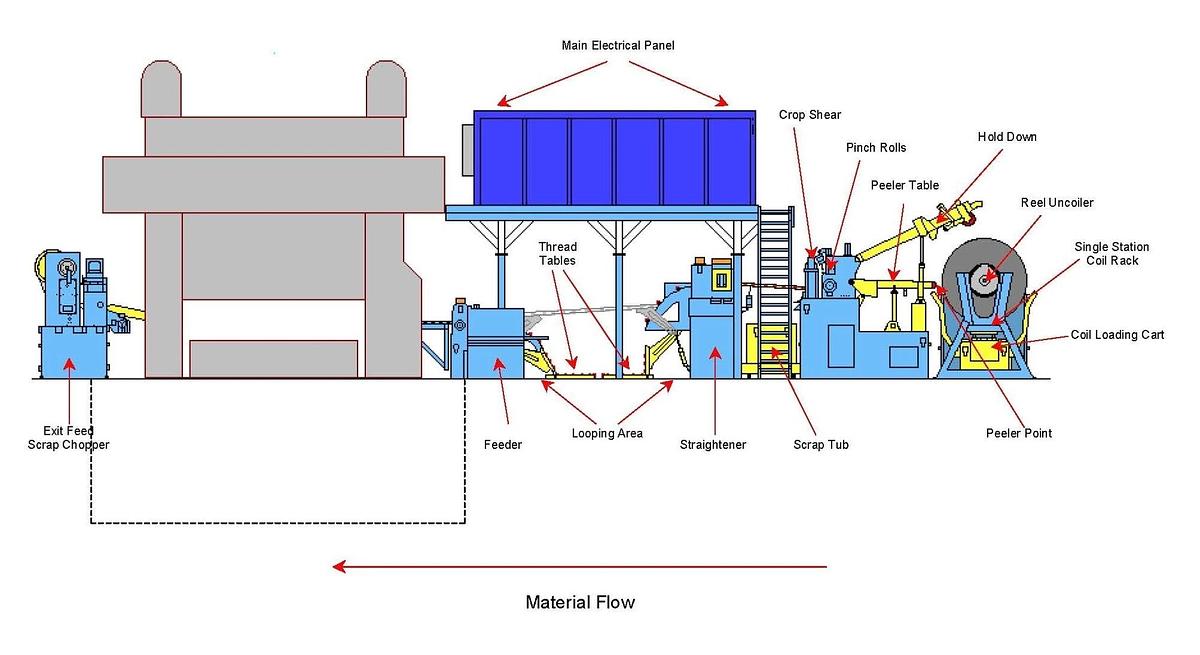

Line Includes:

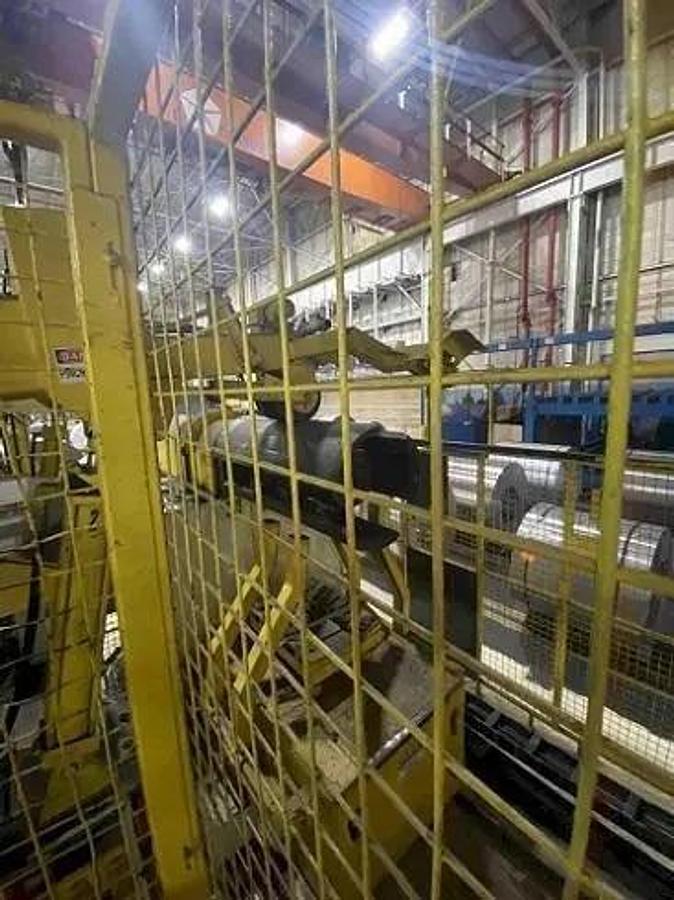

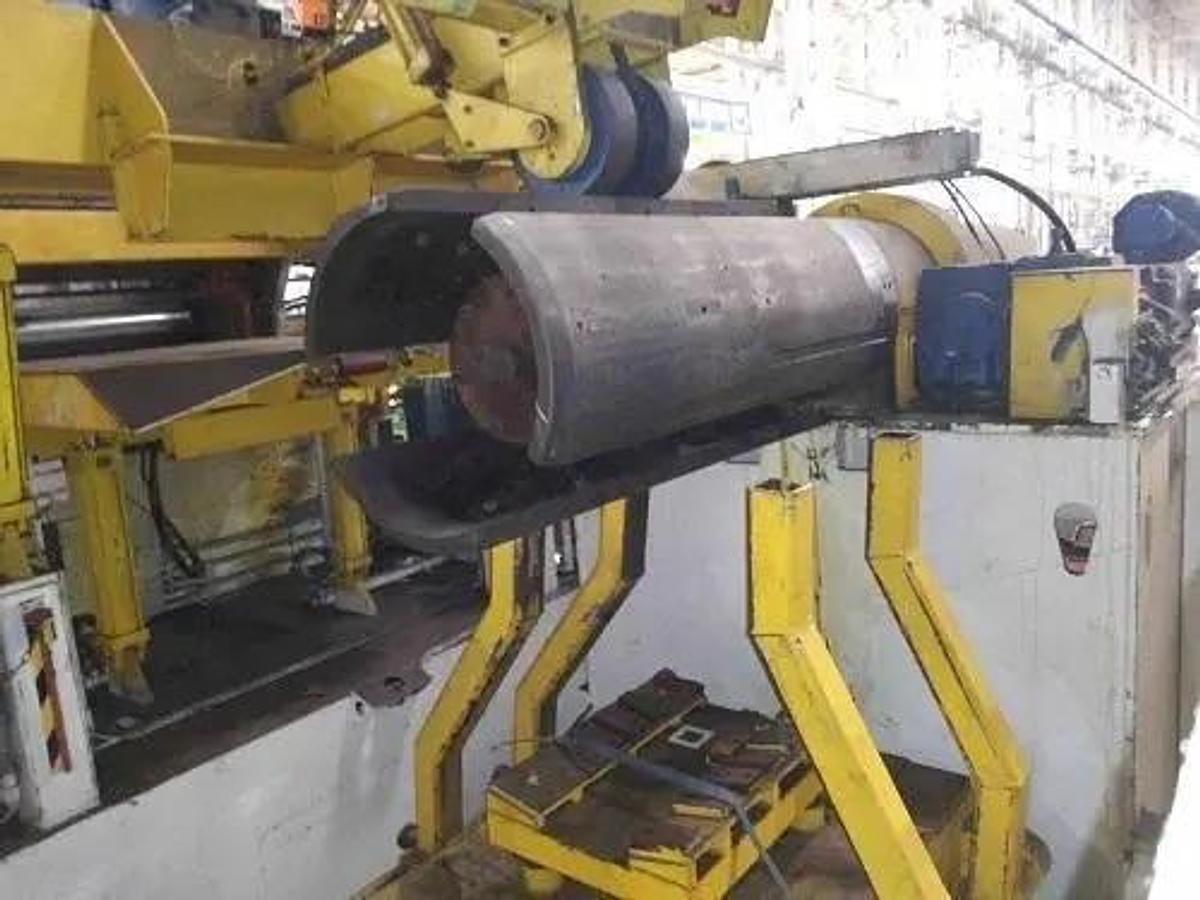

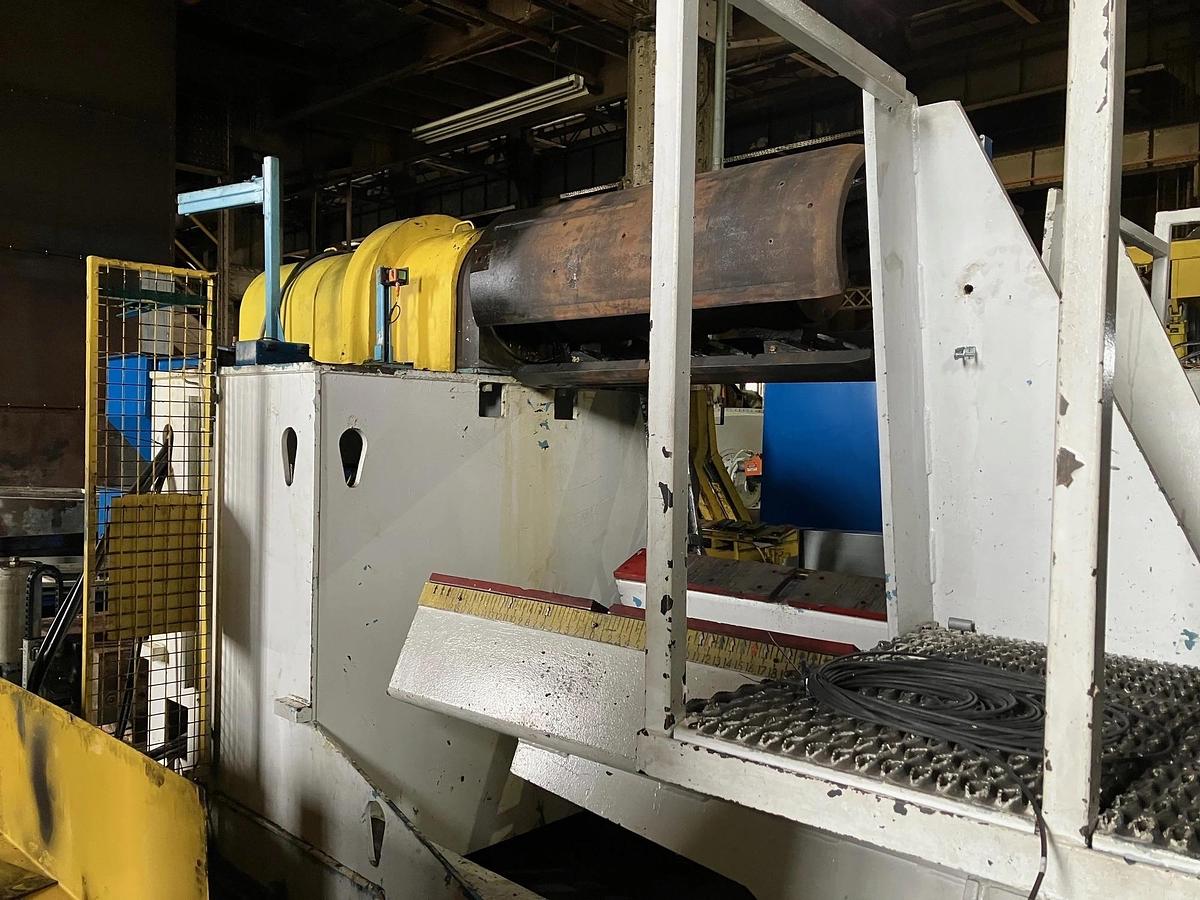

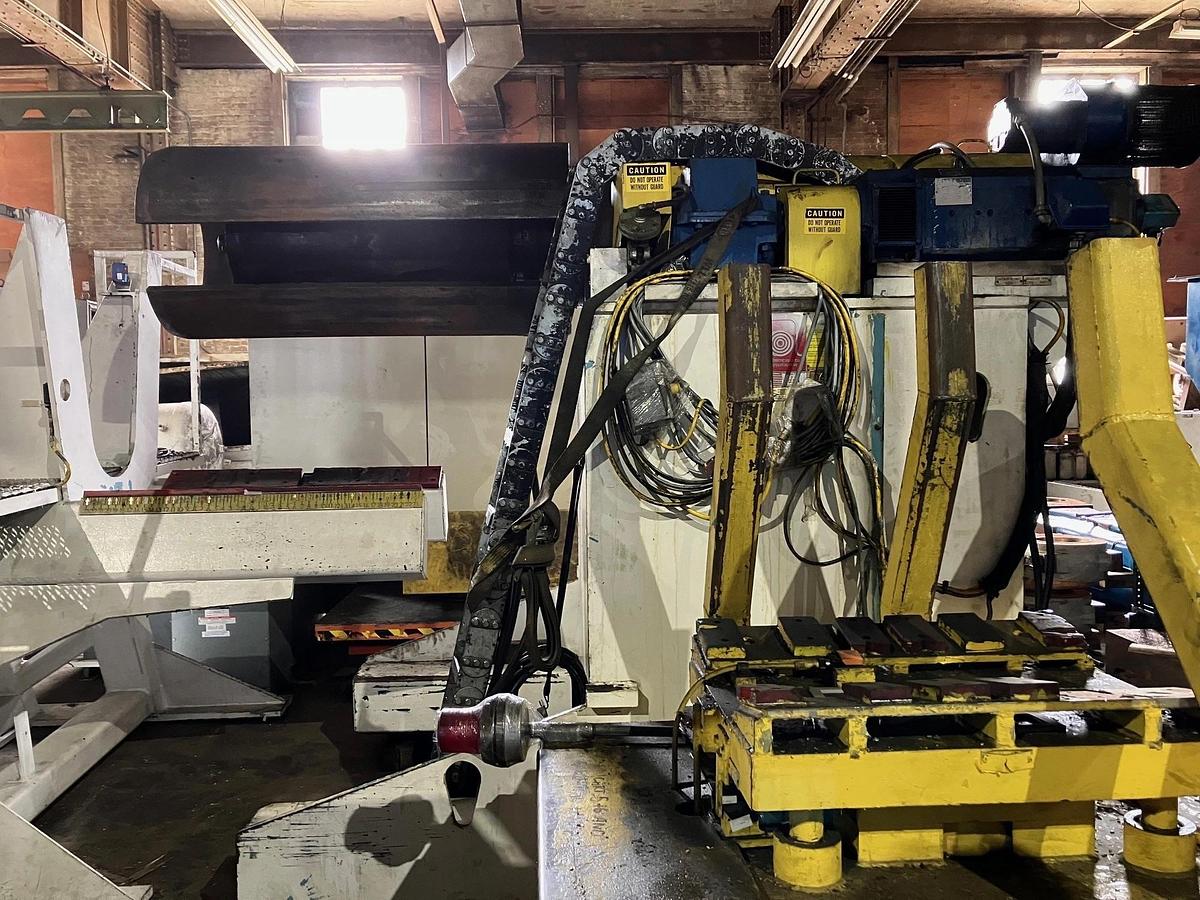

Reel Uncoiler and Coil Car

Peeler / Hold Down

Peeler Table

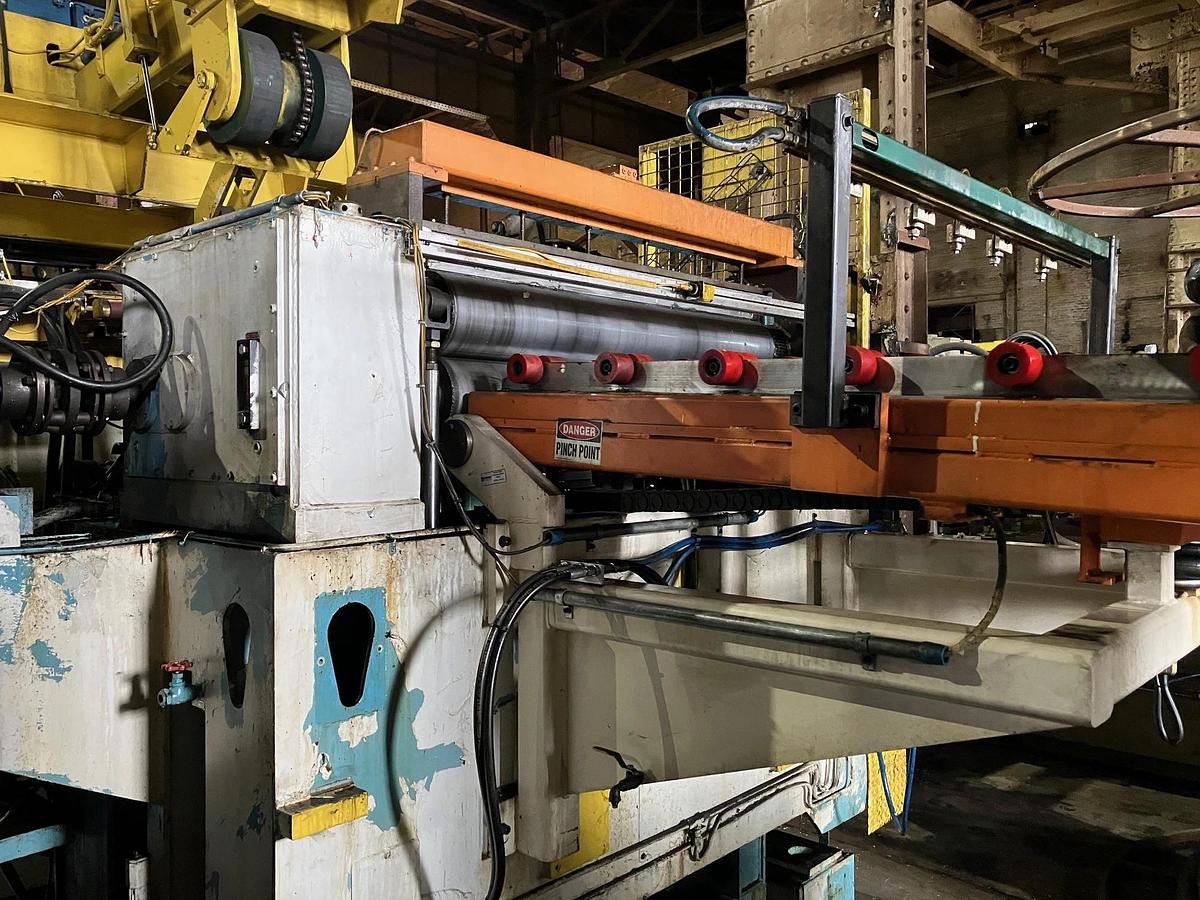

Straightener Exit Pinch Roll / Crop Shear

Scrap Tub

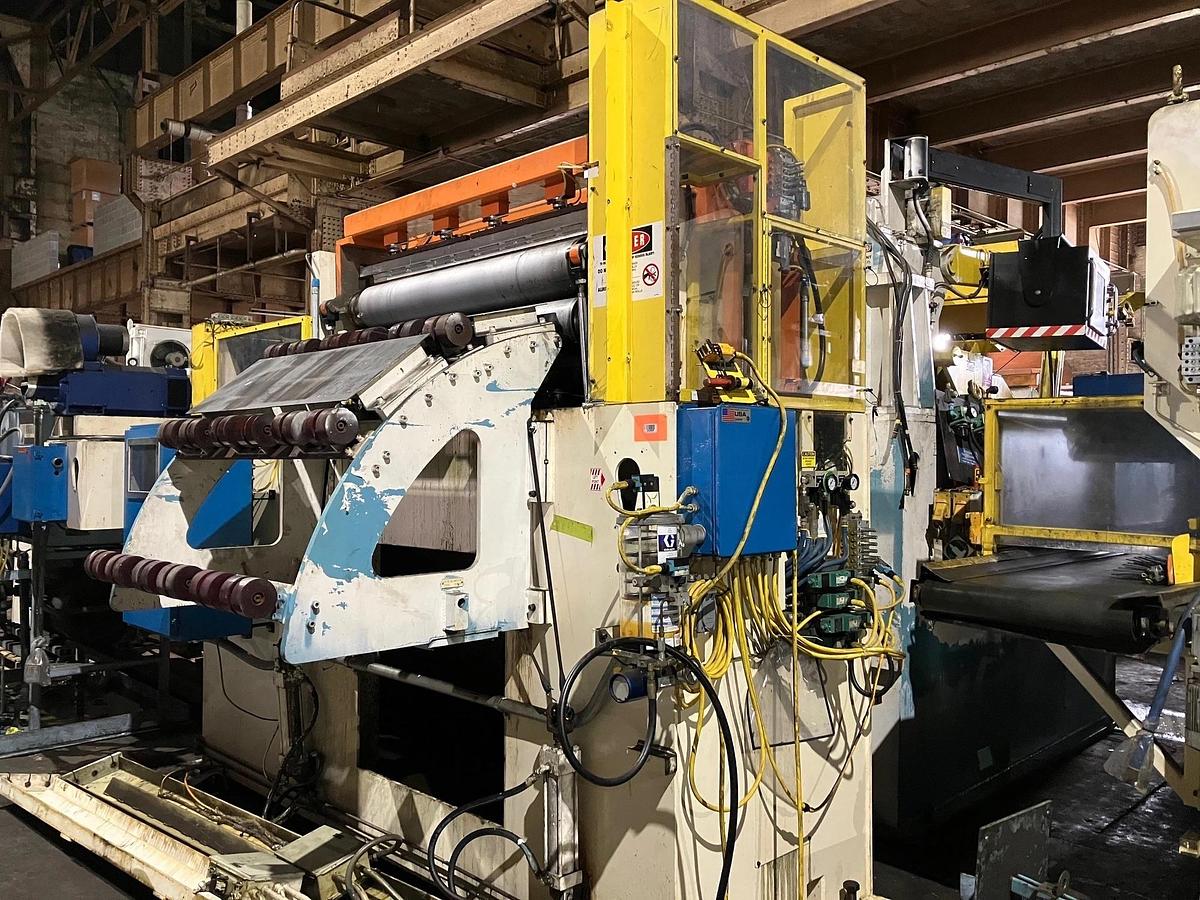

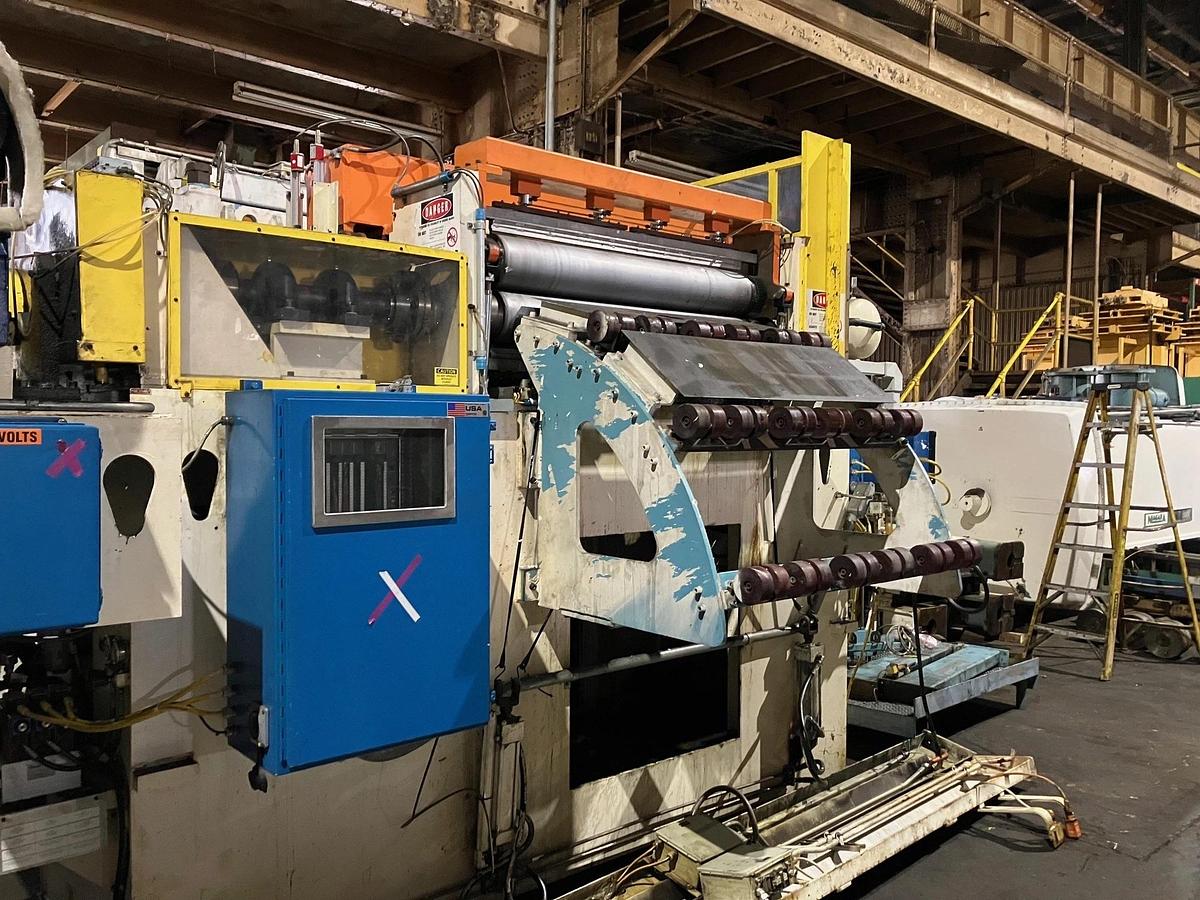

Straightener: (7) Straightening Rolls, (3) Upper Rolls, (4) Lower Rolls

Thread Tables

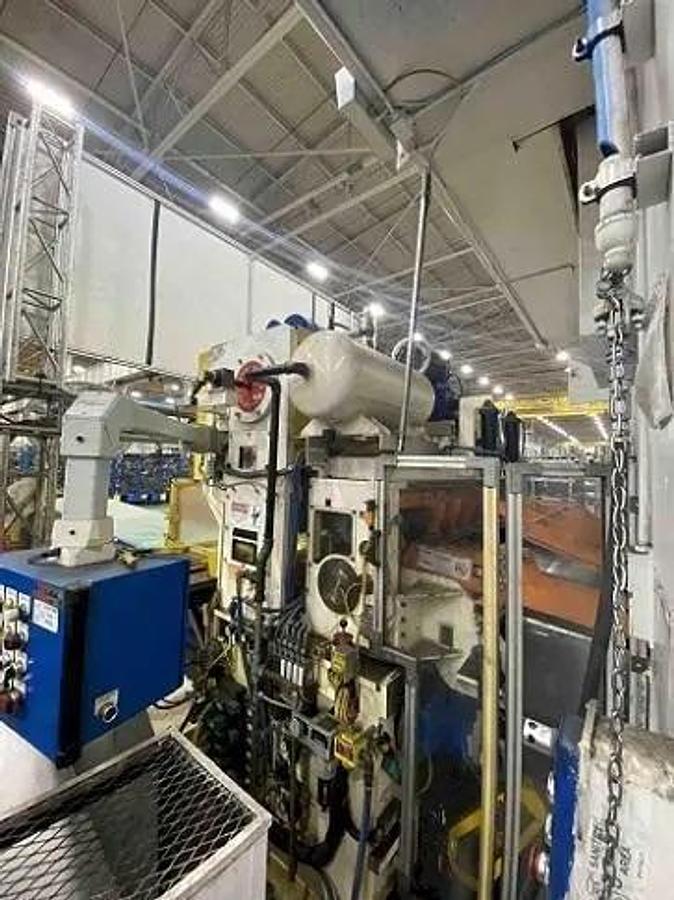

Servo Feeder
