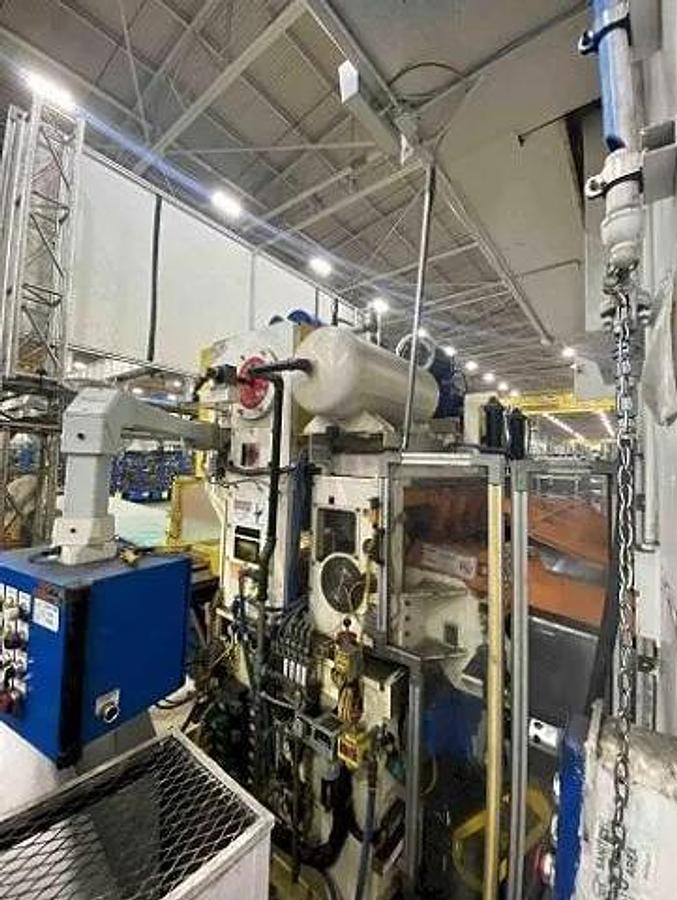

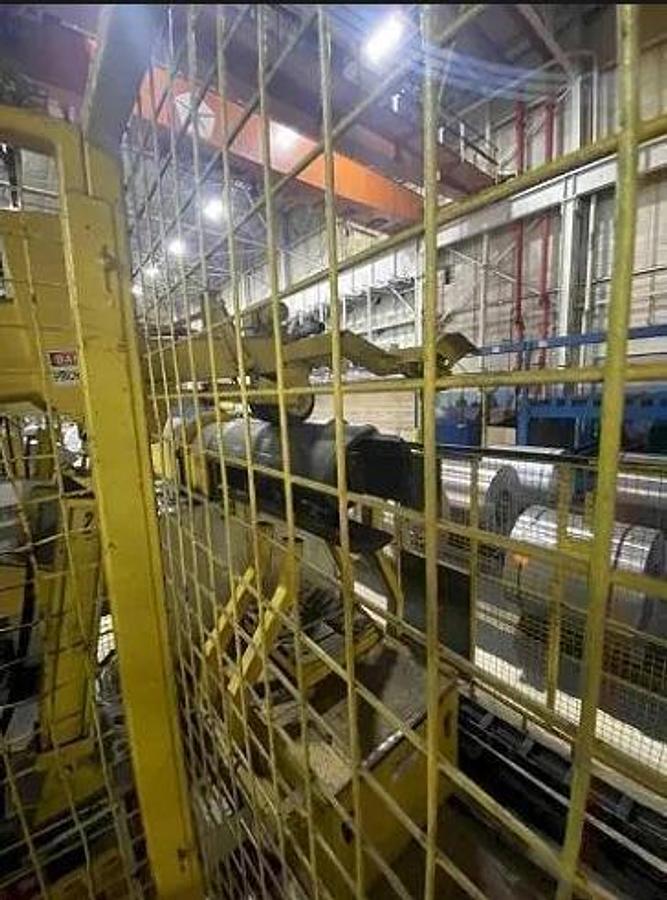

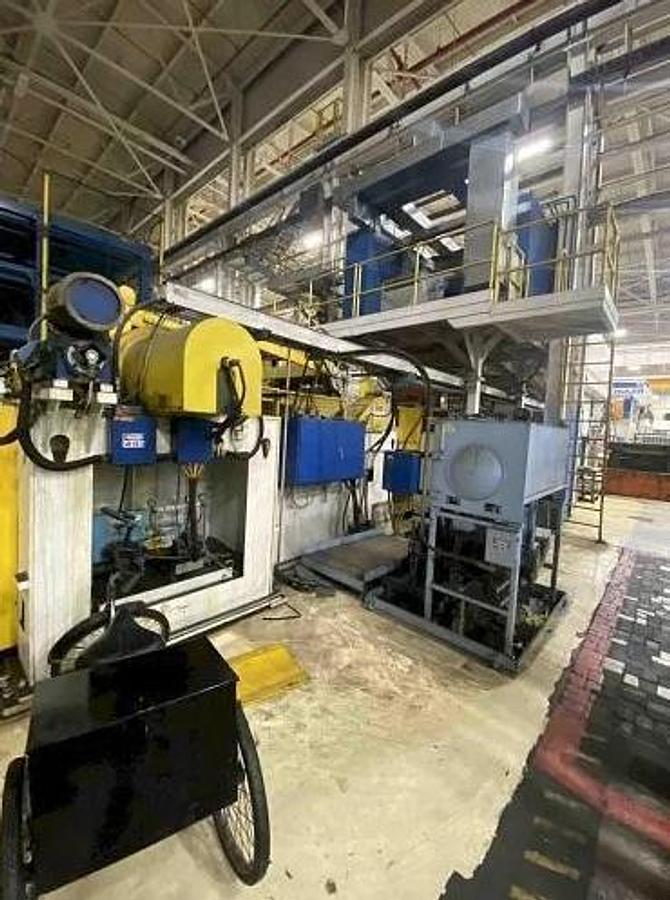

48” x 50,000 Lb AFCO Coil Feed Line

Specifications:

Max Coil Weight: 50,000 Lbs

Max Coil Width: 48”

Min Coil Width: 10”

Max Coil OD: 72”

ID Expansion Range: 22” To 26”

Max Stock Thickness At Full Width (48”): 0.125”

Min Stock Thickness At 48”: 0.020”

Max Thickness At 24”: 0.177”

Max Coil Dia: 72”

Yield Range: 25,000 PSI To 60,000 PSI

Feeding Length: 2” To 36”

Line Speed: 100 FPM

SPM: 60

Feeding Angle: Adjustable

Passline Height: ±5”

Feeding Direction: Right To Left

Material Capability:

Cold Rolled Steel

HD Galvanized

Electro Galvanized

Control:

Drive System: Unico

PLC: Allen Bradley

Operator Interface: IBM, Wonderware

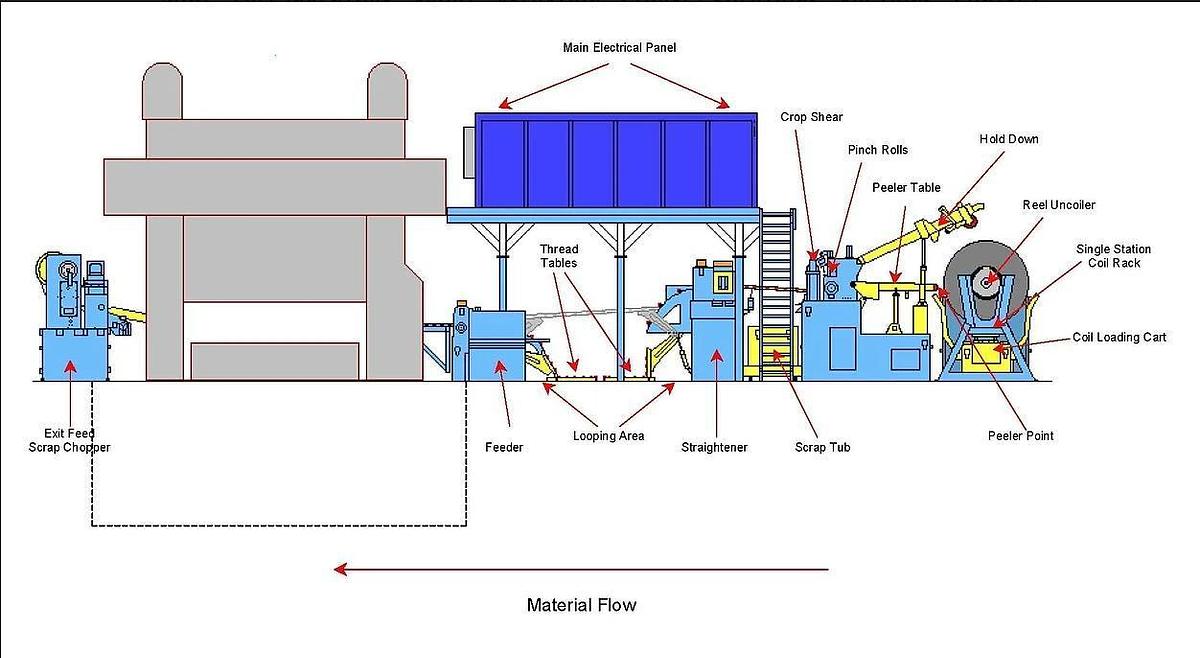

Includes:

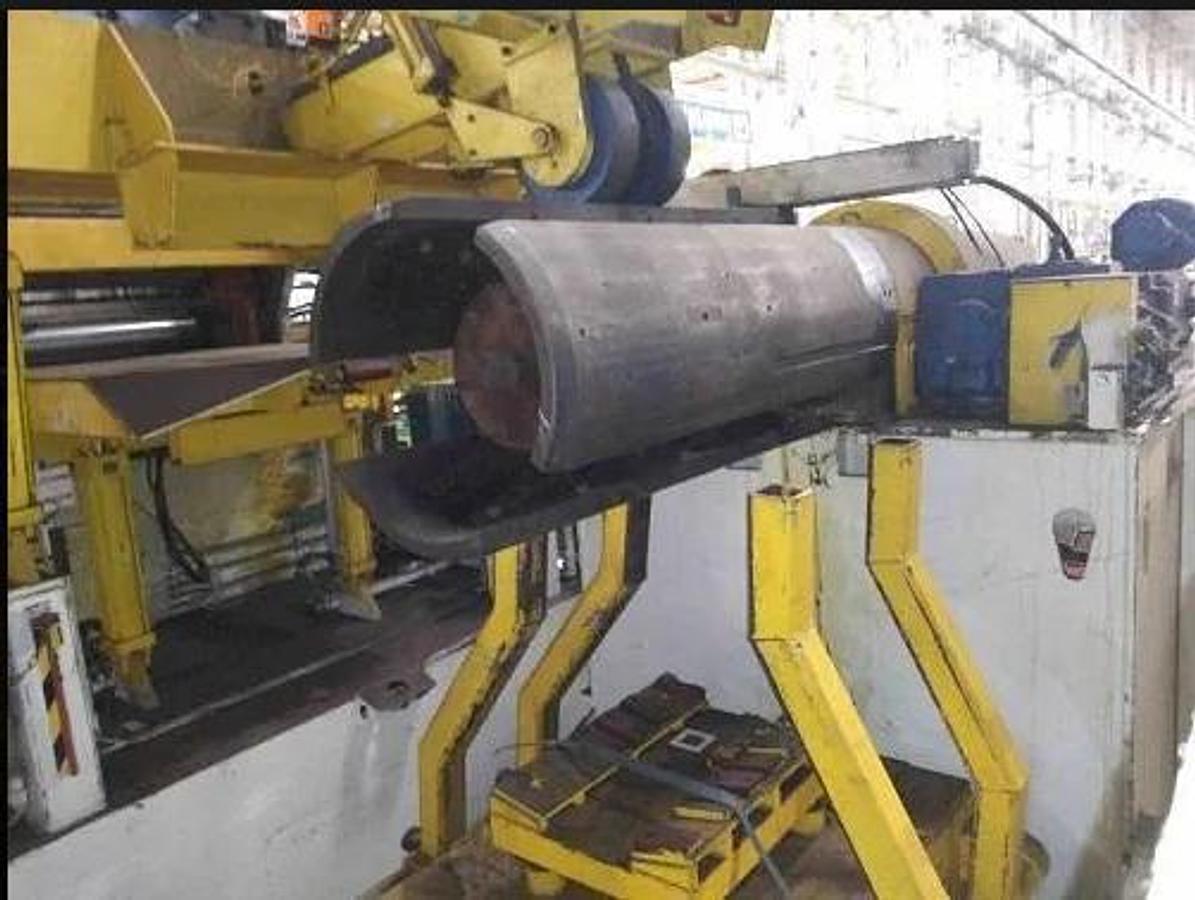

Servo Driven Reel

Entry Pinch Roll Crop Shear

Six High Straightener (Servo Driven)

AC Servo Feeder With Powered Programmable Passline Height Adjustment

Powered And Programmable Stock Guides

AC Servo Exit Feed With Scrap Chopper

All features certainly not on a normal 48” feed line.
