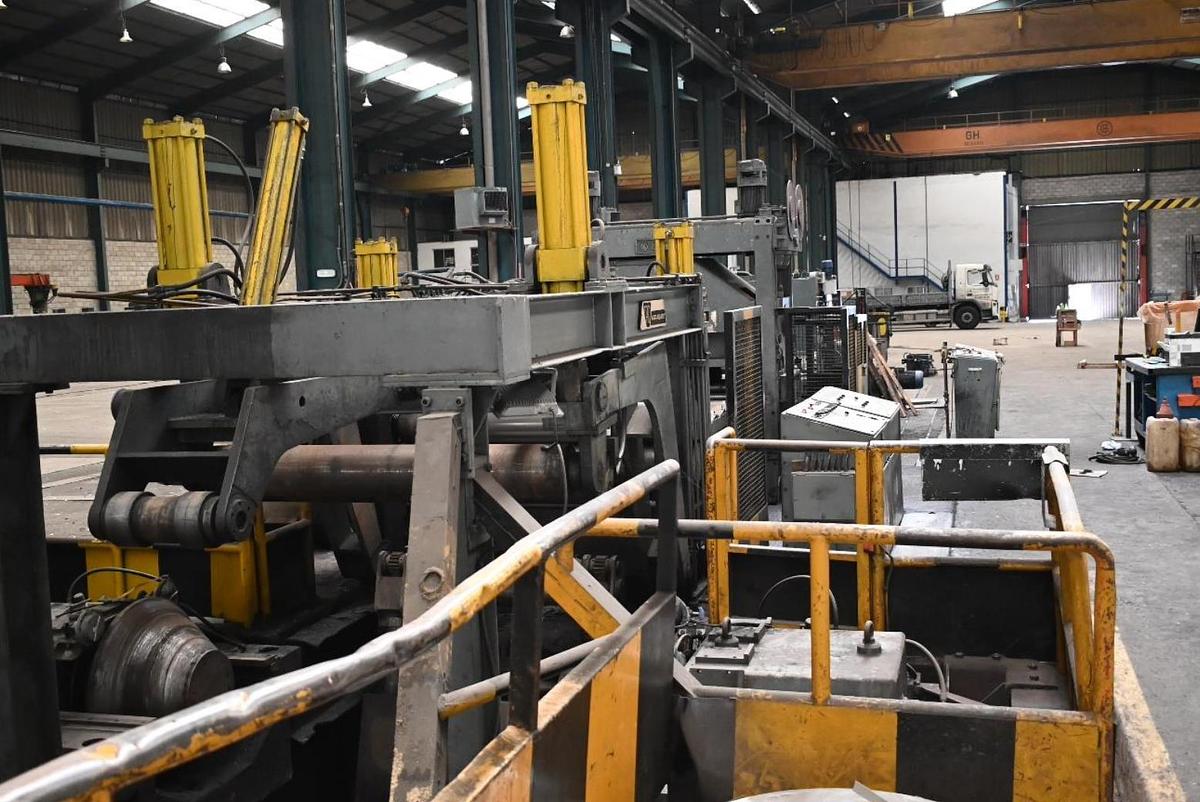

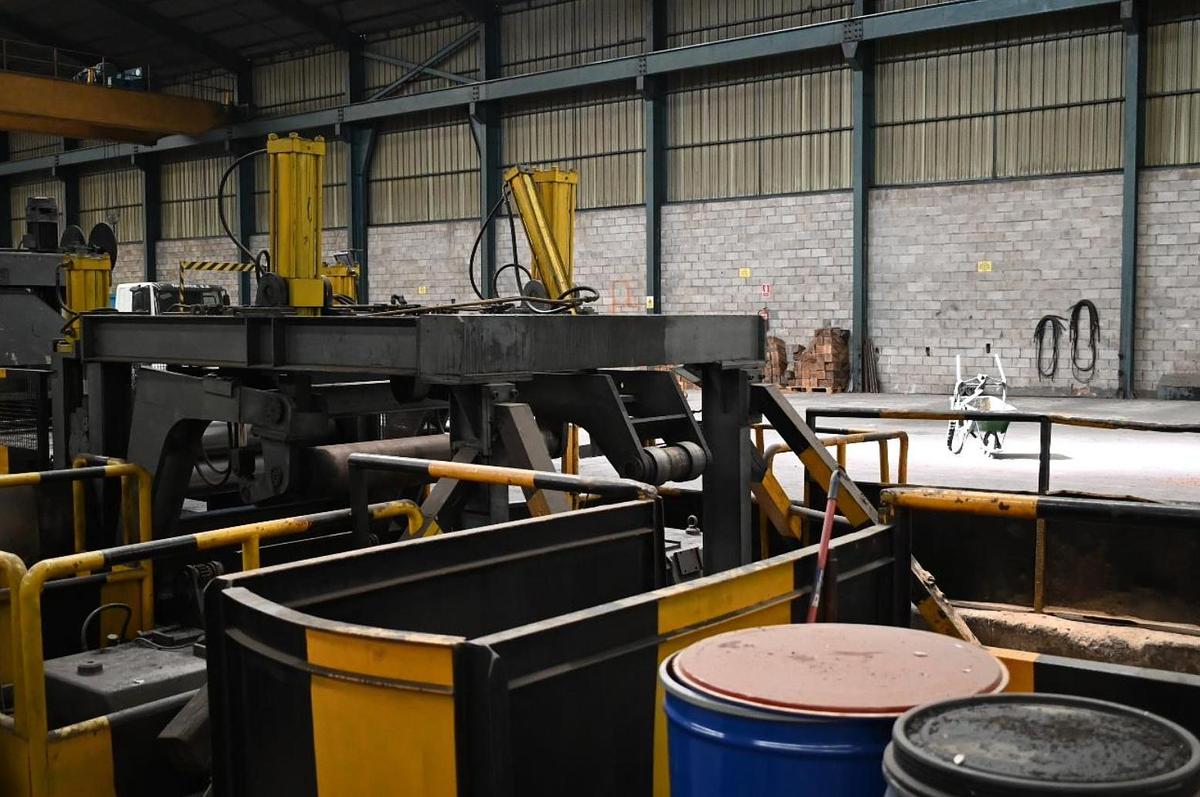

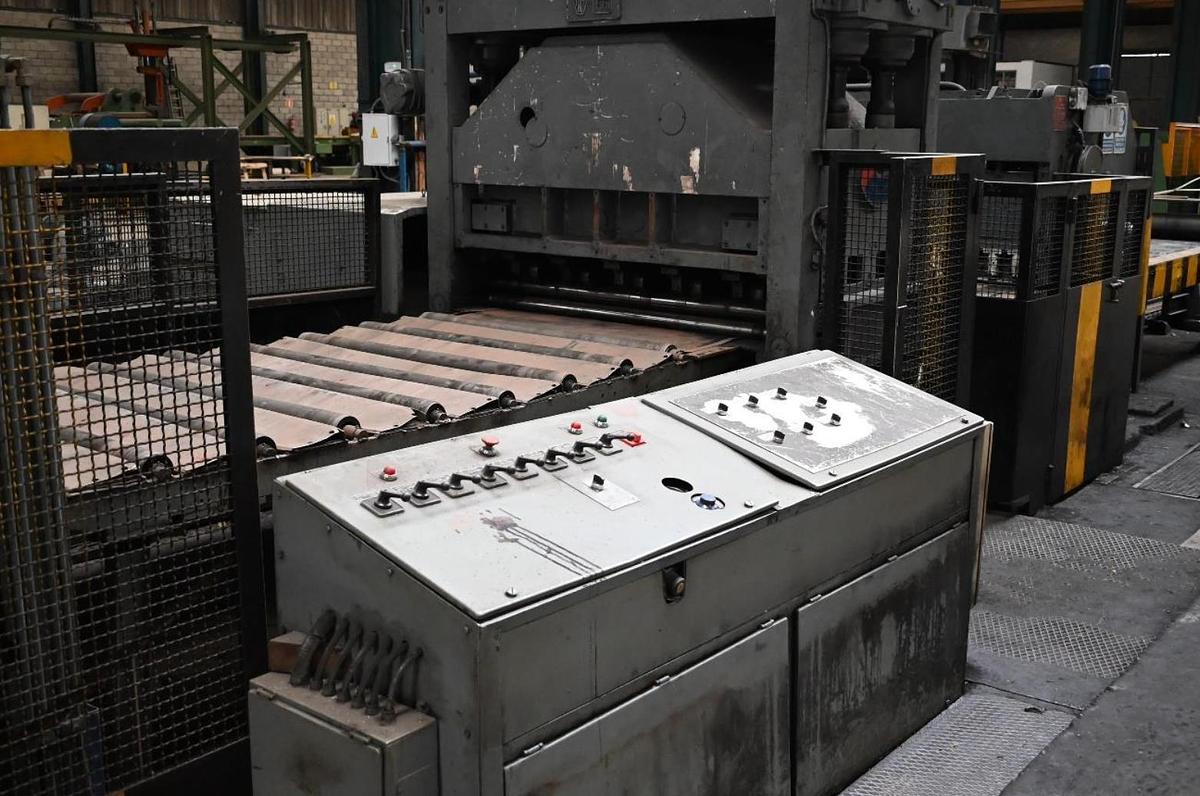

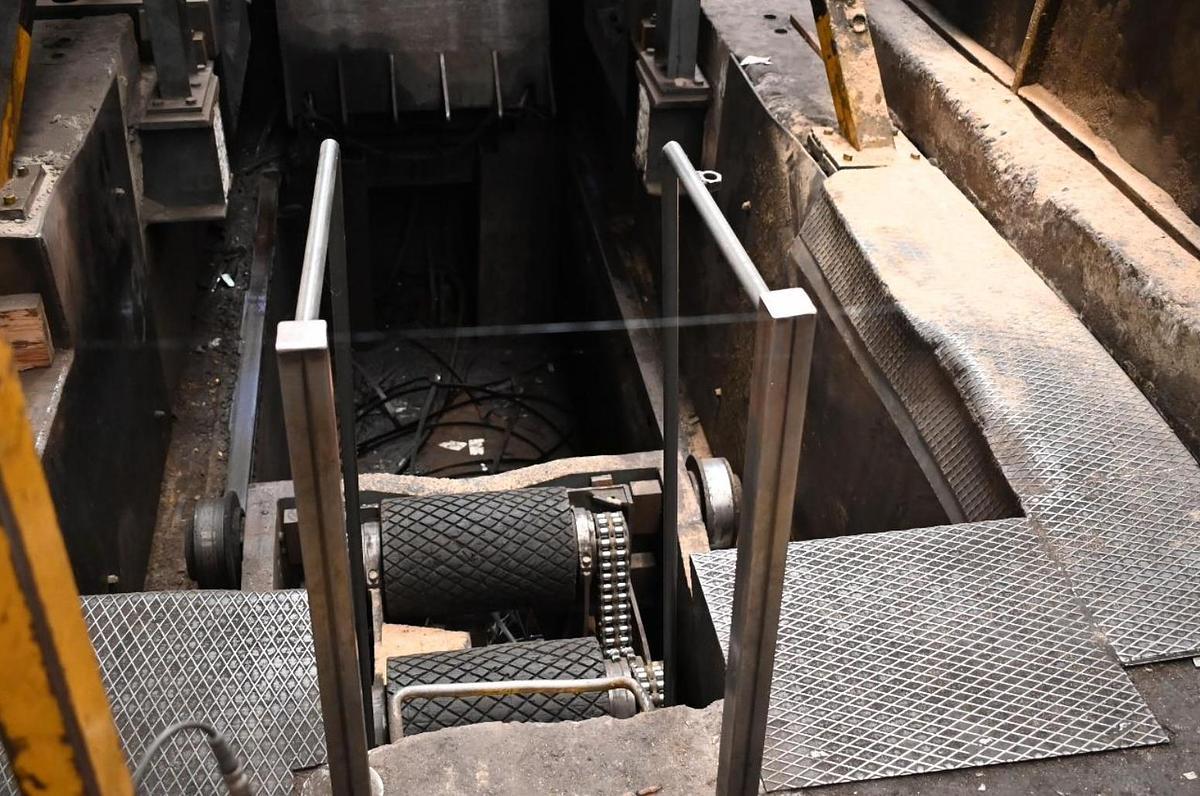

59” x .394” x 55,000 Lb Fagor Arrasate Cut-To-Length Line

Specifications:

Manufacturer: Fagor Arrasate

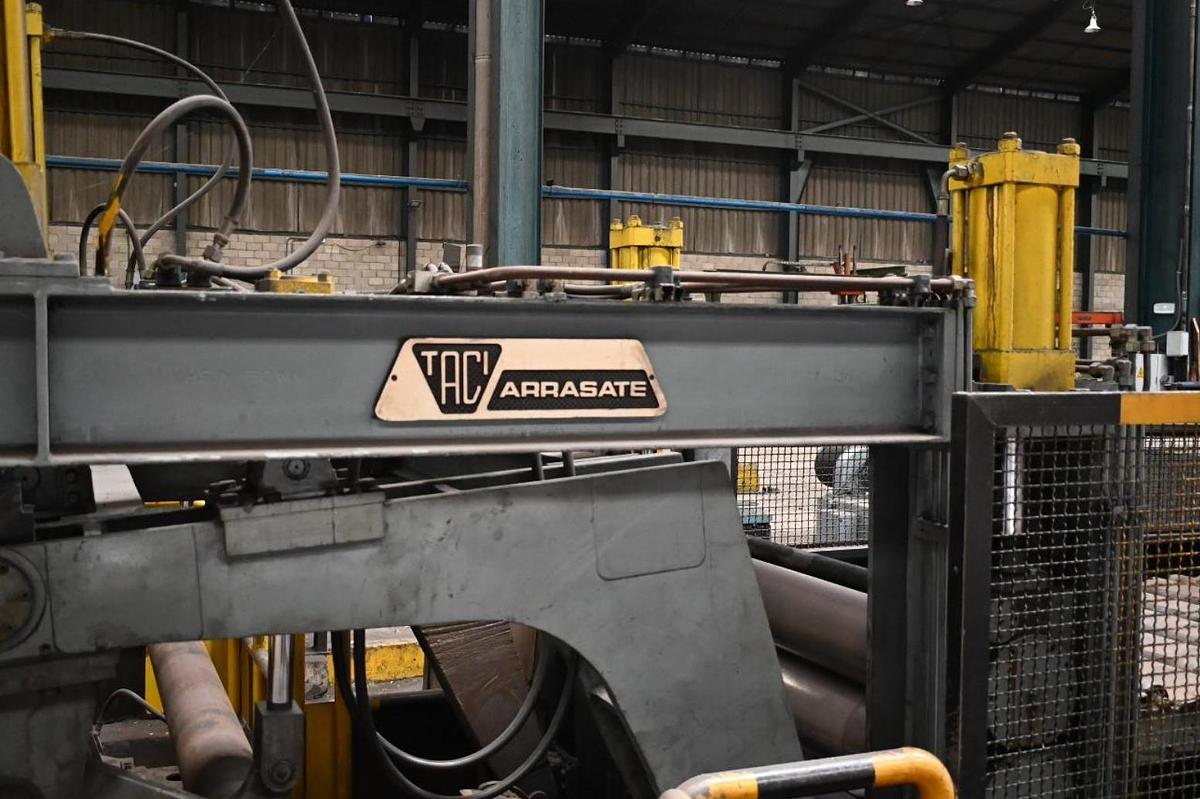

Manufacturer (Controls / Components): Taci Arrasate

Material Specifications:

Maximum Coil Width: 59” (1500 Mm)

Minimum Coil Width: 11.8” (300 Mm)

Maximum Coil Weight: 55,000 Lb (25 Metric Tons)

Thickness Range: .059” – .394” (1.5 – 10.0 Mm)

Finished Product Specifications:

Maximum Length: 472” (12,000 Mm)

Minimum Length: 19.7” (500 Mm)

Working Speed: 33 And 66 FPM (10 And 20 M/Min)

Maximum Line Speed: 82 FPM (25 M/Min)

Cutting Format Length: 39.4” – 394” (1000 – 10,000 Mm)

Cutting Tolerance: ±.039” (±1 Mm)

Line Direction: Left To Right

Uncoiler:

Type: Expanding Double Mandrel Uncoiler

Maximum Coil Weight: 55,000 Lb (25 Metric Tons)

Outer Coil Diameter: Max 78.7” / Min 23.6” (2000 Mm / 600 Mm)

Inner Coil Diameter: Max 29.9” / Min 20” (760 Mm / 508 Mm)

Motorized Clamping Roller

Hydraulic Expansion

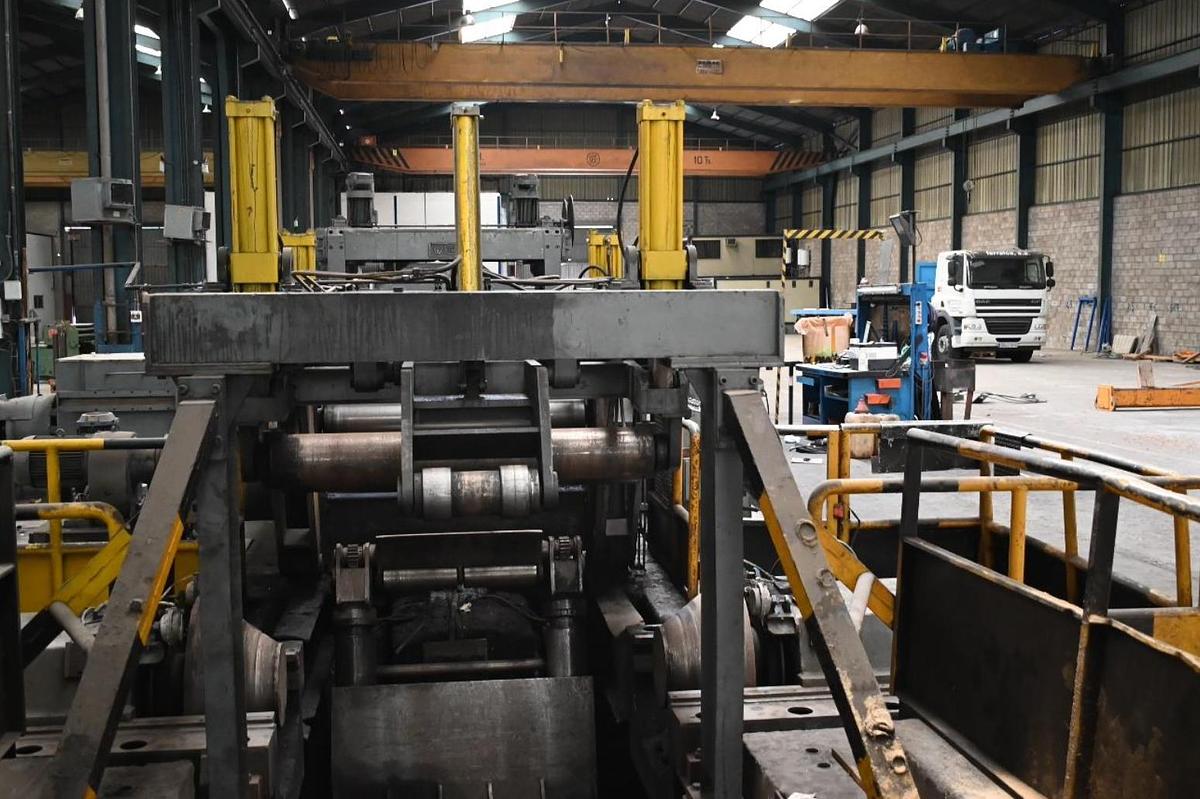

Leveller:

Leveller Roll Diameter: 2.95” (75 Mm)

Road Roller With 15 Working Rollers

Working Roller Diameter: 2.95” X 68.9” (75 Mm X 1750 Mm), 64 HRC

Support Roller Diameter: 2.56” X 4.72” (65 Mm X 120 Mm), 62 HRC

Brake-Clutch Unit

Flattening Machine Powered By Two-Speed Motor

Draw / Feed Unit:

Draw Roller With Flattening Unit

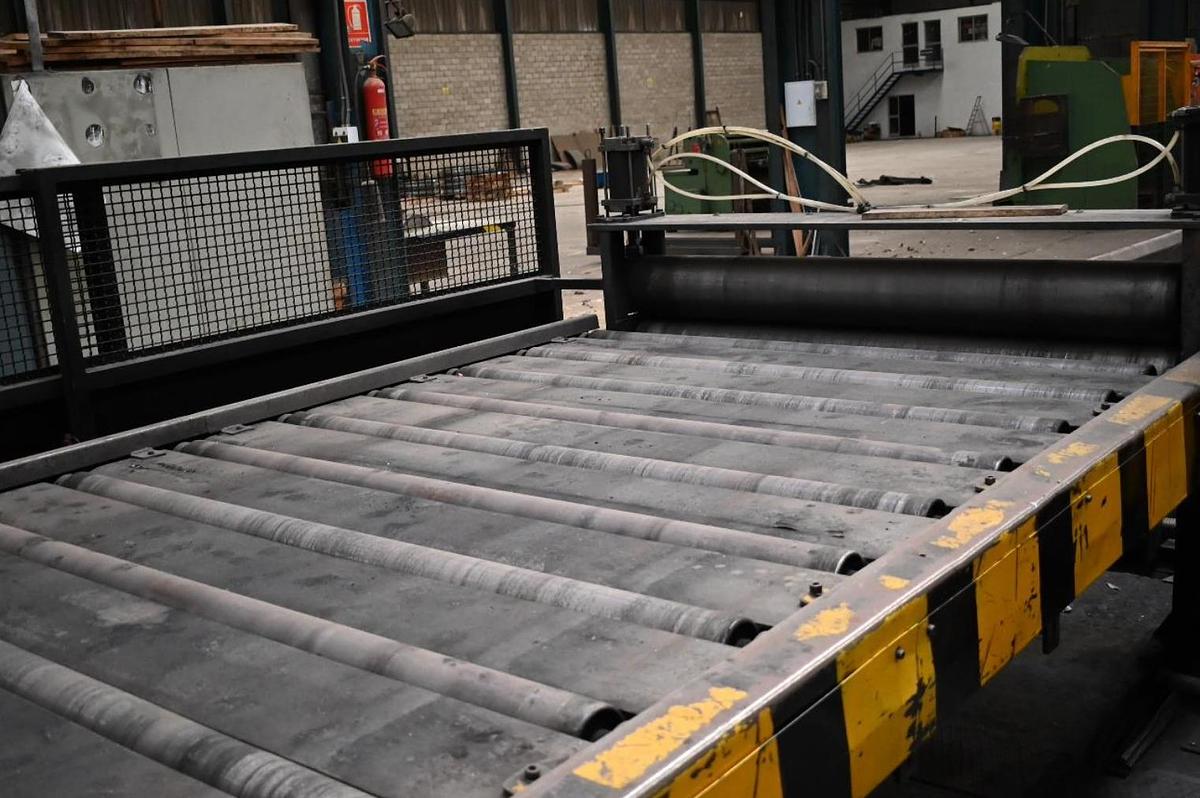

Measuring Table With Motorized Roller

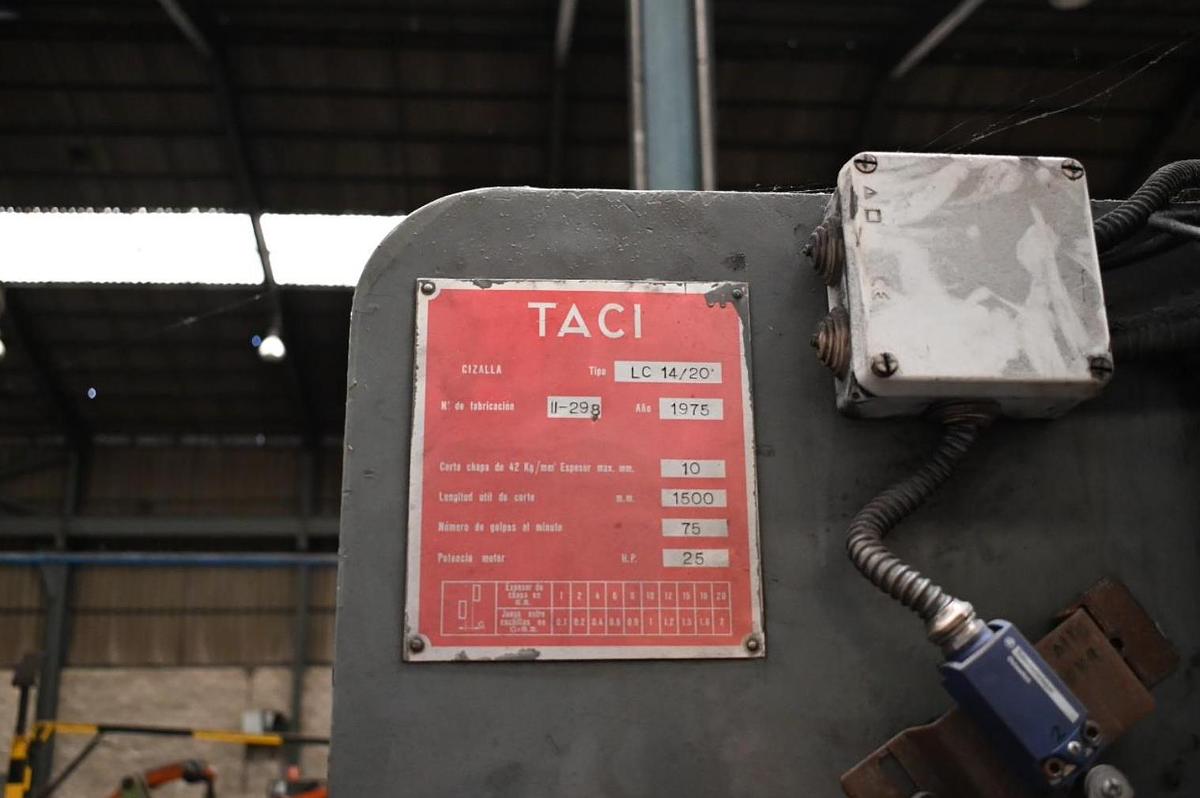

Pneumatic Cutting Shear

Cutting System:

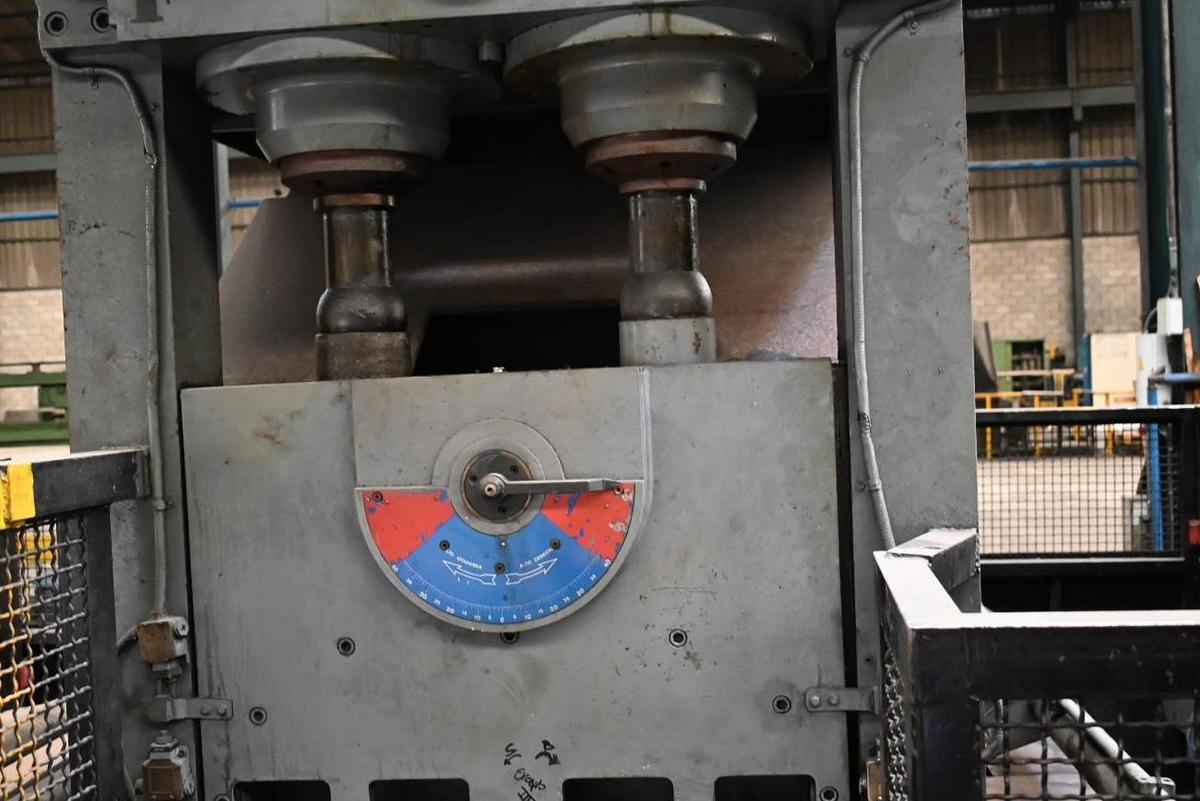

Static Cutting Shear

Stop-Start Operation

Always Cuts Straight, Flat Formats

Electric Motor And Clutch Driven

Blade Size: 80.3” X 3.94” X .98” (2040 X 100 X 25 Mm)

Motors And Power:

Main Engine Power: 53 – 75 HP

Adjustment Motor Power (2 Units): 7.5 HP Each

Lubrication Motor Power: 1 HP

Shear Motor: ABB 25 HP, 3000 RPM, 380/660 V

All Motors Are DC

Controls:

Fagor Numerical Control Model 80

TT-12D Model Speed Variator

Additional Equipment:

Packaging Crates

Accessories With Hydraulic And Electrical Controls

Weights:

Total Roller Weight: 44,000 Lb (20,000 Kg)

Documentation:

Civil, Mechanical, And Electrical Engineering Plans

Foundation, Assembly, Hydraulic, And Pneumatic Plans

Recommended Spare Parts List Included

Operating Notes:

This Line Operates On A Stop-Start Cycle

Cutting Is Static And Performed In Flat Formats Only

Condition: All Maintenance Has Been Completed, The line has a maintenance book, mechanical and electrical.

Status: Under Power
