72” x .075” x 20,000# Iowa Precision Multi-Blanking / Cut-To-Length Line

Specifications:

Manufacturer: Iowa Precision

Material: CRS, Aluminum, Galvanized, Pre-Painted

Maximum Coil Width: 72”

Minimum Coil Width: 6”

Thickness Range: .015” – .075”

Maximum Shear Strength: 45,000 PSI

Maximum Yield Strength: 45,000 PSI

Maximum Coil Weight: 20,000#

Coil I.D.: 20” – 24” (Nominal)

Line Direction: Left To Right

Mode Of Operation: Front Loop

Line Speed: 20 – 150 FPM

Stacker Length: 1’ – 10’

Maximum Bundle Size: 18” x 10,000# At 10’

Required Floor Space: 25’ x 45’

Equipment Included

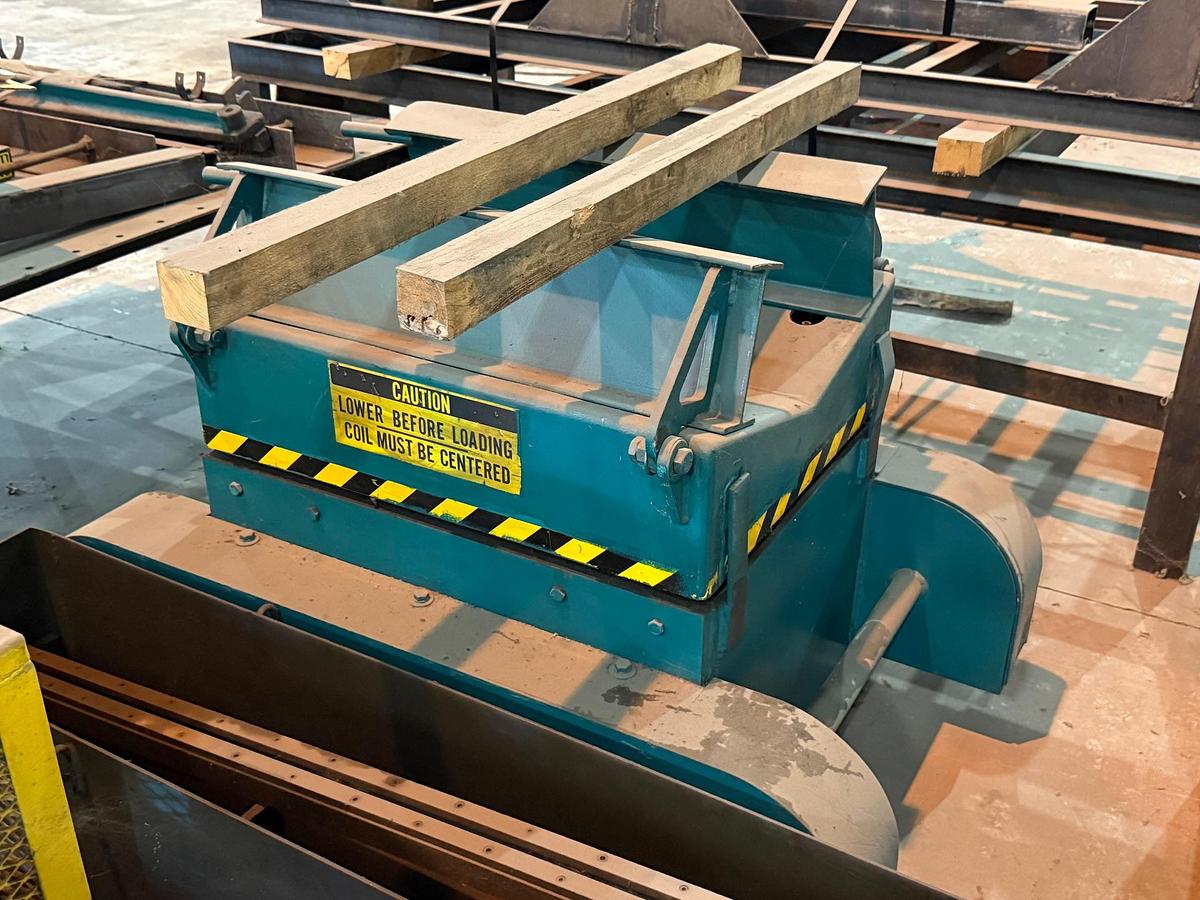

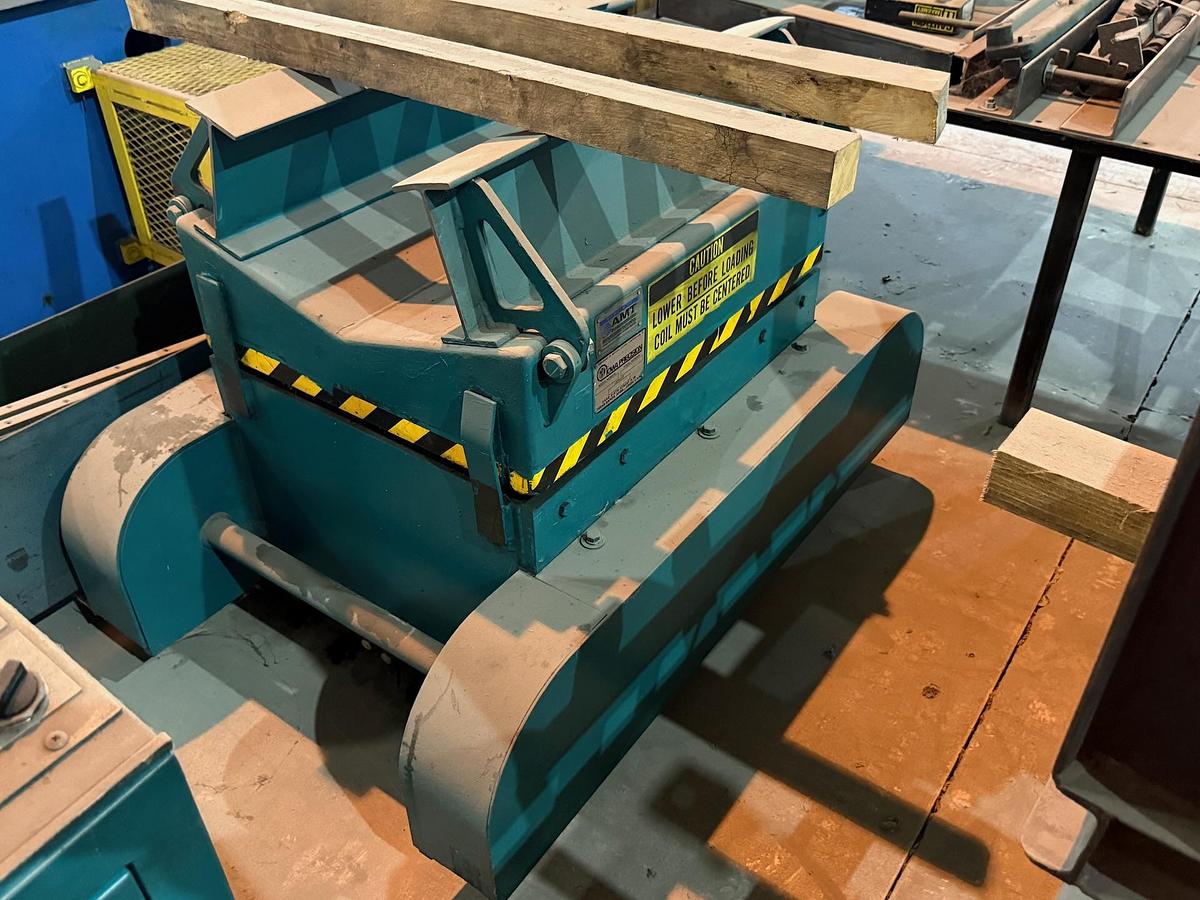

Entry Coil Car:

Low Boy Type

Floor Mounted

Powered Lift And Traverse

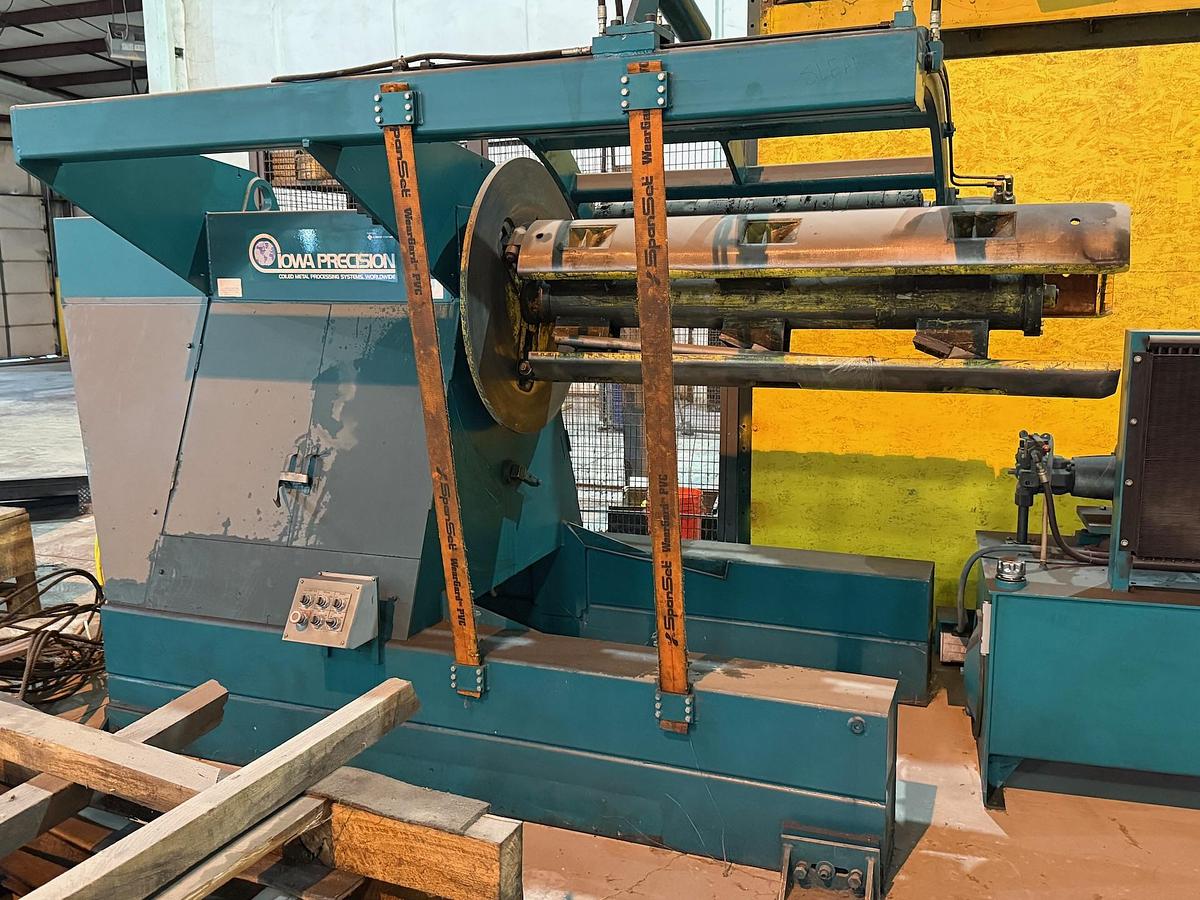

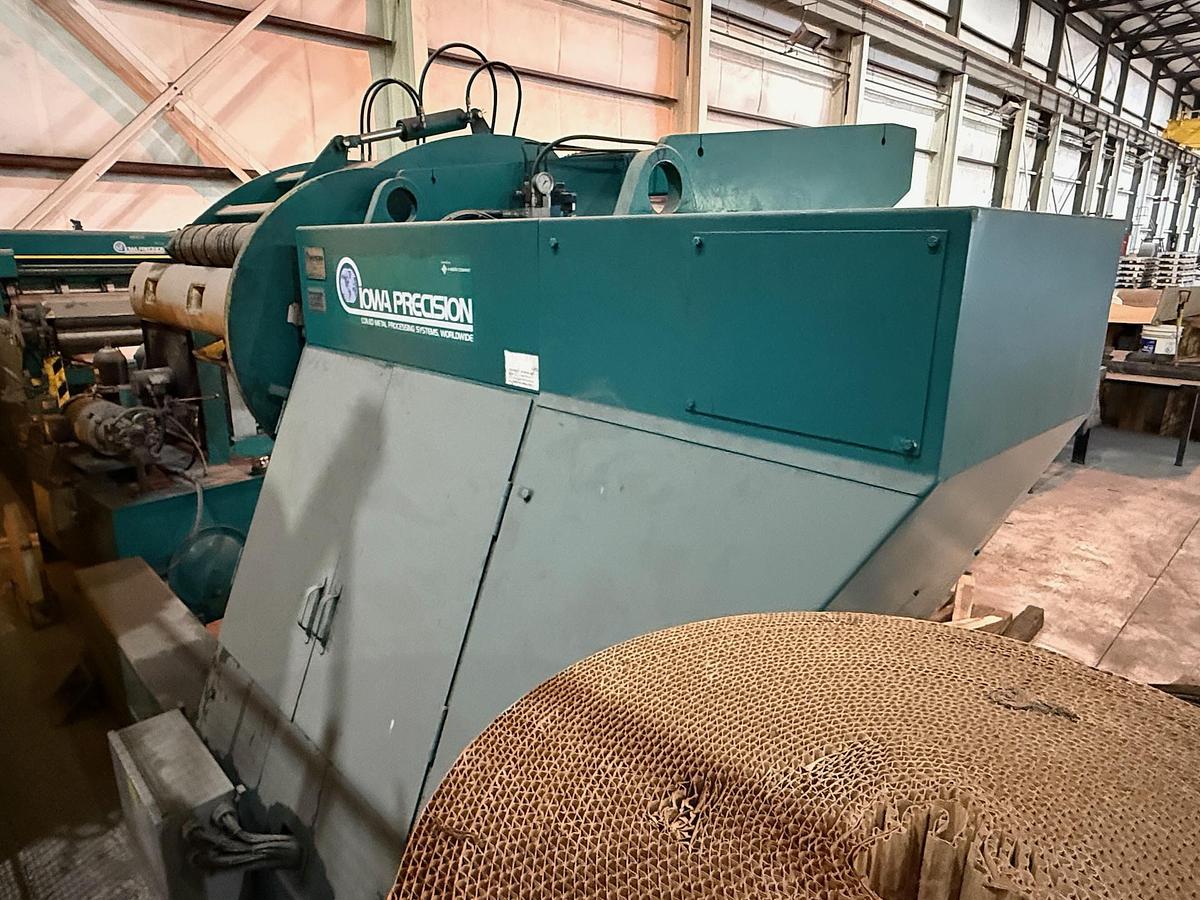

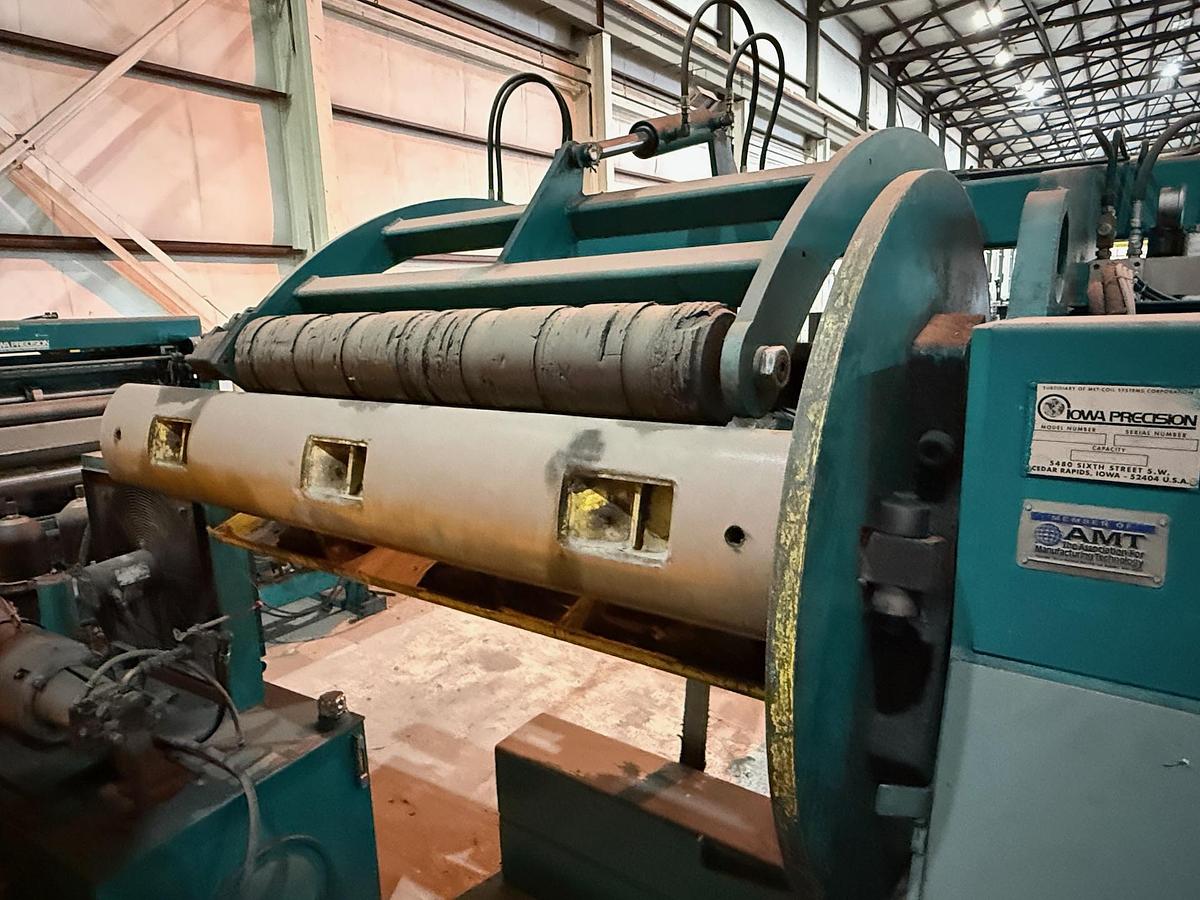

Uncoiler:

Mandrel Type

Powered Expansion

Feed-Up Drive

Hold-Down With Powered Snubber

Loop Control With Dancer Arm

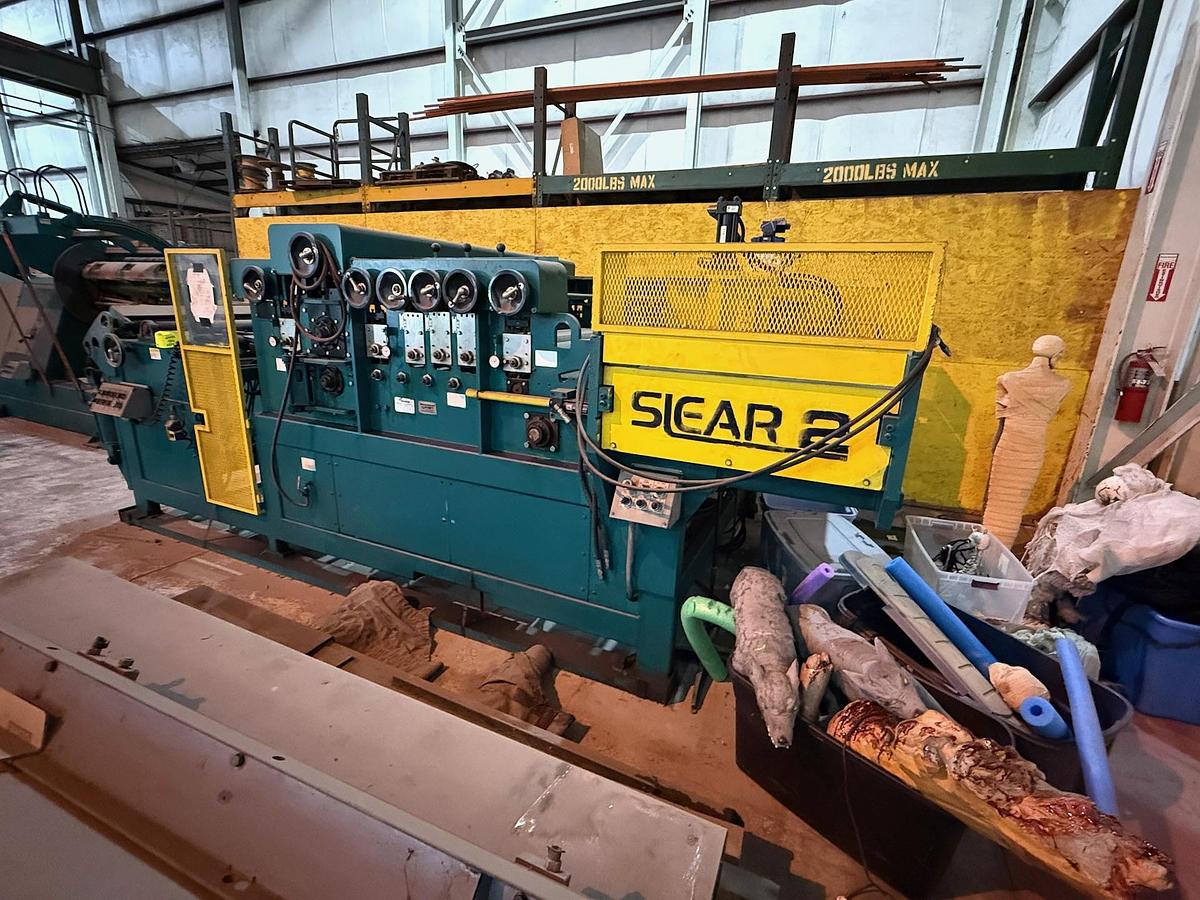

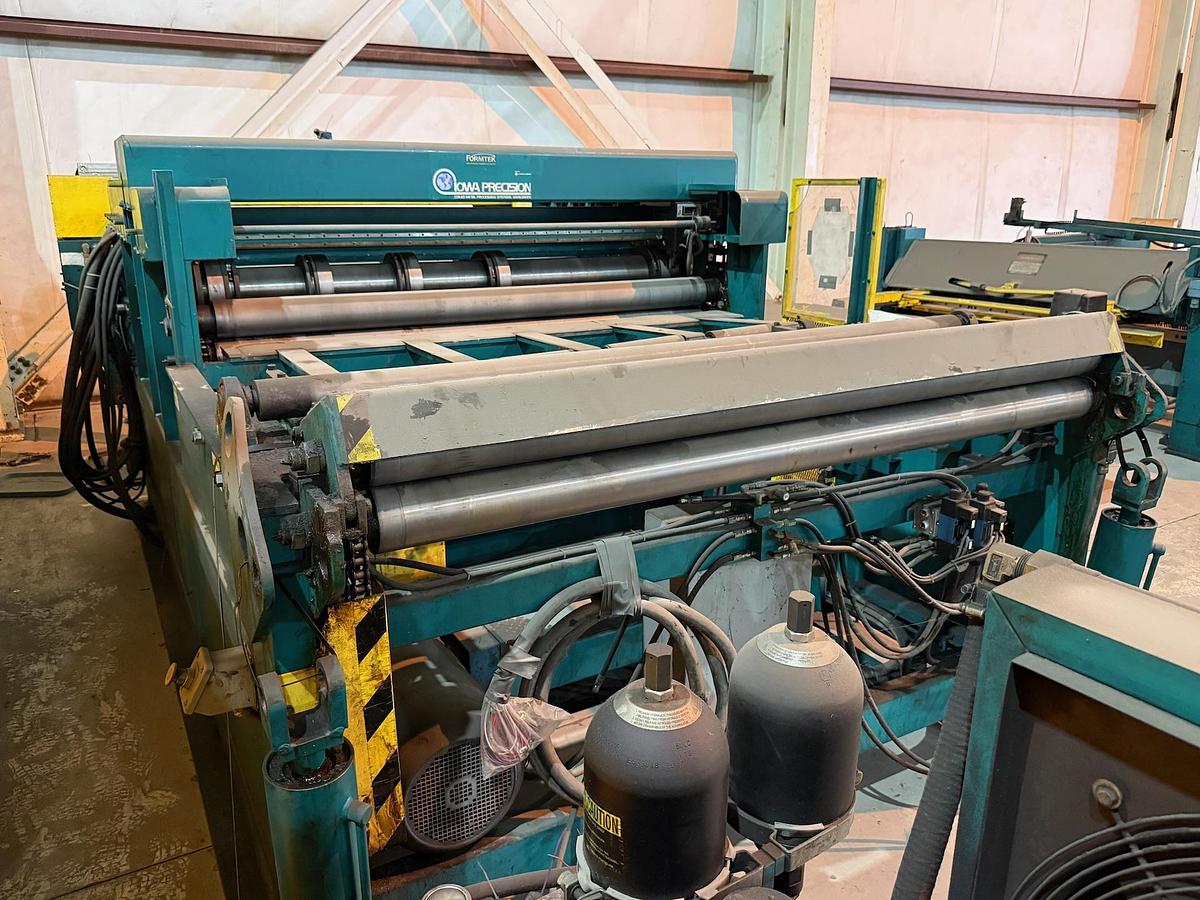

SLEAR Unit:

Extending Blade Peeler

Powered Tamper Roll

Manual Side Guides

Powered Entry Pinch Rolls

Slitter Head With Hub-Type Tooling

6” Diameter Arbor

Powered Pinch Rolls #2

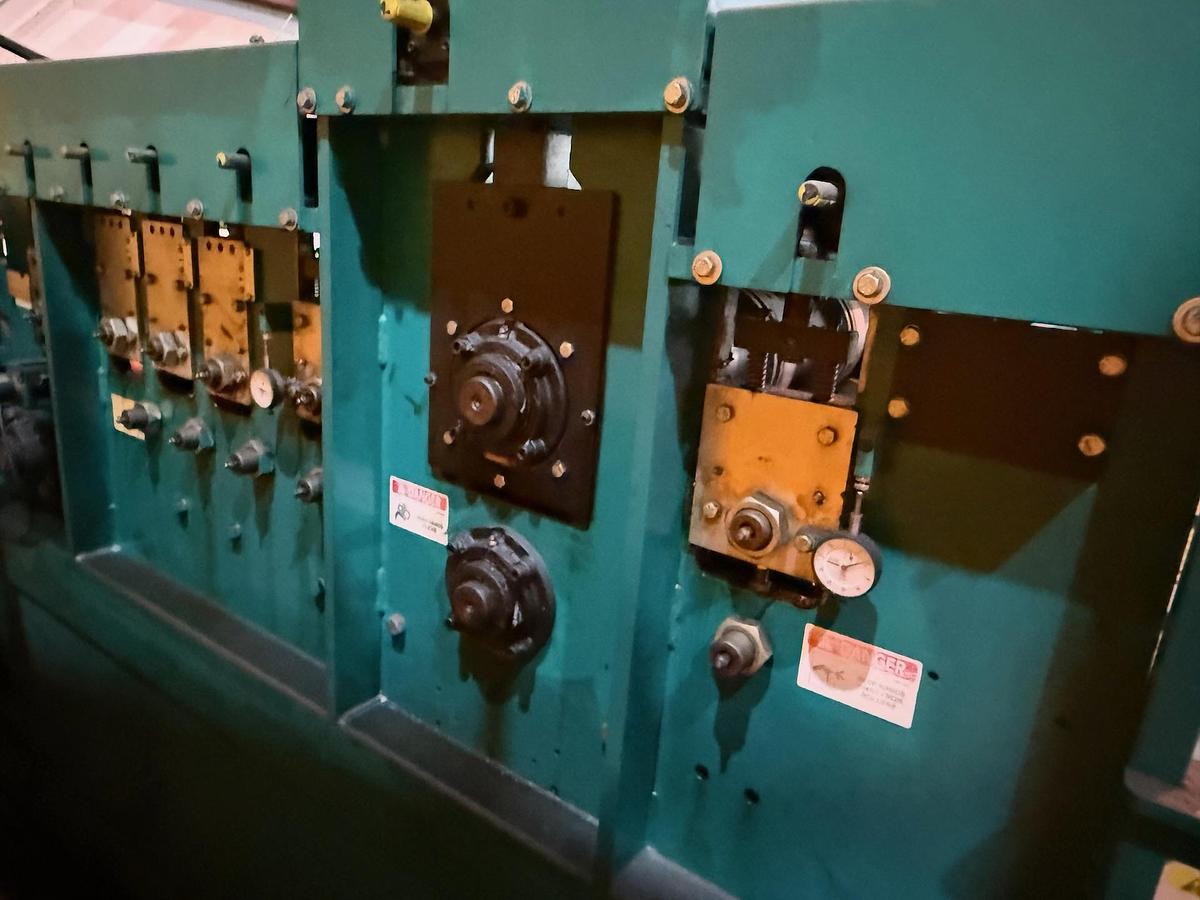

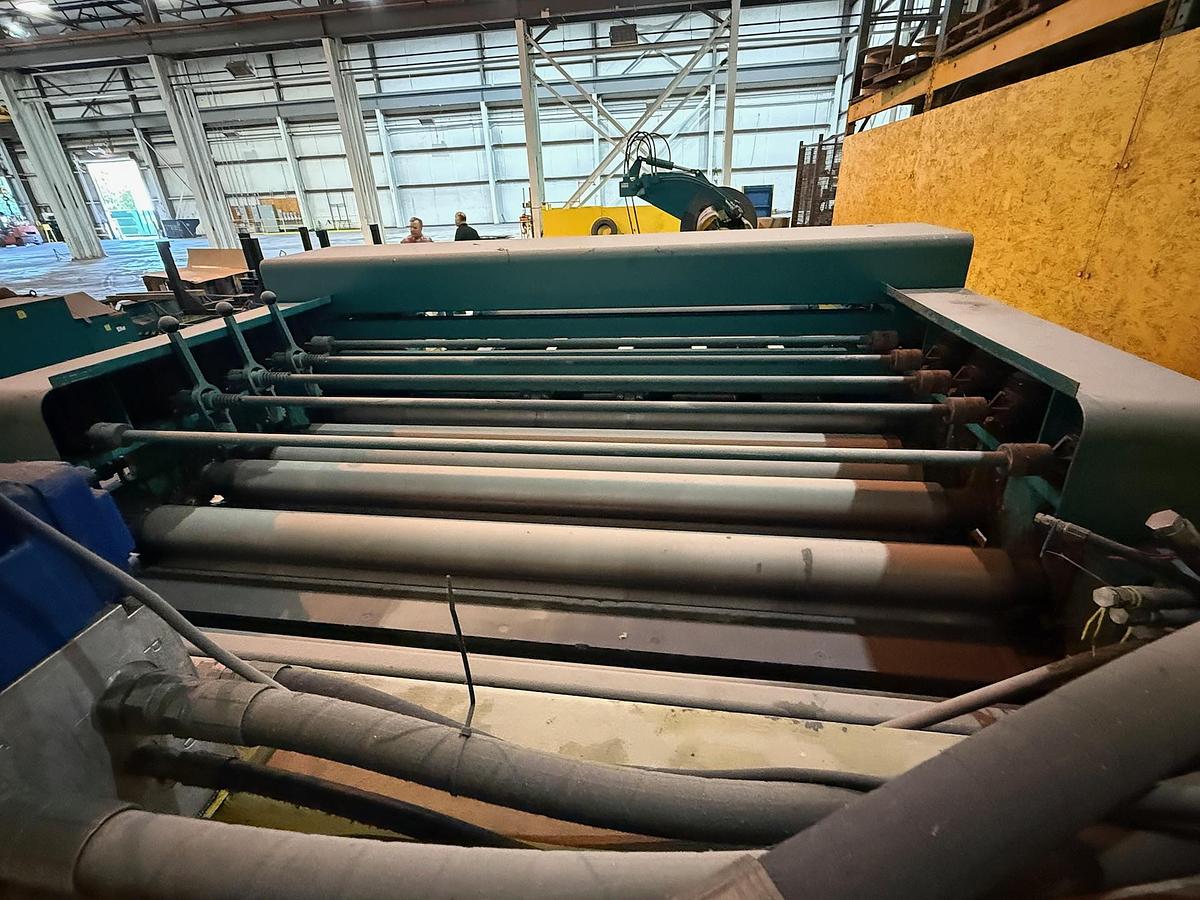

Flattener With Six (6) Work Rolls In 3/3 Configuration

Powered Exit Pinch Rolls

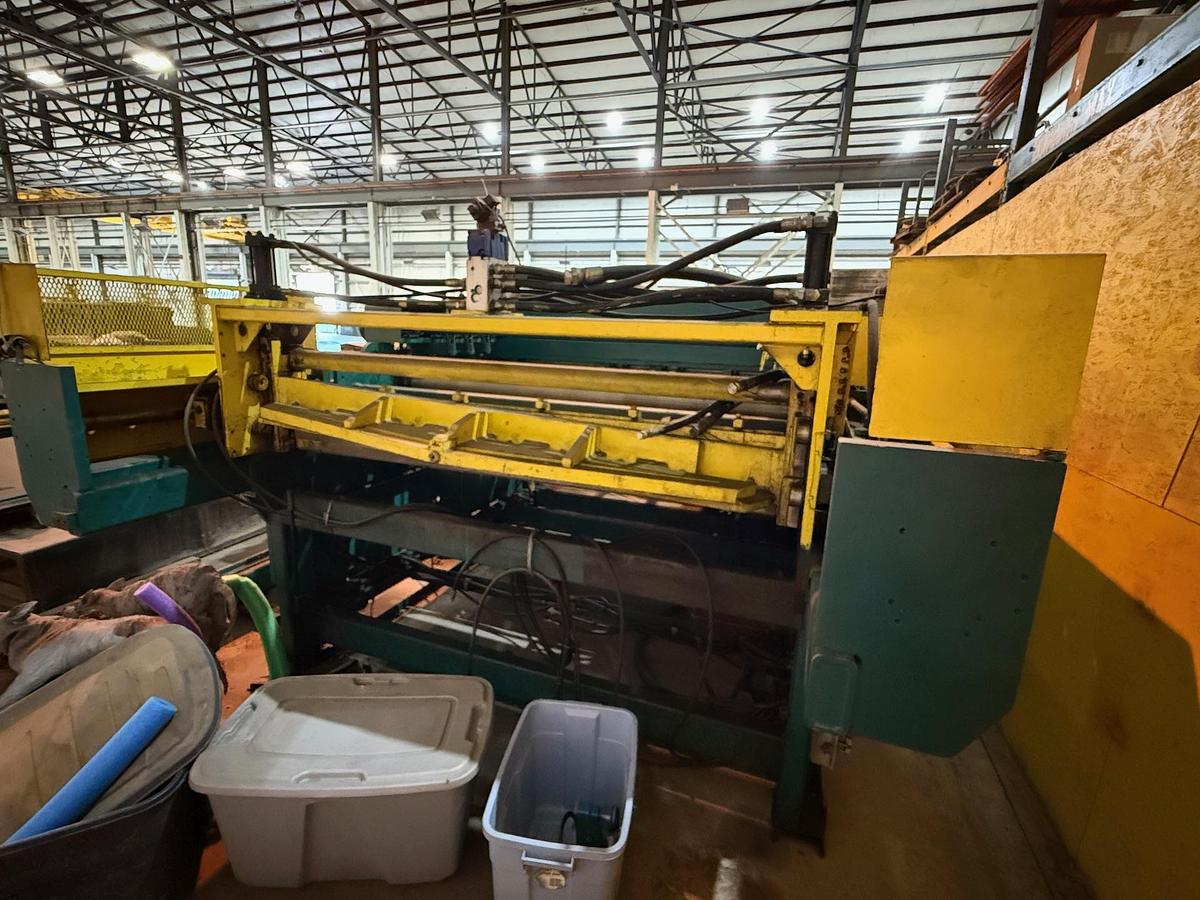

Down-Cut Shear On Traversing Track

Single Rake Blade

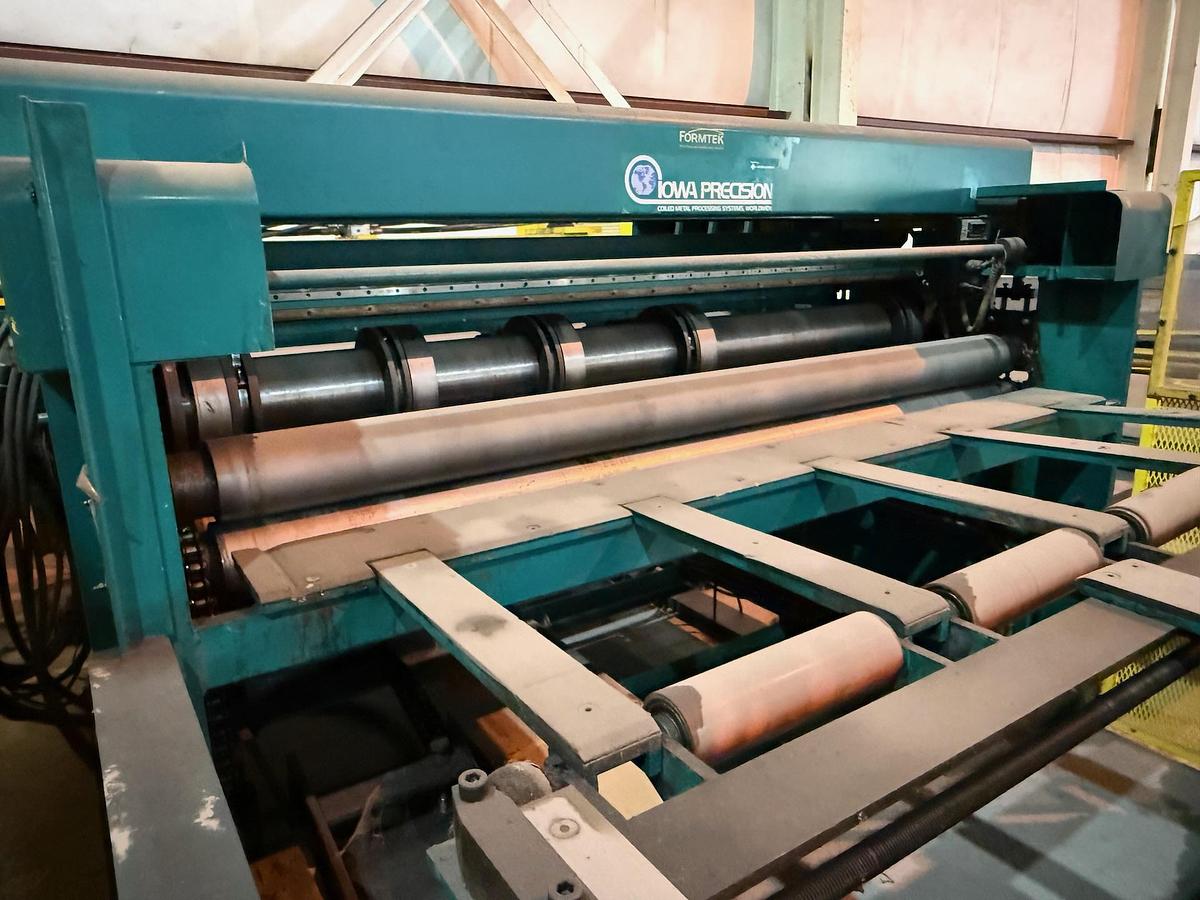

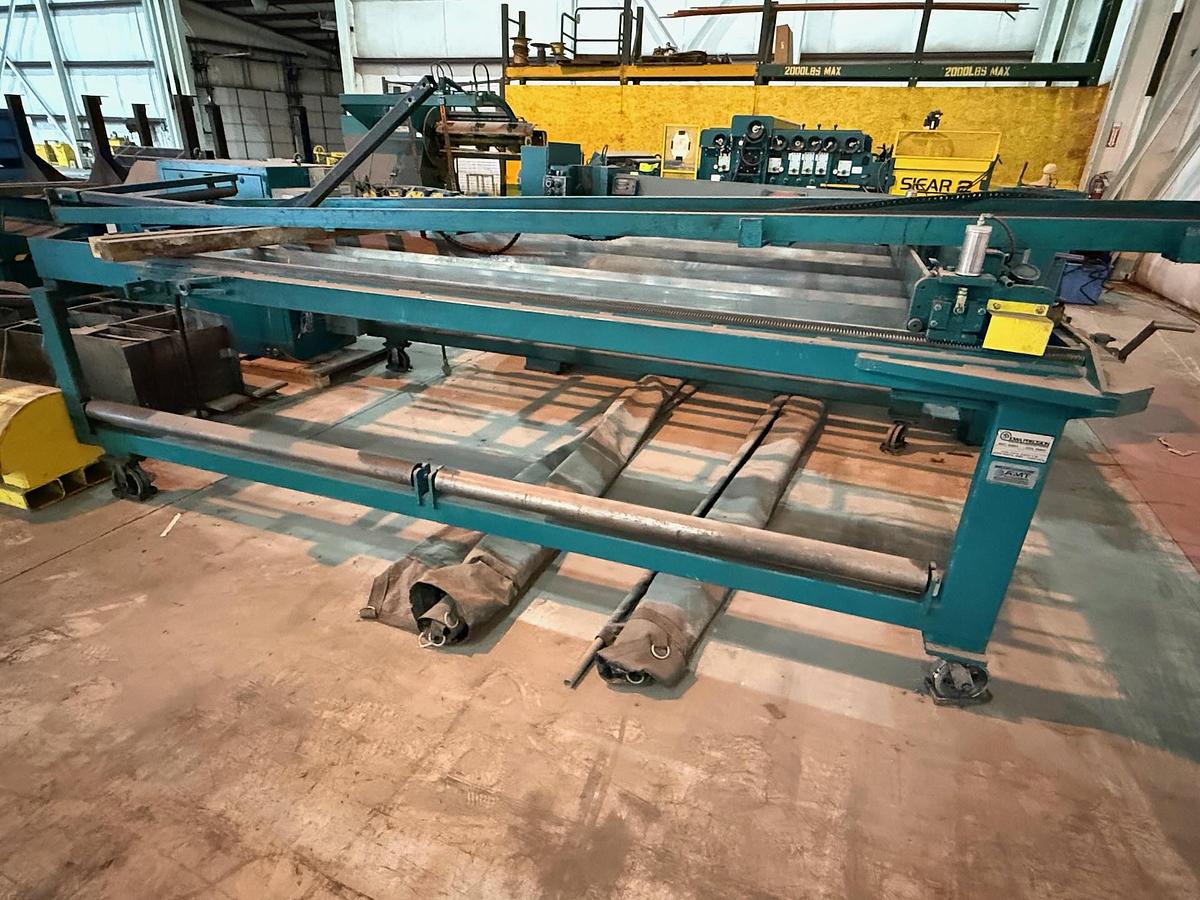

Stacker:

Manual Adjustable End Stop

Manual Adjustable Side Tampers

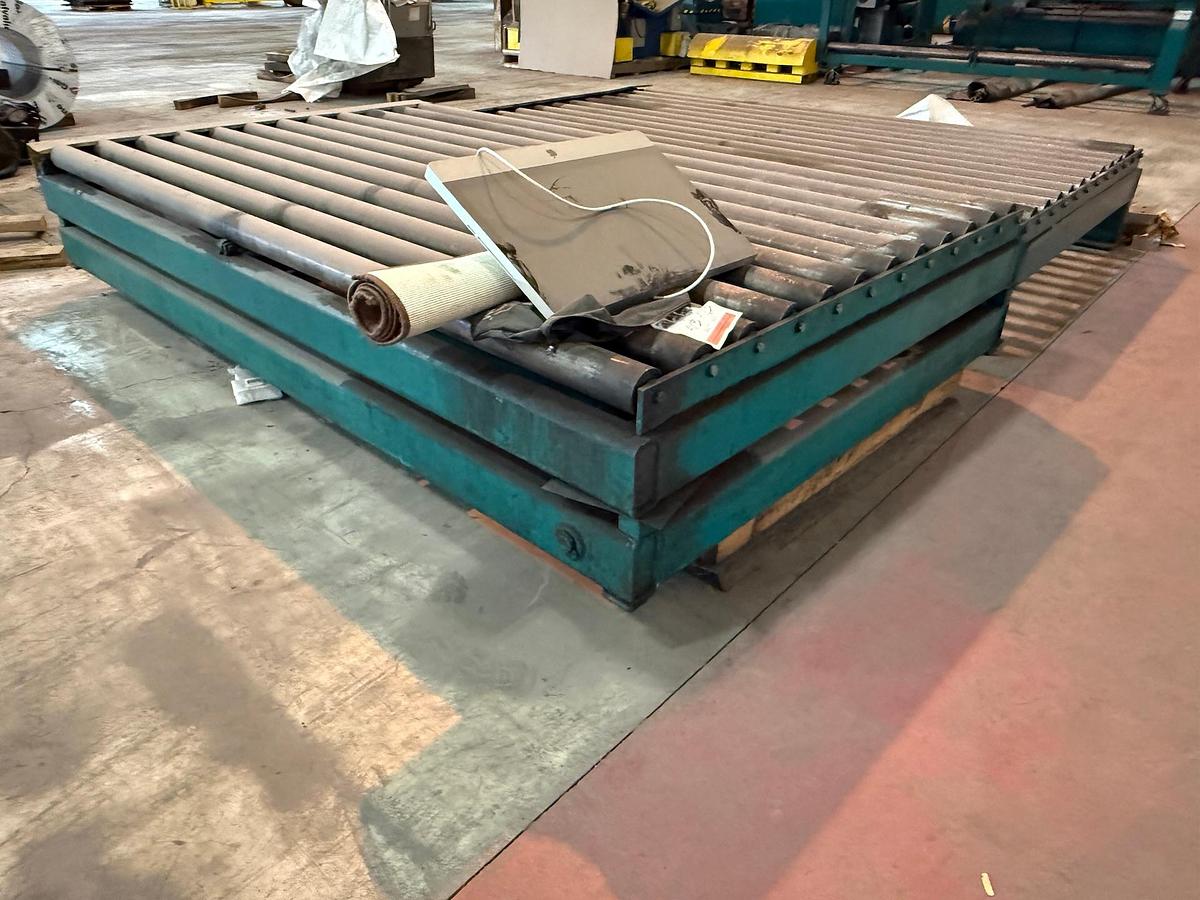

Lift Table With Powered Roller Conveyor Top

Two (2) Sheet Tampers

Four (4) Blank Dividers

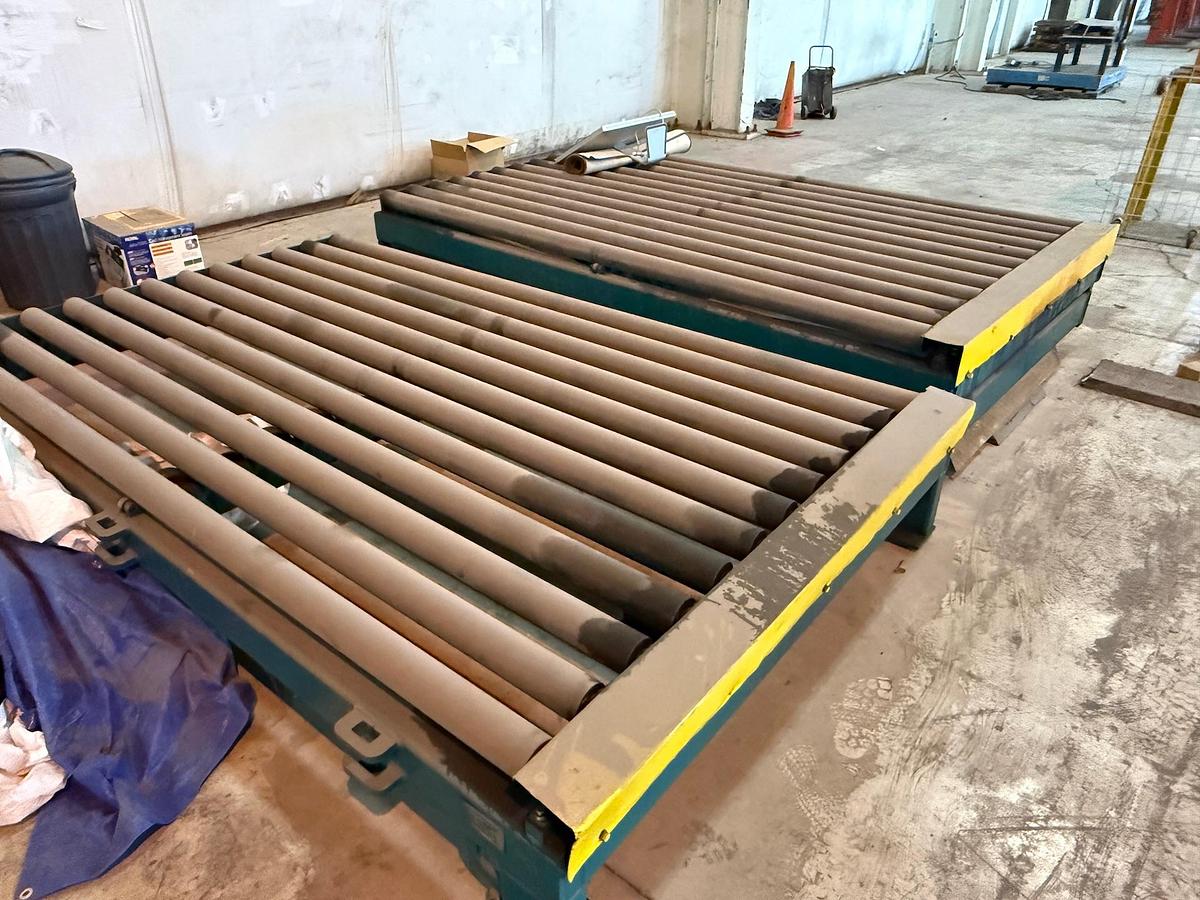

Powered Side Discharge Conveyor:

10,000# Capacity

Electronics:

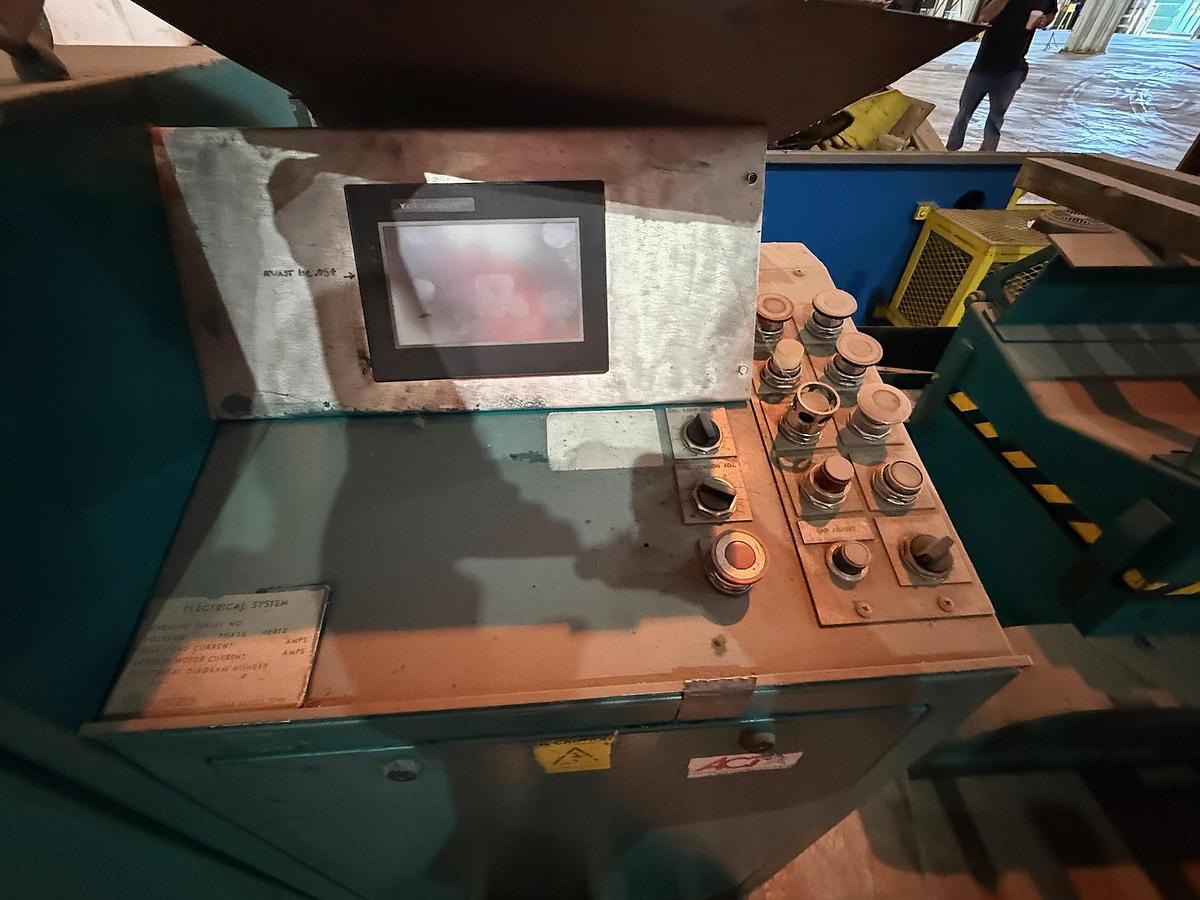

Main Operator Console With Allen Bradley Touchscreen And PLC

Auxiliary Control Consoles

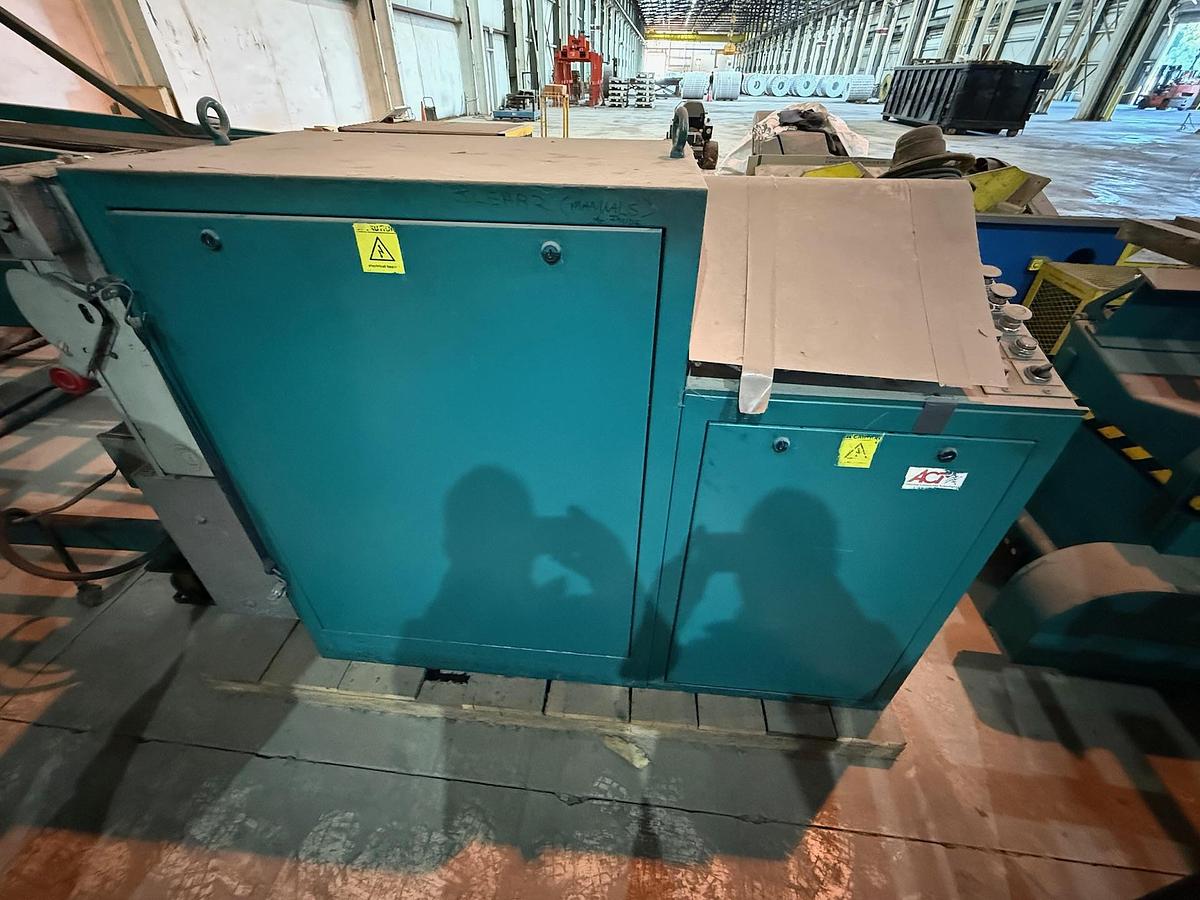

AC/DC Cabinet

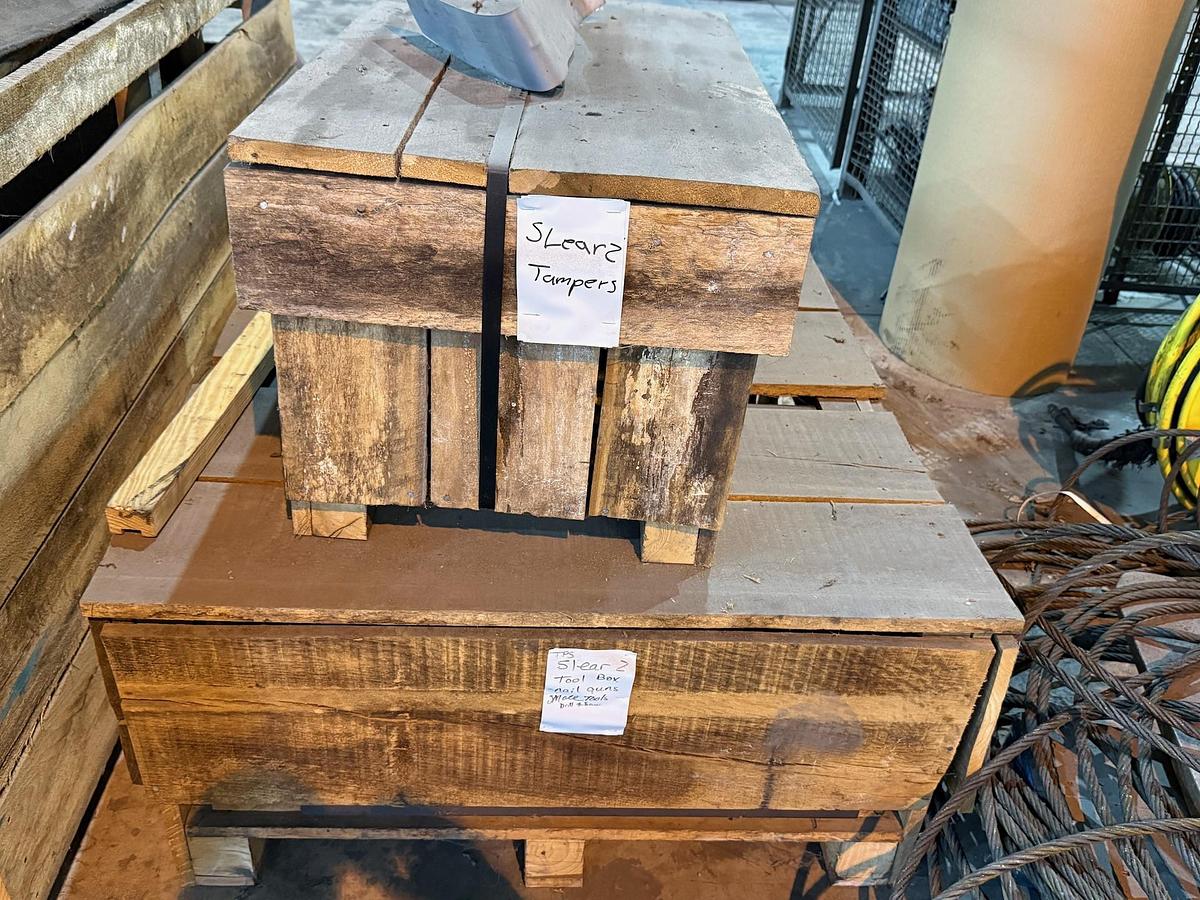

Spare Parts:

Tampers

Shear Blades

Miscellaneous
