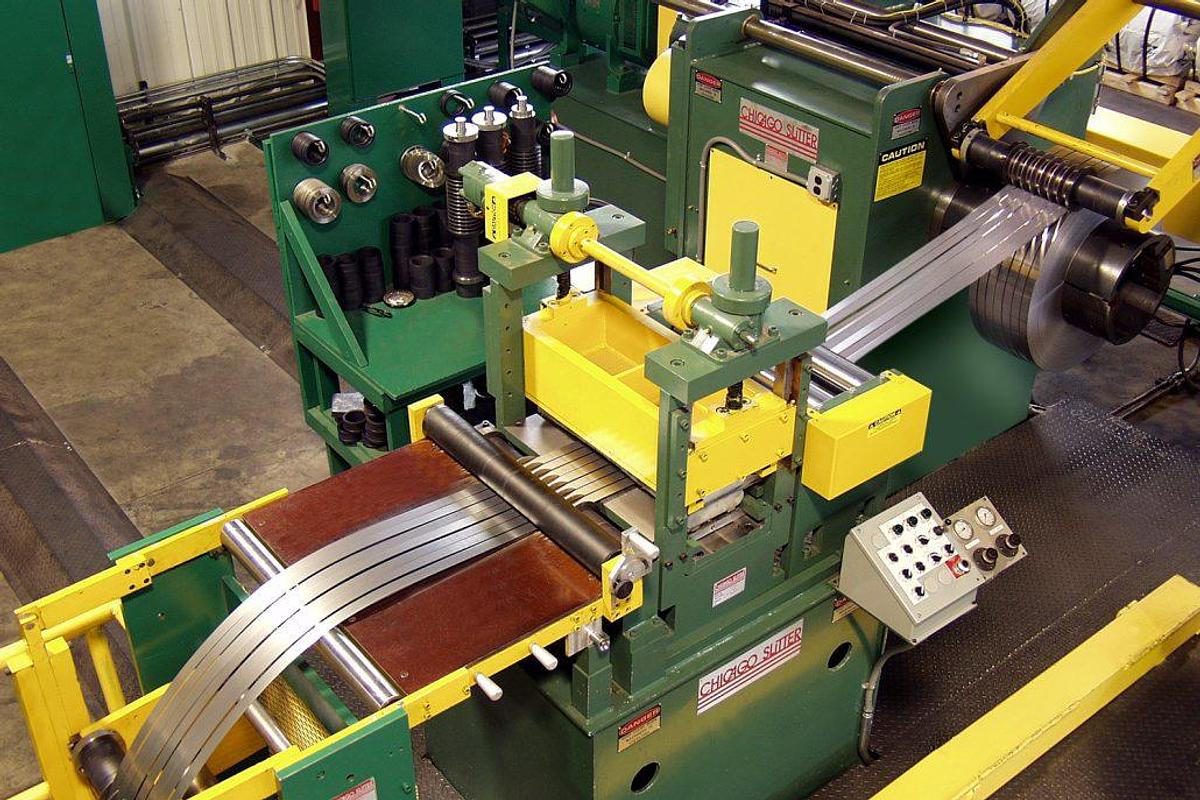

48” x .006" - .044" x 40,000 Lbs. Chicago "Grain-Oriented Electrical Steel" Slitting Line

Specifications:

Manufacturer: Chicago Slitter

Year: 2009

Width Capacity: 48”

Maximum Coil Weight: 40,000 lbs

Thickness Range: 0.006” to 0.044”

Coil O.D. Range: 24” to 72”

Coil I.D. Range: 16” to 24” (spacer arrangement for 20” and 24” ID)

Line Direction: Left to Right

Materials: Grain oriented electrical steel, silicon steel

Maximum Shear Strength: 75,000 psi

Maximum Tensile Strength: 95,000 psi

Line speed: 1,500 fpm constant

Jog speed: 60 fpm

Electrical Power Unit: 460V / 60 Hz

Electrical Controls: 24 / 60 Hz

Motor list:

Uncoiler Drive: 50 HP DC motor with constant HP range

Uncoiler Motor Fan: 1 HP AC

Slitter Drive: 50 HP DC motor with constant HP range

Slitter Motor Fan: 1 HP AC

Recoiler Drive: 100 HP DC motor with constant HP range

Recoiler Motor Fan: 2 HP AC

Hydraulic Power Unit: 40 HP AC

Hydraulic Power Unit Cooling Fan: 1 HP AC
