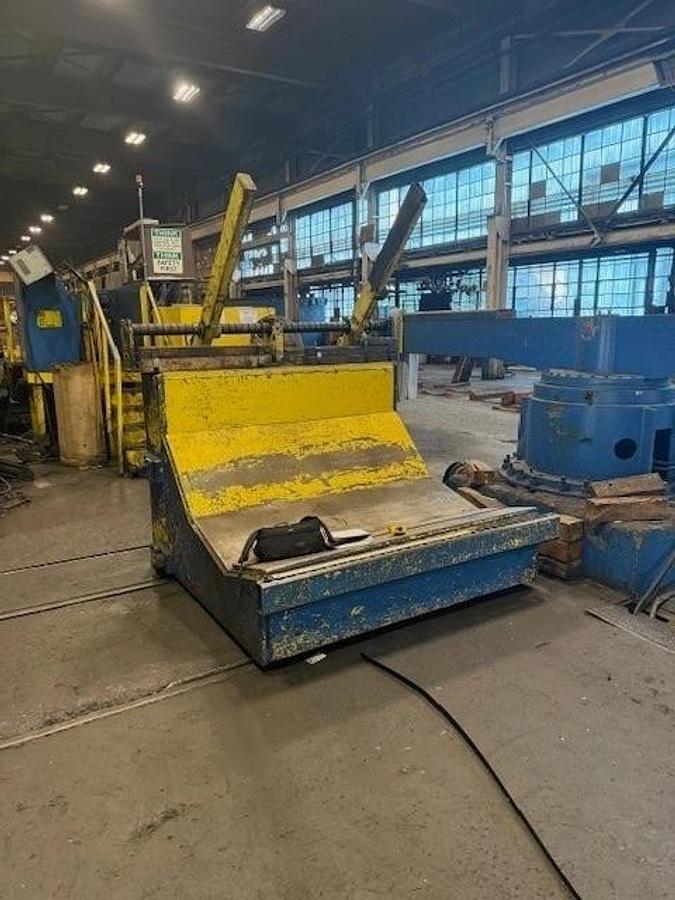

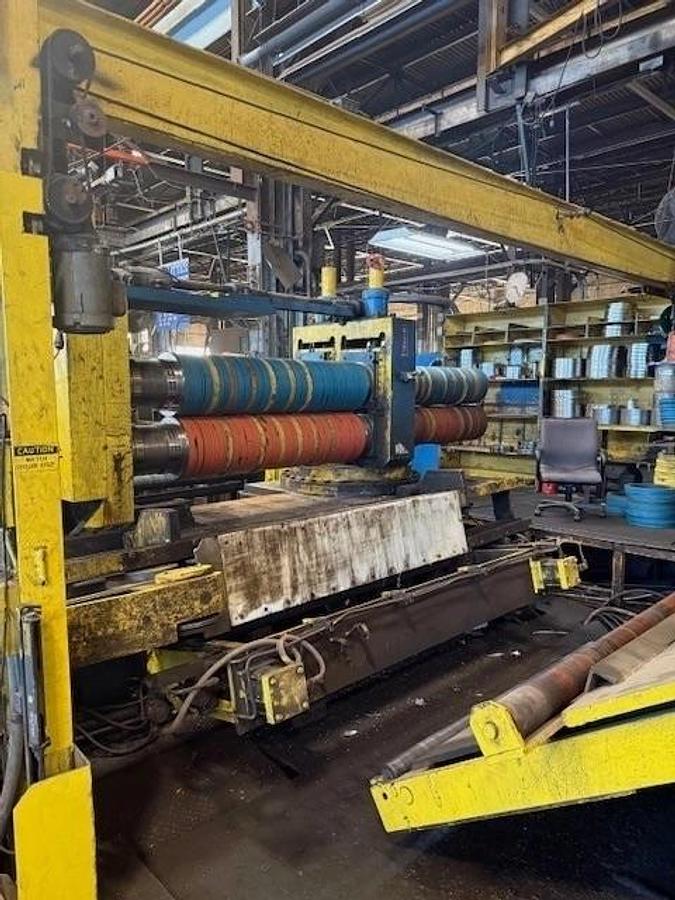

72" x .187" x 50,000Lb Braner Loop Slitting Line

Specifications:

Manufacturer: Braner

Material Width: 12" - 72"

Material Thickness: .020" - .187"

Coil Weight: 50,000Lb

Coil ID: 20" - 24"

Coil OD: 72"

Direction: R-L

Entry Turnstile

Powered Rotation

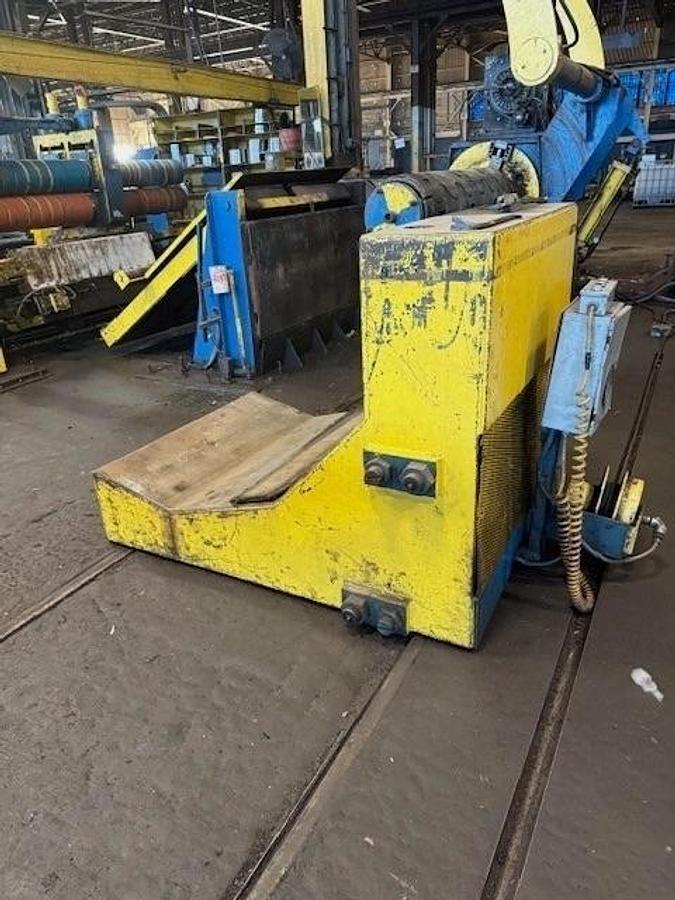

Entry L-Type Coil Car

Hydraulic Lift and Traverse

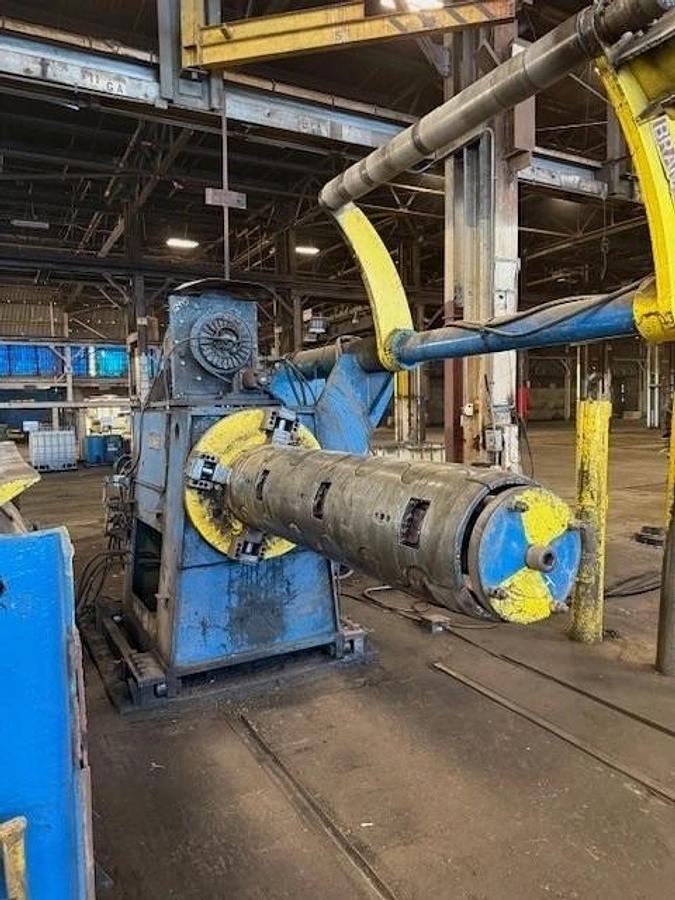

Mandrel Uncoiler

Powered Hold - Down Roll

Hydraulic Mandrel Expansion

Air Cooled Brake

Feed-Up Motor

Sliding Base

Hydraulic Peeling Table

Driven Entry Pinch Rolls

Adjustable Edge Guides

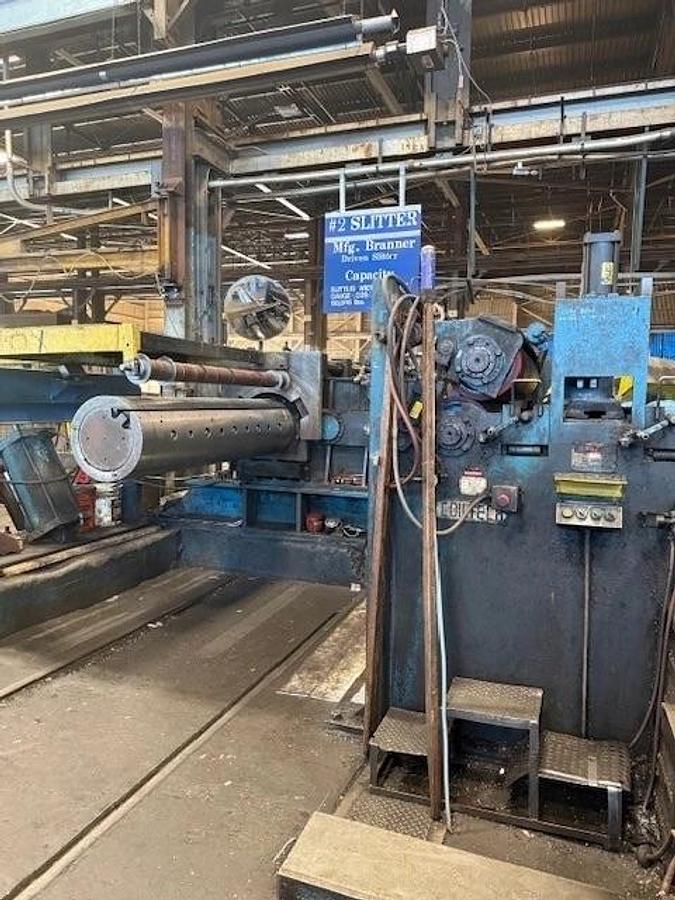

Two Slitting Head

Turret Type Slitter Base

Arbor Diameter: 9"

Powered Head Rotation

Powered Arbor Adjustment

Motor: 100HP DC

Pit Cross Over Table

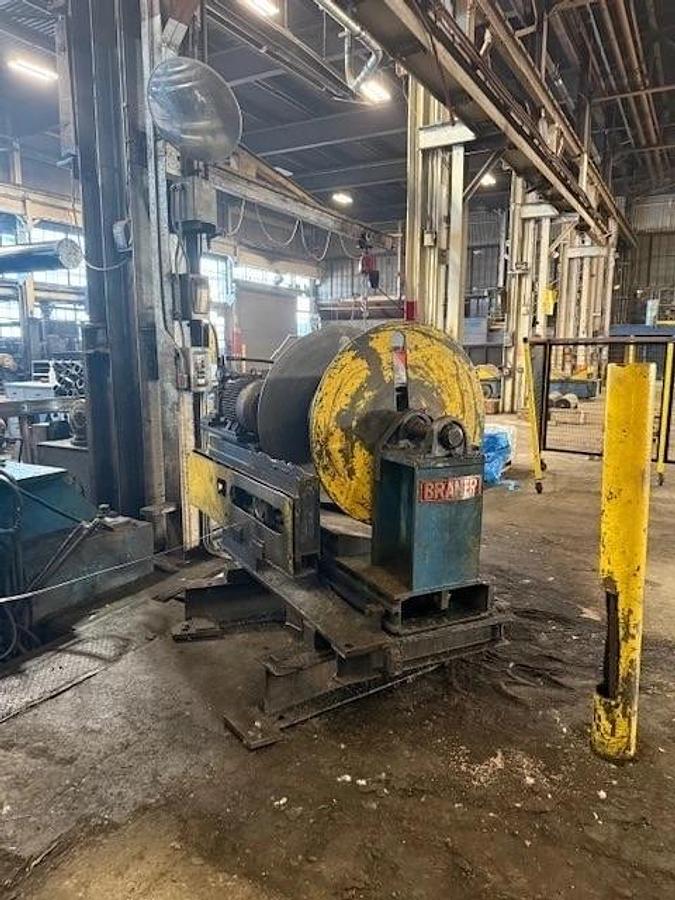

Two Scrap Winders

Powered Open / Close

Heavy Duty Design

Tension Stand

Combo Tensioning Design

Pneumatic Tension Pads

Coated Tension Rolls

Wichita Tension Brake

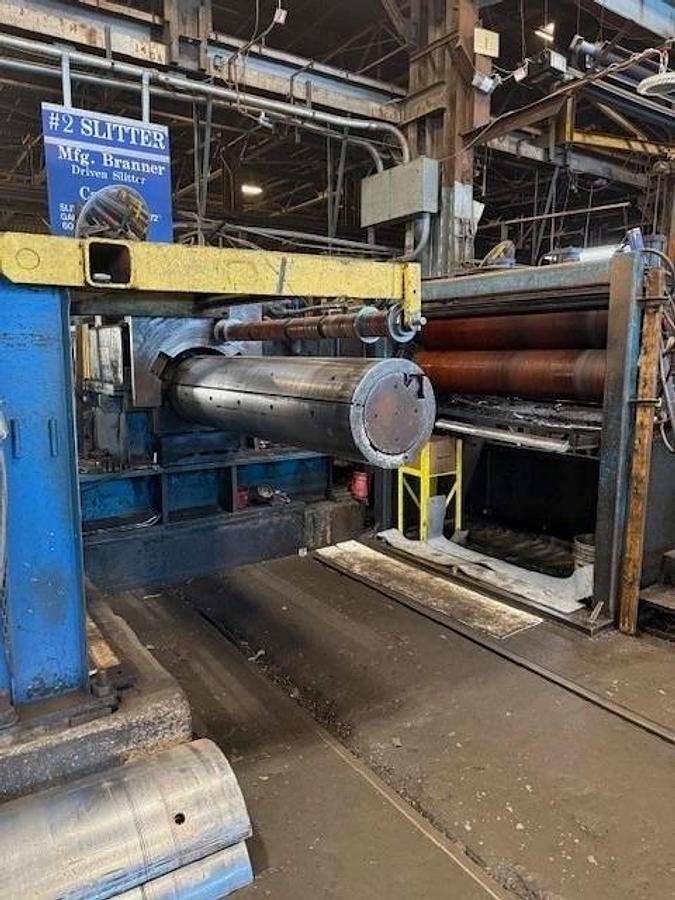

Recoiler

Powered Gripper

Hydraulic Over-Arm Separator

Powered Push-Off

Motor: 250HP DC

Exit L-Type Coil Car

Hydraulic Lift and Traverse

Exit 2-Arm Turnstile

Powered Rotation

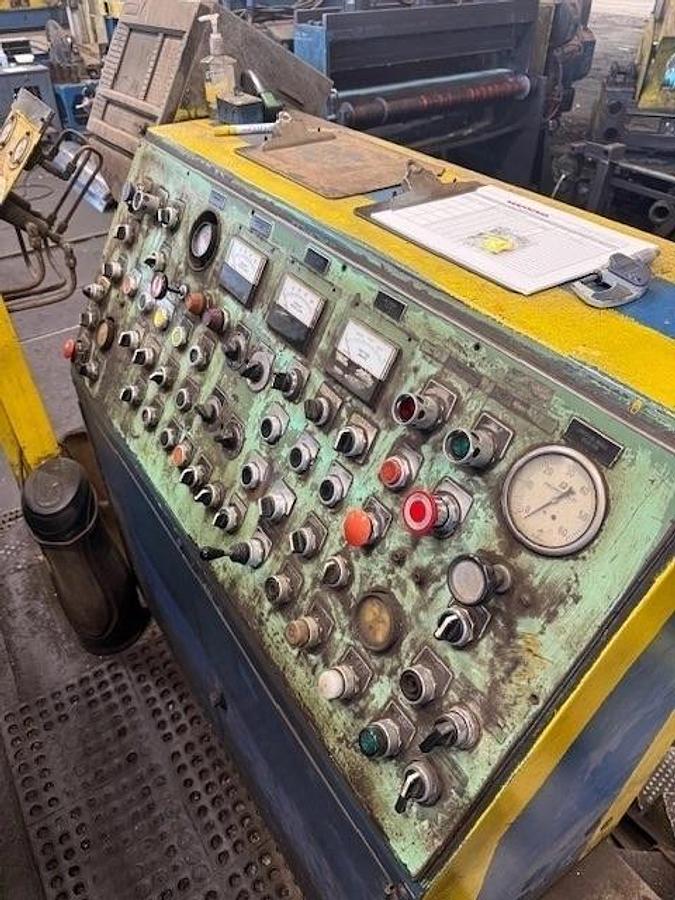

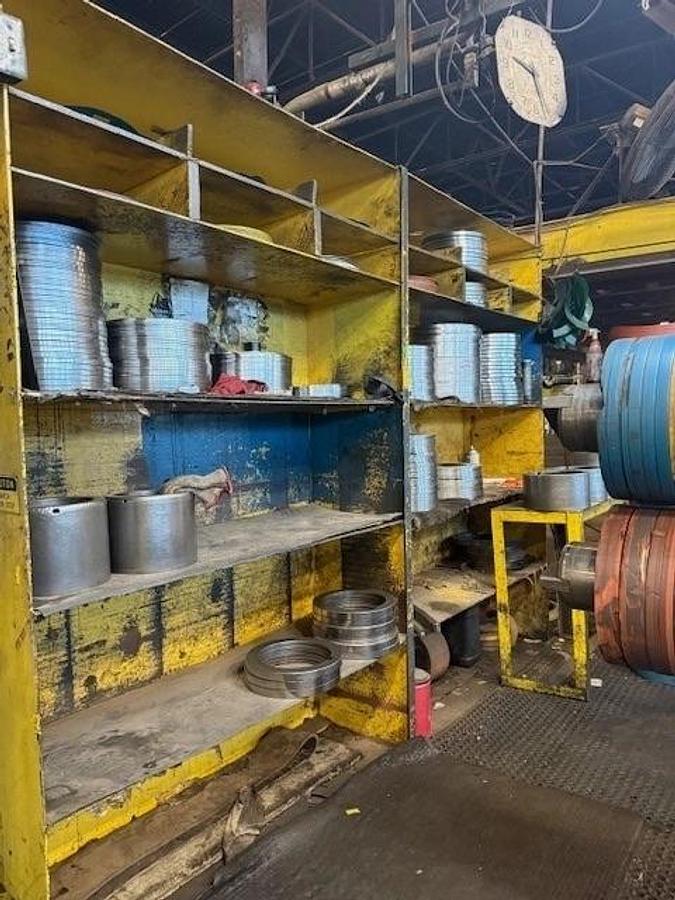

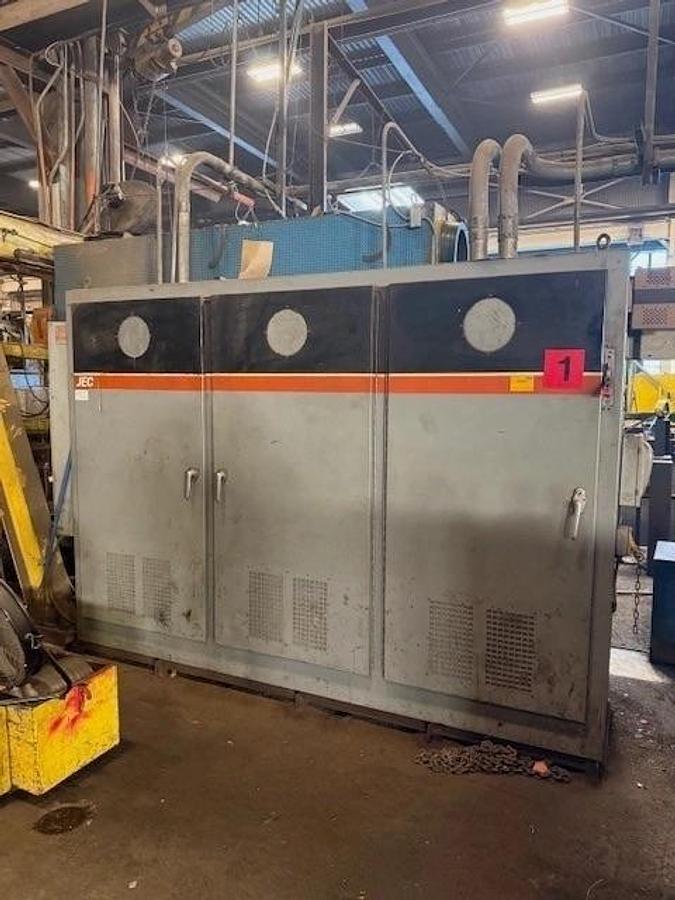

Electrics, Hydraulics, Controls, Knives and Tooling
