60" x .500” x 60,000Lb Braner/Yoder Slitting Line

Specifications:

Manufacturer: Braner / Yoder

Material Width: 12" - 60"

Material Thickness; .050" - .500"

Coil Weight: 60,000Lbs

Coil ID: 20" - 24"

Coil OD: 72"

Direction: Right to Left

Coil Storage Area

Pit Type Col Car

Powered Lift and Traverse

Mandrel Uncoiler

Powered Hold Down Roll

Wichita Pneumatic Brake

Hydraulic Expansion

Sliding Base

Feed-Up Motor

Hydraulic Peeling Table

Driven Entry Pinch Rolls

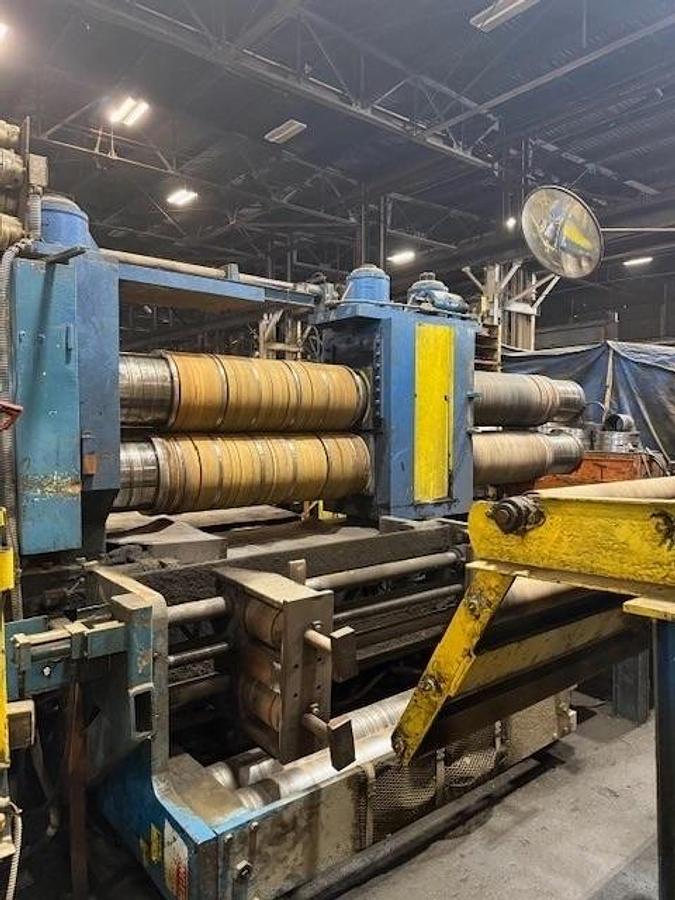

5-Rolls Coil Straightener

Driven Work Rolls

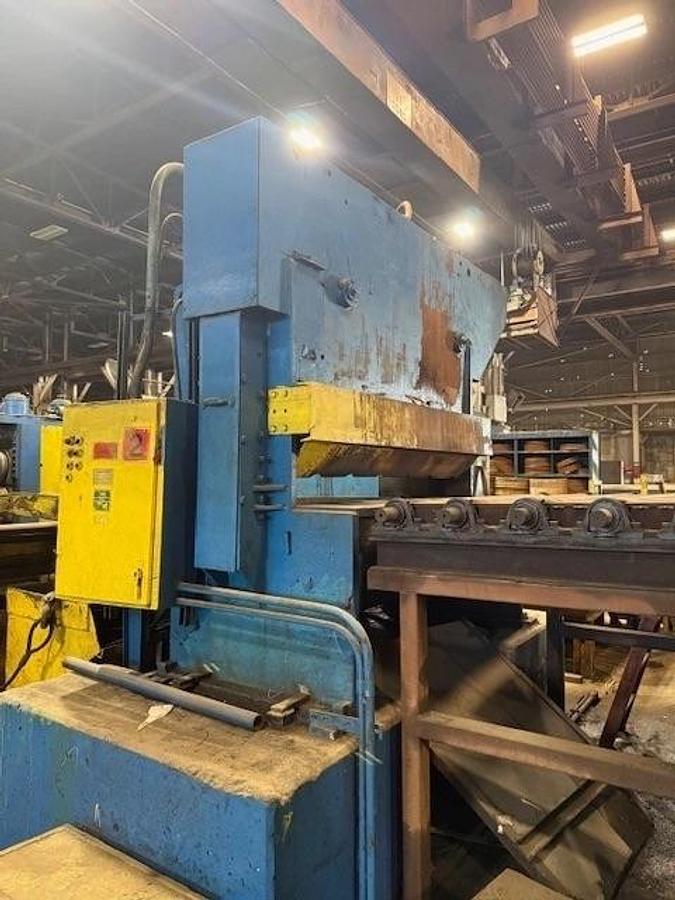

Heavy Duty Entry Crop Shear

Two Turret Type Slitting Heads

Make: Braner

Arbor Diameter: 12"

Powered Heads Rotation

Adjustable Arbors

Feed Up AC Motor

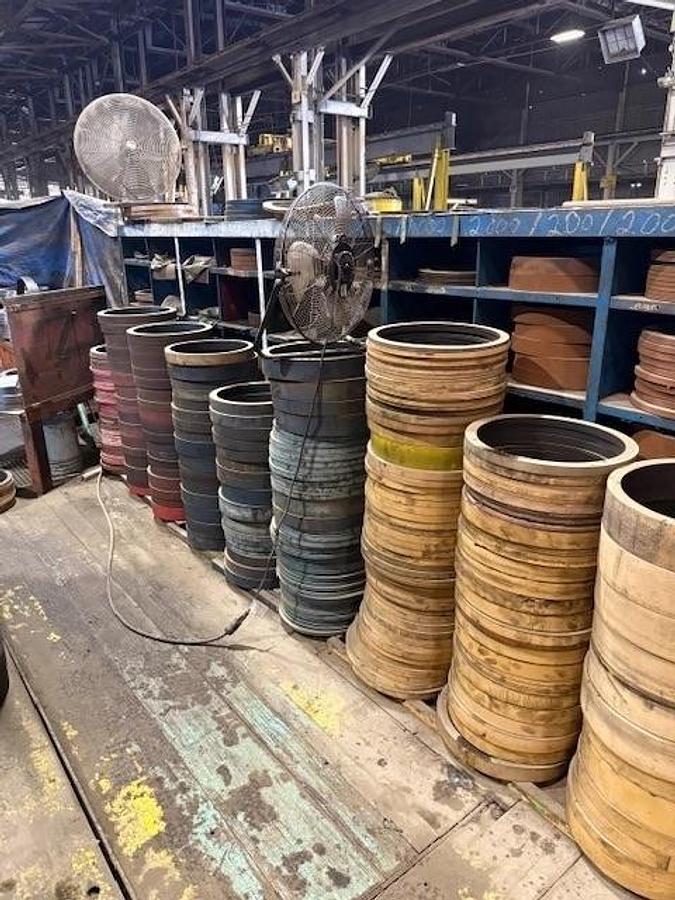

Knives and Tooling

Two Scrap Winders

Mechanical Heavy Duty Design

AC Motors Drive

Powered Open and Close

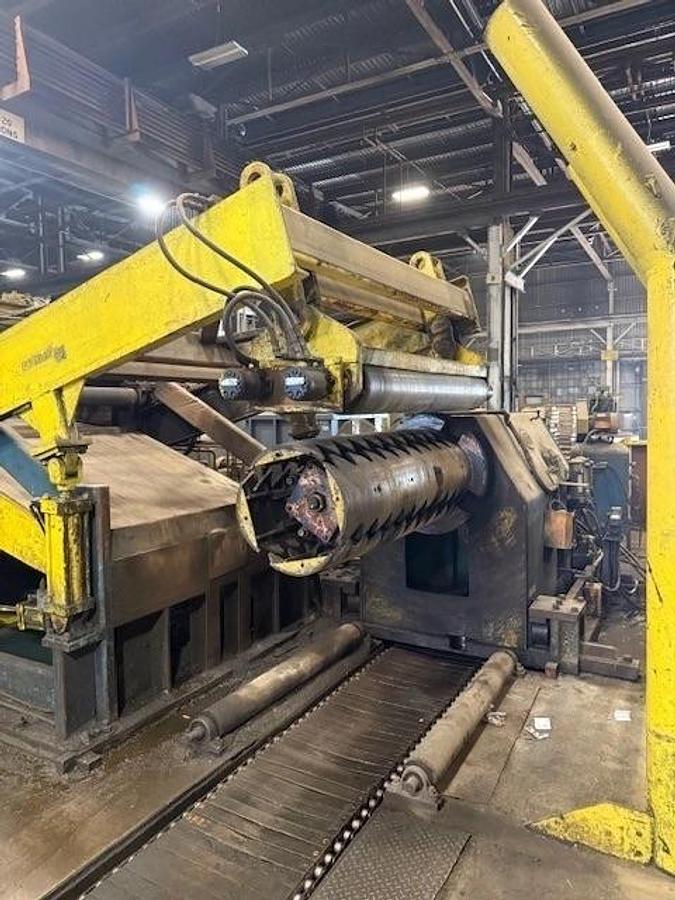

Recoiler

Hydraulic Over-Arm Separator

Powered Gripper

Powered Push -Off

200HP DC Motor Drive

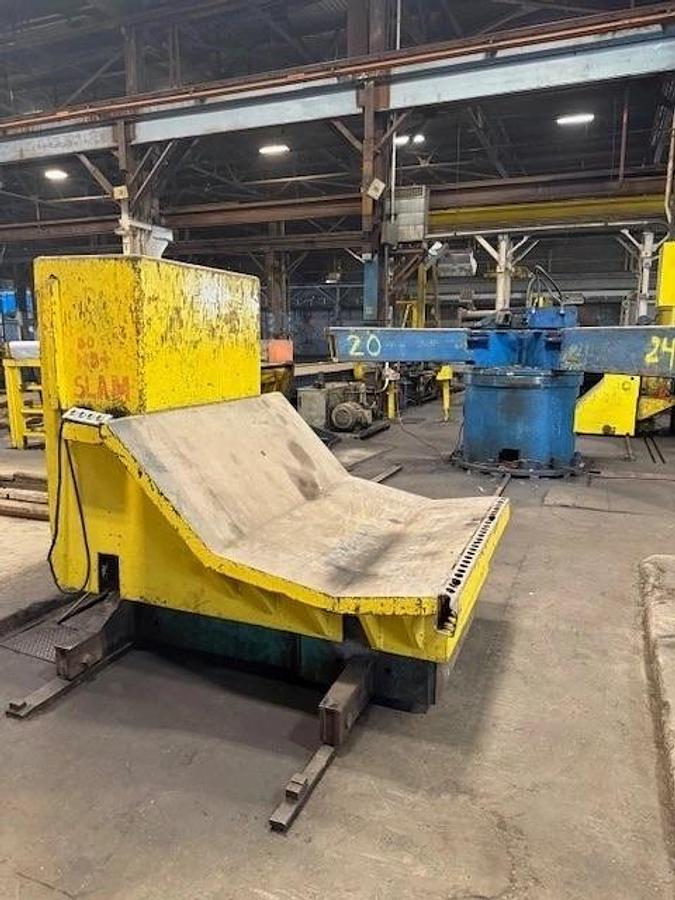

Exit L-Type Coil Car

Hydraulic Lift and Traverse

Self Contained Hydraulics

Exit 4-Arm Turnstile

Powered Rotation

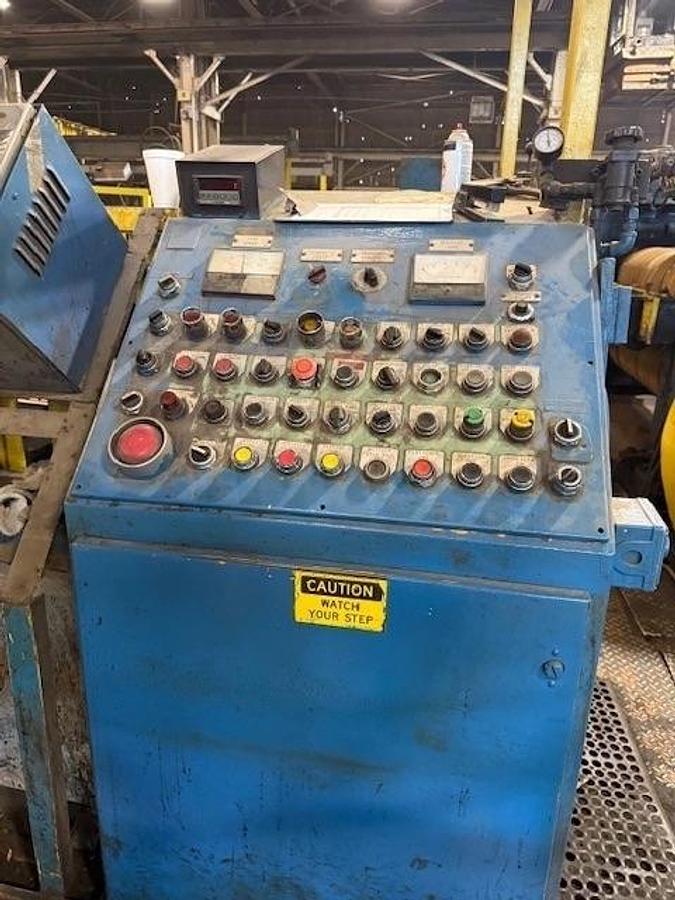

Electrics, Hydraulics, Controls, Knives & Tooling
