60" x 0.060" x 20,000# Iowa Precision Slear Line

Specifications:

Manufacturer: Iowa Precision

Max Coil Width: 60”

Gauge Range: 0.012” – 0.060”

Maximum Coil Weight: 20,000 Lbs.

Thickness Range: 0.012” – 0.060”

Coil I.D. Range: 19” – 24”

Coil O.D. Maximum: 60”

Stack Length Range: 12” – 120”

Line Speed: 70 – 100 FPM

Minimum Edge Trim Per Side: 0.250”

Minimum Slit Width: 4”

Maximum Bundle Weight: 5,000 Lbs.

Slit Width Accuracy: ±0.0625”

Length Accuracy: ±0.0625”

Maximum Number Of Cuts: 10

Maximum Number Of Mults: 9

16 Gauge Maximum Mults: 6

18 Gauge Maximum Mults: 7

Line Direction: Left To Right

Equipment Included:

Entry Coil Car: Rowe

Model: BGY-20

Operation: Electric Motor Operated

Controls: Hand Pendant

Maximum Coil O.D.: 60”

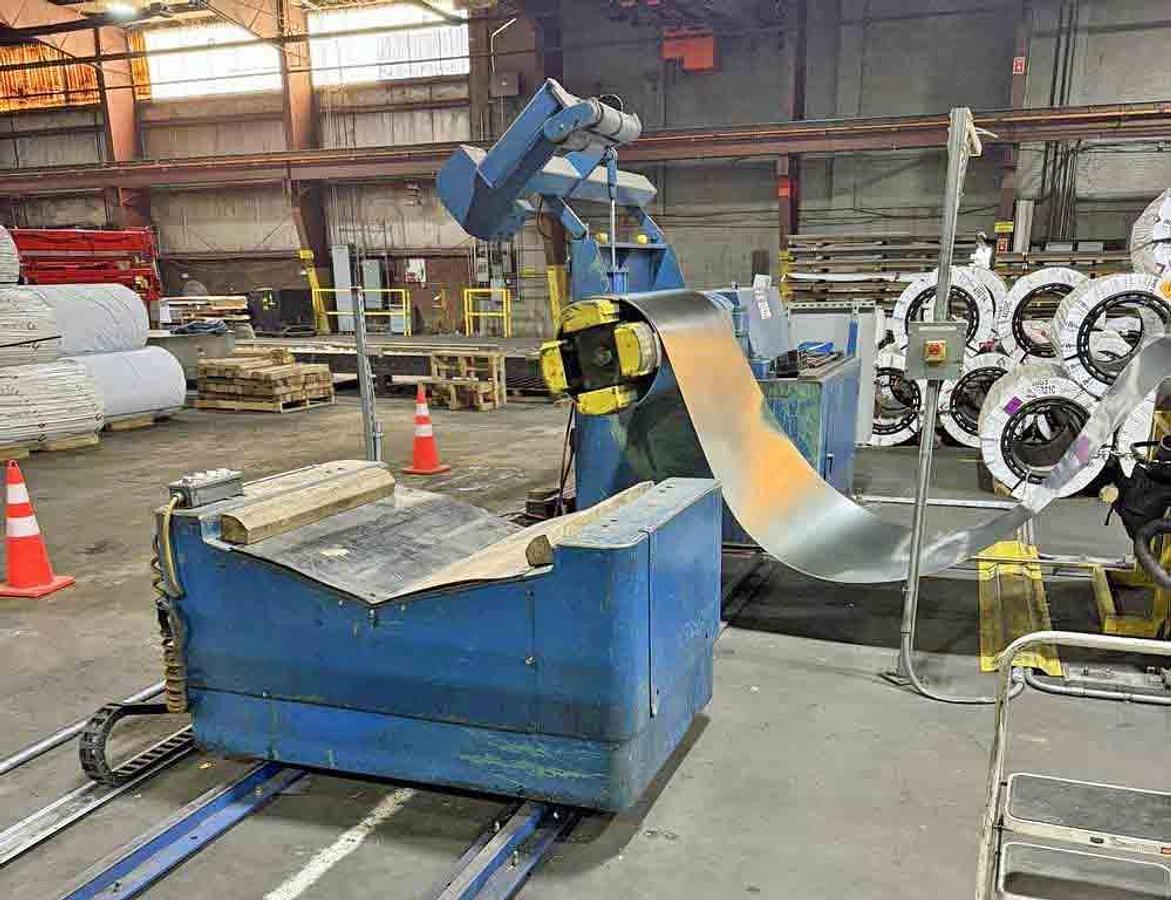

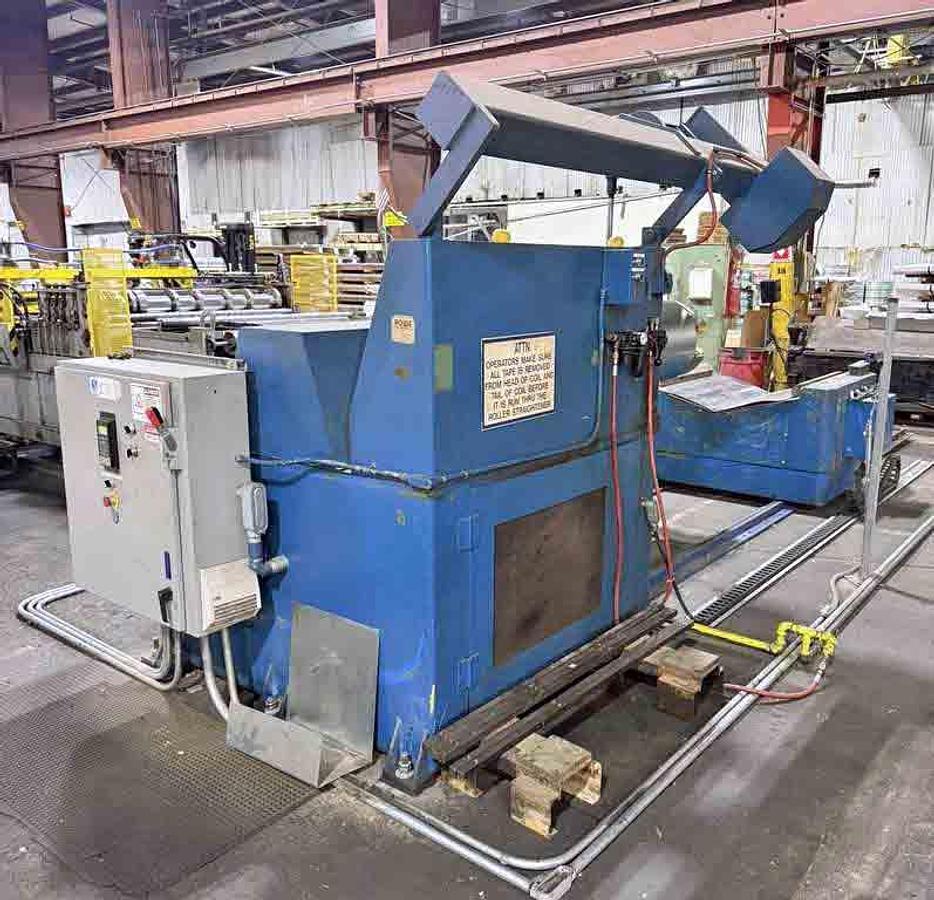

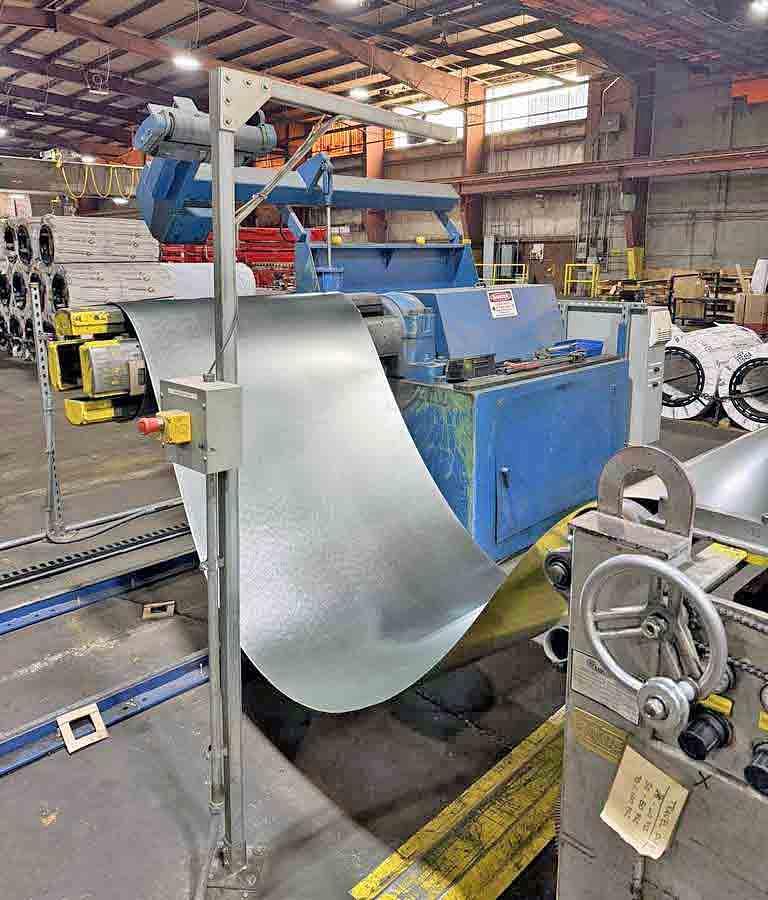

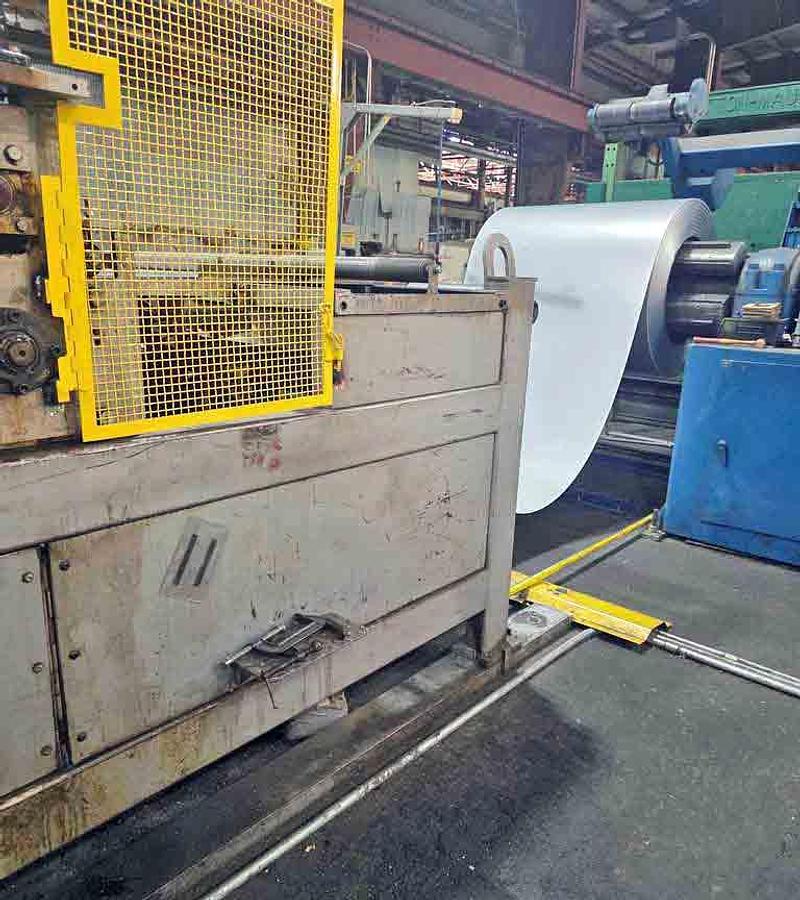

Uncoiler: Rowe

Model: 20060-DSV

Mandrel: 4 Segment

Expansion: Powered

Features: Threading Drive, Holddown Roll

Base: Fixed

Maximum Coil O.D.: 60”

Loop Control: Loop Control Sensor

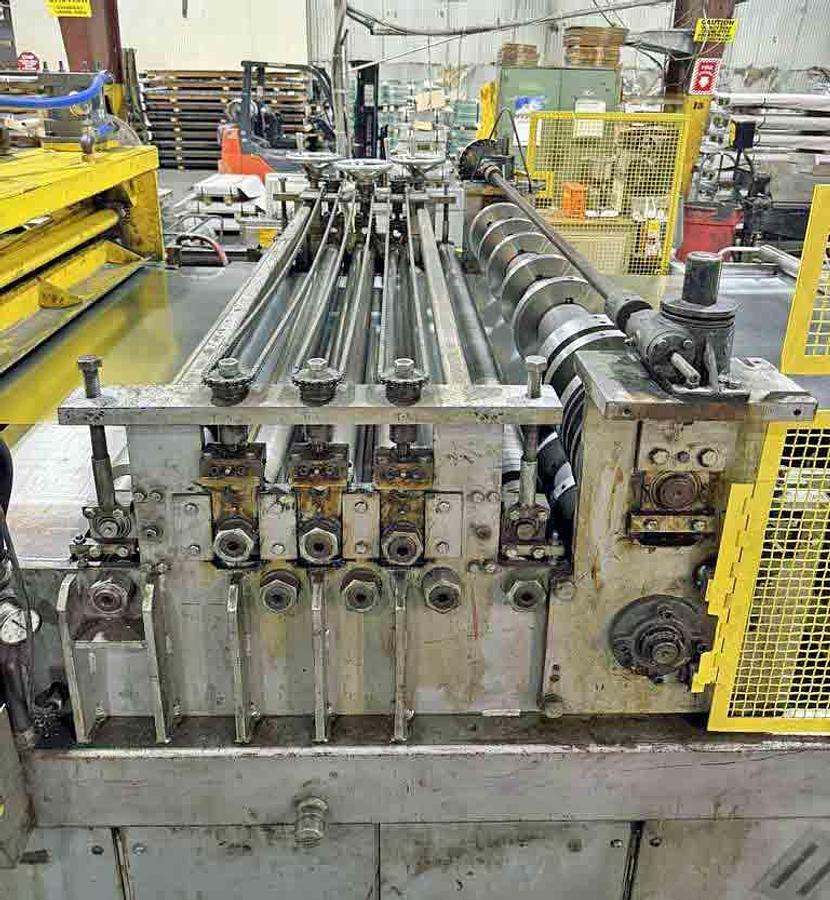

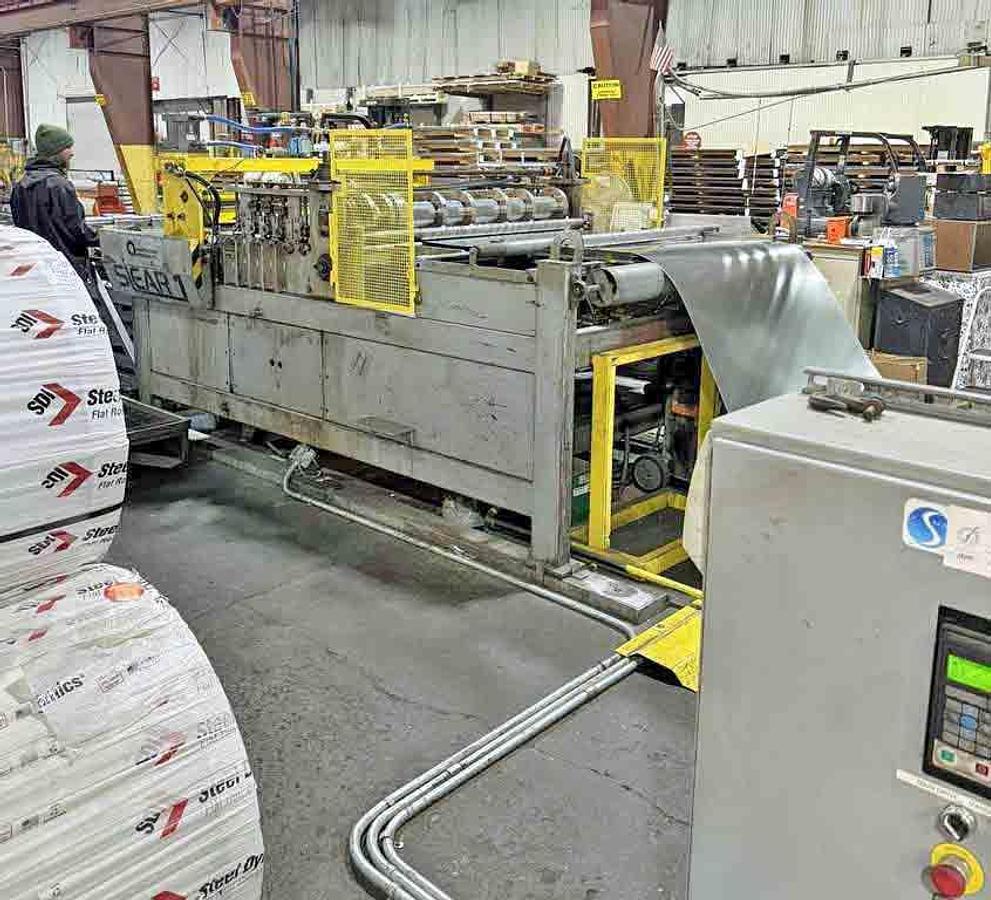

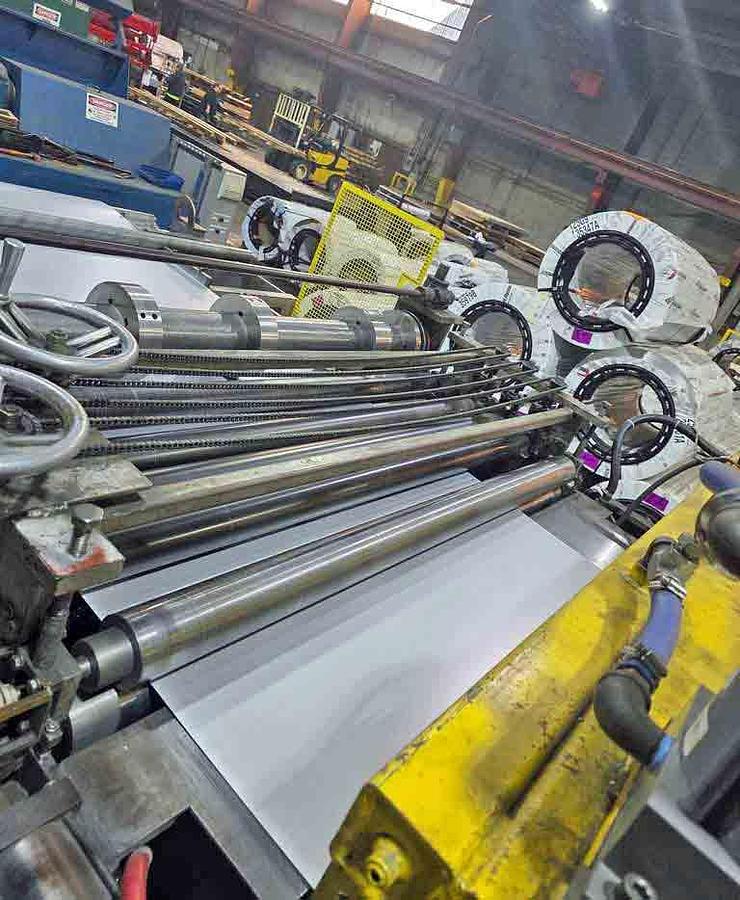

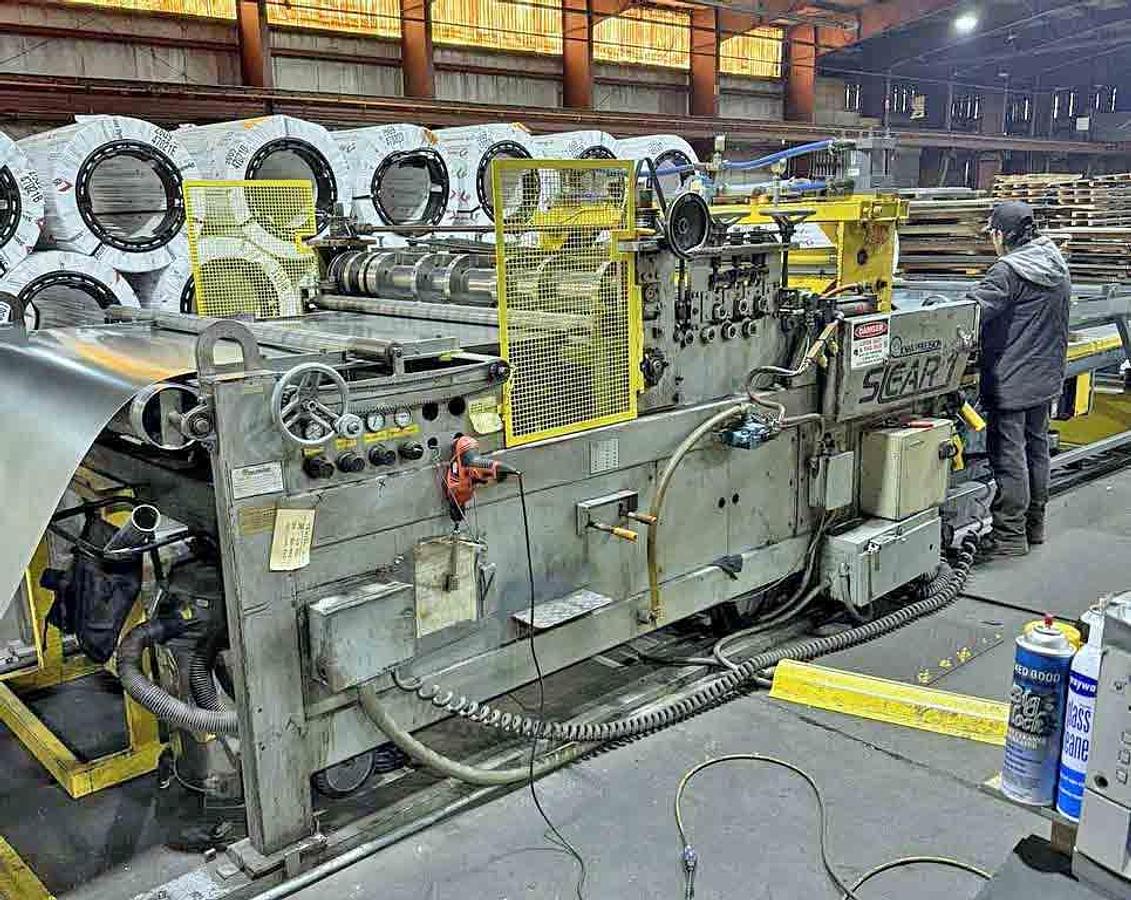

Slitter Unit: Iowa Precision

Model: SLR6016-1

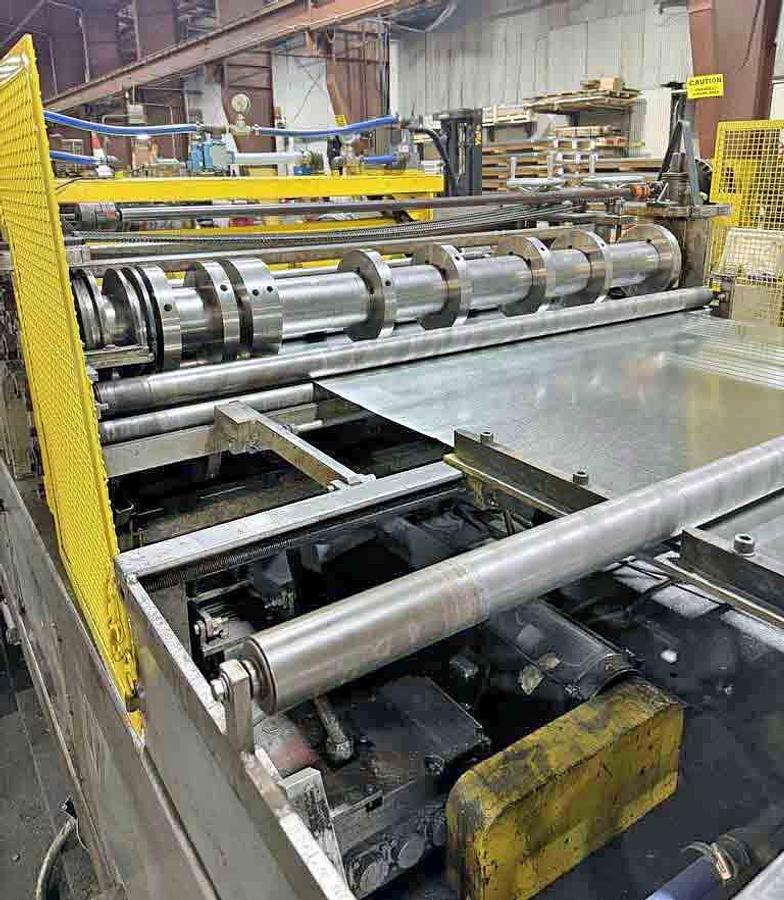

Slitter Head: 5” Diameter Arbors

Straightener: 6 Rolls, 3.375” Diameter

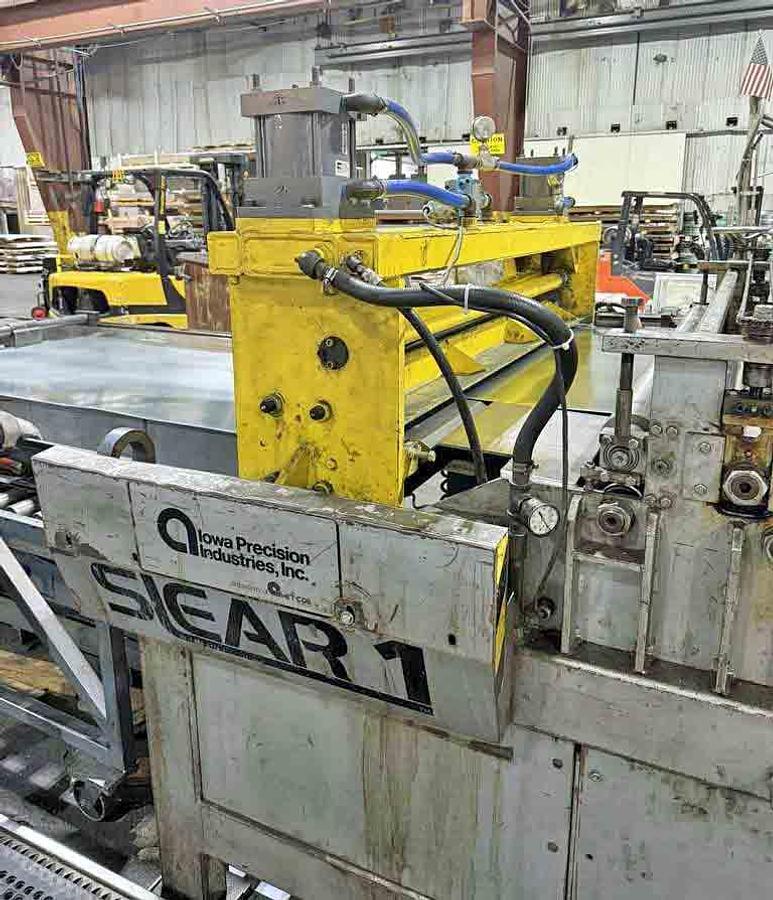

Additional Components: Measuring Roll, Flying Shear

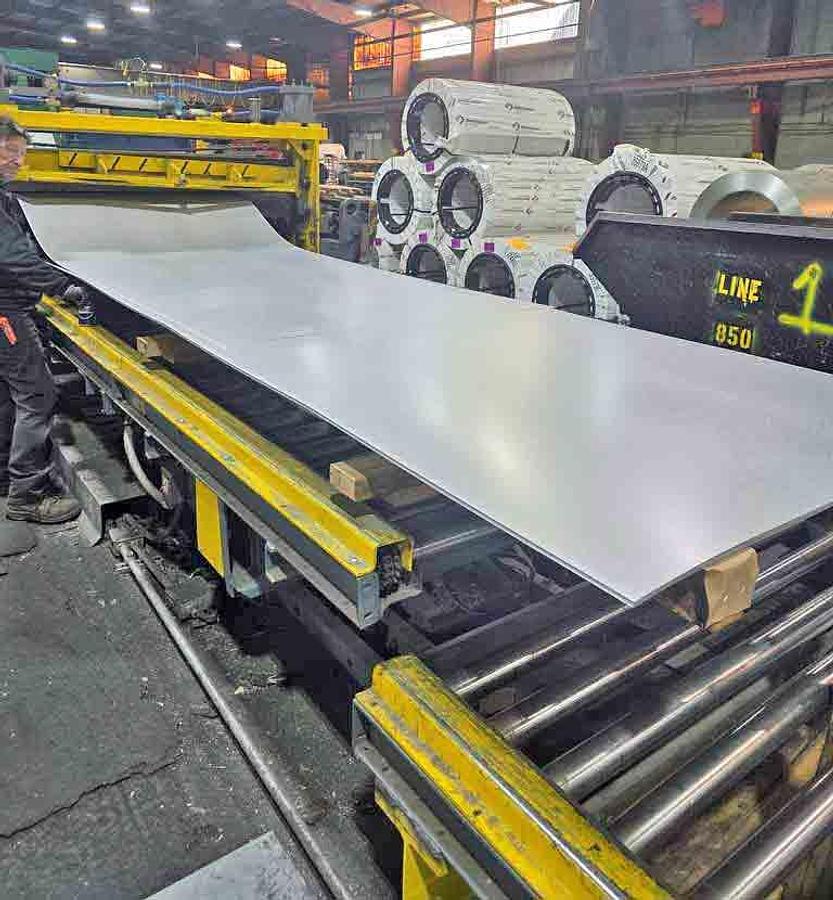

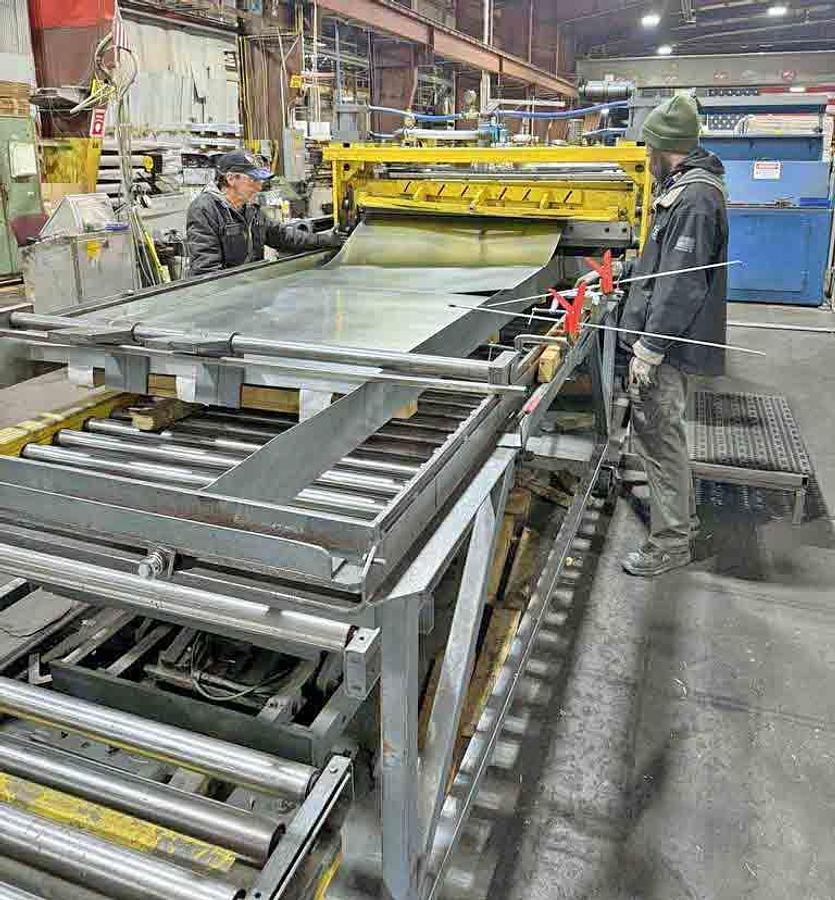

Stacker:

Length: 10 Ft.

Type: Scissors Lift Table

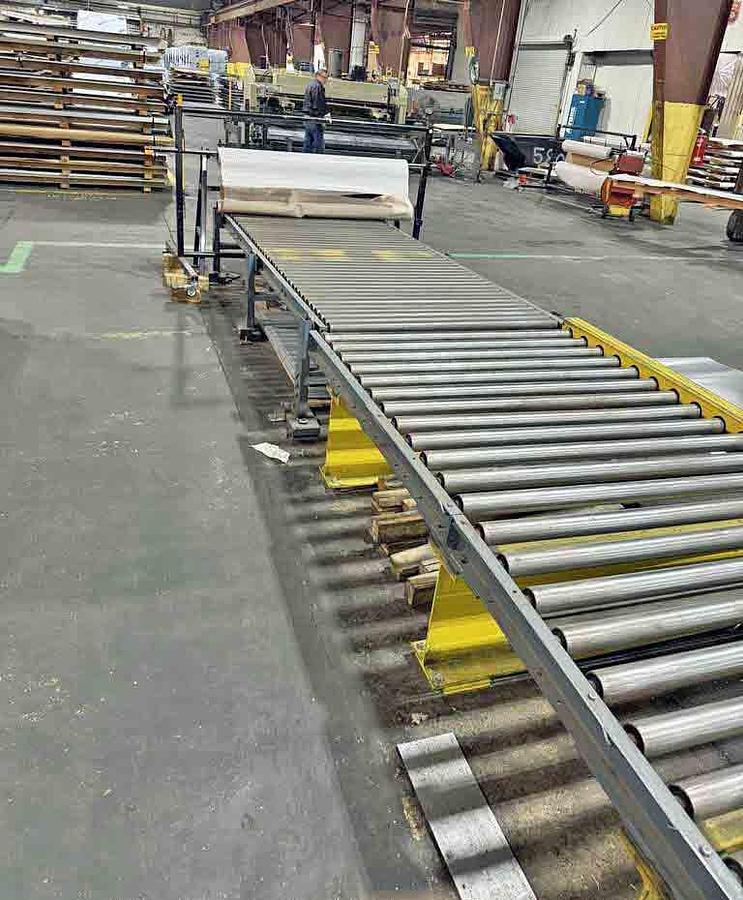

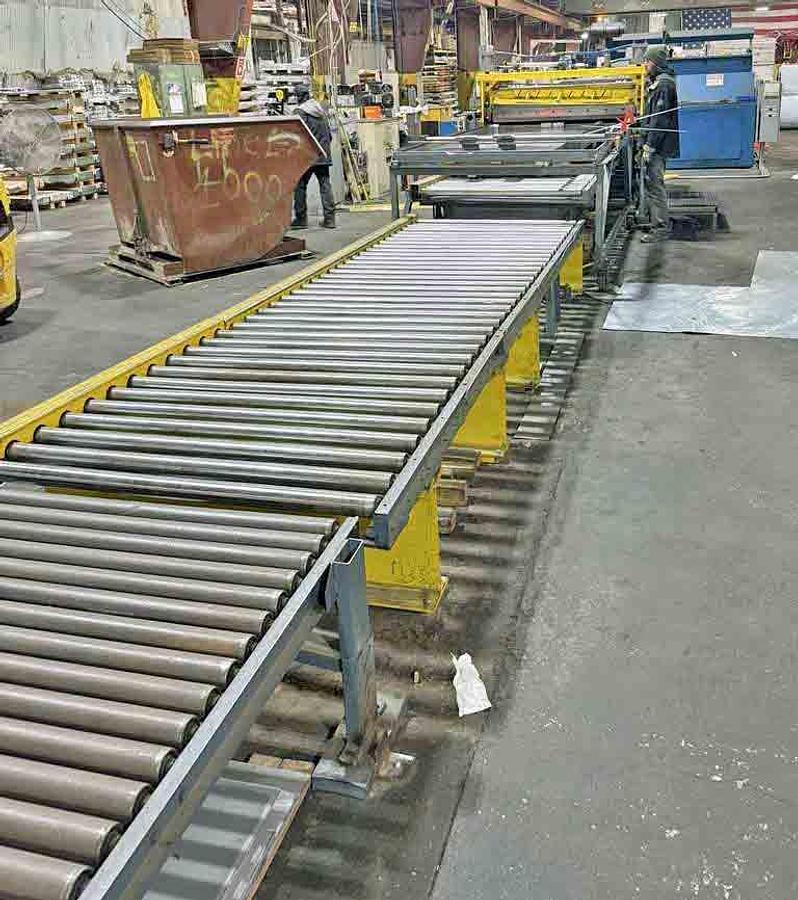

Runout Conveyor: Included

Scrap Winders: (2)

Model: SWA

*Installed And Running
