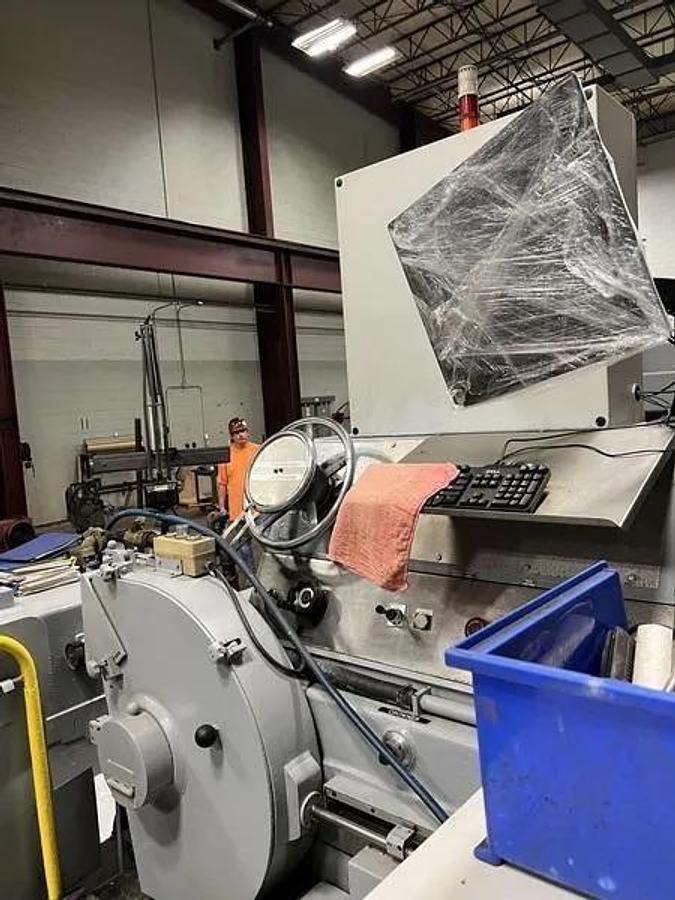

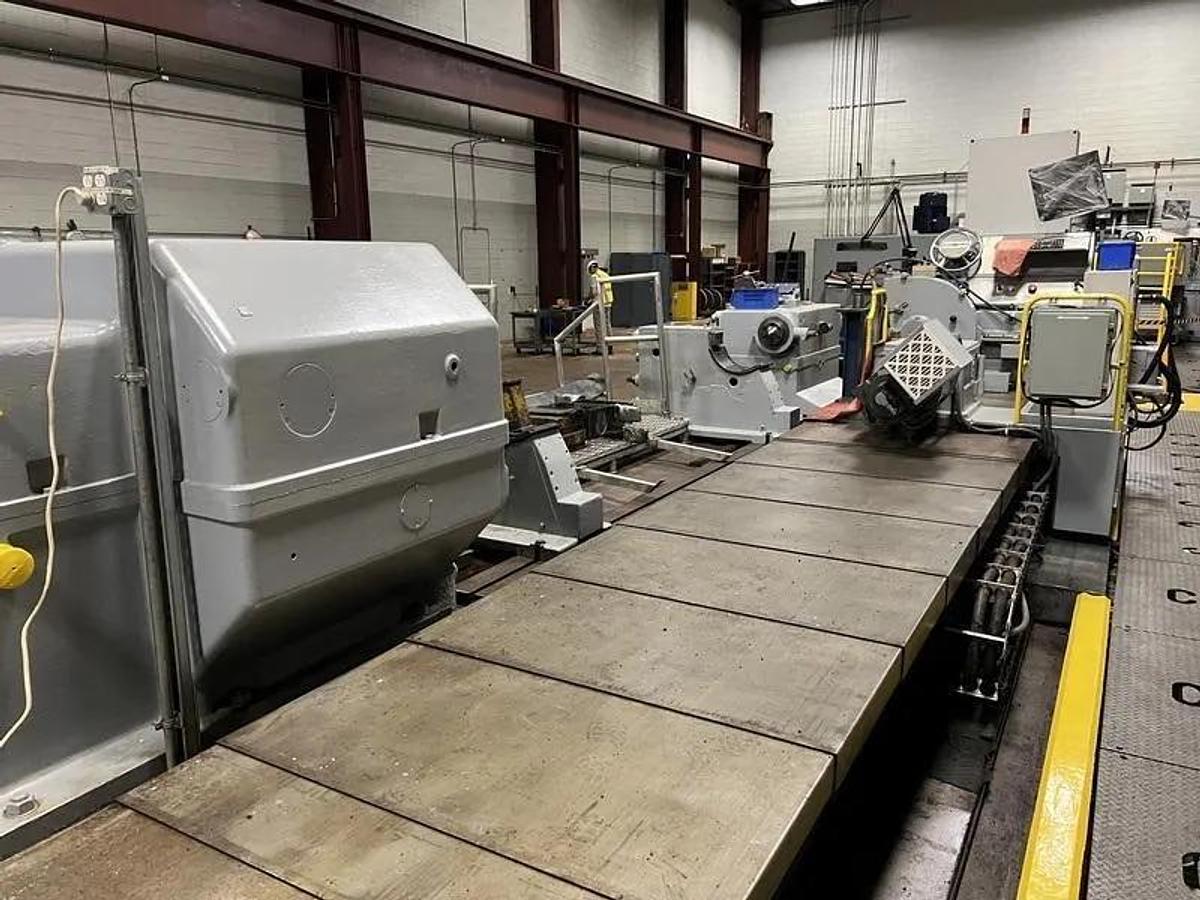

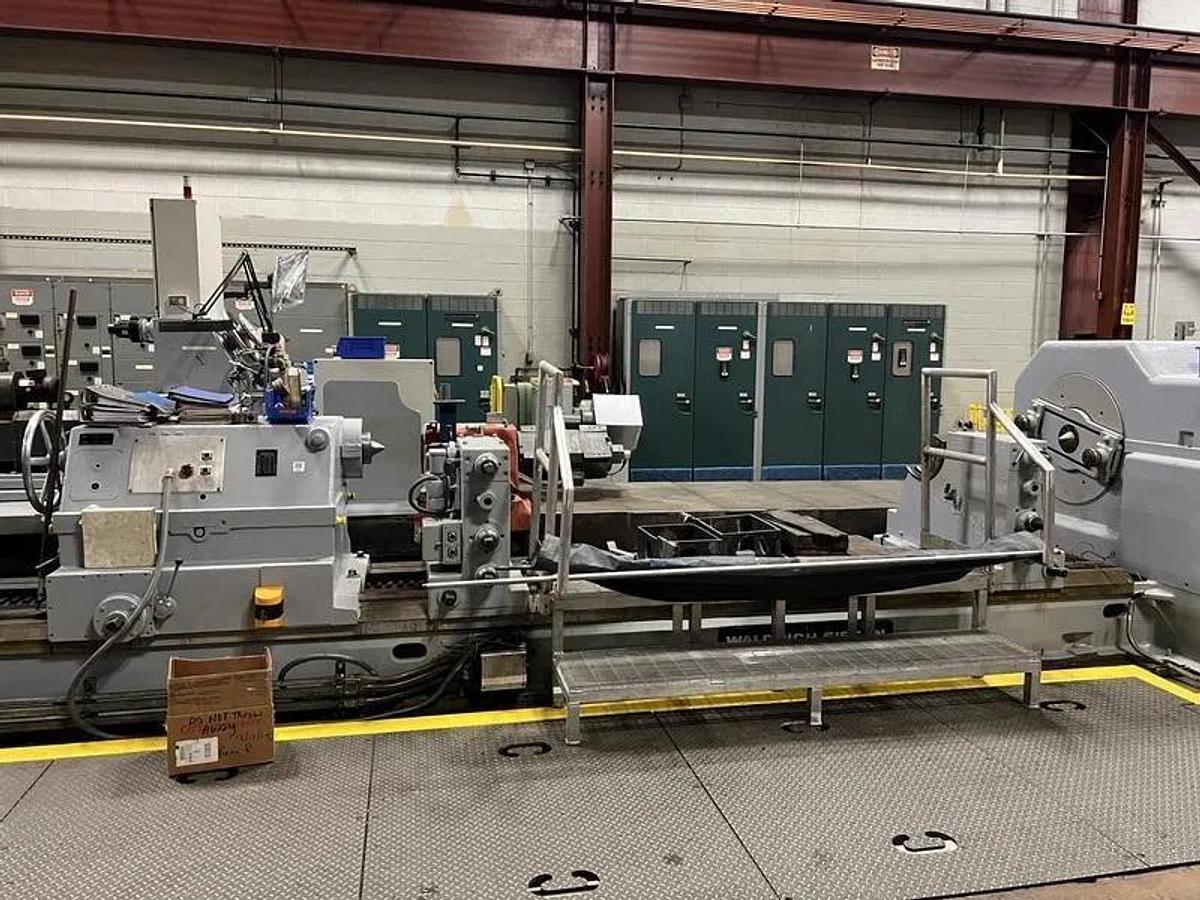

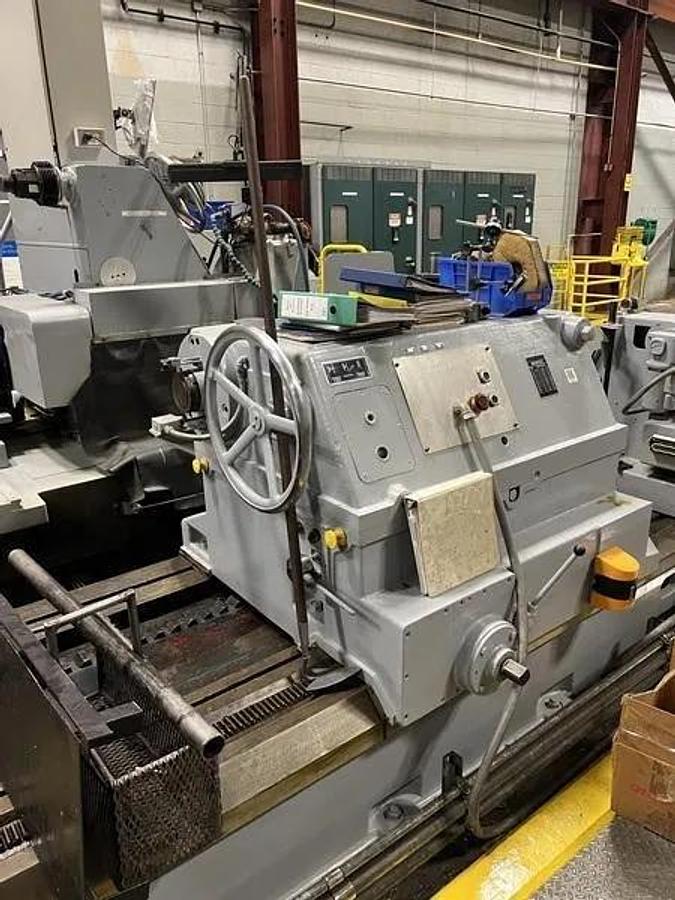

50" x 16' Waldrich Siegen Roll Grinder

Specifications:

Manufacturer: Waldrich Siegen

Max Roll Diameter: 1260mm (50")

Min Roll Diameter: 140mm (5.5")

Distance Between Centers: 5000mm (16')

Max Grinding Wheel Diameter: 800mm

Max Roll Weight: 35 Tons (70,000 Lbs)

Face Plate RPM: 7 - 70 RPM

Grinding Carriage Feed: 60 - 4000 mm/min

Cross Slide Traverse Infeed: 560mm

Rapid Traverse Cross Slide: 400mm/min

Fine In-Feed Hand Wheel: .0125mm/1 Umdr

Coarse In-Feed Hand Wheel: .25mm/1 Umdr

End Feed by Motor: .01 - .1 mm/Hub

Grinding Wheel:

Max Diameter: 800mm (31.5")

Width: 80mm (3.15")

Hole: 305mm (12")

Headstock: 60 HP : 240/960/2400 RPM

Grinding Wheel: 40 HP : 720/1800 RPM

Carriage Drive: 5 HP : 24/1600 RPM

Rapid Traverse Cross Slide

Grinding Spindle Lubrication

Bedway Lubrication

Quill Rapid Traverse - Tailstock

2008 Electrical Upgrade

Computer Controlled

Allen Bradley Powerflex Digital Drives

Allen Bradley 1606-XL Power Supply

N-Tron 508 XT Ethernet Card

Allen Bradley Panelview Plus 1250 Digital Readouts

Allen Bradley PLC CompactLogix L32E

Crowning and Cambering Capabilities

Stationary Rotating Roll with Travelling Grinding Carriage

2 Steadies

Servo Drives: Headstock & Grinding Wheel
