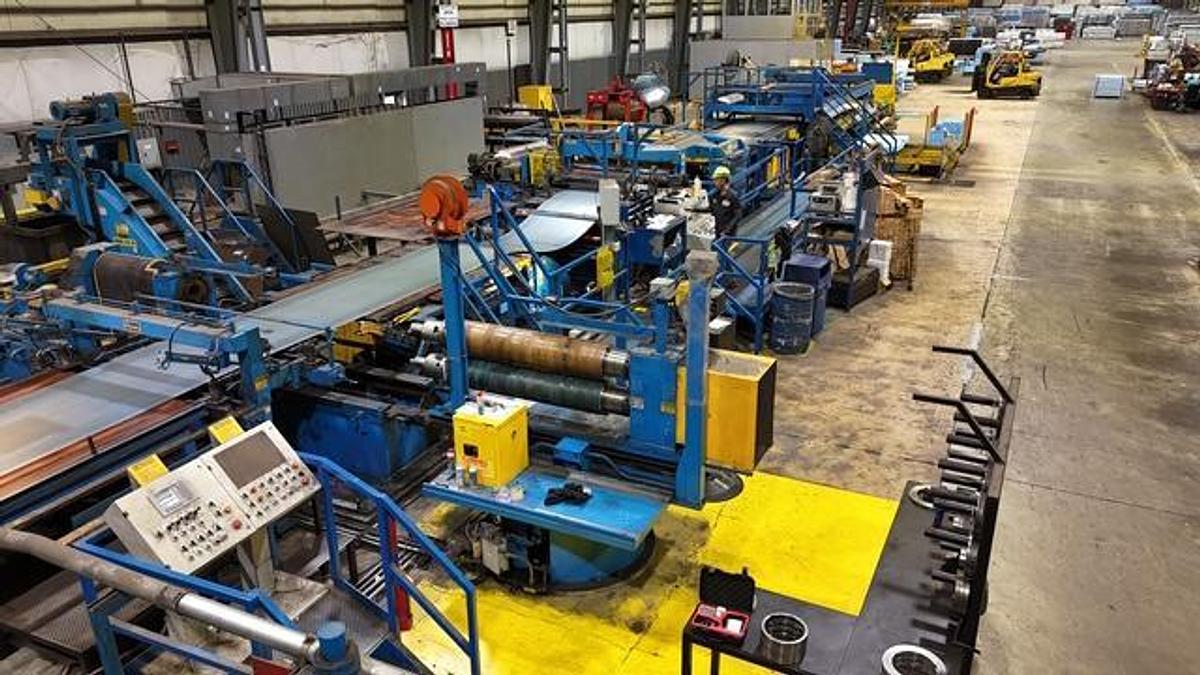

74” x .135” x 80,000 Lbs. SMS/Pro-Eco Multi-Blanking CTL

Specifications:

Manufacturer: SMS/Pro-Eco

Material: CR, Galvanized

Maximum Coil Width: 74”

Minimum Coil Width: 18”

Maximum Coil O.D.: 84”

Minimum Coil O.D.: 40”

Maximum Coil Weight: 80,000 Lbs.

Coil I.D.: 20” / 24”

Thickness Range: .010” – .135”

Maximum Shear Strength: 80,000 PSI @ .135” / 120,000 PSI @ .090”

Yield Strength Range: 30,000 – 120,000 PSI

Line Direction: Left To Right

Slitting / Processing:

Slitter Arbor Diameter: 9”

Slitter Knife Diameter: 11.5” – 13.5”

Cut Chart: 11 Cuts @ .1345” / 31 Cuts @ .010” @ 60,000 Shear Strength

Cut-To-Length:

Maximum Cut Length: 240”

Minimum Cut Length: 16”

Stack Weight Capacity: 1,000 – 20,000 Lbs.

Maximum Stack Height: 24” With Dunnage

Speed:

Line Speed: 200 FPM

Line Includes:

4 Arm Turnstile:

-Power Rotation

-C-Hook Slot 6" x 12"

-20" ID

Entry Coil Car:

-L-Type, above floor

-Self-contained Hydraulic Power Unit

-84" Max. OD

-28" Lift

Single Mandrel Uncoiler:

-Hydraulic Expansion

-20" - 24" ID

-84" O.D.

-Water Cooled Brake

-Sliding Base

-Holddown Roll

Automatic Center Guide Control Unit:

Peeler Table:

Pinch Rolls:

-Urethane Covered

-10" Diameter Upper Roll

-8" Diameter Bottom Roll

Mechanical Centering Guides:

Hydraulic Crop Shear:

-15 Second Cycle Time

Belt Conveyor for scrap:

Leveler: 5 HI

-17 Work Rolls

-2.50" Dia. x 100" Face Work Rolls

-Cassette Type

-300 HP Drive

Carryover Table:

Leveler: 5 HI

-19 Work Rolls

-1.50" Dia. x 102" Face Work Rolls

-Cassette Type

-20 HP Drive

Inspection Table:

Speed Reference Roll:

Mechanical Centering Guides:

Slitter Head:

-Full Head Arrangement with Automatic Tooling Setup

-9" Diameter Arbors

-Single Eccentric Arbor Adjustment

Scrap Choppers:

Scrap Discharge Conveyor:

Carryover Table:

-At Scrap Choppers

Loop Pit Equipment:

Squaring Guides:

Precision Feed Roll Unit:

-8" Diameter Rolls

-Urethane Covered

Reciprocating Flying Shear:

-250 HP Drive

-16" Minimum Cut Length

Reject Conveyor

Runout Conveyor

Reject Cart:

-86" - 16" Length

Automatic Air Stacker:

-End Discharge

-16" Min. - 240" Max. Length

Pallet Feed System

Scissor Lift Stacking Table:

-24" Max. Lift

-20,000 lb. Weight

Storage Conveyor:

-20,000 lb. Weight Capacity

-240" Long

Water Cooling Unit:
