72” X 0.500” X 60,000 Lbs. Delta Cut-To-Length Line

Specifications:

Manufacturer: Delta

Maximum Width Capacity: 72”

Maximum Thickness Capacity: 0.500” Mild Steel

Maximum Coil Weight: 60,000 Lbs

Line Speed: 0 – 100 FPM

Line Direction: Right To Left

Condition: Installed

Complete Line Consisting Of:

“L” Type Coil Car:

52” Wide Deck

40” Centerline Of “V” To Side Mast (Allows Approx. 80” OD Coil)

9” Dia. X 27” Long Lift Cylinder Body

Approx. 15” From Floor To Bottom Of “V” Cradle

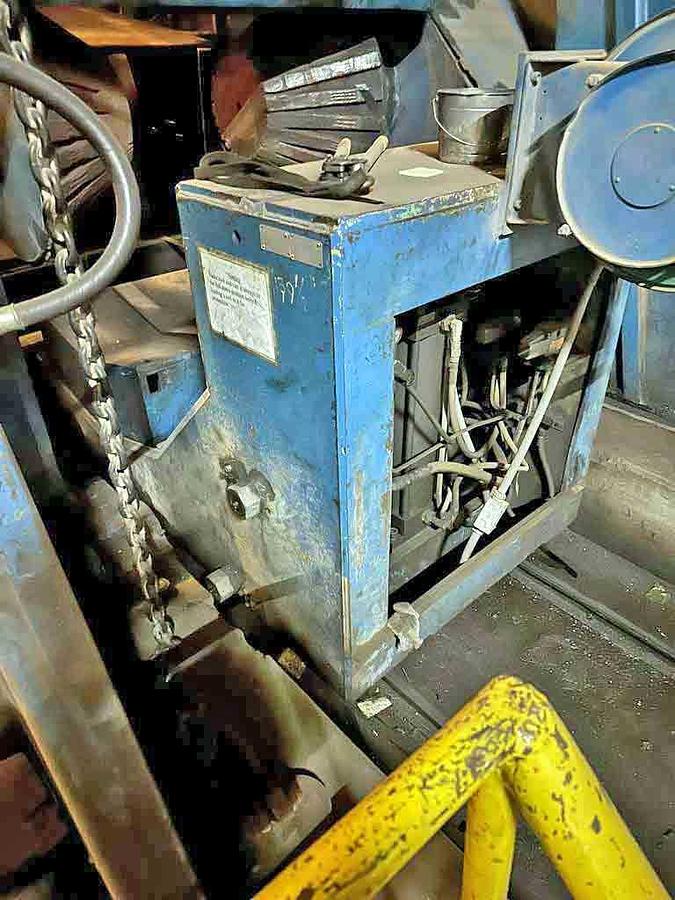

Self-Contained Hydraulic Power Unit

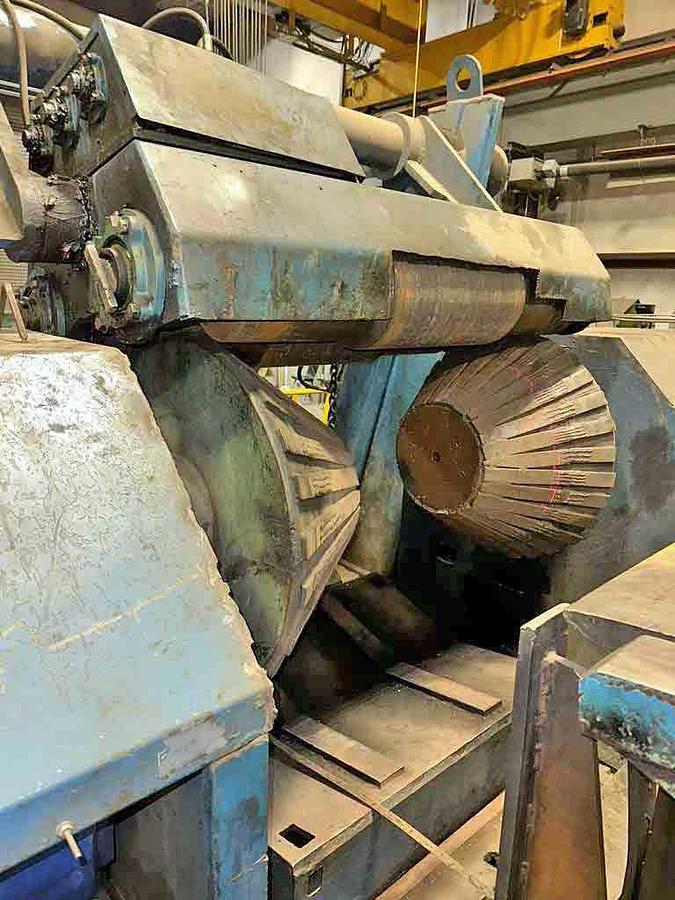

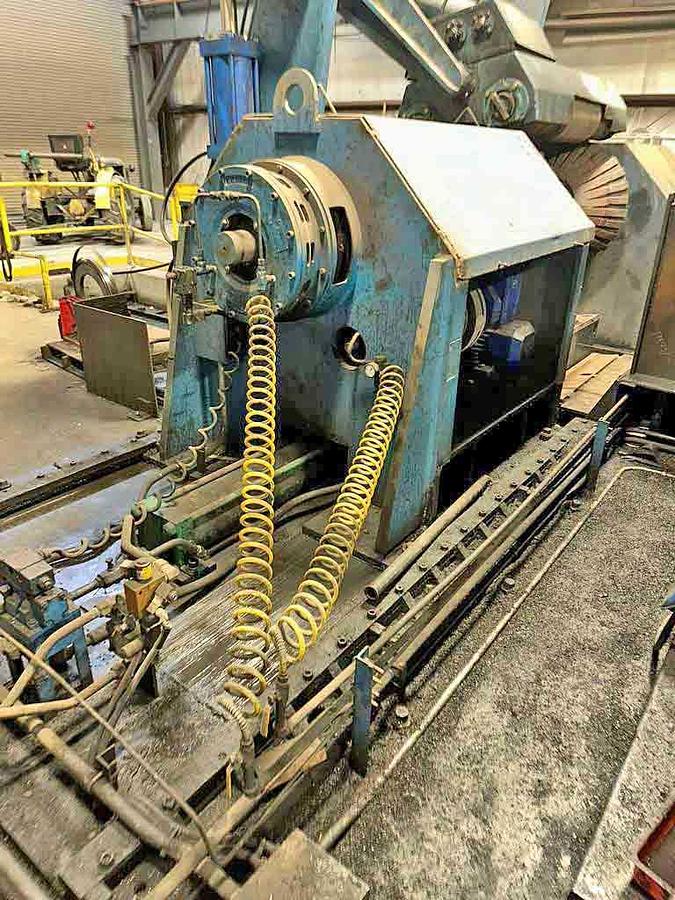

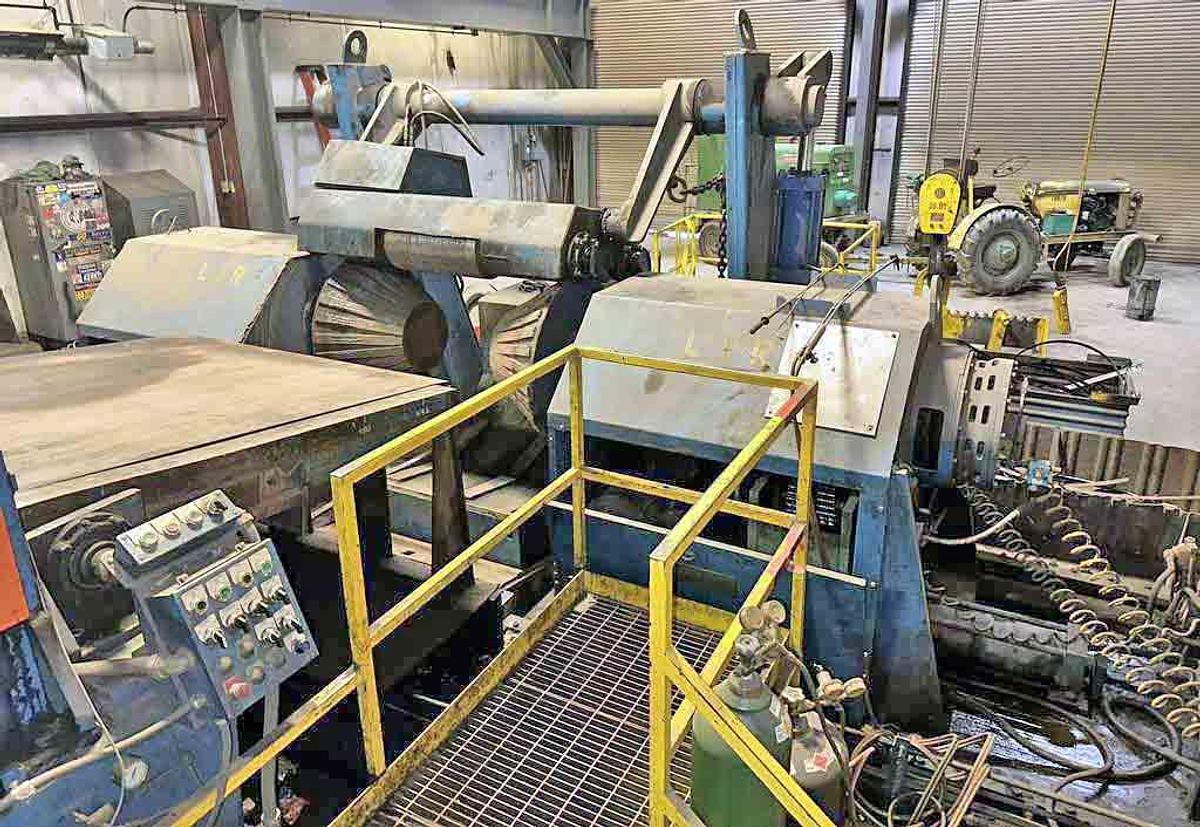

Delta Cone Type Uncoiler:

Solid Non-Expanding Mandrels

Sliding Bases

Wichita Brakes On Both Mandrels

45” From Centerline Of Mandrel To Base

Feedup Drive With Renold WormMaster 60:1 Reducer And Motor

Wichita Clutch

Delta Entry Unit:

Fully Articulating Peeler Table, Pivoting And Extending

Pinch Rolls: 10” Dia. X 78” Face

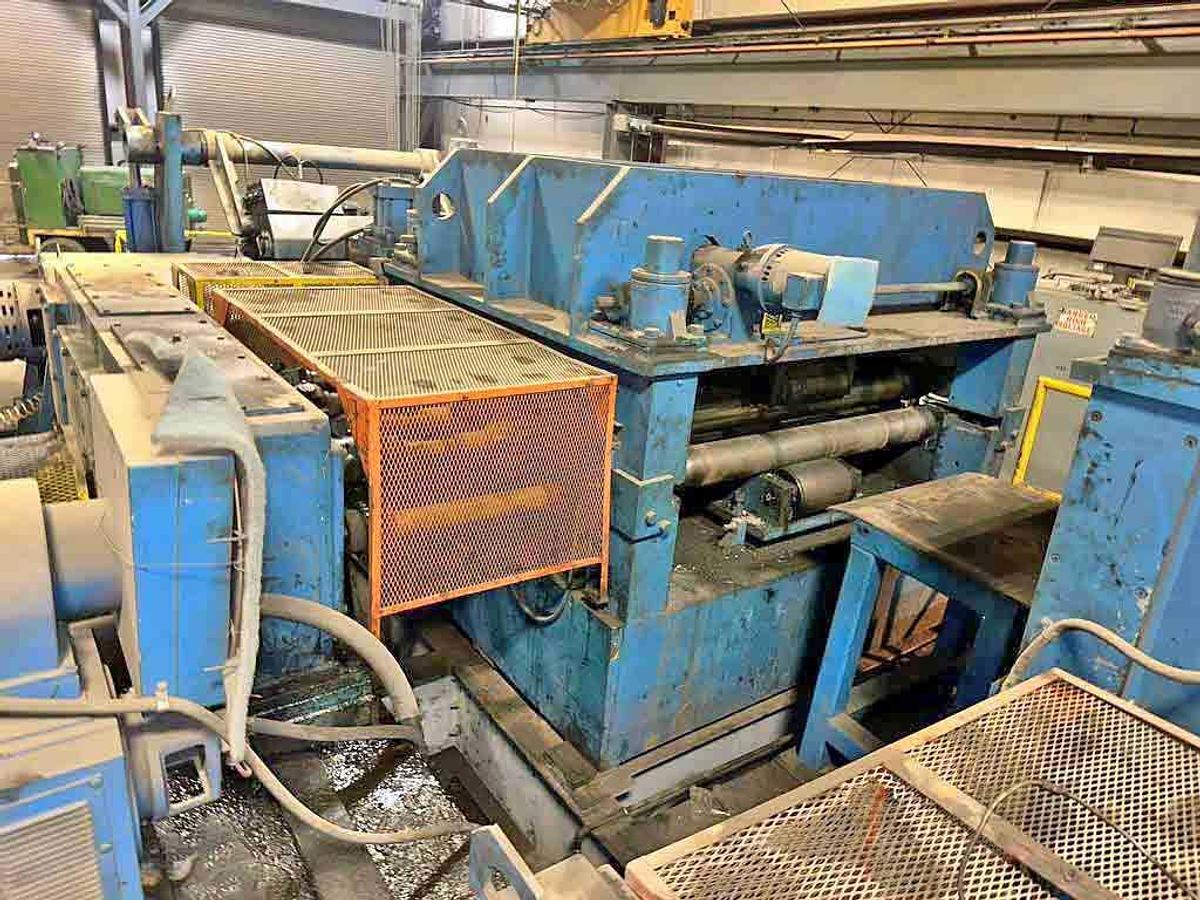

Delta Straightener:

9 Work Rolls

4 Over 5 Roll Configuration

10” Dia. X 78” Face Rolls (Needs Confirming)

One Set Of 14.5” Wide Backup Rolls On Center Of Work Rolls

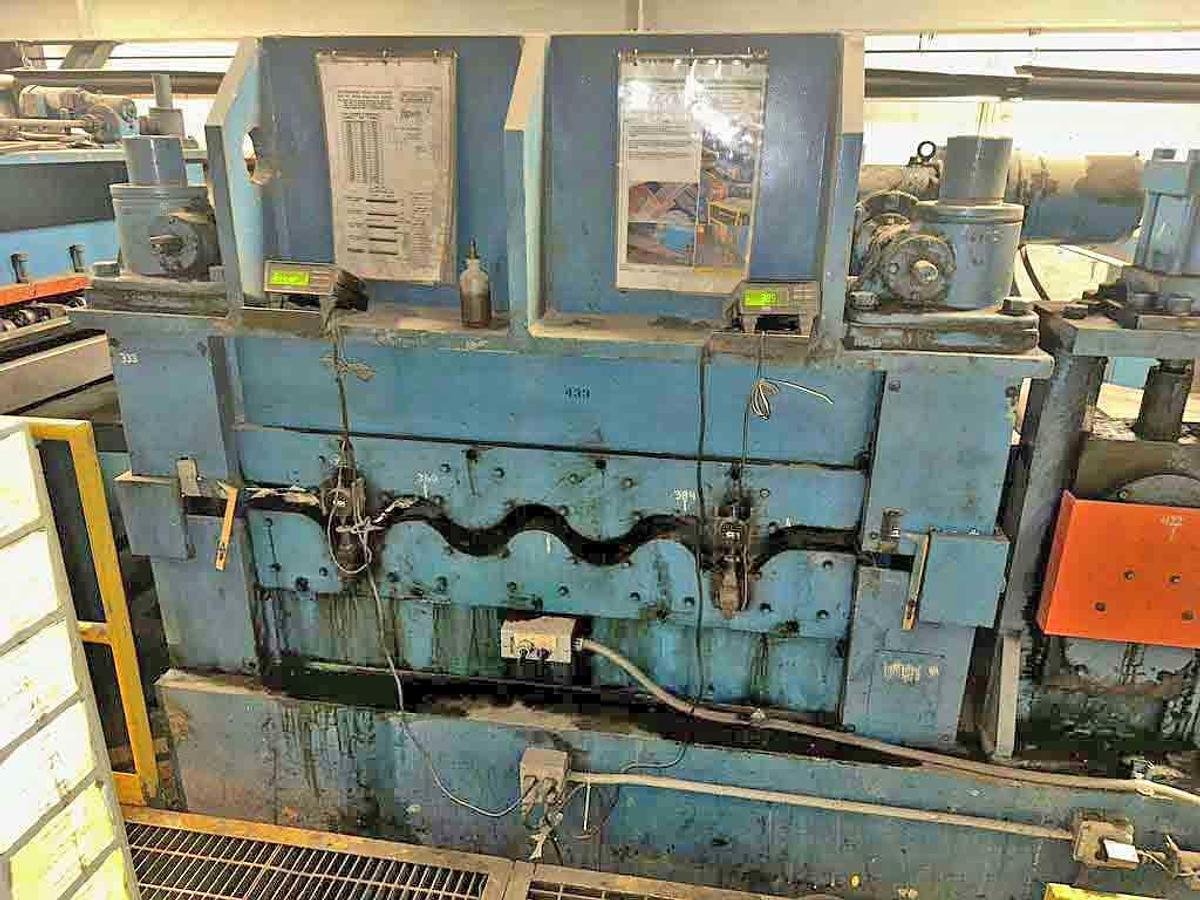

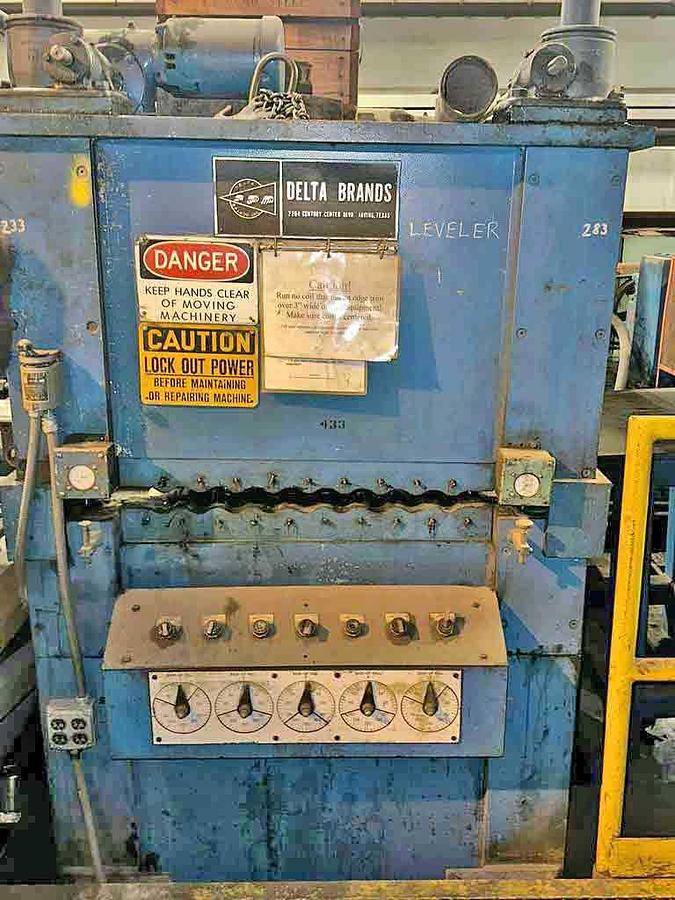

Delta Leveler:

19 Work Rolls

9 Over 10 Roll Configuration

2.5” Dia. X 78” Face Work Rolls

5 Adjustable Flights Of Backup Rolls (Cam Type)

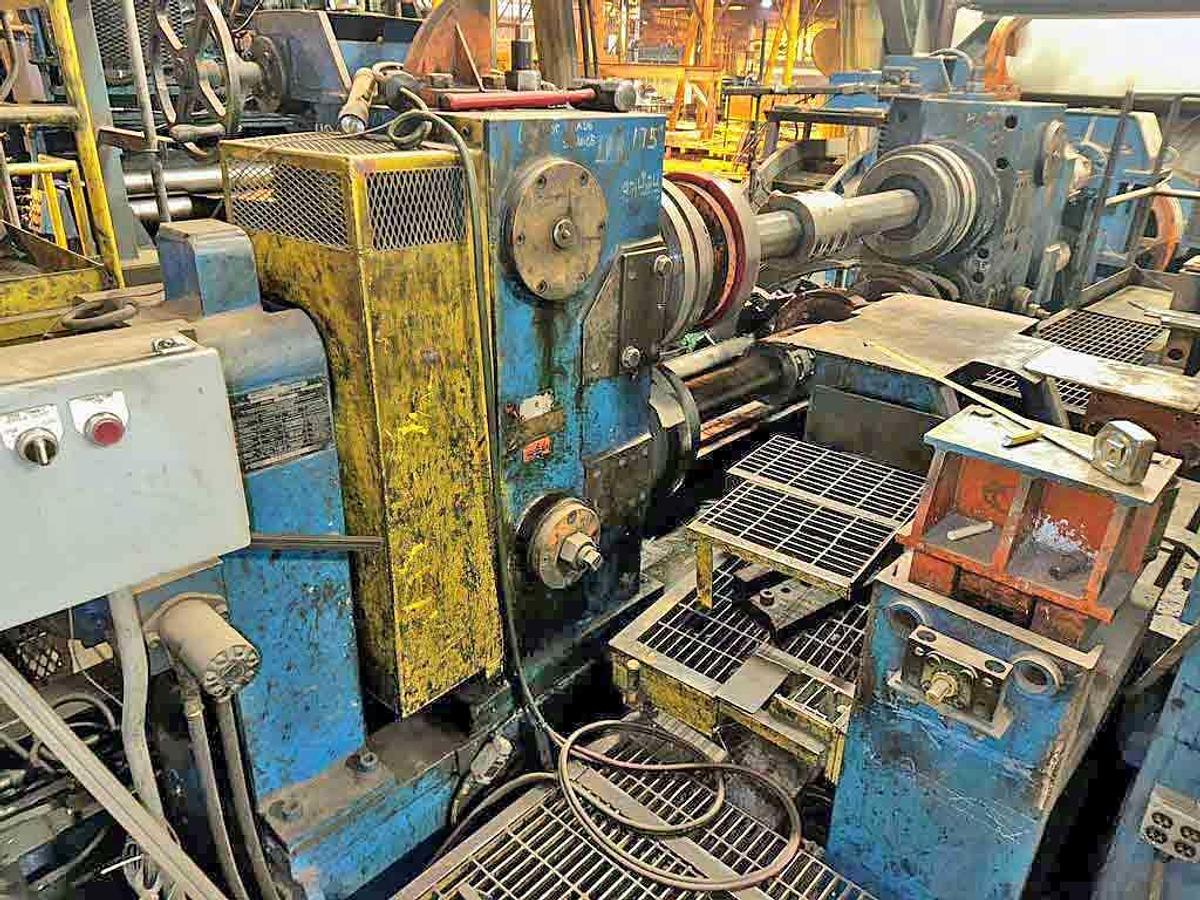

Straightener And Leveler Shared Drive Train:

Capacity: 0.500” X 72” Mild Steel

Main Drive: 100 HP

Side Guides

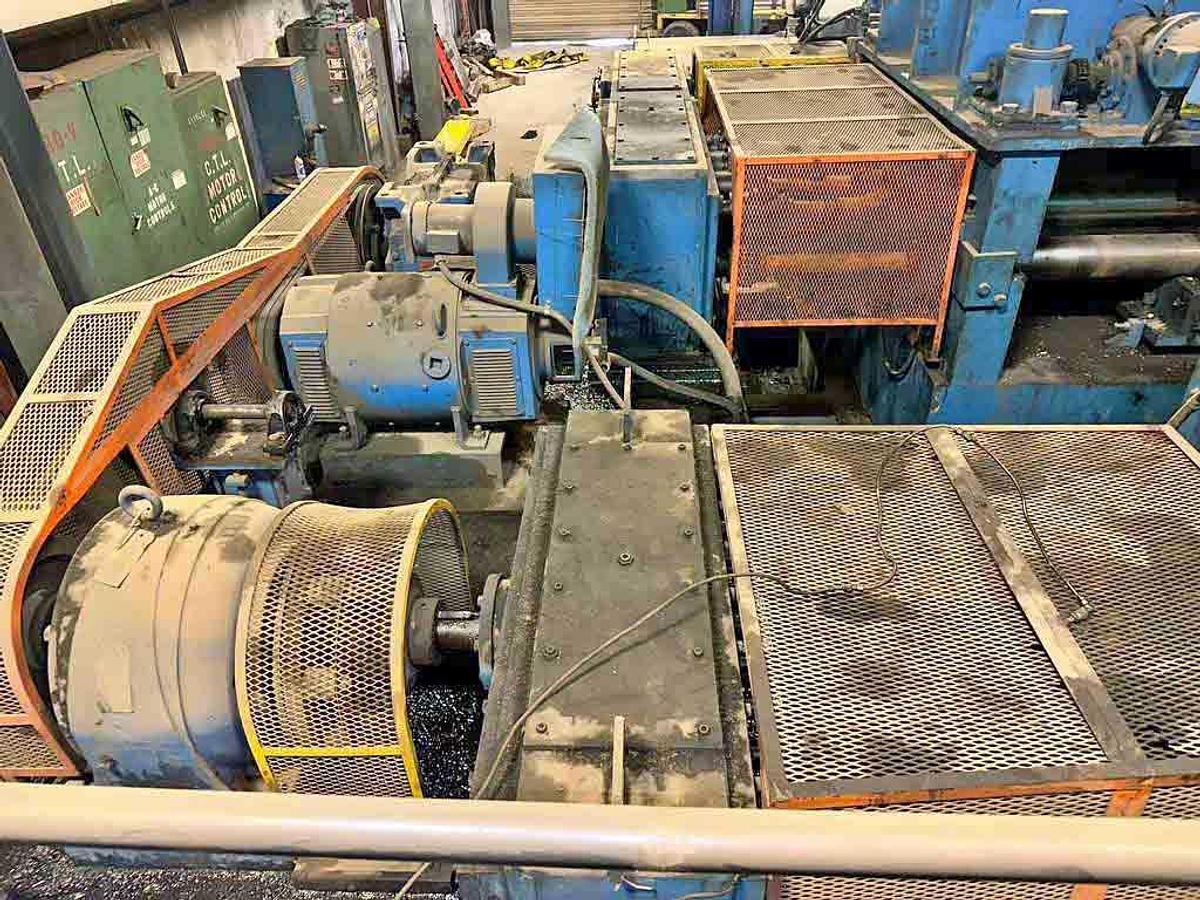

Double-Stub Edge Trimming Unit: Stamco

Eccentric Adjustment

Motor: 125 HP DC, 500 V, 1750 RPM, 203 Amps

Reducer: Horsburgh & Scott, 102 HP, 1.0 Ratio

Scrap Chopper:

Paddle Type

One Set Of Choppers Per Side

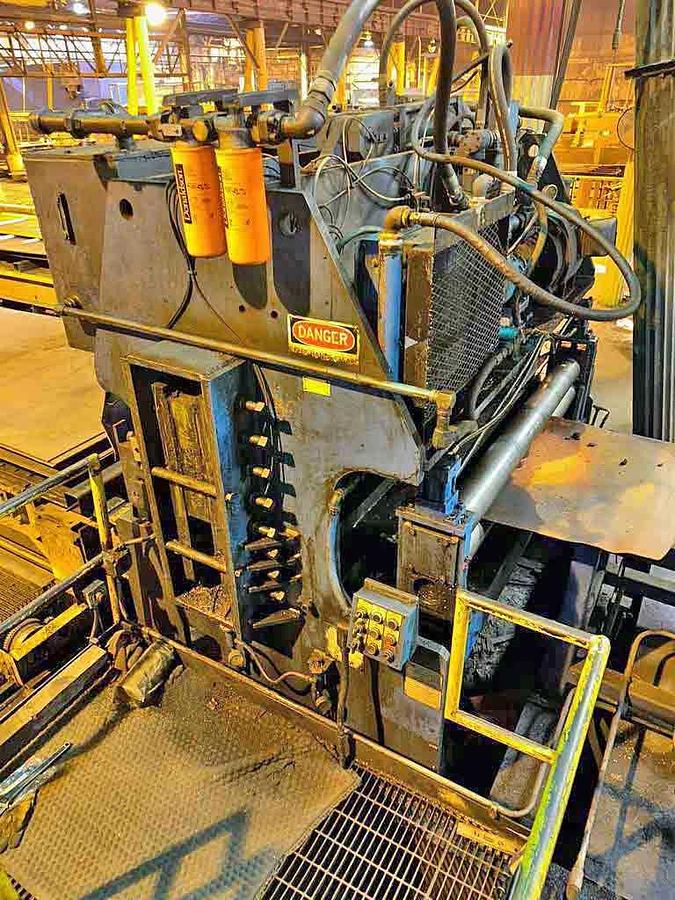

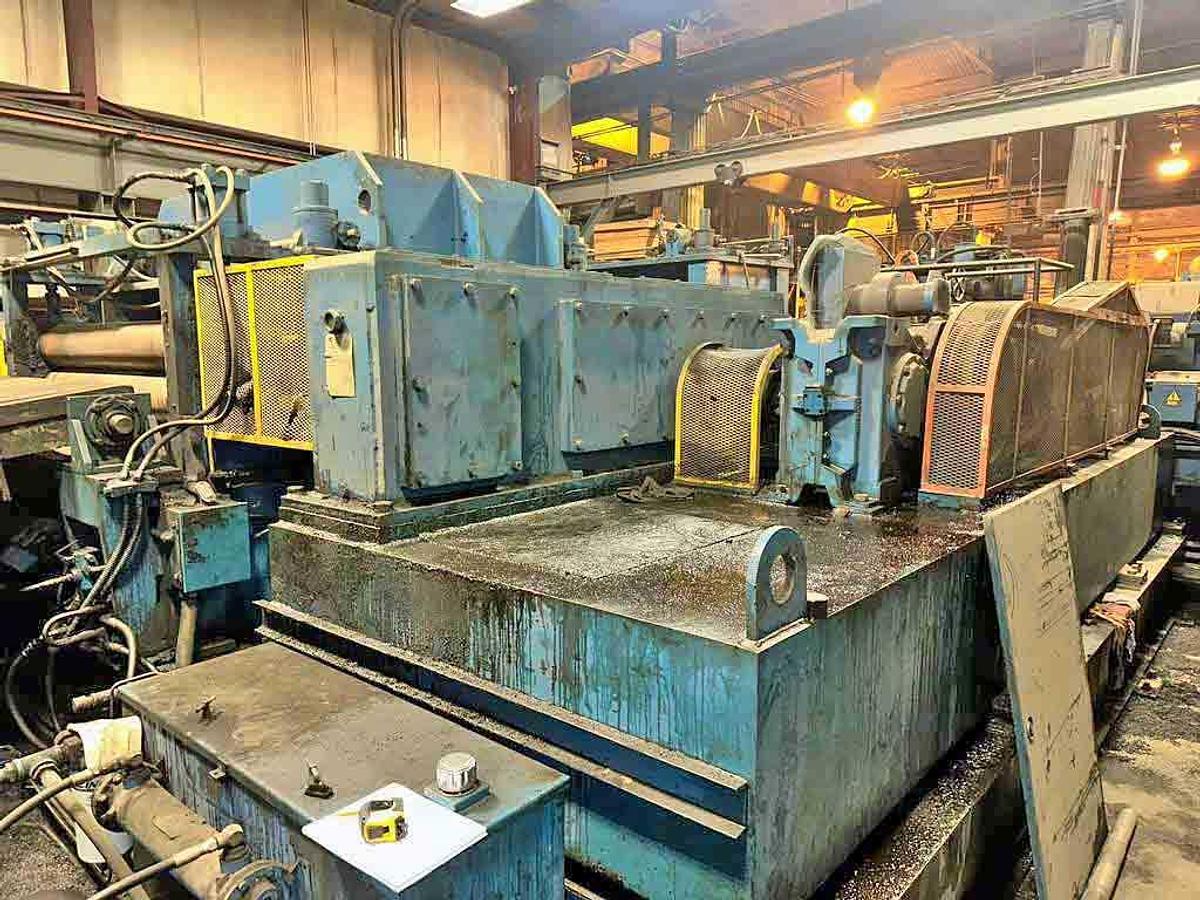

Delta Shear:

Model: SS-652-000

Capacity: 0.500” X 72” Mild Steel

Single Rake Design

Down Acting

Entry And Exit Driven Pinch Rolls

66” Pass Height

Motor: 75 HP, 230 V

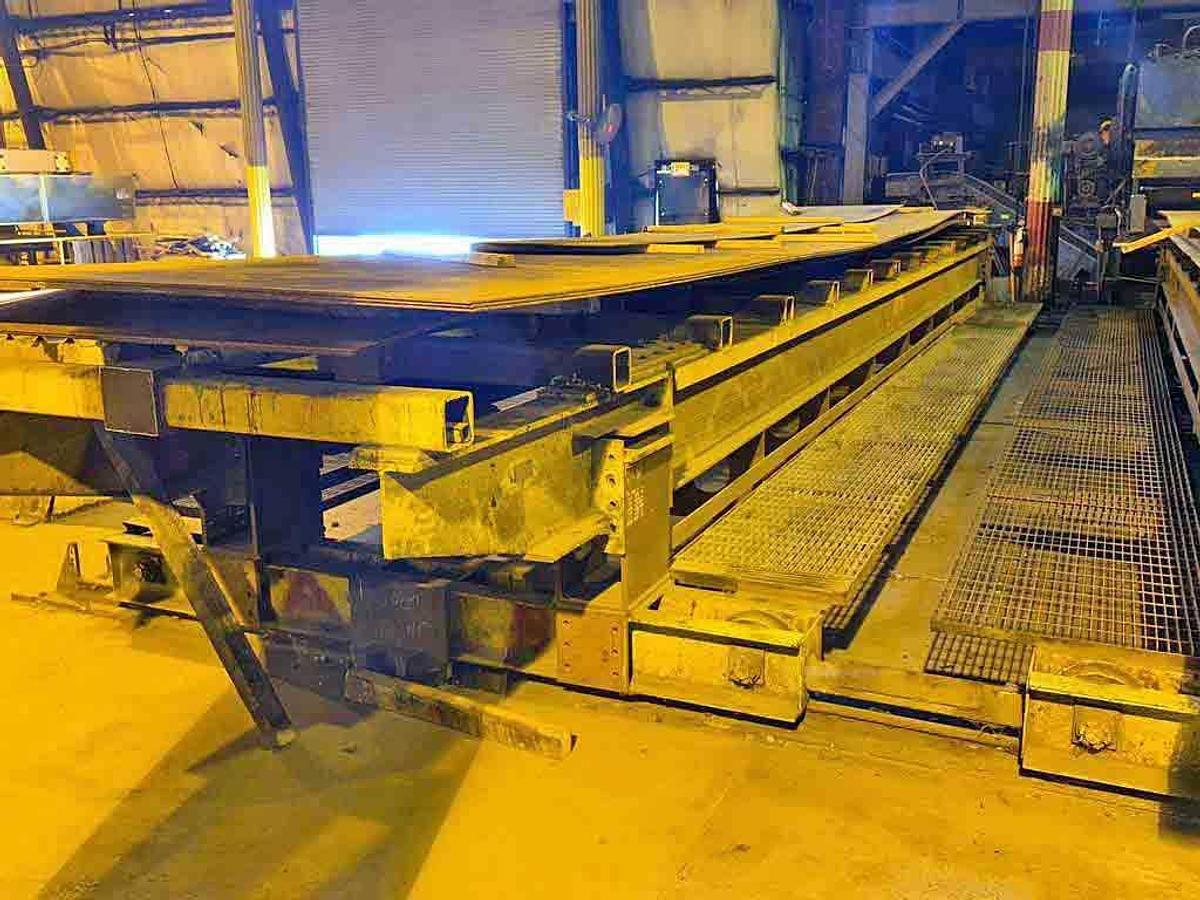

Runout Tables:

(2) Runout Tables

Approx. 40’ Long

On Rails

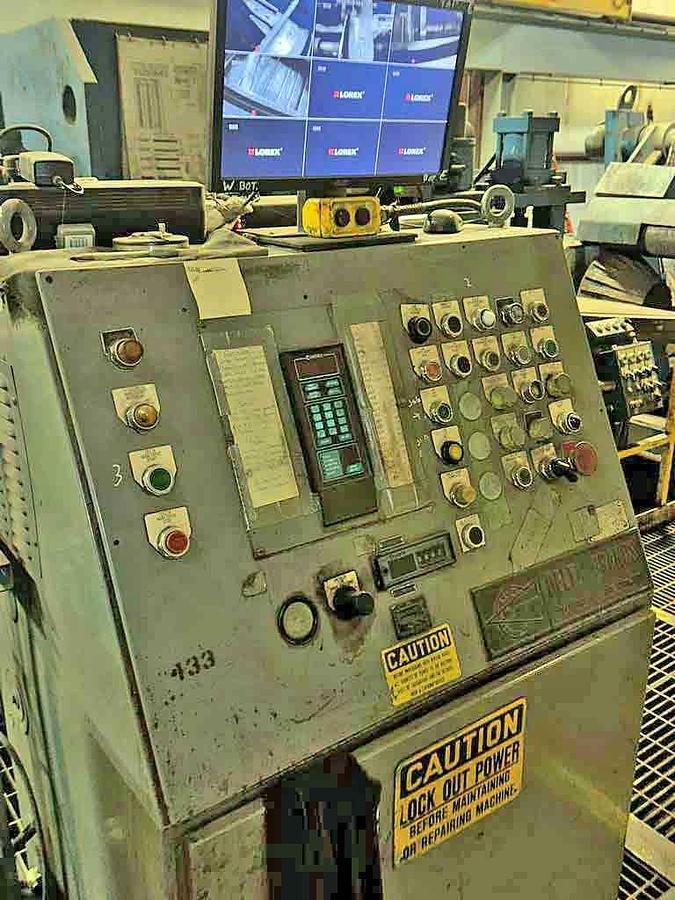

Operators Console

Isolation Transformer:

145 KVA
