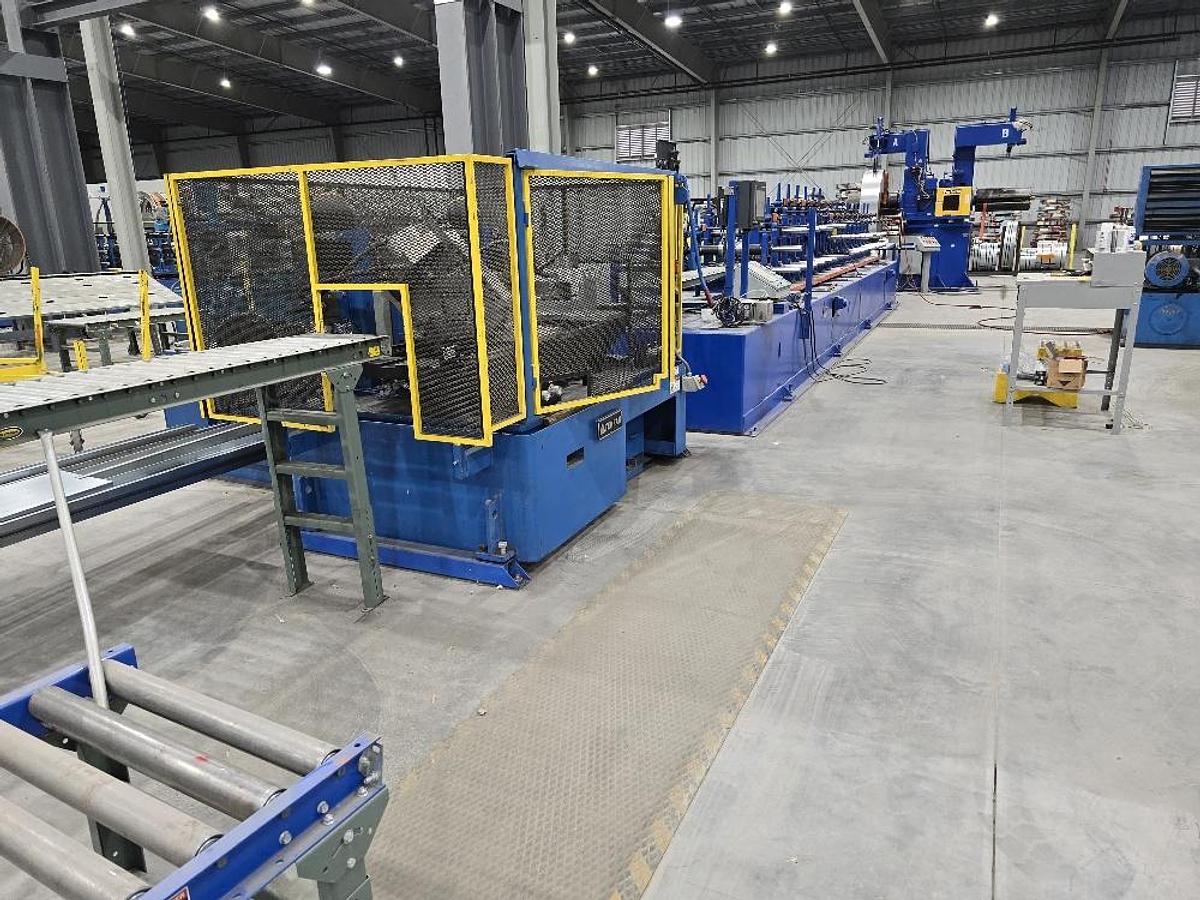

17-Stand x 2-1/2" ASC Stud & Track Rollform Line

Specifications:

Manufacturer: ASC Machine Tool

Type: Structural Stud & Track

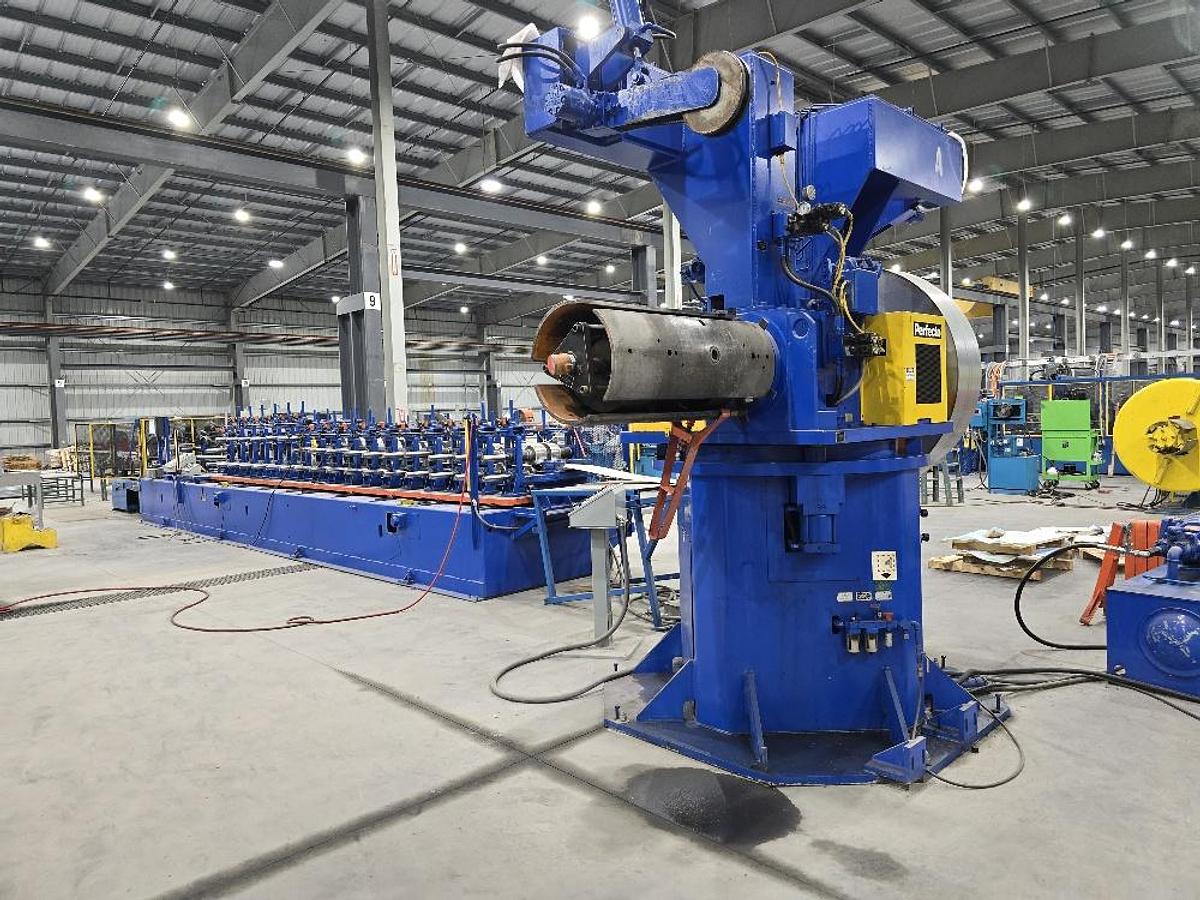

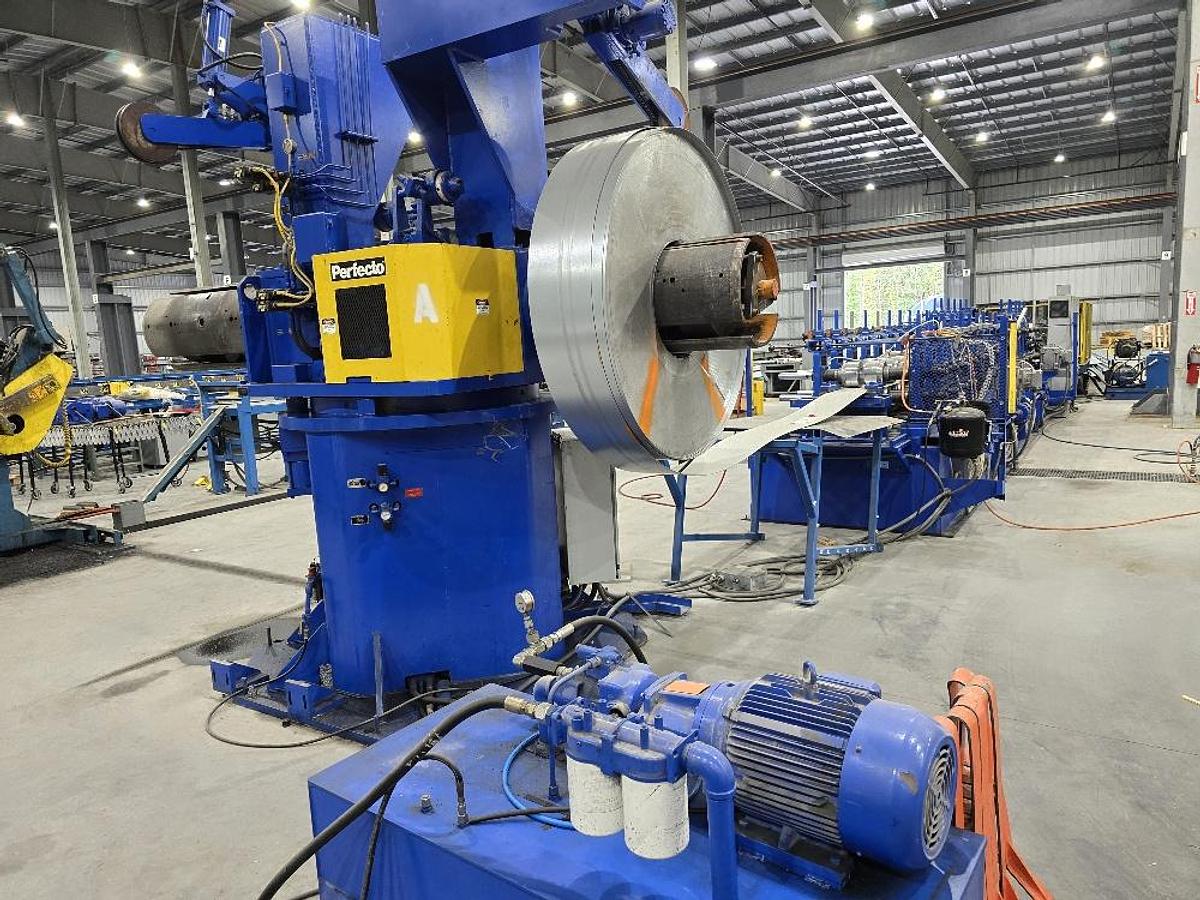

Weight Capacity: 15,000 Lbs., Perfecto Dual End Uncoiler

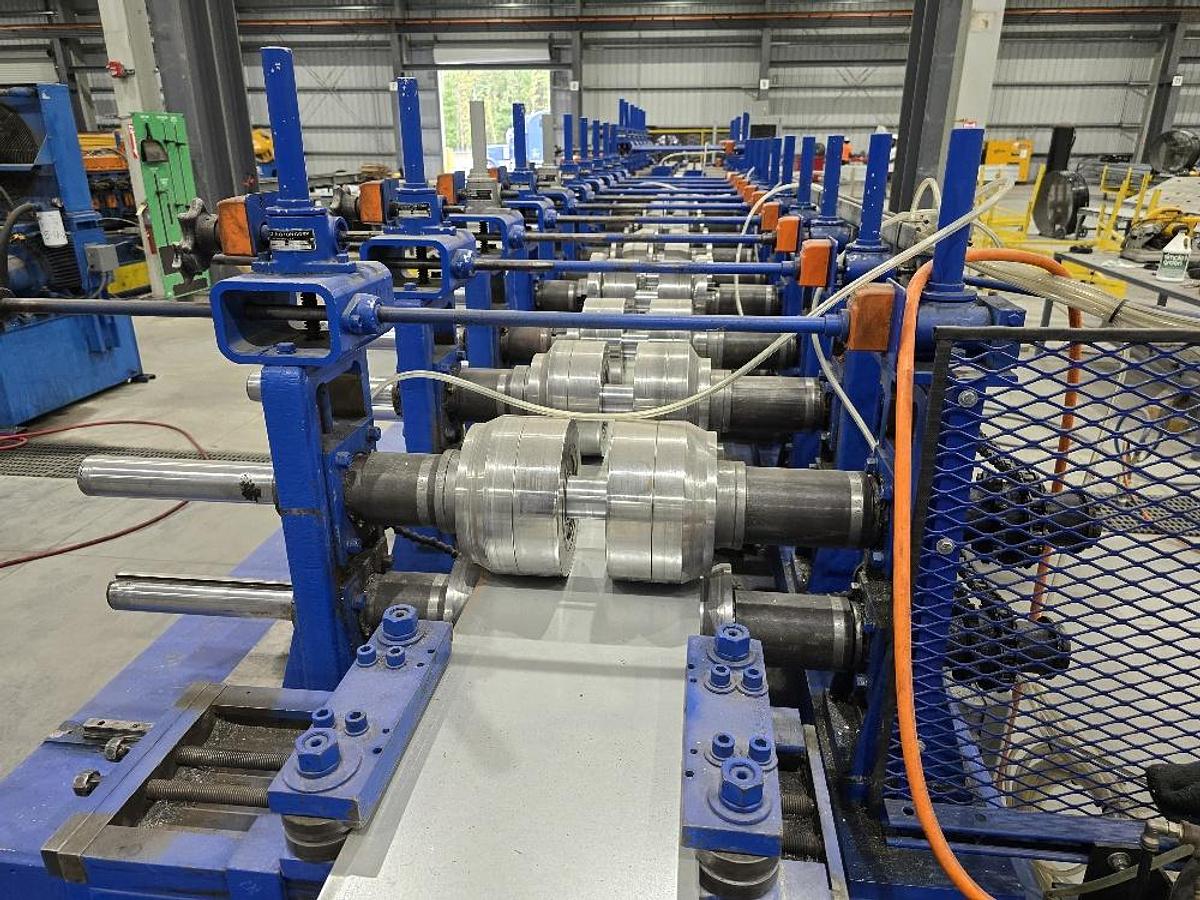

Number of Stands: 17

Spindles: 2 1/2” diameter

Drive Motors: 30 HP on Entry; 20 HP at exit end

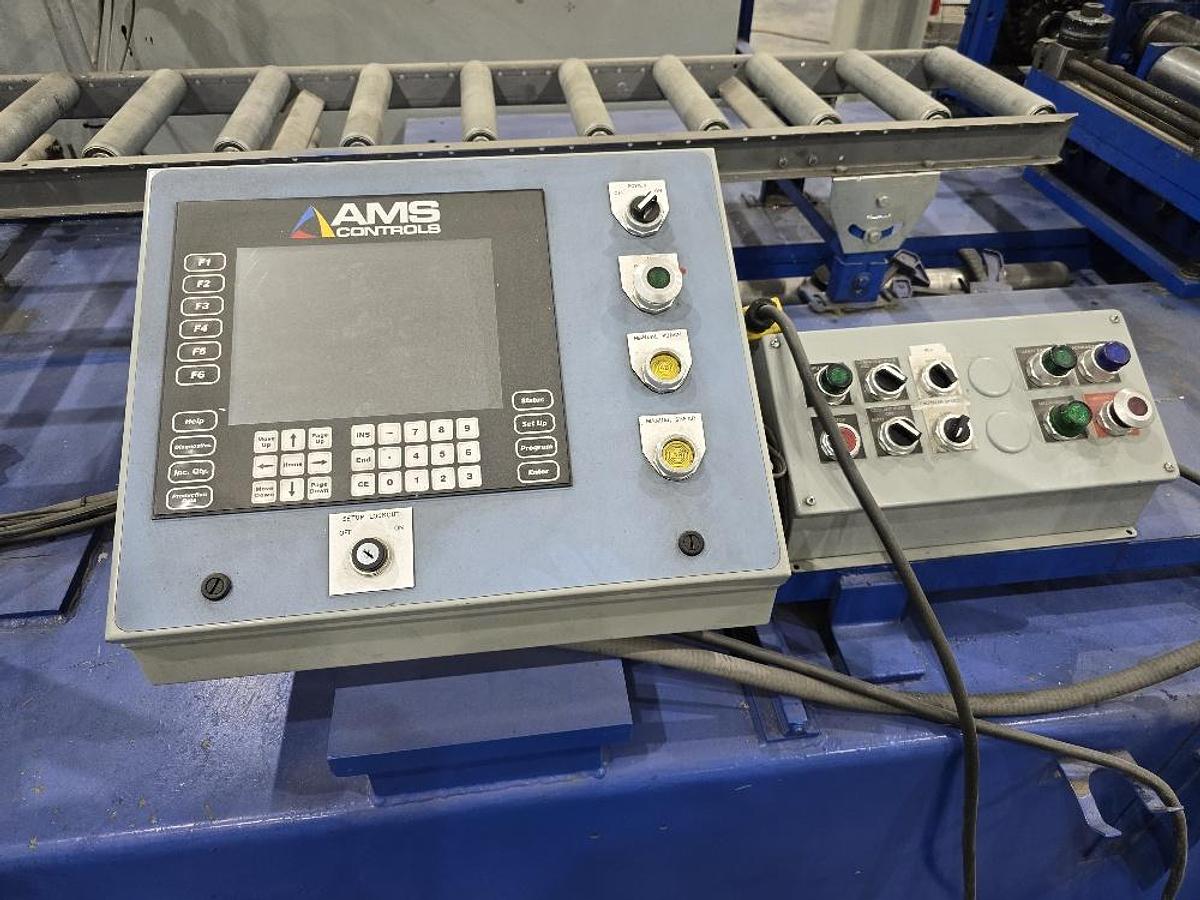

Controls: AMS controls

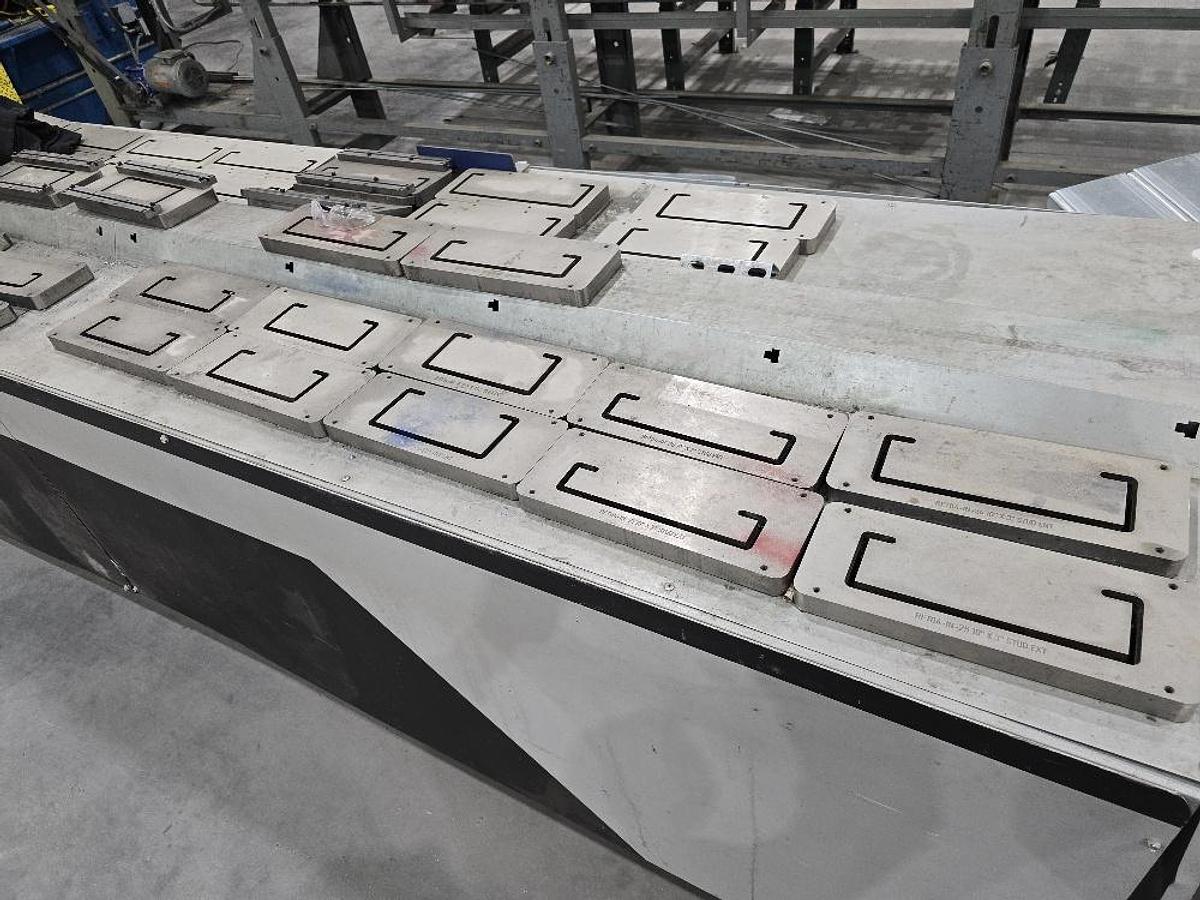

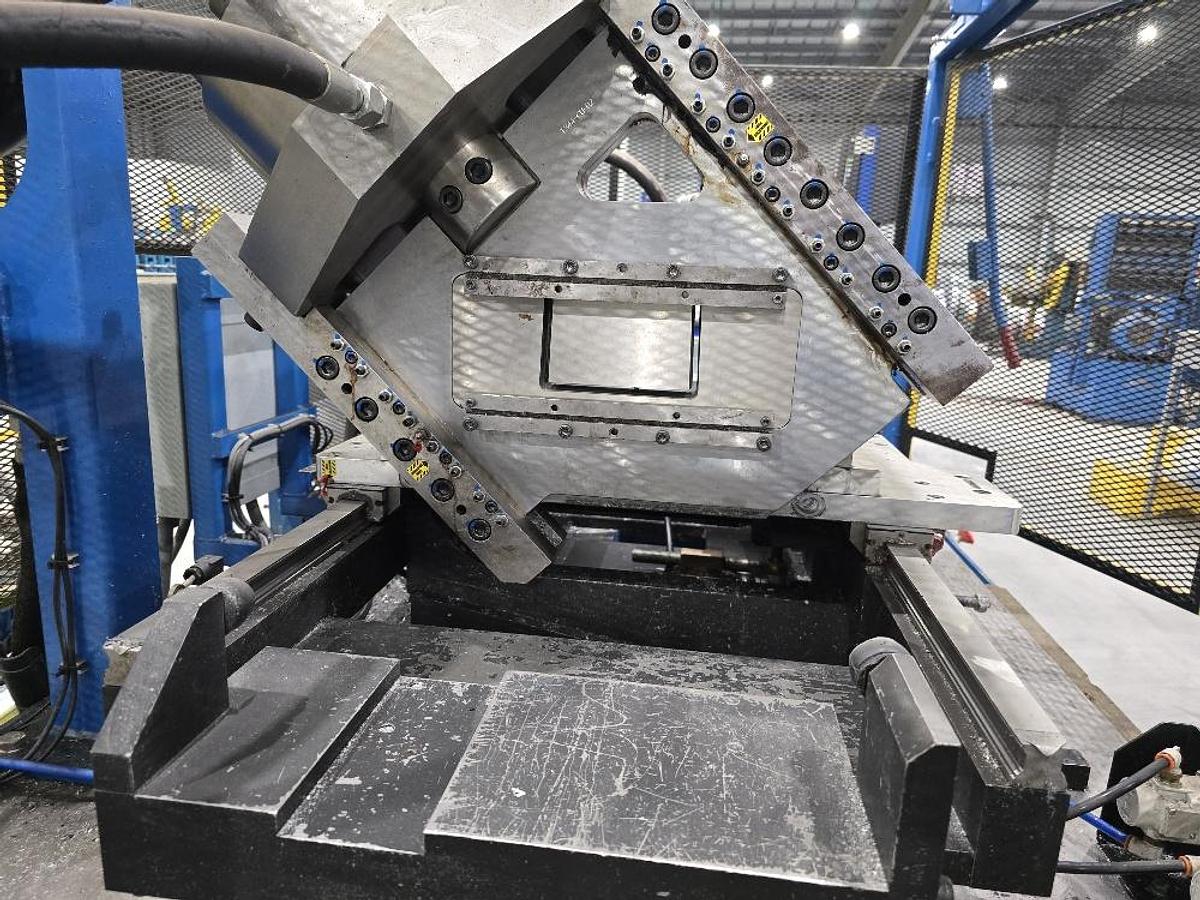

Cut-Off: TekFab hydraulic cut-off; sliding die cut-off

Profile Specs:

Structural Stud & Track

Insert Width (in) Height (in)

Return

Leg Width (in) Height (in)

1 6.000 2.000 .625 & 1.0

2 6.000 2.500 .625 & 1.0

3 6.000 3.000 .625 & 1.0

4 6.000 3.500 .625 & 1.0

5 6.150 2.500

6 8.000 2.000 .625 & 1.0

7 8.000 2.500 .625 & 1.0

8 8.000 3.000 .625 & 1.0

9 8.000 3.500 .625 & 1.0

10 8.150 2.500

11 10.000 2.000 .625 & 1.0

12 10.000 2.500 .625 & 1.0

13 10.000 3.000 .625 & 1.0

14 10.000 3.500 .625 & 1.0

15 10.150 2.500

16 12.000 2.000 .625 & 1.0

17 12.000 2.500 .625 & 1.0

18 12.000 3.000 .625 & 1.0

19 12.000 3.500 .625 & 1.0

20 12.150 2.500
