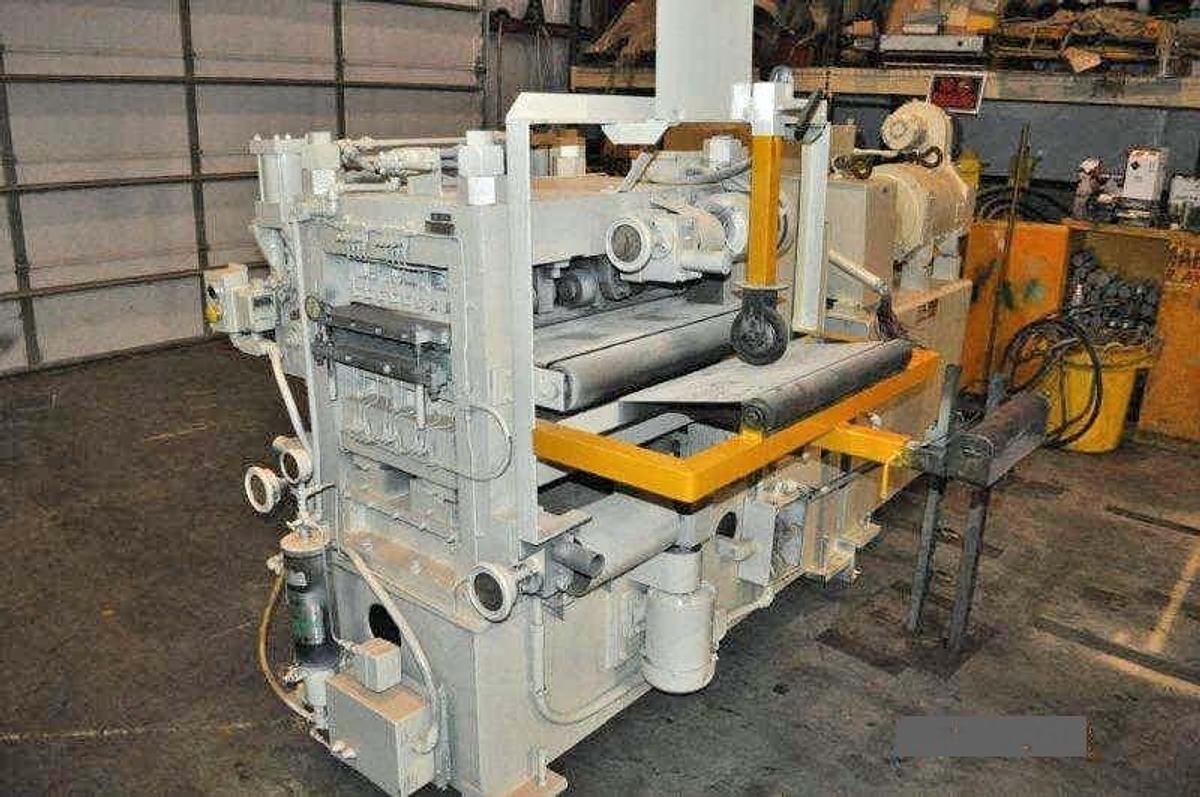

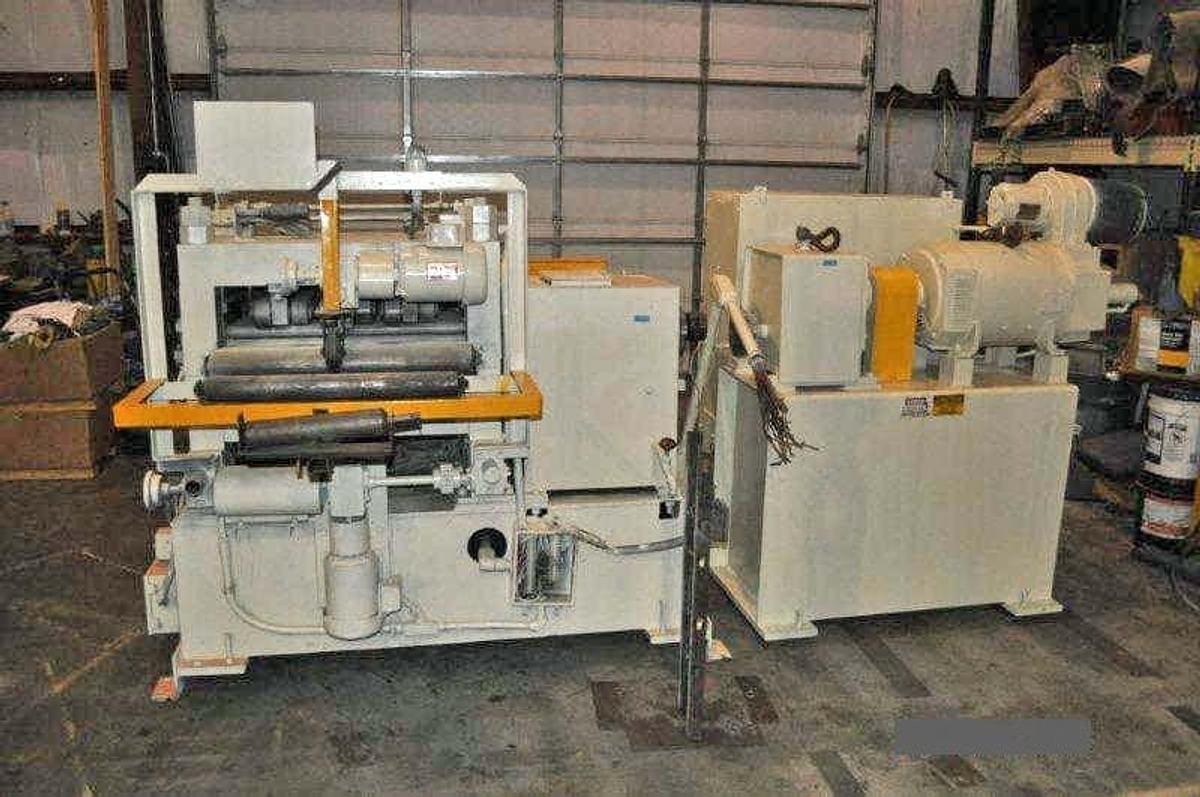

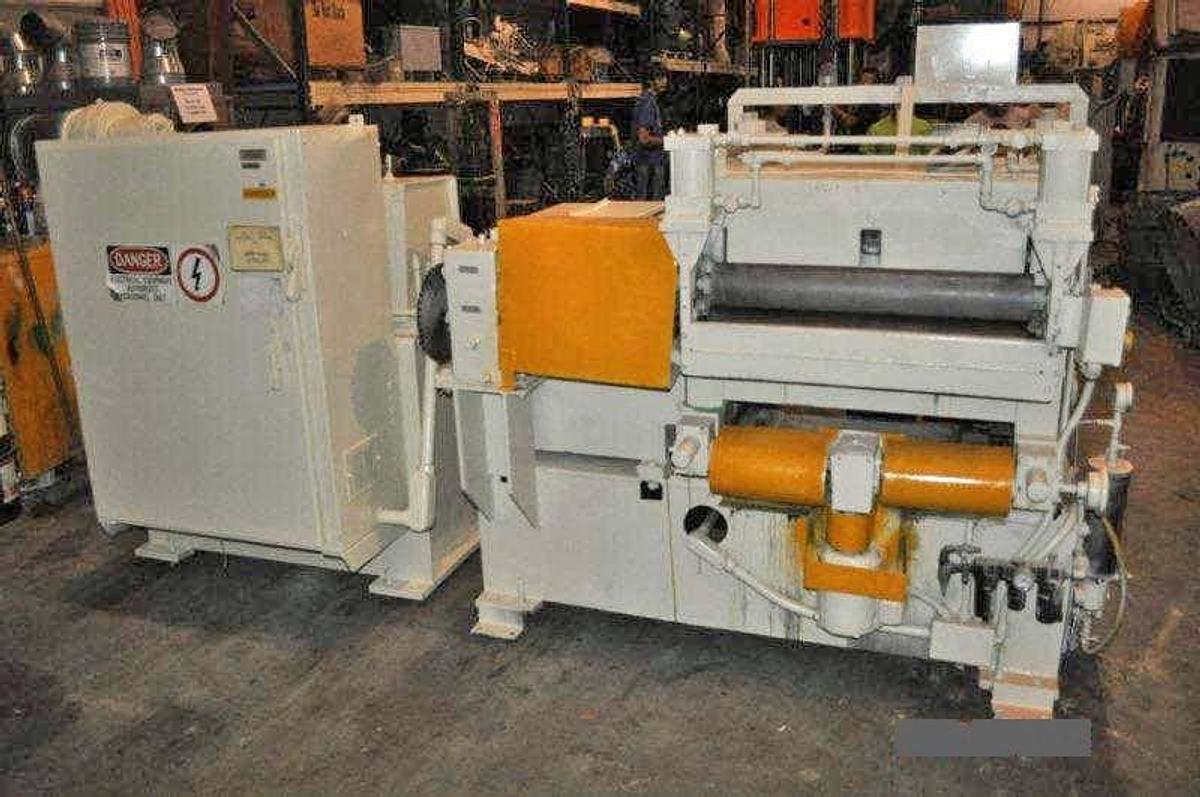

28” x 0.071” Herr-Voss Leveler

Specifications:

Manufacturer: Herr-Voss

Max Width: 28”

Gauge Range: 0.028” - 0.071” Mild Steel

Line Direction: Left To Right

Nameplate Capacity: 18” Wide x 0.028” - 0.071” @ 140,000 PSI Yield

Note: 18” Width Capacity Is Based On Overall Spacing Of Backups. Leveler Will Accept 28” Wide Material

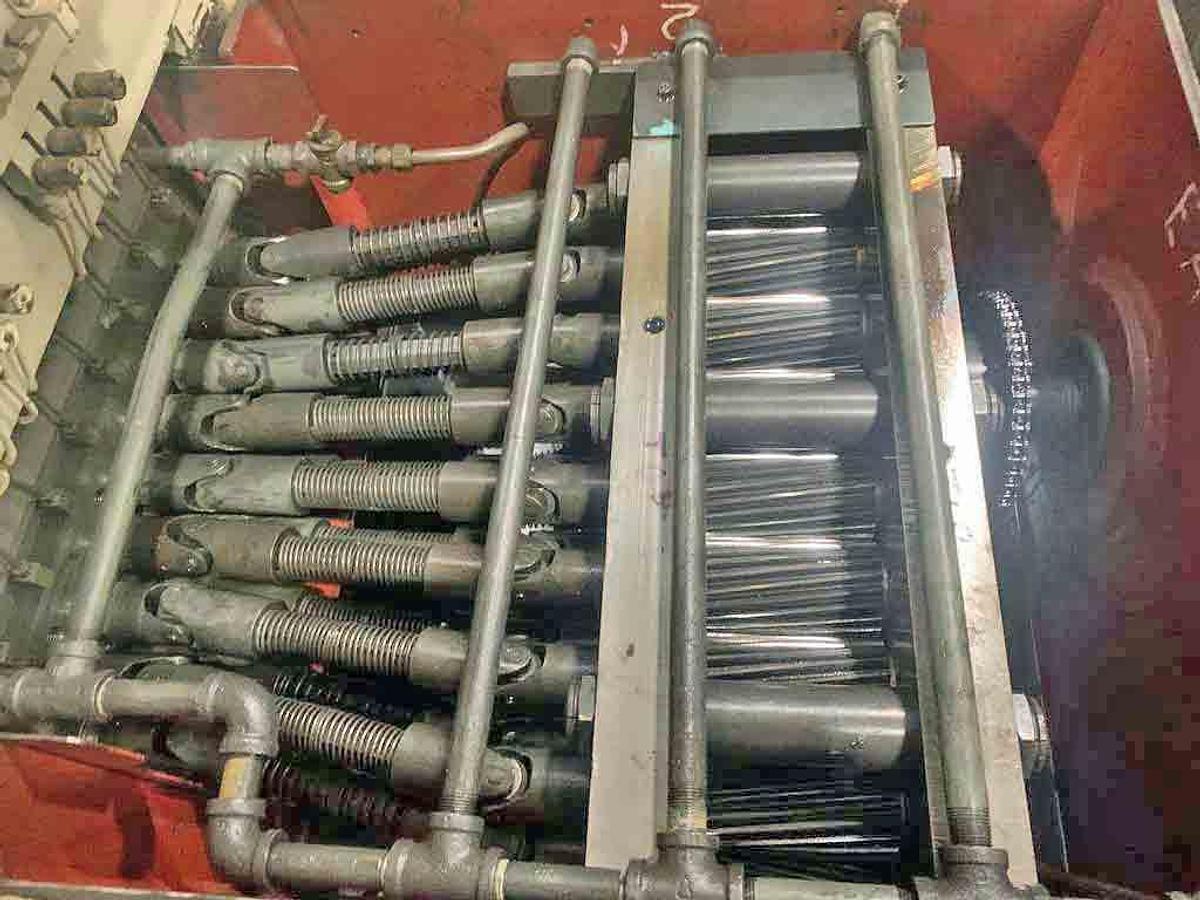

Work Rolls: 17 (8 Over 9)

Work Roll Size: 1.500” Diameter x 30” Face

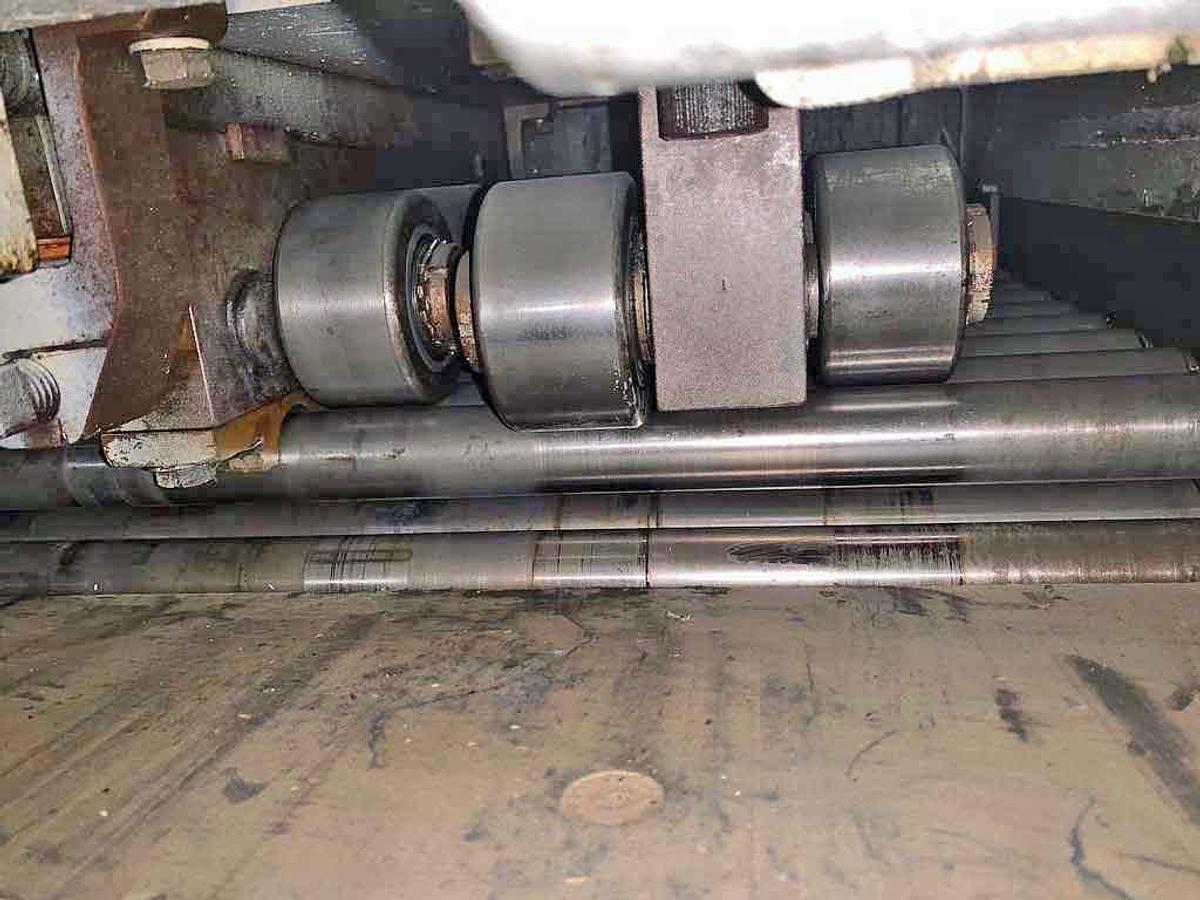

Backup Rolls: (3) Flights Of Backups

Center Backup: Manually Adjustable

Entry Pinch Rolls: 4.5” Diameter

Line Speed: 40 - 80 FPM

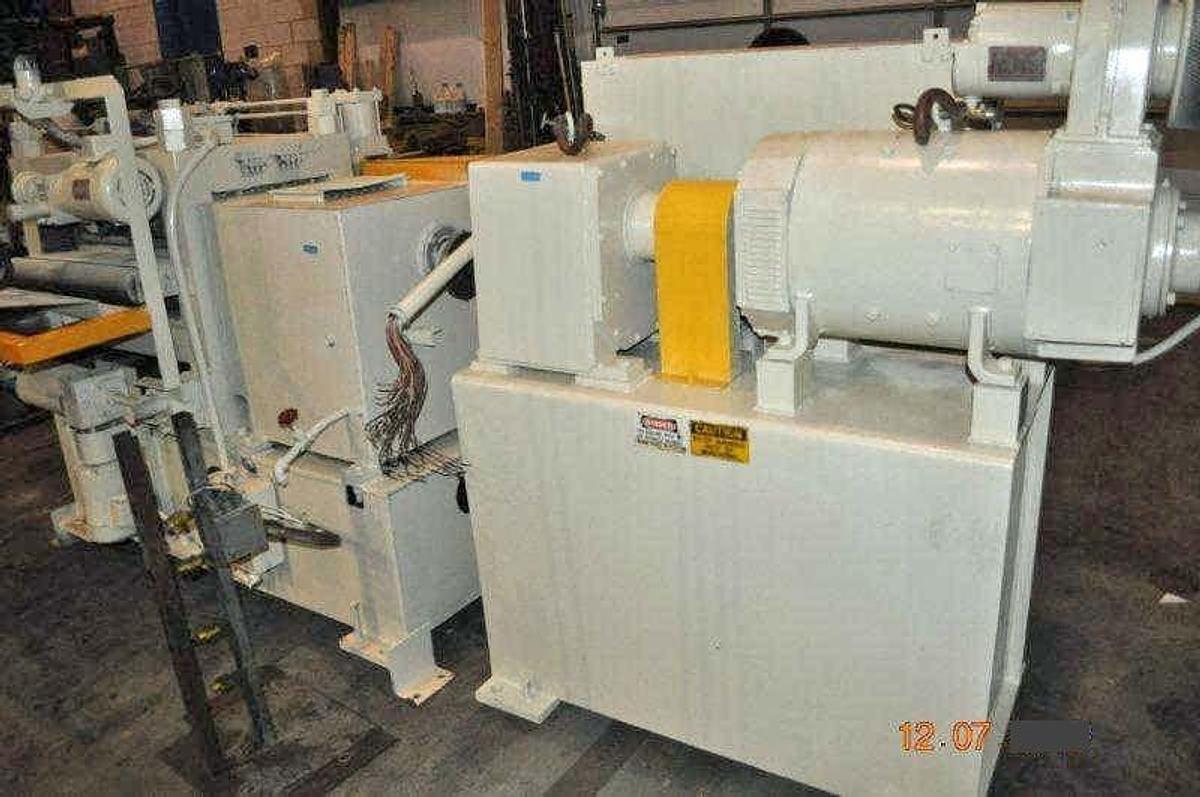

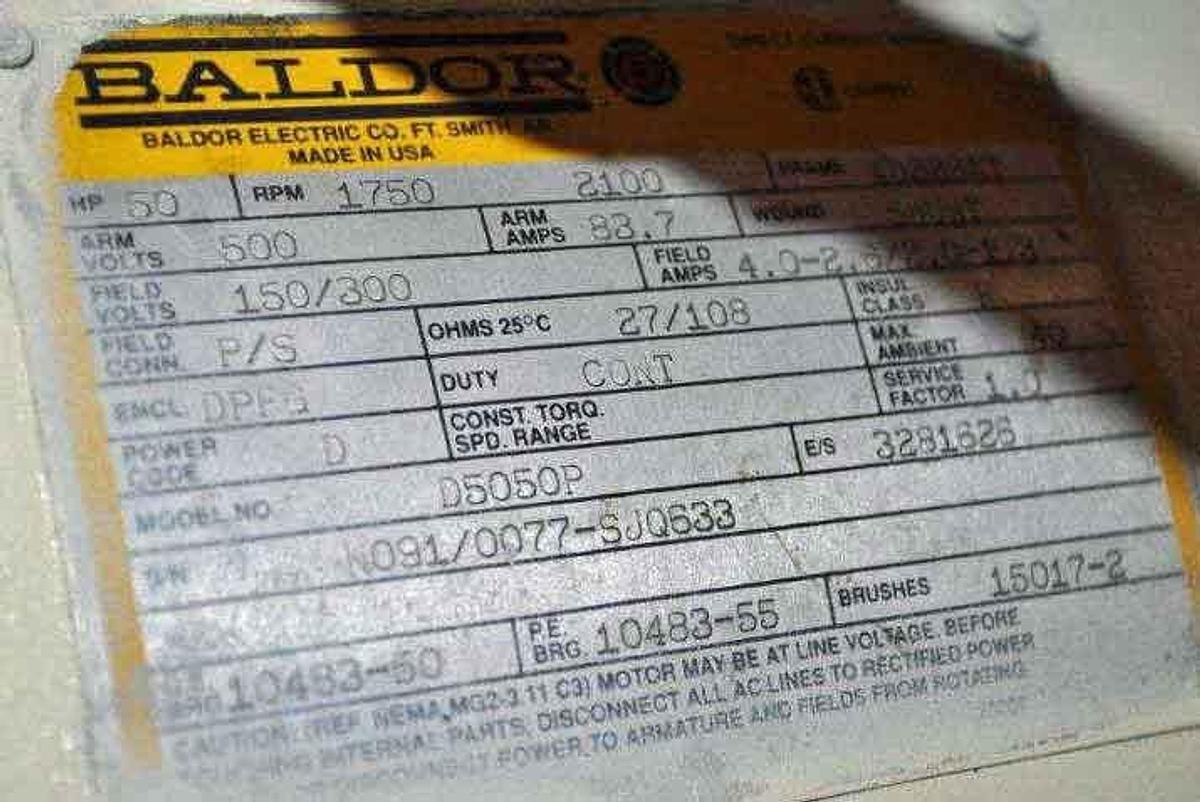

Main Motor: 50 HP Baldor DC Motor

Motor Speed: 1750 / 2100 RPM

Voltage: 500 V

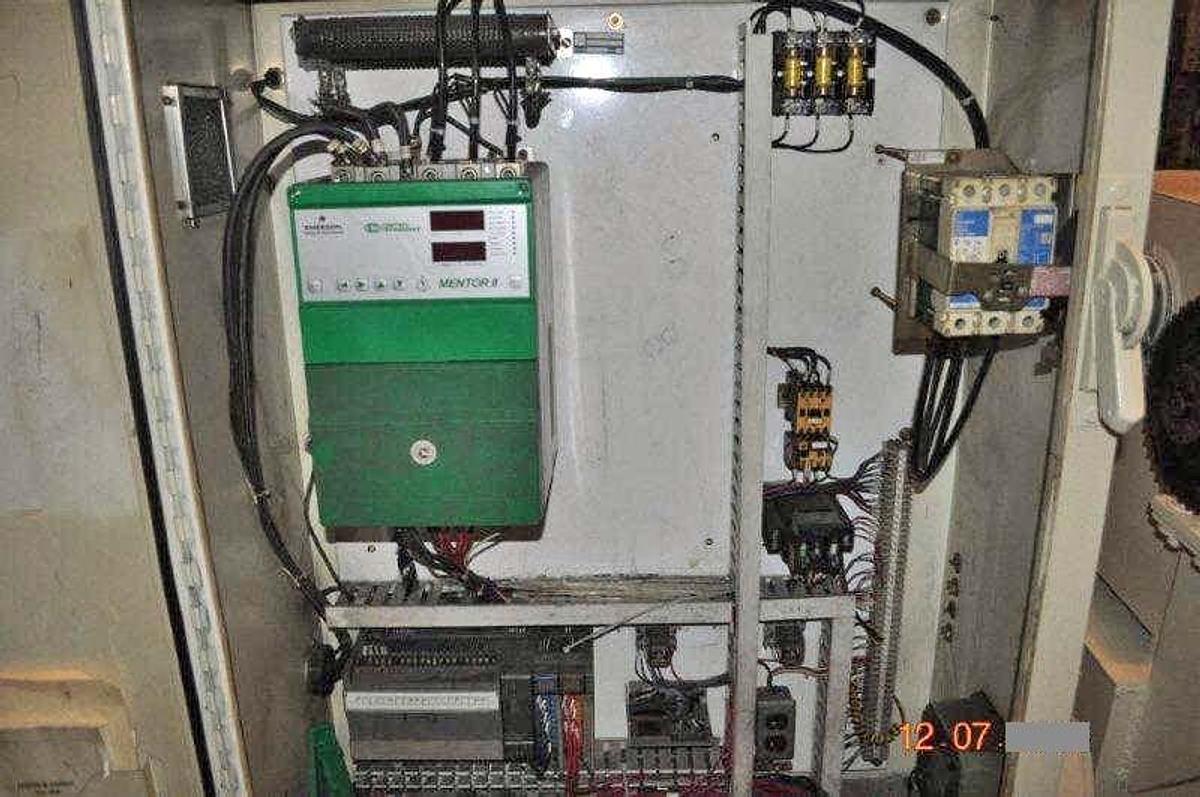

Variable Speed Control

Gearbox: Rebuilt In 1999

Reducer: Philadelphia In-Line Reducer With 3.88:1 Ratio

Operator Controls: Less Operators Control Panel

Overall Size:

Leveler: 73” L x 50” W x 68” H

Drive: 83” L x 40” W x 62” H
