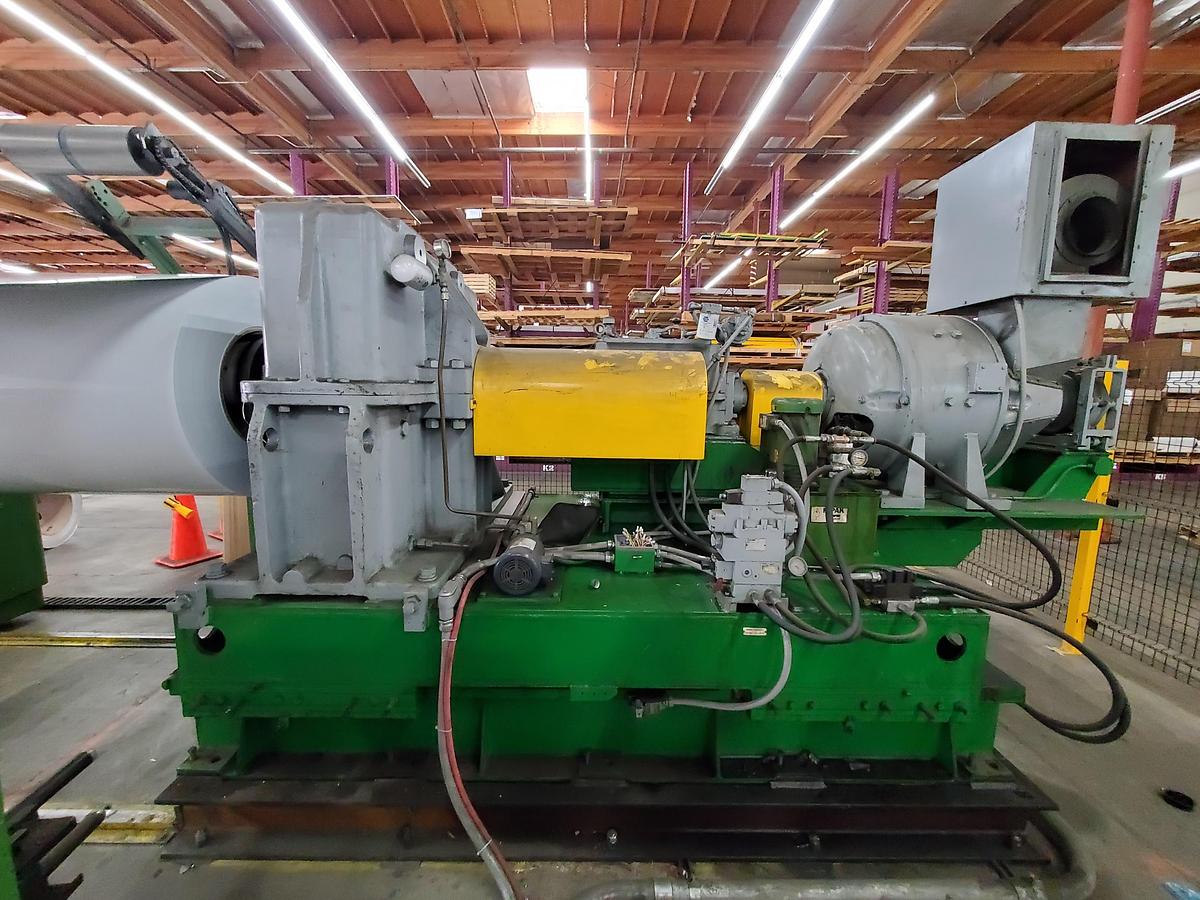

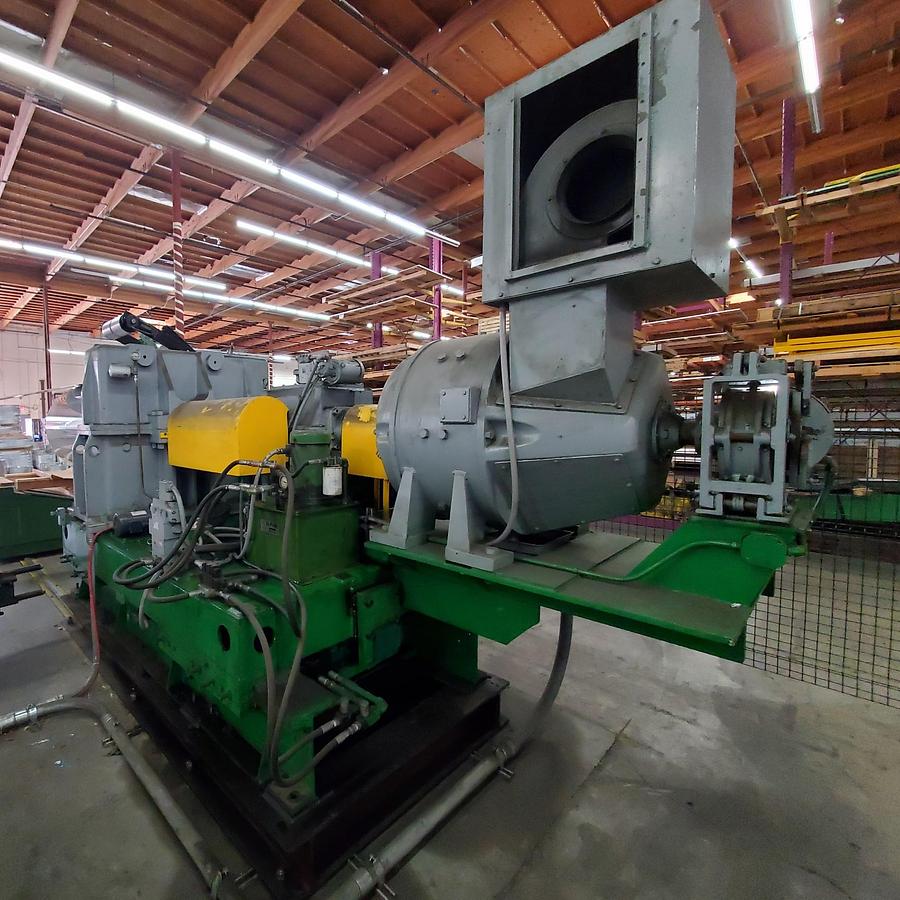

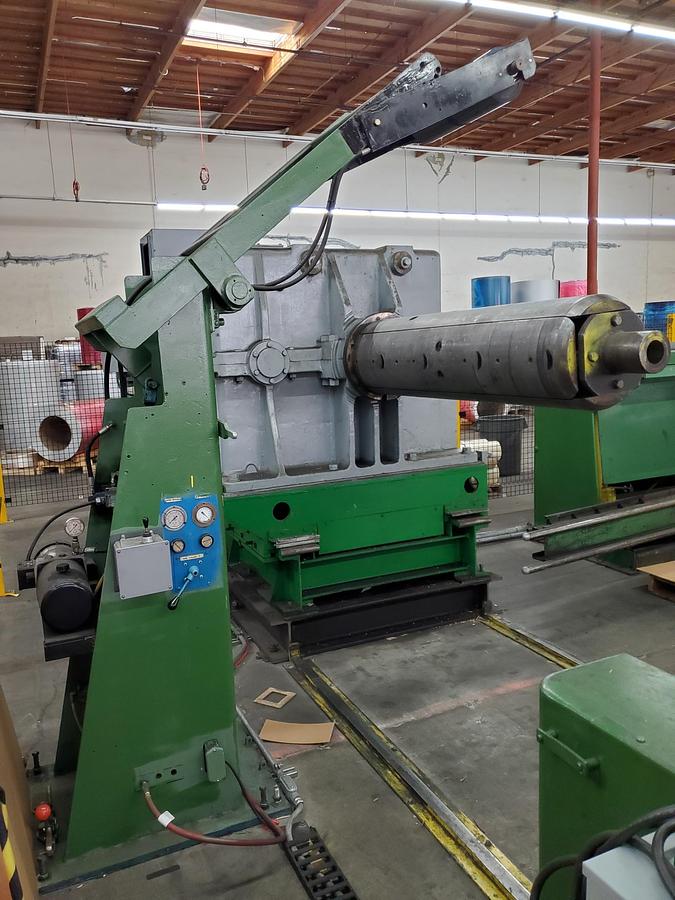

60" x 20,000 Lbs. Uncoiler

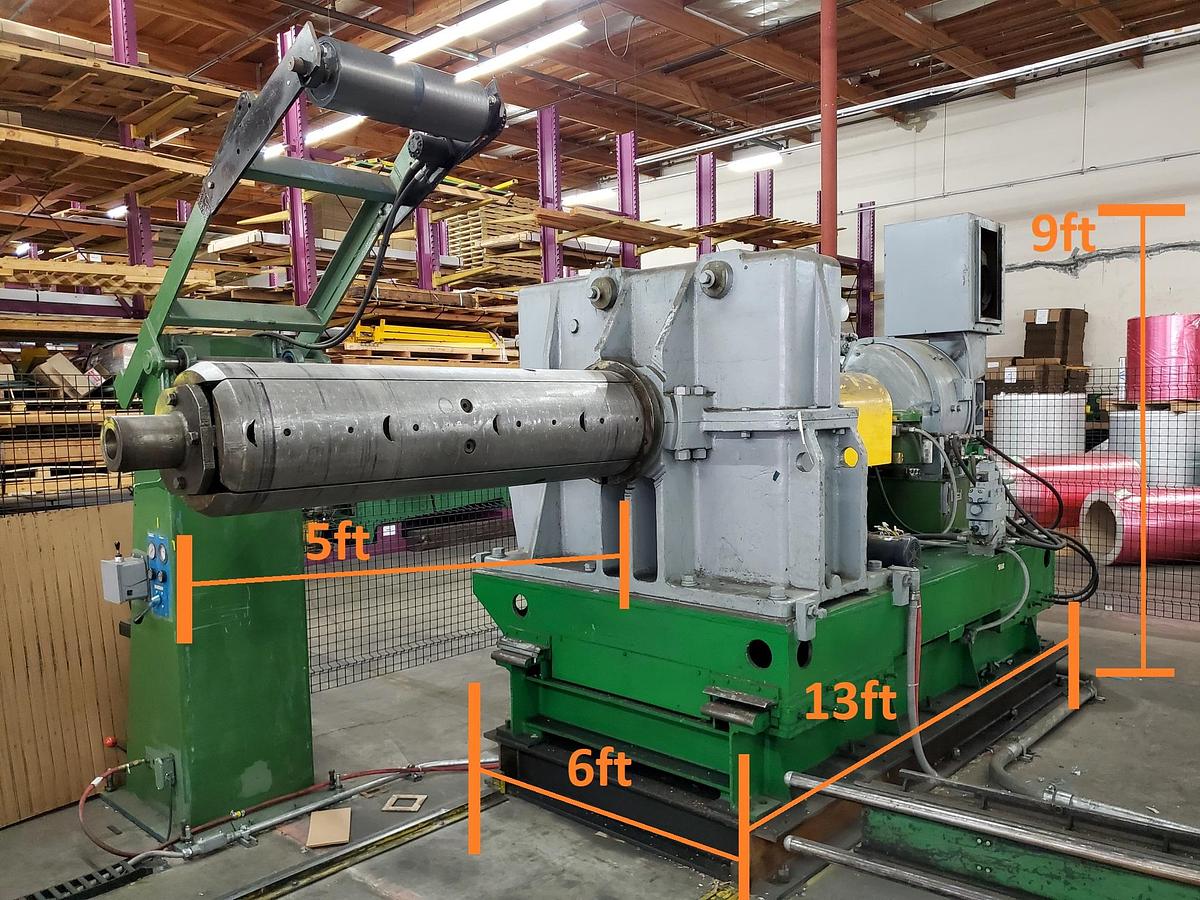

This used 60" x 20,000 lbs. uncoiler is designed to manage large coil weights with impressive efficiency. With a material width capacity of 60" and a substantial coil weight capacity of 20,000 lbs., it is well-suited for demanding industrial applications. The uncoiler features a hydraulic sliding base and hydraulic mandrel expansion, with an expansion range from 15.5" to 21". The mandrel's inner diameter is 15.5", providing ample flexibility for diverse coil sizes. The unit is powered by a robust 50 HP motor and includes a self-contained hydraulic unit for smooth operation. The footprint of this equipment measures 18' in length, 6' in width, and 9' in height, ensuring a compact yet sturdy structure. A free-standing hold-down roll offers additional stability during operation. With an approximate weight of 30,000 lbs., the uncoiler is built to withstand the rigors of heavy-duty usage in industrial environments, making it a reliable choice for handling substantial coil loads effectively.
