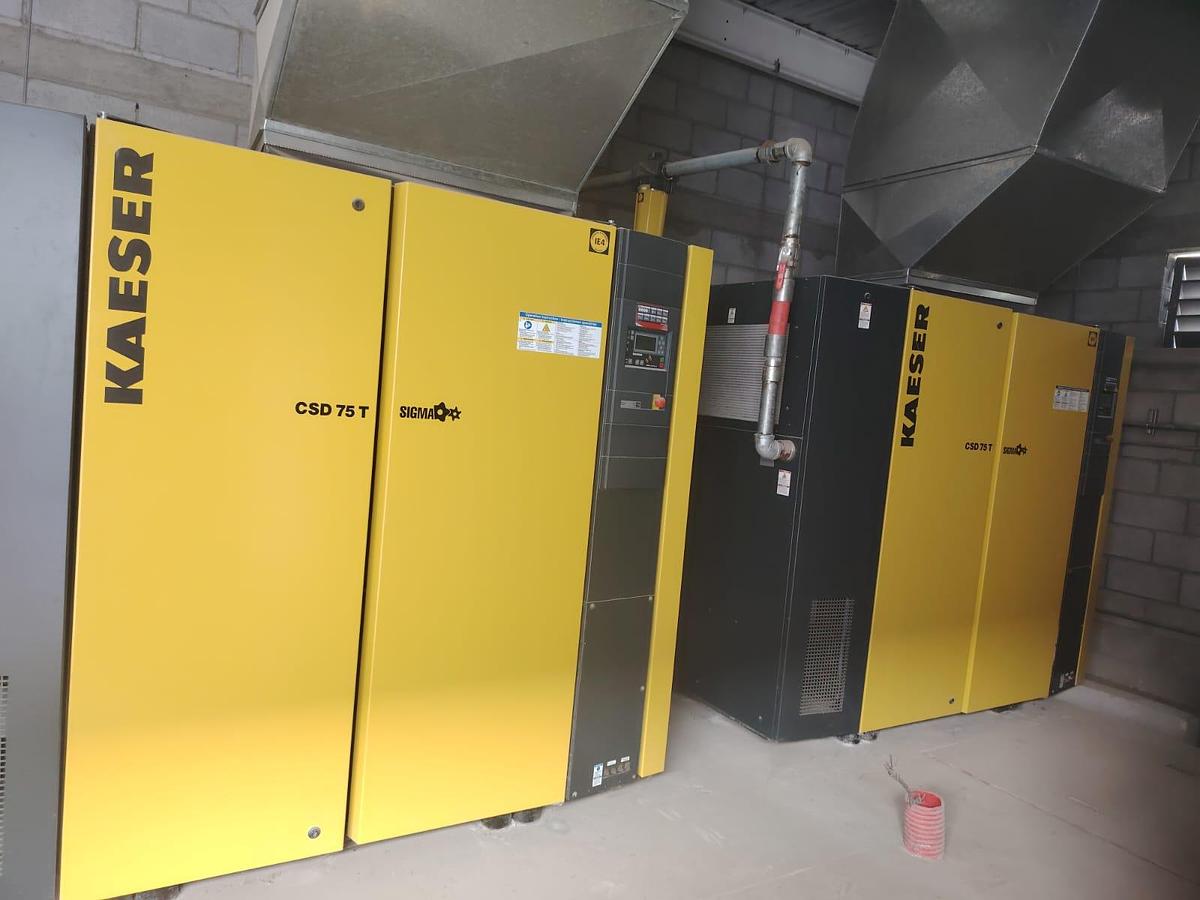

125 HP Kaeser CSD75T Rotary Screw Air Compressor with Dryer

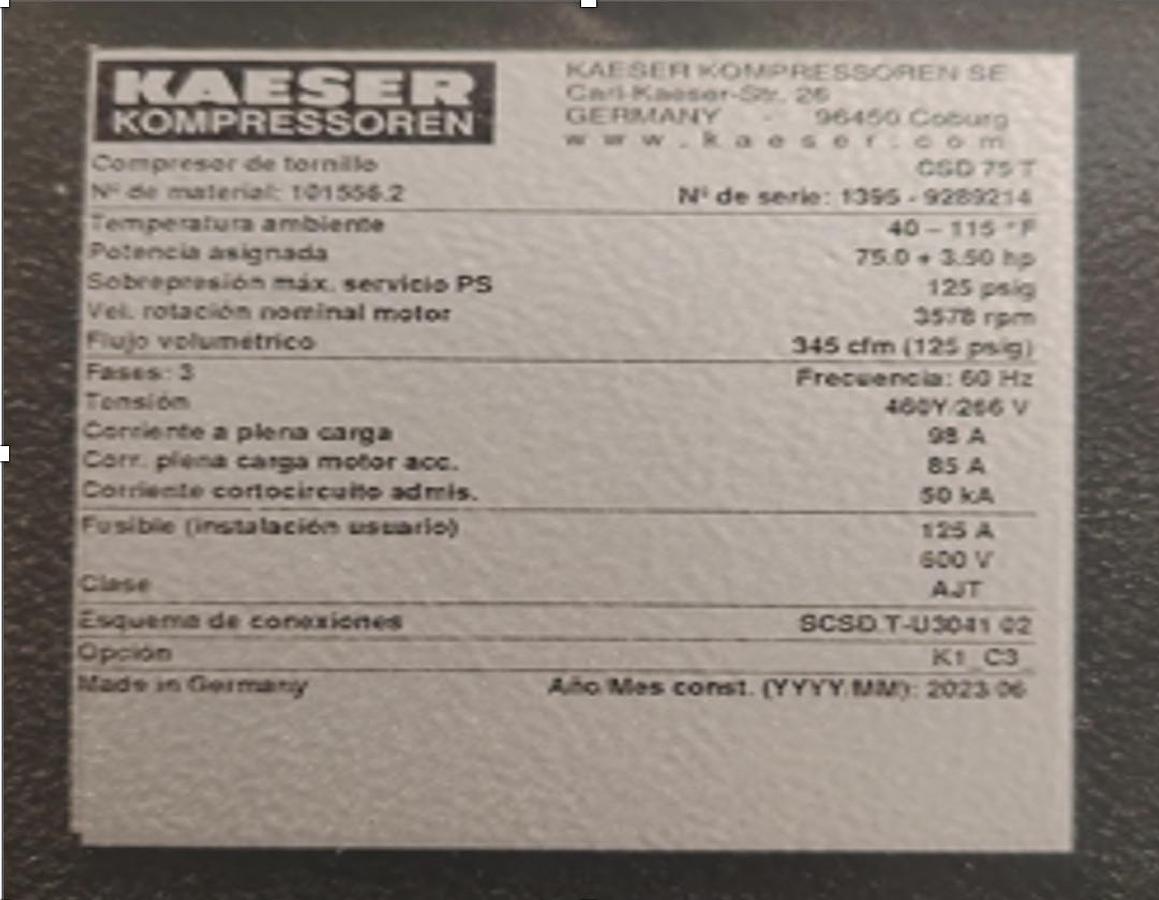

Specifications:

Horsepower: 125 HP

Flow Capacity: 345 CFM @ 125 PSIG

Maximum Pressure: 125 PSIG

Ambient Temperature Range: 40 – 115 °F

Motor Speed: 3575 RPM

Phases: 3

Frequency: 60 Hz

Voltage: 460/266 V

Full Load Amps: 99 A

Max Motor Amps: 85 A

Short Circuit Rating: 50 kA

Fuse (User Installed): 125 A

Class: 500 V

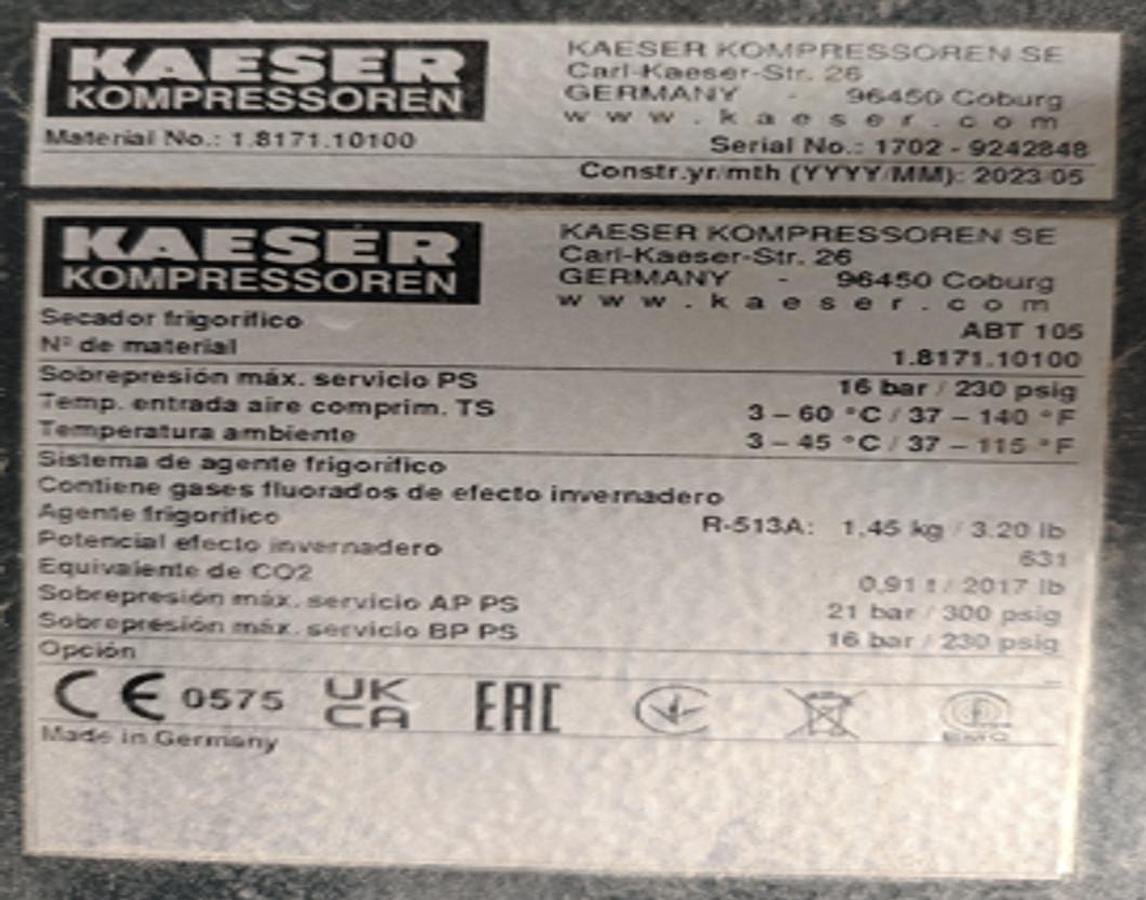

Dryer (Integrated Refrigerated Dryer):

Model: ABT 105

Max Pressure: 230 PSIG (16 Bar)

Air Inlet Temperature: 37 – 140 °F (3 – 60 °C)

Ambient Temperature Range: 37 – 115 °F (3 – 45 °C)

Refrigerant: R-513A (1.45 kg / 3.20 lb)

Condition:

Low Hours Unit

Approximate Service Hours: ~2,900 Hours

Sigma Control Panel with Active Maintenance Tracking

Maintenance Status (From Control Panel):

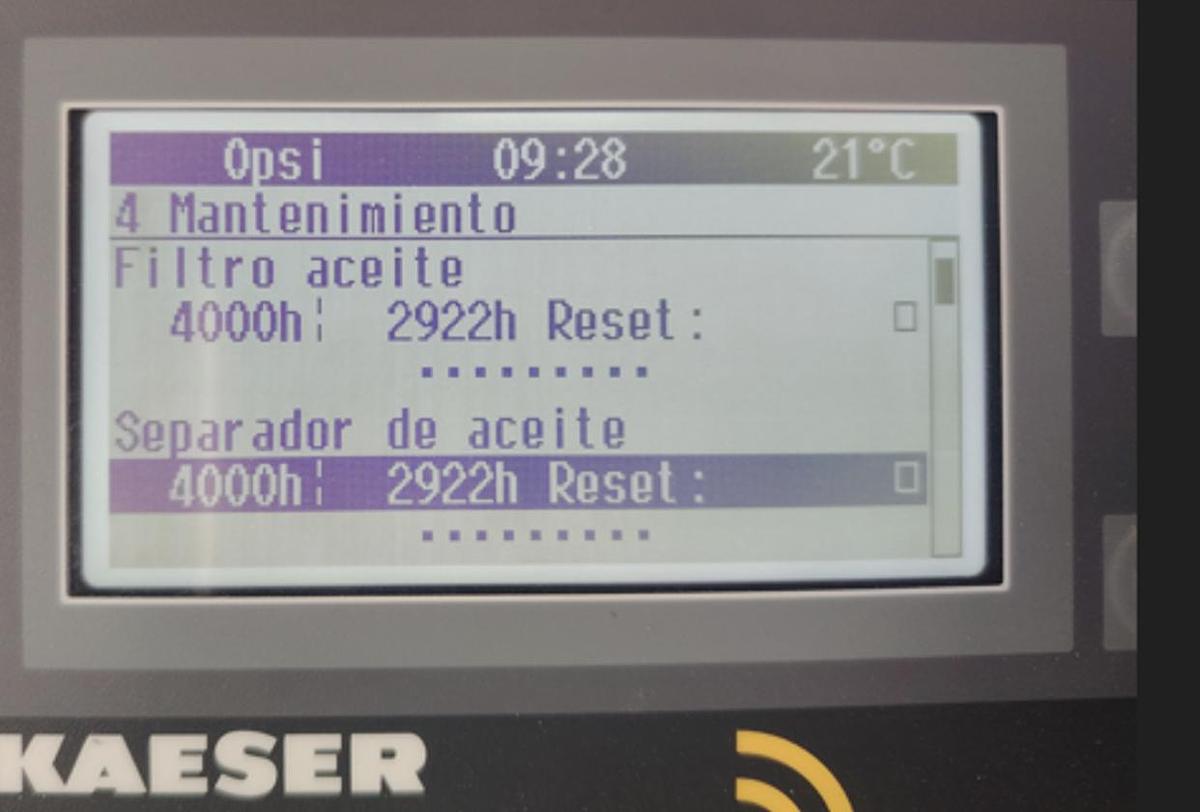

Oil Filter / Separator Interval: 4000h (Approx. 2922h Used)

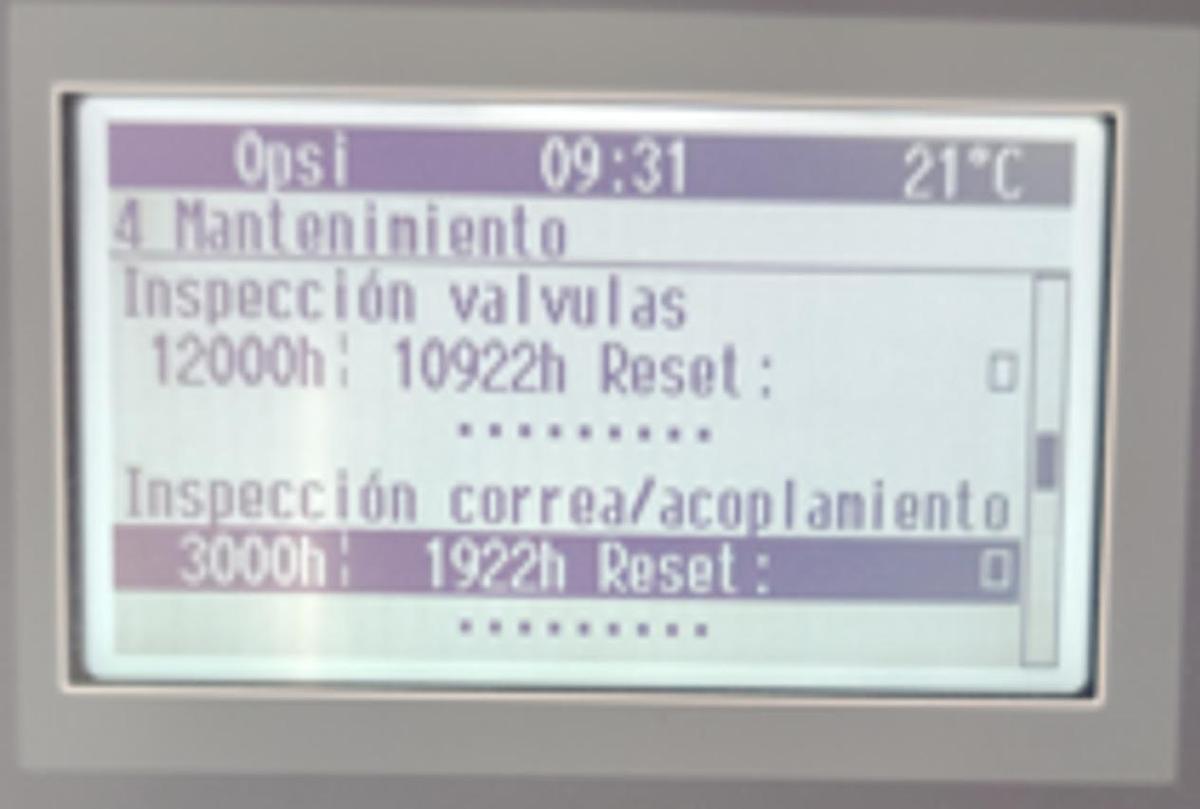

Valve Inspection Interval: 12000h (Approx. 10922h Remaining)

Coupling/Belt Inspection: 3000h (Approx. 1922h Remaining)

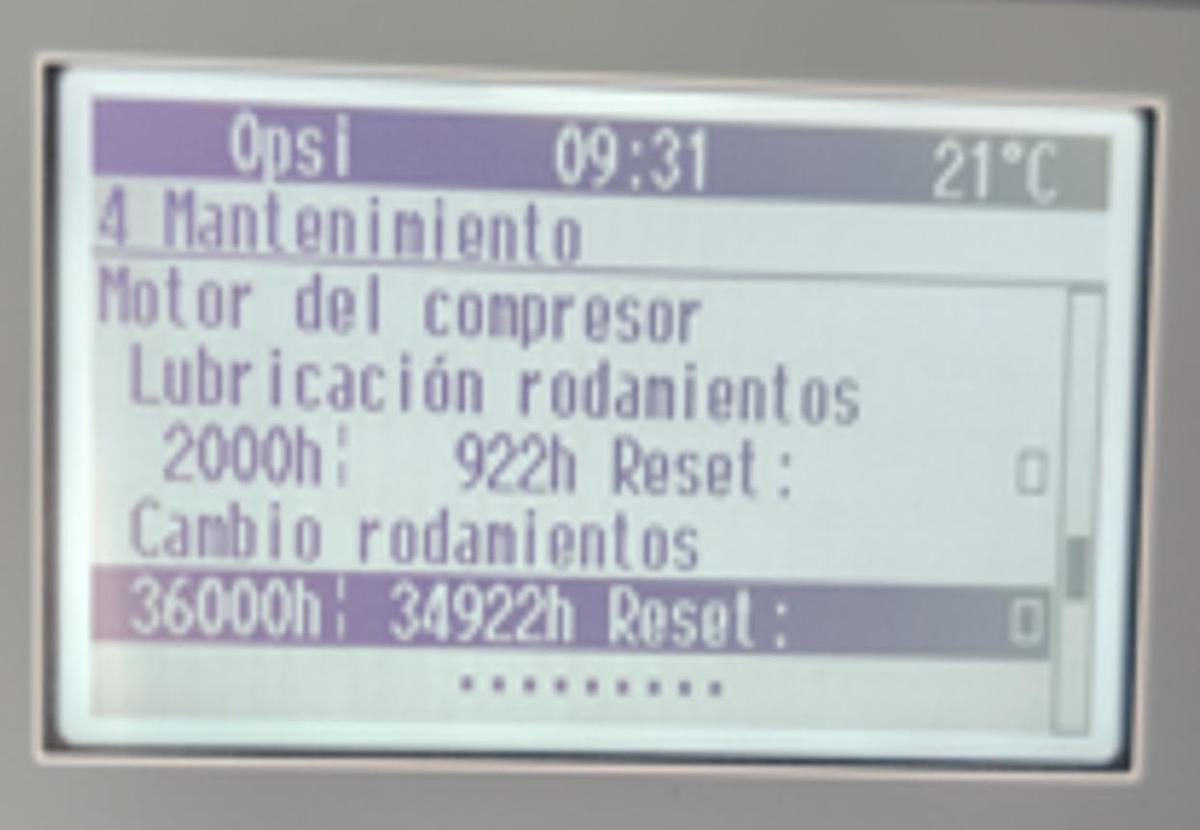

Motor Bearing Service: 2000h (Approx. 922h Remaining)

Major Bearing Service: 36000h (Approx. 34922h Remaining)

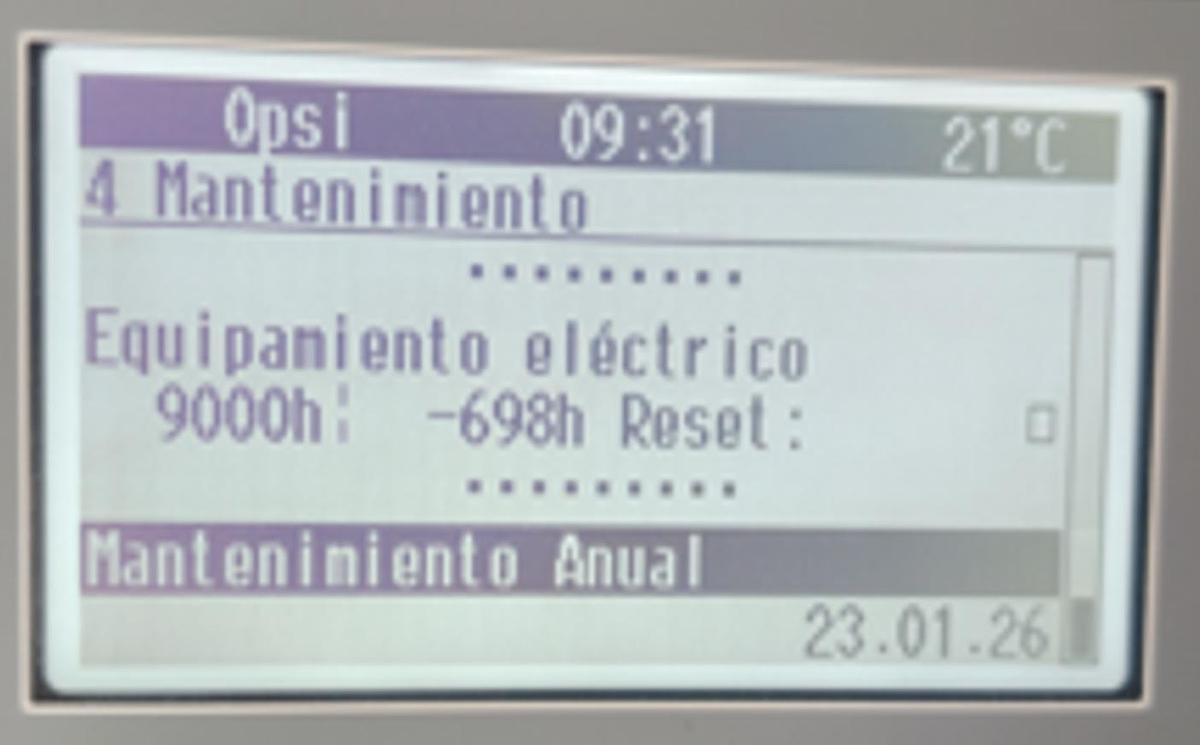

Electrical Maintenance Interval: 9000h
