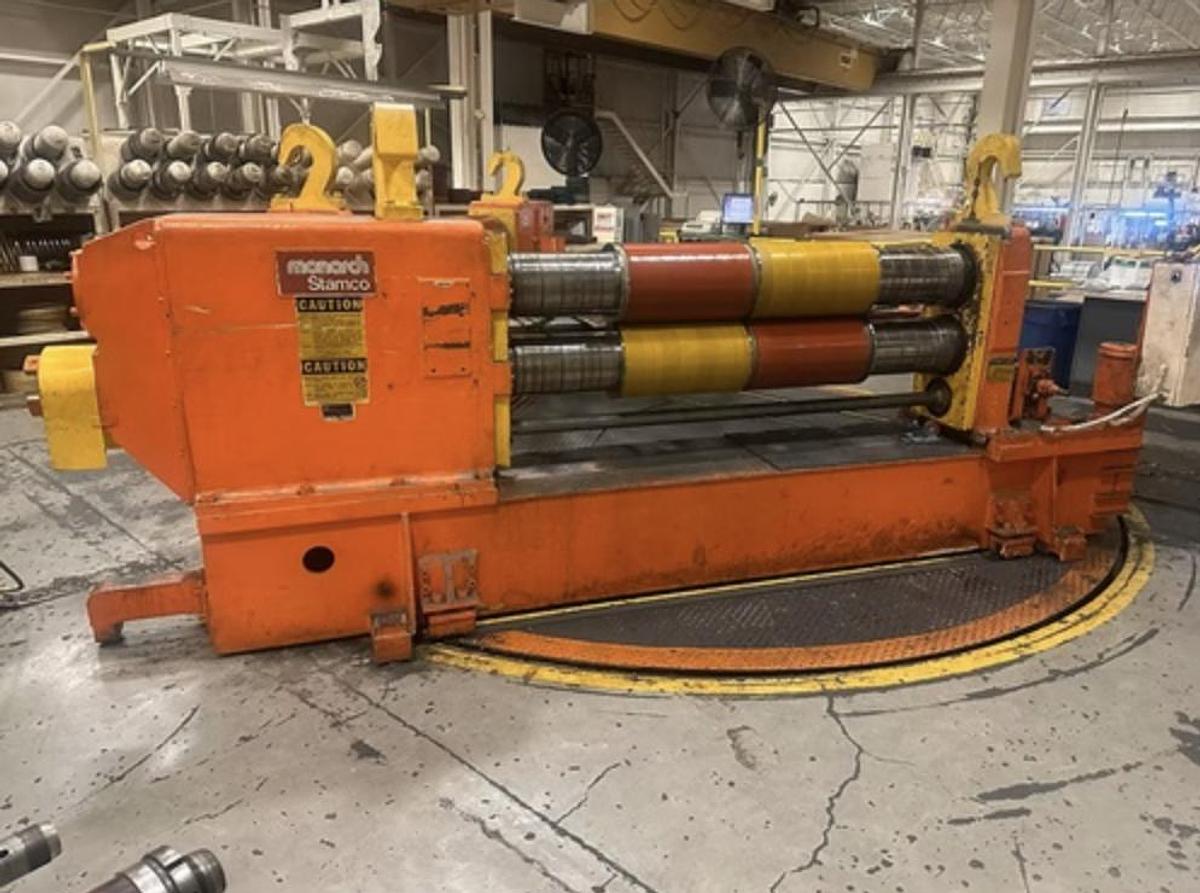

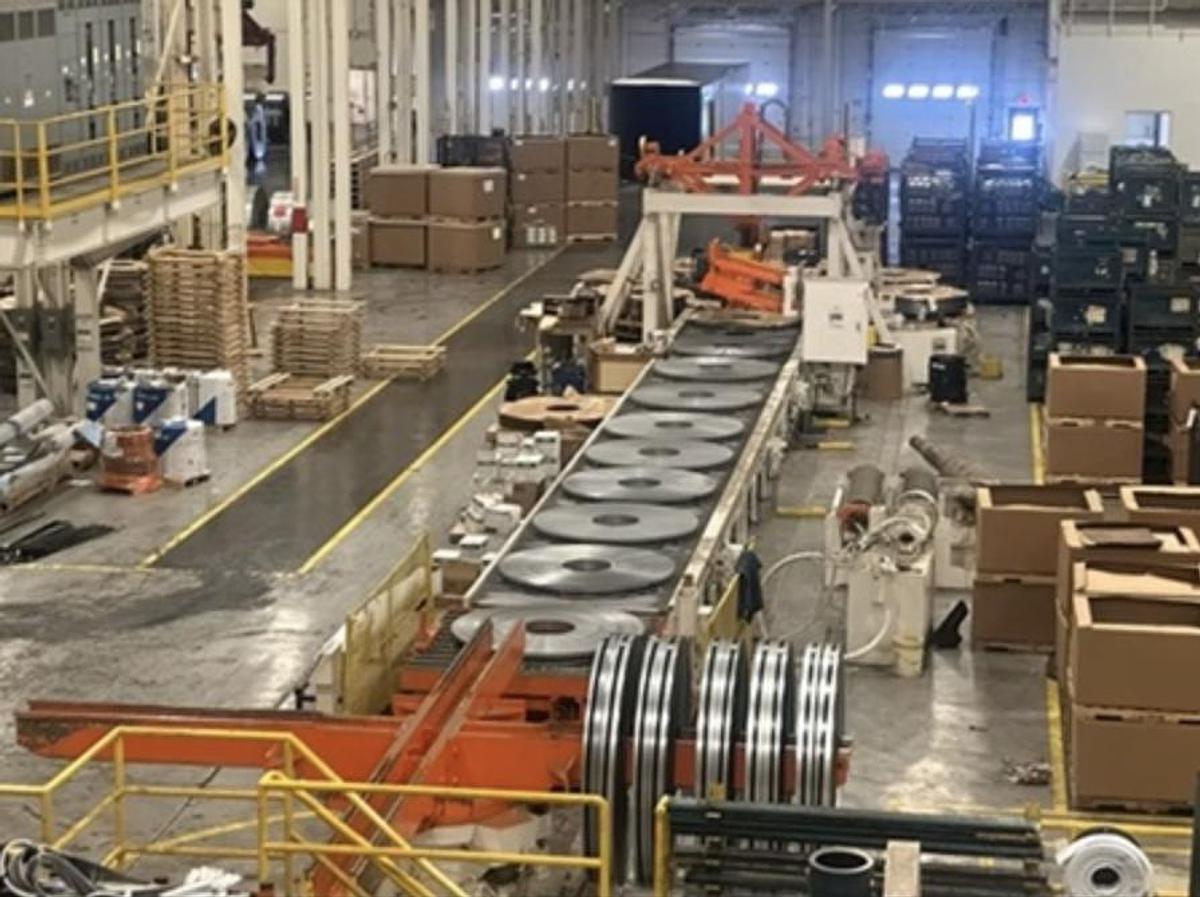

72” x .135” x 65,000 lb Stamco Single Loop Slitting Line
Specifications
| Manufacturer | Stamco |
| Year | 1992 |
| Condition | Used |
| Stock Number | VX-35967 |
| Minimum Material Thickness | 0.015" |
| Maximum Material Thickness | 0.135" |
| Minimum Coil Width | 12" |
| Maximum Coil Width | 72" |
| Maximum Untrimmed Coil Width | 74" |
| Maximum Coil Weight | 65,000 Lbs. |
| Minimum Entry Coil OD | 36" |
| Maximum Entry Coil OD | 80" |
| Minimum Exit Coil OD | 36" |
| Maximum Exit Coil OD | 80" |
| Entry Coil ID | 20" - 24" (28" - 32" with Filler Plates) |
| Exit Coil ID | 20" or 24" Quick Change Quill Type Drums |
| Minimum Shear Strength | 40,000 PSI |
| Maximum Shear Strength | 90,000 PSI |
| Minimum Yield Strength | 35,000 PSI |
| Maximum Yield Strength | 90,000 PSI |
| Line Direction | Left to Right |
| Slitter Arbor Diameter | 8" |
| Number of Slitter Heads | 2 Packed Arbor |
| Number of Edge Trimmer Heads | 1 |
| Slitter Head Exchange | Injector Style with Rotating Carousel Tray |
| Low Line Speed | 500 FPM |
| High Line Speed | 1,000 FPM |
| Uncoiler Drive | 200 HP DC Feed-Up Drive / Drag Generator Brake |
| Slitter Drive | 125 HP DC |
| Scrap Baller Drive | AC Motor |
| Tension Stand Drive | 125 HP DC Feed-Up Drive / Drag Generator Brake |
| Recoiler Drive | 200 HP DC |
Description
The Stamco Single Loop Slitting Line, with its 72” width and capacity to handle coil weights up to 65,000 lbs, is ideal for processing materials like CRS, HRPO, galvanized, and pre-painted steels. It operates efficiently within a thickness range of .015” – .135”, boasting shear and yield strengths between 35,000 to 90,000 PSI. The line runs from left to right and supports coils with a maximum width of 72” (untrimmed up to 74”) and diameters ranging from 36” to 80”. Key components include dual injector-style slitter heads with an 8” arbor diameter, and a quick-change quill type drum for coil IDs of 20” or 24”. Its drive configuration is robust, featuring 200 HP DC for both the uncoiler and recoiler, alongside a 125 HP DC drive for the slitter, capable of achieving line speeds of 500 to 1,000 FPM. The system's flexibility is enhanced by operator control stations, AC controls, and a comprehensive hydraulic system, ensuring an adaptable and efficient operation for various industrial needs.
Includes
Four Arm Entry Storage Turnstile
Floor Level Entry Coil Car
Cantilevered Mandrel Uncoiler
20" / 24" Hydraulic Drum
Hydraulic Sliding Base
125 HP Feed-Up Drive / Drag Generator Brake
Uncoiler Outboard Support
Plastic Uncoiler Filler Plates for 28" - 32" ID Coils
North American Electronic Edge Control System
Dual Pivoting & Telescoping Peeler Blades
Entry Pinch Rolls
Entry Crop Shear
Threading Table
Scrap Cart
Loral Non-Contact Thickness Measurement System
Roller Type Side Guides
Pivoting Slitter Entry Bridle Roll
Slitter Base
125 HP DC Drive
(2) Packed Arbor Injector Slitter Heads
8" Diameter Arbors
(1) Side Trimming Injector Head
Powered Slitter Head Injector System
Slitter Head Storage Tray (3 Positions)
Slitter & Separator Tooling
Tooling Cabinets
Heavy-Duty Edge Trim Scrap Baller System
Pivoting Pit Threading Tables
Dual Strip Separator Spindles
Quick Change Tooling System
Strip Snubber
Roll Type Tension Stand
125 HP DC Feed-Up Drive / Drag Generator Brake
Tail Clamping Pad
13 Roll Shape Correction Leveler
Quick Change Cassette
Exit Crop Shear
Scrap Cart
Pivoting Scrap / Strip Inspection Table
Overhead Inspection Lights
Exit Pass Line Roll
Pivoting Recoiler Threading Table
Strip Hold-Down Clamp
20" / 24" Quill Type Turret Recoiler
Sliding Coupling
200 HP DC Drive
Rotating Base
(2) Hollow-Bore Drum Frames
Pivoting Overarm Separators
(2) Coil Pushers
Floor Level Exit Coil Car
Powered Coil Stabilizing Clamp
In-Floor Powered Turntable (90° Rotation)
In-Floor Exit Coil Scale
Four Arm Exit Storage Turnstile
Operator Control Stations
AC Controls
Variable Speed Drive Controls
Closed Loop Hydraulic System
