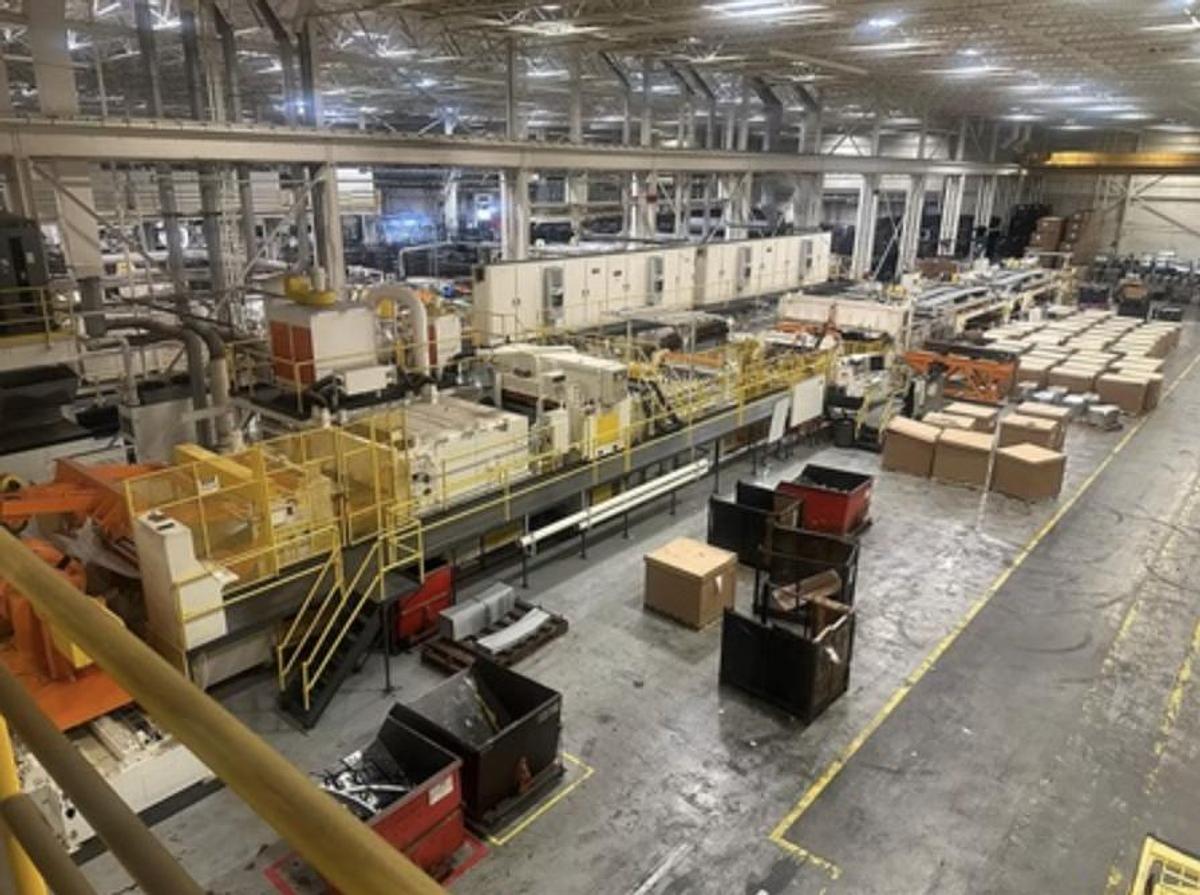

72” x .135” x 75,000 lb Automatic Feed Trapezoidal Cut-To-Length Line
Specifications
| Manufacturer | Automatic Feed Company |
| Year | 1989 |
| Condition | Used |
| Stock Number | VX-35968 |
| Minimum Thickness | 0.020" |
| Maximum Thickness | 0.125" |
| Maximum Coil Width | 74" |
| Maximum Coil Weight | 75,000 Lbs. |
| Minimum Coil OD | 38" |
| Maximum Coil OD | 80" |
| Coil ID | 28" |
| Minimum Blank Length | 24" |
| Maximum Blank Length | 168" |
| Maximum Blank Width | 74" |
| Maximum Pack Height | 26" Including Pallet |
| Maximum Pack Weight | 25,000 Lbs. |
| Maximum Line Speed | 300 FPM at Leveler |
| Line Direction | Left to Right |
| Drive | DC |
| Work Roll Diameter | 2.50" |
| Type | Oscillating Cut-Off Shear |
| Maximum Shear Angle | +/- 30° |
| Die Type | Quick-Change |
| Cut Types | Straight, Trapezoid & Chevron |
Description
The 72” x .135” x 75,000 lb Automatic Feed Trapezoidal Cut-To-Length Line by Automatic Feed Company is a robust solution for processing various types of steel, including cold rolled, HRPO, and galvanized materials. Designed to handle a maximum coil weight of 75,000 lbs and a coil width up to 74", it operates efficiently with thicknesses ranging from 0.020" to 0.125". The line supports a maximum line speed of 300 feet per minute and provides a left-to-right line direction. This used line includes key features such as a 19-roll leveler with 2.50" work roll diameter and a DC drive. The oscillating cut-off shear is capable of +/- 30° shear angles and comes with quick-change die sets, allowing for cuts in straight, trapezoid, and chevron shapes. It accommodates blank lengths from 24" to 168" and widths up to 74". Comprehensive equipment is integrated, including dual magnetic blank stackers with a 14' capacity, and an extensive conveyor system for blank transport. Quality control is facilitated with a strip inspection table featuring non-marking belts. Enhanced versatility and efficiency are achieved with adjustable operator control stations, AC controls, and a closed-loop hydraulic system, underscoring the line's advanced industrial capability for precise and high-volume cut-to-length operations.
Includes
Coil Storage Saddles
- Two (2) Storage Positions
End-Traveling Coil Loading Car
Dual Expanding Mandrel Uncoiler
- DC Feed-Up Drive / Drag Generator Brake
- Machine-Mounted Hold-Down Roll
- Pivoting & Telescoping Peeler Blade
Entry Pinch Rolls
Entry Crop Shear
- Threading Table
- Scrap Cart

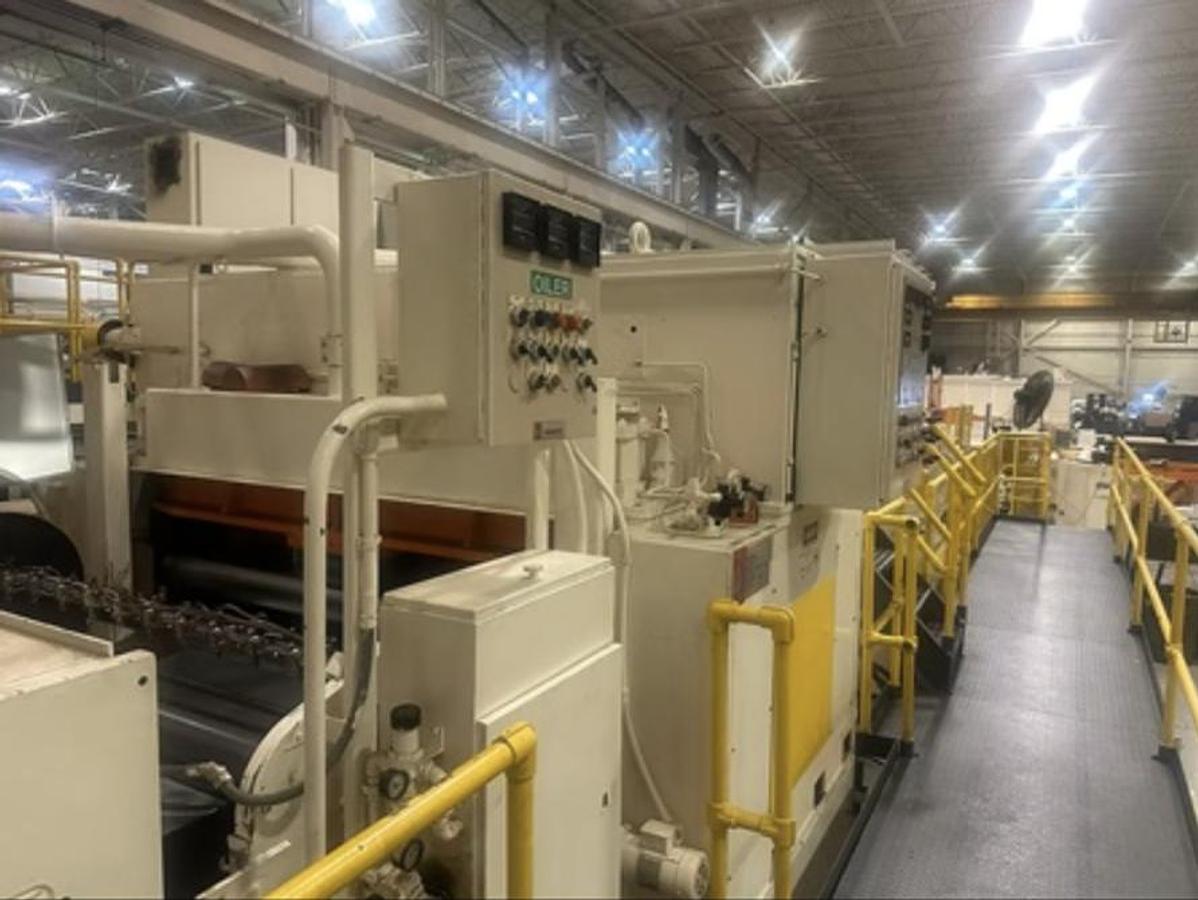

Spray Nozzle-Type Strip Oiler
19-Roll Leveler
- 2.50" Diameter Work Rolls
- Seven (7) Backup Flights
- DC Drive
Leveler Exit Pinch Rolls
Strip Inspection Table
Entry Loop Feed Rolls
Looping Pit Quadrant Tables
- Pivoting Entry Threading Table
- Pivoting Exit Threading Table
Exit Loop Feed Rolls

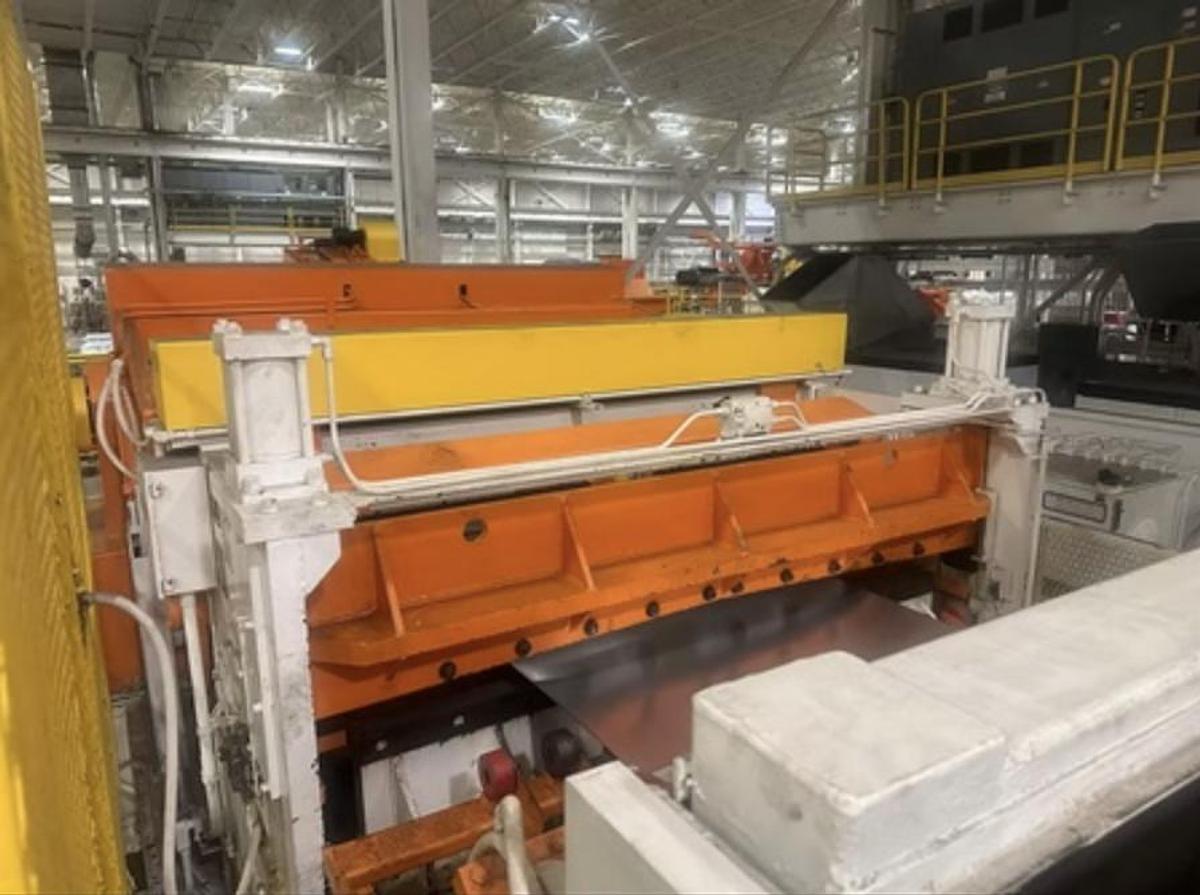

Main Cut-Off Shear
- +/- 30° Oscillation
- Quick-Change Die Sets
Die Set No. 1
- Straight Knives
- Straight or Trapezoidal Cuts
Die Set No. 2
- Angled Knives
- Chevron Cuts
Die Storage & Shuttle Cart
- Two (2) Positions
Inspection Table
- Non-Marking Belts
Belt Conveyor System
- Transports Blanks from Inspection Station
Stacker No. 1
- 14' Magnetic Blank Stacker
- Dual Shuttle Cart
- Discharge to Operator Side or Drive Side Blank Storage Conveyor System
Stacker No. 2
- 14' Magnetic Blank Stacker
- Dual Shuttle Cart
- Discharge to Operator Side or Drive Side Blank Storage Conveyor System
Scrap Shuttle Cart
- Operator-Side Scrap Removal
Drive-Side Blank Storage Conveyor System
Controls & Hydraulics:
Operator Control Stations
AC Controls
Variable-Speed Drive Controls
Closed-Loop Hydraulic System
