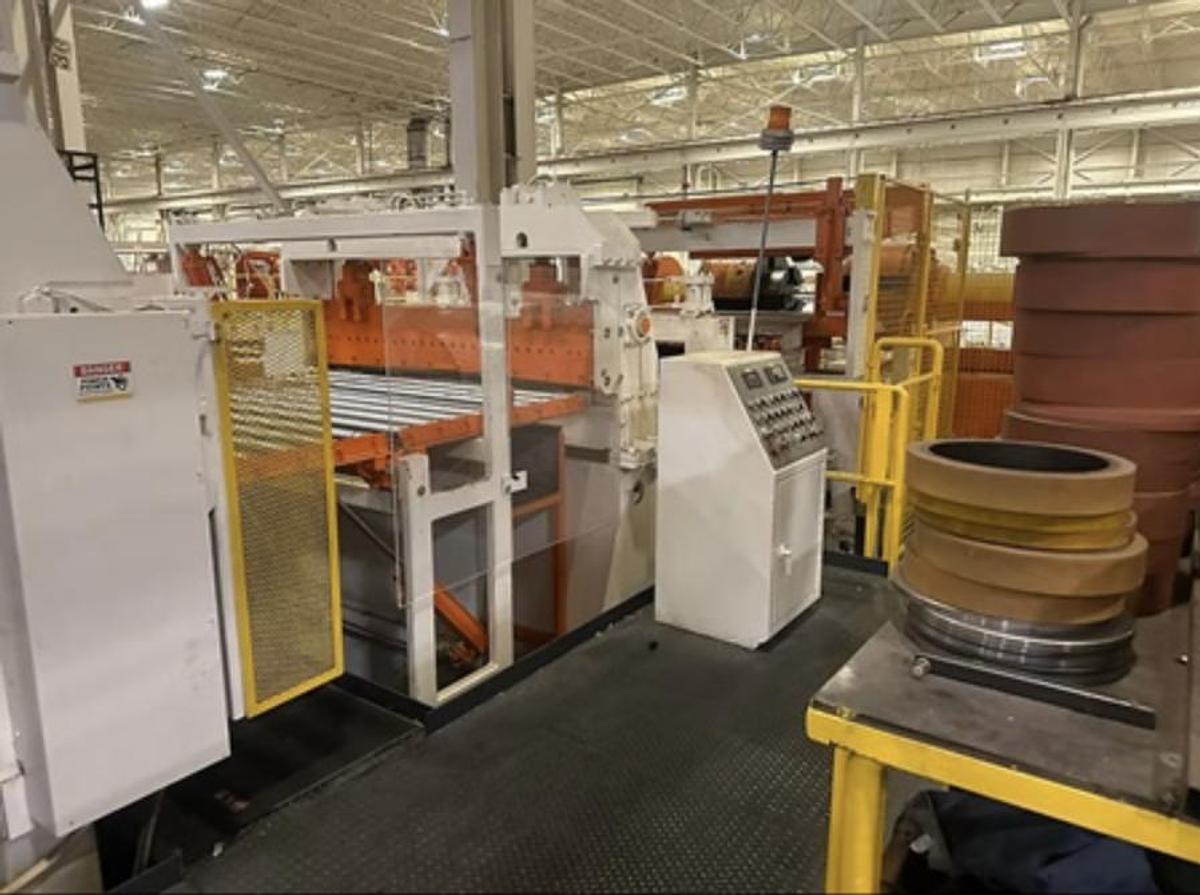

72” x .125” x 75,000 lb Strilich/Bradbury Multi-Blanking Line
Specifications
| Manufacturer | Strilich/Bradbury |
| Year | 1996 |
| Condition | Used |
| Stock Number | VX-35969 |
| Minimum Thickness | 0.015" |
| Maximum Thickness | 0.125" |
| Minimum Coil Width | 12" |
| Maximum Coil Width | 74" |
| Maximum Coil Weight | 75,000 Lbs. |
| Minimum Coil ID | 20" |
| Maximum Coil ID | 24" |
| Maximum Coil OD | 72" |
| Minimum Yield Strength | 20,000 PSI |
| Maximum Yield Strength | 80,000 PSI |
| Minimum Blank Length | 12" |
| Maximum Blank Length | 180" |
| Minimum Single Blank Width | 12" |
| Maximum Single Blank Width | 74" |
| Minimum Multi-Blank Width | 8" |
| Maximum Multi-Blank Width | 36" |
| Maximum Pack Height | 30" Including Pallet (Estimated) |
| Maximum Pack Weight | 20,000 Lbs. |
| Maximum Line Speed | 250 FPM |
| Line Direction | Right to Left |
Description
The 72" x .125" x 75,000 lb Strilich/Bradbury Multi-Blanking Line is a high-capacity cut-to-length line designed for processing steel materials. It handles a range of materials including cold-rolled steel, HRPO, hot-dip galvanized, electro-galvanized, and pre-painted steel. The line supports coil widths from 12" to 74" and thicknesses from 0.015" to 0.125", with a maximum coil weight of 75,000 lbs. It can process materials with yield strengths between 20,000 PSI and 80,000 PSI. Key features include a 17-roll Bradbury leveler with a 200 HP DC drive, a dual slitter head system with an 8" arbor diameter powered by a 75 HP drive, and a high-speed mechanical shear driven by a 15 HP motor. The multi-blanking line also incorporates an air-float stacker with mechanical dividers and a traversing blank hold-down system. This equipment offers versatile blanking capabilities, producing single or multiple blanks with widths ranging from 8" to 74", and lengths from 12" to 180". The line is equipped with essential components such as coil storage saddles, an automatic feed dual-expanding mandrel uncoiler, an automatic edge guide system, and conveyor systems for efficient processing. It operates at a maximum speed of 250 feet per minute, ensuring high productivity. With operator control stations, AC controls, and a closed-loop hydraulic system, this multi-blanking line is designed for precision and reliability in various industrial applications.
Includes
Coil Storage Saddles
- One (1) Storage Position
End-Traveling Coil Loading Car
Automatic Feed Dual Expanding Mandrel Uncoiler
- 100 HP Unico DC Feed-Up Drive / Drag Generator Brake
- Machine-Mounted Hold-Down Roll
- Pivoting & Telescoping Peeler Blade
Automatic Edge Guide System
Entry Pinch Rolls
Roller-Type Strip Centering Guides
Entry Crop Shear
- Threading Table
- Scrap Cart
Leveler Entry Pinch Rolls
Bradbury Hydraulic Leveler
- 17 Work Rolls
- 7 Backup Flights
- 4-High Configuration
- 200 HP DC Drive
Strip Inspection & Carry-Over Table
Roller-Type Strip Centering Guides
Slitter Base
- 75 HP DC Drive

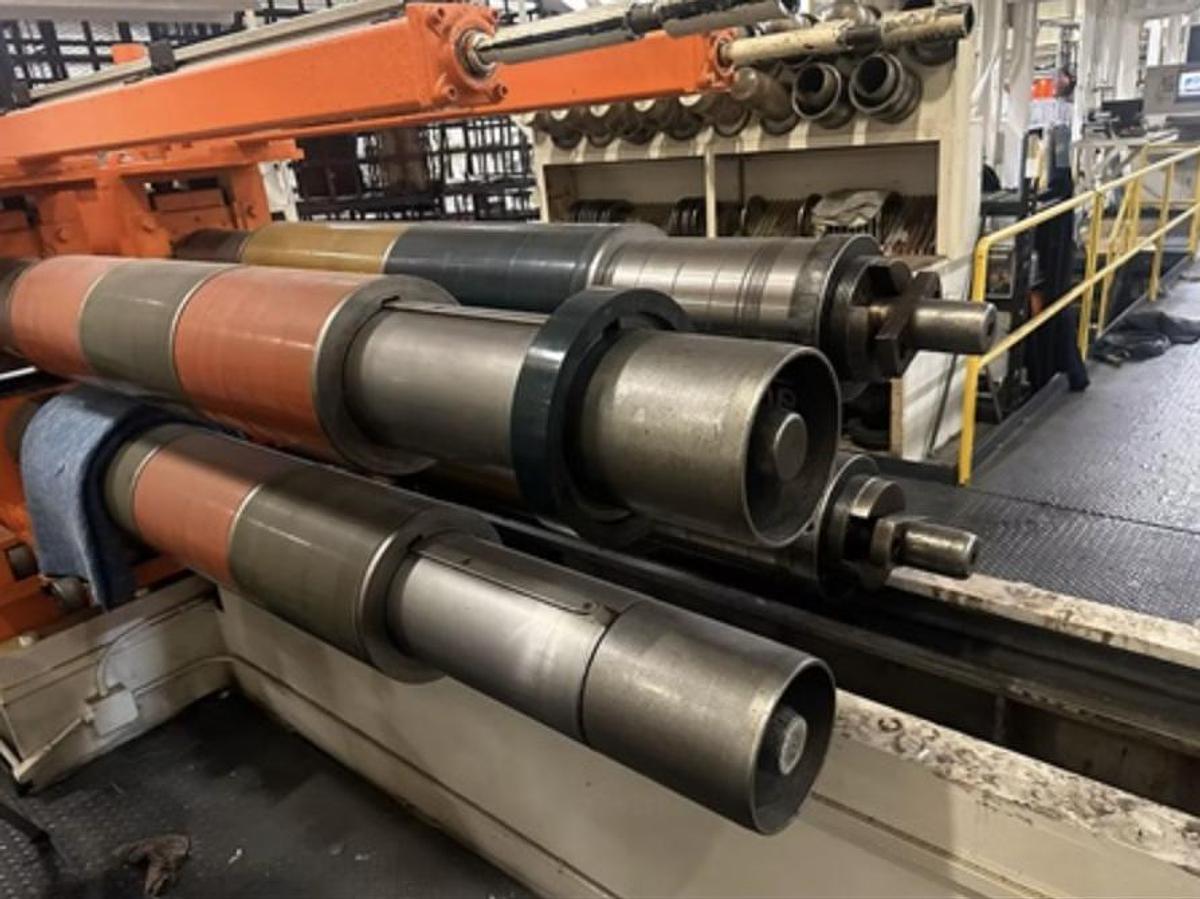

Two (2) Packed-Arbor Injector Slitter Heads
- 8" Diameter Arbors
Powered Slitter Head Injector System
Slitter Head Storage Tray
- Two (2) Positions
Slitter & Separator Tooling
- One (1) Lot
- Tooling Cabinets
Heavy-Duty Edge Trim Scrap Baller System
- AC Motor
Strip Inspection & Carry-Over Table
Looping Pit Quadrant Tables
- Belt-Style Threading Table
Roller-Type Strip Centering Guides
- Entry Strip Separator Spindle
Adjustable Strip Bridle Roll Assembly
Full-Width 4-High Roll Feeder
- AC Induction Motor Drive
High-Speed Mechanical Shear
- 15 HP AC Motor
Pivoting Belt Conveyor
- Blank Inspection
- Transports Blanks to Stacker or Scrap Cart
Traversing Blank Hold-Down System
- Belt Conveyor Mounted
Stacker Feed Rolls
- Belt Conveyor Mounted
Air-Float Stacker
- 15' Nominal Length
- Air Blower
- Eight (8) Adjustable Strip Dividers
Powered Skid Injector
- 15' Nominal Length
Elevating Stacker Lift Table
- 15' Nominal Length
- End-Discharge Rollers
Package Runout
- 20' Nominal Length
- End-Discharge Rollers
- Scale
Controls & Hydraulics:
Operator Control Stations
AC Controls
Variable-Speed Drive Controls
Closed-Loop Hydraulic System
