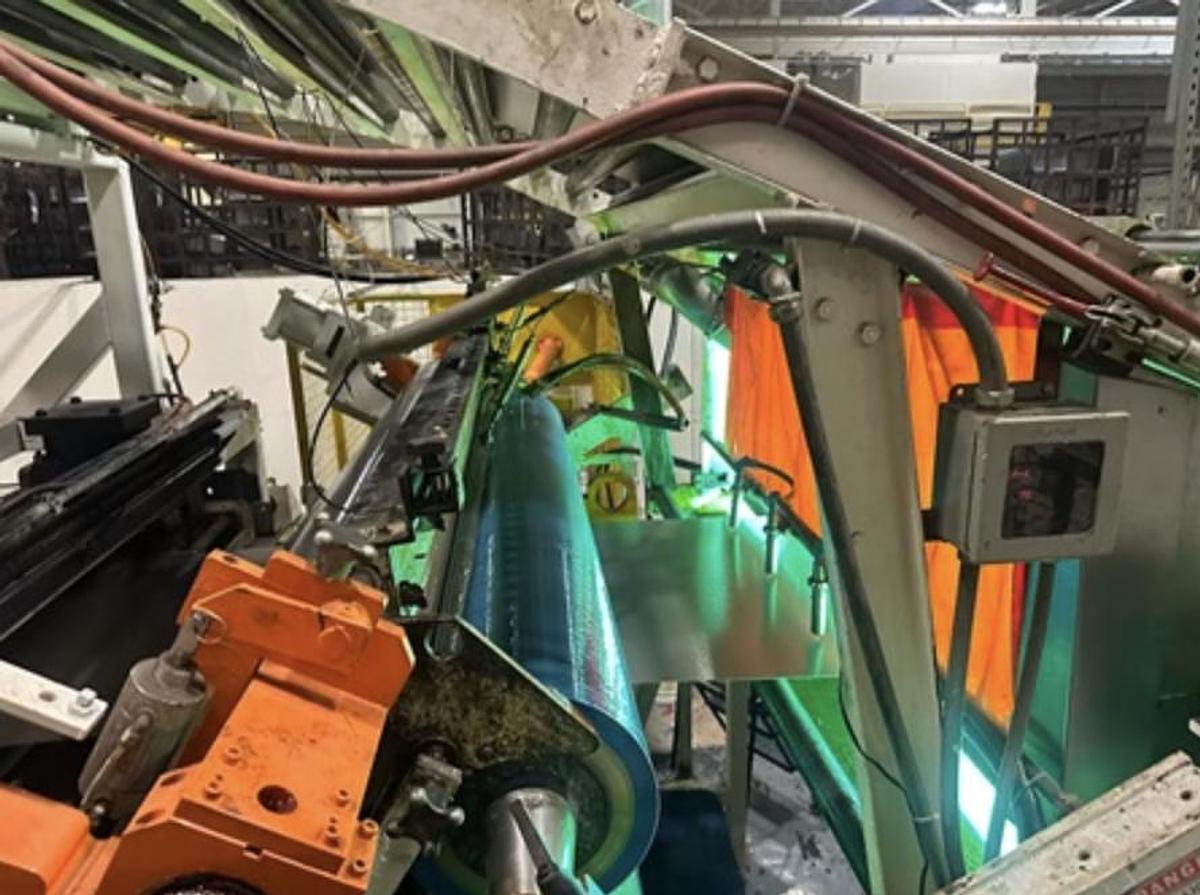

68” x .032” x 45,000 lb Laminating / Bonding Adhesive Line

Specifications:

Manufacturer: Custom Built

Line Direction: Left To Right

Material: Steel And Aluminum

Thickness: .032” (Steel), .040” (Aluminum)

Max Coil Width: 68”

Max Coil Weight: 45,000 lb

Coil OD: 72” Max (Estimated, Entry & Exit)

Coil ID Entry: 20” Or 24” (Estimated)

Coil ID Exit: 20” (Estimated)

Line Speed: 25 FPM Max

Line Components:

Four Arm Entry Storage Turnstile #1

Floor Level Coil Loading Car #1

Cantilevered Mandrel Uncoiler #1 w/ 20” / 24” Hydraulic Drum, Slide Base

Hold-Down Roll And 125 HP Feed-Up Drive / Drag Generator Brake

Electronic Edge Control System #1

Pivoting And Telescoping Peeler Blade #1

Entry Pinch Rolls #1

Four Arm Entry Storage Turnstile #2

Floor Level Coil Loading Car #2

Cantilevered Mandrel Uncoiler #2 w/ 20” / 24” Hydraulic Drum, Slide Base

Hold-Down Roll And 125 HP Feed-Up Drive / Drag Generator Brake

Electronic Edge Control System #2

Pivoting And Telescoping Peeler Blade #2

Entry Pinch Rolls #2

Upper And Lower Strip Threading System w/ Non-Marking Rollers

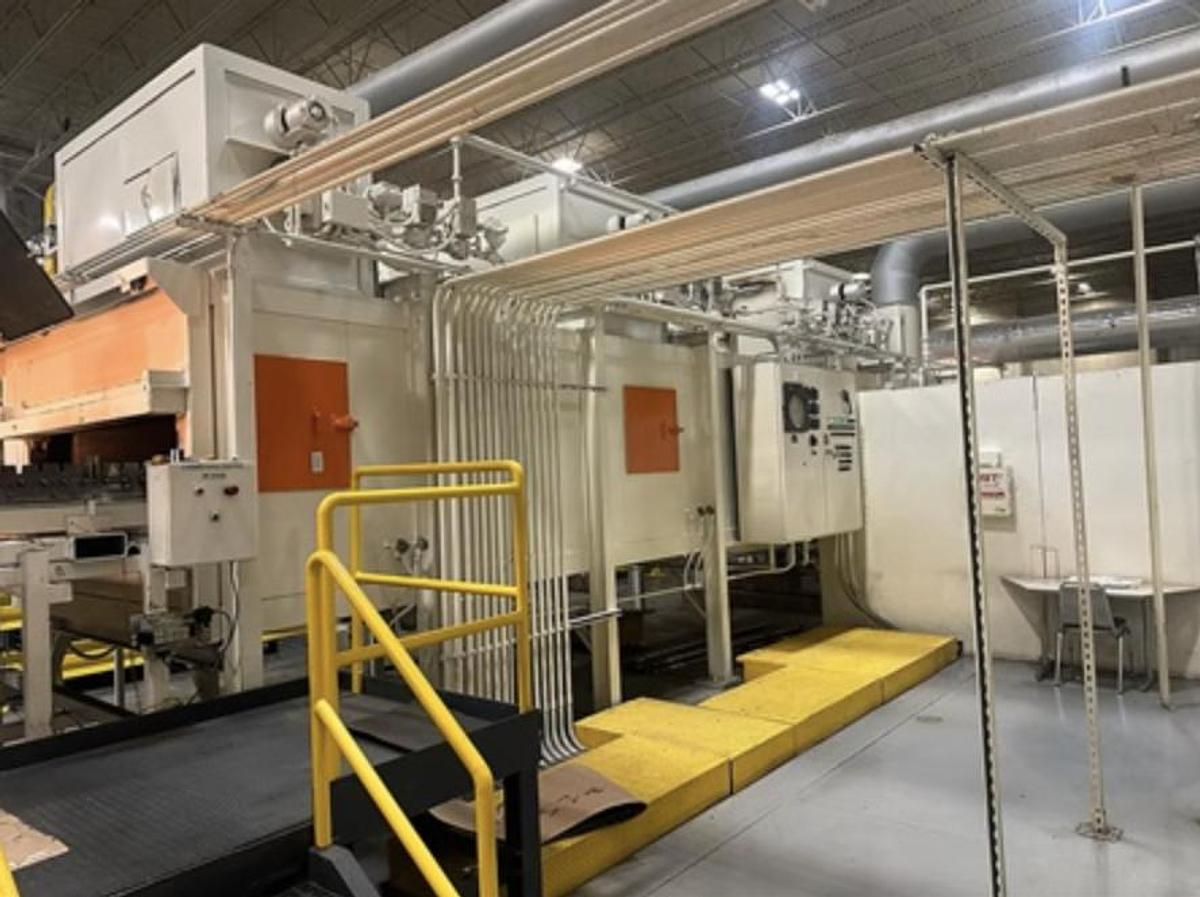

“Unitherm” Dual Level, Three-Zone, Natural Gas Fired Furnace #1

Upper And Lower Strip Cascade Rolls w/ Non-Marking Rollers

Video Inspection System w/ Seven (7) Camera Views

Injector Style Strip Laminating Head w/ DC Drive

“Black Brothers” Traversing Horizontal Coil Coater

“Unitherm” Single Level, Three-Zone, Natural Gas Fired Furnace #2

Strip Centering Guides

Exit Straightener

Exit Crop Shear

Pad Type Tension Stand

Three (3) Roll Exit Bridle Set

Cantilevered Mandrel Recoiler w/ Poly Covered Winding Drum And Slide Base

Non-Marking Belt Wrapper For High-Speed Threading

Pit Type Coil Unloading Car

Operator Control Stations

AC Controls

Variable Speed Drive Controls

Closed Loop Hydraulic System
