18" x .025" PM / Andritz Oscillating Slitting Line with 12 Recoilers
Specifications
| Manufacturer | PM / Andritz |
| Condition | Used |
| Stock Number | VX-35972 |
| Material | 1095 High Carbon Steel |
| Tensile Strength | 120,000 PSI |
| Shear Strength | 96,000 PSI |
| Minimum Thickness | 0.0045" |
| Maximum Thickness | 0.025" |
| Entry Strip Width | 18" |
| Traverse Winder Coil Width | 8" |
| Minimum Entry Coil ID | 15" |
| Maximum Entry Coil ID | 22" |
| Traverse Winder Coil ID | 11" |
| Exit Coil ID | 16" |
| Maximum Entry Coil OD | 54" |
| Maximum Exit Coil OD | 54" |
| Maximum Entry Coil Weight | 10,000 Lbs. |
| Maximum Exit Coil Weight | 10,000 Lbs. |
| Maximum Line Speed | 1,500 FPM |
| Line Direction | Left to Right |
Description
Cut Width Capacity:
0.0045" Thickness
- 0.250" Cut Width
- 0.375" Cut Width
- 0.500" Cut Width
- 0.750" Cut Width
- 1.000" Cut Width
0.0051" Thickness
- 0.375" Cut Width
- 0.500" Cut Width
- 0.625" Cut Width
- 0.875" Cut Width
0.0062" Thickness
- 0.375" Cut Width
Includes
Mandrel Uncoiler
- Hold-Down Roll
- 3-Leaf Hydraulic Expansion
- Sliding Base
- 15 HP Motor
- Disc Brake
- Edge Control
Peeler Table / Deflector Roll
Newcor Strip Welder
- Planishing
2-Roll Bridle Unit
- Tension Control
Double-Roll Tracking Roll
- Strip Alignment
Two (2) Sets of Rubber-Coated Deflector Rolls
Edge Guides

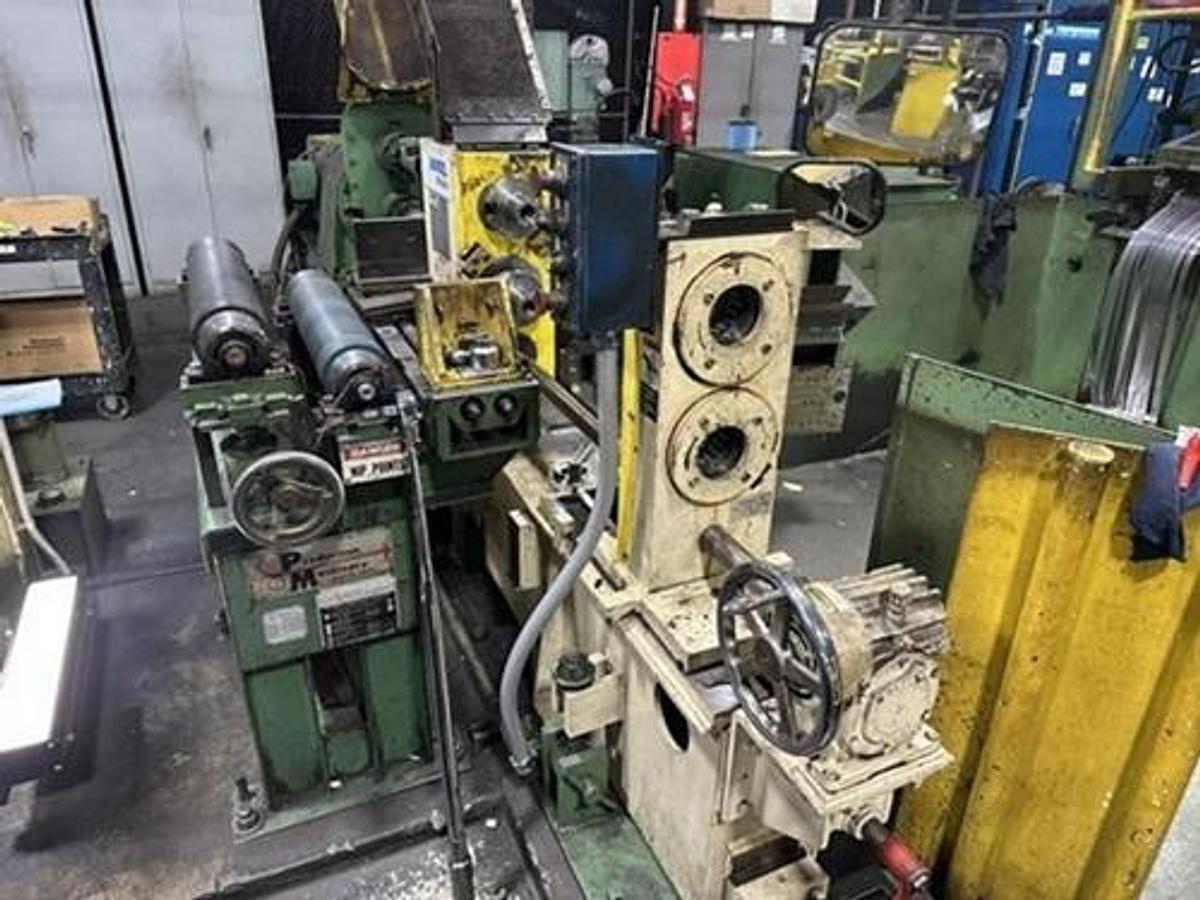

Andritz Slitter Head
- New in 2016
- 5" Diameter Arbors
- Twelve (12) Sets of Quick-Change Tooling Arbors
- Pre-Packed Arbors
- Shimless Tooling
- Anti-Friction Bearings
- 25 HP DC Drive
- 1,750 / 2,000 RPM
Scrap Baller

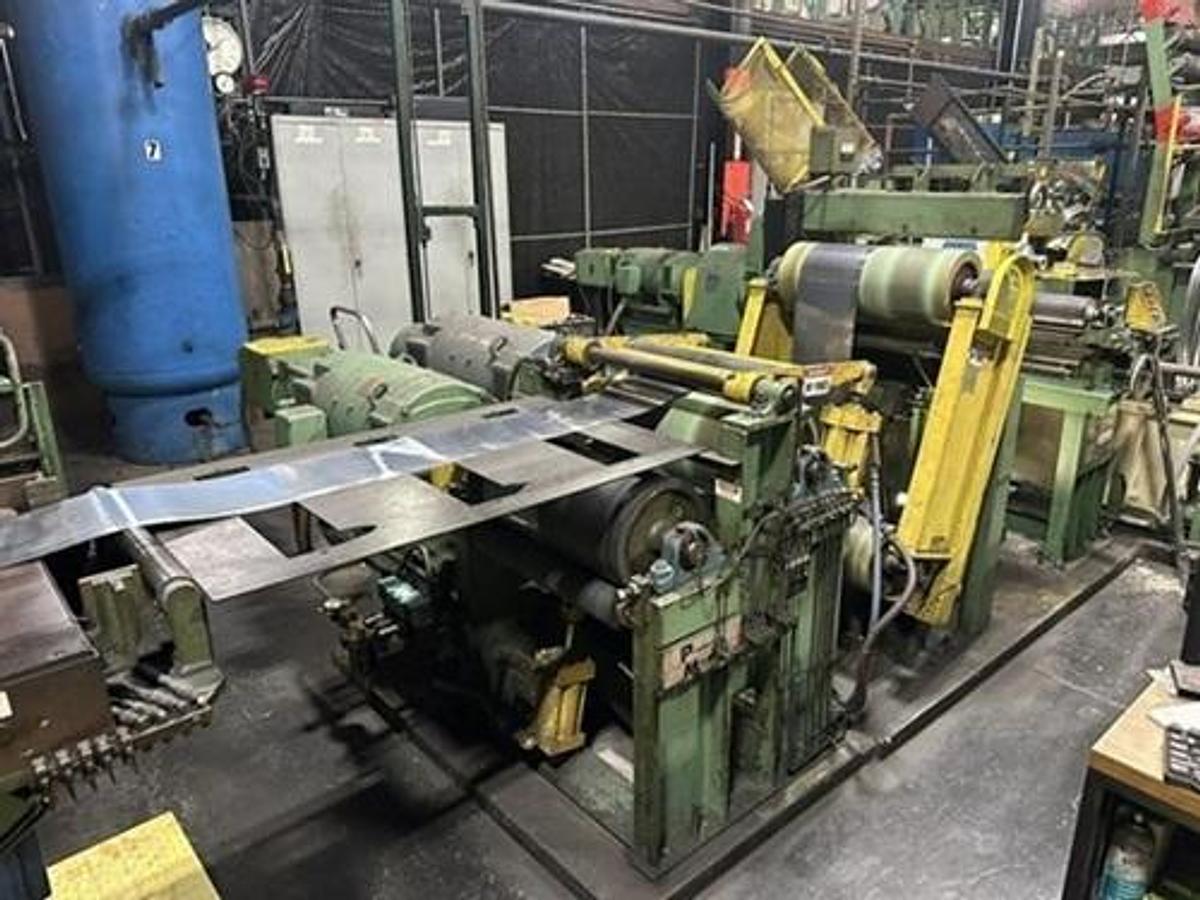

Recoiler
- 16" Diameter Drum
- 21" Drum Face
- 10,000 Lb. Coil Capacity
- 30 HP DC Drive
- Hydraulic Push-Off
- Hold-Down Roll
- 1-Arm Exit Turnstile
Vertical Strand Separator
- Aligns Strips After Exiting Slitter
- Deflector Rolls

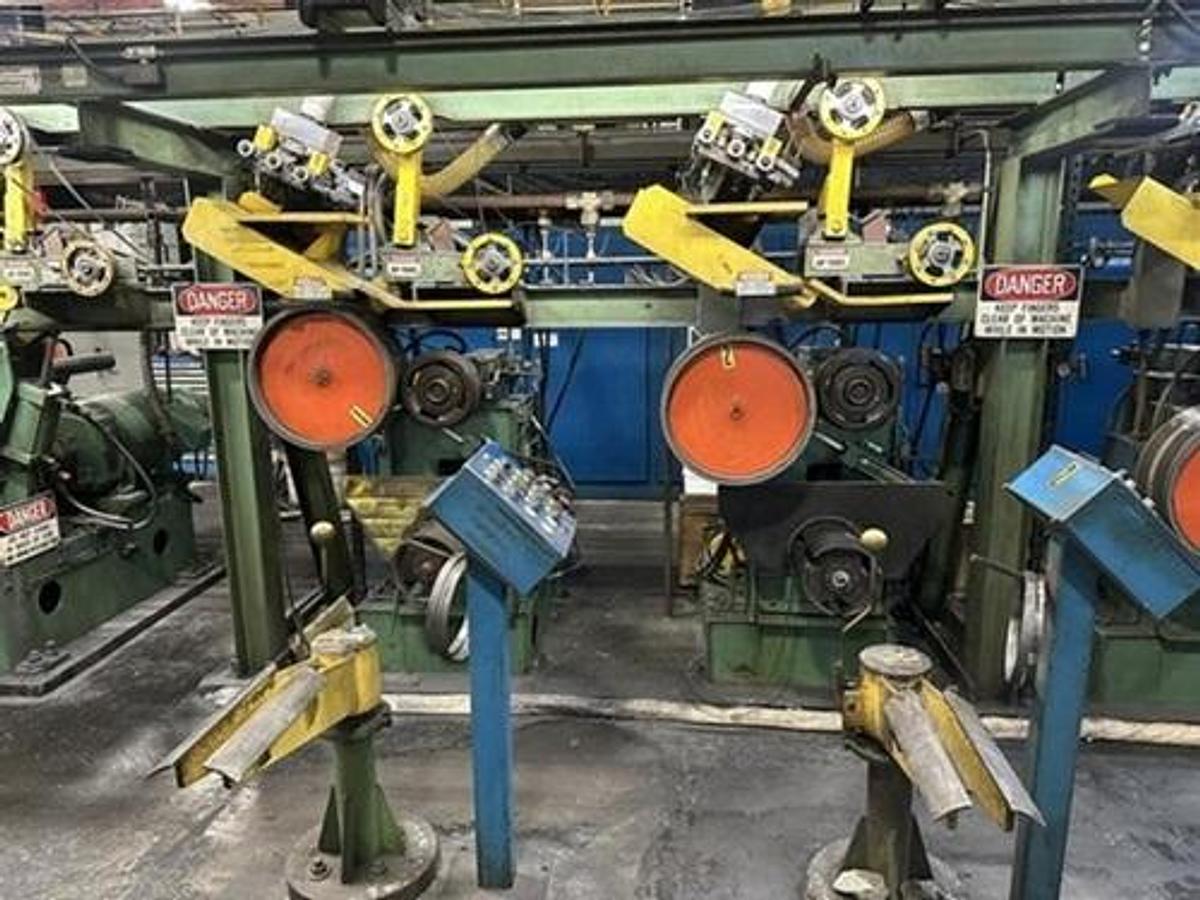

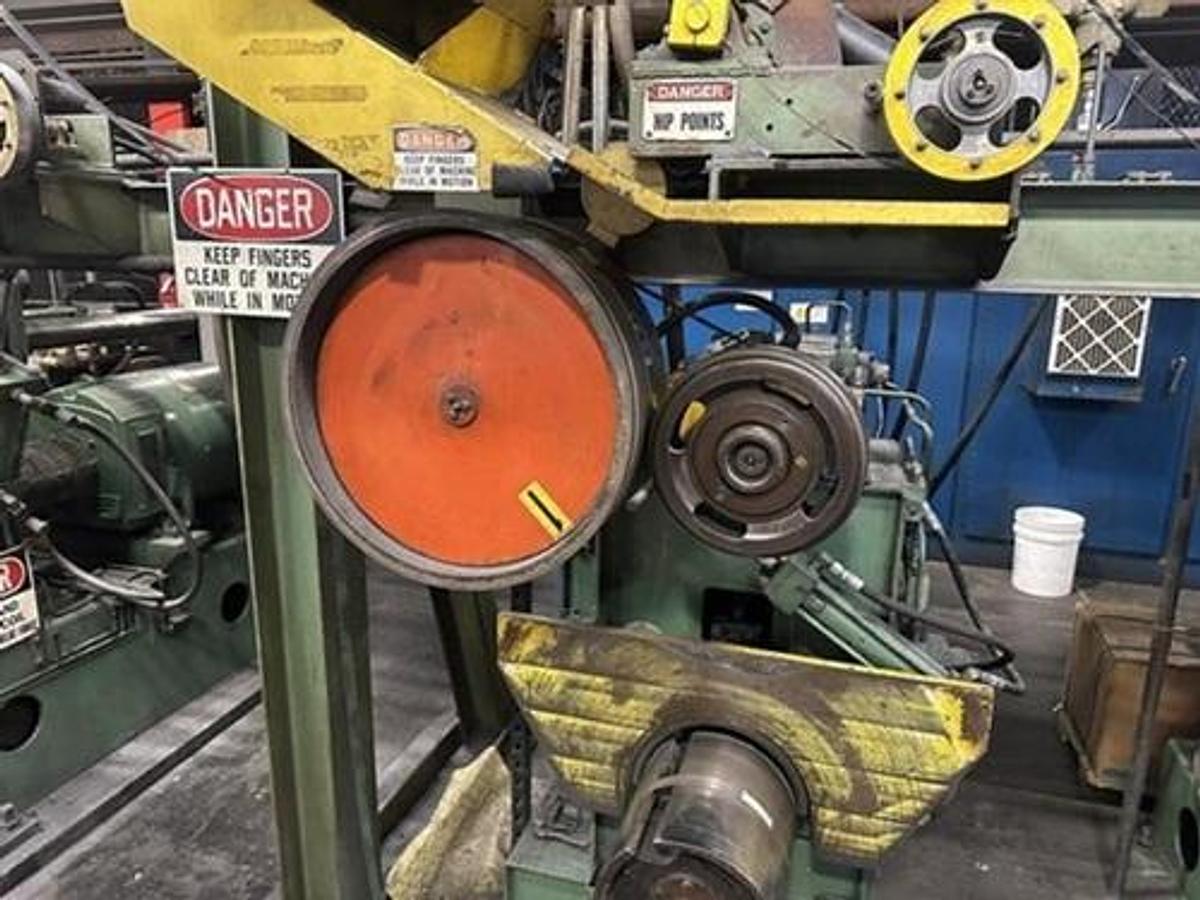

Twelve (12) Oscillating Recoilers
- 11" Diameter Drums
- Hydraulic Push-Off
- Vertical Edge Conditioners
- Two (2) S-Bridle Strip Tension Rolls

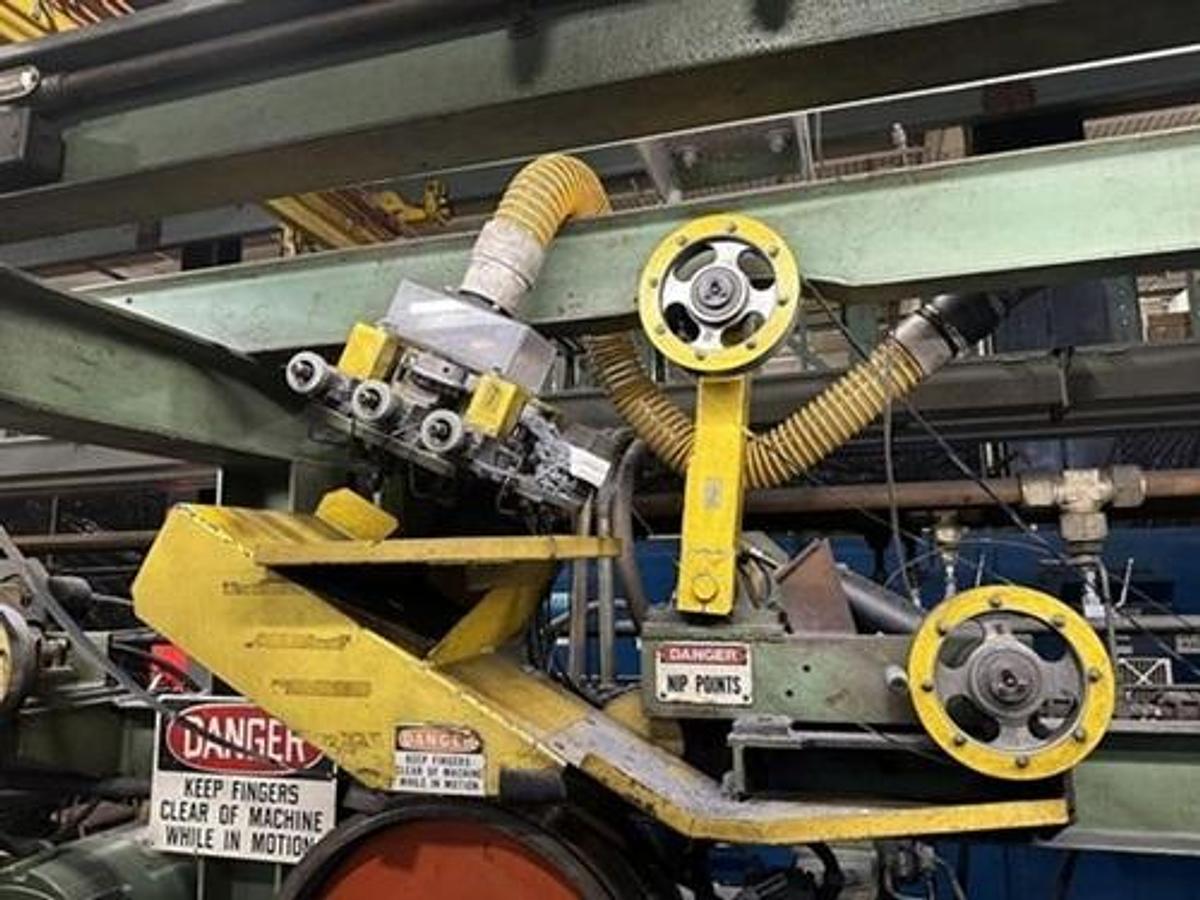

- Hydraulic Traversing Oscillating Wheel
- 7.5 HP Drive
- 1-Arm Exit Turnstiles
Controls:
Allen-Bradley PLC

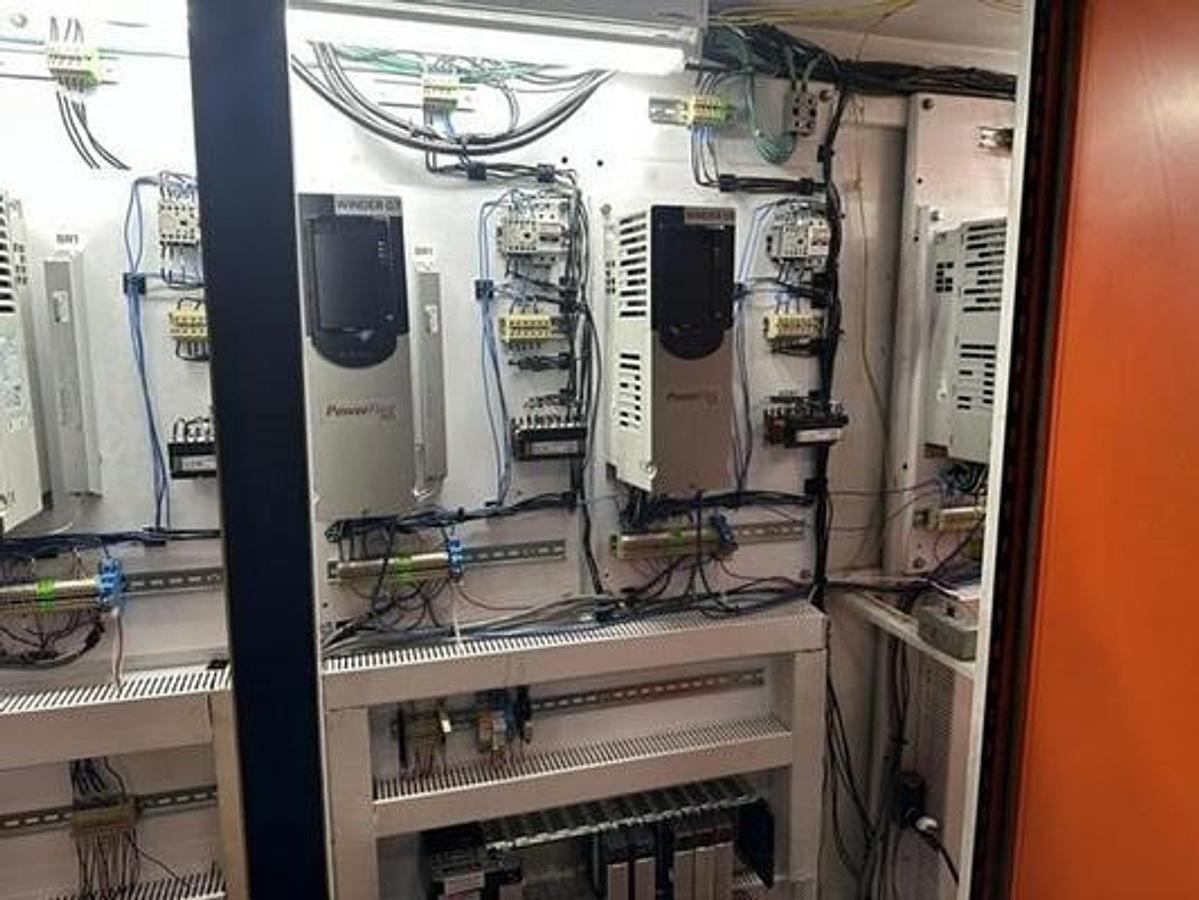

PowerFlex 755 Digital Drives
Digital Drives
Digital Readouts
Operator Push-Button Stations
Additional Equipment:
Central Hydraulic Units

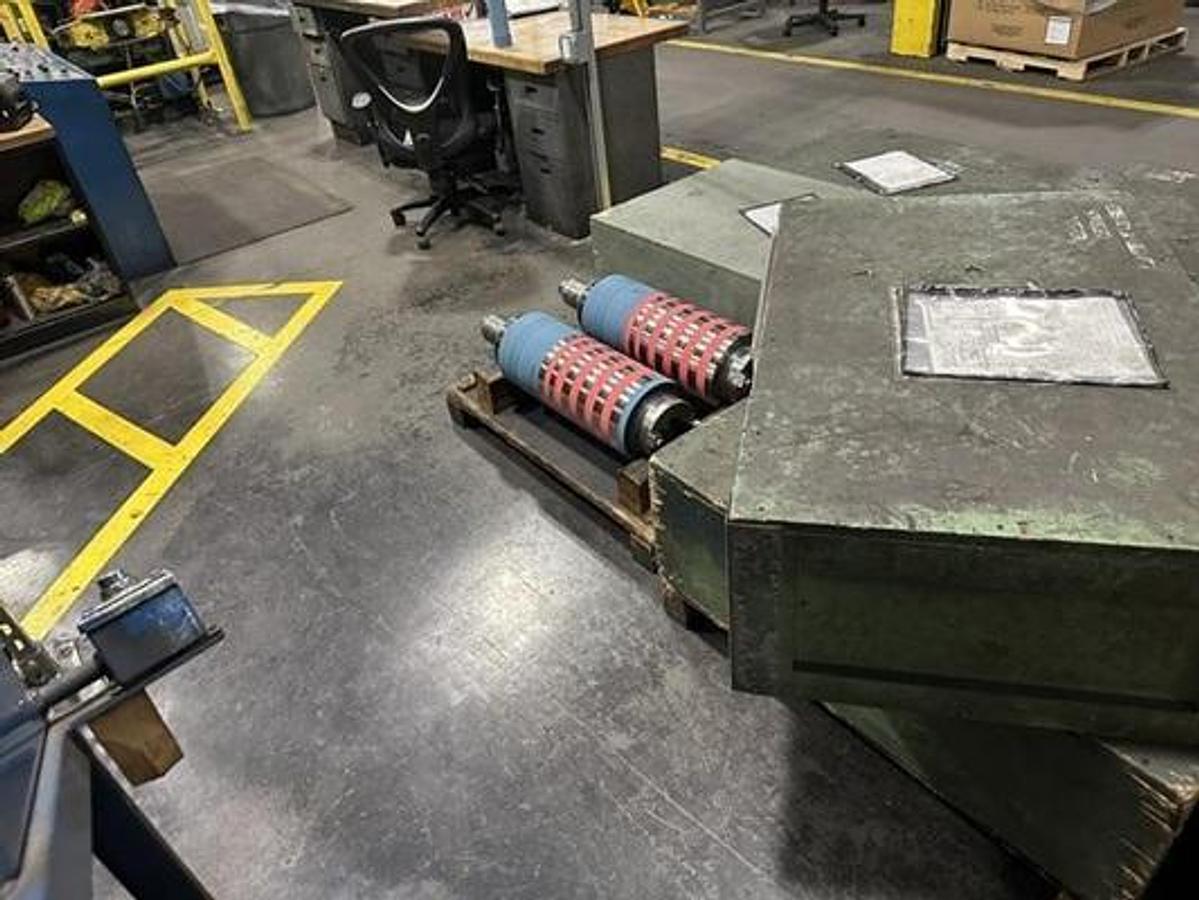

Slitter Tooling
Hydraulics & Electrics
