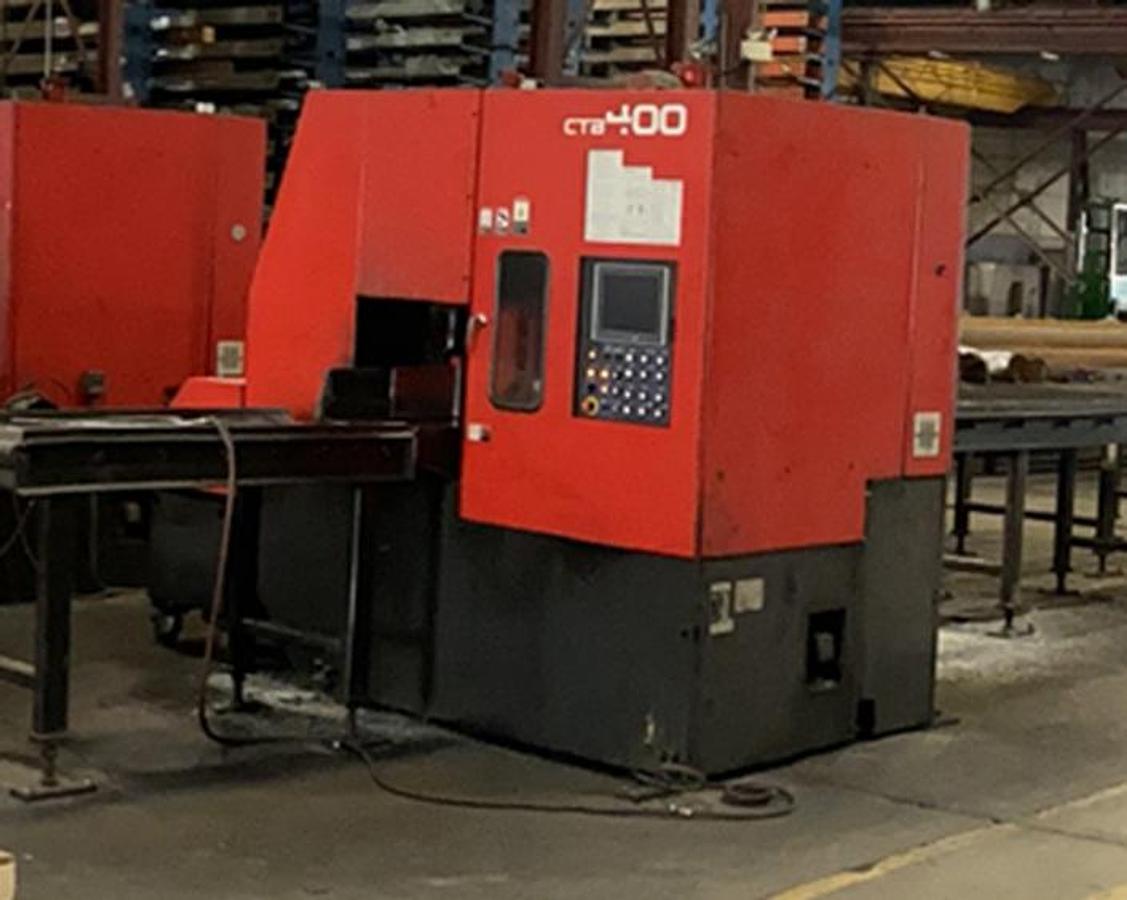

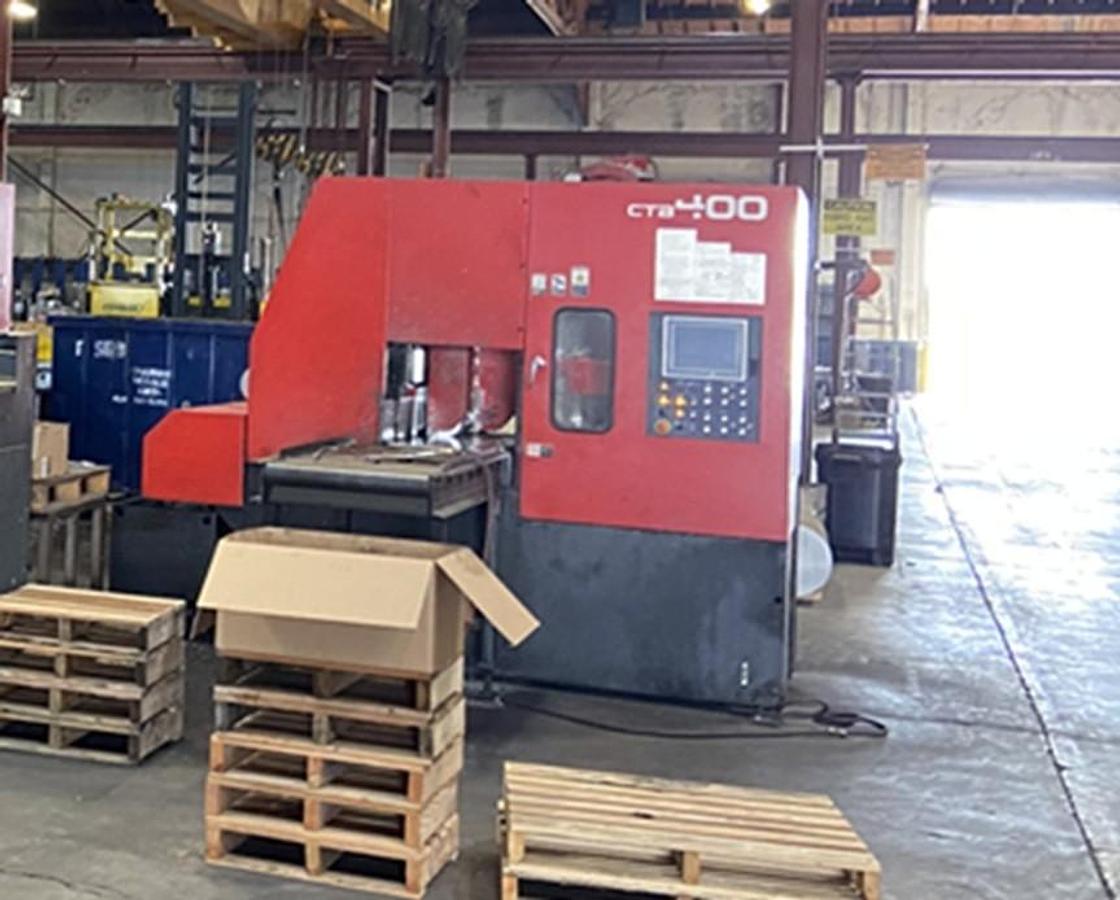

Amada CTB400 Bandsaw Machine

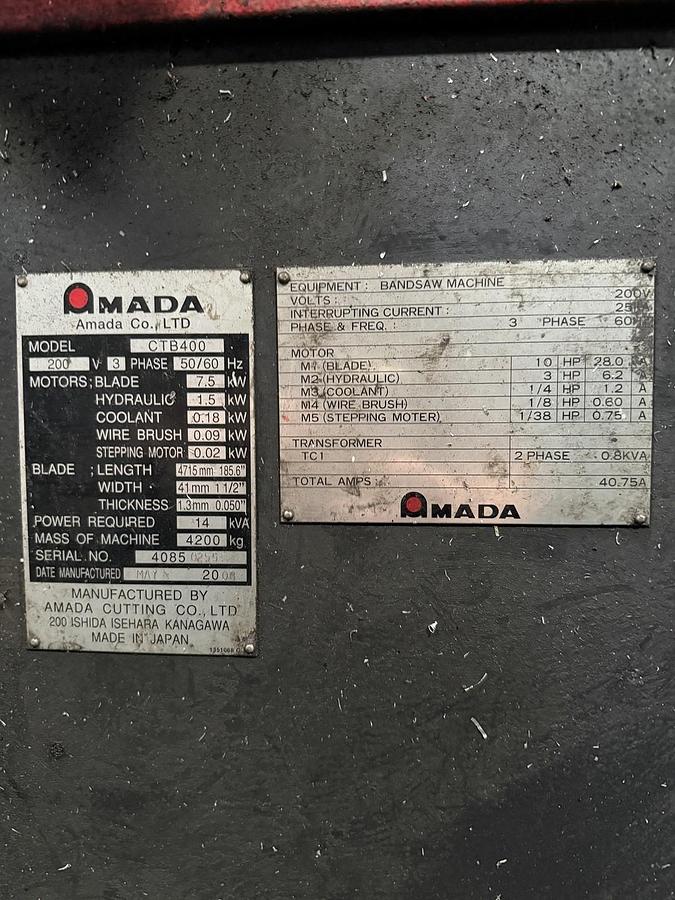

Specifications:

Manufacturer: Amada

Voltage: 200V

Phase: 3

Frequency: 50/60 Hz

Motors:

Blade: 7.5 kW

Hydraulic: 1.5 kW

Coolant: 0.18 kW

Wire Brush: 0.09 kW

Stepping Motor: 0.02 kW

Blade Size:

Length: 4715 mm (185.6”)

Width: 41 mm (1 1/2”)

Thickness: 1.3 mm (.050”)

Power Required: 14 kVA

Machine Weight: 4200 kg

Additional Electrical Information:

Interrupting Current: 25 kA

Motor Ratings:

Blade Motor: 10 HP / 28.0A

Hydraulic Motor: 3 HP / 6.2A

Coolant Motor: 1/4 HP / 1.2A

Wire Brush Motor: 1/8 HP / 0.60A

Stepping Motor: 1/38 HP / 0.75A

Transformer:

TC1: 2 Phase / 0.8 kVA

Total Amps: 40.75A
