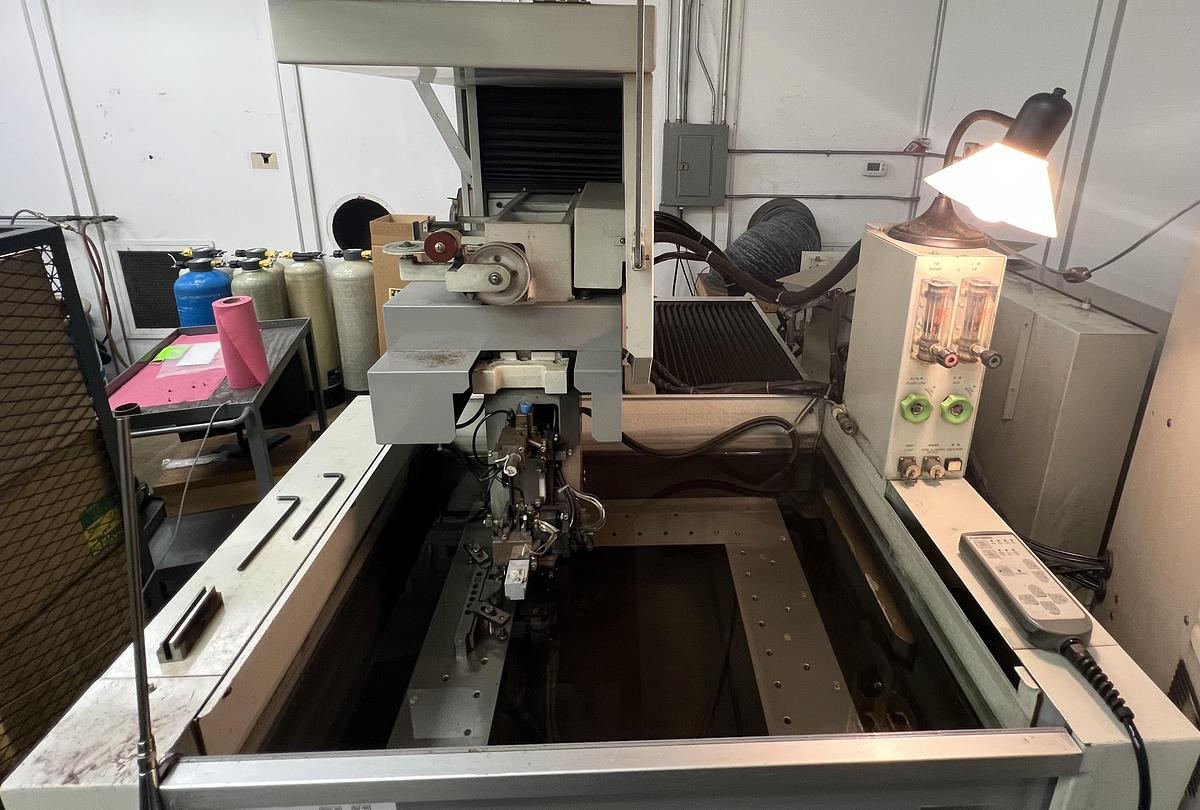

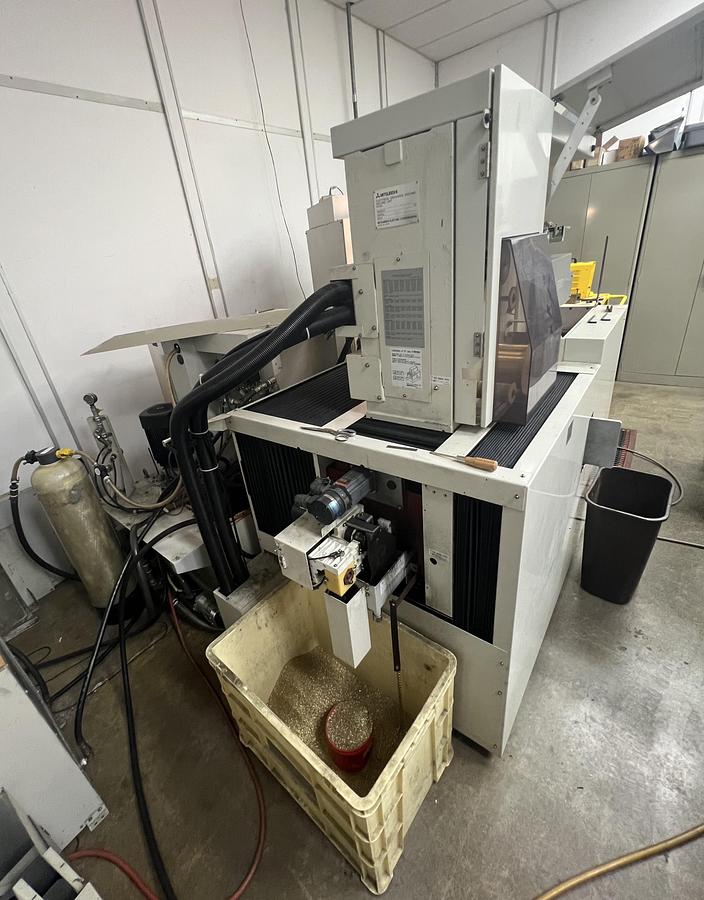

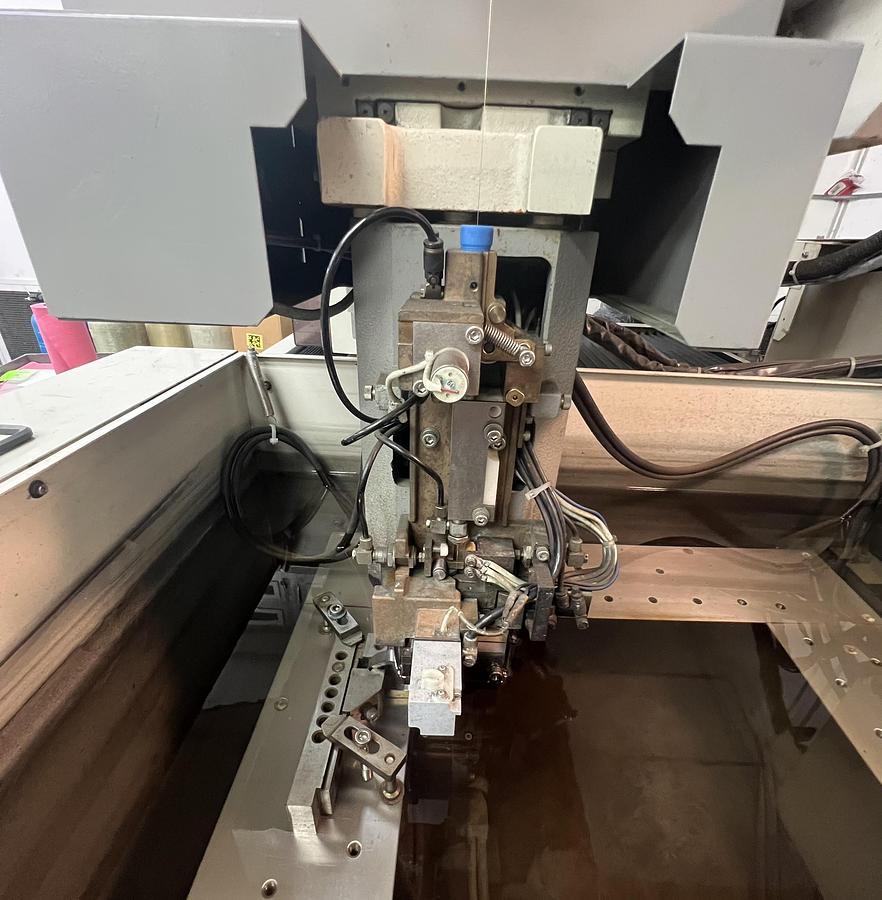

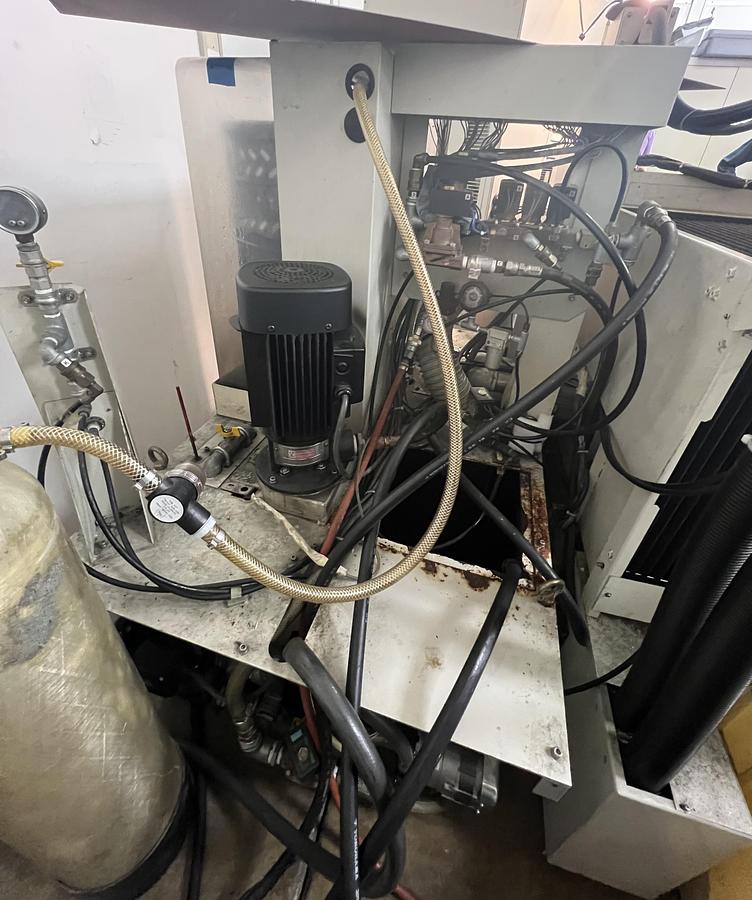

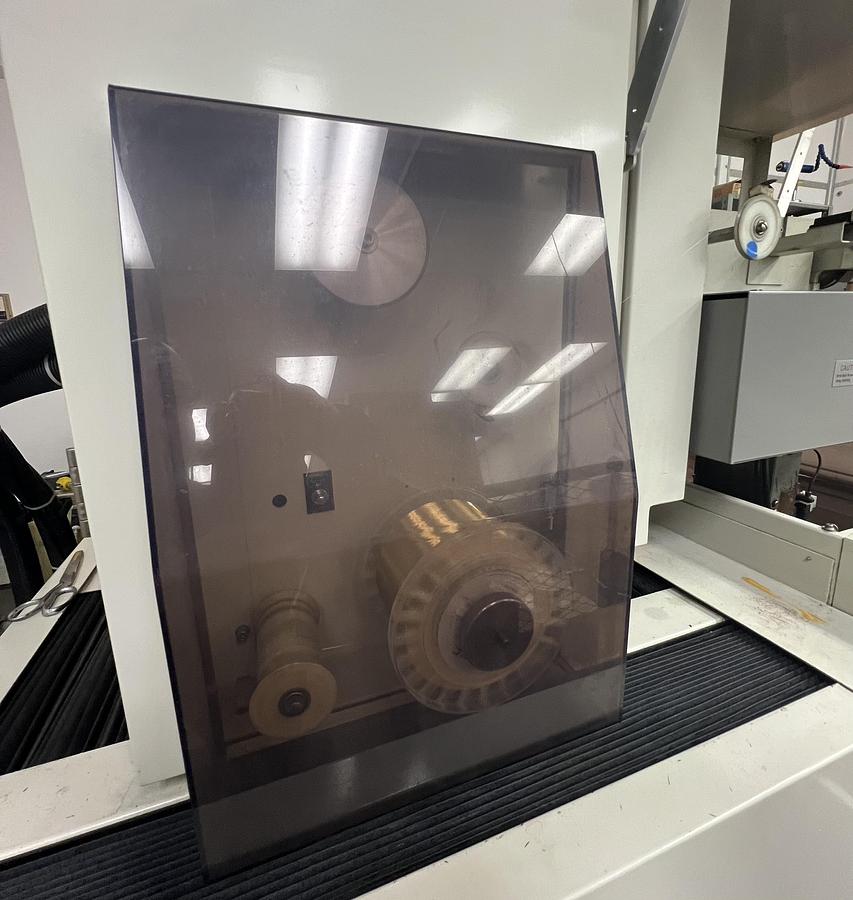

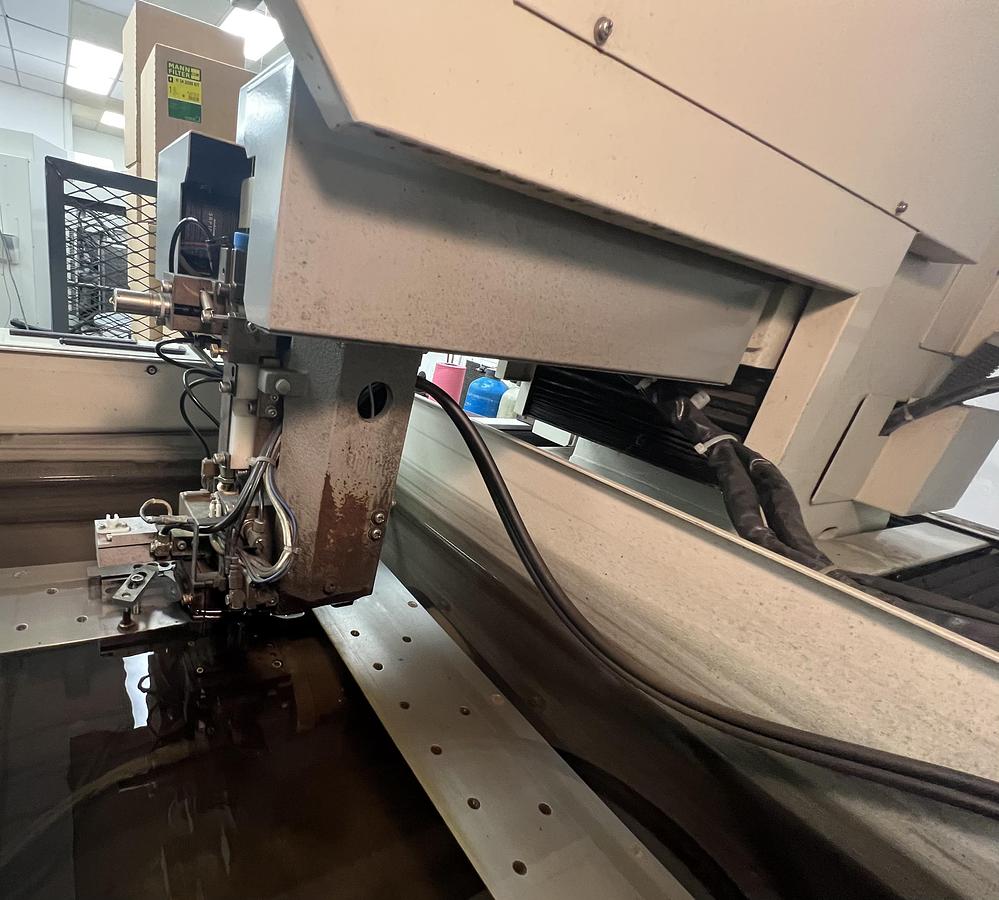

Mitsubishi EDM Model-FX10
Specifications
| Manufacturer | Mitsubishi |
| Model | FX10 |
| Year | 1996 |
| Condition | Used |
| Stock Number | VX-35976 |
| Maximum Workpiece Dimensions | 31.5" x 22.65" x 8.45" |
| Machining Stroke (X x Y x Z) | 13.77" x 9.84" x 8.66" |
| Machine Dimensions | 91" x 92" x 84" |
| Table Size | 24.80" x 20.86" |
| Maximum Workpiece Weight | 1,168 lbs. |
| UV Stroke | +/- 1.25" |
| Table Rapid Feed Rate | 51.18 IPM |
| Table Height | 35.43" Above Floor |
| Wire Diameter | 0.008" - 0.012" |
| Dielectric Tank Capacity | 105 gal. |
| Machine Weight | 4,900 lbs. |
Description

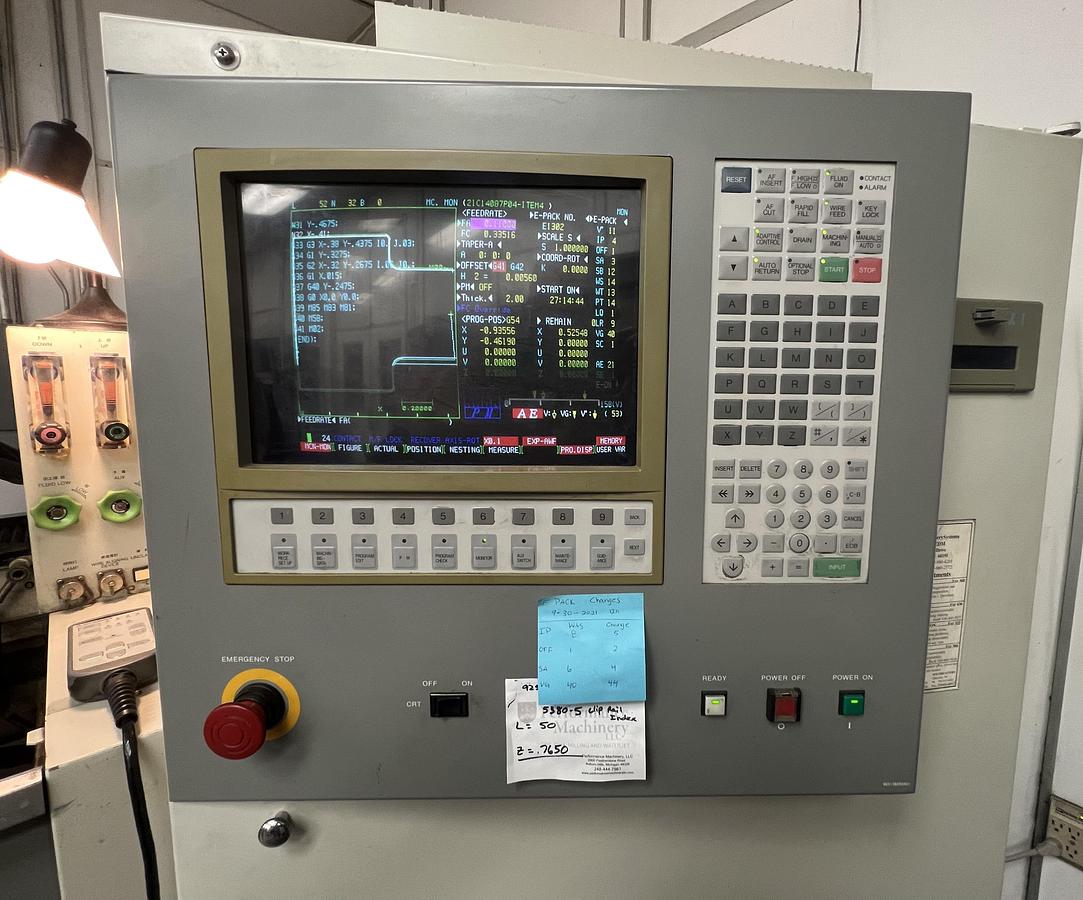

The Mitsubishi EDM Model FX10, manufactured in 1996, offers robust performance for precise machining tasks. It features a Mitsubishi control system, ensuring reliable operation. The machine accommodates a maximum workpiece size of 31.5" x 22.65" x 8.45", a table size of 24.80" x 20.86", and supports workpieces weighing up to 1,168 lbs. Its machining stroke is 13.77" x 9.84" x 8.66", with a UV stroke capability of +/- 1.25" and a taper capacity of +/- 15° at 100 mm. The table has a rapid feed rate of 51.18 IPM and stands at a height of 35.43" above the floor, providing convenient access and adjustment. Built with a dielectric tank holding 105 gallons, it supports wire diameters from 0.008" to 0.012". The machine's dimensions are 91" x 92" x 84", and it weighs 4,900 lbs., making it a substantial addition to any workshop space. Suitable for various industrial applications, this used unit offers a balance of precision and durability.
