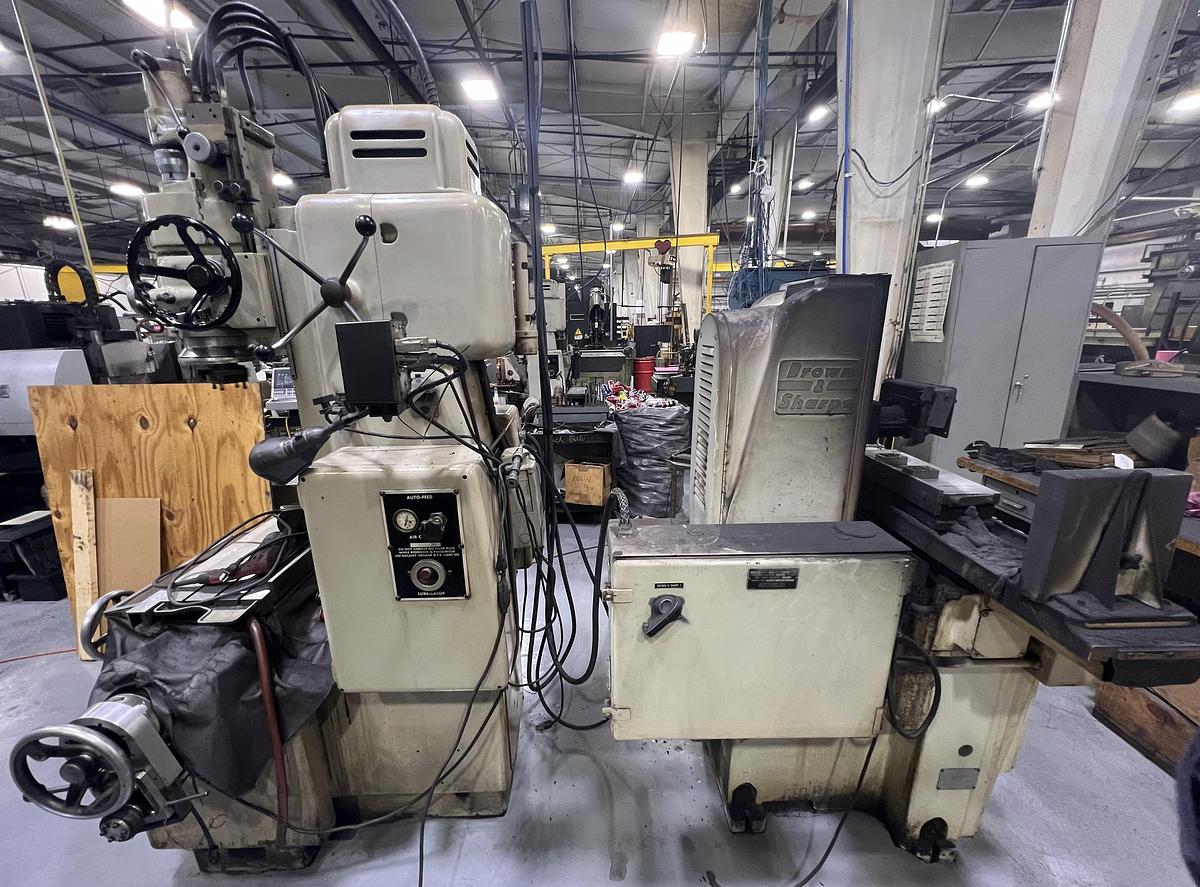

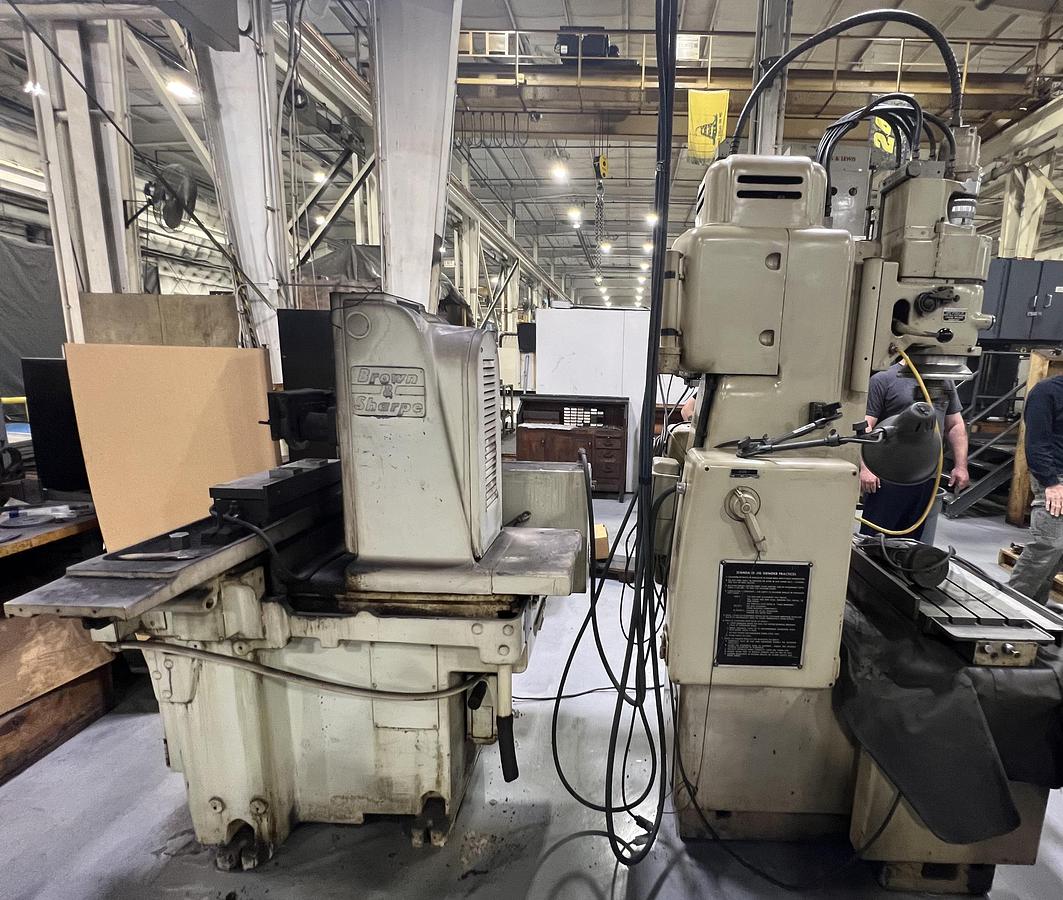

MOORE Jig Grinder Model No. 3

The MOORE Jig Grinder Model No. 3 is a used machine, specifically designed for precision machining and grinding tasks. This model features a table that measures 24 inches in length and 11 inches in width, providing a robust workspace for a variety of operations. The machine offers a longitudinal table travel of 18 inches and a cross travel of 11 inches, ensuring flexibility in movement and positioning of the workpiece. With a spindle speed range of 40 to 40,000 RPM, the Model No. 3 is versatile, accommodating a variety of tool sizes and types to meet different machining requirements. The spindle column ways measure 10 inches, and the spindle travel is 3-5/8 inches, enhancing the machine's capability to handle complex tasks. It supports a feed rate range from 4 to 240 SPM, allowing for precise control over the grinding process. Powering the MOORE Jig Grinder Model No. 3 requires a 440V, single-phase, 60 Hz power supply. The control voltage is set at 110V, with a full load amperage of 3.2A. These specifications ensure efficient operation and precise performance in demanding environments. This grinder is an ideal choice for industries requiring high accuracy in jig grinding applications.
