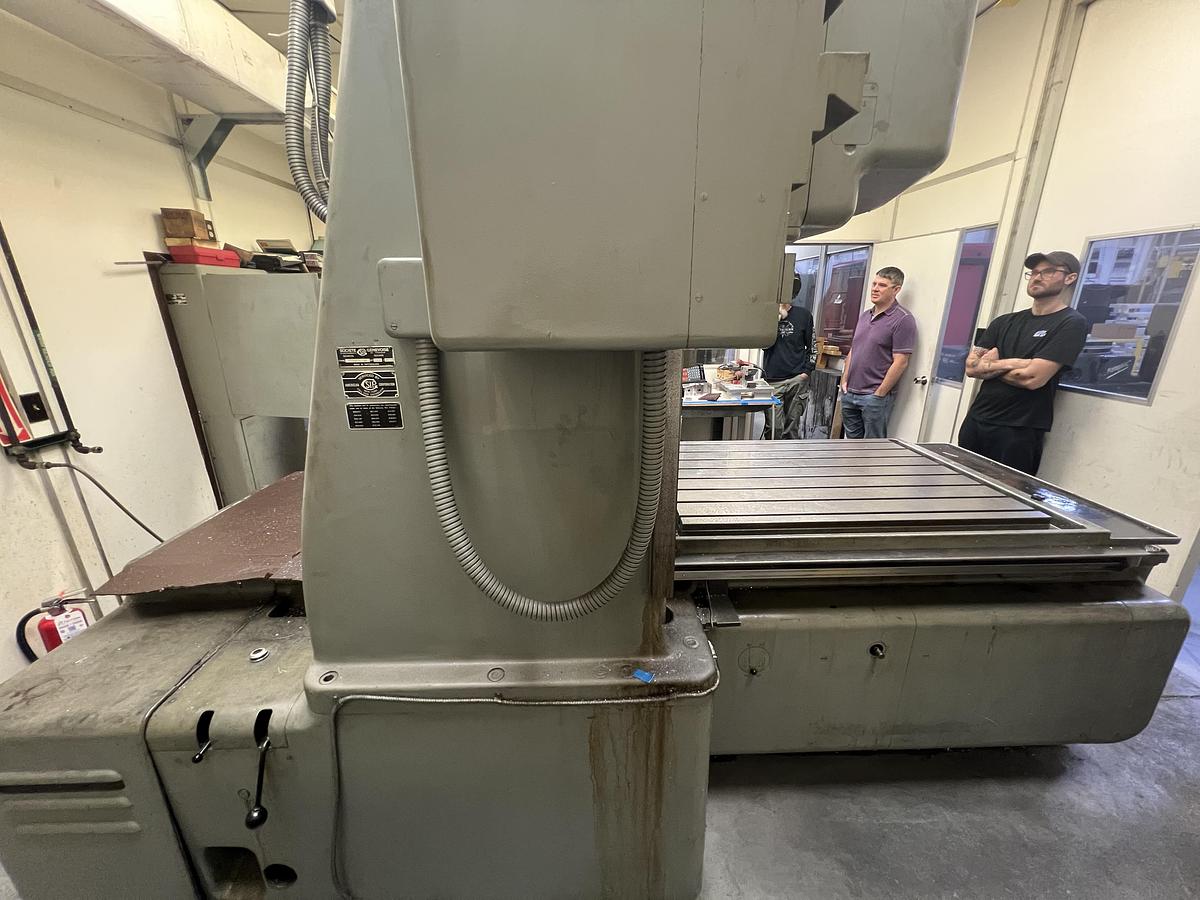

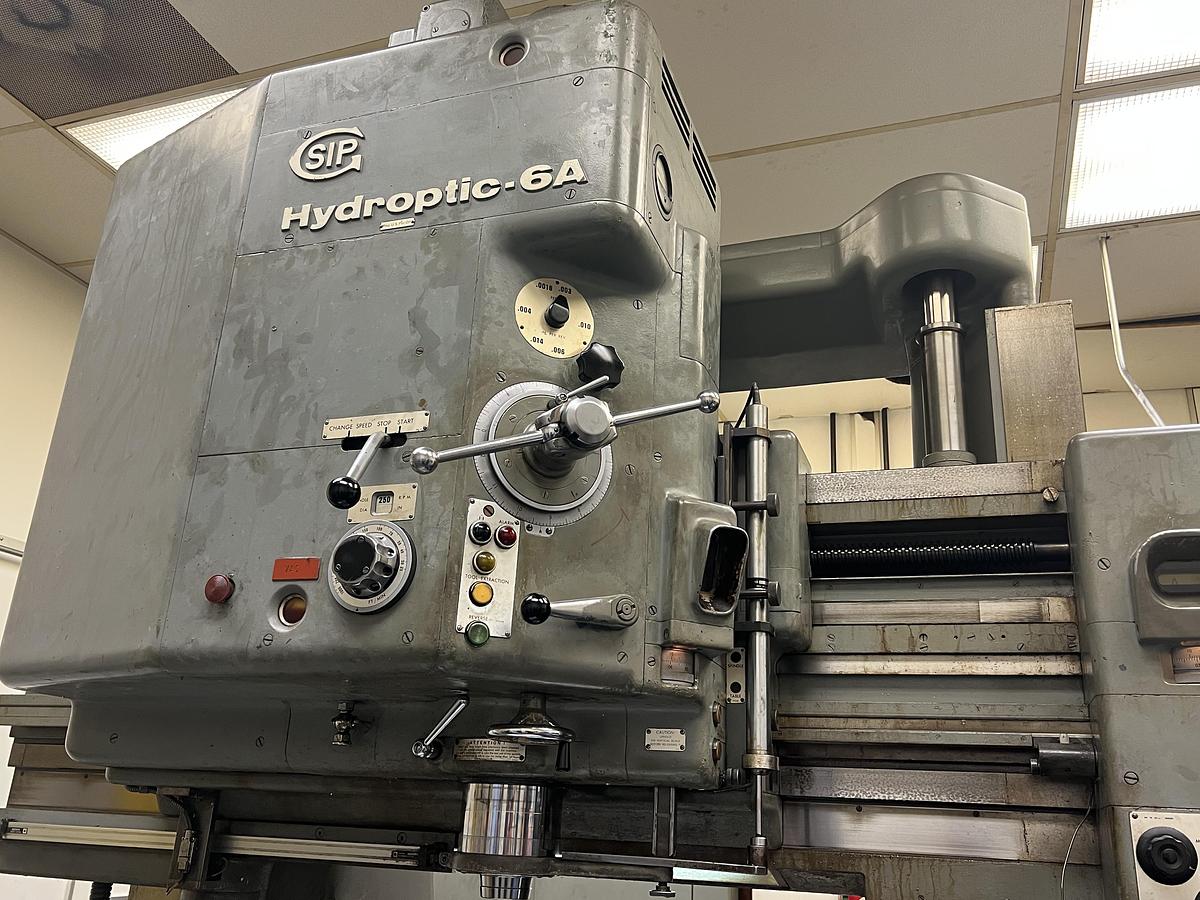

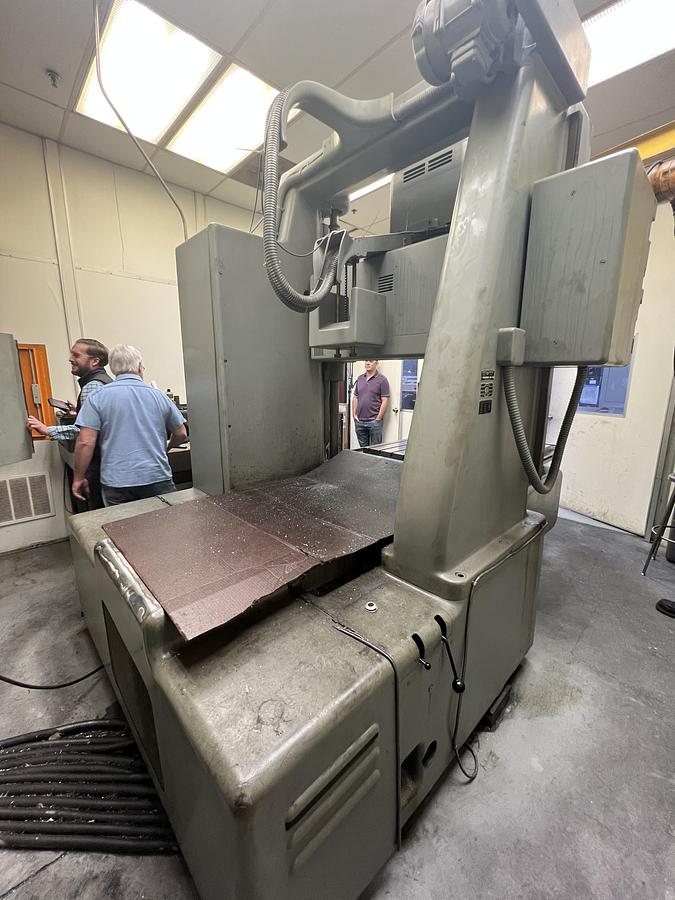

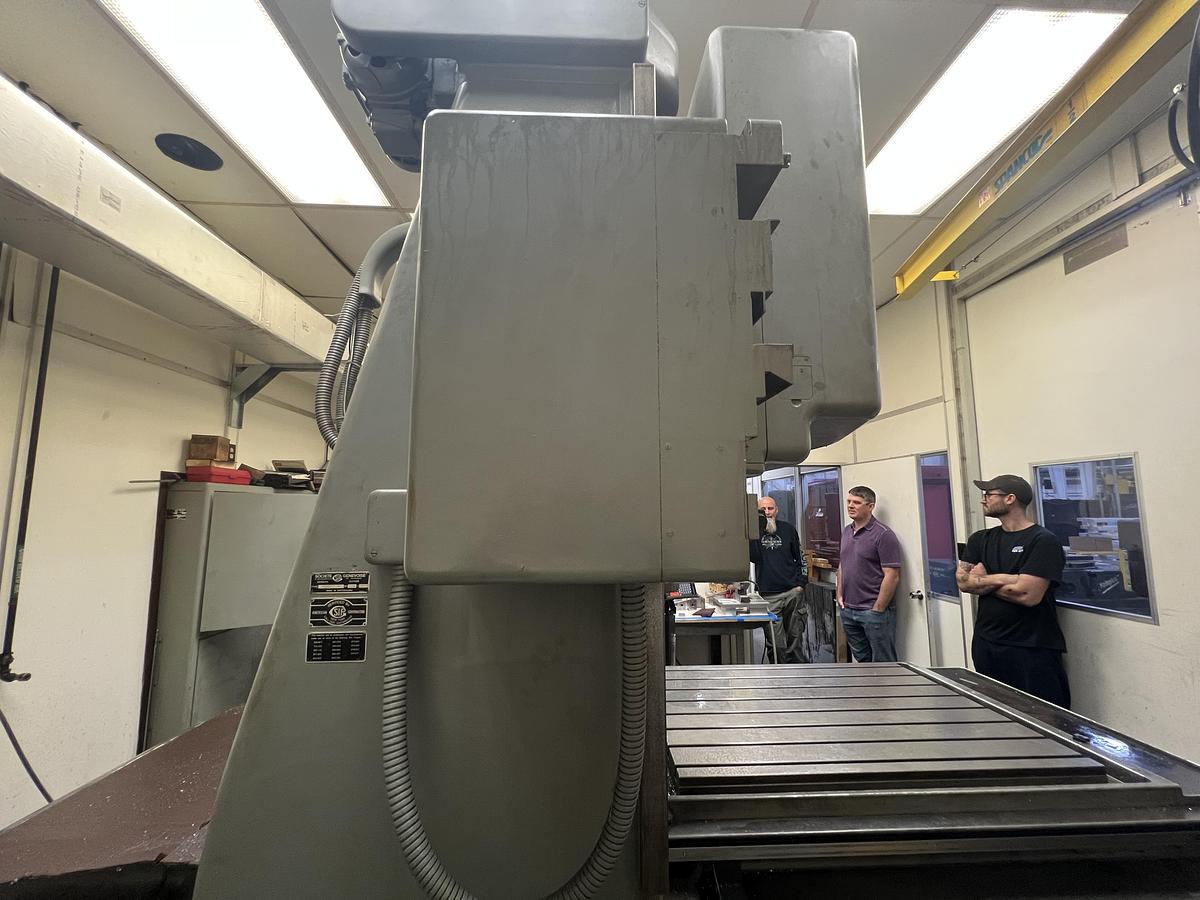

SIP Hydroptic 6A Jig Borer

Specifications

Dimensions:  129.13" x 91.92" x 126.18"

Weight:  22,046 lbs

Table size-w:  33.14 in

Table size-l:  43.3 in

X-axis travel:  39.37 in

Y-axis travel:  31.29 in

Z-axis travel:  31.49 in

Rpm:  2000.0 rpm

Power:  12.0 hp

Spindle taper:  MT4

Drilling spindle stroke:  9.84 in

Distance between columns:  43.3 in

Distance spindle to table:  35.4 in

Max bore diameter:  11.81 in

Max table load:  1763.0 lb

Rapid traverse (x/y/z):  100 / 60 / 60 IPM

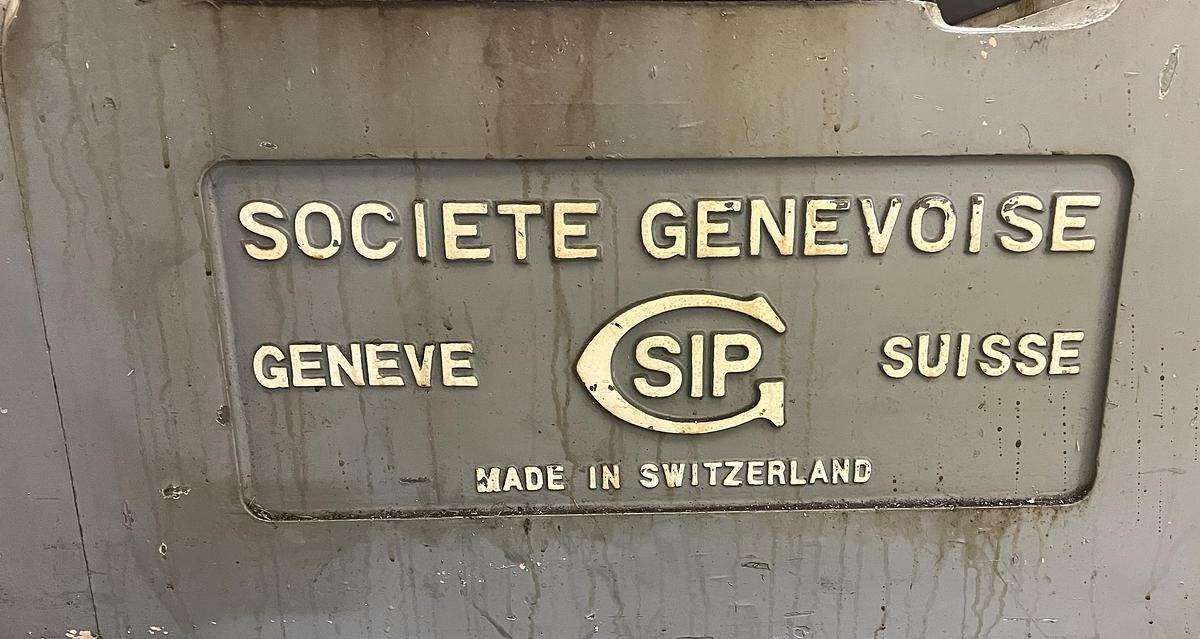

Made in: Switzerland

Date of Manufacture: 1968
