72″ x .375″ x 50,000Lb Paxson Loop Slitting Line

Specifications:

Manufacturer: Paxson

Min. Width: 12”

Max Width: 72"

Weight Capacity: 50,000Lb

Min. Gauge: .050"

Max Gauge: .375"

Coil ID: 20" - 30"

Coil OD: 72"

Line Speed: 850 feet per minute

Direction: Right to Left

Line Includes:

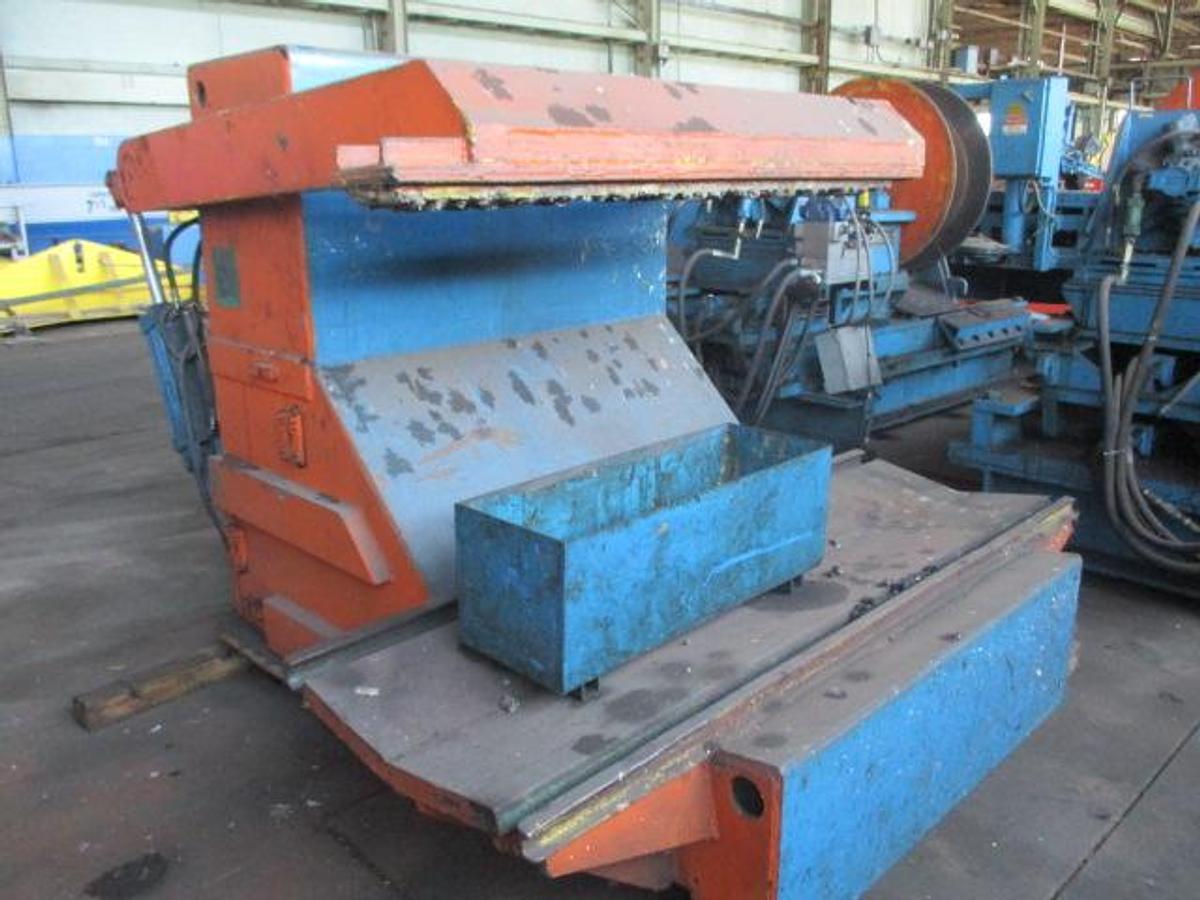

Entry L-Type Coil Car

-Floor Standing Design

-Hydraulic Lift & Traverse

-Self Contained Hydraulics

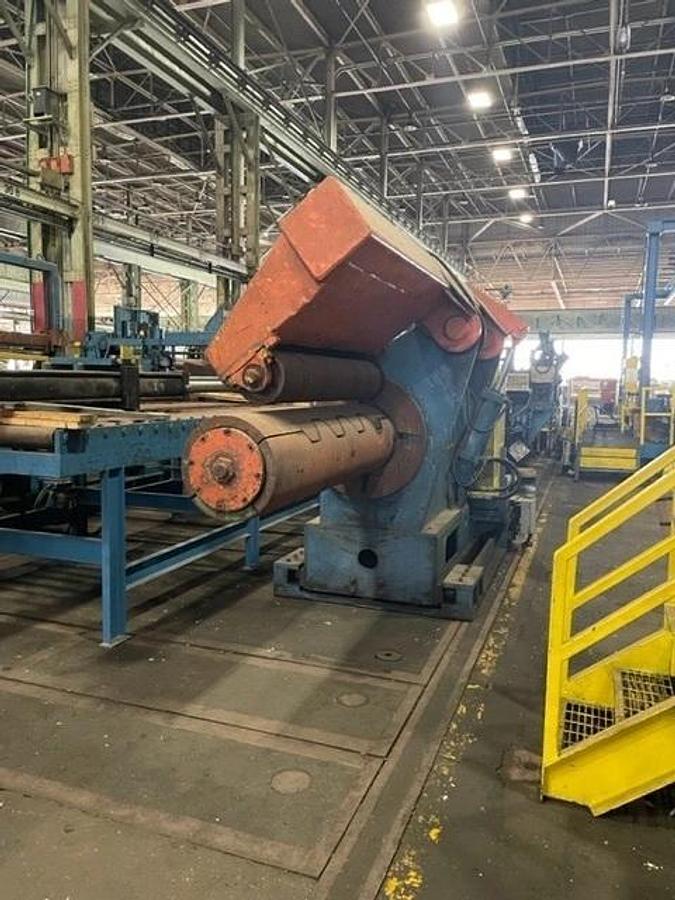

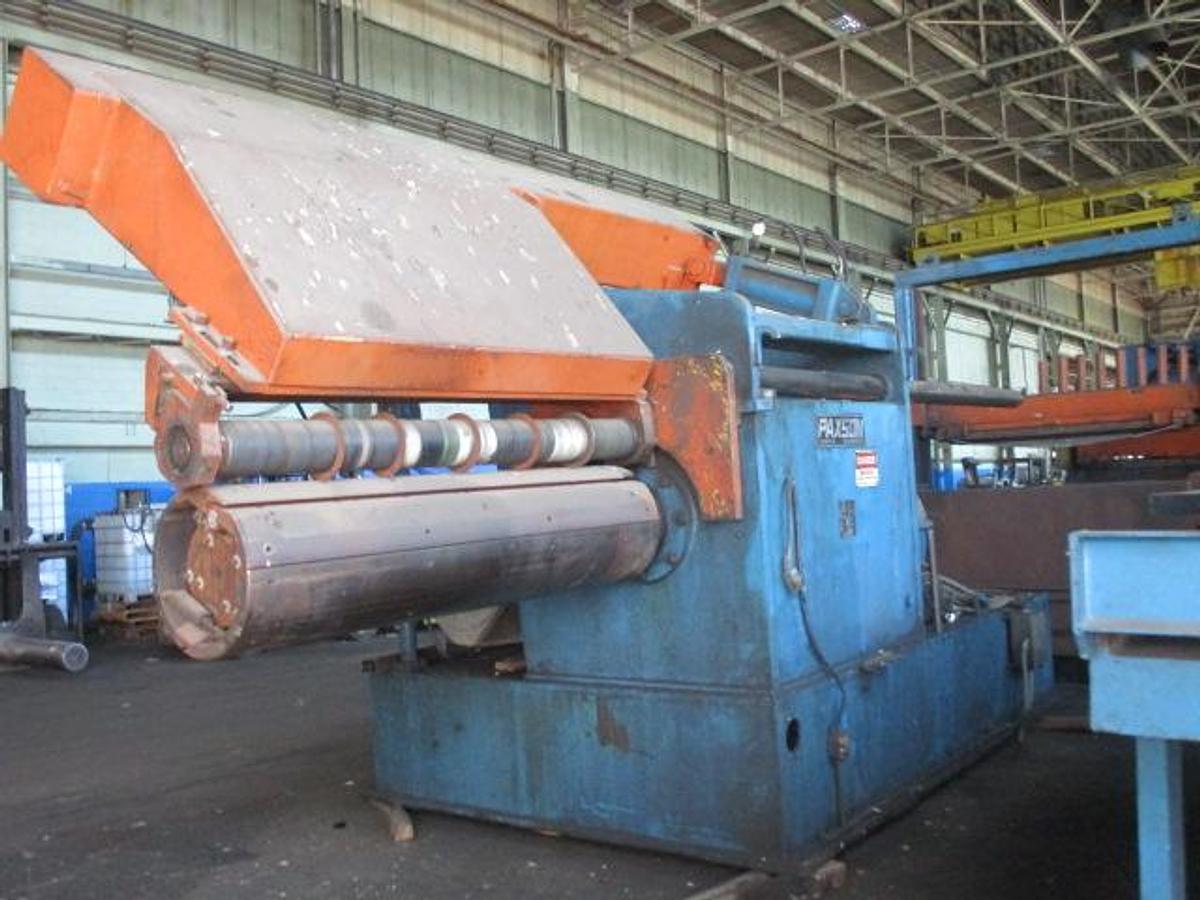

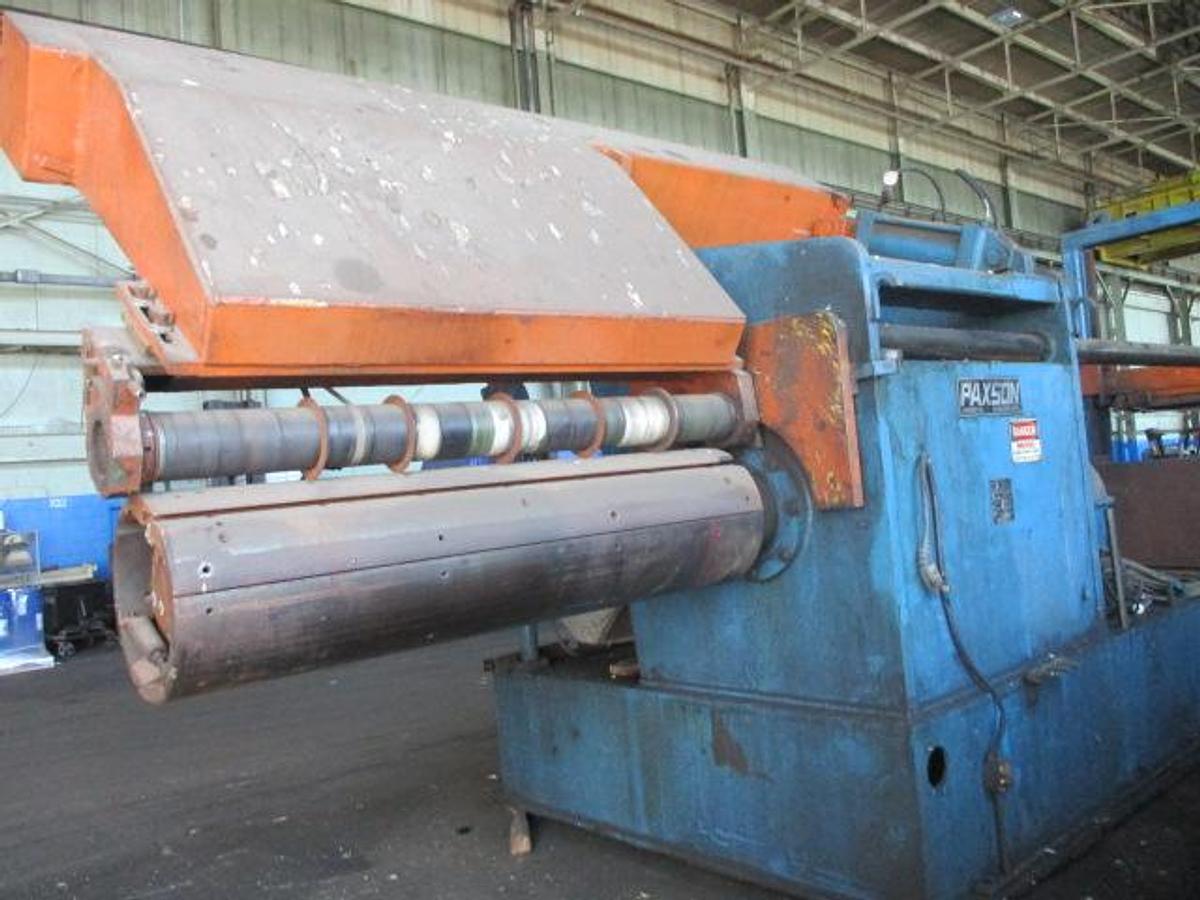

Mandrel Uncoiler

-Powered Hold-Down Roll

-Hydraulic Expansion

-Water Cooled Brake

-Feed-Up Motor

-Sliding Base

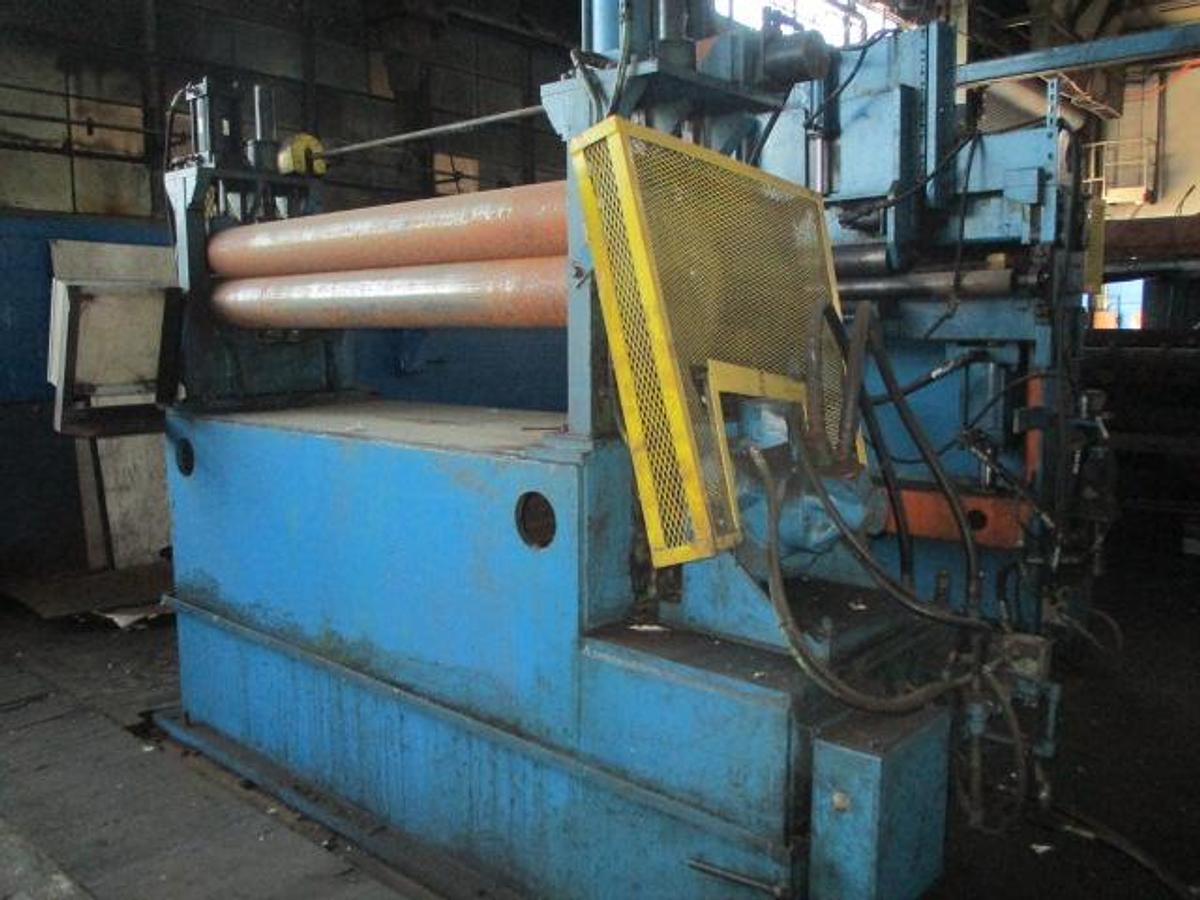

Hydraulic Peeling Table

-Driven Pinch Rolls

-Adjustable Edge Guides

-4-Roll Coil Breaker

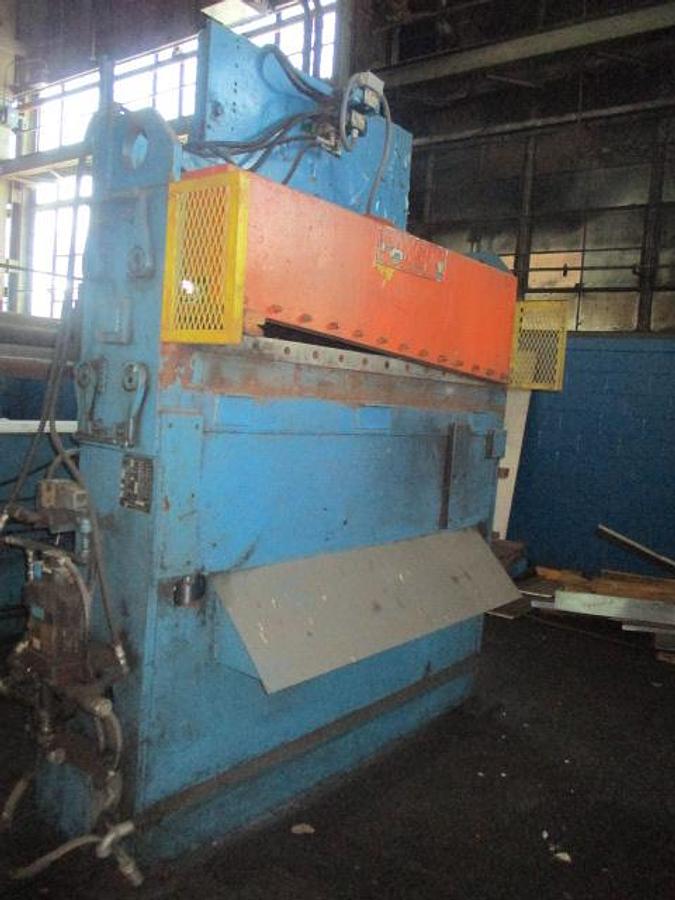

-Mechanical Entry Crop Shear

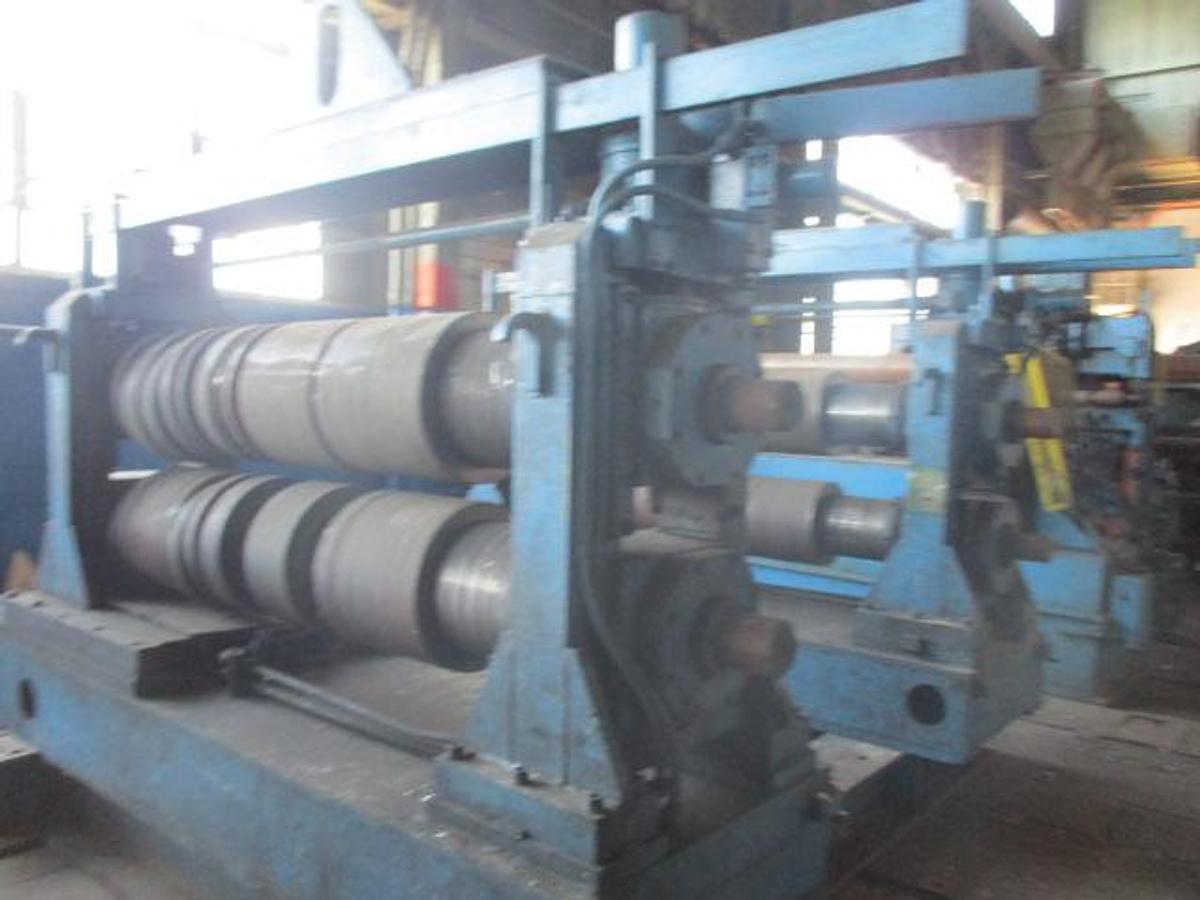

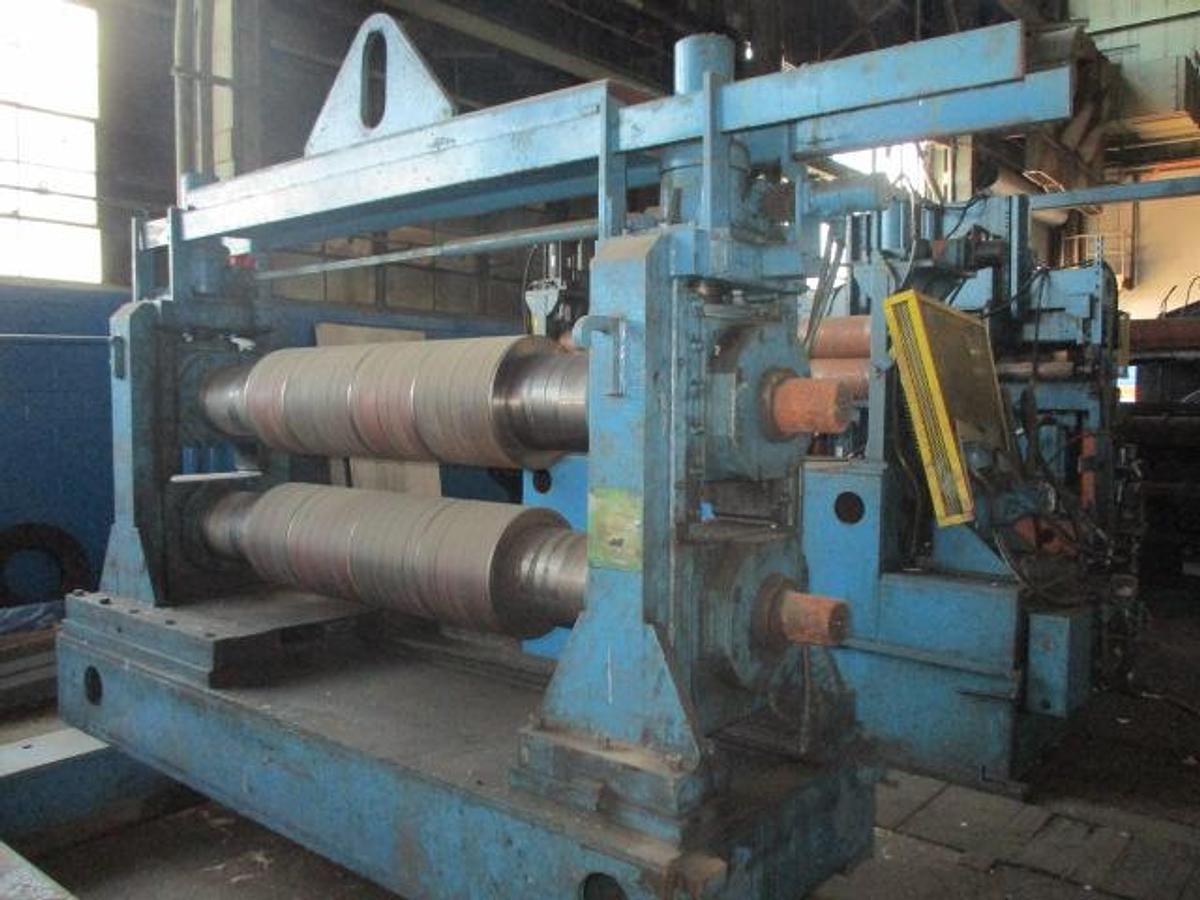

Two (2) Slitting Heads

-Arbor Diameter: 9" and 12"

-Crane Removable Type

-Adjustable Arbors

-150HP DC Motor Drive

-Multi Speed Gear

-Lots of Knives and Tooling

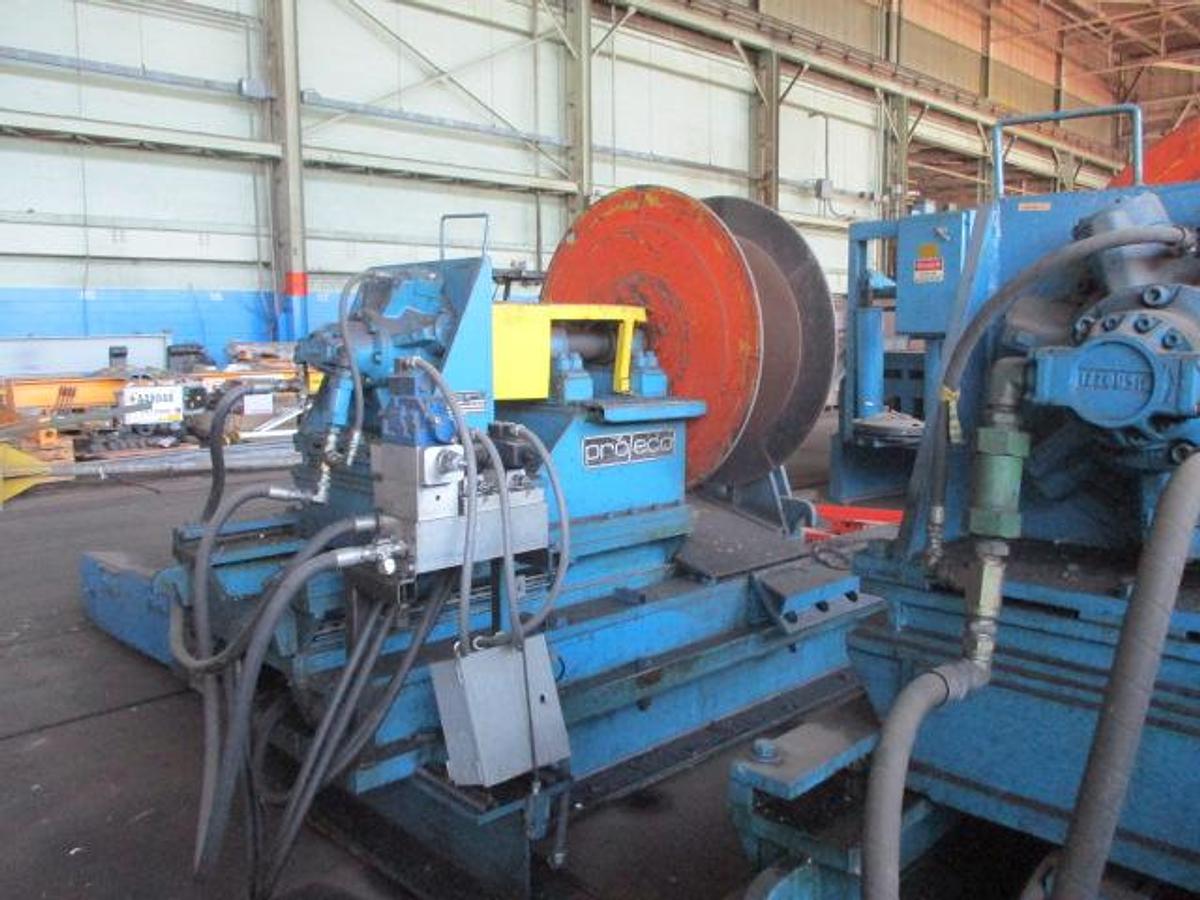

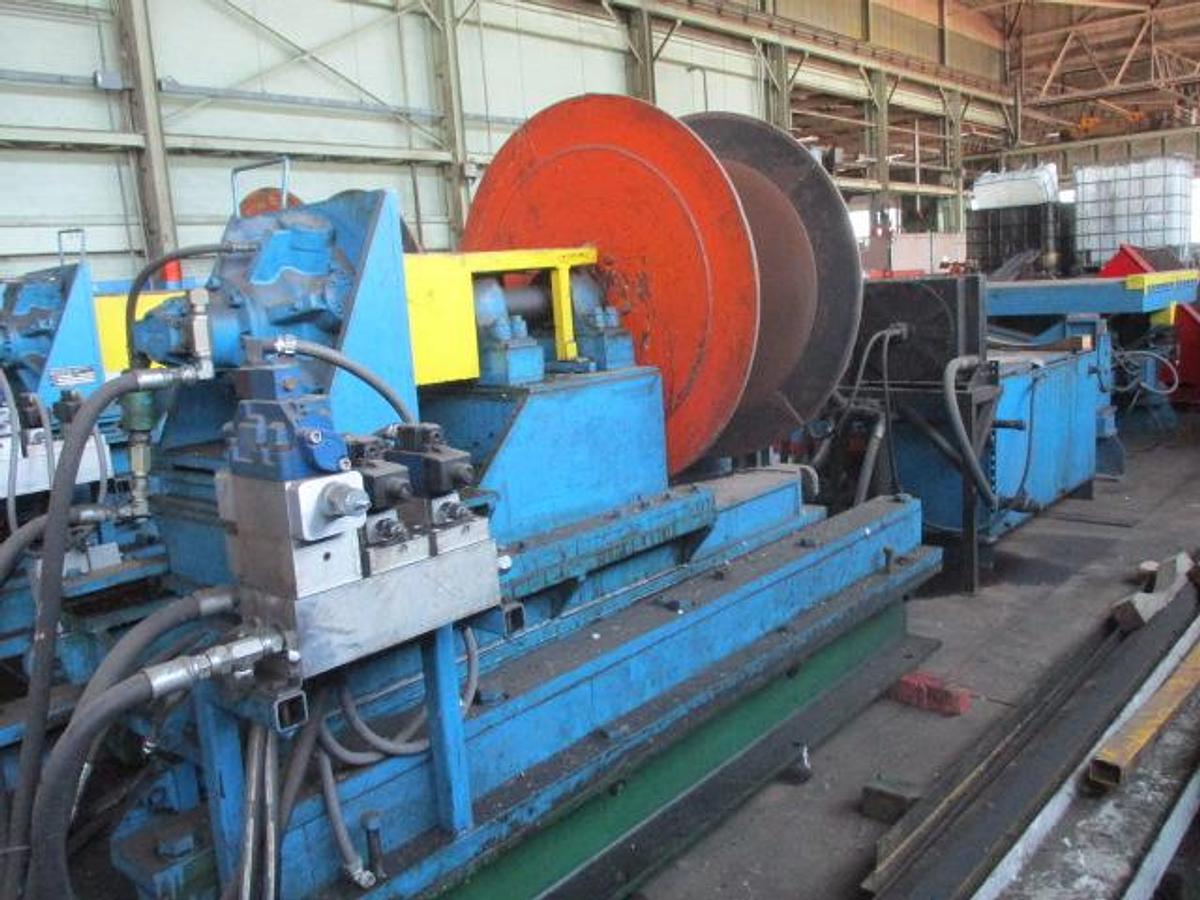

Two Pro-Eco Scrap Winders

-Max Thickness: .500"

-25HP Motor for Each Unit

-Powered Open / Close

Pit Cross Over Table

Drag Board Tension Stand

-Recoiler Feed Table

-Strip Separating Bar with Tooling

Recoiler

-Powered Over-Arm Separator

-Hydraulic Push-Off

-Hydraulic Gripper

-125HP DC Motor Drive

-Multi Speed Gear Box

Exit L-Type Coil Car

-Floor Standing Design

-Hydraulic Lift and Traverse

-Self Contained Hydraulics

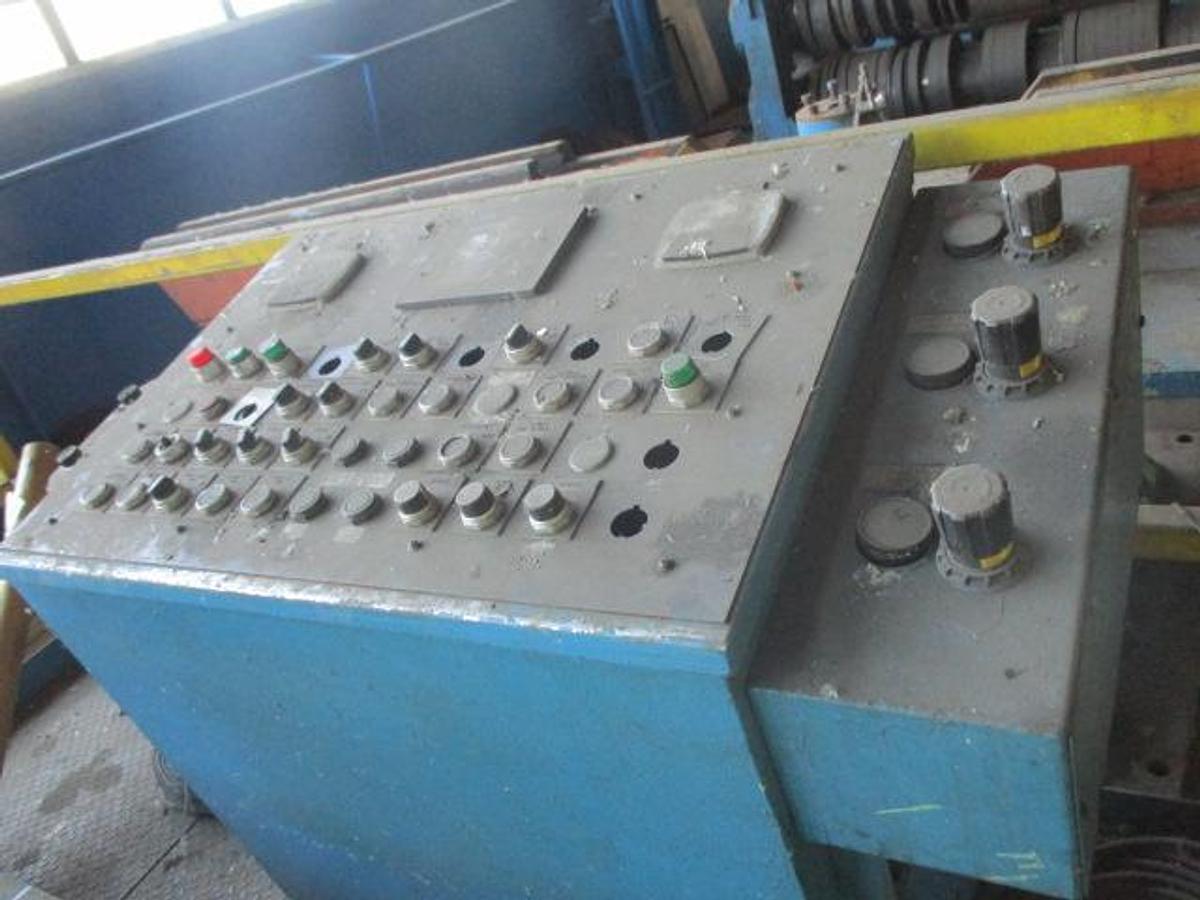

Electrics, Hydraulics, Controls, PLC, Lots of Tooling
