18” x 2.625” Arbors x 6,000# Ruesch Ring Type Slitting Line

Specifications:

Manufacturer: Ruesch

Maximum Coil Weight Capacity: 6,000 Lbs.

Entry Coil I.D.: 16”

Maximum Entry Coil O.D.: 72”

Exit Coil I.D.: 6”, 8”, 12”, & 16”

Maximum Exit Coil O.D.: 60”

Maximum Strip Width: 18”

Line Components:

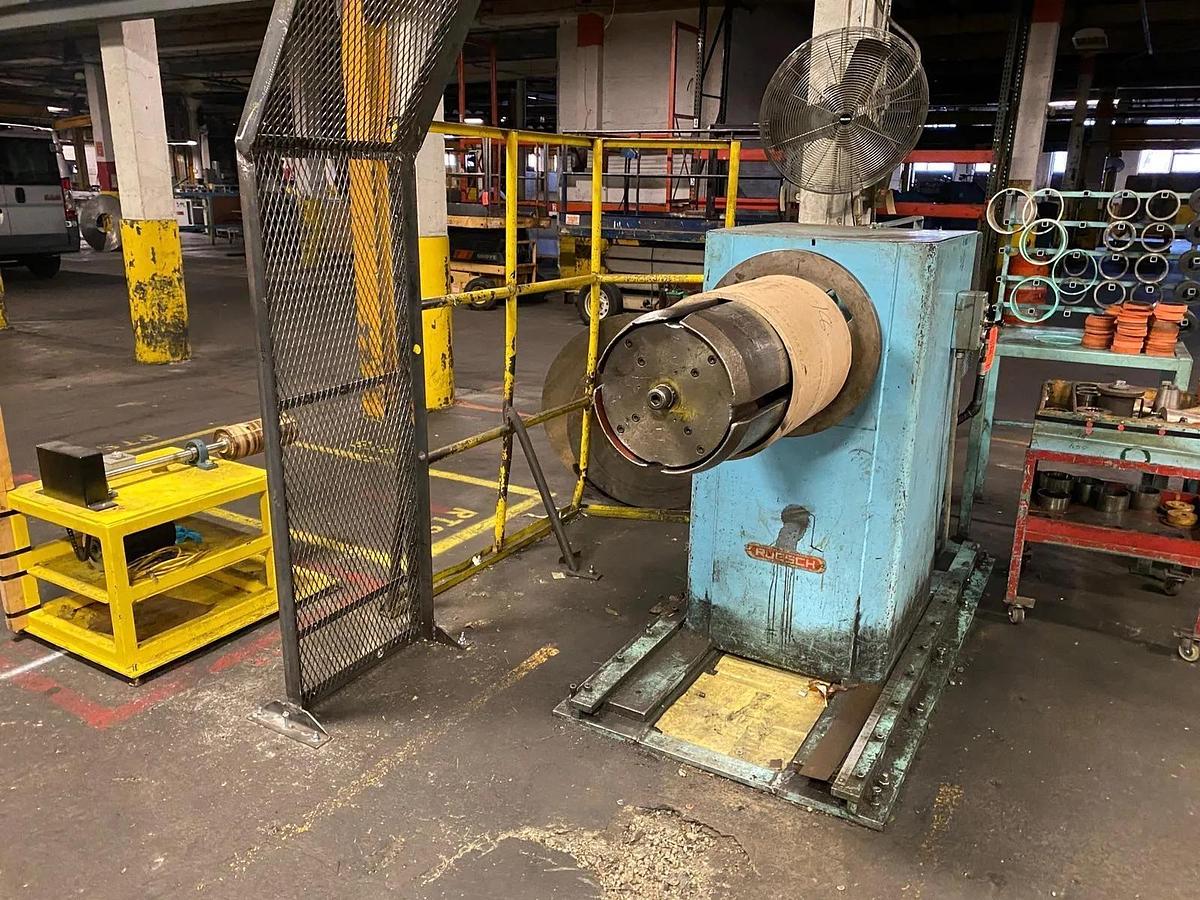

Paper Unwinder

Ruesch Uncoiler:

-32” Mandrel Face

-Four Leaf Hydraulic Expansion

-Disc Brake

-Feed-Up Drive

-Self-Contained Hydraulics

Entry Edge Guides

Deburring Roll

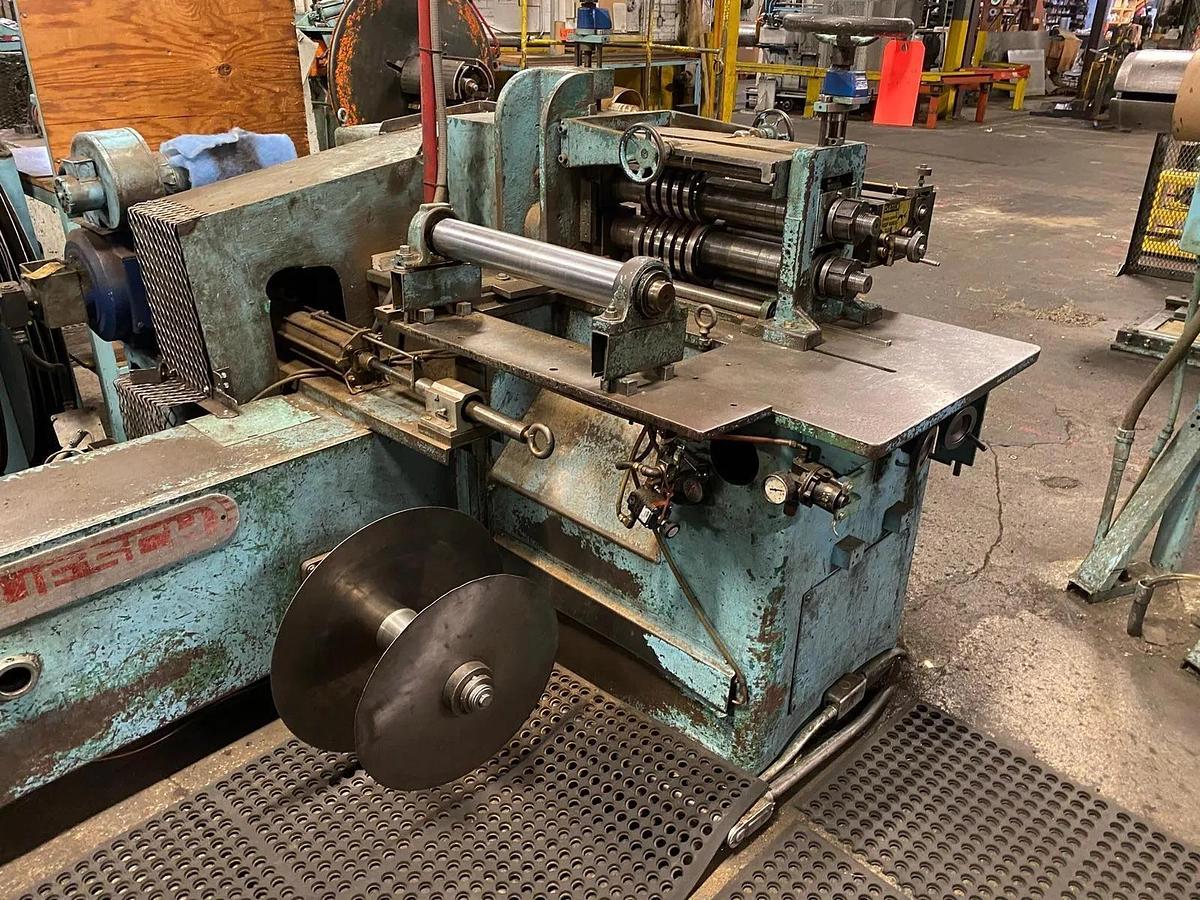

Ruesch Slitter Head:

-25 HP DC Drive

-S/N: N2371A

-Ring Slitter Design

Scrap Winder

Oscillator

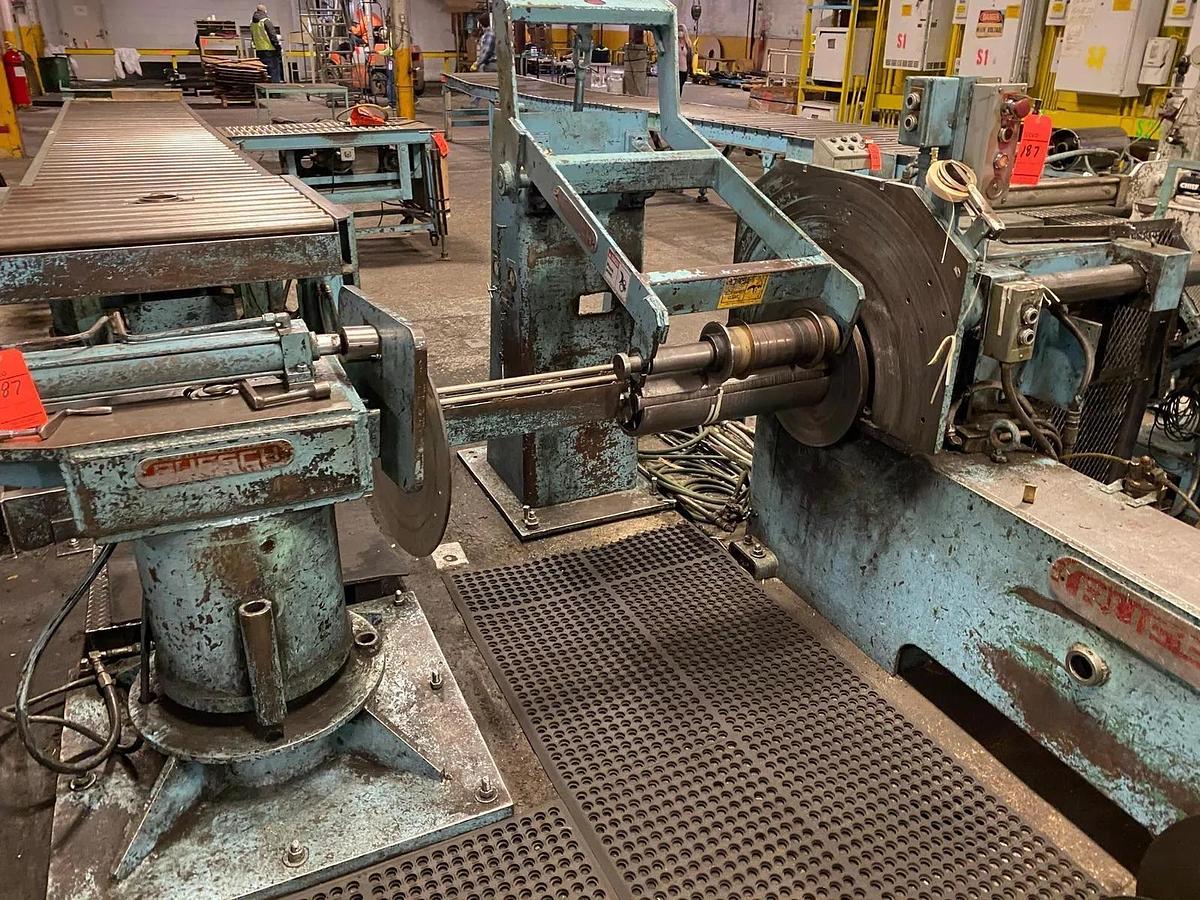

Ruesch Recoiler:

-Floor Standing Overarm Separator

-25 HP DC Motor

-Two-Speed Gear Box

-Hydraulic Push-Off Plate

-Separator Disks For Smaller Widths

One Arm Turnstile:

-Hydraulic Push-Off

-Manual Rotation

Ruesch Horn Type Downlayer:

-41” Roll Face x 48” Wide

20’ Exit Conveyor

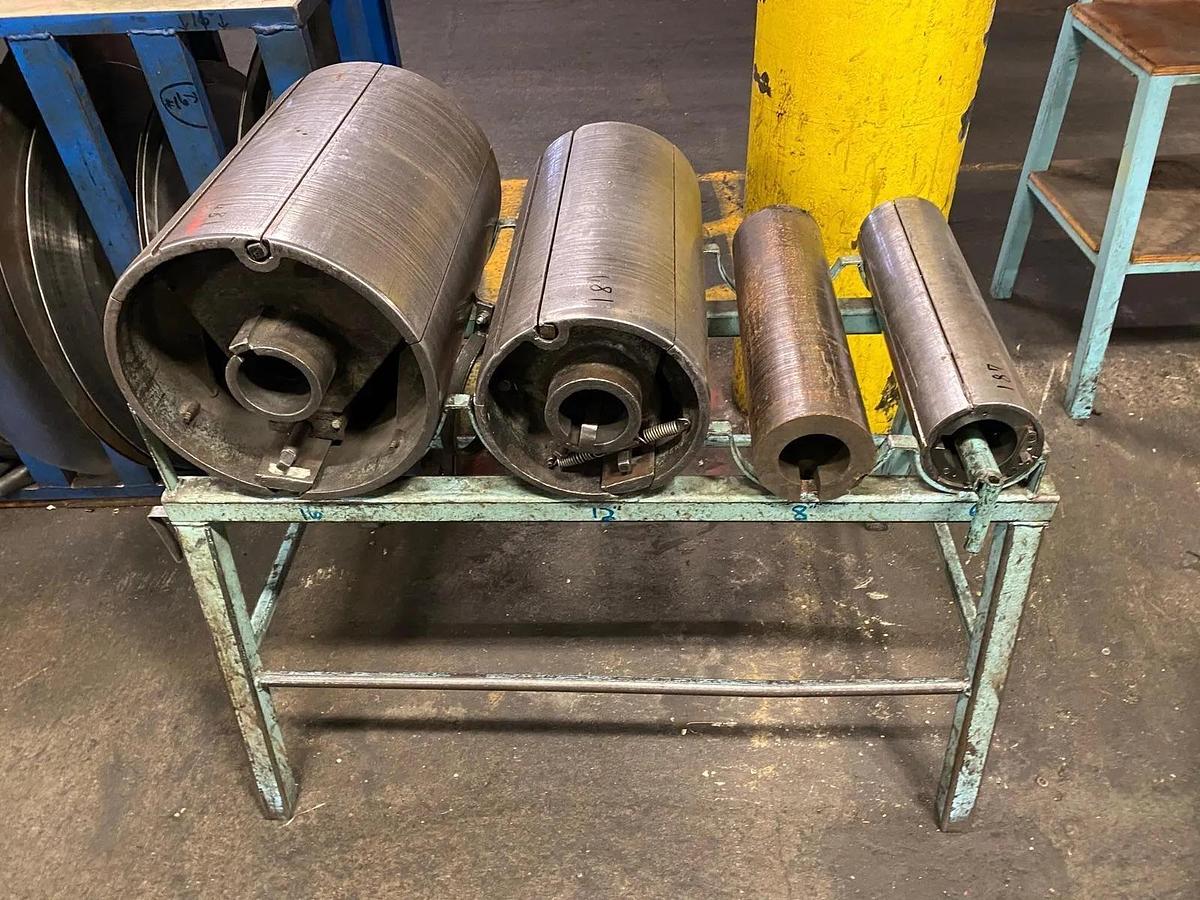

Large Quantity Of Tooling, Rubbers, Spacers, & Knives Included

Elite Carotron Digital Drives

Additional Notes:

-Slitter Head & Recoiler Share Common Base
