24” x .090” x 5,000# Ruesch Slitting Line With Option For Second Head

Specifications:

Manufacturer: Ruesch

Maximum Coil Weight Capacity: 5,000 Lbs.

Material Thickness Range: .015” - .093”

Entry Coil I.D.: 16” - 20”

Maximum Entry Coil O.D.: 50”

Exit Coil I.D.: 16”

Maximum Exit Coil O.D.: 60”

Line Speed: 0 - 500 FPM

Line Components:

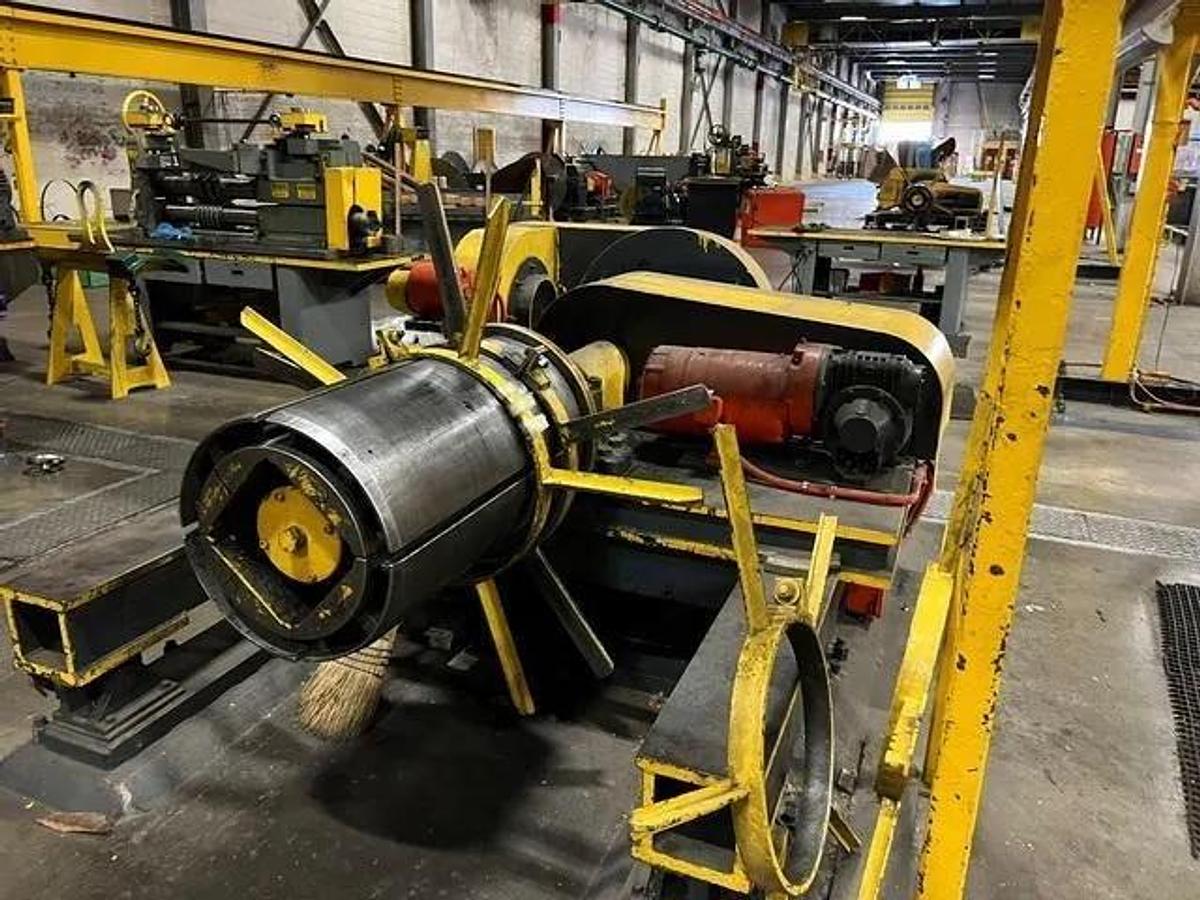

Uncoiler:

-31” Mandrel Face

-Bolted Leaves For Larger I.D.

-Hydraulic Expansion

-Sliding Base

-Feed-Up Drive

-Wichita Water-Cooled Brake

Pass Line Roll

Edge Guides & Tension Stand

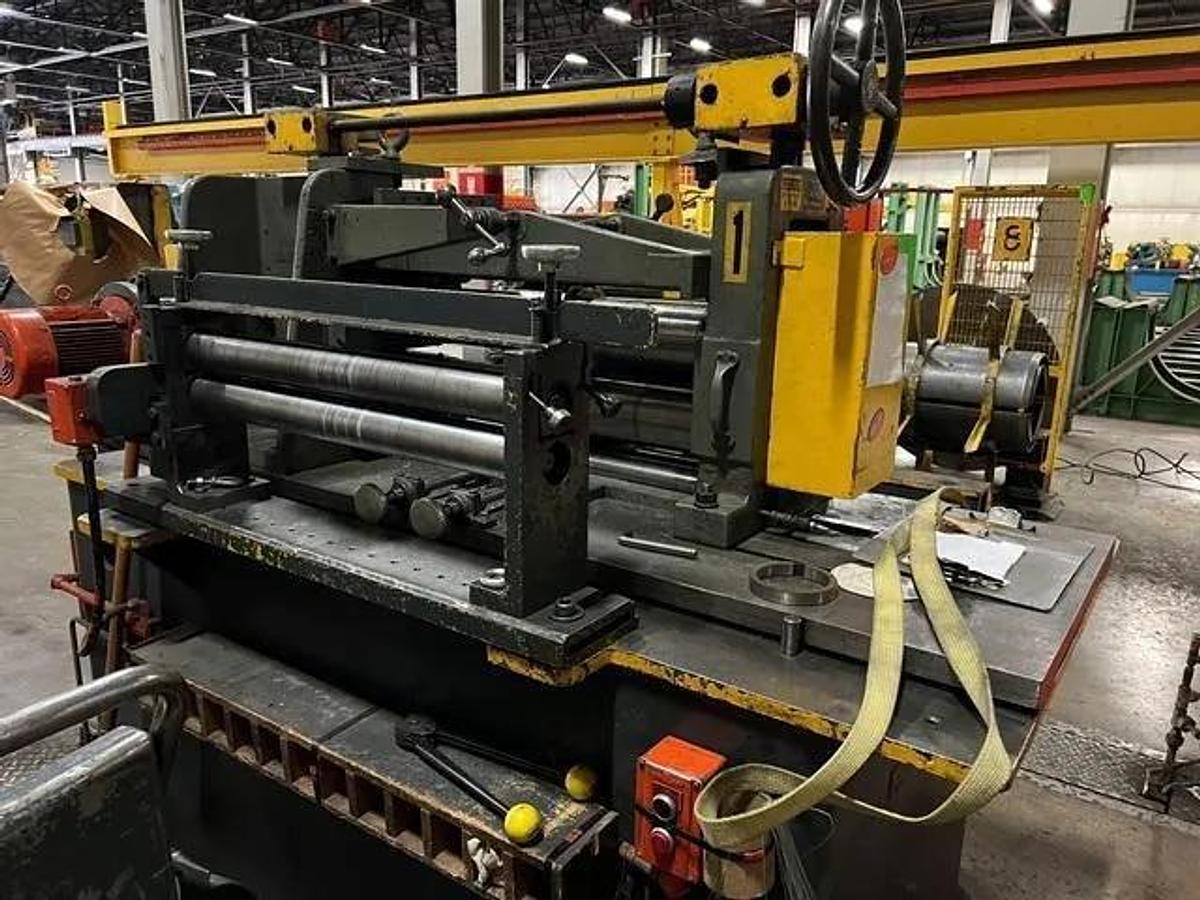

Ruesch Ring Type Slitter Head:

-Option For Additional Slitter Head With Same Specifications

-27” Arbor Face

-4” Arbor Diameter

-Parallel Adjustment

-3 HP AC Motor

Exit Pass Line Roll

Scrap Winder

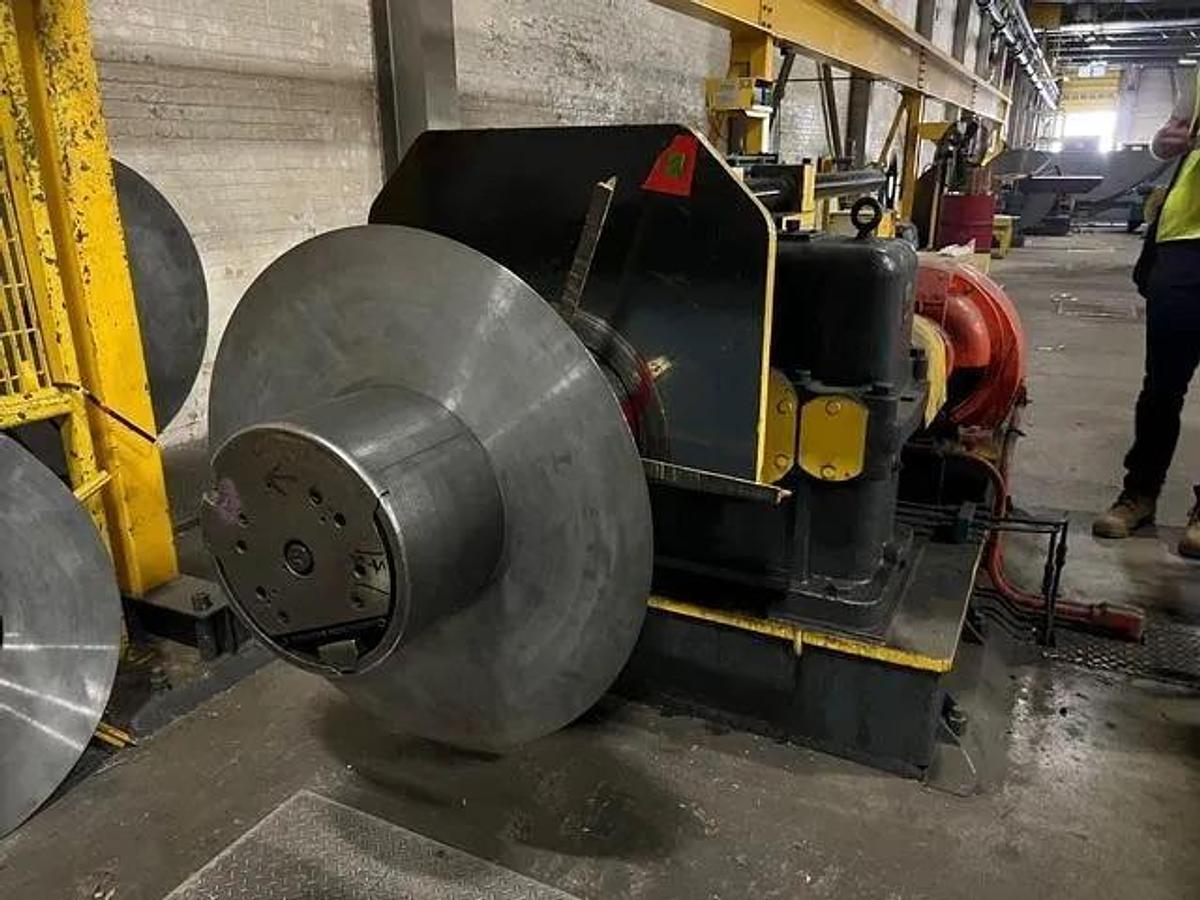

Recoiler:

-Hydraulic Push-Off Plate

-30” Mandrel Face

-16” Coil I.D.

-Maximum Coil O.D.: 60”

-Separator Rings

-25 HP Motor

-Horsburgh & Scott Gear Box

-Eaton Dynamic Electromagnetic Friction Brake

Exit Two-Arm Turnstile:

-35” Arm Length

-Manual Rotation

Tooling & Knives Included
