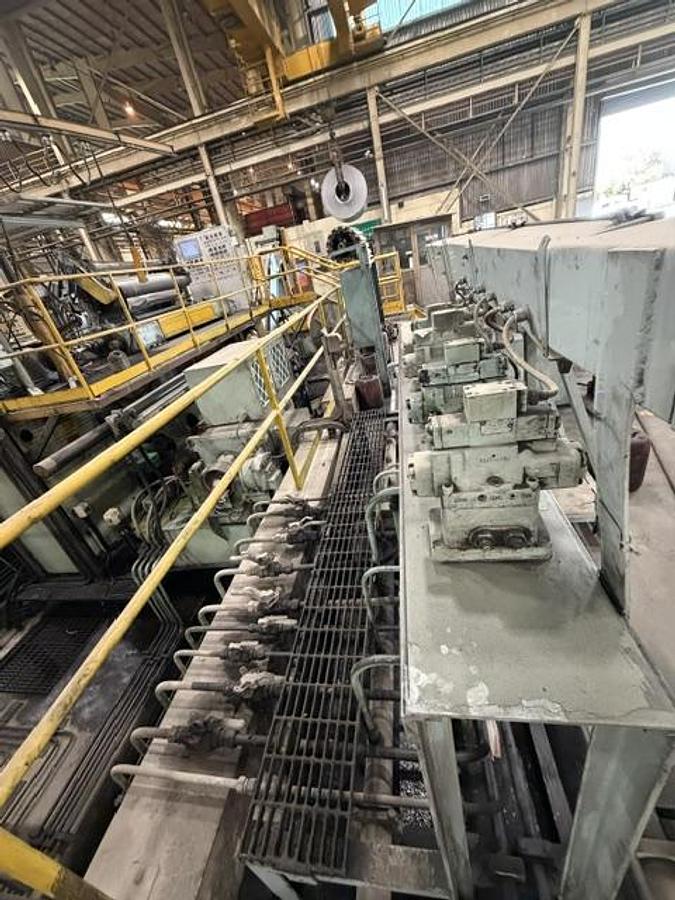

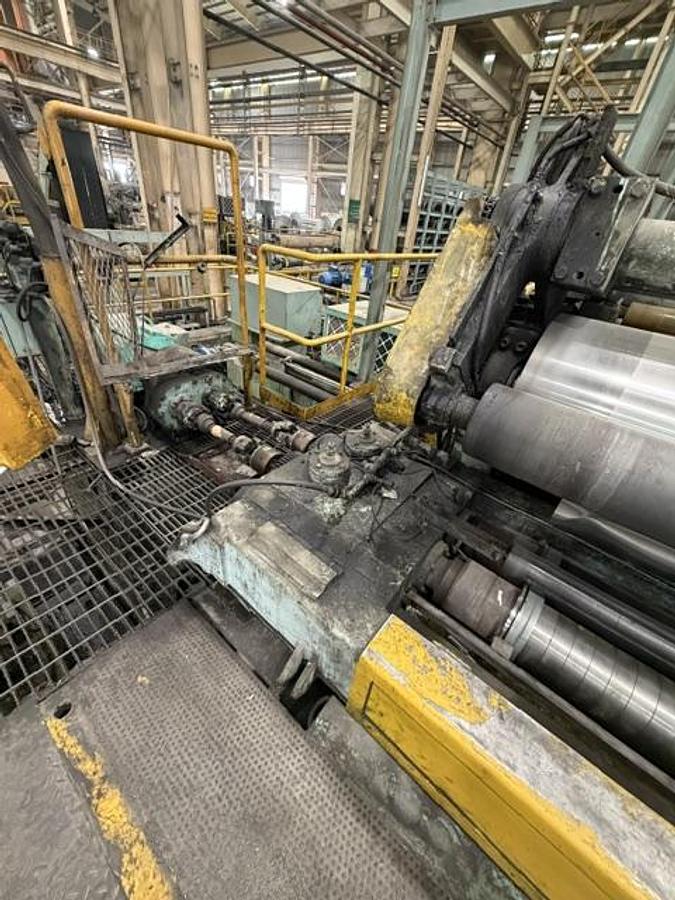

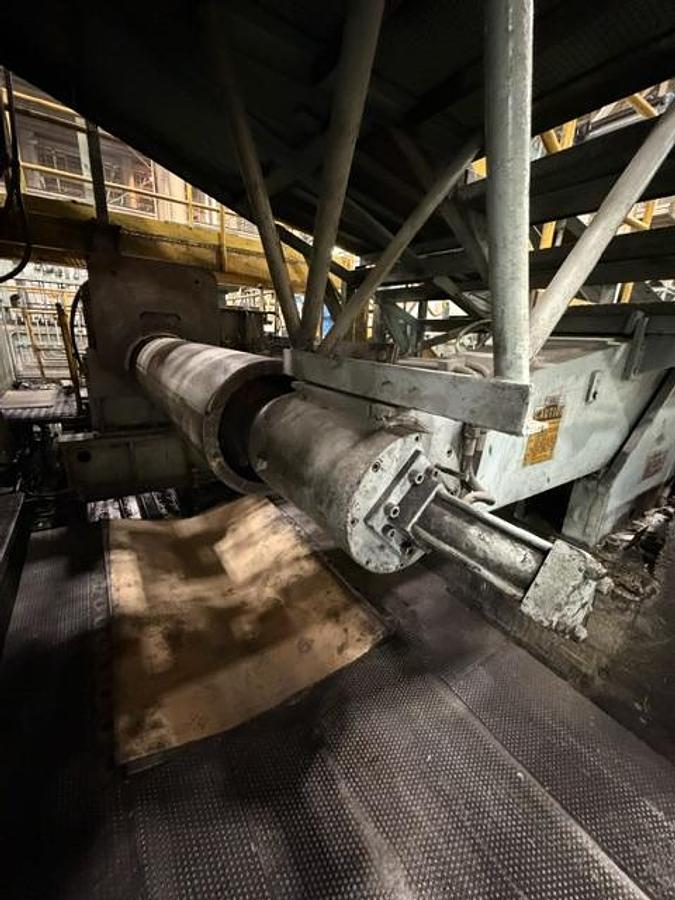

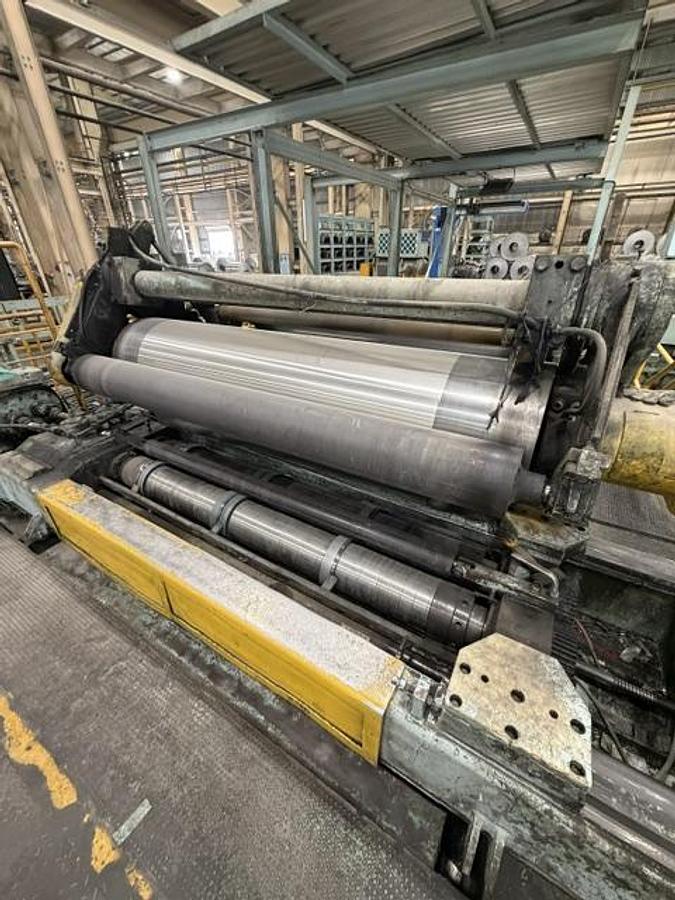

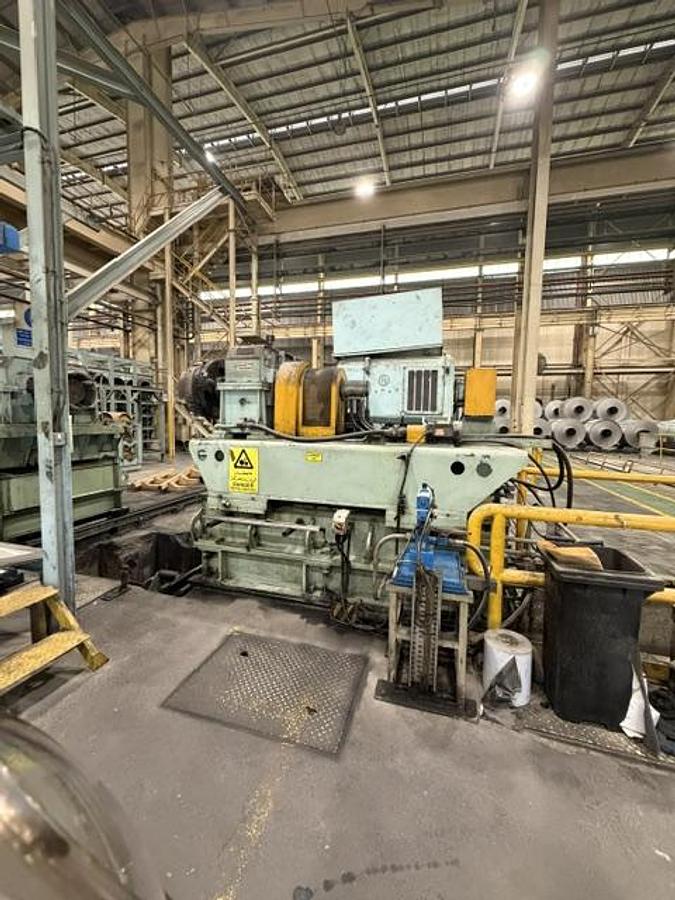

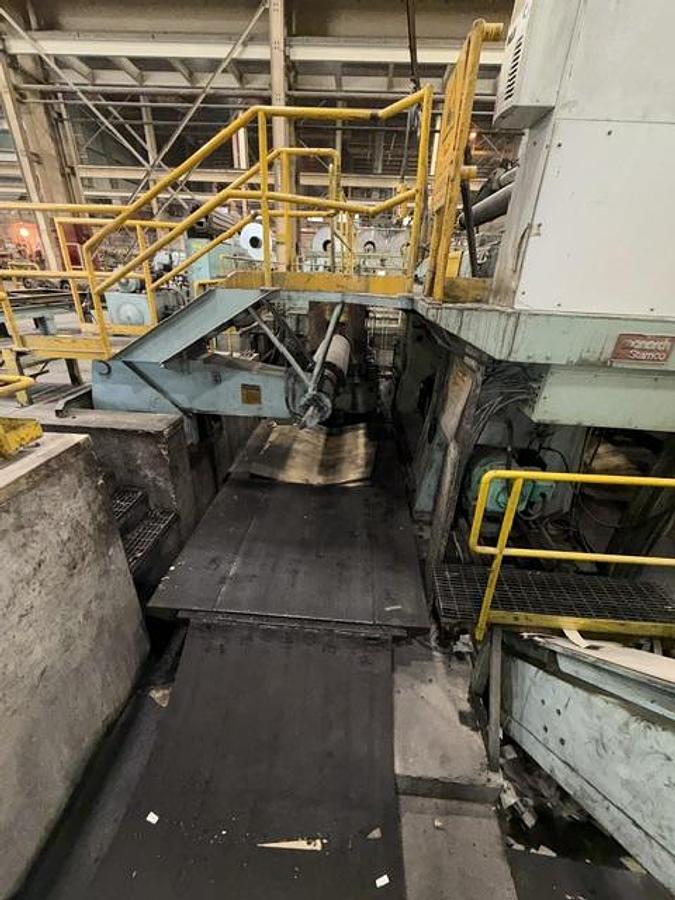

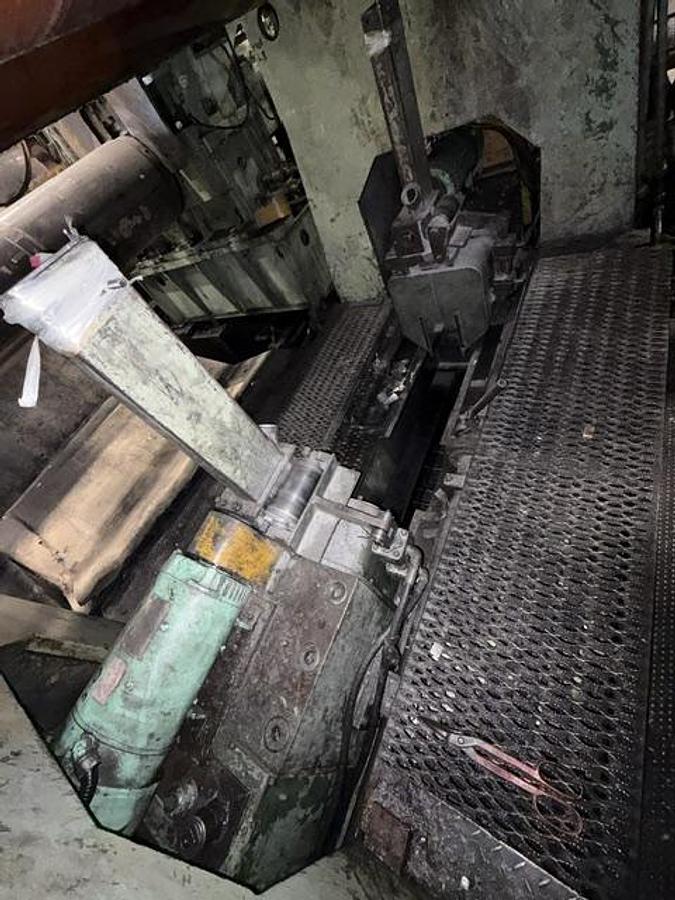

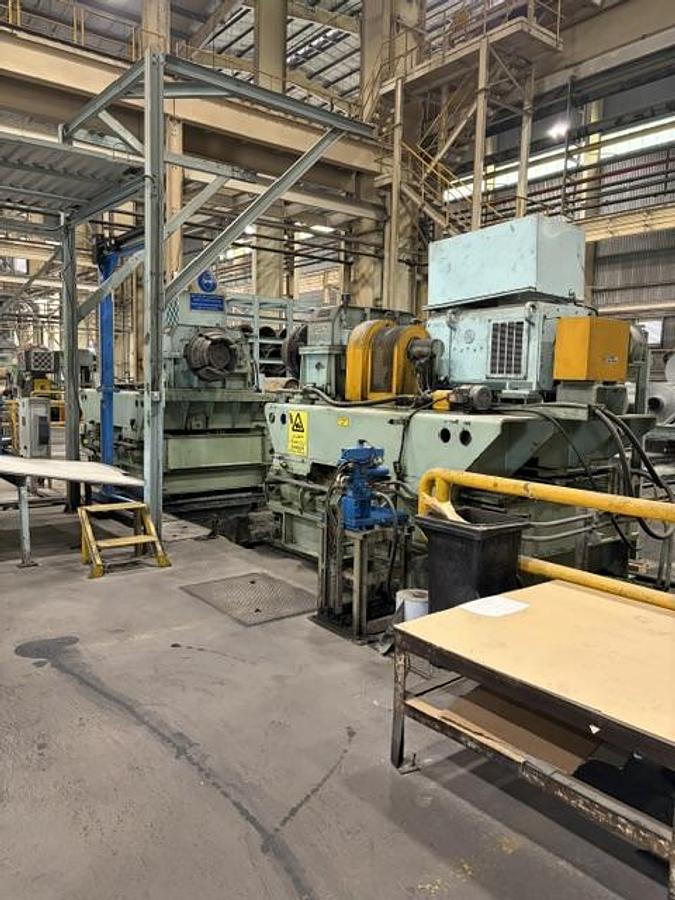

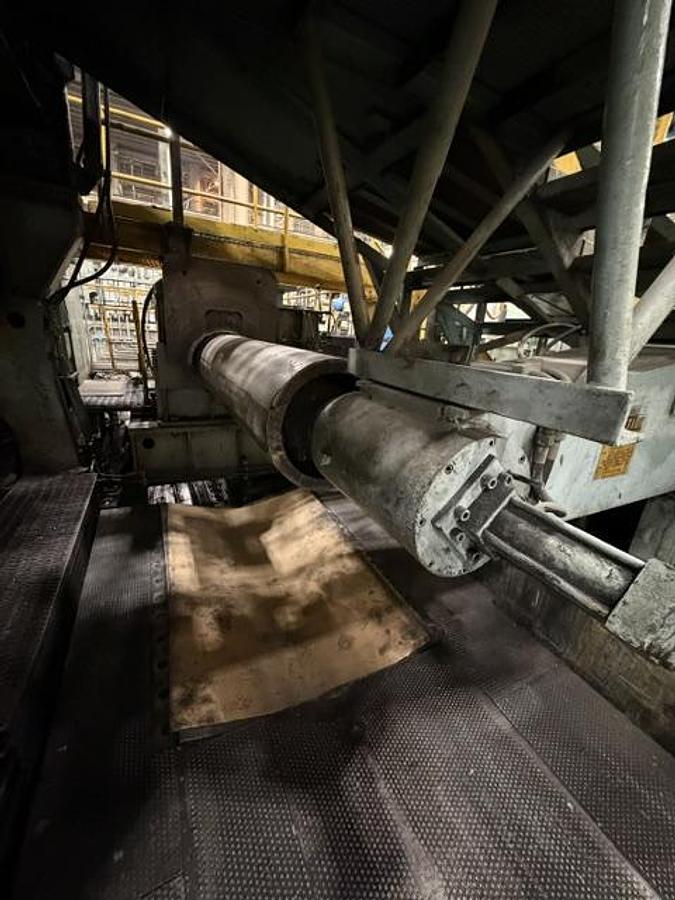

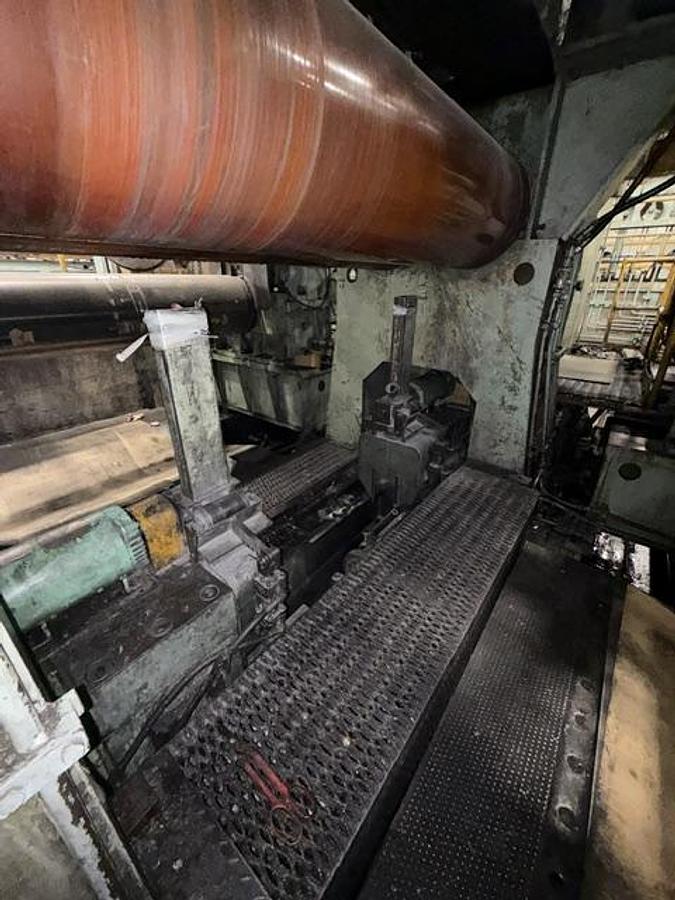

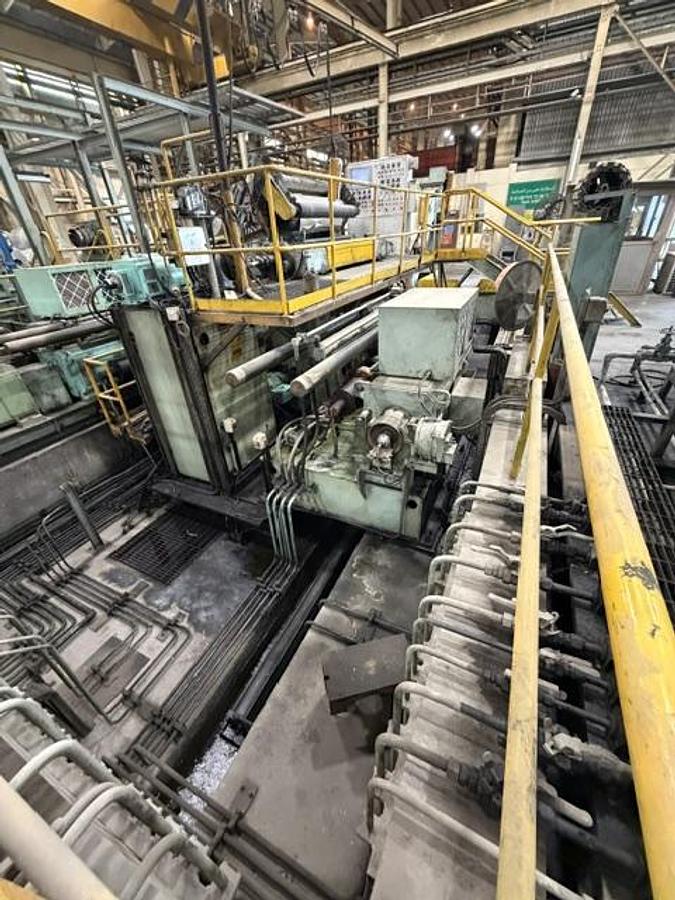

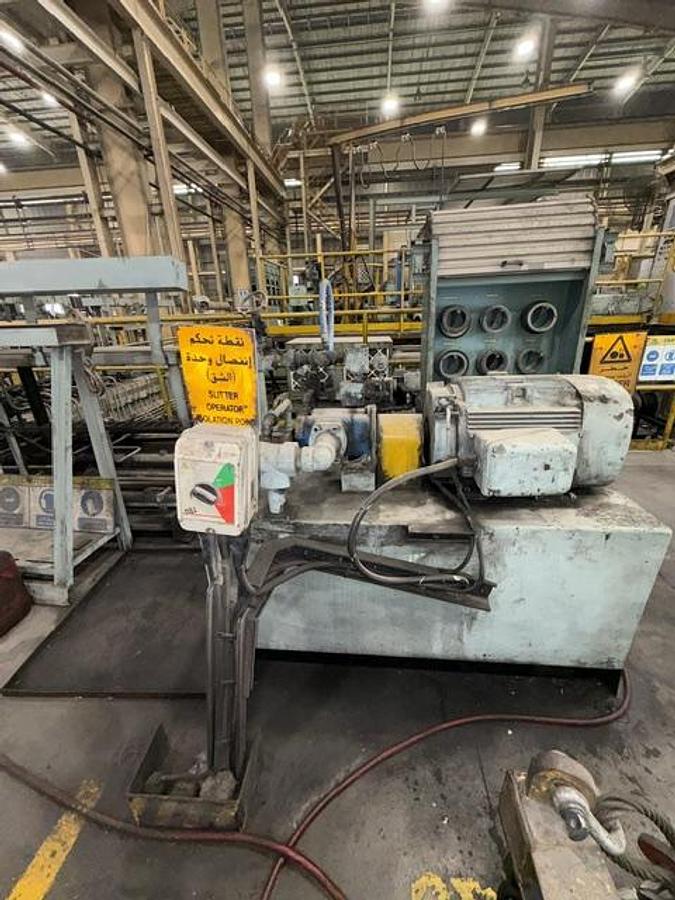

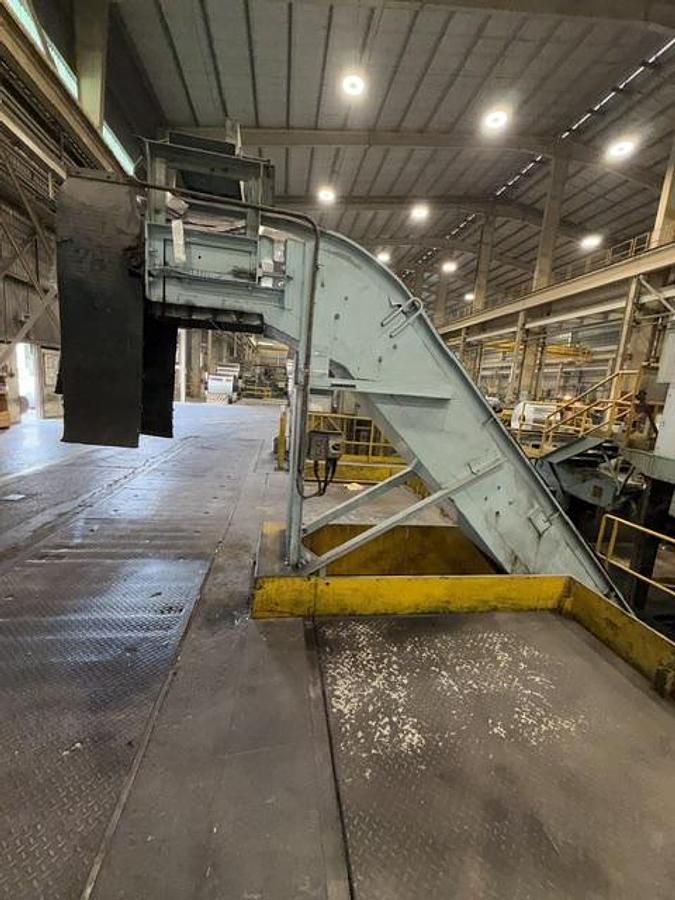

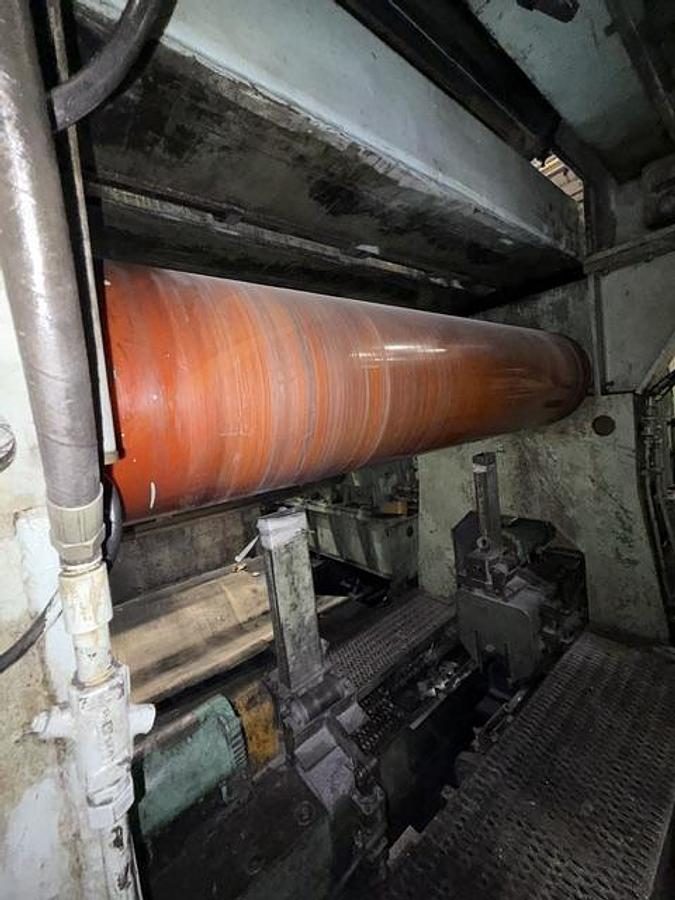

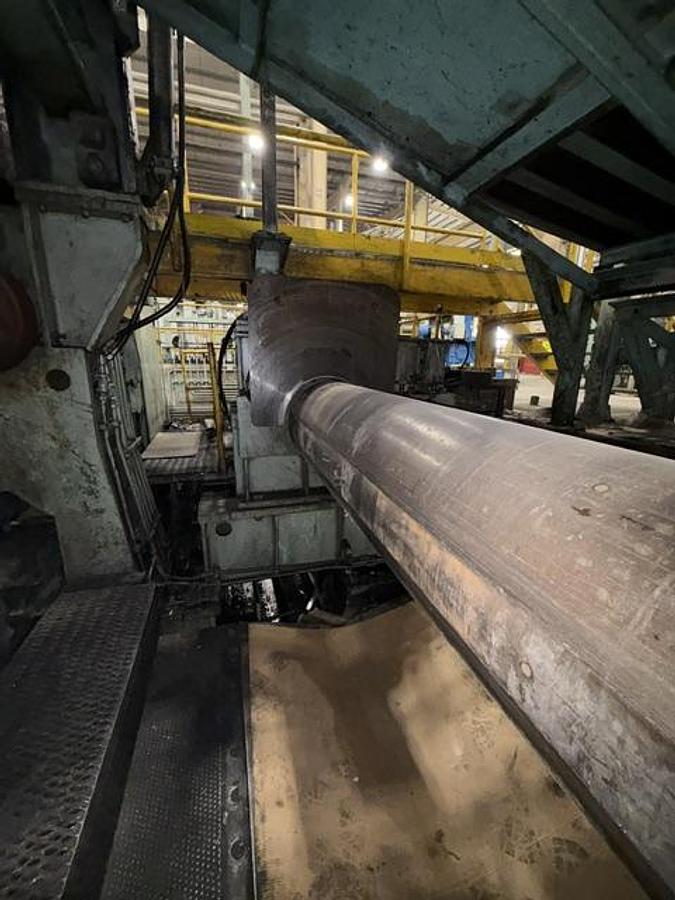

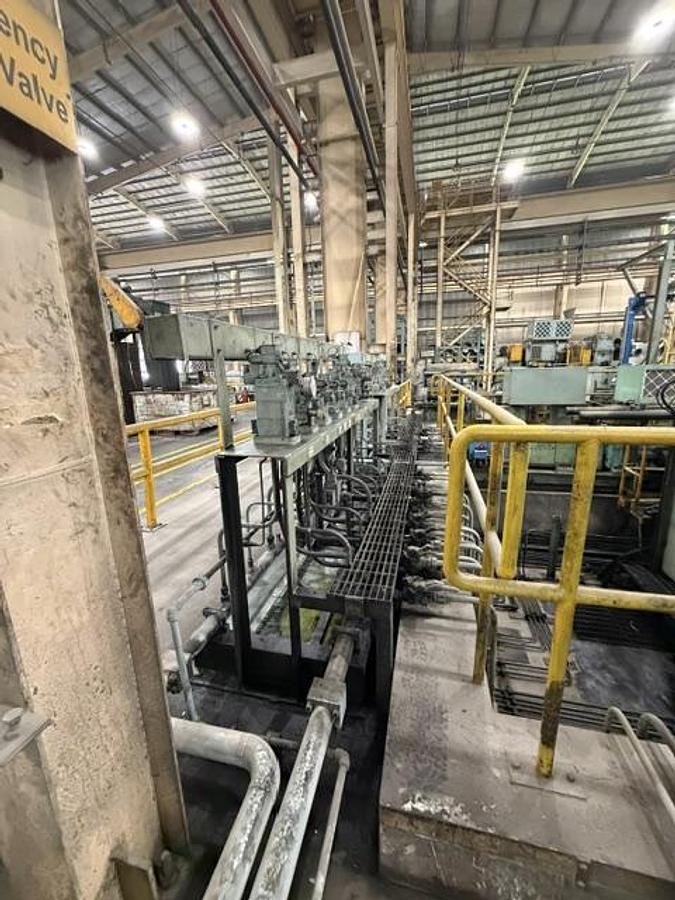

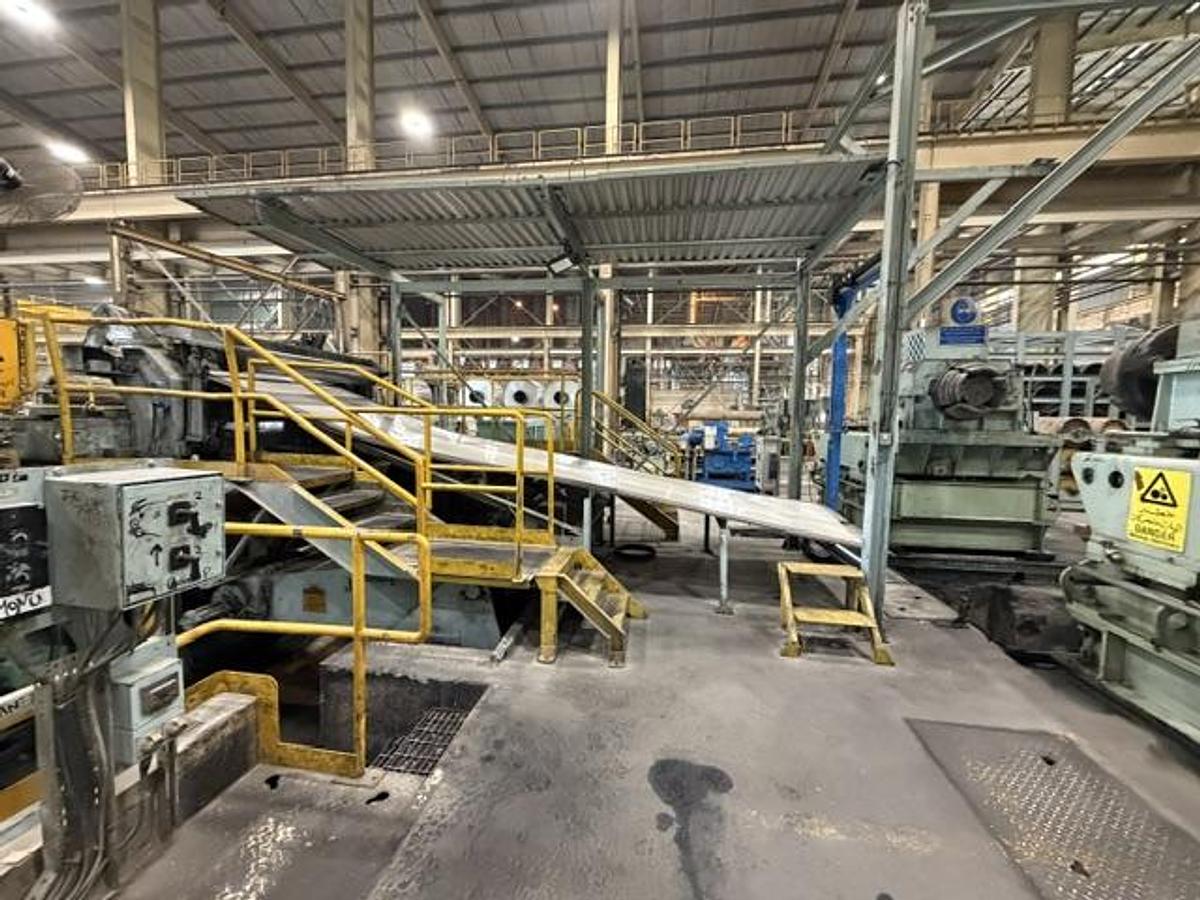

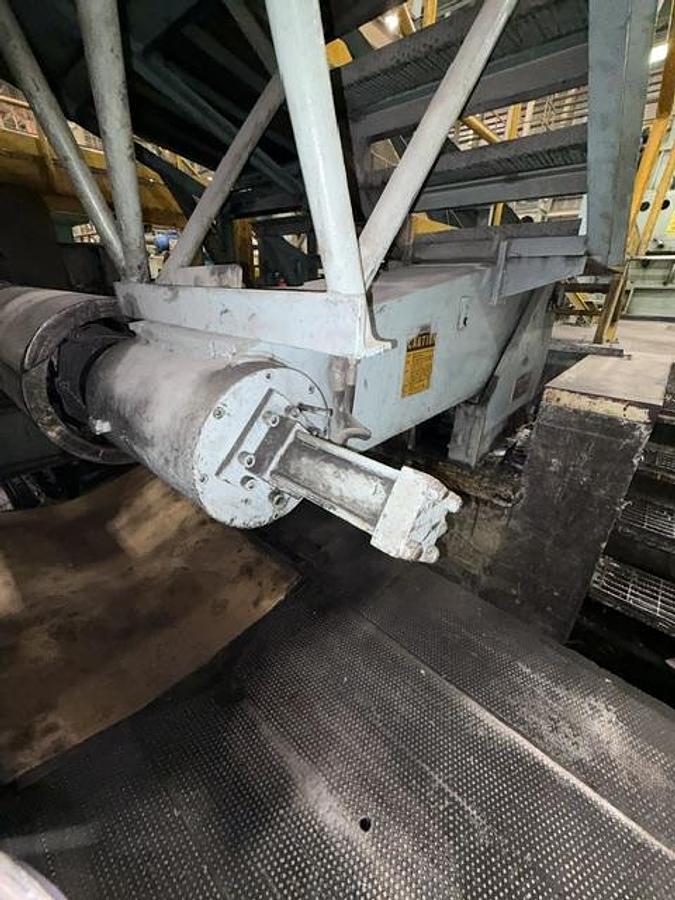

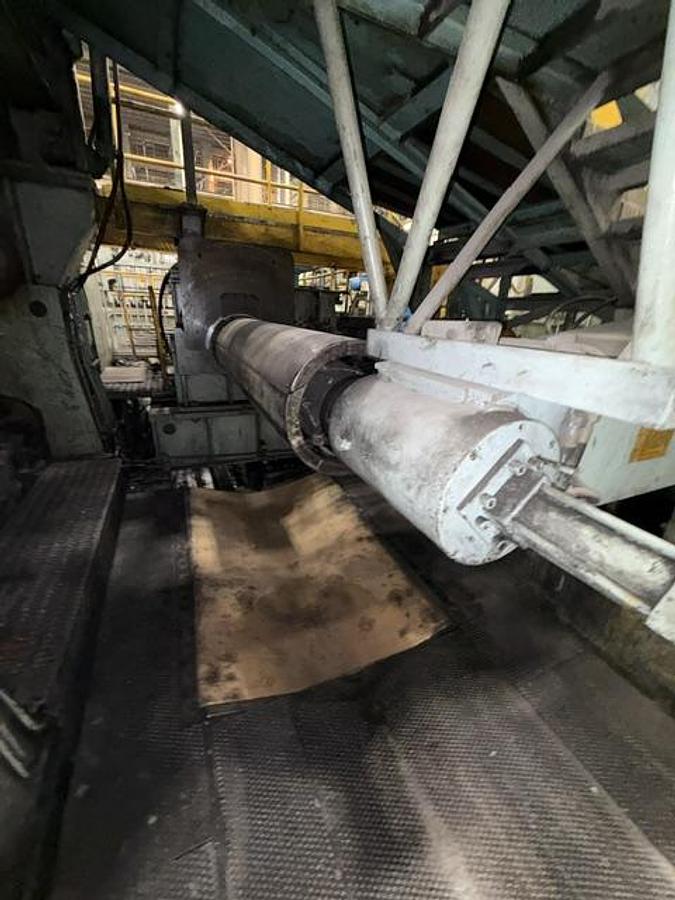

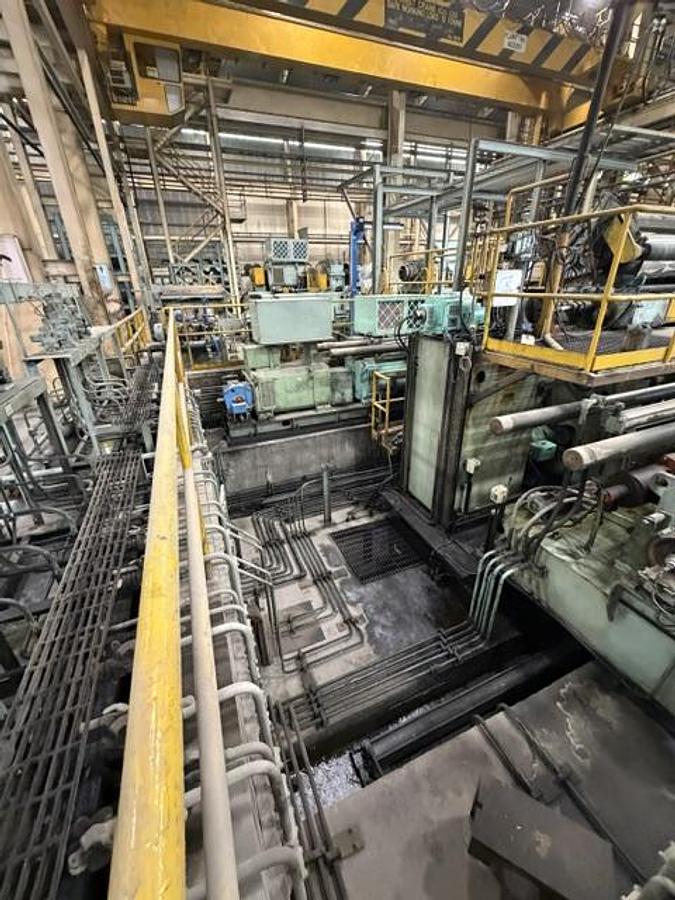

72” x 0.050” x 22,000# Stamco Aluminum Slitting Line

Specifications:

Manufacturer: Stamco

Line Direction: Right to Left

Coil Weight Capacity: 22,000 lbs. (10 Metric Tons)

Entry Coil OD: 96” (2400 mm)

Entry Coil ID: 20” (508 mm)

Minimum Thickness: 0.008” (0.20 mm)

Maximum Thickness: 0.050” (1.27 mm)

Trimmed Width Capacity: 72” (1828 mm)

Untrimmed Width Capacity: 78” (1981 mm)

Minimum Line Speed:: 1,000 FPM (304 MPM)

Maximum Line Speed:: 2,000 FPM (609 MPM)

Threading Speed: 49 FPM (15 MPM)

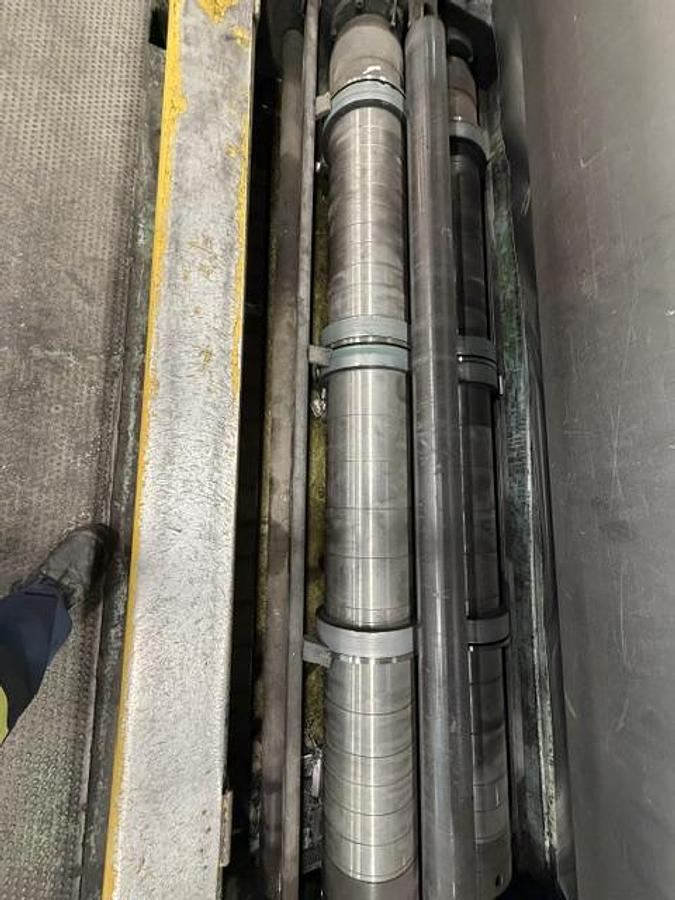

Slitting Capacity:

8 cuts @ 0.050” thickness at 1,000 FPM

10 cuts @ 0.036” thickness at 1,000 FPM

13 cuts @ 0.024” thickness at 2,000 FPM

21 cuts @ 0.010” thickness at 2,000 FPM

Electrical:

415V / 3 Phase / 50 Hz

110 VAC Control Voltage

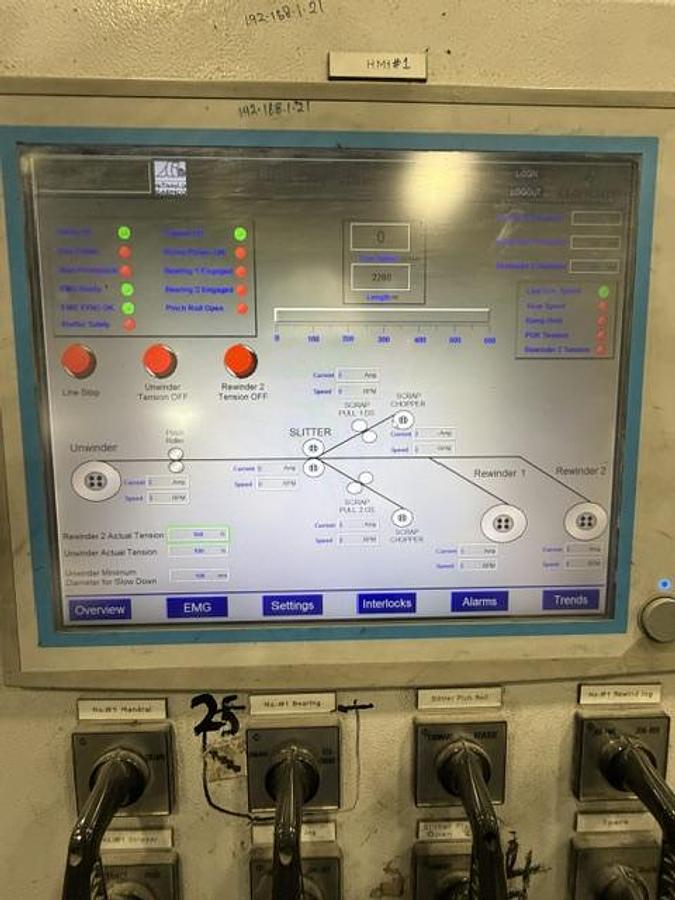

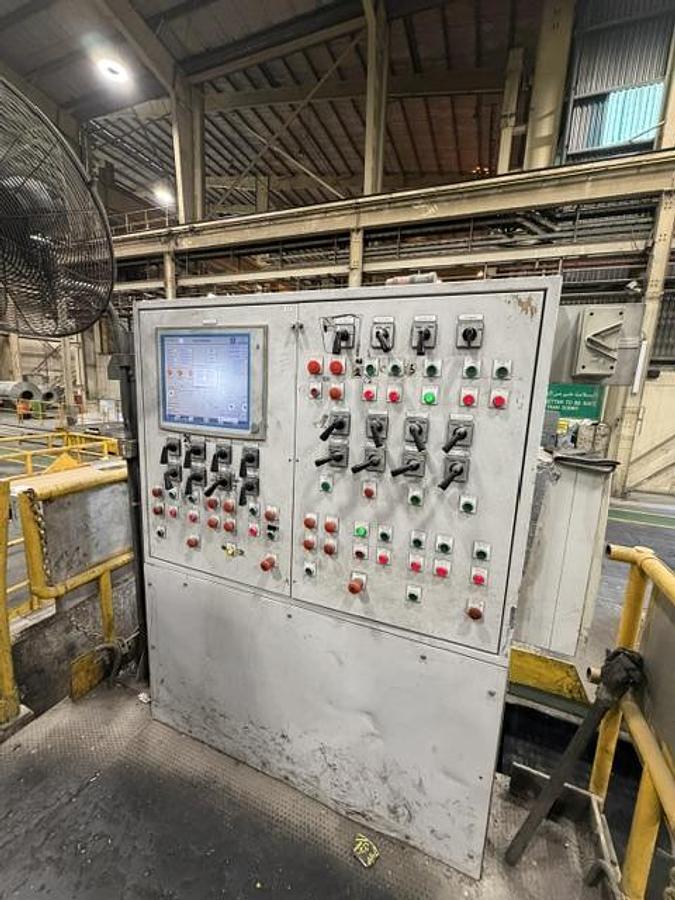

Drives, PLC, and Main Operator Control Panel upgraded in 2017
