72" x .187" x 50,000 Lb Chicago Triple Injector Head / Turret Recoiler Loop Slitting Line with Braner Banding Line
Specifications
| Manufacturer | Chicago / Braner |
| Year | 1992 |
| Condition | Used |
| Stock Number | VX-36020 |
| Minimum Material Thickness | .010" |
| Maximum Material Thickness | .187" |
| Maximum Coil Width | 72" |
| Minimum Entry Coil ID | 20" |
| Maximum Entry Coil ID | 24" |
| Exit Coil ID Options | 20", 24" |
| Maximum Coil OD | 72" |
| Maximum Line Speed | 1,000 FPM |
| Line Direction | Left to Right |
Description
The used Chicago/Braner Triple Injector Head / Turret Recoiler Loop Slitting Line is designed for precision slitting and features a maximum coil width capability of 72 inches with material thickness ranging from .010" to .187". It operates efficiently in a left-to-right line direction and supports a maximum line speed of 1,000 feet per minute. The equipment accommodates coil IDs ranging from 20" to 24", with a maximum coil OD of 72". This comprehensive line includes vital components such as an entry 4-arm turnstile with power rotation, entry L-type coil car, and a floor-standing hydraulic system. The slitting section features three injector style quick-change heads with 9" diameter arbors powered by a 100 HP DC drive. Additionally, it incorporates advanced technology such as shimless tooling and a full-width powered hold-down roll, ensuring optimal performance and reliability. For finishing, the setup boasts a dual turret-style recoiler with a rotating base and a 250 HP DC drive, along with comprehensive exit equipment, including a 12' powered conveyor with a scale. The line is complemented by a Braner banding system with features such as a banding table, conical rolls, and an automated coil positioning table. This slitting line offers operational reliability and efficiency and can be inspected under power for interested buyers.
Includes

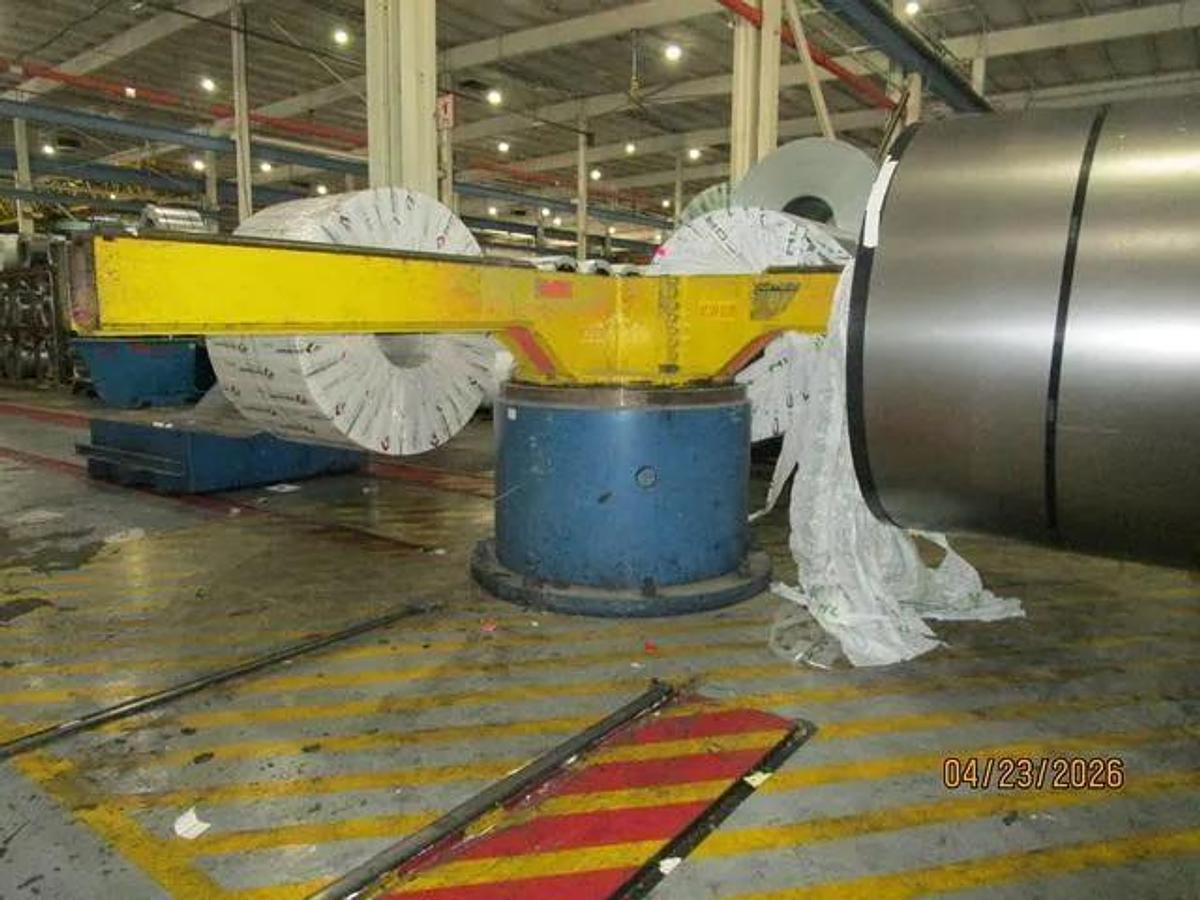

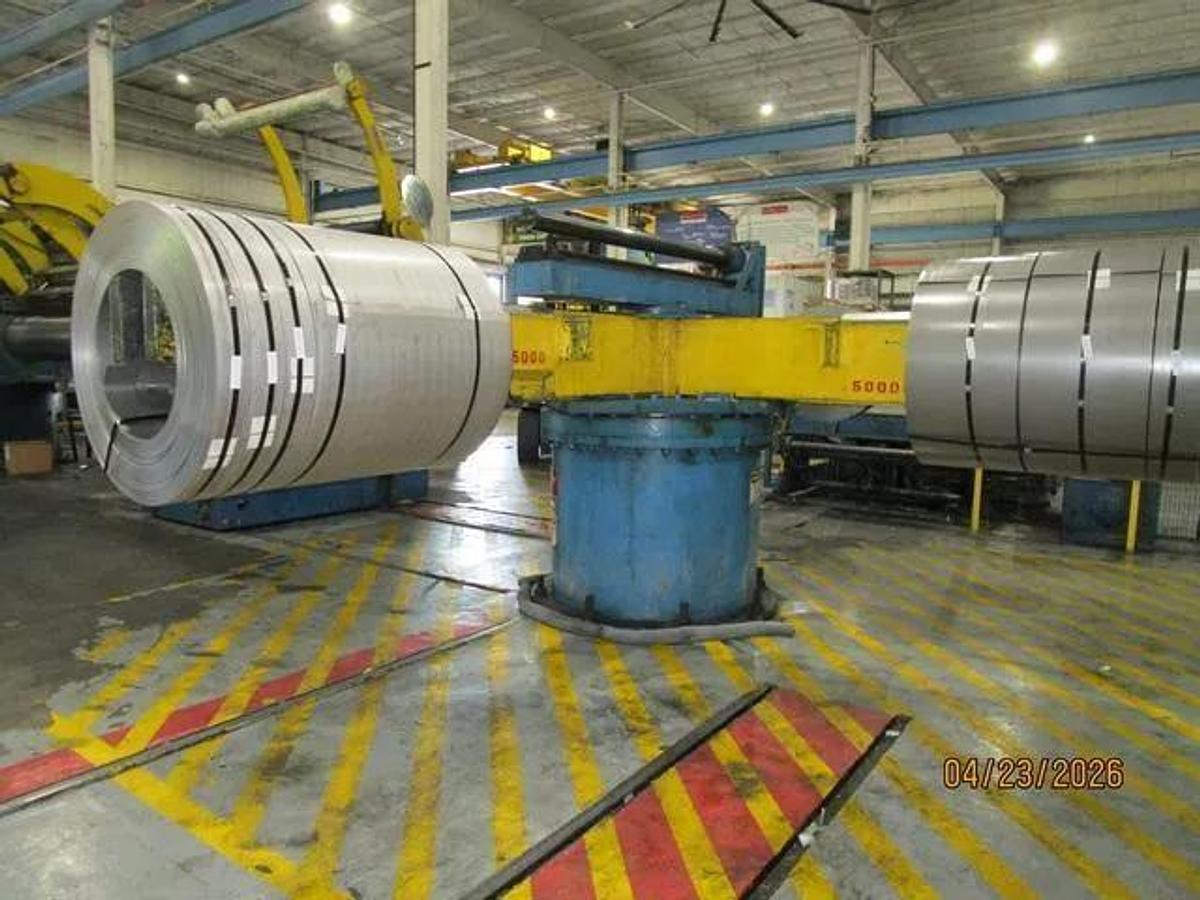

Entry 4 Arm Turnstile
Power Rotation
Entry L-Type Coil Car
Floor Standing / Self Contained Hydraulics
Paper Winder

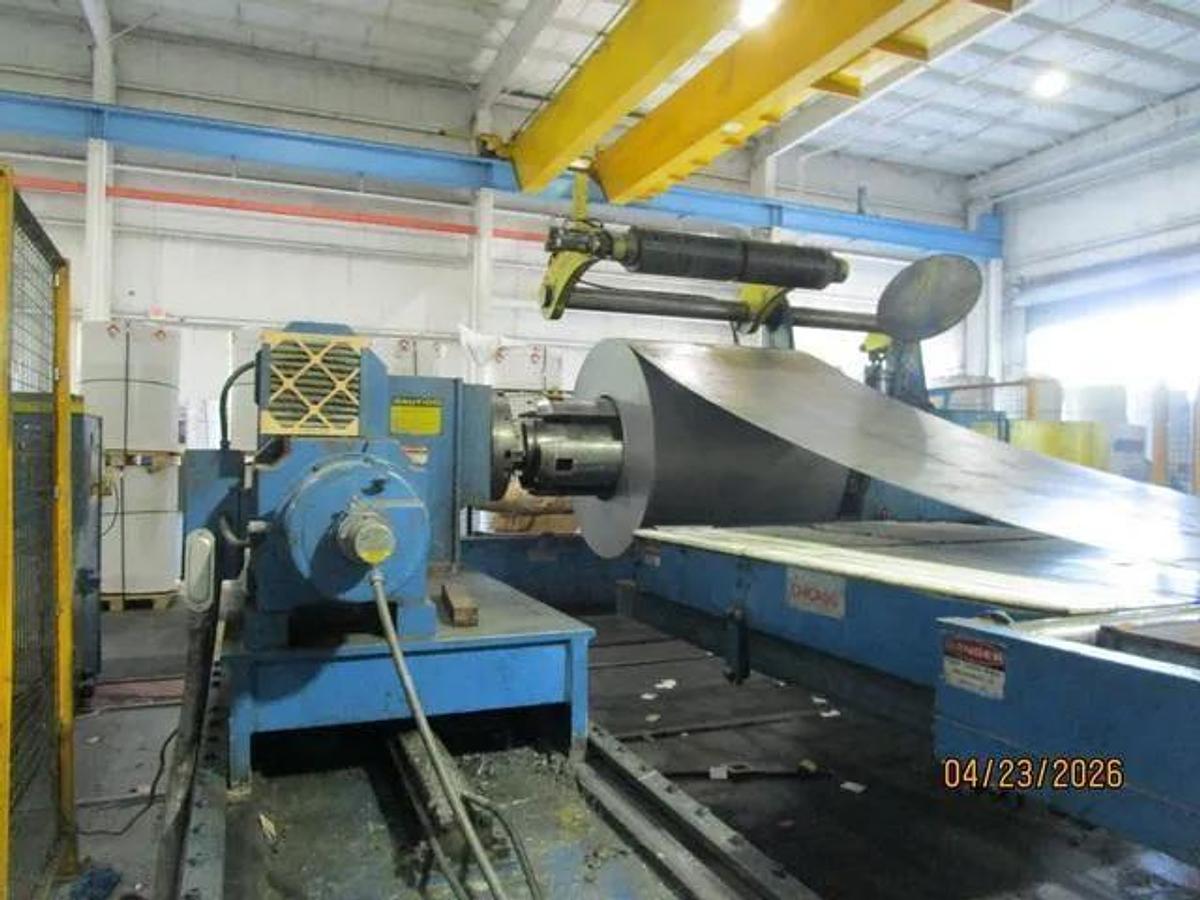

Mandrel Uncoiler
Hydraulic Sliding Base
4 Leaf Hydraulic Expansion
Full Width Powered Hold Down Roll
Sliding Out-Board Support with 75 HP Motor
DC Drag Generator Brake

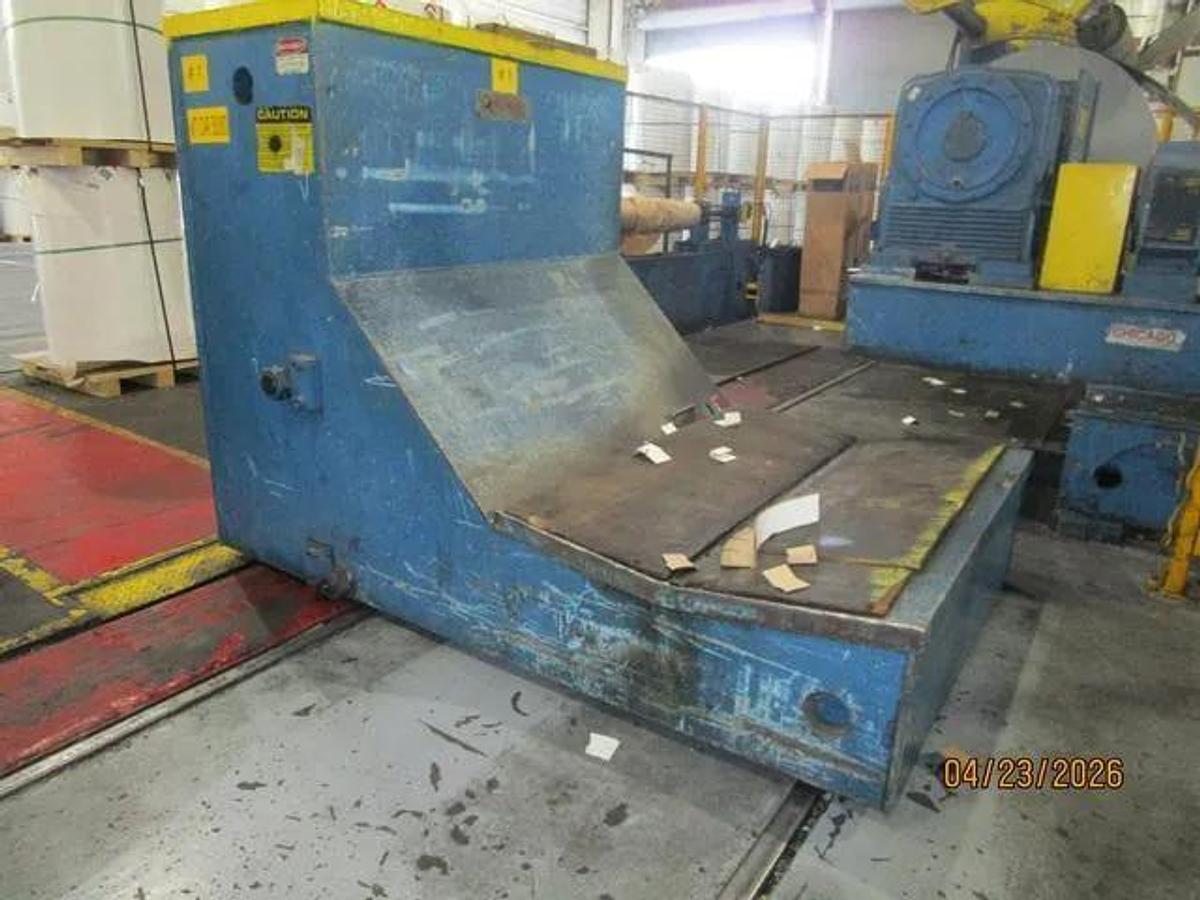

Peeler Table
Pinch Rolls
2 Sets of Edge Guides
Crop Shear
Beta Laser Mike
Paper Interleave / PVC Applicator

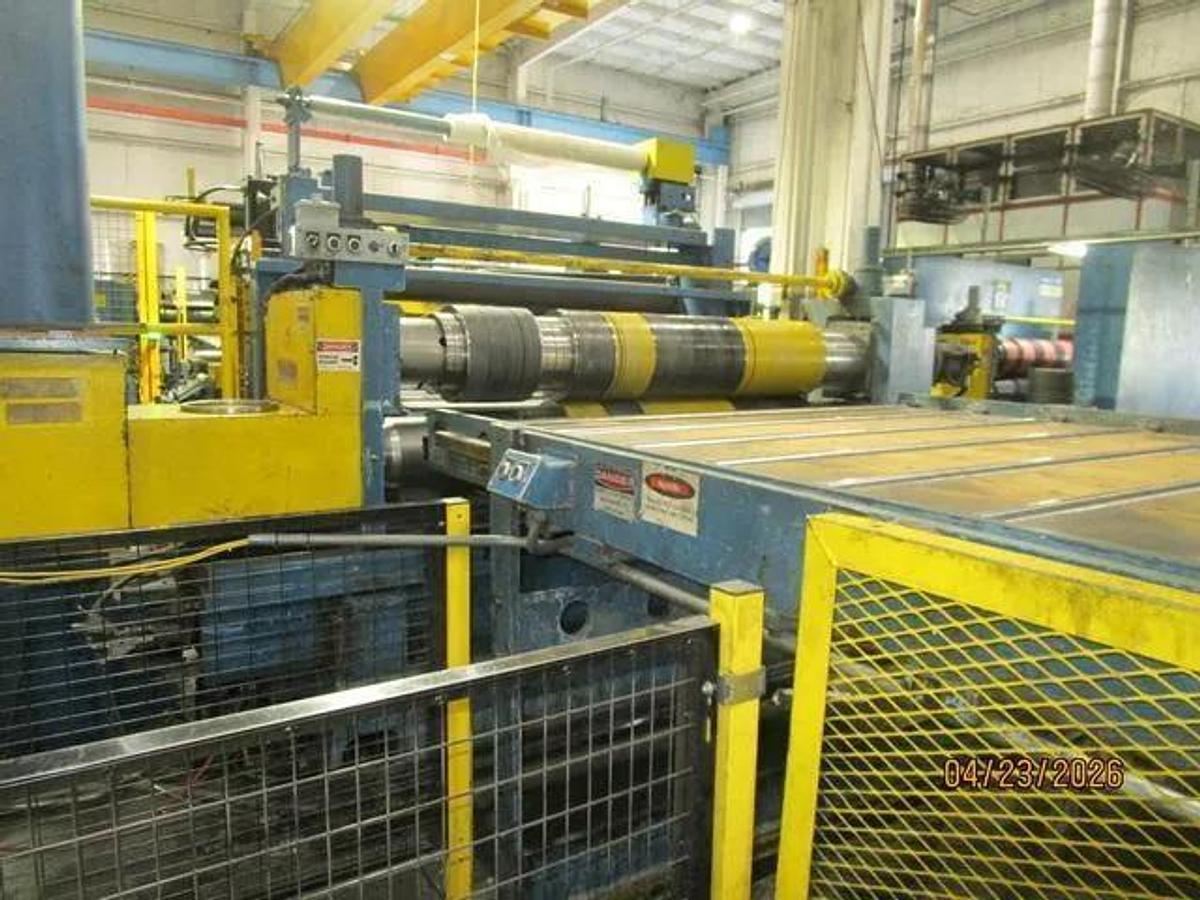

(3) Slitter Heads
Injector Style Quick Change
9" Diameter Arbors
100 HP DC Slitter Drive, 500/2000 RPM, 500 Volt
Hydraulic Locking Arbors
Shimless Tooling
Run Out Conveyor
Looping Pit Crossover Table
Rotary / Drag Board Tension Stand

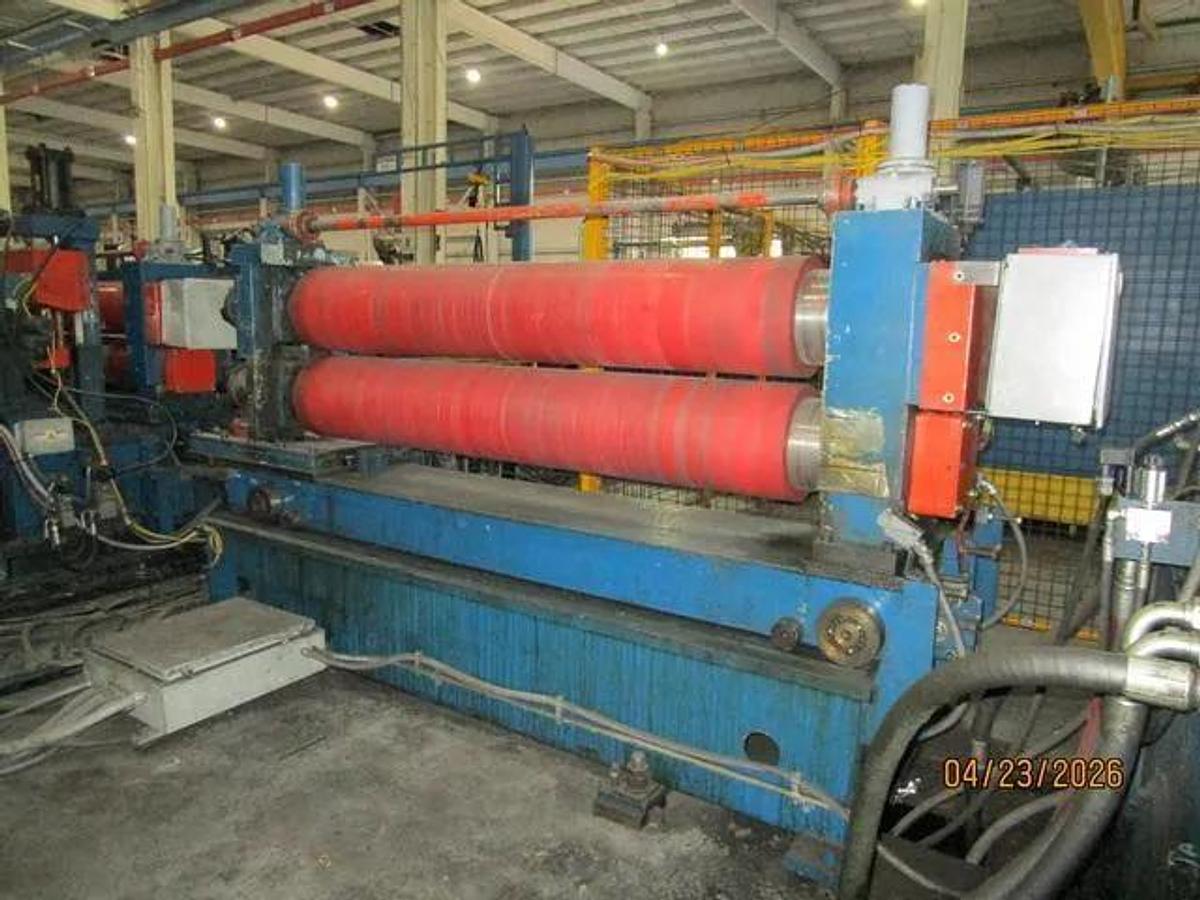

2 Sets of Injector Style Drag Rolls
Dual Hydraulic Braking
Drag Pad
Sliding Base
Sliding Quick Separator Shafts
Exit Crop Shear
Exit Feed Up Table

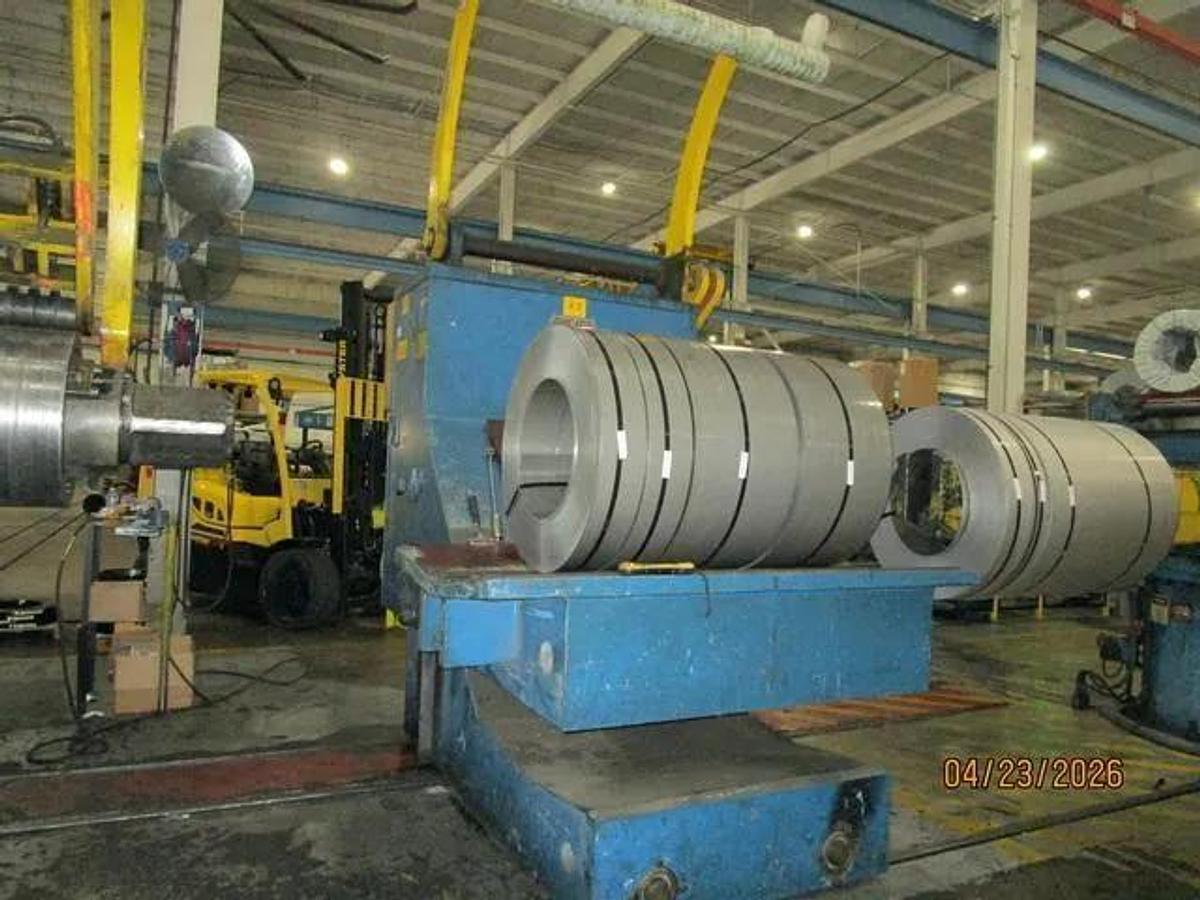

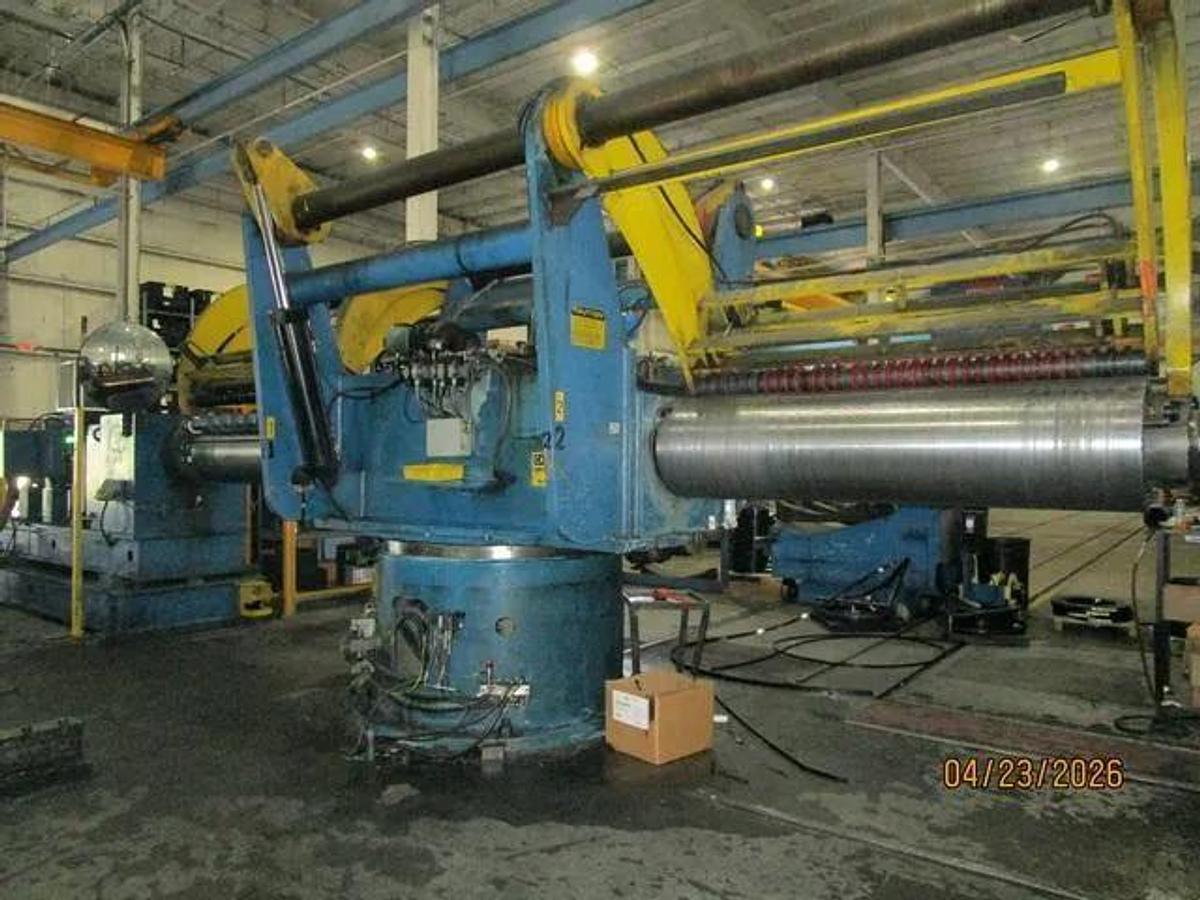

Dual Turret Style Recoiler
Rotating Base
20" Dual Hydraulic Drums
24" Sleaves
Overarm Separators
250 HP DC Drive
Exit L-Type Coil Car
Floor Standing / Self Contained Hydraulics
Coil Holder Arm

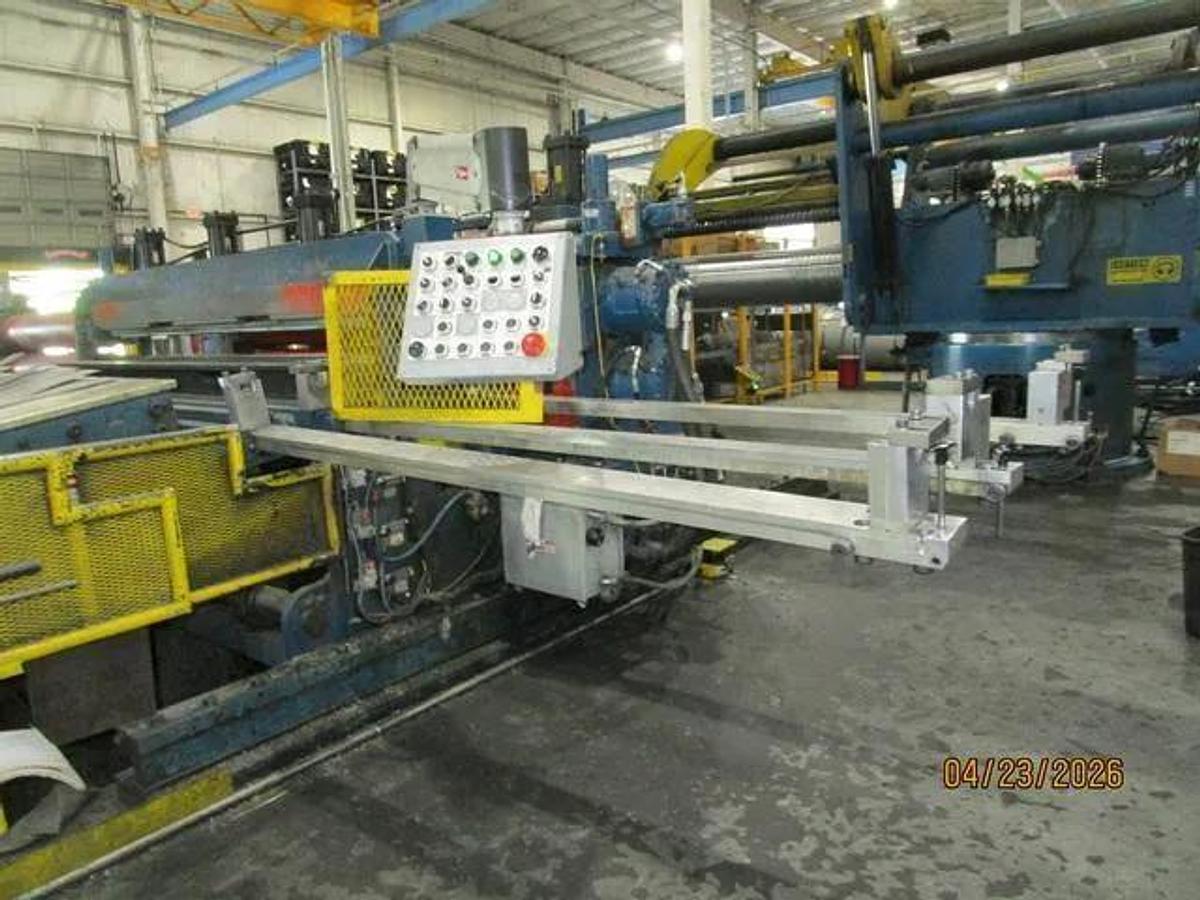

Operator Push Button Station
Digital Readouts
Shimless Tooling
Spare Separator Shafts
Parker Digital Drives'
Banner XS26-2de USB Controller
PLC Controller 6000

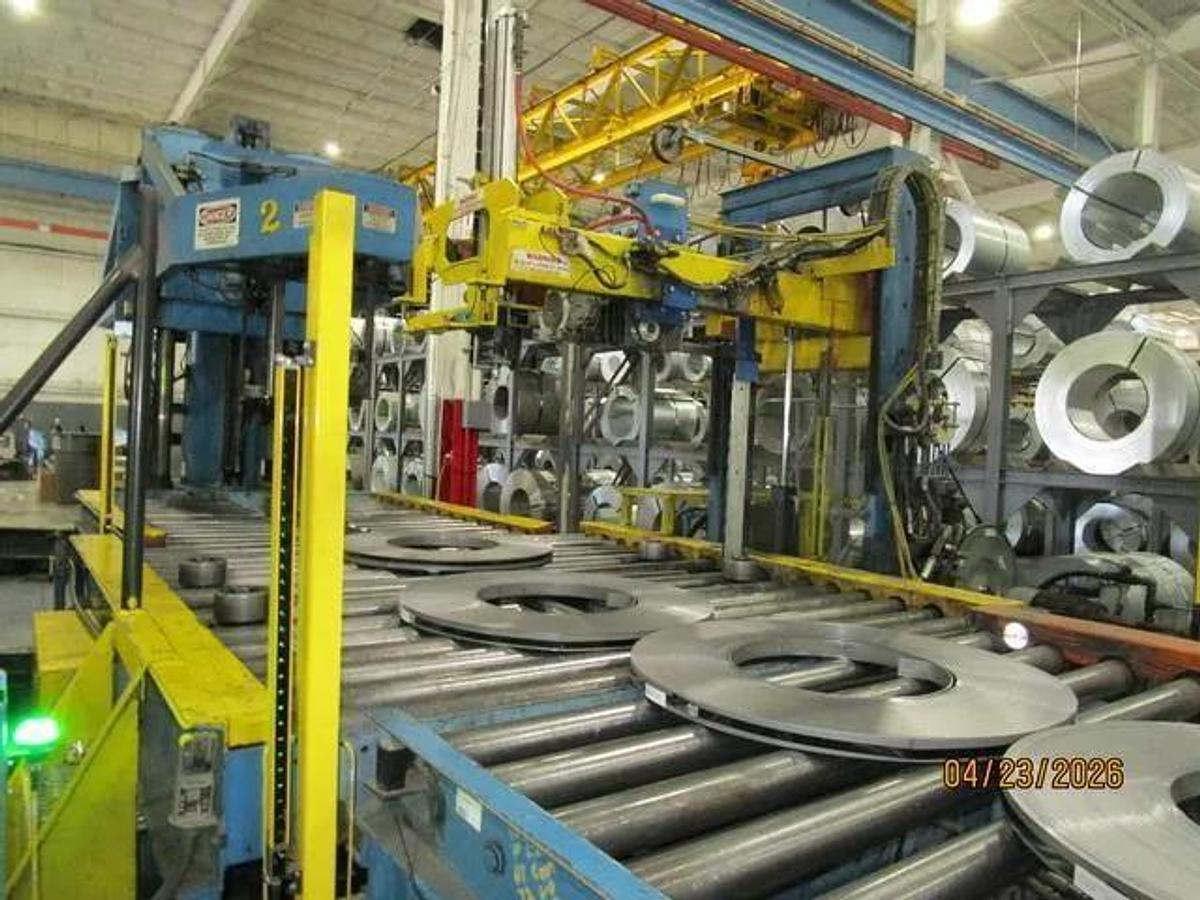

72" x 10,000# Braner Coil Banding Line
4 Arm Exit Turnstile
Power Push-Off
2 Arms: 50,000#
2 Arms: 35,000#
72" x 10,000# Downlayer
Horn Type
Dual Hydraulic Cyclinders

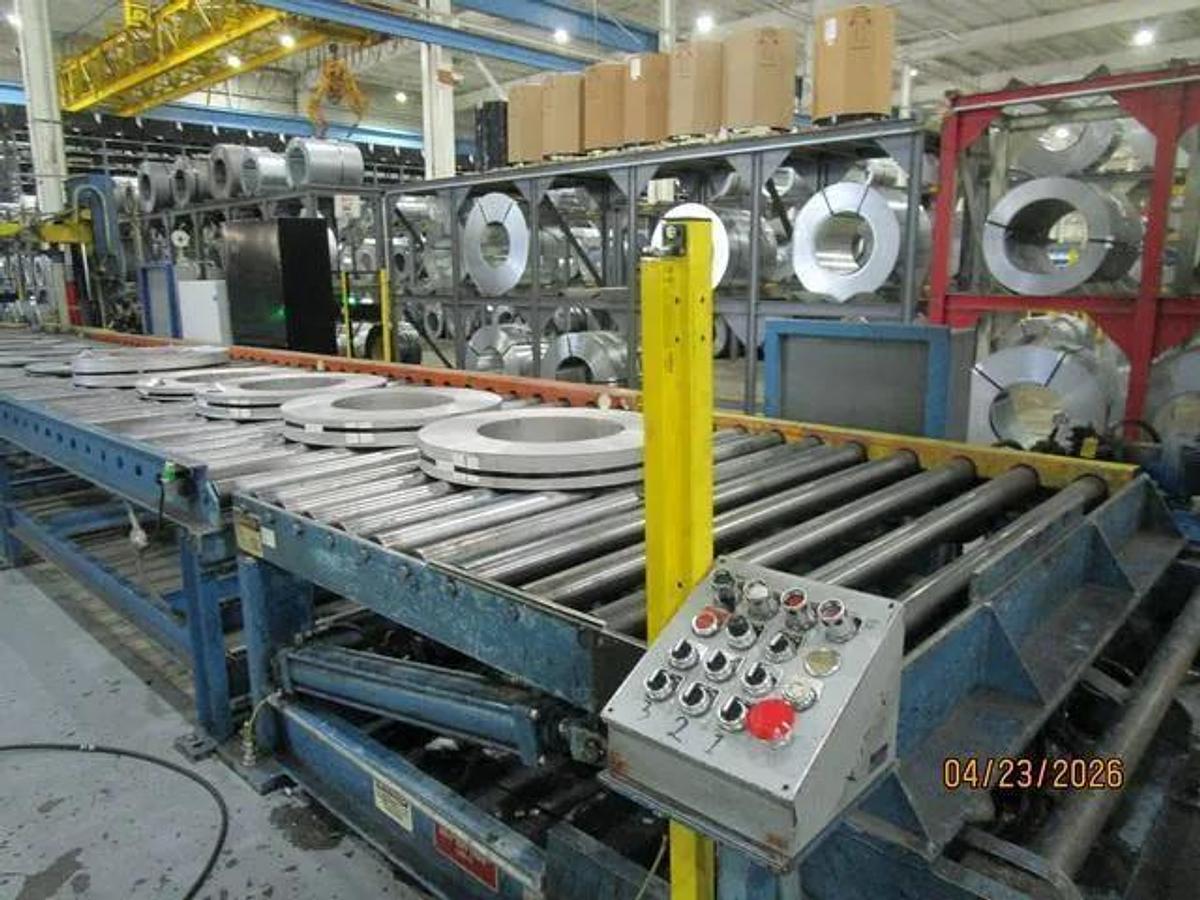

30' Powered Conveyor
Photo Electric Eye Coil Positioning
Banding Table
3 Conical Rolls
2 Banding Heads (1 Spare)
Powered Rolls
Coil Positioning Table
72" x 10,000# Braner Turret Stacker
ID / OD Coil Lifting
Power Rotation
6 Position Turntable
Power Push-Off
12' Powered Exit Conveyor with Scale
Push Button Station
Red Lion Digital Readouts
Spare Parts
Complete Line
*Can Be Inspected Under Power and Operating
