60” x 40,000 Lbs. (3) Heads Stamco Loop Slitting Line

Specifications:

Manufacturer: Stamco

Line Direction: Right to Left

Max Width: 60”

Weight Capacity: 40,000lbs

Line Components:

L-Type Entry Coil Car

Mandrel Uncoiler:

16”-20” ID W/ Pads For 24”

Hydraulic Slide Base

Hydraulic Expansion

Hold Down Roll

60 HP DC Motor, 500/2300 RPM, 500 V

Hydraulic Peeler Table

Entry Pinch Roll:

20 HP DC Motor

3 Roll Coil Breaker:

30 HP DC Motor

Entry Crop Shear

Entry Edge Guides

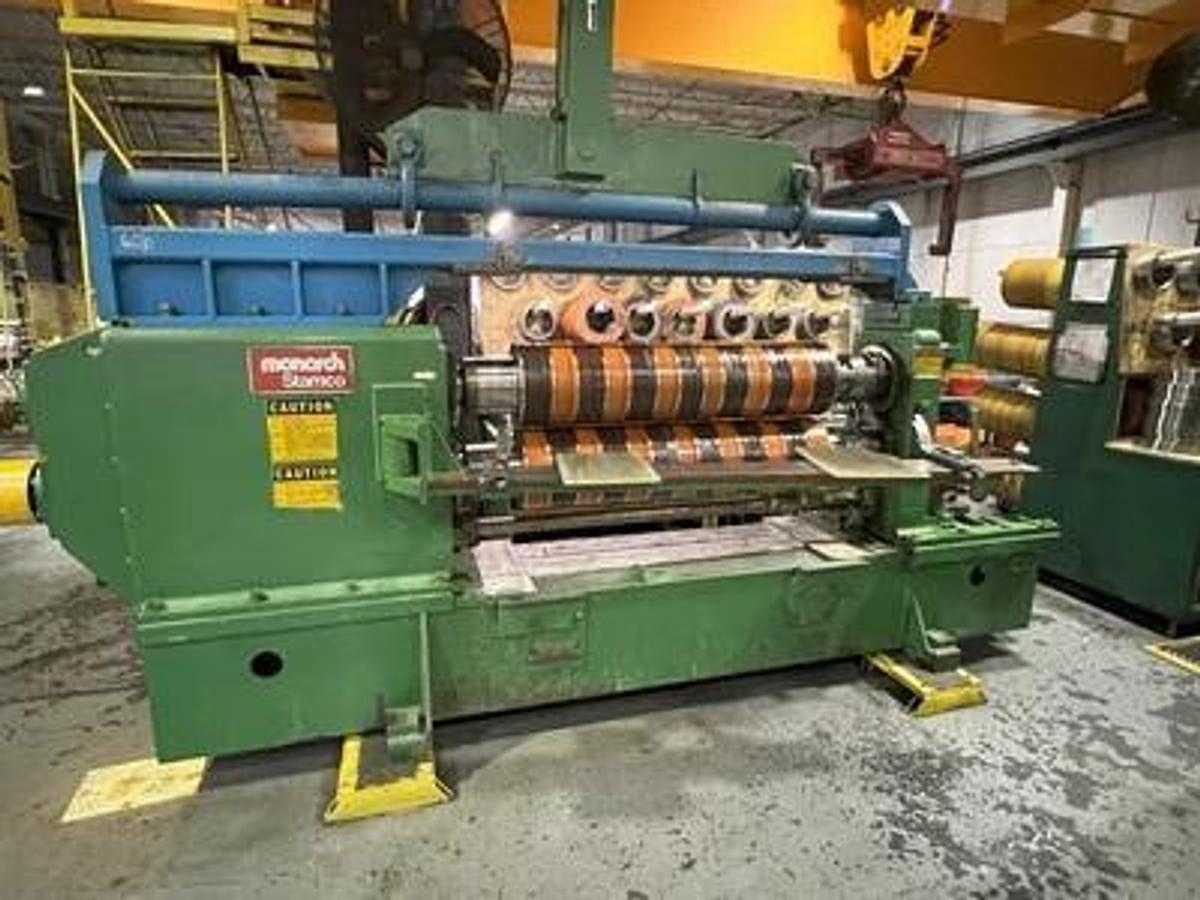

Slitter Heads

(2)- 7” Arbor x 60” Heads

(1)- 5” x 48” Head

Crane Removable Design

100 HP DC Motor, 650/1950 RPM, 500 V

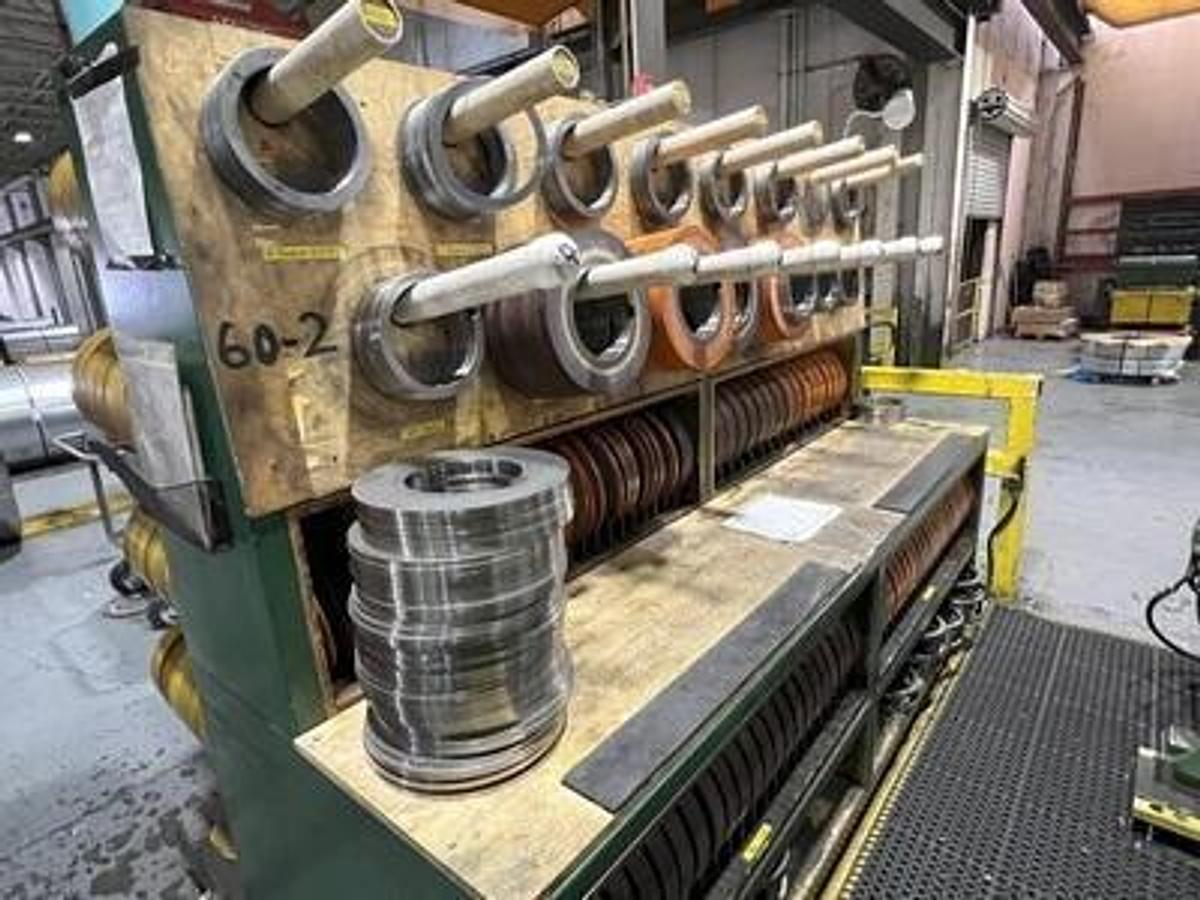

Knives, Spacers, Rubbers

Crop Shear

Pit Entry Unit

Passline Hold Down Unit

Looping Pit

Pit Exit Unit

Entry Separator Bar

Drag Board Tension Stand with Pads

Adjustable Roll Type Tension Stand

Exit Crop Shear

100 HP DC Motor, 650/1950 RPM, 500 V

Scrap Baller

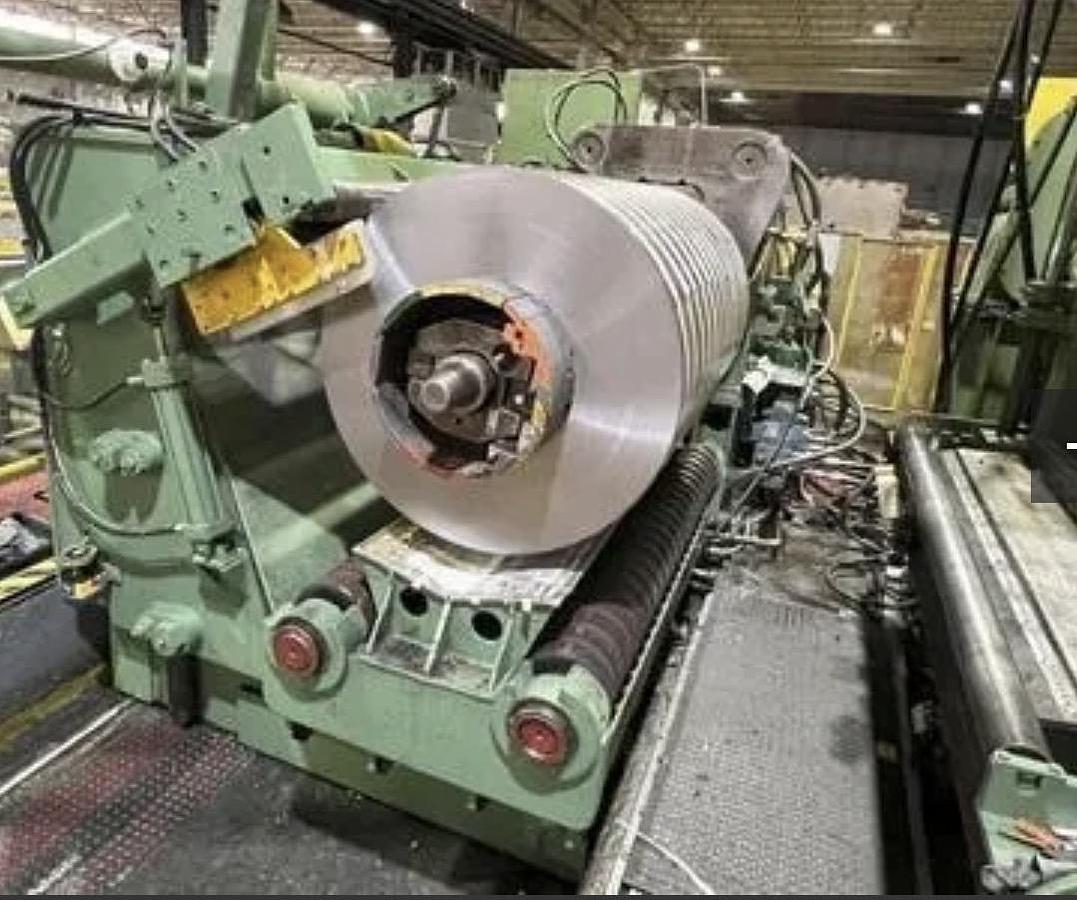

Recoiler

16” ID, Pads For 20” & 24”

Hydraulic Gripper & Expansions

Free Standing Overarm Separator

150 HP DC Motor, 500/2000 RPM, 500 V

Exit Coil Car

Clam Coil Hold Down

Complete Line with Hydraulics, Electrics and Controls
