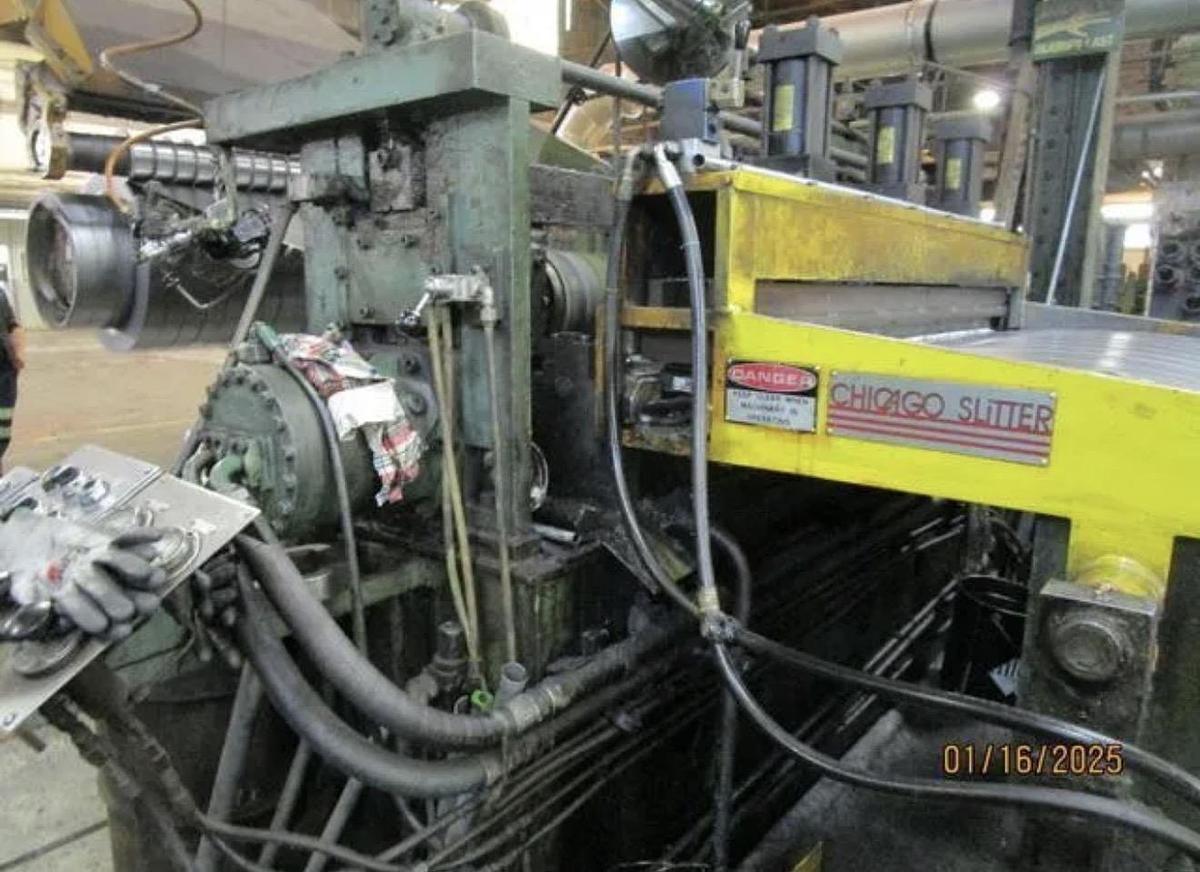

60" x .187” x 50,000# Chicago/Paxson Loop Slitting Line with 2 Heads

Specifications:

Manufacturer: Chicago/Paxson

Thickness Range: .031” - .187”

Coil Capacity: 50,000lbs

Coil ID: 20" & 24”

Line Speed: 550 FPM

Coil Width: 12” - 60”

Minimum Slit Width”. 1”

Complete Line With:

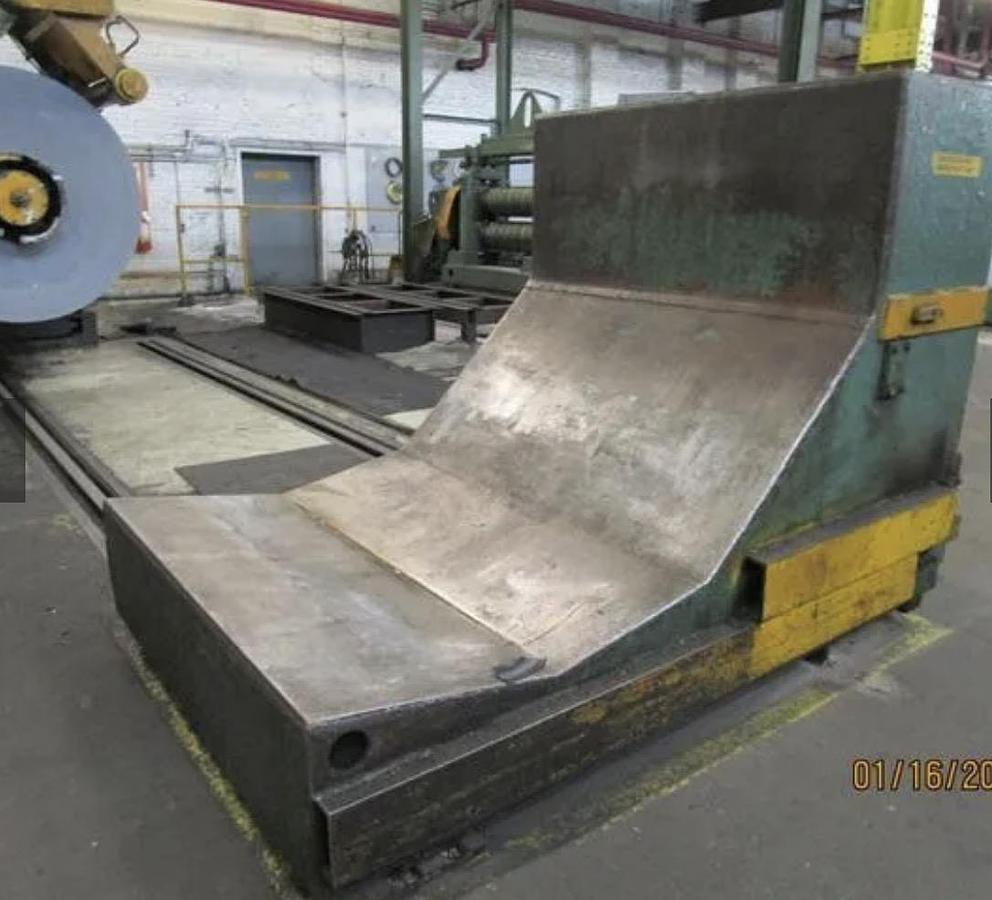

Entry L-Type Coil Car

Floor Standing / Self Contained Hydraulics

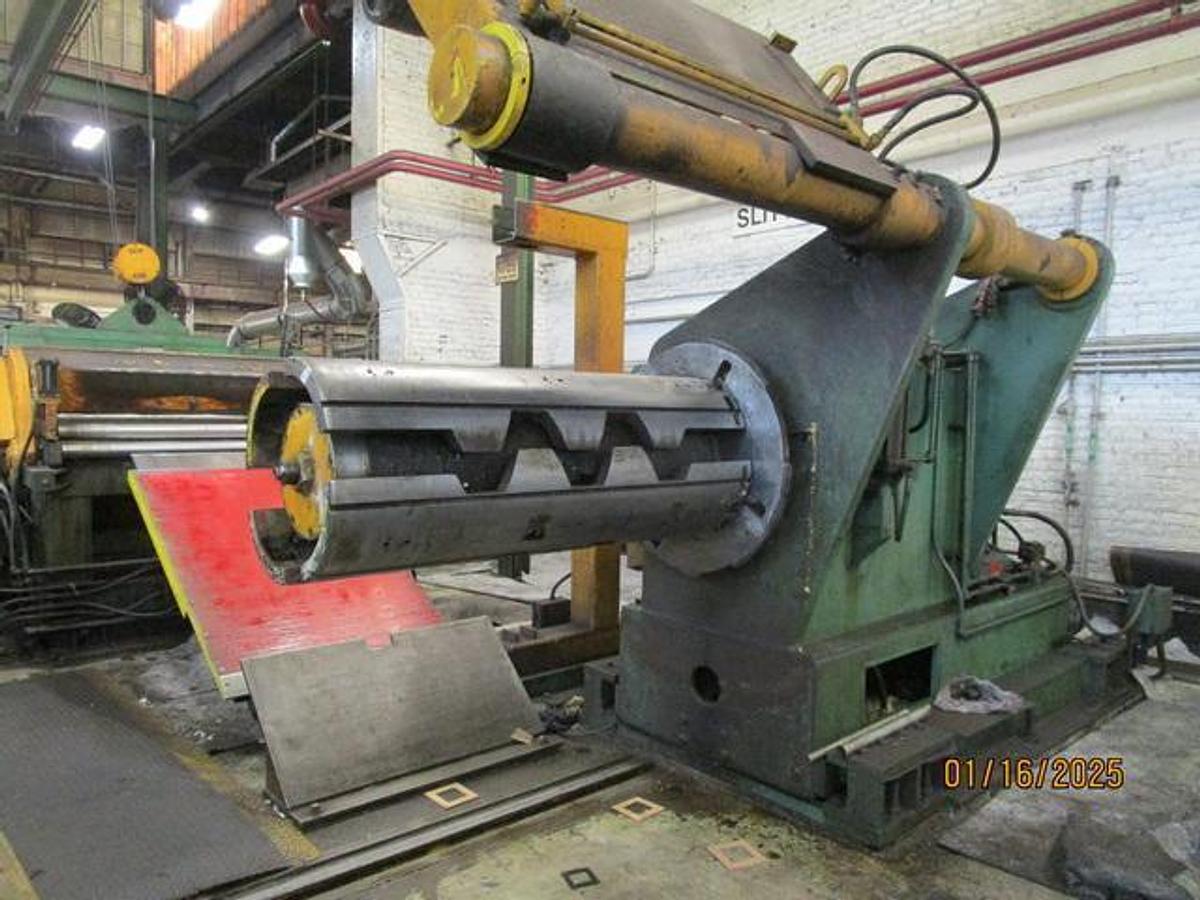

Mandrel Uncoiler

4 Leaf Hydraulic Expansion

Powered Hold Down Roll

Water Cooled Brake & Cooler

Hydraulic Drive

Hydraulic Sliding Base

Edge Control

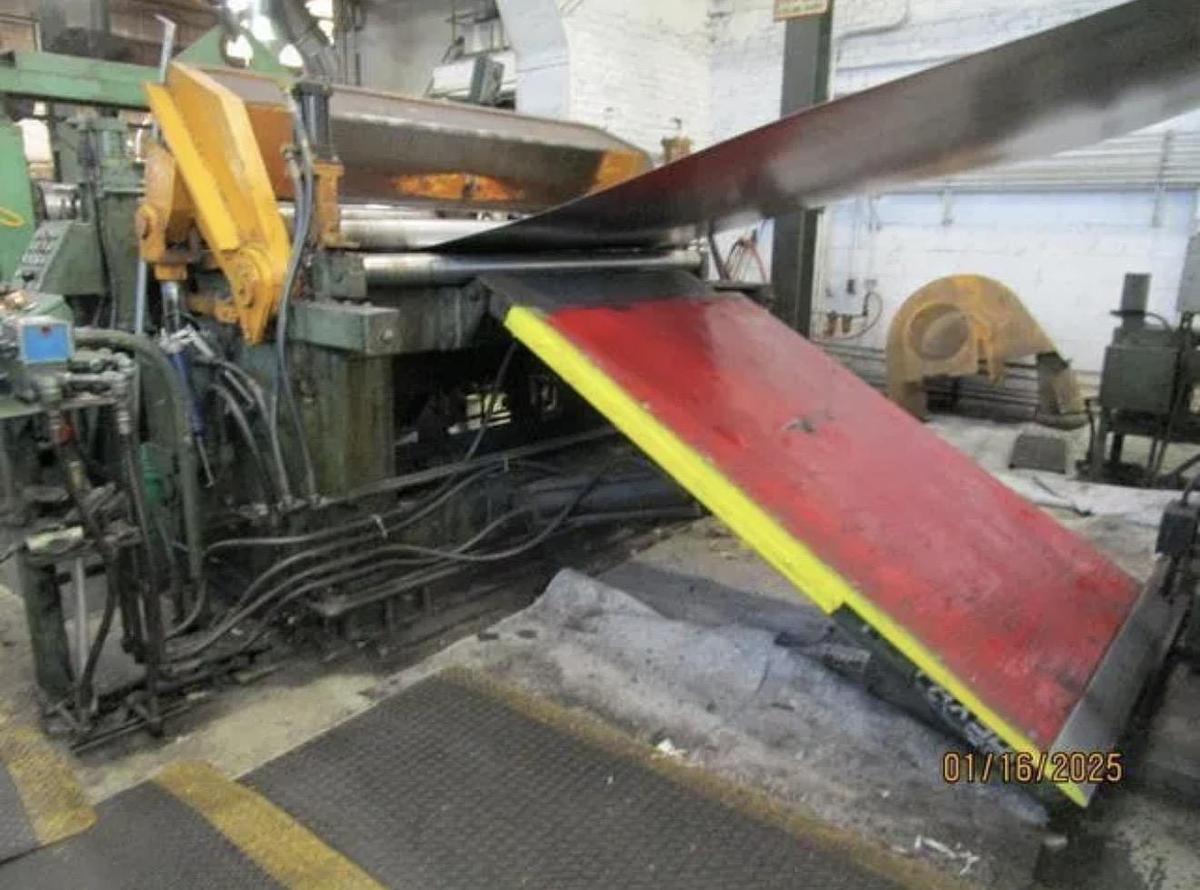

Peeler Table

Pinch Rolls

Crop Shear

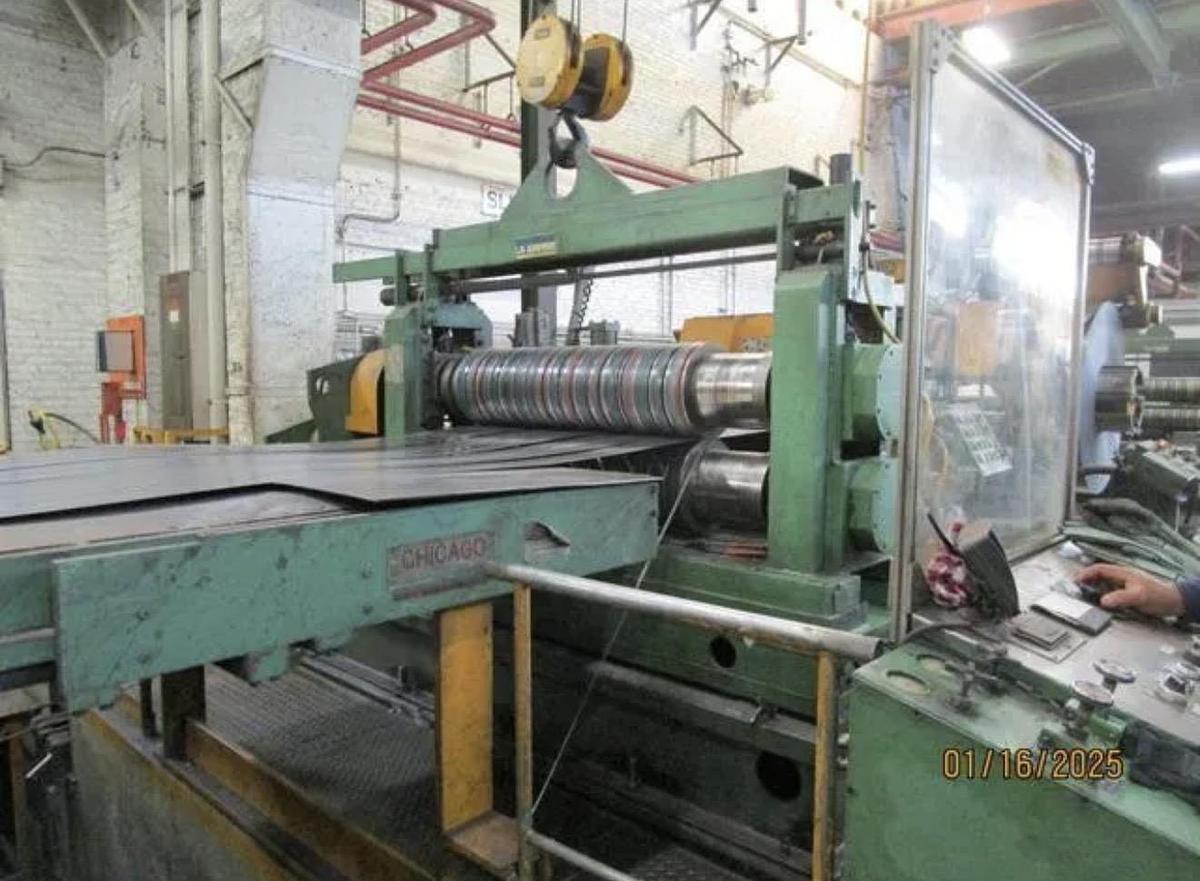

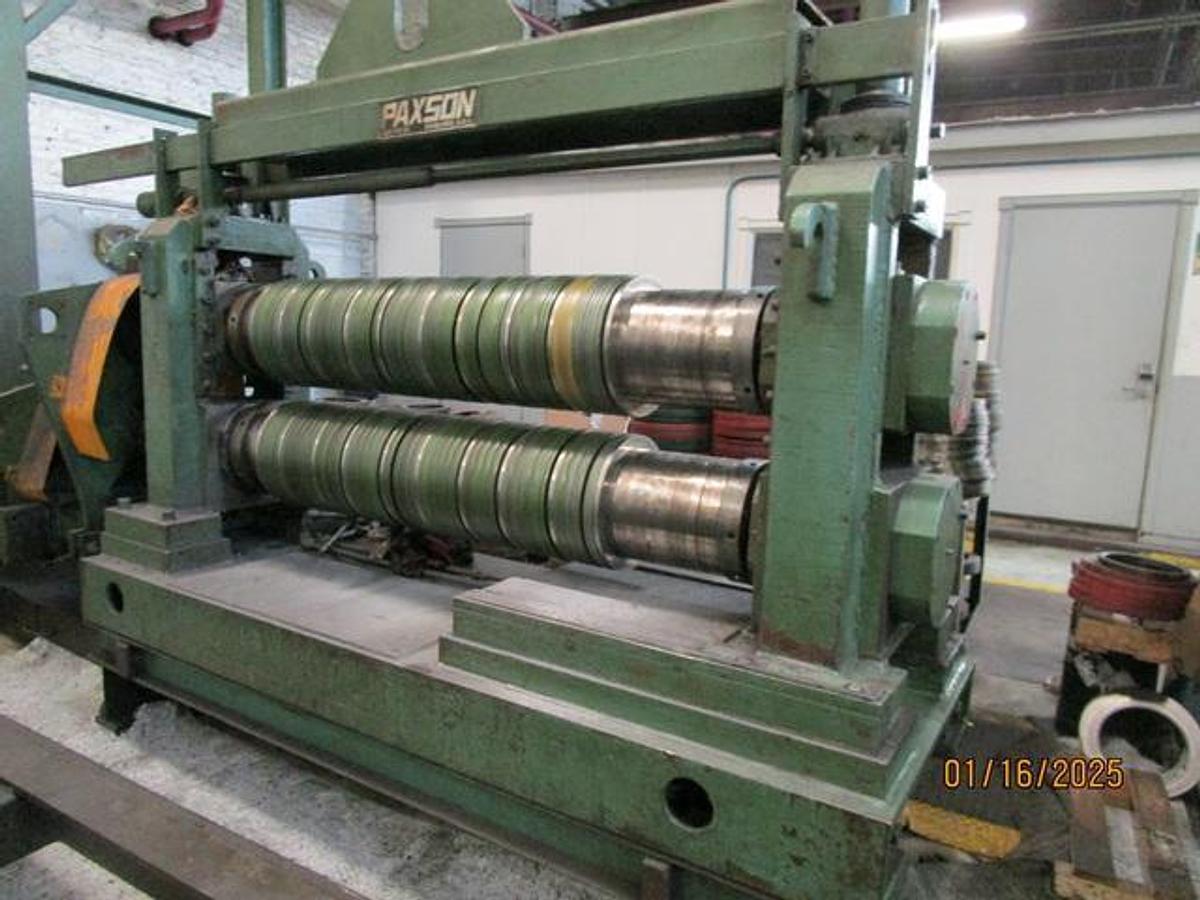

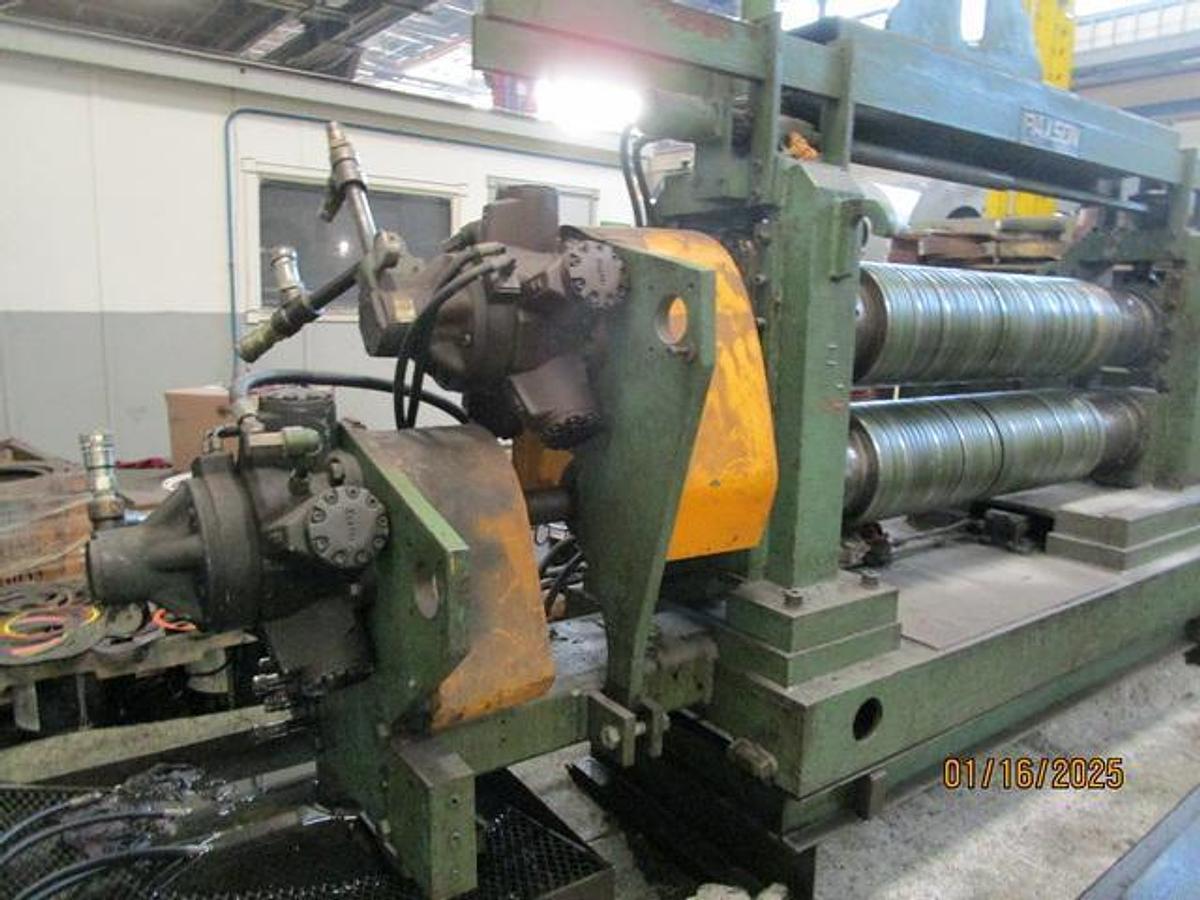

2 Slitter Heads

8" Diameter Arbors

(2) 5 Vane Hydraulic Drives

Motorized Arbor Adjustment

Hydraulic Locking Heads

Sliding Outboard Support

Entry Pinch Rolls

2 Sets of Edge Guides

Tooling

Overhead Gantry for Slitter Head Changing

Chicago Feed Up Table

Chicago Looping Pit Cross Over Table

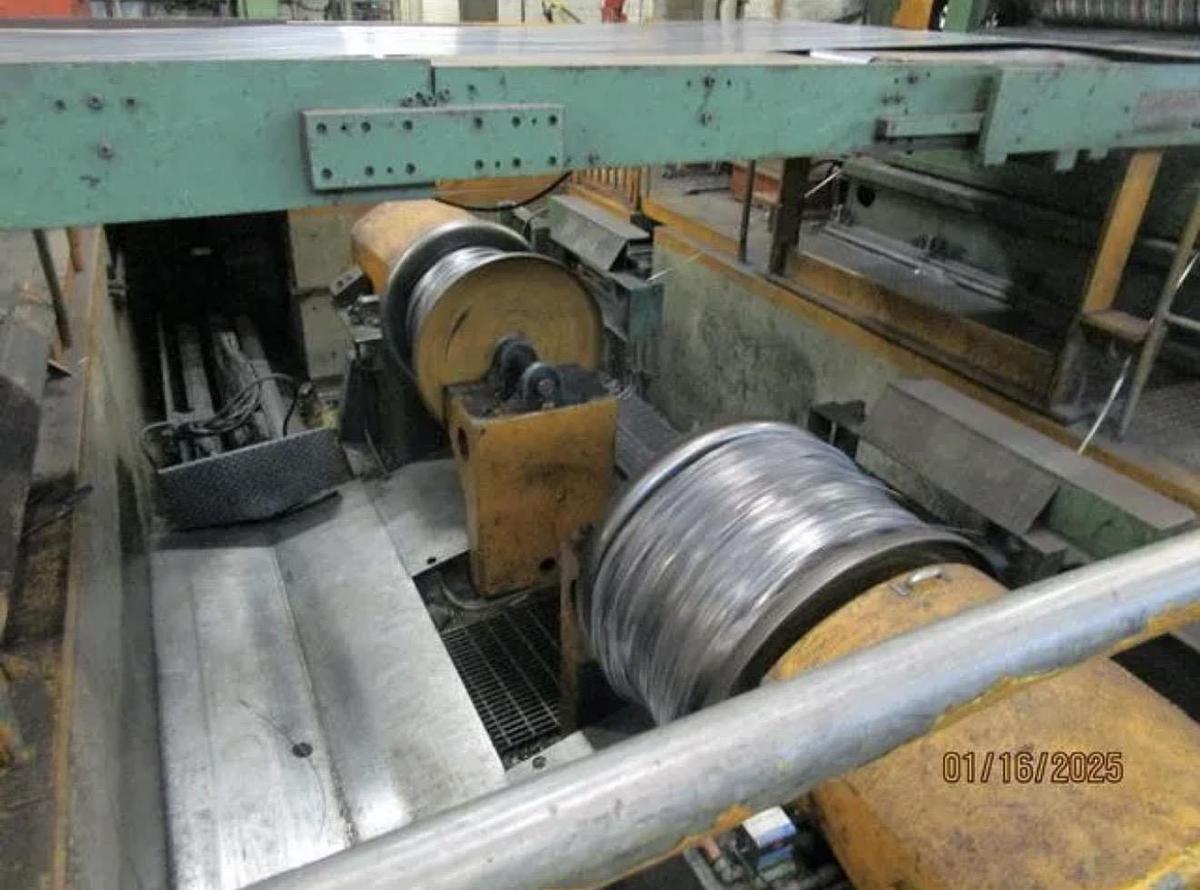

2 Scrap Winders

Oscillating Wind

Auto Bundle Eject

Bundle Transfer Conveyor

Chicago Rotary Drag Board Tension Stand

Top & Bottom Drag Pad Pressure

Air Bladder Pad Pressure

Rotary Tension Stand w Dual Hydraulic Brakes

2 Sets of Spare Tension Rolls

Exit Pass Line Rolls

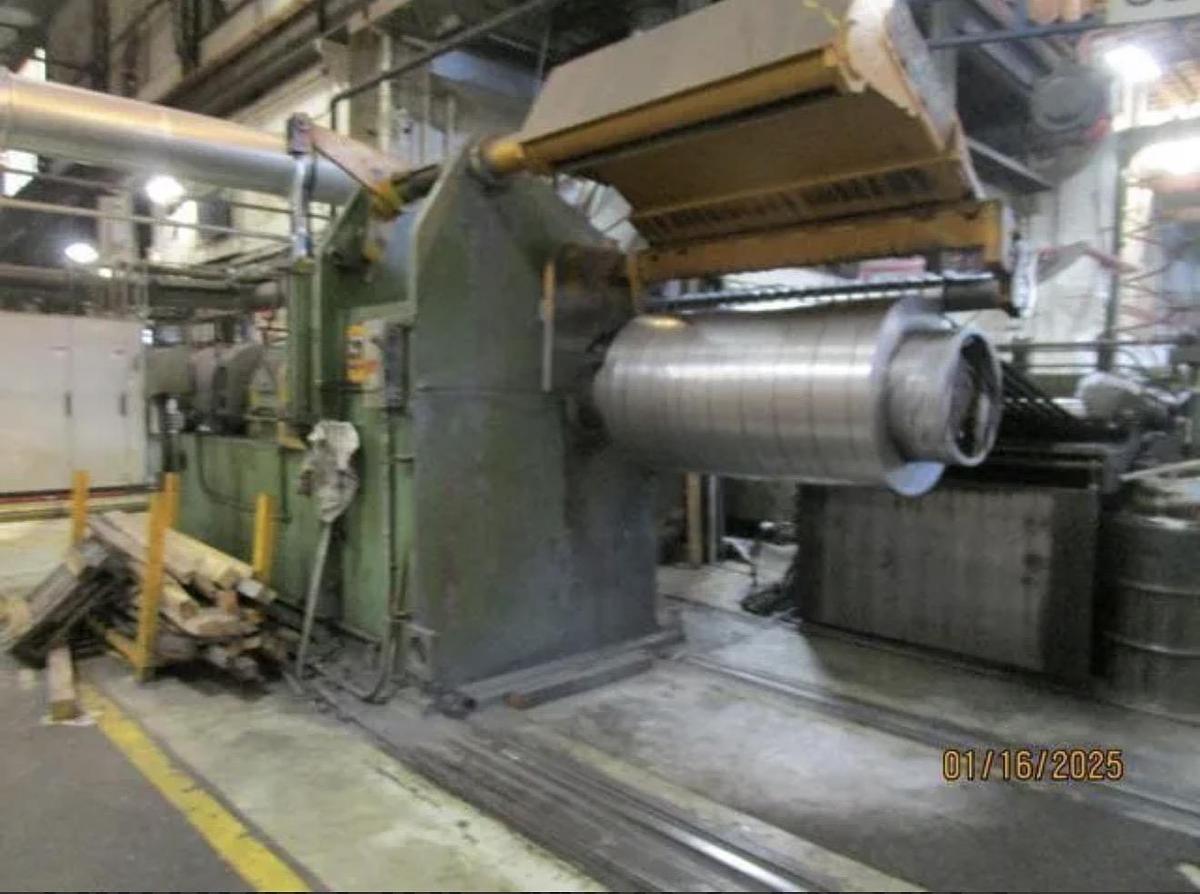

Recoiler

Overarm Seperator

Hydraulic Push-Off

20" Full Hydraulic Drum

100 HP DC Drive

2 Speed Drive All Gear Box

Exit L-Type Coil Car

Floor Standing / Self Contained Hydraulics

Coil Holders

Built In Scale

Tooling: Knives, Rubbers & Spacers

Hydraulic Units

Electrical Drives and Controls

Operator Push Button Panels

2 Sets of Spare Rotary Tension Rolls
