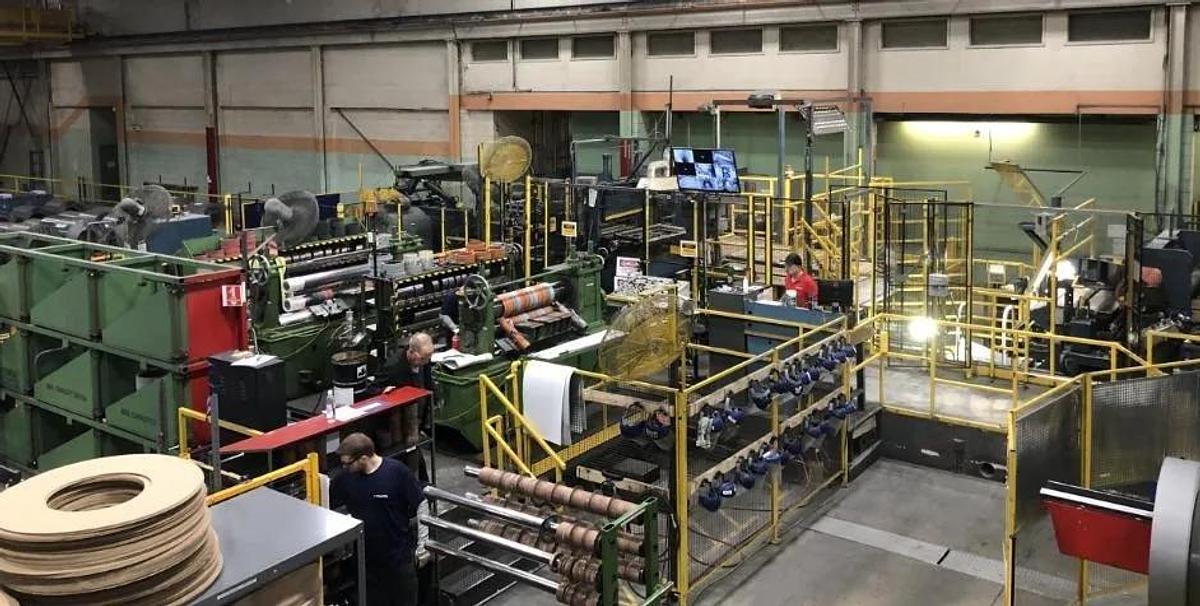

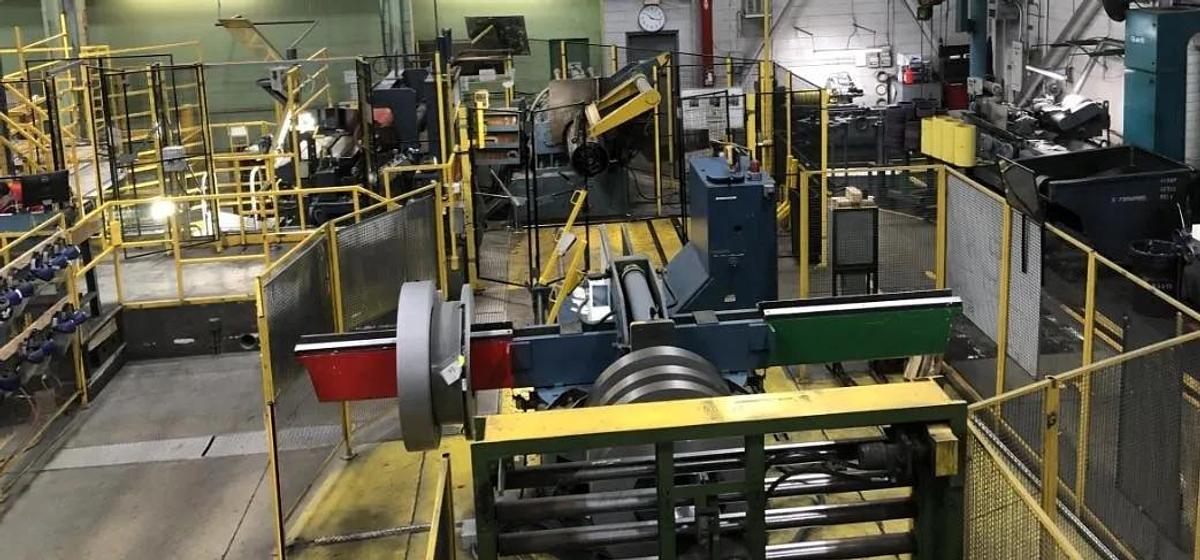

50” x .050” x 50,000# Pro-Eco Silicon Steel Double Loop Injector Head Precision Slitting Line
Specifications
| Manufacturer | Pro-Eco |
| Condition | Used |
| Stock Number | VX-36028 |
| Minimum Yield Strength | 30,000 PSI |
| Maximum Yield Strength | 80,000 PSI |
| Maximum Entry Coil Weight | 50,000 lbs |
| Maximum Exit Coil Weight | 50,000 lbs |
| Nominal Entry Coil Width | 48" |
| Maximum Entry Coil Width | 50" |
| Minimum Entry Coil Width | 8" |
| Nominal Exit Coil Width | 48" |
| Maximum Exit Coil Width | 50" |
| Minimum Exit Coil Width | 1" |
| Minimum Entry Coil OD | 36" |
| Maximum Entry Coil OD | 72" |
| Minimum Exit Coil OD | 36" |
| Maximum Exit Coil OD | 72" |
| Minimum Entry Coil ID | 16" |
| Maximum Entry Coil ID | 20" |
| Exit Coil ID | 20" |
| Minimum Material Thickness | .010" |
| Maximum Silicon Steel Thickness | .025" |
| Arbor Diameter | 6.5" |
| Number of Slitter Heads | 2 |
| Minimum Knife Diameter | 8.5" |
| Maximum Knife Diameter | 10.5" |
| Shimless Tooling | Yes |
| Maximum Cuts | 32 |
| Maximum Line Speed | 1,200 FPM |
| Uncoiler Motor | 125 HP DC |
| Slitter Head Motor | 100 HP DC |
| Recoiler Motor | 150 HP DC |
| Voltage | 575 V |
| Phase | 3 |
| Frequency | 60 Hz |
| Air Supply | 80 PSI |
| Line Direction | Left to Right |
Description
The Pro-Eco 50” x .050” x 50,000# Silicon Steel Double Loop Injector Head Precision Slitting Line is a robust machine designed for precision cutting of silicon and cold-rolled steel. This used slitting line is capable of handling maximum entry and exit coil weights of 50,000 lbs, with coil widths ranging from 1" to 50". It operates with a minimum yield strength of 30,000 PSI and can accommodate steel thicknesses up to .050". The slitting line is equipped with dual slitter heads, each supported by a 100 HP DC motor to ensure efficient operations. This line includes a comprehensive set of components such as an L-Type Entry Coil Car, Mandrel Uncoiler with outboard coil support, automatic center guide control, and a tension roll stand. Capable of a maximum line speed of 1,200 feet per minute, it supports up to 32 cuts and features shimless tooling for enhanced precision. Electrical requirements for the line are 575 V, 3-phase, at 60 Hz. It also incorporates a Pro-Eco packaging line with features such as an exit 4-arm turnstile, banding line, and pick-and-place stacker for efficient downstream processing. The overall setup is tailored for seamless integration into a production line, complete with necessary hydraulic and electric controls. This equipment is ideal for operations requiring reliable and precise slitting capabilities in the processing of silicon steel.
Includes
L-Type Entry Coil Car
Mandrel Uncoiler W/ Outboard Coil Support & 8” Hold-Down Roll
Automatic Center Guide Control Unit
Entry Pit
Peeler Table
6” Pinch Roll & Side Guide Unit
Entry Crop Shear
Side Guides
Injector Slitting Head
Butech Dual Arbor Mdl. SC135-1 Scrap Choppers
Looping Pit
Pit Threading Table
Tension Pads & 16” Polyurethane Tension Rolls Stand
Separator Shafts
Exit Crop Shear
Recoiler With Overarm Separator
L-Type Exit Coil Car
Also Available:
Integrated 10,000# x 72” Pro-Eco Packaging Line, Including:
Exit 4-Arm Turnstile
10,000# Downender
Weight Scale Under Semi-Automated Banding Line
5/8” Steel Banding
Pick And Place Stacker
Max Capacity 6000 Lbs Per Slit Coil
6-Position Rotating Turntable Assembly
Exit Conveyor
Semi-Automatic Stretch Wrapping Machine
Weight Station
Controls, Hydraulics And Electrics For Line
Tooling, Spacers, Knives
Electrics
Hydraulic Unit
Operators Control
