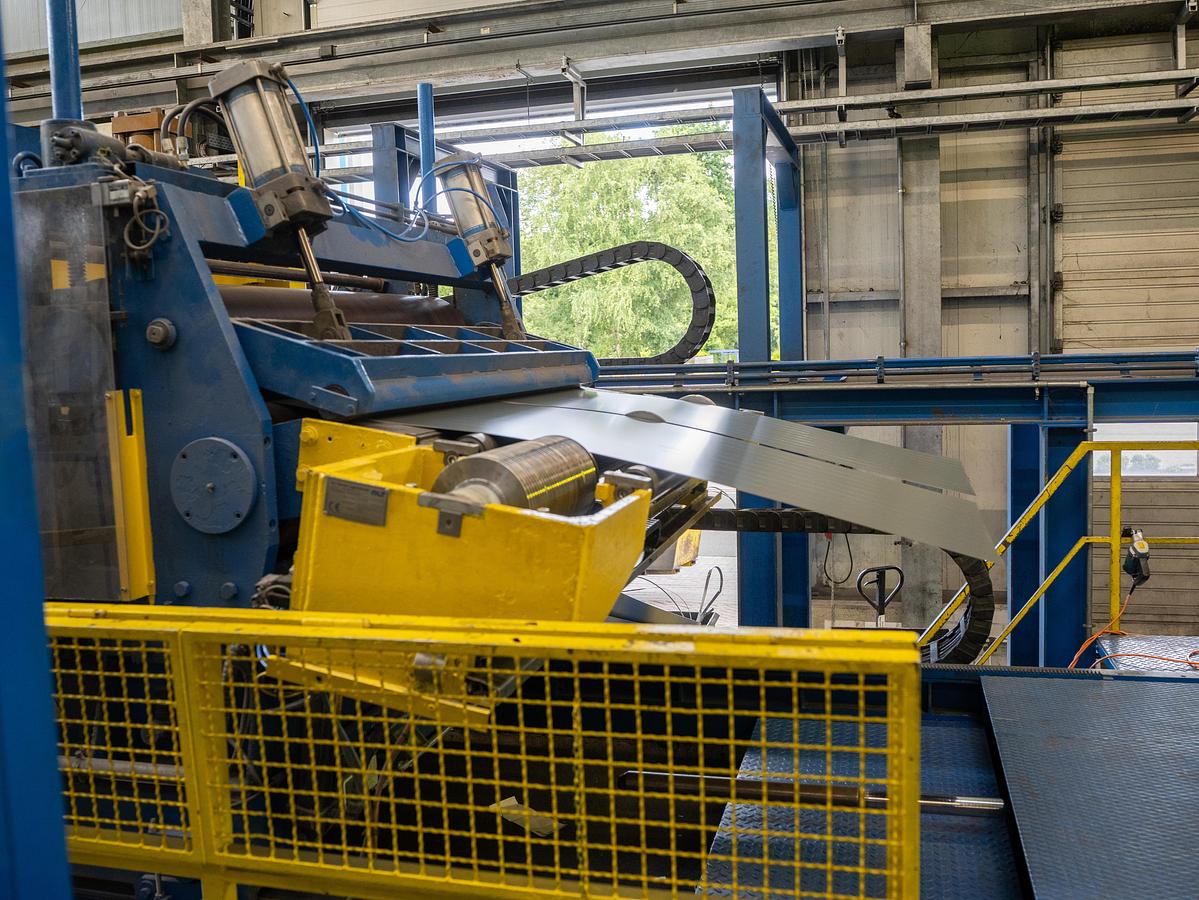

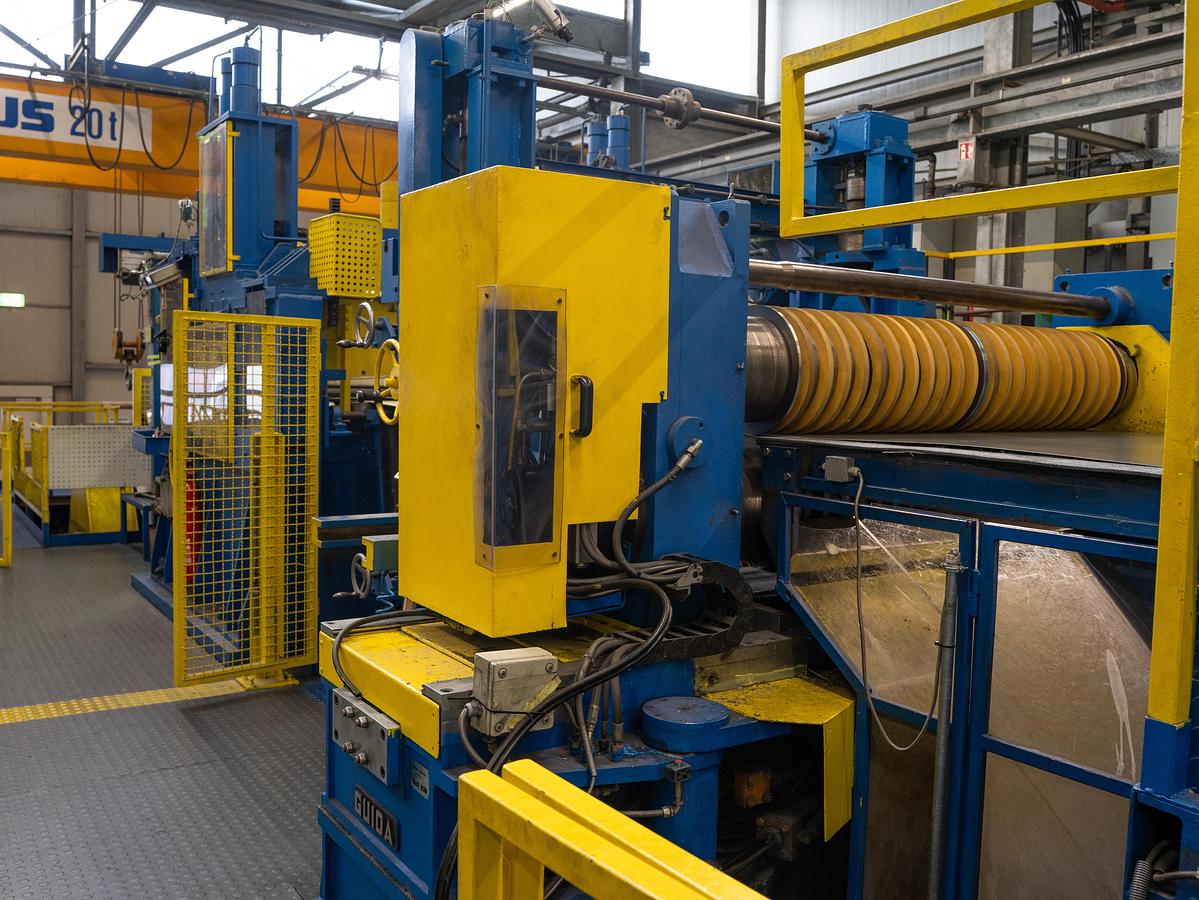

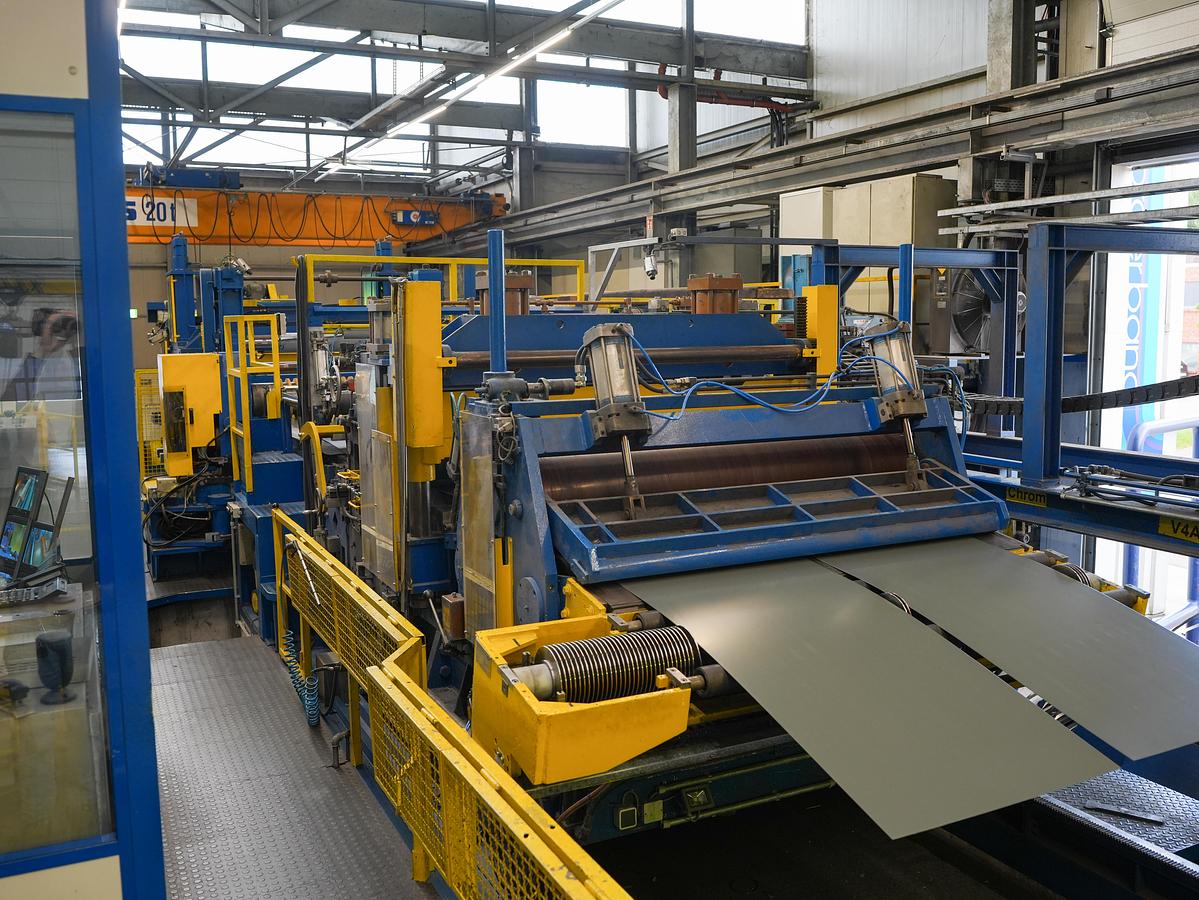

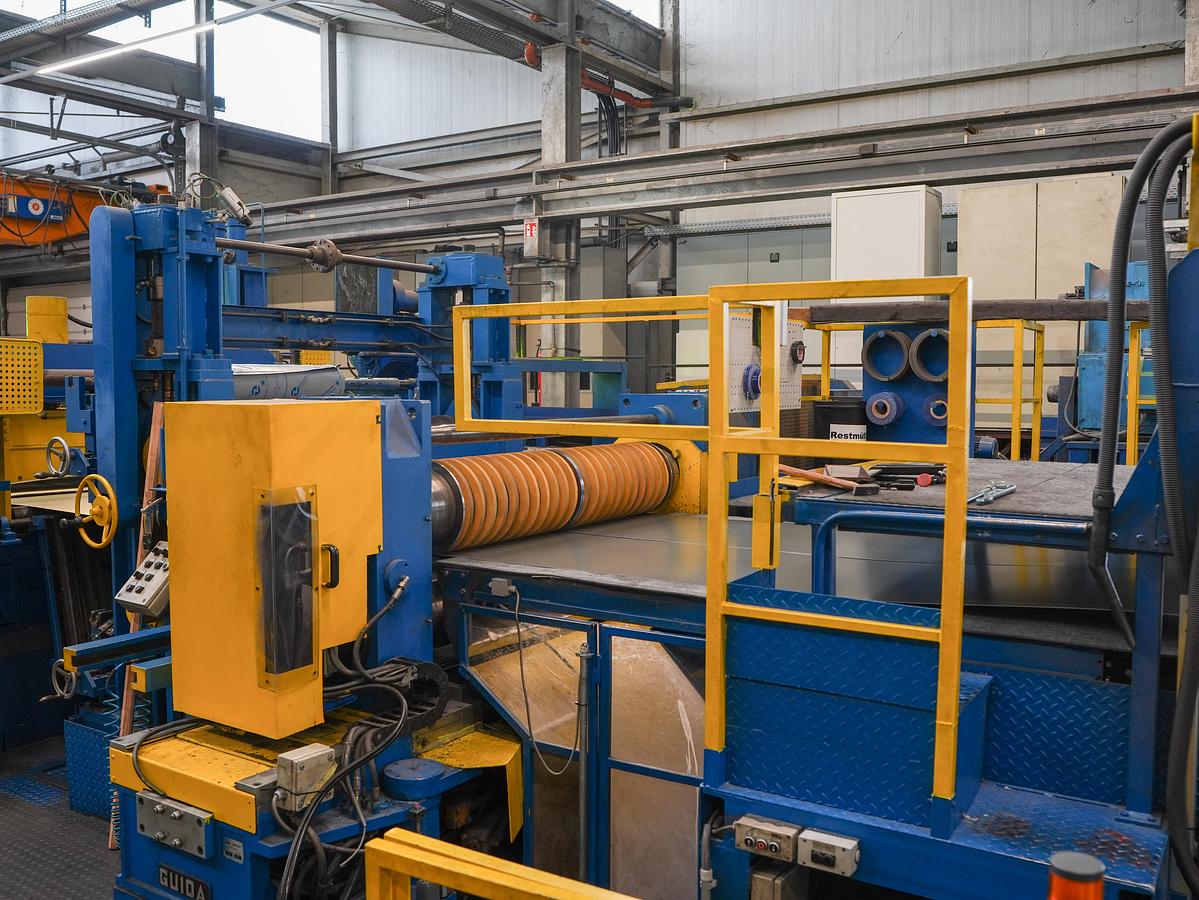

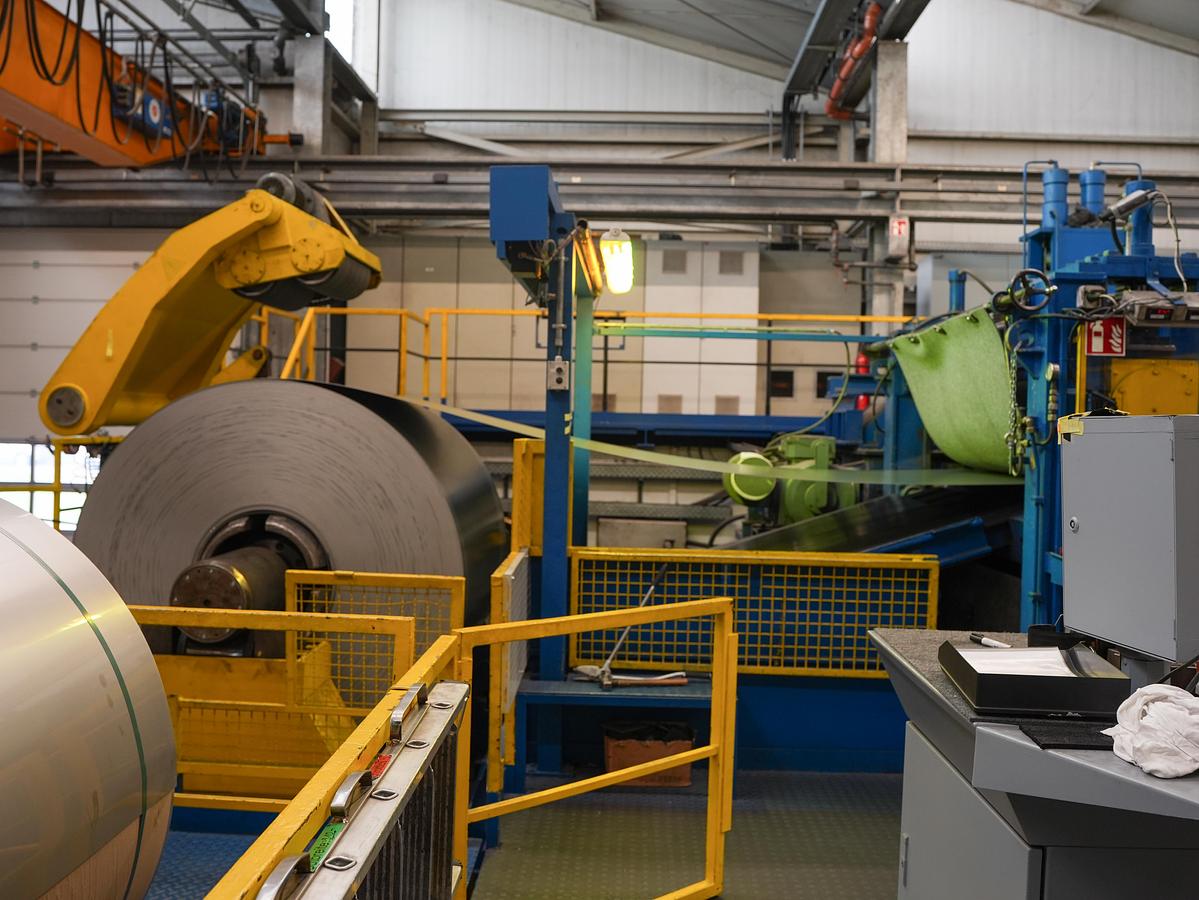

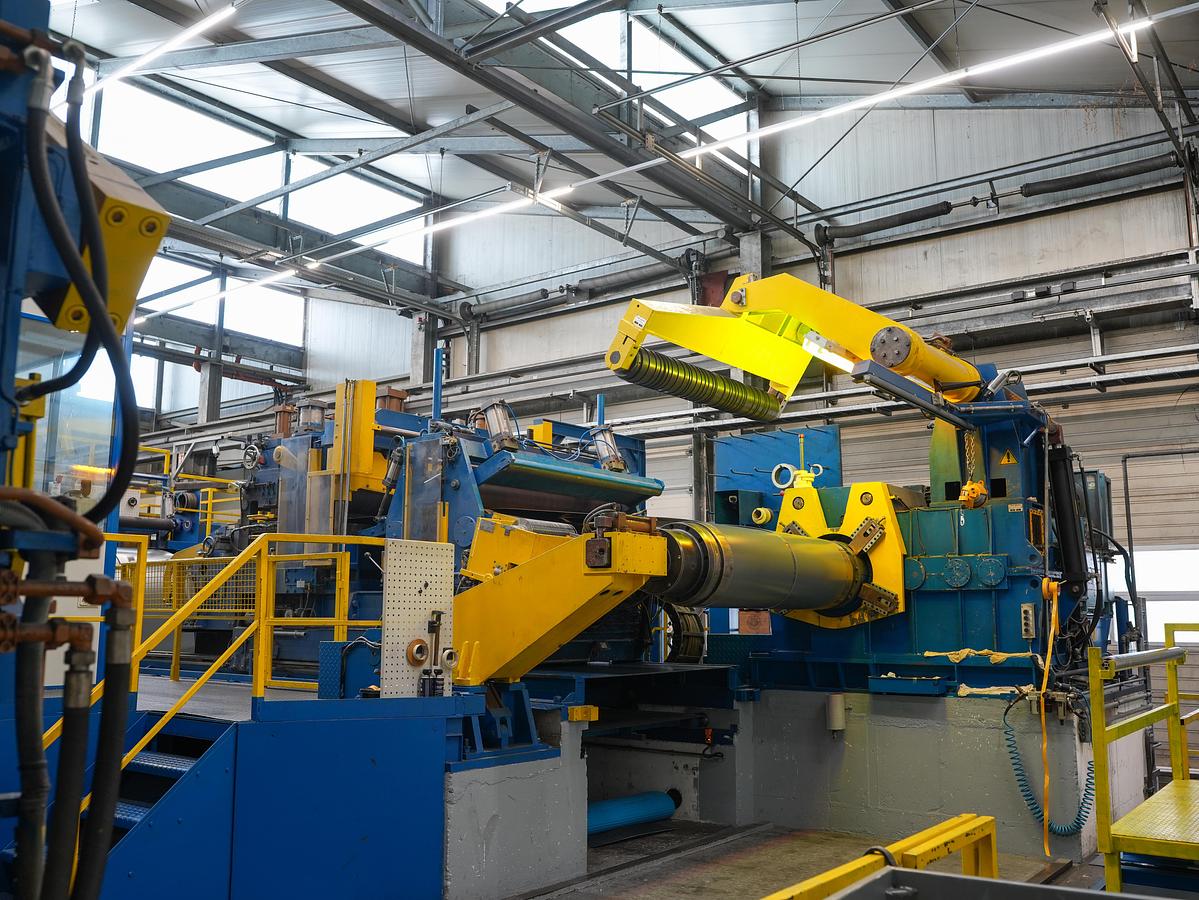

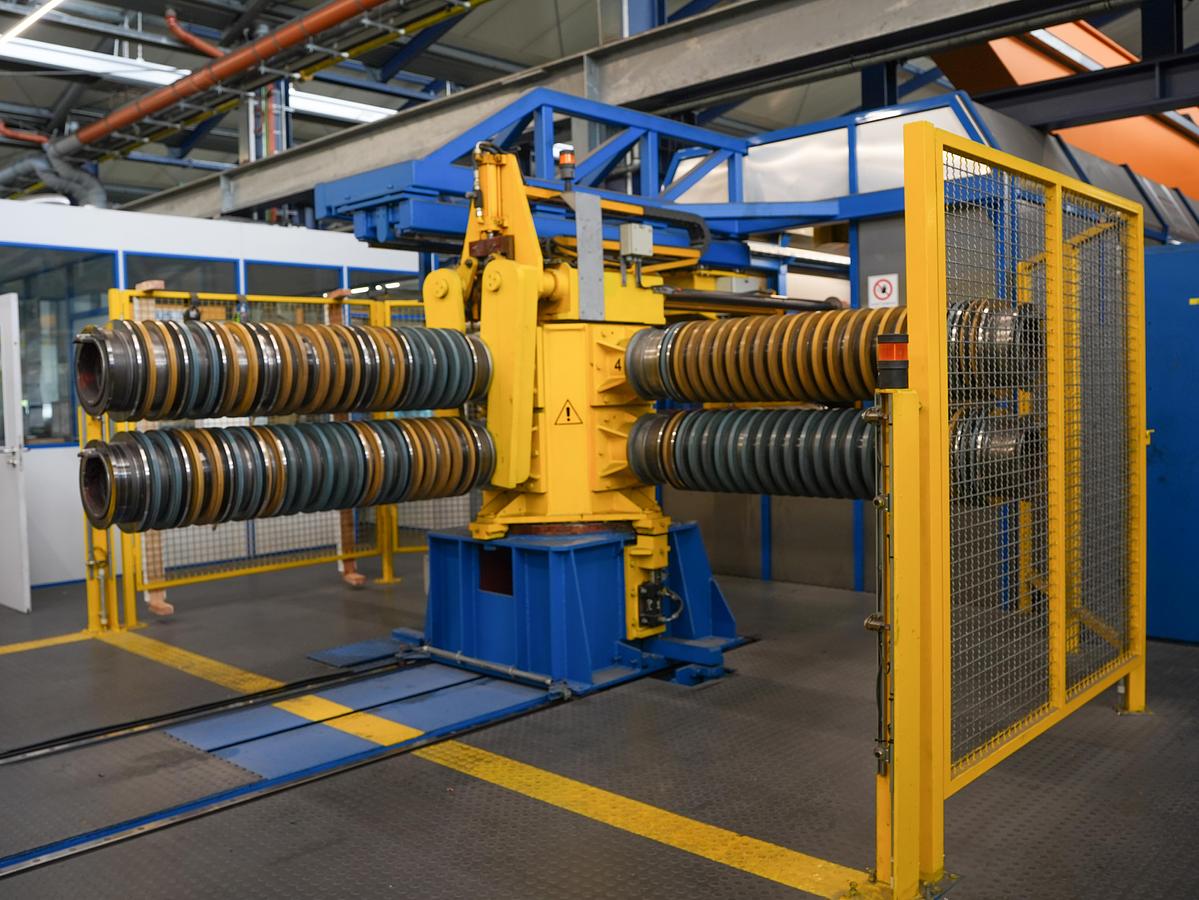

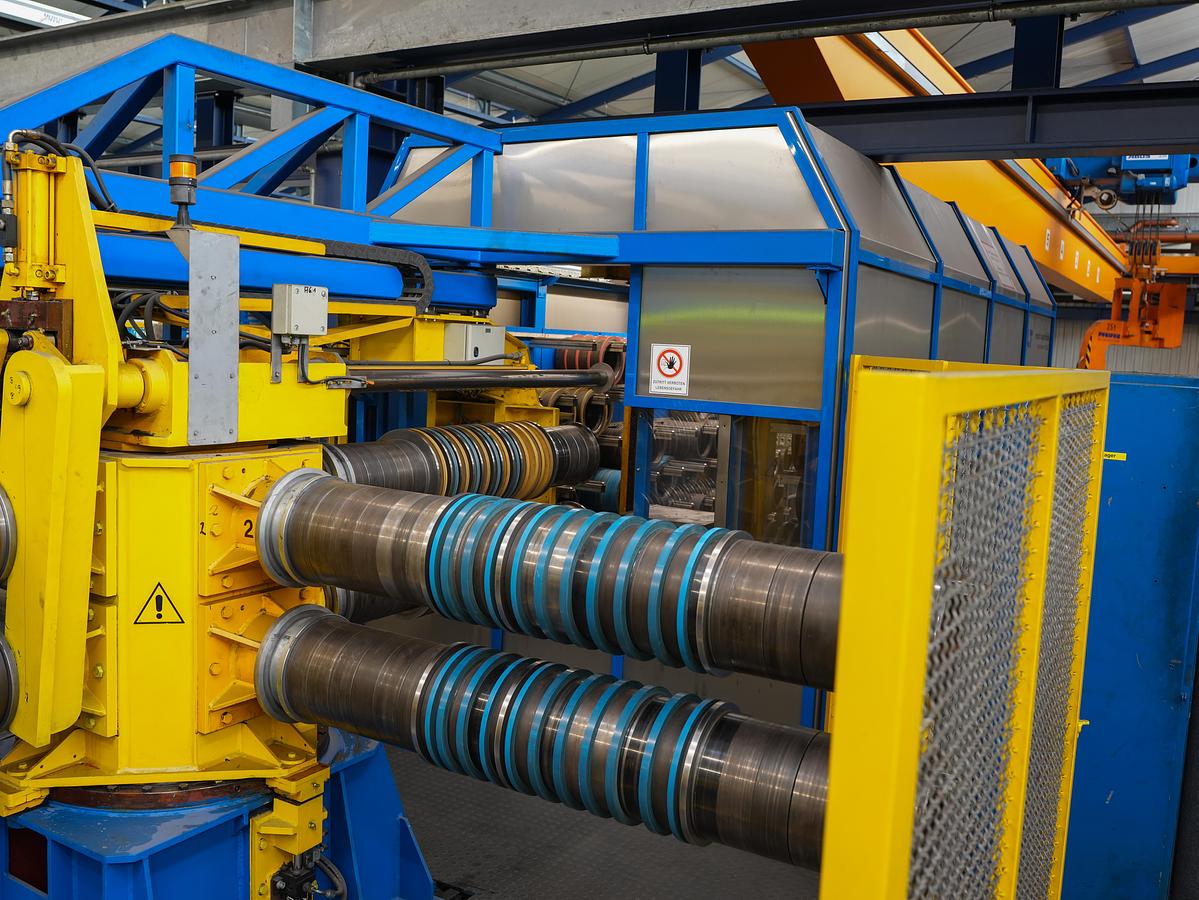

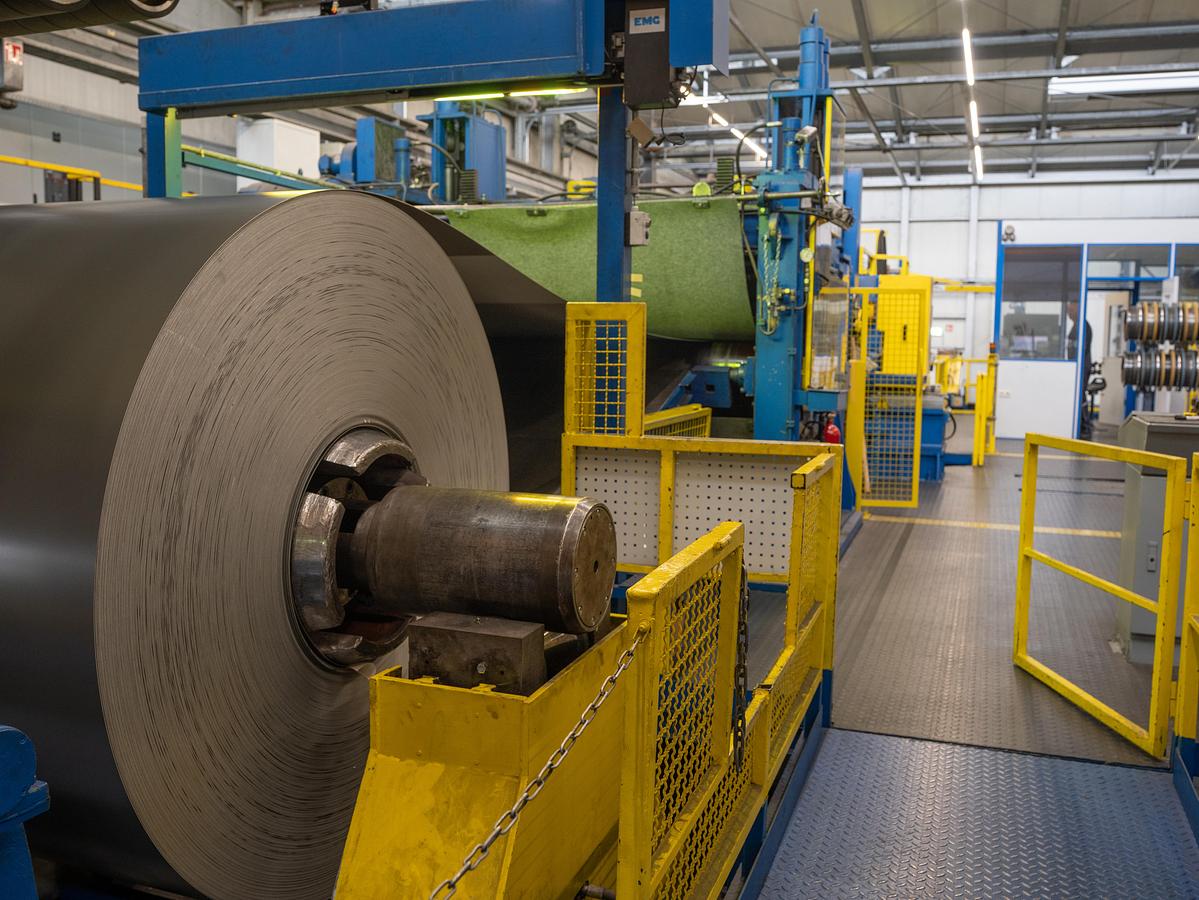

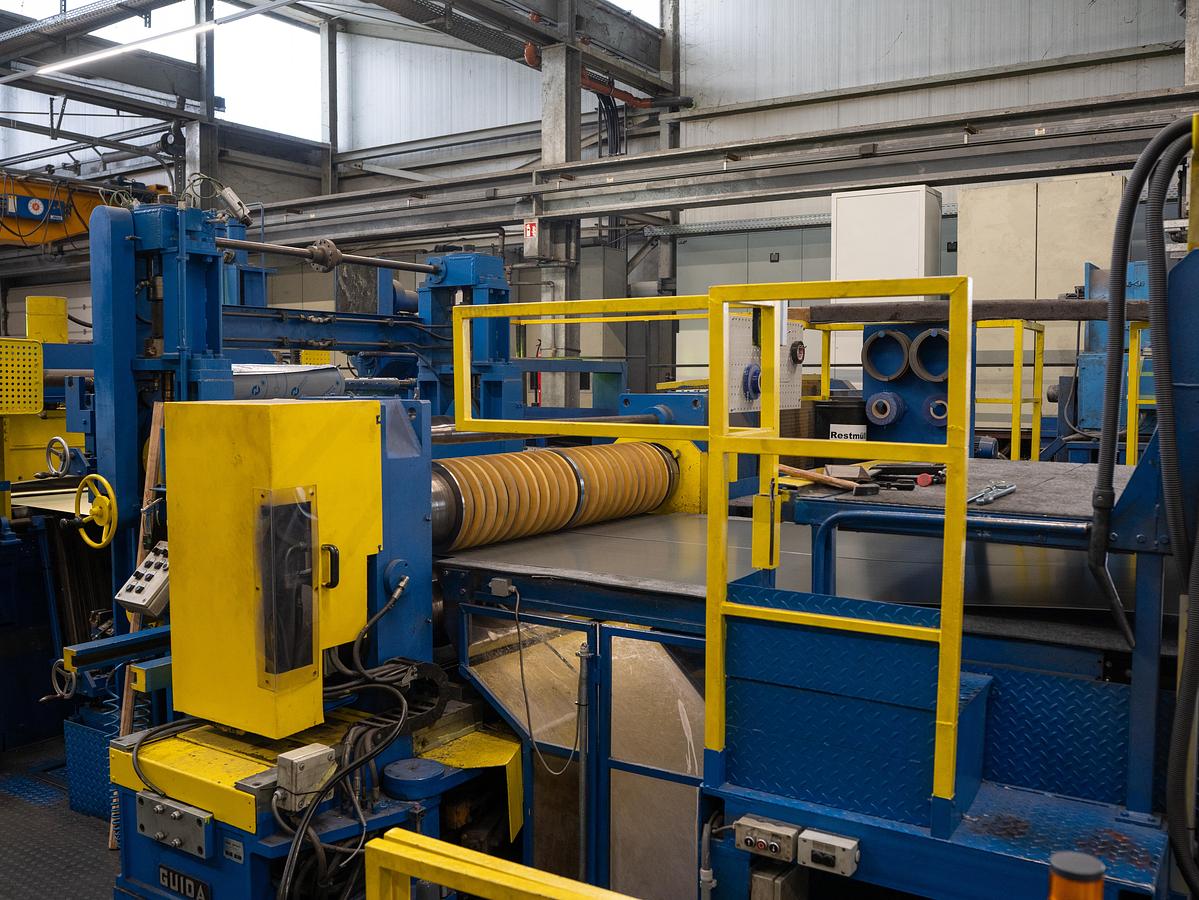

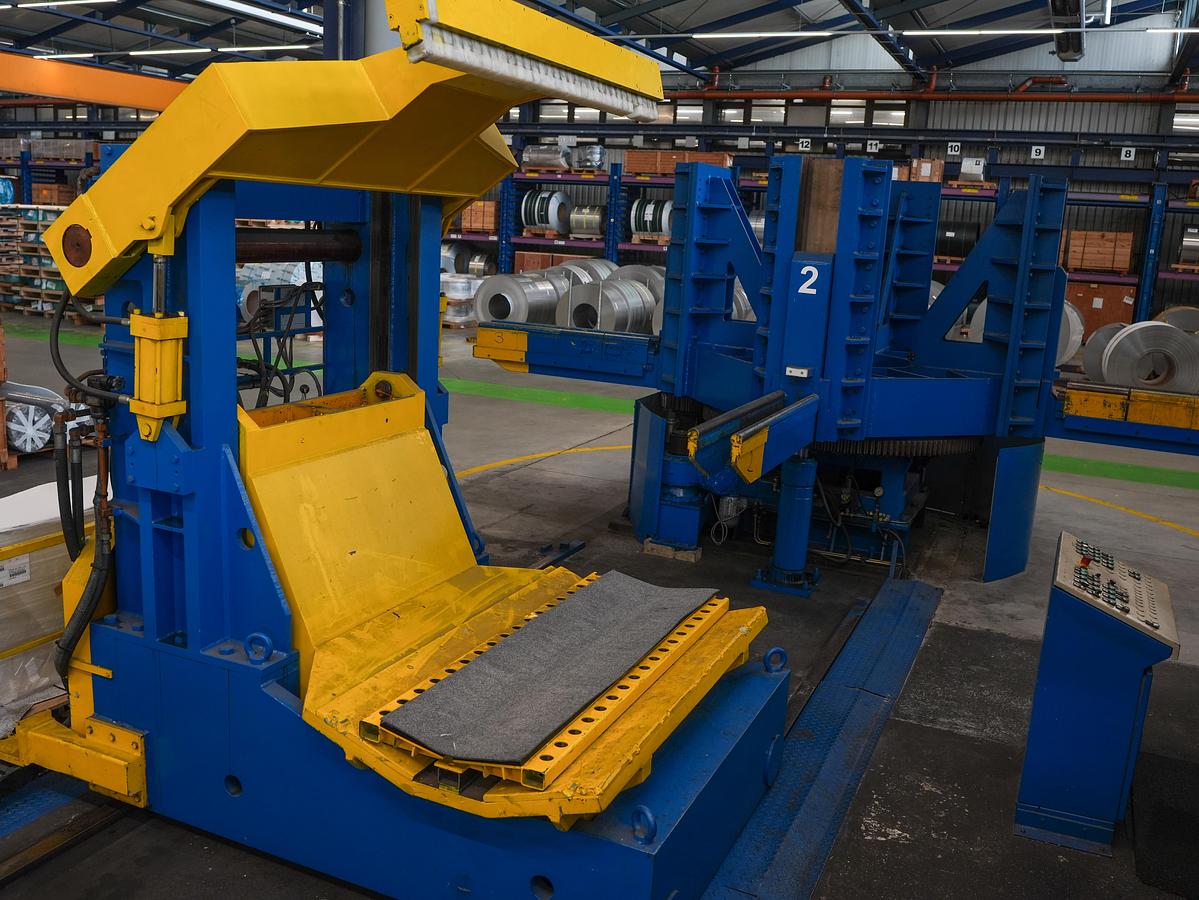

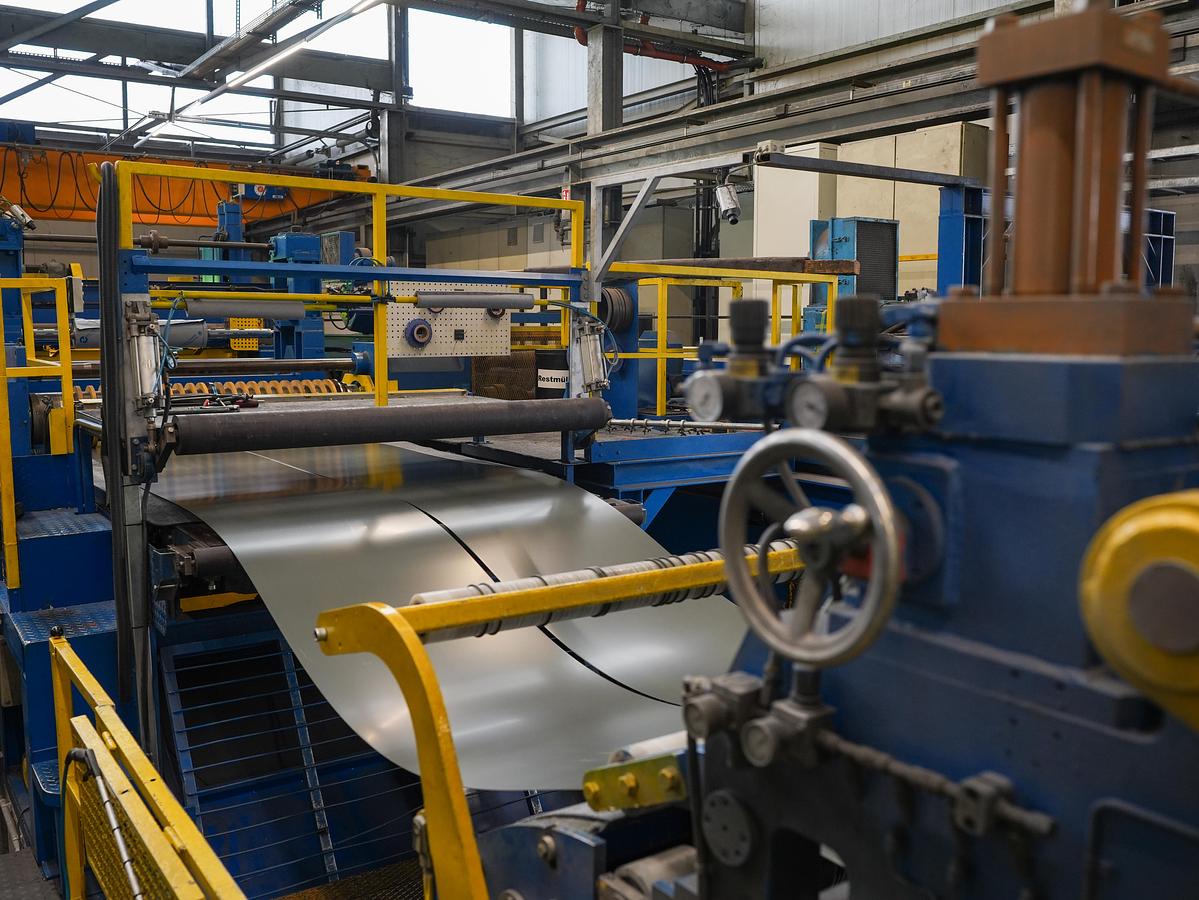

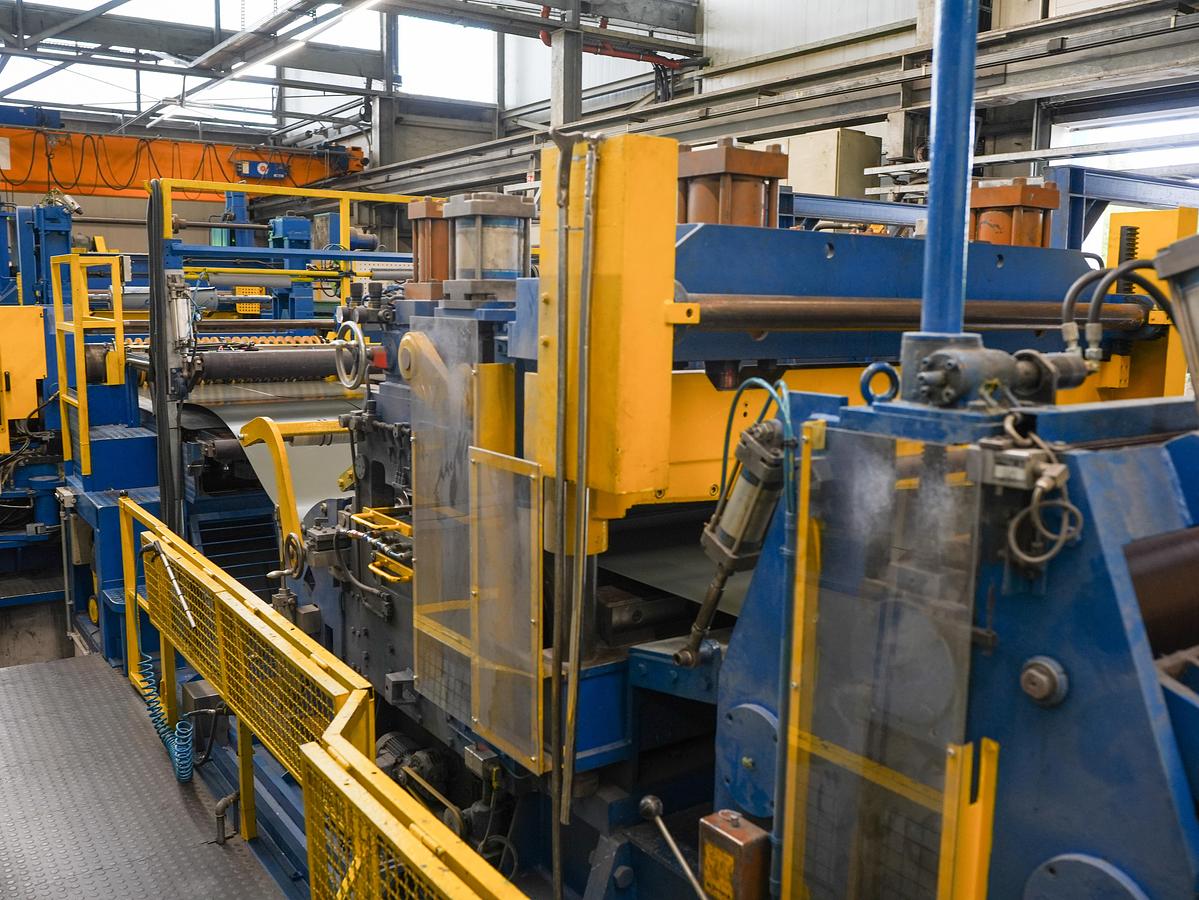

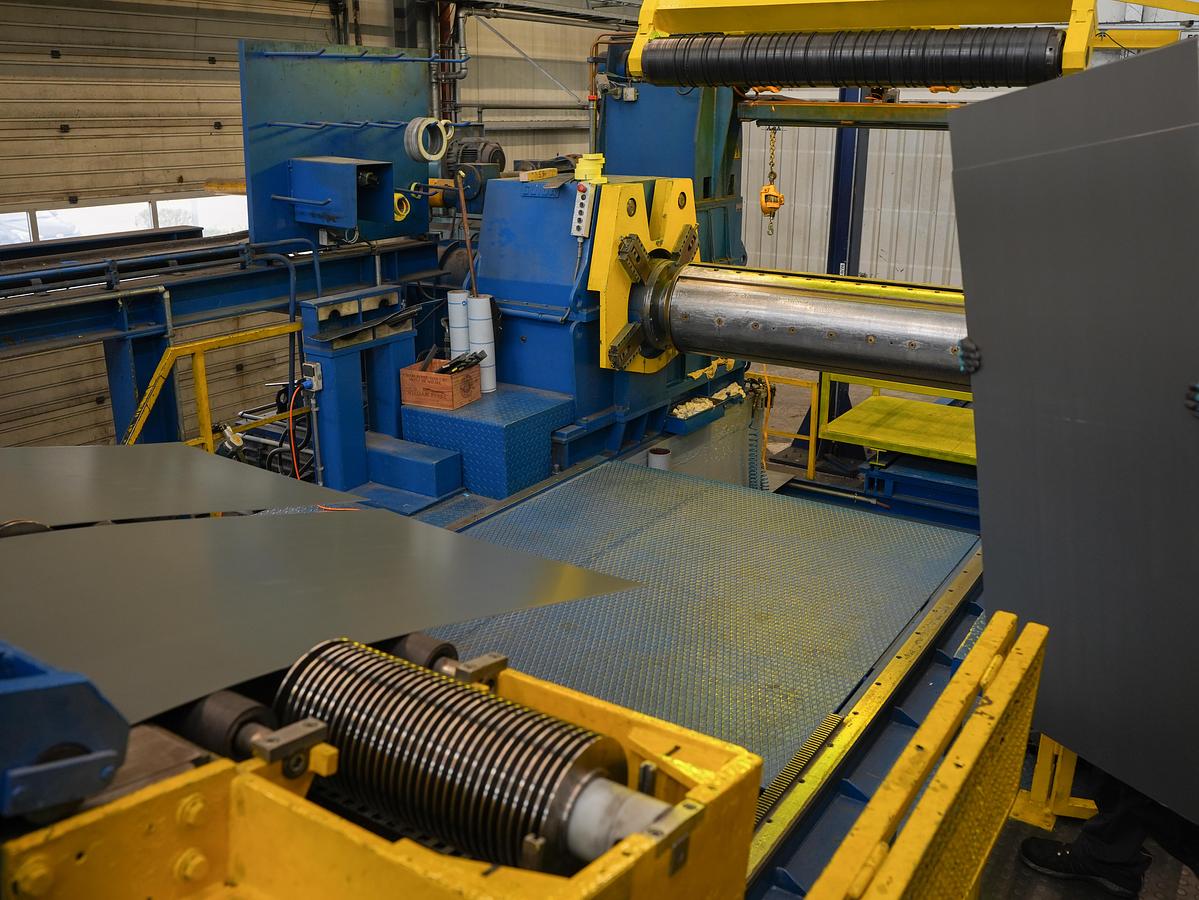

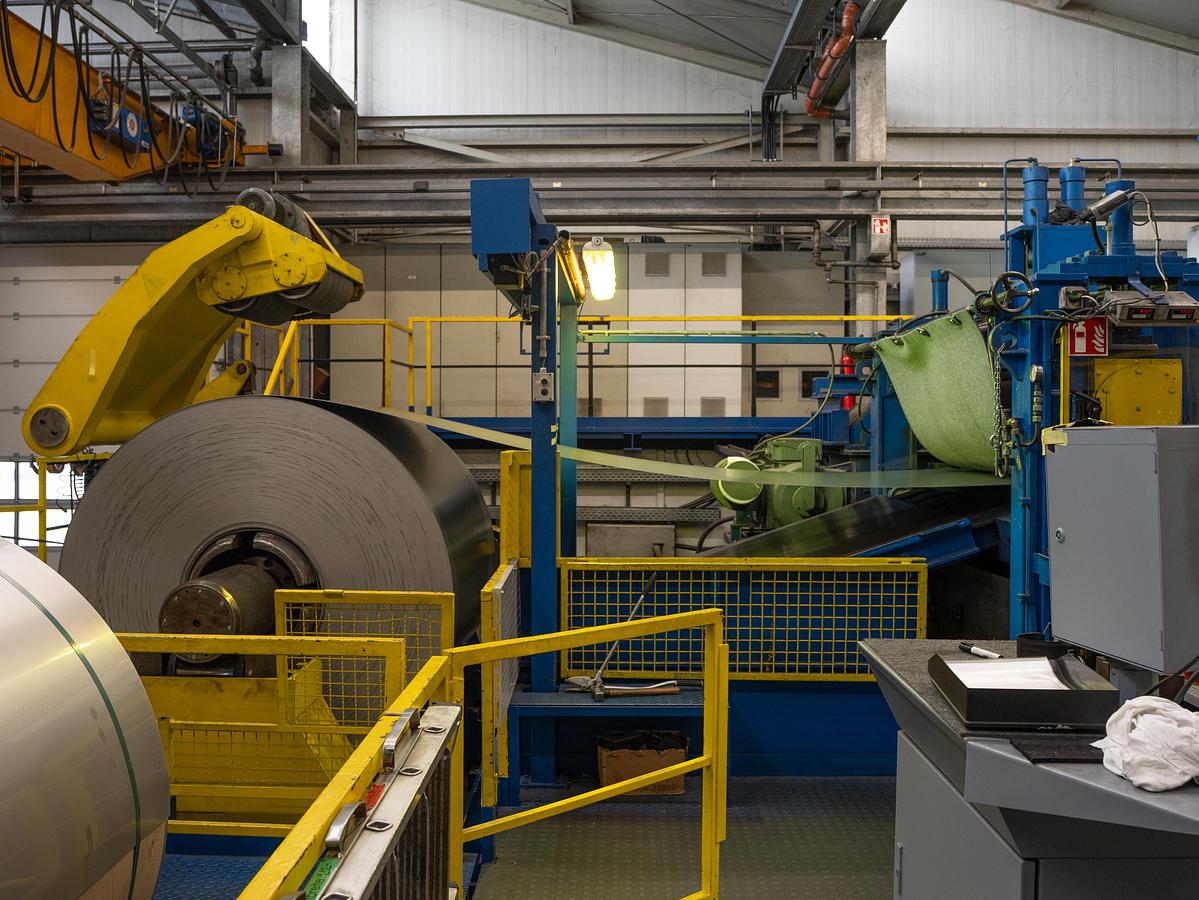

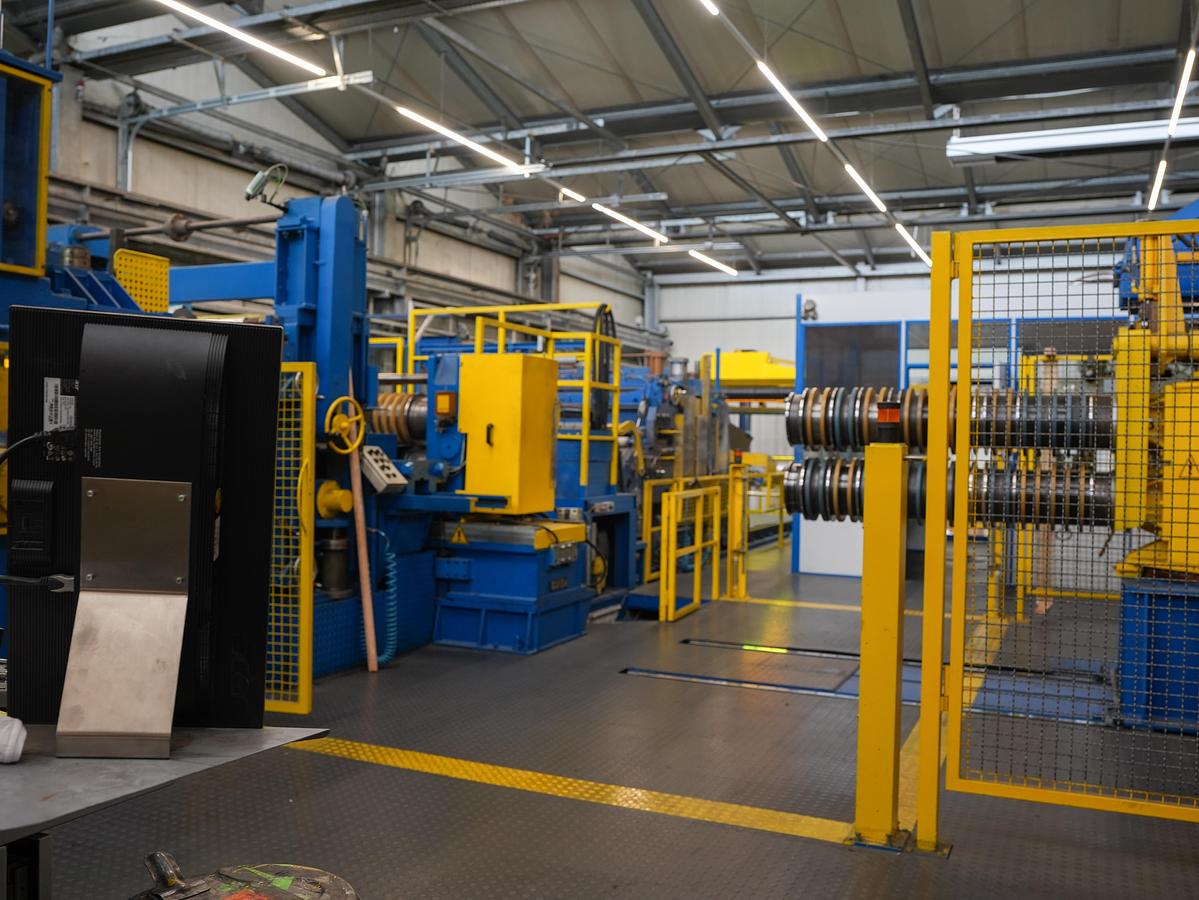

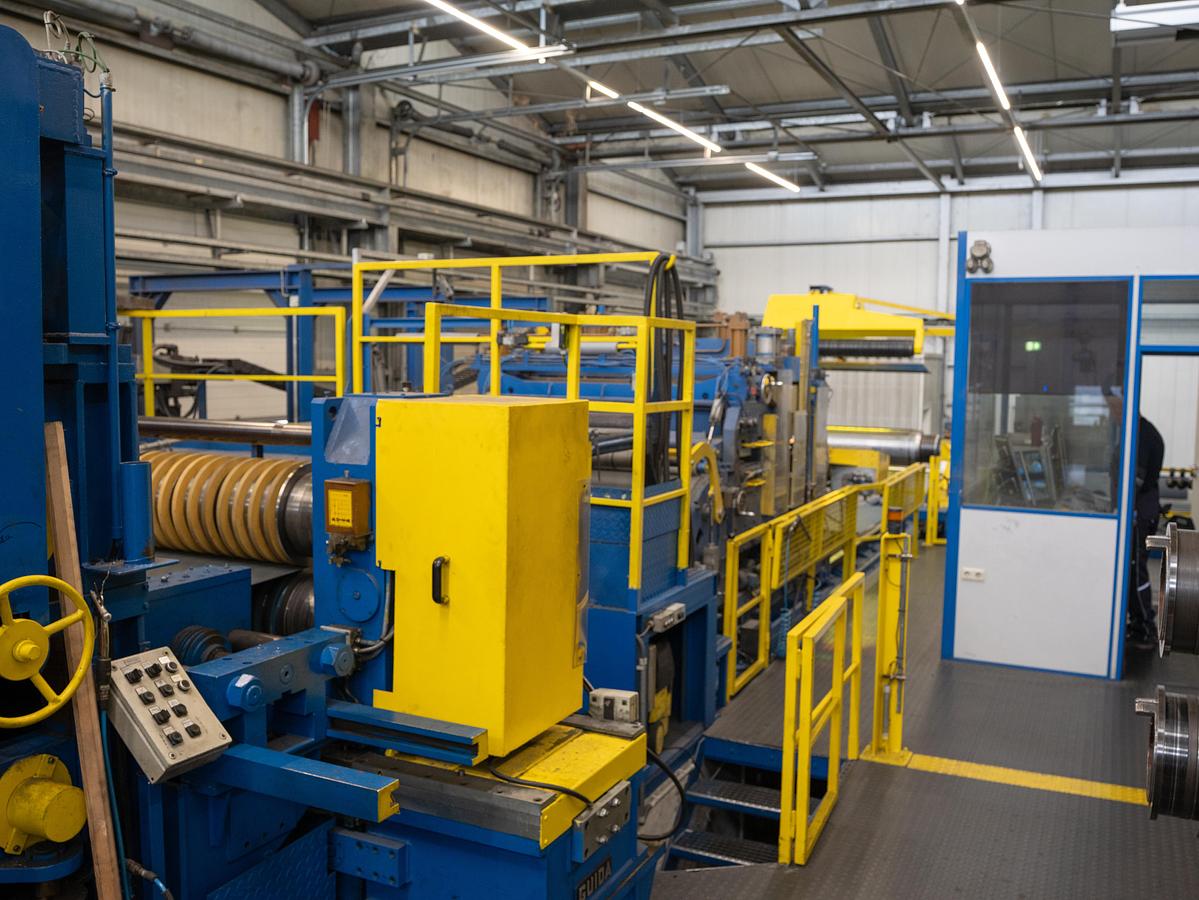

65” x .098” Slitting Line

Specifications:

Material Thickness: .012” - .098” (0.3 - 2.5 mm)

Minimum Strip Width: 15.75”

Maximum Strip Width: 64.96”

Minimum Slit Width: 1.18” (30 mm)

Edge Trim: .197” Per Side (5 mm)

Uncoiler Coil ID: 20” / 24” (508 / 610 mm)

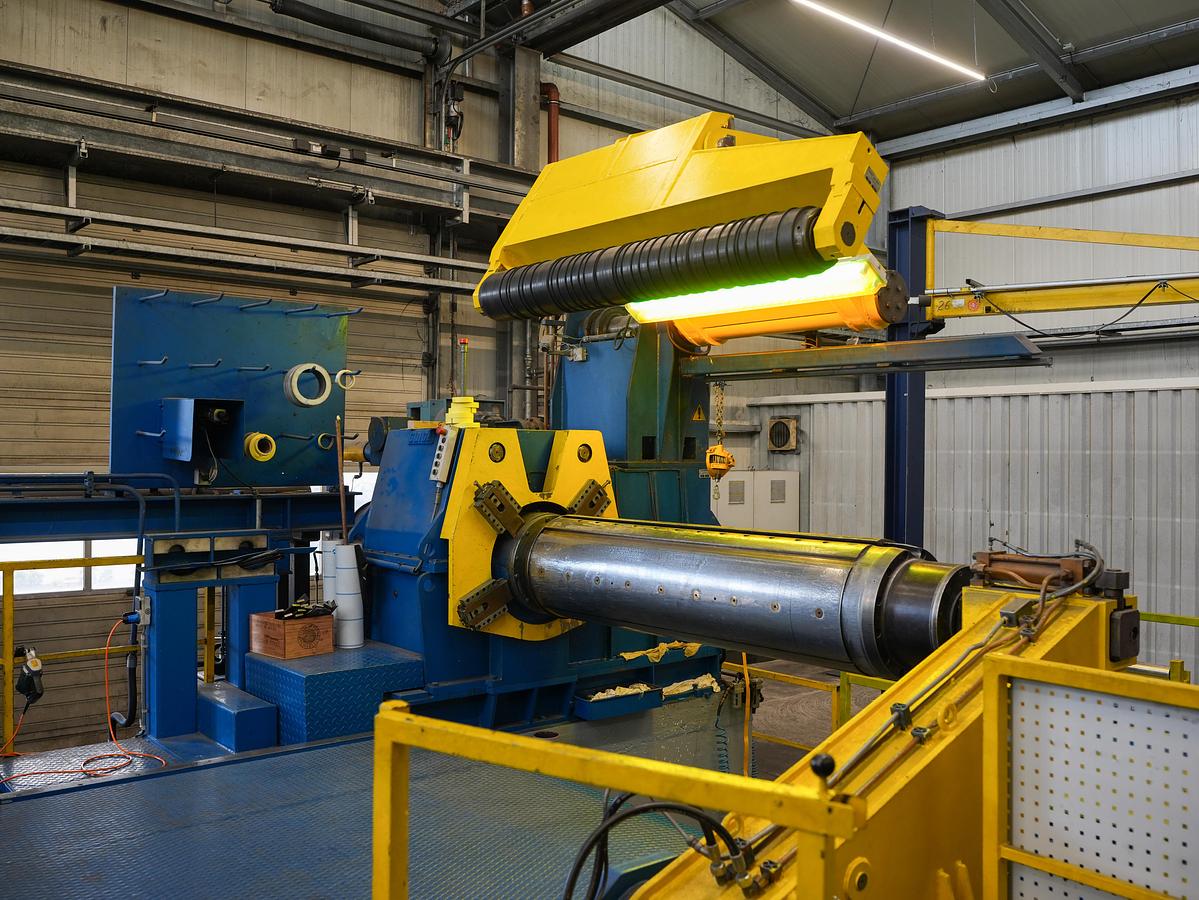

Recoiler Coil ID: 20” / 24” (508 / 610 mm) With Packing Plates

Maximum Uncoiler Coil OD: 71.65” (1820 mm)

Maximum Recoiler Coil OD: 71.65” (1820 mm)

Crane Capacity: 23 Metric Tons

Uncoiler Capacity: 25 Metric Tons

Recoiler Capacity: 25 Metric Tons

Coil Transfer Car Capacity: 25 Metric Tons

Uncoiler Hold-Down Arm: 0” - 71.65” Coil OD

Recoiler Hold-Down Arm: 0” - 70.87” Coil OD

Brake: Plate Brake

Paper Wrapping: Yes

Film Coating: Available

Recommended Slitting Capacity (Stainless Steel):

Material Thickness: .098” - .138”

Recommended Maximum Number Of Strips: 5

Material Thickness: .059” - .098”

Recommended Maximum Number Of Strips: 14

Material Thickness: .039” - .059”

Recommended Maximum Number Of Strips: 20

Material Thickness:

.012” - .039”

Recommended Maximum Number Of Strips: 25

Notes:

For Hard-Rolled Material, The Recommended Maximum Number Of Strips Should Be Reduced By 50%.
