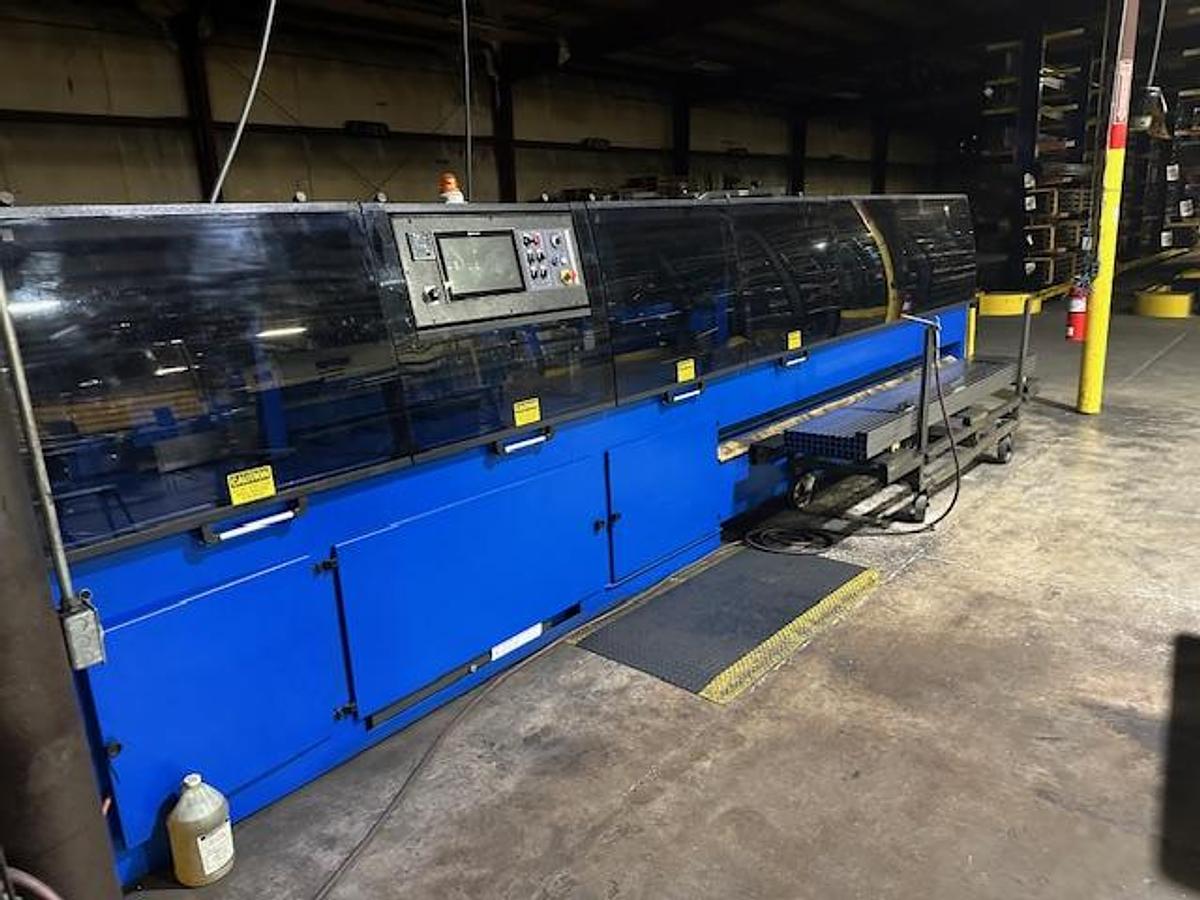

2024 Trennjaeger TUS 425 DGA CNC Automatic Double Miter Cold Saw

Specifications:

Automatic Double Miter Circular Saw

Underfloor Circular Saw With Hardened Gears And Hydraulic System

Double Miter Saw, Stepless From -30° To 90° To +30° With Servo Drive

Automatic Cutting Of:

Different Lengths

Different Quantities

Different Angles

Programmable Control:

200 Programs

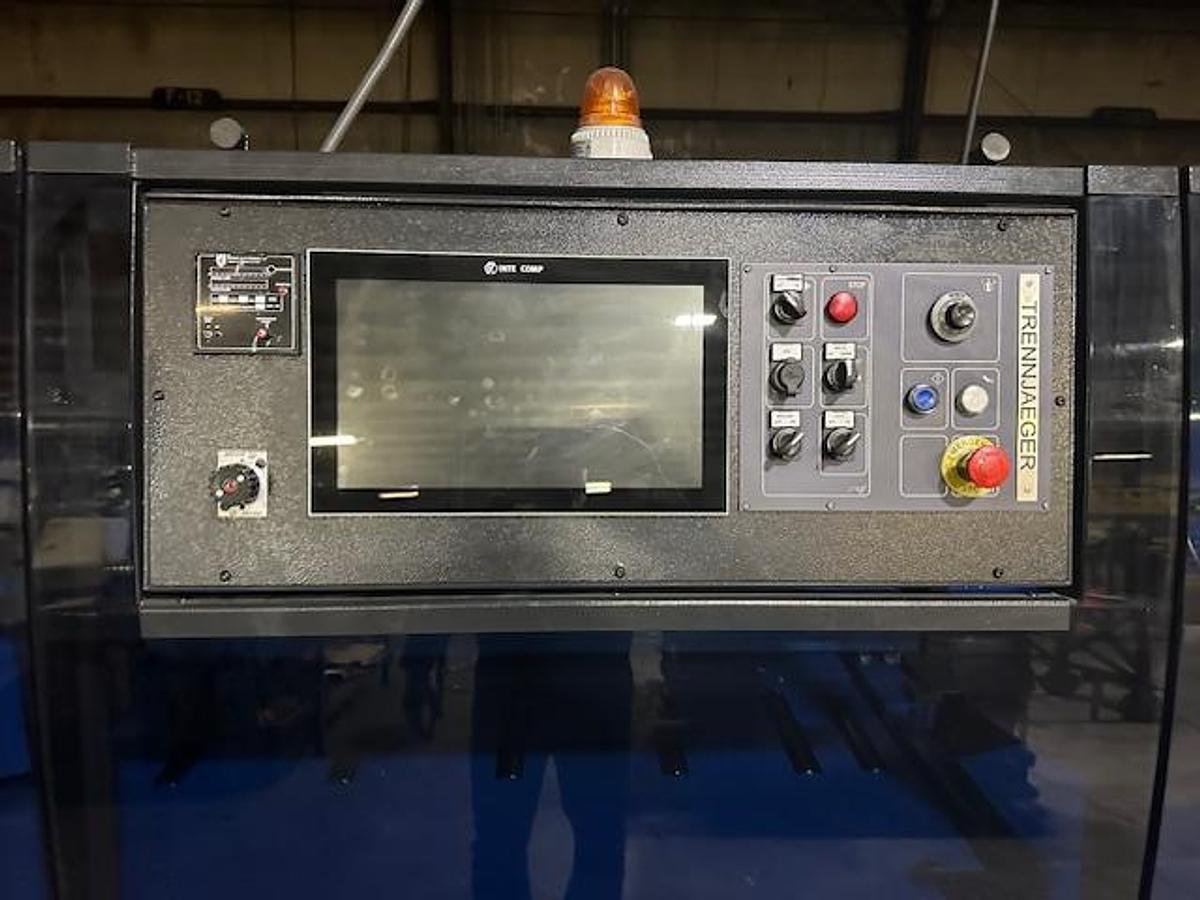

Display:

10” Color Touch Screen

Easy-Use Graphic Interface With Ready-Made Masks For Symmetric And Asymmetric Cuts

Operating Modes:

Automatic

Semi-Automatic

Manual

Service

Waste Cutting Calculation Between Workpieces To Minimize Scrap

Cross Cut Pre-Selection

USB Connection For Data Exchange

Multiple Reversing Feed Pliers:

59.06” (1500 mm)

Ball Screw And Servo Drive

Saw Blade Feed:

Continuously Hydraulic

Overload Protection

LED Utilization Display

Saw Blade Diameter: 16.73” (425 mm)

Coolant:

Flood Coolant Lubrication

Minimum Lubrication Optional

Saw Blade Speed:

13 - 210 M/Min

10 Stepless Speed Ranges

Clamping System:

Hydraulic Horizontal And Vertical Clamping

Clamping Range: Up To 5.91” (150 mm)

Clamping Vises:

Total Stroke

Self-Regulating Short Stroke In Working Mode

Cutting Capacity:

90°:

5.31” Round

4.72” x 4.72” Square

45°:

4.72” Round

3.94” x 3.94” Square

30°:

4.33” Round

3.15” x 5.12” Rectangle

Angle Adjustment:

Stepless

Frequency-Controlled Gear Motor

Digital Angle Adjustment ±0.2°

Options:

Gusset Cut With Feed And Retraction Of Material Pliers

Machine Cover: Pneumatic Cylinder Lift

Electrical: 400V / 50 Hz

Other Voltages: Available Upon Request

Includes:

Operating Tools

Documentation

CE Standard

Dimensions:

Length: 118.11” (3000 mm)

Width: 54.33” (1380 mm)

Height: 82.68” (2100 mm)

Weight: 5,732 Lbs. (2600 kg)

Accessories:

Mist Coolant

Transformer

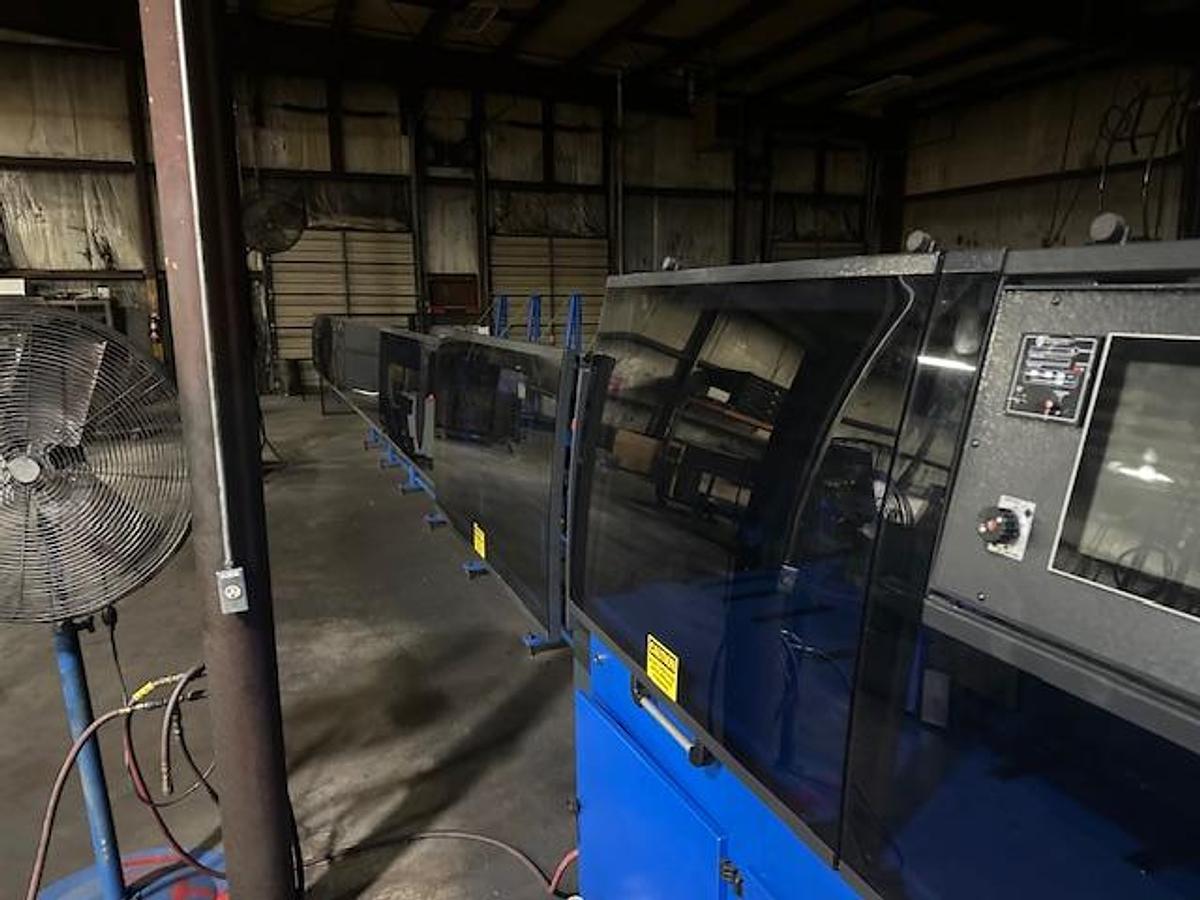

24’ Infeed Bundle

Tolerance: ±10

Notes:

-All Operating Elements Are Arranged According To The Latest Ergonomic Standards.

-The Circular Saw Construction And Design Comply With CE Standards.
