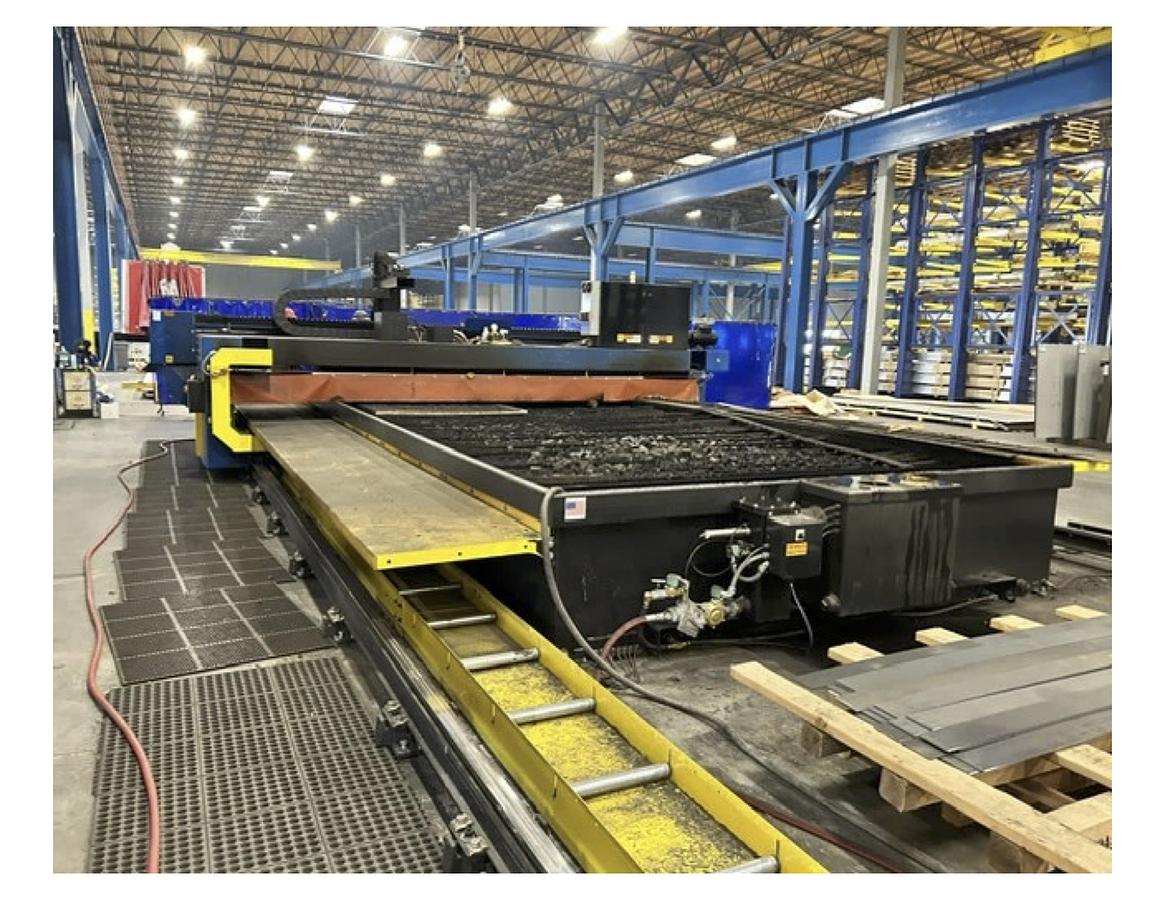

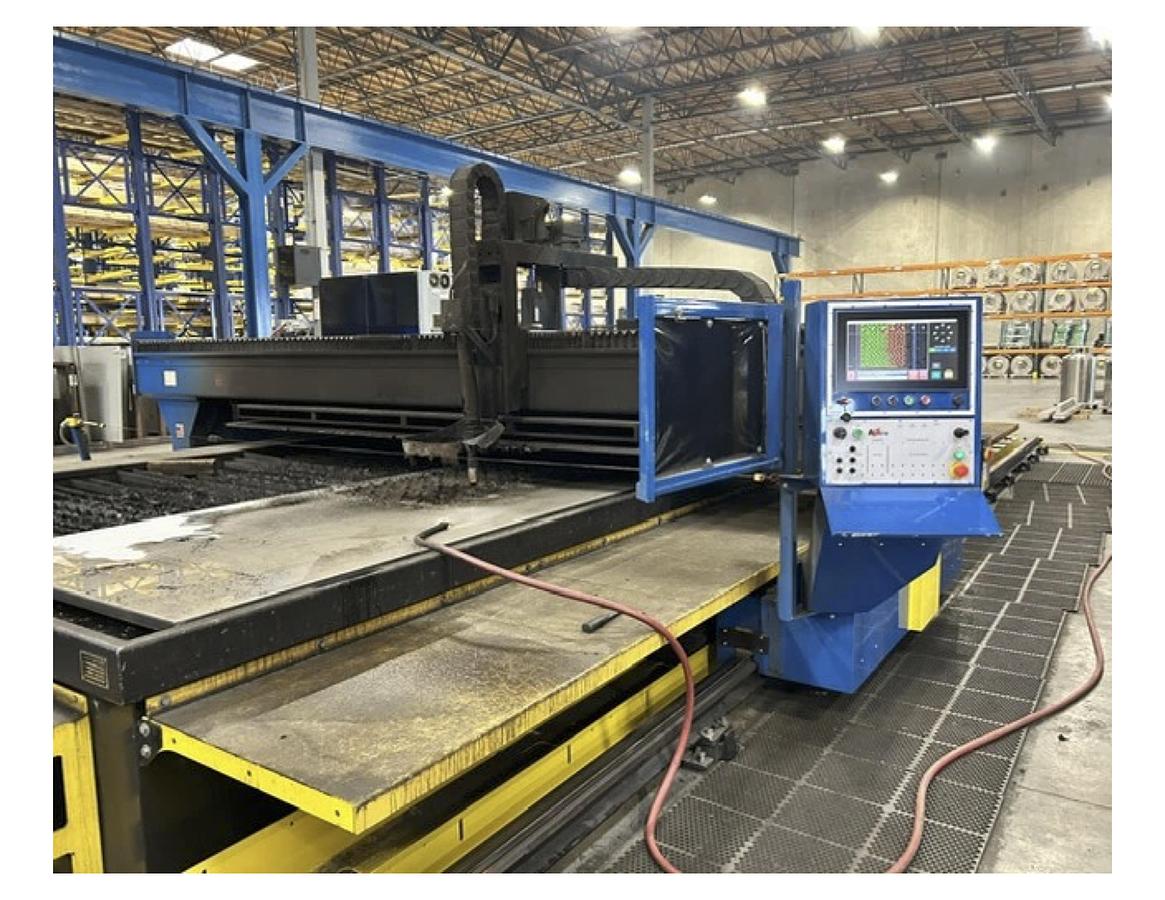

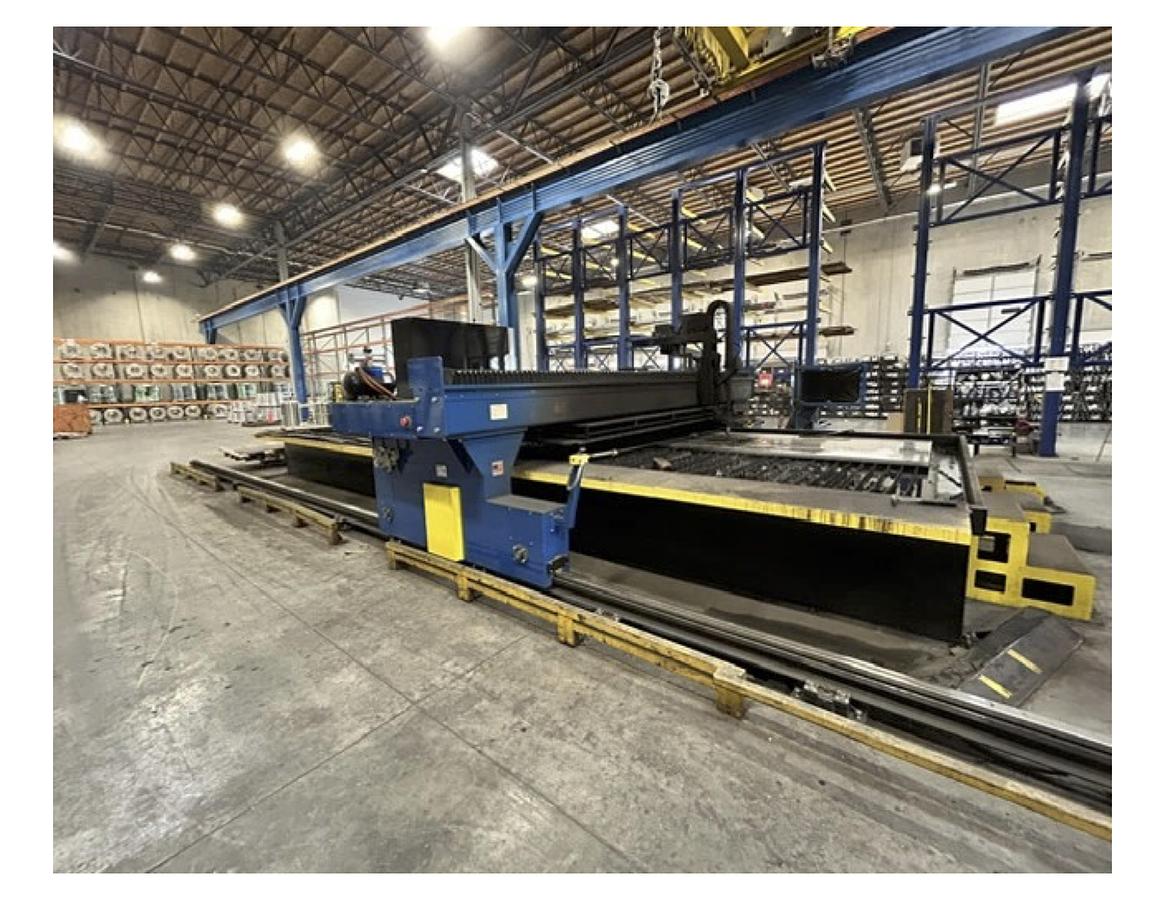

ALLtra Precision Gantry Shape Cutting Machine

Specifications:

Manufacturer:  ALLtra Corp

Model:  HG30-13SRHTR

Nominal Cut Area (LxW):  50'-8" x 23'-0"

Power Requirements:

     Gantry - 480V/3-ph/60HZ/22A

     Plasma - 480V/3-ph/60Hz/110A (Qty 2)

     Chiller - 480V/3-ph/60Hz/15A

Bridge / Gantry:

Controller:  MS Windows 10PC Based

Drives:  Bosch Rexroth AC Servo SERCOS

Rails size / length / spacing:  “Machined Railroad” / 42’-0” (Qty 2) / 16’-9”

Plate position indicator(s):  1x Laser, 1x Camera

# Y-Axis Carriages / Spacing (Manual/Auto):  1 / N/A

Plasma Equipment:

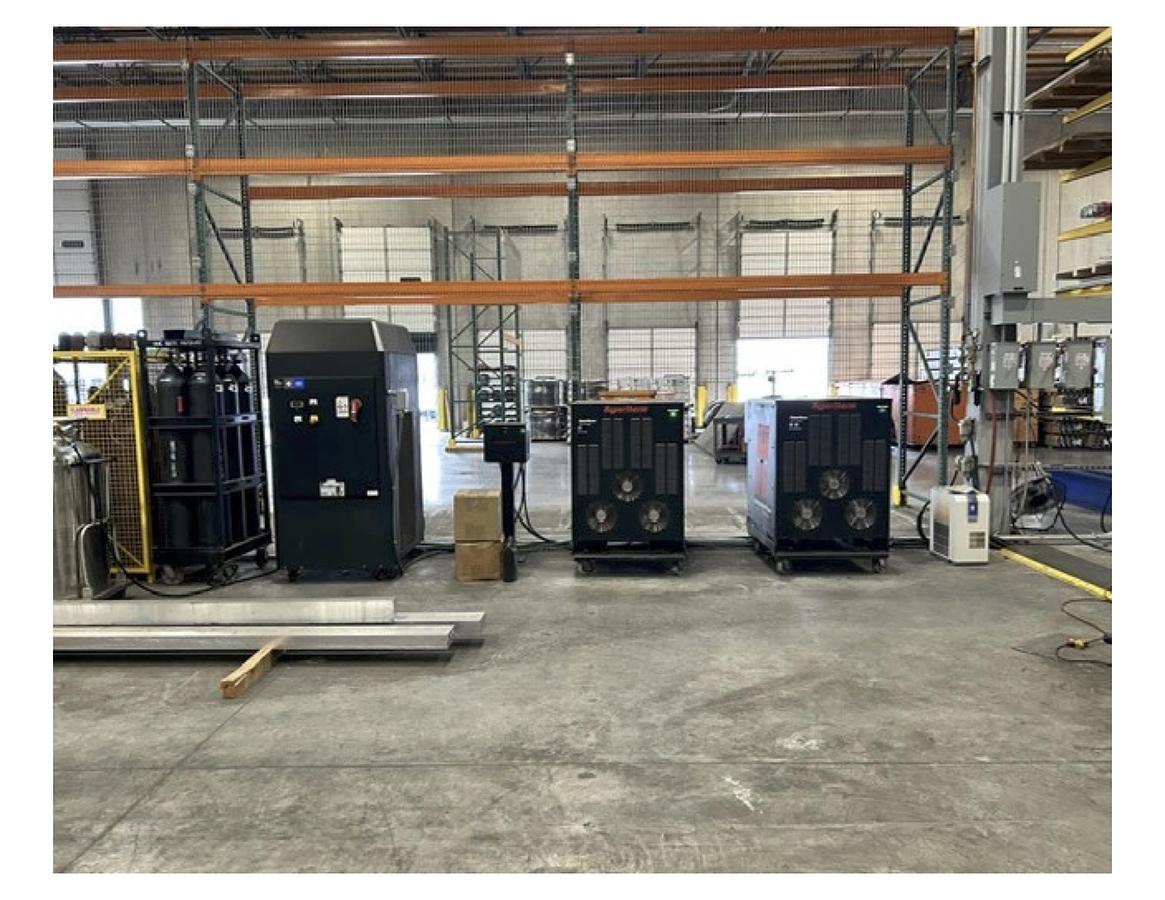

Power Supplies / Qty:  Hypertherm HPR800XD / 1

Torch Positioners / Qty:  Type TBV / 1

Torch Collision Sensors / Qty:  Included / 1

Cutting Table:

Type:  Water Table

Make:  ALLtra

Size (LxW):  32'-6" x 11'-8"

Options / Features:

Travel speeds up to 600 inches per minute

Water chiller for plasma supply units

Machine Status Light (Cutting/Idle/E-Stop)

E-stop pull cable at front and rear of gantry
