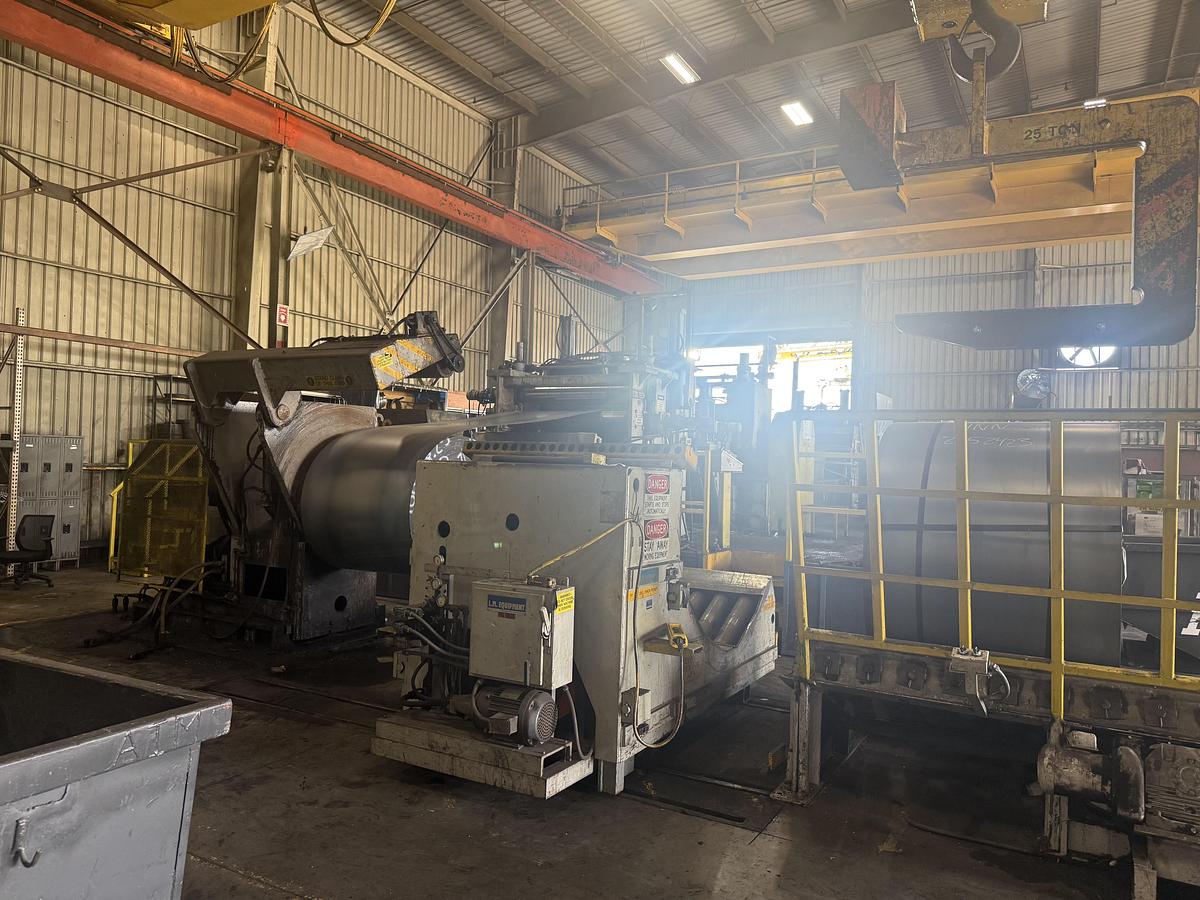

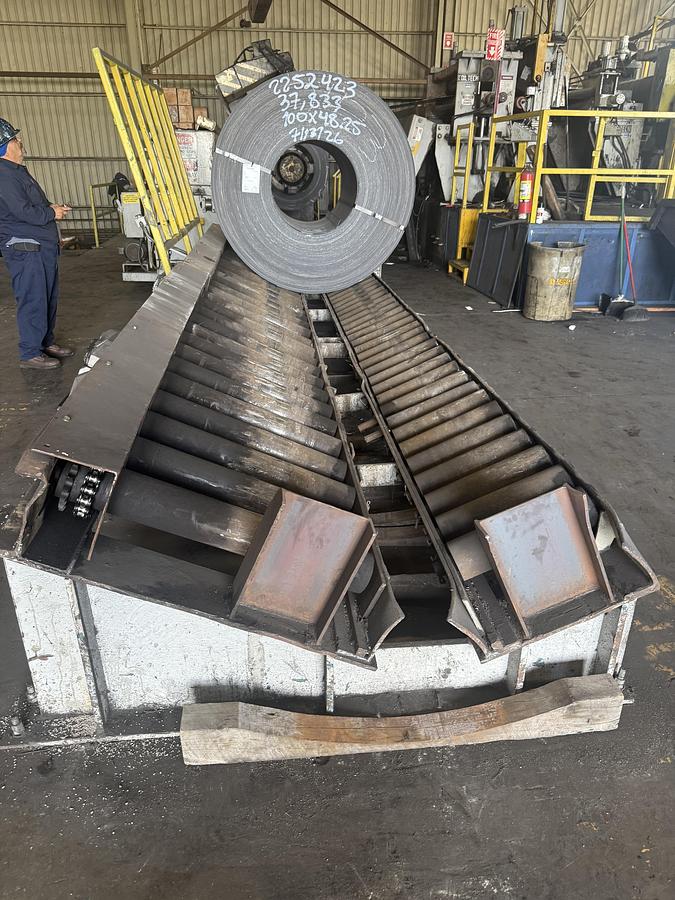

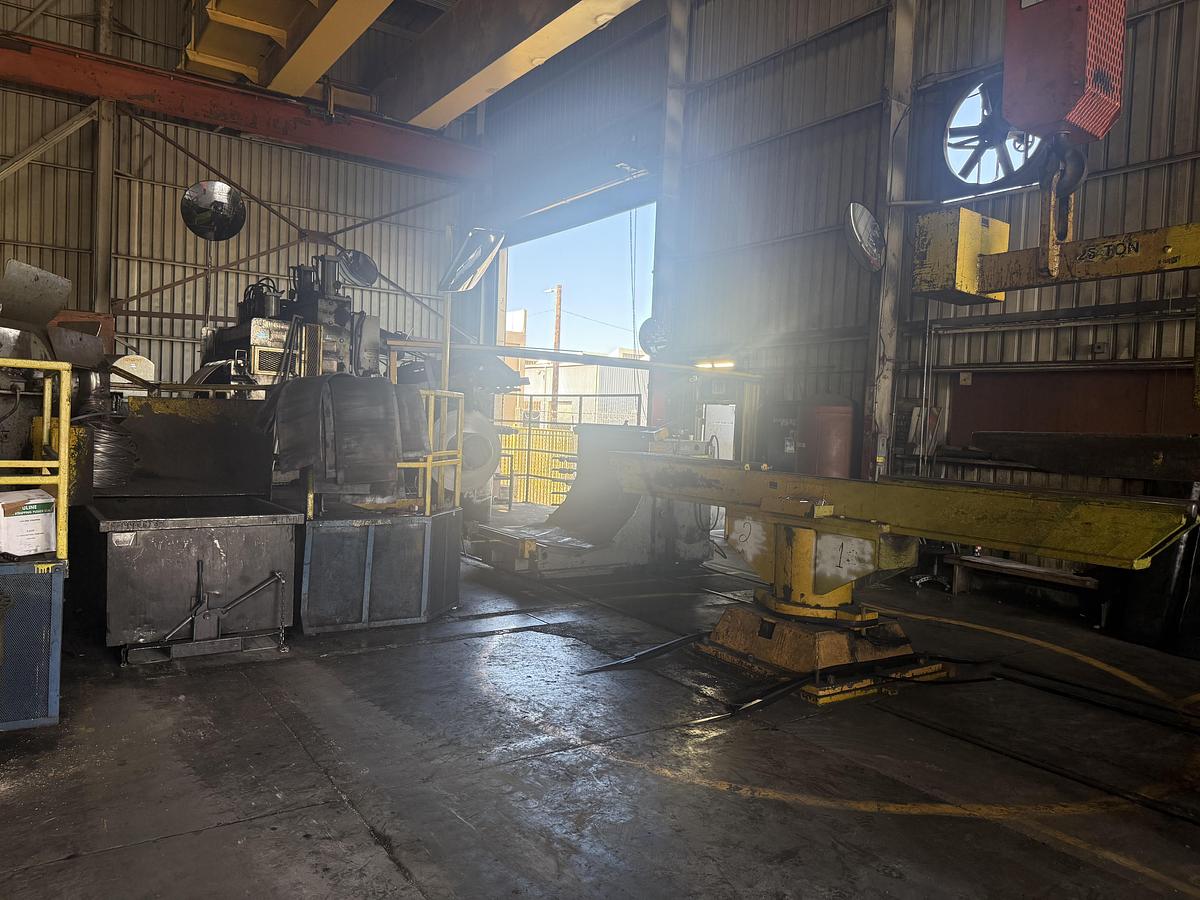

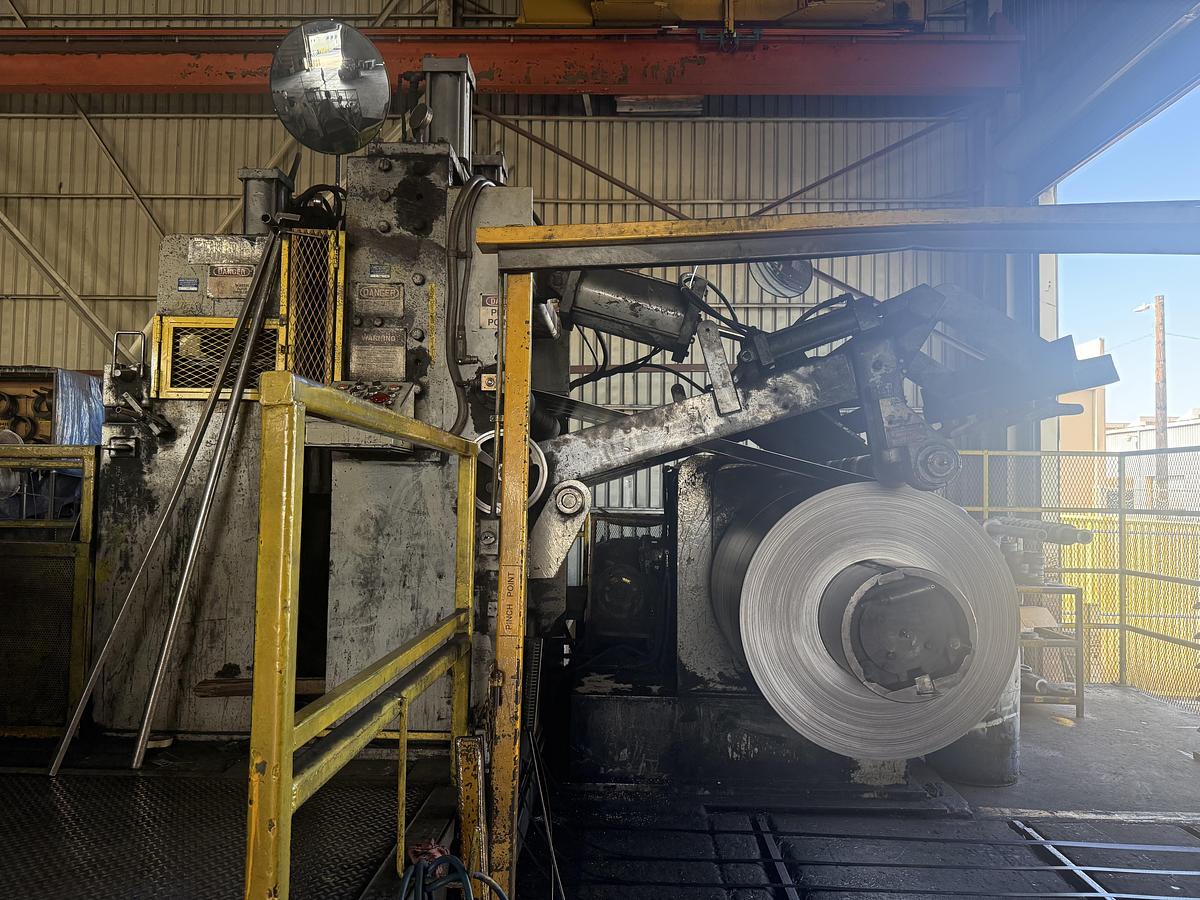

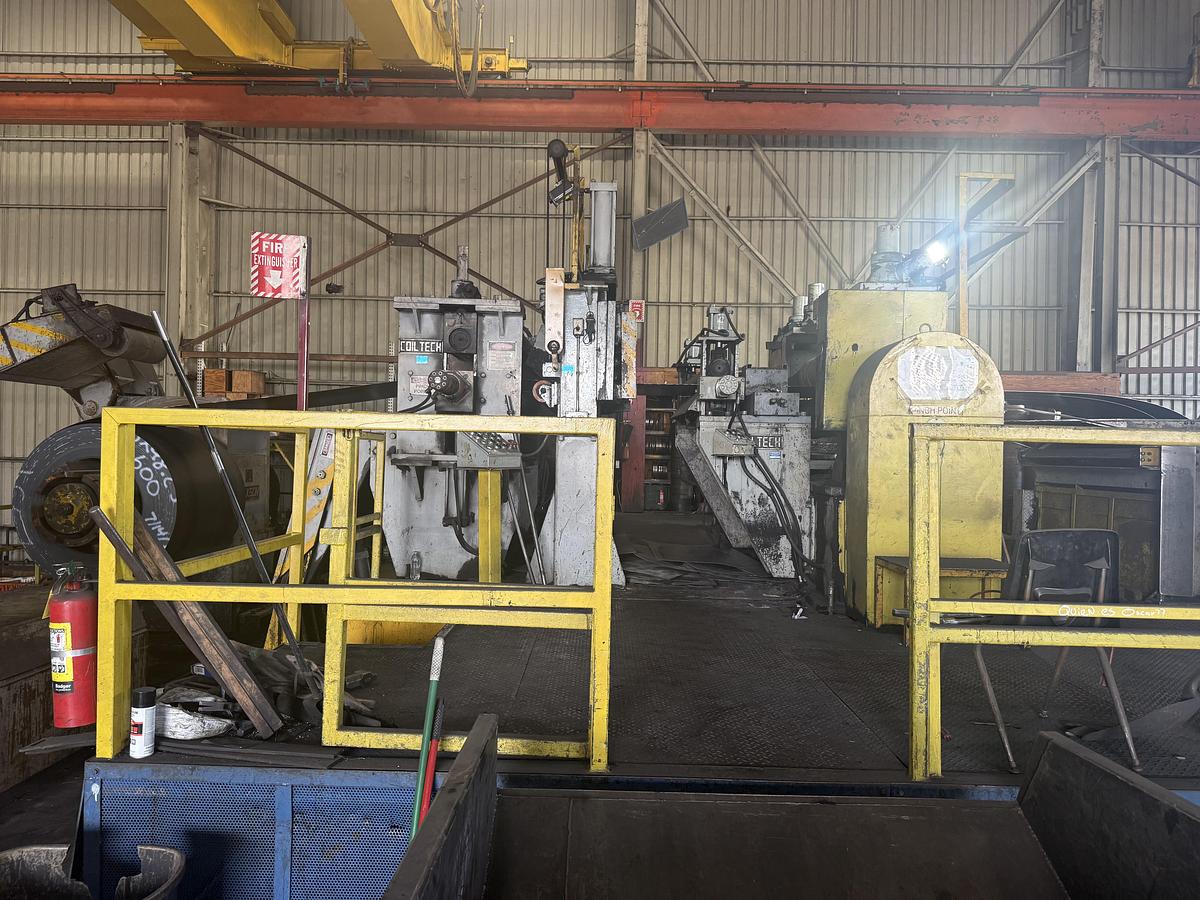

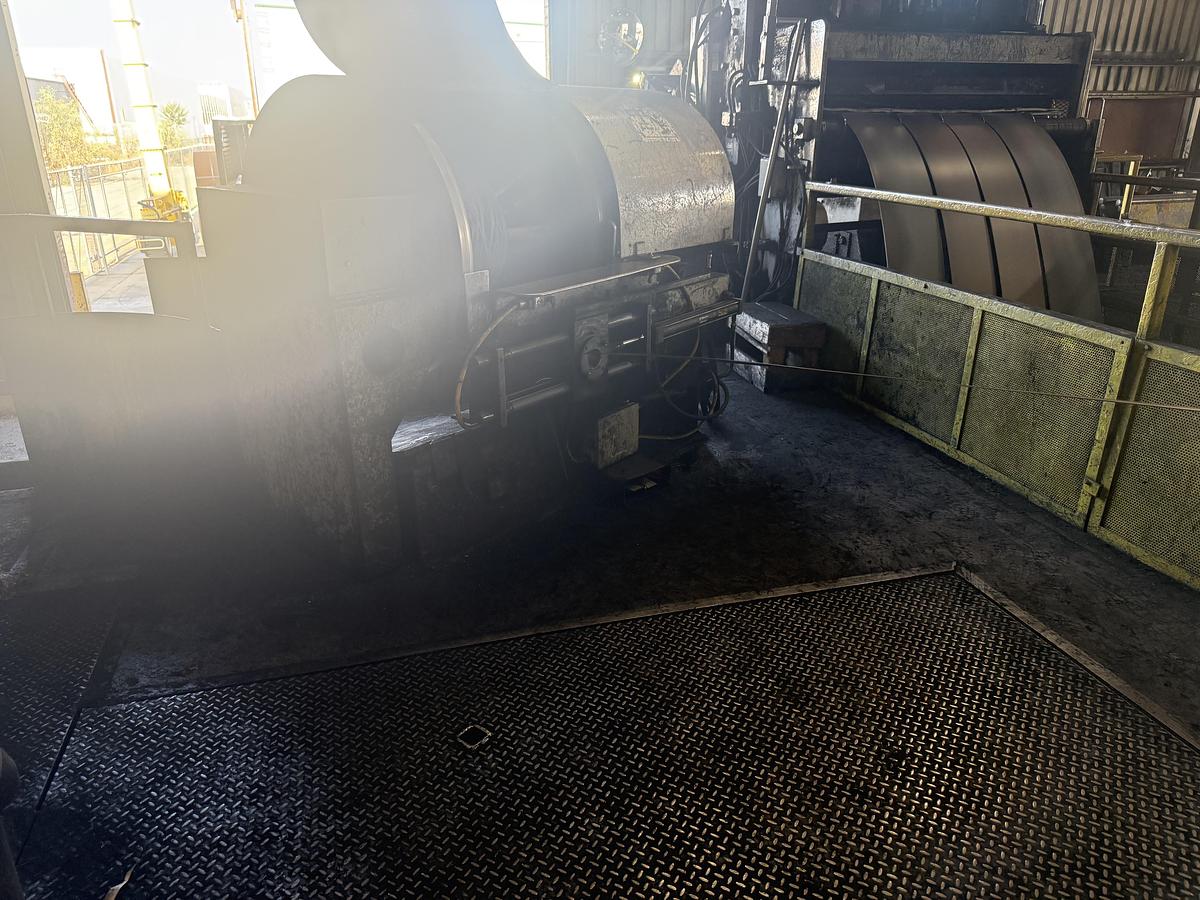

60” x .250” x 48,000 Lb Paxson Slitting Line

This used Paxson slitting line efficiently processes materials like low to medium carbon steel, including hot rolled and cold rolled formats, as well as galvanized and aluminized steels. It handles a maximum coil weight of 48,000 lbs with entry and exit coil diameters up to 72 inches. The line accommodates entry coil IDs ranging from 20 to 28 inches and provides consistent operations with a width tolerance of ±0.005 inches. Its slitting capabilities include handling widths from 12 to 60 inches, with a minimum slit width of 1.250 inches. The system features a robust slitter size of 10 x 60 inches driven by a 150 HP DC motor, matched by a recoiler drive of equal power. It supports material thicknesses between 0.048 and 0.250 inches with a shear strength cap of 60,000 PSI. This line offers variable speeds from a standstill to 386 feet per minute, suitable for diverse production needs. The slitting capacity is noteworthy, with up to 20 cuts at thinner gauges and 8 cuts on the thicker end. Overall, the Paxson slitting line delivers reliable performance for high-demand slitting with precision and flexibility to meet various industrial requirements. Its construction ensures durability and efficiency in processing substantial material loads while offering versatility in cut numbers across different thicknesses.
